USER MANUAL WL 300 18.0 Flex
WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION!
Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.
NOTE
Denotes application tips and important information.
Symbols on the power tool
To reduce the risk of injury, read the operating instructions!
Do not stare at operating lamp
Disposal information for the old machine
For your safety
WARNING!
Before using the power tool, please read and follow:
– these operating instructions,
– the currently valid site rules and the regulations for the prevention of accidents.
This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.
Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.
The handy LED light may be used only
-asintended,
– in perfect working order.
Faults which impair safety must be repaired immediately.
Intended use
The handy LED light is designed
– for commercial use in industry and trade,
– for illuminating distant objects and areas requiring additional light.
Safety warnings for handy led light
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ The light source of this luminare is not replaceable; when the light source reaches its end of life the whole luminare shall be replaced.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
■ Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
■ Do not direct the light beam at persons or pets and avoid staring into the light even from a distance.
■ To reduce the risk of injury, do not share at operating lamp. Serious eye injury could occur.
■ To reduce the risk of burns, do not touch hot lens.
■ Do not operate this light in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Light create heat which may ignite the dust of fumes.
■ Recharge battery packs only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use the appliance only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ When battery pack is not in use, keep it from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eye, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk injury.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F(130°C) may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
■ Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
- Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
■ To reduce the risk of injury, close supervision is necessary when a product is used near children.
■ Do not contact hot parts.
■ Only use attachments recommended or sold by the manufacturer.
■ Do not use in the rain.
■ To reduce the risk of electrical shock, do not put the appliance in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.
Technical specifications
| B | ||
| WL 300 18.0 | ||
| V d.c. | Rated Voltage 18V(battery) | |
| W Rated power 3 | ||
| ° | Rotation angle of lamp head | 104 |
| m Kg 0.4 | ||
| T | Recommended operating temperature | -10 - 40°C |
| LM | Total flux 300/150 | |
Overview (see figure A)
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Lens (Transparent Cover)
2 On/Off Switch
3 Pivot Head
4 Integral Hook
5 Soft Grip
6 Strap fixing - For attaching a wrist strap (not included) in order to reduce the chances of dropping your tool.
7 Belt Clip
Operating instructions
NOTE
When the power tool is switched off, the tool continues running briefly.
For further information on the manufacturer's products go to www.flex-tools.com.
WARNING!
Before performing any work on the power tool, remove the battery pack from the tool.
Before switching on the power tool
Remove the battery pack from the tool and check that there are no missing or damaged parts.
To attach/detach battery pack (See figure B)
NOTICE: Please refer to the battery pack and charger manuals for detailed operating information.
To attach the battery pack:
Align the raised rib on the battery pack with the grooves in the tool, and then slide the battery pack onto the tool.
NOTICE: When placing the battery pack onto the tool, be sure that the raised rib on the battery pack aligns with the groove inside the tool and that the latches snap into place properly. Improper attachment of the battery pack can cause damage to internal components.
To detach the battery pack
Depress the battery-release button located on the front of the battery pack, to release the battery pack. Pull the battery pack out and remove it from the tool.

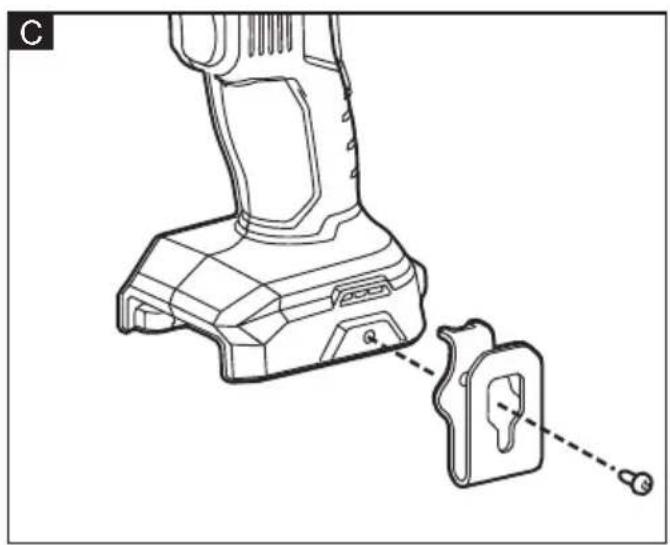

Removable belt clip (See figure C)
Your tool is equipped with a removable belt clip that can be positioned on the side of the tool for convenient transport.
Install the belt clip onto the tool:
a. Remove the battery pack from the tool.
b. Align the rib and the hole of the belt clip with the opening and the threaded hole on the base of the tool, respectively.
c. Insert the screw and securely tighten the screw with a screwdriver (not included).
Remove the belt clip from the tool:
a. Remove the battery pack from the tool.
b. Use a screwdriver to loosen the screw that attaches the belt clip to the impact wrench.
c. Remove the screw and the belt clip.

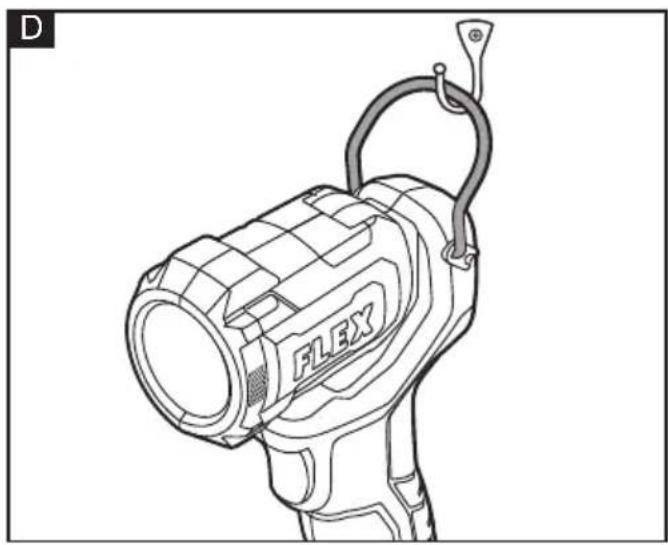

Integral hook (See figure D)
Your tool is equipped with a hanging hook. It can be carried or hung on a hook or a hook-like object.
To prevent the risk of injury or product damage, make sure that the hook is sturdy enough to hold the weight of the light with attached battery pack.

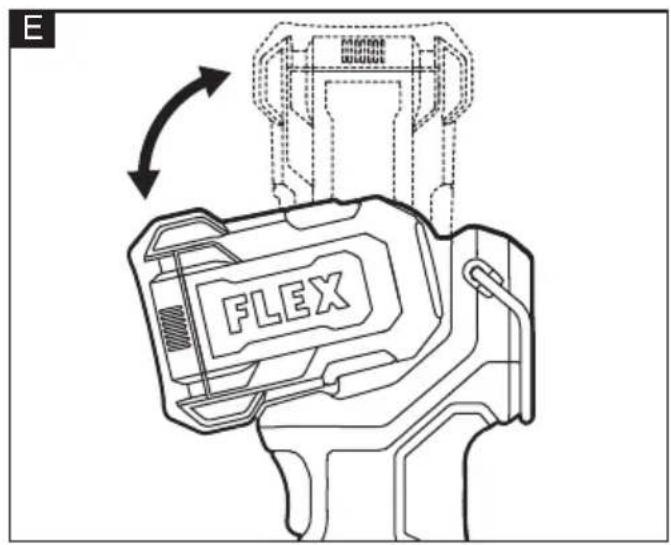

Adjusting the light head (See figure E)
The light head pivots 104° for maximum flexibility. Manually move the head to any position within the pivot range. Do not force the head beyond that range.
Switching on and off (See figure F)
Your light is equipped with a two-stage brightness adjustment, providing different light intensities for your operation.
Press the ON/OFF switch to turn on the light in the maximum brightness stage.
Press the ON/OFF switch again to change to the minimum brightness stage.
Press the third time to turn the light off.
CAUTION!
When the handy LED light flashes and goes out, it means that the battery voltage is low and needs to be charged.
Following a power failure, the switched-on power tool will not start running again.
Maintenance and care
WARNING!
Before performing any work on the power tool, remove the battery pack from the tool.
Cleaning
■ Clean the power tool and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.
Spare parts and accessories
For other accessories, in particular tools and handy LED light accessories, can be found in the manufacturer's catalogues.
Exploded drawings and spare-part lists can be found on our homepage:
www.flex-tools.com
Disposal information
EU countries only
Do not throw electric power tools into the household waste! In accordance
with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law, used electric power tools must be collected separately and recycled in an environmentally friendly manner.
Raw material recovery instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
NOTE
Please ask your dealer about disposal options!
Exemption from liability
The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.
Technical specifications
Technical specifications
| B | ||
| WL 300 18.0 | ||
| V d.c. | Merkespenning 18V (batteri) | |
| W N | Nominell effekt 3 | |
| ° | Rotasjonsvinkel på lampehodet | 104 |
| m Kg | 0,4 | |
| T | Anbefalt driftstemperatur | -10 - 40°C |
| LM | Total flyt 300/150 | |
