USER MANUAL Multiquick 5 MQ 5000 Soup BRAUN

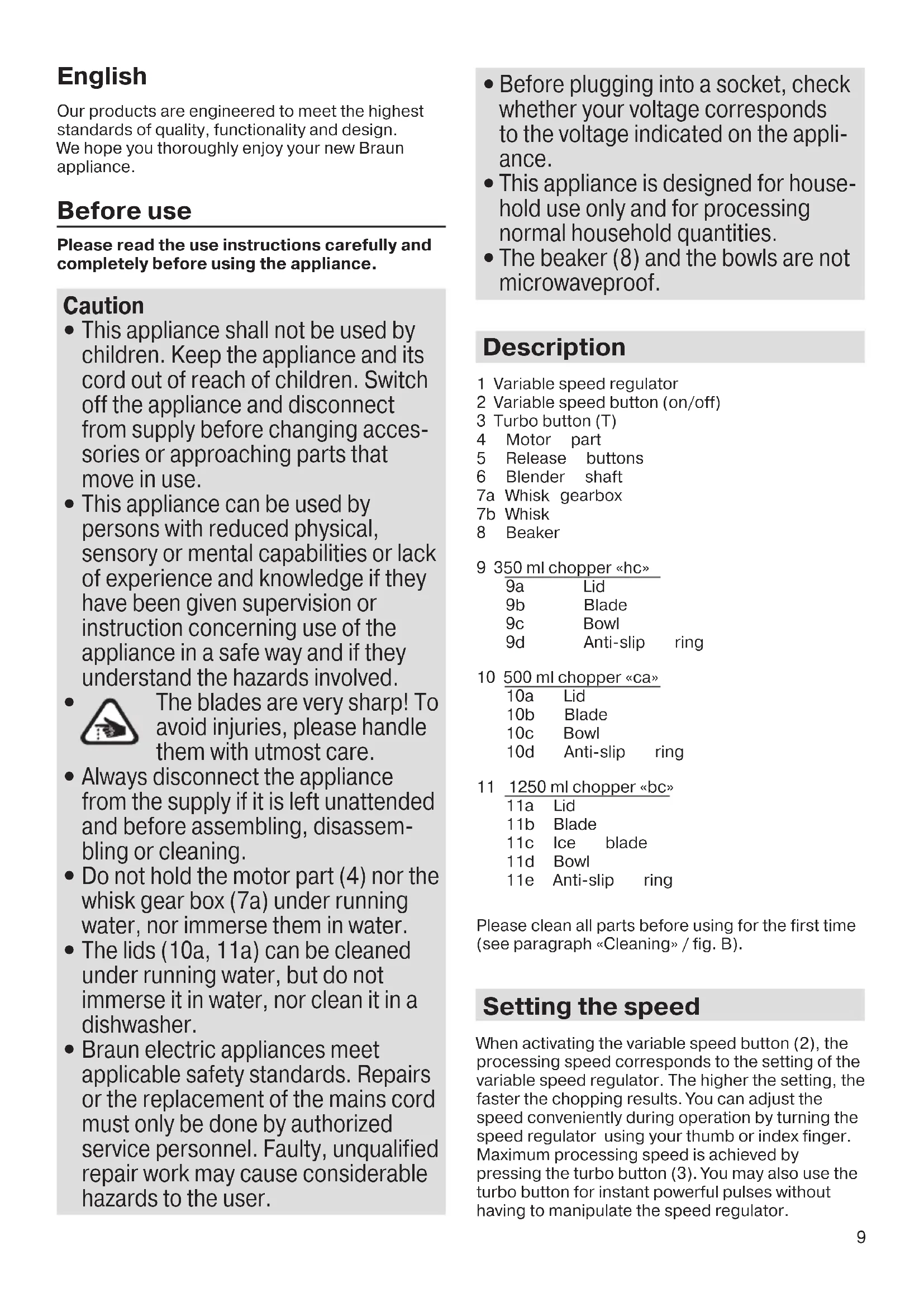

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read the use instructions carefully and completely before using the appliance.

Caution

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

The blades are very sharp! To avoid injuries, please handle them with utmost care.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not hold the motor part (4) nor the whisk gear box (7a) under running water, nor immerse them in water.
• The lids (10a, 11a) can be cleaned under running water, but do not immerse it in water, nor clean it in a dishwasher.

• Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorized service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.

• Before plugging into a socket, check whether your voltage corresponds to the voltage indicated on the appliance.

• This appliance is designed for household use only and for processing normal household quantities.
• The beaker (8) and the bowls are not microwaveproof.

Description

1 Variable speed regulator
2 Variable speed button (on/off)
3 Turbo button (T)
4 Motor part
5 Release buttons
6 Blender shaft
7a Whisk gearbox
7b Whisk
8 Beaker

9 350 ml chopper «hc»

9a Lid
9b Blade
9c Bowl
9d Anti-slip ring

10 500 ml chopper «ca»

10a Lid
10b Blade
10c Bowl
10d Anti-slip ring

11 1250 ml chopper «bc»

11a Lid
11b Blade
11c Ice blade
11d Bowl
11e Anti-slip ring

Please clean all parts before using for the first time (see paragraph «Cleaning» / fig. B).

Setting the speed

When activating the variable speed button (2), the processing speed corresponds to the setting of the variable speed regulator. The higher the setting, the faster the chopping results. You can adjust the speed conveniently during operation by turning the speed regulator using your thumb or index finger. Maximum processing speed is achieved by pressing the turbo button (3). You may also use the turbo button for instant powerful pulses without having to manipulate the speed regulator.

Hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milk shakes.

For best blending results use highest speed.

• Click the motor part (4) into the blender shaft (6).
• Position the hand blender deep in a beaker or bowl. Then switch the appliance on as described above.
  After use unplug and press the release buttons (5) to detach the motor part.

When blending directly in the saucepan while cooking, remove the pan from the stove first to avoid splashing of the boiling liquid (risk of scalding).

Recipe example: Mayonnaise

250 g oil (e.g. sunflower oil),

1 egg and 1 extra egg yolk,

1-2 tbsp. vinegar (approx. 15 g),

salt and pepper to taste

Place all ingredients (at room temperature) into the beaker in the order as mentioned above. Place the hand blender on the bottom of the beaker. Operate the hand blender at maximum speed, keep it in this position until the oil starts emulsifying. Then without switching off slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. Processing time: from 1 minute (for salad) up to 2 minutes for more stiffness (e.g. for dip).

Whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

• Insert the whisk (7b) into the whisk gear box (7a) then click the motor part (4) into the gear box.
• Place the whisk in a bowl and only then switch the appliance on.
  After use, unplug and press the release buttons (5) to detach the motor part. Then pull the whisk out of the gear box.

Tips for best results

• Use a medium-sized bowl.
• Move the whisk clockwise, holding it slightly inclined.
• Whipped cream (max. 400 ml chilled cream, min. 30% fat content, 4-8 °C):

Start with low speed and increase the speed (by turning the speed regulator) while whipping.
- Beaten egg whites (max. 4 eggs): Start with a medium speed and increase the speed (by turning the speed regulator) while whipping.

Choppers

The choppers (9,10,11) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, carrots, nuts, almonds etc.

Always chop hard food at full speed (e.g. parmesan, chocolate).

For best results see processing tables (D,E,G).

Maximum operation time for the «hc» chopper:

2 minutes (large amounts of wet ingredients) / 30 seconds (dry or hard ingredients or amounts < 100g / 100ml ). Immediately stop processing when motor speed decreases and/or strong vibrations occur.

For ice crushing, use the «bc» chopper with the ice blade (11c). Do not chop extremely hard food such as nutmeg, coffee beans and grains.

Before chopping ...

• Pre-cut meat, cheese, onions, carrots.
• Remove stems from herbs, shell nuts.
• Remove bones, tendons and gristle from meat.
  Always make sure that the anti-slip ring is attached to the bowl.

Caution: The blade is very sharp! Always hold it by the upper plastic part and handle it carefully.

1. Carefully remove the protective cover from the blade.
2. Place the blade on the centre pin of the bowl, push it down and give it a turn so that it locks.
3. Fill the chopper bowl with food and put on the lid.
4. Click the motor part onto the lid.
5. Press button (2) or (3) to operate the chopper. During processing, hold the motor part with one hand and the bowl with the other.
6. After use, unplug and press the release buttons (5) to detach the motor part.
7. Remove the lid.
8. Carefully take out the blade before removing the processed food. To remove the blade, slightly turn and pull off.

Recipe example: Vanilla-Honey-Prunes (as a pancake stuffing or spread):

• Fill the «hc» chopper bowl with 50 g prunes and 70 g creamy honey.
• Chop 4 seconds at maximum speed
• Add 10 ml water (vanilla-flavoured).
• Resume chopping for another 1.5 seconds.

Additional applications for the «bc» chopper (11)

With the «bc» chopper, you can also blend shakes or drinks, mix batters or crush ice cubes.

Mixing pancake batter

First pour 375 ml milk into the bowl, then add 250 g flour and finally 2 eggs. Using speed «T», mix the batter until smooth.

Crushing ice cubes

• Firmly push the ice blade (11c) onto the centre pin of the bowl (11d) until it locks.
• Fill the bowl with up to 7 ice cubes. Put on the lid, attach the motor part and operate at full speed.
• After use, detach the motor part, remove the lid and the ice blade.
• Remove the crushed ice or simply pour your drink into the bowl for serving at the table.

Cleaning

Clean the motor part (4) and the whisk gear box (7a) with a damp cloth only. The lids (10a, 11a) can be cleaned under running water, but do not immerse them in water, nor clean it in a dishwasher. All other parts can be cleaned in a dishwasher.

You may remove the anti-slip rings from the chopper bowls for extra thorough cleaning.

When processing foods with a high pigment content (e.g. carrots), the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before cleaning them.

Accessories

can be bought individually, not available in every country)

MQ 10: Whisk for whipping cream, beating egg whites

MQ 20: 350 ml chopper to chop herbs, carrots, etc.

MQ 30: 500 ml chopper to chop carrots, meat, onions, etc.

MQ 40: 1250 ml chopper to chop, mix, blend and crush ice

MQ 50: puree accessory to puree cooked vegetable and potatoes

MQ 70: Compact kitchen machine accessory (1500 ml) to chop, mix, slice and shred.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

We are promptly informed of the defect.
- The product is used and maintained in accordance with the User Instructions.
- The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
- No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
- Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
- The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at www.braunhousehold.co.uk By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.
