Product Type	Blender
Brand	Braun
Model	PowerBlend 9 JB901A
Motor Power	1200 W
Jar Capacity	1.5 L
Jar Material	Tritan copolyester (BPA-free)
Blade Material	Stainless steel
Speed Settings	Variable speed with 9 preset programs
Pulse Function	Yes
Smart Speed Technology	Auto-adjusts speed based on ingredients
Safety Lock	Motor shuts off if jar is not locked
Dishwasher Safe Parts	Jar, lid, blade assembly
Cord Length	1.2 m
Weight	4.5 kg
Dimensions (H x W x D)	40 x 20 x 20 cm
Non-Slip Base	Yes
Cooling Fan	Built-in for prolonged use
Replacement Parts Available	Jar, blades, seals
Warranty	2 years

Frequently Asked Questions - PowerBlend 9 JB901A BRAUN

How do I clean the Braun PowerBlend 9 JB901A?

The jar, lid, and blade assembly are dishwasher safe. For a quick clean, add warm water and a drop of dish soap, then run the pulse function for 30 seconds. Rinse thoroughly.

Can I crush ice with this blender?

Yes, the PowerBlend 9 uses a powerful 1200W motor and stainless steel blades to crush ice easily. Use the Ice Crush preset or pulse function.

What is the maximum liquid capacity?

The maximum liquid capacity is 1.5 L (up to the fill line). Do not exceed the max line to avoid spillage.

How do I use the preset programs?

Simply select one of the 9 preset programs (e.g., Smoothie, Soup, Ice Crush) by pressing the corresponding button. The blender automatically adjusts speed and duration.

Is the blender BPA-free?

Yes, the jar is made of Tritan copolyester, which is BPA-free and shatter-resistant.

What should I do if the blender stops working during use?

First, check that the safety lock is engaged (jar properly seated). If it still doesn't work, unplug for 30 seconds to reset the thermal overload protector.

Can I blend hot ingredients?

Yes, but allow hot liquids to cool to 60°C before blending. Do not fill the jar more than halfway with hot liquids to avoid pressure buildup.

How do I replace the blade assembly?

Unscrew the blade base from the jar by turning counterclockwise. Replace with a genuine Braun blade assembly and tighten securely.

What is Smart Speed technology?

Smart Speed automatically adjusts blending speed based on the consistency of ingredients, ensuring perfect results without manual intervention.

Does the blender have a tamper?

No, the Braun PowerBlend 9 does not include a tamper. However, the Smart Speed technology helps move ingredients into the blades.

USER MANUAL PowerBlend 9 JB901A BRAUN

Type JB 901AI

Register your product

www.braunhousehold.com

English 10

Arabic 15

© Copyright 2021. All rights reserved

De'Longhi Braun Household GmbH

13

flashing

		Program		sec.
	2000 ml	smoothie	smooth medium coarse	AUTO
	2000 ml	smoothie	2x smooth	AUTO
< 25°C >60°C	1800 ml	soup	smooth (hot soup function)*	AUTO
	1800 ml	soup	medium coarse	AUTO
	1000 g	chop	smooth medium coarse	AUTO
	600 g	chop	smooth medium coarse	AUTO
	250 g	chop	2x smooth 2x medium 2x coarse	AUTO

	Program			sec.
	200 g-400 g	chop	2x smooth2x medium2x coarse	AUTO
3 cm	600 g	chop	2x smooth2x medium2x coarse	AUTO
	12x	ice crush	smooth medium coarse	AUTO
+ +	2000 ml	ice crush	smooth medium coarse	AUTO
	400 g-800 g	frozen dessert	smooth medium coarse	AUTO
	600 g	spread	smooth medium coarse	AUTO
15...24°C58...75°F
	500 ml	manual	1.) 1 - 3+2.) 7	60+60
flour	1800 ml	manual	1 - 10	45-60

			Program		[AWSZ]sec.
		500 g-1000 g	pulse	6	10 - 15x pulse
				10	5 - 10x pulse
				6	5 - 10x pulse

smoothie

ice crush

ice crush

smooth medium coarse

sec.

smooth medium coarse

ENGLISH

Safety Instructions Before Use

Please read the user instructions carefully and completely before using the appliance and retain for future reference. Remove all packaging and labels and dispose of them appropriately.

Caution

The blades are very sharp! To avoid injuries, please handle with utmost care. - Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. - This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. • Children shall not play with the appliance. - This appliance shall not be used by children. • Children shall be kept away from the appliance and its main cord. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. - Always switch off and unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.

• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Never immerse the unit in water or other liquids.
• Caution: Ensure the complete lid is placed on the jug before starting into operation.
• Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.
• This appliance is designed for household use only and for processing normal household quantities.
• Do not use the appliance for any purpose other than the intended use described in the user manual. Any misuse may cause potential injury.
• Do not use any part in the microwave.
• Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.
• Always operate the blender with the lid or the guard in position as indicated in the instructions.
• Never put your hand in the jar when it is placed on the base unit. If food needs to be pushed down, use a suitable tool, e.g., a spatula.
• Important: Keep all packaging (plastic bags, polystyrene foam) away from children. • In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance

must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Do not use the device without any load in the jug.
• Do not store food or liquids in the jug.
• Avoid bumping or dropping the blender when in operation or at any time.
• To avoid damage, do not fill the containers past the “max” marking or scale.

Description

1. Measuring cap
2. Jug
3. PrecisionEdge blade
4. Centering pad
5. iTextureControl dial + START/STOP button
6. On/Off switch
7. Timer
8. Illuminated touch display
9. Motor base
10. Cord storage (on back side)
11. Lid incl. gasket
12. Tamper

Smoothie2Go blending set consisting of:

1. 2 x 600 ml Smoothie2Go bottles incl. drinking lids
2. Smoothie2Go blade group incl. gasket
3. Smoothie2Go adapter

Before First Use

Clean all parts before using the blender for the first time – refer to "Care and Cleaning".

(A) Using the Jug

When switched on (6) and any container (2/13) is assembled, MANUAL lights up and the START/STOP button (5) is flashing, indicating the appliance is ready to use.

By removing the measuring cap (1), you can add additional ingredients or liquids at low speed (Fig. A).

Caution:

• Never attempt to operate the appliance without the centering pad (4).
• Be careful when blending hot liquids in the jug using the manual mode. Start blending on speed 1 to avoid possible burns due to escaping steam and splashes. The maximum allowed amount of hot liquid ingredients in the jug is 1500 ml.
• The coupling seat may be hot after running – do not touch.

(B) Automatic Food Programs & Texture Modes

First, select one of the 6 automatic food programs (8) and then select your desired texture (5) to deliver your preferred consistency. Once you press START (5), the timer (7) shows the total blending time and counts down (Fig. B). The program stops automatically when the countdown ends. To stop the program in advance, press any button.

For detailed processing instructions refer to table I.

Pause

To pause the program press START/STOP (5). The timer (7) and the dial (5) start flashing indicating the pause mode. To continue the program press START/STOP again.

"Hot Soup" Function

When using the program "soup" + texture "smooth" the blades in the jug reach speeds fast enough to bring cold ingredients to steaming hot in about 6 minutes.

Caution: Do not insert hot ingredients (warmer than 25 °C) when using this function. When preparing soups with hot pre-cooked ingredients use medium/coarse texture.

(C) Manual Mode

To start or stop blending, press the START/STOP (5) button. The timer (7) counts up (Fig. C).

For detailed processing instructions refer to table I.

(D) Pulse Mode

The pulse mode can be used to break apart larger pieces of food or to control the texture of food when chopping. Pulse at desired speed.

Duration depends on how long you press the START/STOP button (Fig. D).

(E) Using the Double Function Measuring Cap

During operation use the measuring cap (1) to slowly add oil through the dripping hole to emulsify sauces and dressings (Fig. E.a) or easily add small amounts of liquids (Fig. E.b).

(F) Using the Tamper

It helps to push unmixed ingredients down from the jug wall and to bring thick mixtures into the blades while blending. The supplied tamper (12) will not touch the blade when used through the opening of the measuring cap (1) (Fig. F).

Note: It must be used only when the main part of the lid is in place.

(G) Blending with the Smoothie2Go Bottle

Note: When using the Smoothie2Go bottle the programs smoothie and ice crush are available for use. The Smoothie2Go bottle must not be used to blend hot foods or carbonated liquids. To avoid damage, do not fill the container past the “max” marking.

When preparing protein shakes or drinks with alcohol, do not fill beyond max. 400 ml.

For detailed processing instructions refer to table II.

Auto Off

The appliance assembled with the jug (2) stops blending automatically after 6 minutes processing time in manual mode and assembled with the Smoothie2Go bottle (13) after 2 minutes. To re-start operation, press START/STOP (5).

Stand-By

If no speed or mode is selected, the appliance enters stand-by mode automatically after 2 minutes and all indicator lights are switched off, only the timer (7) is dimmed and shows "--:--". To re-activate the blender, press any button or move the dial (5).

Thermal Motor Protection

The blender is equipped with a thermal protector that protects the motor from overheating. If the motor shuts down during operation, unplug the blender and let it cool down for a minimum of 30 minutes before continuing blending.

For Best Results

• If blending action stops during blending, there may not be enough liquid to blend efficiently. Add some more liquid or insert the tamper and stir slowly.
• For preparing small amounts of food, use a low speed level.
• When chopping nuts, cheese, and meat, we recommend running the selected program/texture twice to achieve desired results.
• When chopping vegetables, we recommend adding a small amount of water to improve circulation. After finishing, strain your chopped ingredients.
• Fill the jug in the following order: liquids, dry goods, leafy greens, soft ingredients, hard or frozen ingredients, ice cubes. Fill the ingredients in the reverse order into the Smoothie2Go bottle.
• If blending in manual mode, always start on speed 1 and slowly increase to the desired speed.

- When chopping solid ingredients (such as parmesan, chocolate, or meat), cut them up into small pieces (3 cm).

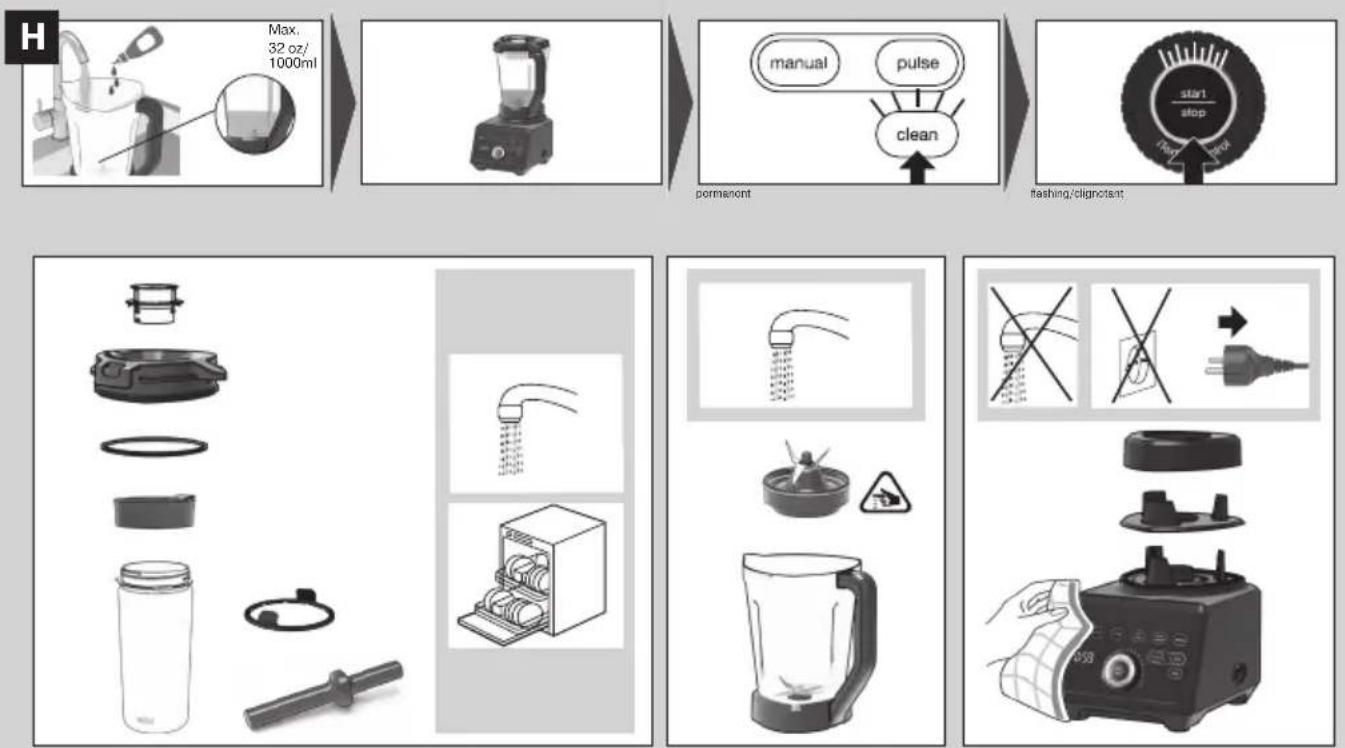

(H) Care and Cleaning

We recommend cleaning the jug by using the CLEAN program to prolong its lifetime. The program will automatically stop once it completes the cycle.

Fill the jug (2) halfway with water, add a few drops of dishwashing soap, and follow the steps as described (Fig. H).

The same procedure applies for the Smoothie2Go bottle (13).

For best results, run the CLEAN program immediately after use. Make sure to thoroughly rinse and air-dry the jug after completion of the program.

Deep Cleaning

We recommend performing a deep cleaning of the jug on a monthly basis using a vinegar solution to remove food residues and stains.

Prepare the vinegar solution in the jug: dilute 500 ml of vinegar (5% acid) in 500 ml of water (1:1 ratio) and start the CLEAN program. Allow the mixture to stand in the jug for a maximum of 5 minutes. Rinse the jug well after each deep cleaning and allow it to air dry.

Warranty and Service

For detailed information, see the separate warranty and service leaflet or visit www.braunhousehold.com.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

Troubleshooting Guide

Problem Potential causes Solution
Blender does not operate	No power supply	Check the fuse/circuit breaker in your home. If none of the above works, contact Braun Customer Service
	Jug or Smoothie2Go attachment is not attached properly. Timer shows three dashes (- - - )	Check the correct position of the attachment
Liquid is splashing out of the jug	Gasket is not mounted properly, loose, or even torn	Ensure that gasket is mounted properly
	Jug lid or measuring cap are not closed properly	Close the lid and measuring cap
	Jug is overfilled	Follow the maximum quantity recommendation in the processing table
Motor base is moving on the countertop	Rubber feet are not clean	Clean the rubber feet to ensure a good grip
Error code is shown on the Timer Display (E01,E02,E03,E04,E05)	E01 Overload protection	Turn the blender off, remove the container from the motor unit and check if the blade is blocked. Follow the recommended speed, max. filling capacity or mode in the processing table.
	E02/E03 The thermal protection is activated to protect the drive unit from overheating	Turn the blender off, unplug and wait at least 30 minutes before resuming operation. If the error code does not disappear contact Braun Customer Service
	E04/E05	Turn the blender off and on again. If the error code does not disappear contact Braun Customer Service

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights, which are not affected. Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown, you have access to professional help from our team simply by calling: 0345 222 0458

For service in the Republic of Ireland, please call: 012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect. - The product is used and maintained in accordance with the User Instructions. - The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.

• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at

www.braunhousehold.co.uk

By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.

Safety Instructions

Before Use
