Controls and Displays

Front

1. [POWER] button
   2.[PRESET1]button
2. [VOLUME +] button
   4.[PRESET2]button
3. [VOLUME -] button
   6.[PRESET3]button
4. [MODE] button
5. LED
6. Infrared sensor

Rear

1. Slide switch for L/mono/R
2. [WPS] button
3. [RESET] button
4. AUX-In socket
5. Mains power supply
6. Thread for wall bracket

Remote Control

1. [POWER] button
2. [MUTE] button
3. Internet Radio - Mode
4. DAB Radio - Mode
5. FM Radio - Mode
6. AUX - Mode
7. Backlight Level
8. Media-Player - Mode
   9.[MODE]button
9. [EQUALIZER] button
10. [ALARM] button
11. [SLEEP] button
12. [SNOOZE] button
13. [MENU] button
14. [PREVIOUS] button
    16.[NEXT]button
15. Navigation buttons

Up
Down
Back
Forward, okay

1. [SELECT] (Enter/OK) button
2. [REWIND] button
3. [FAST-FORWARD] button
4. [VOLUME] +/- buttons
5. Presets Up/Down buttons
6. [PLAY/PAUSE] button
7. [BACK] button
8. Presets buttons (1-10)
9. [PRESETS/FAVORITES] Menu
10. [INFO] button

Important note - Operating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files / eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
• Alternatively, scan the QR code below to be taken directly to the location of the operating instructions.
• Save the operating instructions to your computer's hard drive for future reference, or print it out if necessary.

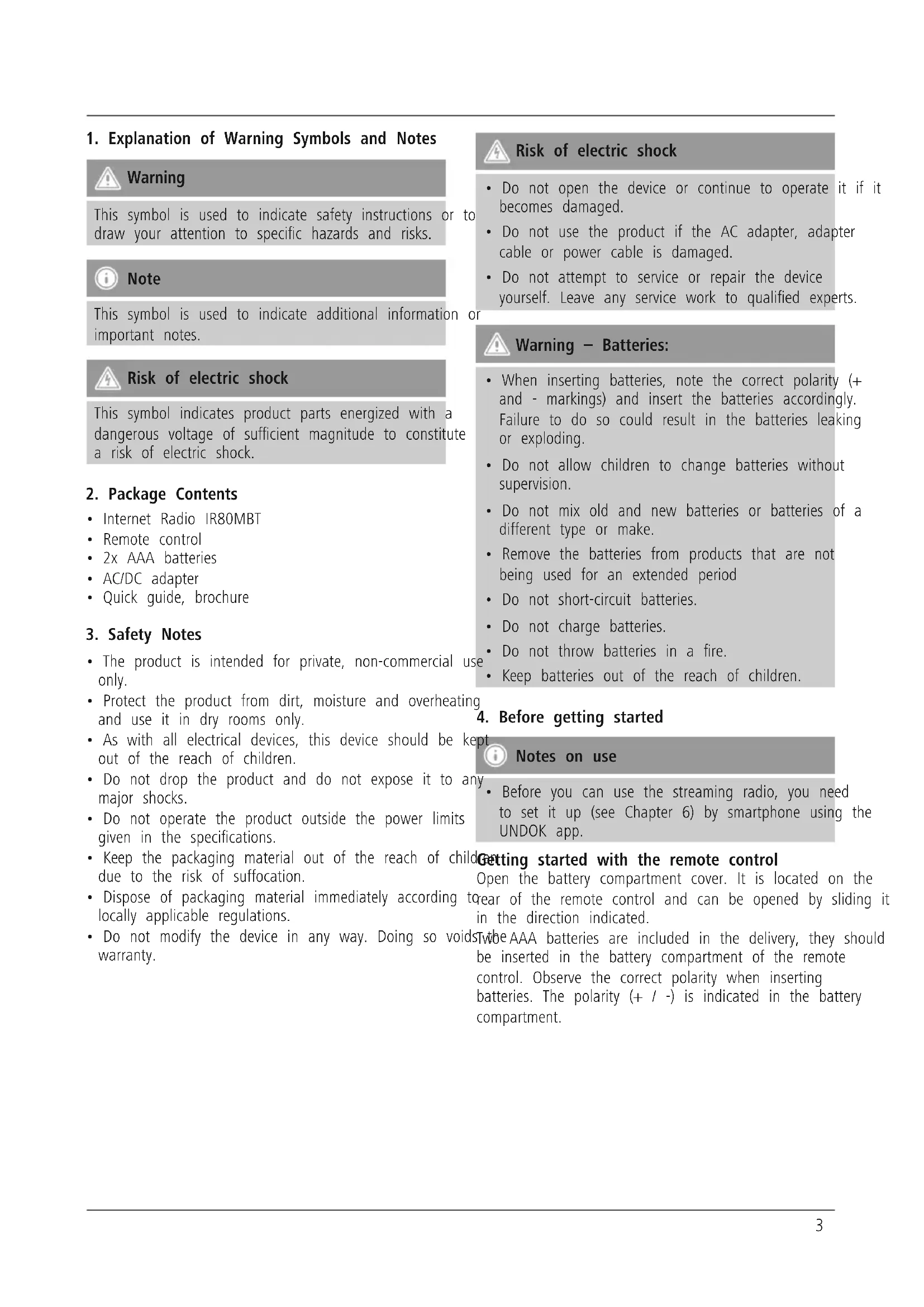

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information important notes.

or

Risk of electric shock

This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

2. Package Contents

• Internet Radio IR80MBT
  Remote control
• 2x AAA batteries
• AC/DC adapter
• Quick guide, brochure

3. Safety Notes

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispos of packaging material immediately according tque of the remote control and can be opened by sliding it locally applicable regulations. in the direction indicated.
• Do not modify the device in any way. Doing so voids the AAA batteries are included in the delivery, they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+/−) is indicated in the battery compartment.
• Keep batteries out of the reach of children.
• Before you can use the streaming radio, you need to set it up (see Chapter 6) by smartphone using the UNDOK app.
  Open the battery compartment cover. It is located on the year of the remote control and can be opened by sliding it in the direction indicated.
  Twe AAA batteries are included in the delivery, they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+ / -) is indicated in the battery compartment.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

Warning - Batteries:

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.

4. Before getting started

Notes on use

Getting started with the remote control

5. Getting started

5.1 Turning on the product

• Connect the power cable to a properly installed socket

Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch - if this is not available, unplug the power cord from the socket.

• Wait until the speaker initialisation procedure has finished.

• Press the [POWER] button to turn on the speaker.

Note - Turning on for the first time

• When you turn on the device for the first time, the speaker starts in SETUP mode.
• The LED begins to flash white and initial setup can be carried out using the UNDOK app (section 6.2).

6. UNDOK - everything in the palm of your hand

Powered by UNDOK MULTIROOM

The UNDOK app, developed by Frontier Silicon, gives you full control of radios and speakers from your smartphone. Whether you are setting up the device for the first time, specifying settings for the equaliser and multi-room, or managing your favourite stations - the UNDOK app lets you access all the features from your smartphone or tablet, thereby offering you greater convenience.

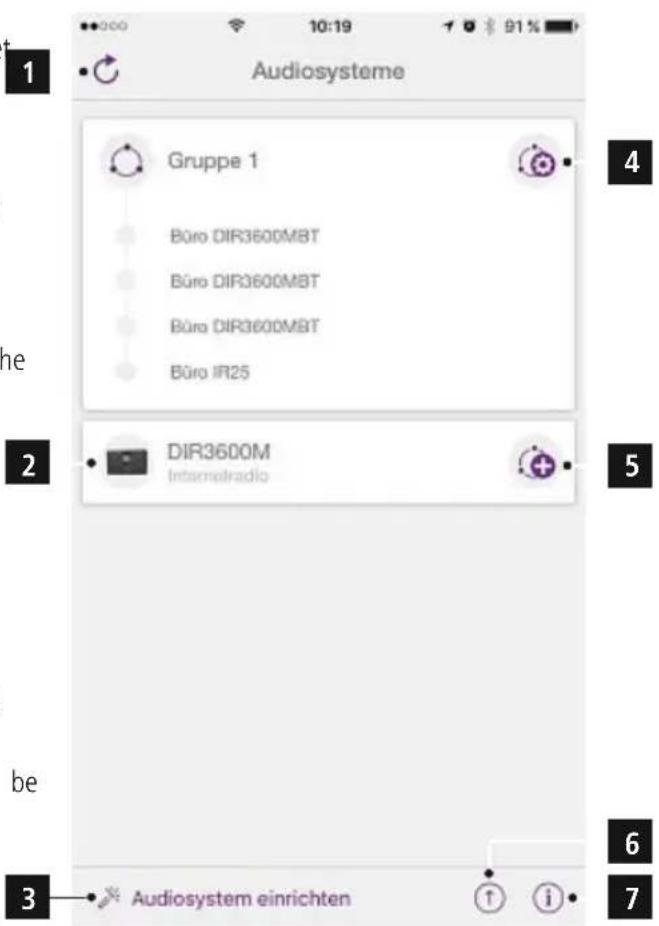

6.1 Interface/layout of the UNDOK home screen

1 Update the audio system list
2 Preview for ungrouped radios
3 Set up new audio system
4	Icon for managing an existing multi-room group
5	Create a new multi-room group with this device
6 Check for system update for all devices
7	Further information, such as app info, change app theme, and data logging

6.2 First-time setup of the device with UNDOK

6.2.2 Procedure for Android users

The first time you switch on an UNDOK-enabled product - Open the UNDOK app on your tablet or smartphone. from Hama, or when you have set it to the factory setting the Set up audio system menu item. it creates a micro access point - a separate WiFi network. Make sure that the radio or speaker is in SETUP mode. that you can connect to with your tablet or smartphone. Set the product to the factory settings, if necessary.

Note

• The UNDOK app uses the language selected in your smartphone's system.

6.2.1 Procedure for iOS users

• Open the UNDOK app on your iPhone or iPad.
• Tap the Set up audio system menu item.
• Make sure that the radio or speaker is in SETUP mode. Set the product to the factory settings, if necessary. Confirm the query with Next.
• The UNDOK app now prompts you to connect to the product's WiFi network using the iPhone/iPad settings - to do so, switch to the system settings on your iPhone and select the WiFi network (for example, Setup HamaDIR3120LED). Then return to the UNDOK app and tap Next.
• Now choose a name for the radio (for example, Office DIR3120) and confirm your entry with Next.
• The various network configuration options are then offered to you (where applicable, WiFi, WPS and Ethernet). Tap the desired method; the UNDOK app switches to the next window.
  Depending on the selected method, you can now selec and configure the desired WiFi network, set up a WPS connection or set up the connection using a LAN cab
• Finally, the radio connects to the network; by tapping Start using my audio system, you will be able to use device in the UNDOK app.
• The network connection LED indicator (8) is now constantly lit.

Confirm the query with Next.
- On the following page, you will find a list of all available WiFi networks as well as the suggested audio systems; the Hama product (for example, Setup Hama DIR3120LED) should be listed here. Tap the corresponding WiFi network.
- Now choose a name for the radio (for example, Office DIR3120) and confirm your entry with Next.
- The various network configuration options are then made offered to you (where applicable, WiFi, WPS and Ethernet). Tap the desired method; the UNDOK app switches to the next window.
- Depending on the selected method, you can now select Wi-Fi and configure the desired WiFi network, set up a WPS or the connection or set up the connection using a LAN cable.
- Finally, the radio connects to the network; by tapping 'Start using my audio system', you will be able to use the device in the UNDOK app.

The network connection LED indicator (8) is now constantly lit.

7. Auxiliary Input

You can use the analogue audio input (AUX IN socket) to connect mobile devices (for example, smartphone, tablet
^a Pc, MP3 player, etc.) to the radio and play your audio files. ^b Using the radio.
- Repeatedly press [M] / [MODE] to activate the Auxiliary Input (Aux in) mode on the speaker:

Alternatively, press [AUX] on the remote control to switch directly to this operating mode.

• The AUX-In connection LED indicator (8) is now constantly lit.
• Connect your mobile device to the audio input (the AUX IN socket) of the radio using a 3.5-mm audio cable (jack cable).
• Start and control audio playback using the controls of the connected terminal device.

8. Bluetooth

You can pair your terminal device with the radio using Bluetooth® and use it as a playback device. You can control playback directly on the terminal device. You can adjust the volume on the radio, as well.

Note - Bluetooth

• Check whether your mobile device (smartphone, tablet, etc.) is Bluetooth capable.
  Note that the maximum range for Bluetooth10 metres without obstacles such as walls, people, etc.
• The Bluetooth® connection may be disrupted by other Bluetooth® devices/connections in the vicinity.
  It is only possible to connect the radio to one terminal device.
• Note that compatibility depends on the supported Bluetooth® profiles as well as the Bluetooth® versions being used. (See Technical specifications, operating instructions of the terminal device in use)

Repeatedly press [M]/[MODE] to activate the Bluetooth operating mode on the radio:

[M]

8.1 Bluetooth first connection (pairing)

• Make sure that your Bluetoothable terminal device is on and Bluetooth activated.
• Repeatedly press [M]/[MODE] to activate the Bluetooth® operating mode on the radio:

[M]

• The Bluetooth connection LED indicator begins to flash blue.
• Open the Bluetooth settings on your terminal device and wait until IR80MBT appears in the list of Bluetooth devices found.
• If necessary, start searching for Bluefoxvices on your terminal device.
• Select IR80MBT and wait until the radio is shown as connected in the Bluetooth settings on your terminal device.
• The Bluetooth connection LED indicator is now steadily lit blue.
• Start and control audio playback using the controls of the terminal device.

Note - Bluetooth password

• Some terminal devices require a password in order to connect to another Bluetooth device.
  If your terminal device requests a password for connection to the speaker, enter 0000.

6. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store it in a clean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

9. Recycling Information

Note on environmental protection:

After the implementation of the European

Directive 2012/19/EU and 2006/66/EU in the

national legal system, the following applies:

Electric and electronic devices as well as batteries

must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

10. Declaration of Conformity

Hereby, Hama GmbH & Co KG declares that the radio equipment type [00054846] is in compliance

with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following internet address:

www.hama.com >00054846->Downloads.

Frequency band(s)	2412 - 2472 MHz
Maximum radio-frequency power transmitted	60 mW EIRP

00054846

Powered by UNDOK MULTIROOM

www.hama.com ->00054846->Downloads.

Frequency band(s)

2412-2472MHz

Maximum radio-frequency

60 mW EIRP

power transmitted

00054846

Powered by UNDOK MULTIROOM

Powered by UNDOK MULTIROOM

Powered by UNDOK MULTIROOM
