Product type	Multi-function sharpener
Brand	PowerPlus
Model	POWX1350
Power supply	230-240 V ~ 50 Hz
Power consumption	96 W
No-load speed	1350 min⁻¹
Grinding wheel diameter	56 mm
Compatible drill bit diameter	4 to 13 mm
Compatible blade width	6 to 51 mm
Net weight	1.20 kg
Main functions	Sharpening of HSS drill bits, straight edge knives, scissors, chisels, and planer blades
Adjustable sharpening angle	15° to 50°
Intended use	Domestic use, sharpening of cutting tools
Motor type	Commutator electric motor
Protection class	II (double insulation)
Sound pressure level	82 dB(A)
Sound power level	89 dB(A)
Maintenance	Clean the ventilation slots with a soft damp cloth. Do not use solvents.
Warranty	36 months from the date of purchase
Included accessories	Interchangeable sharpening modules (drill bits, knives, chisels)

Frequently Asked Questions - POWX1350 PowerPlus

How to sharpen an HSS drill bit with the POWX1350?

Use the specific module for drill bits. Insert the bit into the collet, tighten lightly, place it in the V-guide, then tighten. Lower the guide and move the collet laterally against the wheel. Repeat on the other side. Refer to the manual for details.

What types of knives can I sharpen?

This model sharpens all straight edge knives as well as scissors. Insert the blade into the appropriate guide groove and pull towards you while applying light pressure.

How to adjust the sharpening angle for chisels?

Loosen the angle adjustment knob, set the plate to the desired angle (between 15° and 50°), then tighten. Make sure the angle matches the existing bevel of the blade.

What is the power and speed of this sharpener?

The sharpener has a power of 96 W and a no-load speed of 1350 min⁻¹. It is designed for intermittent use (max 15 minutes continuously).

Is it safe to use this sharpener?

Yes, it is class II (double insulation) and does not require a grounded outlet. Wear safety glasses and keep flammable materials away. Do not touch the moving wheel.

How to maintain the sharpener?

Unplug the device before any maintenance. Clean the ventilation slots regularly with a soft damp cloth. Do not use solvents such as gasoline or alcohol.

What accessories are included?

The package includes several interchangeable modules: one for HSS drill bits, one for knives and scissors, and one for chisels and planer blades. A fine chisel guide is also provided.

Can I sharpen planer blades wider than 50 mm?

No, the maximum blade width is 51 mm. For wider blades, another model would be necessary.

What to do if the grinding wheel is worn?

The grinding wheel is a wear part. Contact an authorized PowerPlus after-sales service to obtain a suitable replacement wheel.

What is the warranty period?

The warranty is 36 months from the date of purchase. It covers manufacturing defects but not normal wear, accessories, or damage due to misuse.

USER MANUAL POWX1350 PowerPlus

2 BESCHRIJVING (FIG A)

23/02/2022, Lier - Belgium

23/02/2022, Lier - Belgium

1 INTENDED USE 2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST 2
4 SYMBOLS 3
5 GENERAL POWER TOOL SAFETY WARNINGS 3
5.1 Work area 3
5.2 Electrical safety 3
5.3 Personal safety 4
5.4 Power tool use and care 4
5.5 Service 4
6 SPECIFIC SAFETY WARNINGS 5
7 OPERATION 5
7.1 High speed steel drill sharpener (Fig. 1) 5
7.2 Knife and scissor sharpener (Fig. 2) 5
7.3 Chisel and plane sharpener (Fig. 3) 6
8 CLEANING AND MAINTENANCE 7
8.1 Cleaning. 7
9 TECHNICAL DATA 7
10 NOISE 7
11 SERVICE DEPARTMENT 7
12 STORAGE 7
13 WARRANTY 8
14 ENVIRONMENT 8
15 DECLARATION OF CONFORMITY 9

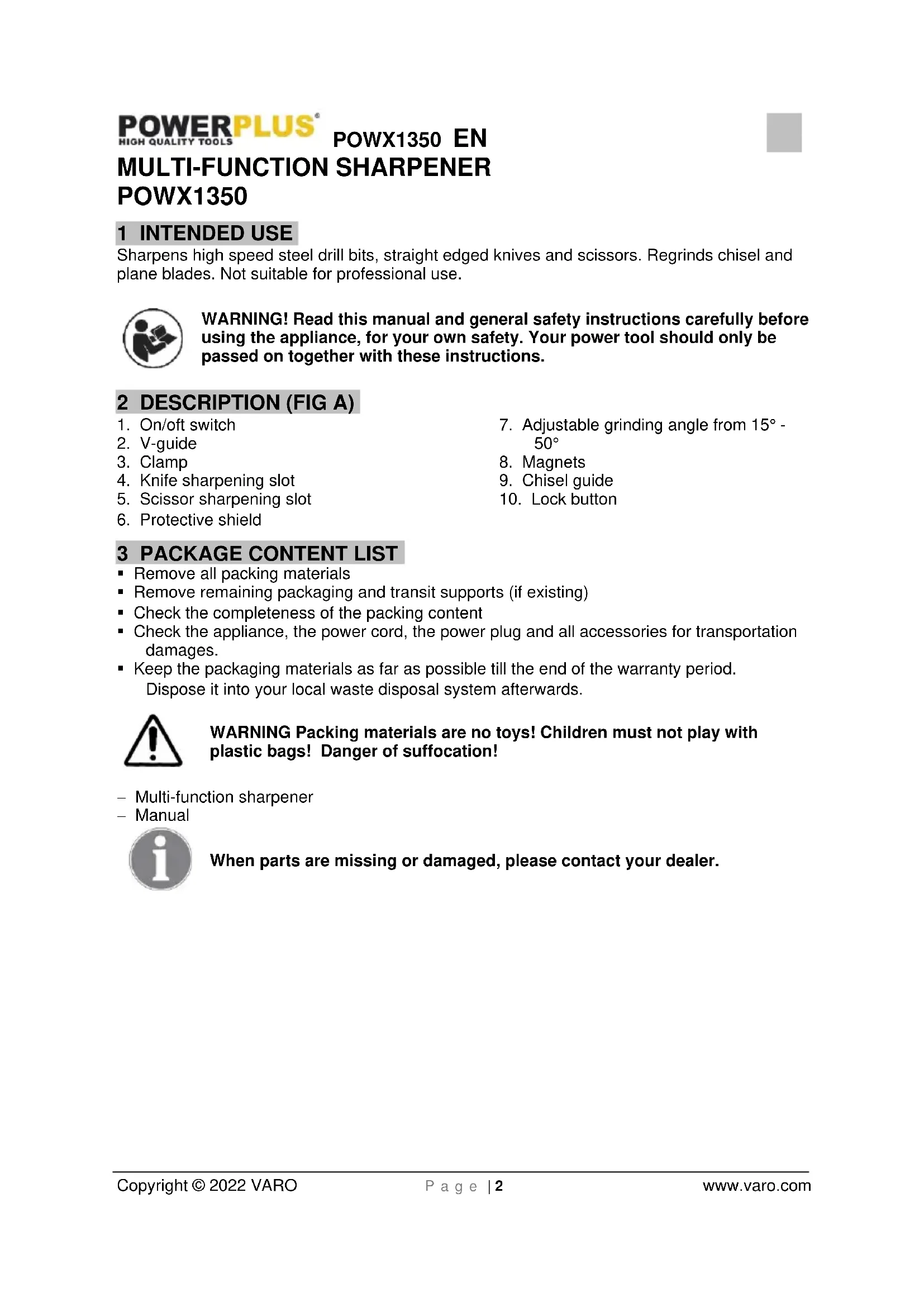

MULTI-FUNCTION SHARPENER

POWX1350

1 INTENDED USE

Sharpens high speed steel drill bits, straight edged knives and scissors. Regrinds chisel and plane blades. Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

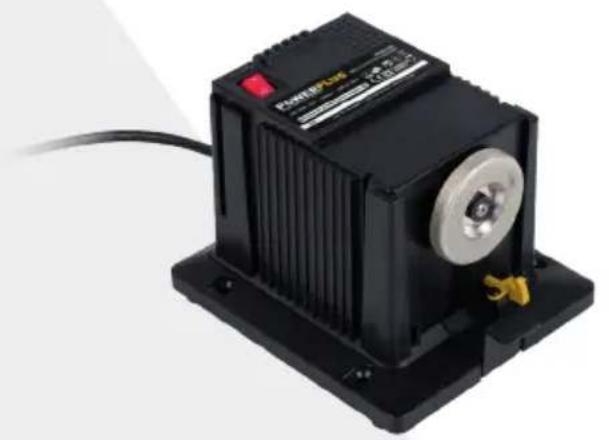

2 DESCRIPTION (FIG A)

1. On/off switch
2. V-guide
3. Clamp
4. Knife sharpening slot
5. Scissor sharpening slot

6. Protective shield

7. Adjustable grinding angle from 15^ - 50^

8. Magnets
9. Chisel guide
10. Lock button

3 PACKAGE CONTENT LIST

• Remove all packing materials
• Remove remaining packaging and transit supports (if existing)
• Check the completeness of the packing content
• Check the appliance, the power cord, the power plug and all accessories for transportation damages.
• Keep the packaging materials as far as possible till the end of the warranty period. Disposet it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

Multi-function sharpener
- Manual

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.		Wear eye protection
	Read manual before use	CE	In accordance with essential requirements of the European directive(s)
	"Class II - The machine is double insulated; Earthing wire is therefore not necessary"		Wear gloves
	Electrical products must not be disposed with the domestic waste.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (cored) power tool or battery operated (cordless) power tool.

5.1 Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

• Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.

• Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6 SPECIFIC SAFETY WARNINGS

• Do not leave the grinding wheel unattended while it is operating.
  Grinding generates sparks, keep away all flammable substances and materials.
• Never touch the moving grinding wheel.
• The motor is specially rated for intermittent use, maximum 15 minutes continuous use.
• Do not attach modules when the grinding wheel is moving.
• Do not use the grinding wheel without a module in place
• Before removing a module, switch off the power unit and allow the grinding wheel to come to stop.

7 OPERATION

7.1 High speed steel drill sharpener ((Fig. 1)

Sharpens all high speed steel drill bits from 4-13mm
- Unique 'True Point' action ensures accurate finish
- Precisely locates high speed steel drills for correct sharpening angles.
- Re-sharpens broken drill bits

SHARPENINGHSSBIT(1a-1i)

1. Slide module 'high speed steel drill sharpener' onto the power unit
2. Remove the clamp from the clamp holder and insert the drill bit (1a)
3. Tighten the clamping ring slightly so the drill bit is still free to move.
4. Place the clamp containing the drill bit into the setting slot, using the grooves in the side to lower it in correctly (1b)
5. Move the drill bit forward up so it lays in the 'V' guide and touches the metal end stop (1c)
6. Turn the drill bit until the 'V' guide fully drops over it (1c)
7. All 4 drill bit corners should now be touching the 'V' guide sides.
8. With the drill bit in this position, tighten the clamping ring, so the drill bit can't move (1d)
9. Lift up the 'V guide and remove the clamp.
10. Transfer the clamp and drill bit into the clamp into the clamp holder on the Power Unit module. (1e)
11. Switch the Power Unit on
12. Move the clamp holder from side to side, securing with light finger pressure (1f)
13. Remove the drill bit and holder and turn over (1g)
14. Move the clamp holder from side to side, securing with light finger pressure (1f)
15. Check the leading edge of both flutes are equally sharp. They should meet exactly in the middle as in (1h) not (1i)
16. Switch the Power Unit off. Before removing the module, ensure the grinding wheel has stopped.

7.2 Knife and scissor sharpener (Fig. 2)

Sharpens all straight edged knives and scissors
- Unique top for sharpening knives
- Precisely angled slot for sharpening scissors

SHARPENING KNIVES (2a-2c)

1. Slide module 'knife and scissor sharpener' onto the power unit
2. Switch the Power Unit on
3. Hold the knife handle towards you and insert the blade into guide slot (2a)

4. As soon as the blade touches the grinding wheel, draw it with light steady pressure across the wheel. Do not press to hard (2b)

5. Insert the second side of the blade into the other guide slot (2c) and repeat #4

6. Repeat sharpening each side until a clean sharp edge is attained.
7. Switch the Power Unit off. Before removing the module, ensure that the grinding wheel has stopped.

SHARPENING SCISSORS (2d-2f)

1. Slide module 'knife and scissor sharpener' onto the power unit
2. Switch the Power Unit on
3. Open the scissors fully
4. Slide the first scissor blade through the front guide slot (2d). Keep the pivot of the scissors and other blade to the right side.
5. Draw the blade across the grinding wheel from pivot to tip. Use a light steady pressure, do not press too hard (2e)
6. Remove and turn the scissor over to sharpen the second blade (2f)
7. Repeat if necessary, until clean sharp edges are achieved.
8. Switch the Power Unit off. Before removing the module, ensure that the grinding wheel has stopped

7.3 Chisel and plane sharpener (Fig. 3)

• Regrinds chisel and plane blade up to 50mm wide
  Adjustable grinding angle from 15^ - 50^
• Powerful integral magnet to keep the blade secure
• Protective shield for added safety

SHARPENING BLADES (3a-3g)

1. Slide module 'chisel and plane sharpener' onto the power unit
2. Place the blade against the back lip of the plate (3a). The magnet helps hold in place.
3. The sharpening angle must match the existing beveled angle on the blade tip. Adjust if necessary.
4. To alter the angle, loosen the angle adjusting knob (3c), adjust the plate and then tighten the angle adjusting know.
5. Make sure the blade edge touches the grinding wheel, then switch the Power Unit on.
6. Slide the blade and plate with light steady pressure back and forth across the grinding wheel in a continuous motion (3d). Do not hold the blade stationary, this causes irregular sharpening.
7. Gradually adjust the blade down the plate while sharpening (3e). Do not press hard. Grind gradually. Repeat if necessary.
8. Remove the blade and make sure the beveled edge and tip are evenly sharp. If not, adjust the grinding angle. It is important that the sharpening angle matches the existing beveled angle of the blade. This avoids removing too much mental unnecessarily and keeps plane blades at their optimum shaving angle (3f)
9. When sharpening thin chisel blades, place the small chisel guide onto the plate to act as a spacer and sharpen as before (3g)
10. Switch the Power Unit off. Before removing the module, ensure that the grinding wheel has stopped
11. Recommend that after grinding, the blade tip is honed on an oil stone.

8 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

8.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
  Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

9 TECHNICAL DATA

Voltage/frequency	230-240V~ 50Hz
Power Input	96W
No load speed	1350 min-1
Wheel diameter	56mm
Drill diameter	4mm – 13mm
Blade width	6mm – 51mm
Net weight	1,20kg

10 NOISE

Noise emission values measured according to relevant standard. (K = 3)

Acoustic pressure level LpA 82 dB(A)

Acoustic power level LwA 89 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

11 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

12 STORAGE

Thoroughly clean the whole machine and its accessories.
- Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
- Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
- Don't keep it in plastic bags to avoid humidity build-up.

13 WARRANTY

This product is warranted for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

14 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

15 DECLARATION OF CONFORMITY

VARO - Vic. Van Rompuy n.v., Joseph Van Instraat 9 - 2500 Lier - Belgium, solely declares that,

product MULTI-FUNCTION SHARPENER

trade mark PowerPlus

modelPOWX1350

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives / Regulations, based on the application of European Harmonized Standards.

Any unauthorized modification of the apparatus voids this declaration.

European Directives / Regulations (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European Harmonized Standards (including, if applicable, their amendments up to the date of signature);

EN62841-1:2015

ENIEC55014-1:2021

EN IEC55014-2:2021

ENIEC61000-3-2:2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO Vic. Van Rompuy n.v.

The undersigned acts on behalf of the company CEO,

Ludo Mertens

Certification Manager

23/02/2022, Lier - Belgium

23/02/2022, Lier - Belgium

23/02/2022, Lier - Belgium

Regulatory Affairs - Compliance Manager

23/02/2022, Lier - Belgium

1 UTILIZACAO PREVISTA 2
2 DESCRIÇÃO (FIG A) 2
3 LISTA DE CONTEUDO DA EMBALAGEM 2
4 SIMBOLOS 3
5 PROCEDIMENTOS GERAIS DE SEGURANCA 3
5.1 Local a trabajoar 3
5.2 Seguranca elctrica 3
5.3 Segurancia de pessoas 4
5.4 Manuseamento e emprego de ferramentas eletricas com precaucao 4
5.5 Assistance Tecnica 5
6 AVISOS DE SEGURANCA ESPECIFICOS 5
7 OPERACAO 5
7.1 Afiador de brocas de aço de alta velocidade (Fig. 1). 5
7.2 Afiador de facas e tesouras (Fig. 2) 6
7.3 Afiador de cinzeis e laminas lisas (Fig. 3) 6
8 LIMPEZA E MANUTENCAO 7
8.1 Limpeza 7
9 DADOS TECNICOS 7
10 RUIDO 7
11 DEPARTAMENTO DE MANUTENÇÃO 7
12 ARMAZENAMENTO 8
13 GARANTIA 8
14 MEIO-AMBIENTE 8
15 DECLARACAO DE CONFORMIDADE 9

23/02/2022, Lier - Belgium

1 TILTENKT BRUK 2
2 BEsKRIVELSE (FIG A) 2
3 PAKKENS INNHOld 2
4 SYMBOLFORKLARING 3
5 GENERELLE SIKKERHETSADVARSLER 3
5.1 Arbeitsplassen 3
5.2 Elektrisk sikkerhet 3
5.3 Personsikkerhet 4
5.4 Vær noyaktig og omhyggelig nár du omgås elektroverktoy 4
5.5 Service 4
6 SPESIELLE SIKKERHETSADVARSLER 4
7 BRUK. 5
7.1 Slipemodul for hoyhastighets stalbor (Fig. 1) 5
7.2 Slipemodul for kniver og sakser (Fig. 2). 5
7.3 Slipemodul for meisler og hovler (Fig. 3) 6
8 RENGJØRING OG VEDLIKEHOLD 6
8.1 Rengjoring 6
9 TEKNISKE DATA 7
10 STOY 7
11 SERVICEAVDELING 7
12 OPPBEVARING 7
13 GARANTI 7
14 MILJ0 8
15 SAMSVARSERKLÄERING 8

FLERFUNKSJONELL SLIPEMASKIN

POWX1350

1 TILTENKT BRUK

SLIPE HØYHASTIGHETS STALBOR (1a-1i)

1. Skyy modulen "slipemodul for høyhastighets stålbor" inn på maskinen.
2. Trekk klemmen ut av klemmeholderen og sett i boret (1a).
3. Skru klemmeringenletttilslikatboret fremdeleskanbeveges.
4. Plasser klemmen med boret i innstillingssporet. Bruk sporene pa sider til a senke den korrekt (1b).
5. Beveg boret fremover sik at det ligger i V-forgen og berorer metallstopperen (1c).
6. Drei boret til V-forgen fallen落后 helt over det (1c).
7. Alle de 4 hjørnene av boret skal nà være i kontakt med sider på V-føringen.
8. Med boret i donne stillingen, strammer du til klemmeringen sik at boret seks kan beveges (1d).
9. Loft opp V-foringen og fjern klemmen.
10. Overfor klemmen med boret til klemmeholderen pa maskinen (1e).
11. Slå pa maskinen.
12. Beveg klemmeholderen fra side til side mens du holder den lettuce med en finger (1f).
13. Ta ut holderen med boret og snu den (1g).
14. Beveg klemmeholderen fra side til side mens du holder den lettuce med en finger (1f).
15. Sjekk at begge de forende eggene pa boret er like skarpe. De bor motes noyaktig i midten som vist i (1h), ikke som i (1i).
16. Slå maskinen av. Før du tar modulen av maskinen, ma du forsikre deg om at slipseskiven har stanset.

8 RENGJØRING OG VEDLIKEHOLD

23/02/2022, Lier - Belgium

1 TILSIGTET BRUG 2
2 BESKRIVELSE (FIG A) 2
3 MEDFOLGENDE INDHOLD 2
4 SYMBOLER 3
5 GENERELLE SIKKERHEDSFORSKRIFTER 3
5.1 Arbejdsomrade 3
5.2 Elektrisk sikkerhed 3
5.3 Personlig sikkerhed 4
5.4 Omhyggelig handtering og anvendelse af el-værktjoer 4
5.5 Service 4
6 SPECIFIKKE SIKKERHEDSFORSKRIFTER 4
7 ANVENDELSE 5
7.1 Hjastighedstalborsiber (Fig. 1). 5
7.2 Kniv- og saksesliber (Fig. 2)
7.3 Mejsel- og hovlsiber (Fig. 3)
8 RENGORING OG VEDLIGEHOLDELS
8.1 Rengoring 6
9 TEKNISKE DATA 7
10 STOJ 7
11 SERVICEAFDELING 7
12 OPBEVARING 7
13 GARANTI 7
14 MILJ0 8
15 KONFORMITETSERKLÄERING 9

MULTI-FUNKTIONS SLIBER POWX1350

1 TILSIGTET BRUG

23/02/2022, Lier - Belgium

1 AVSEDD ANVÄNDNING 2
2 BESKRIVNING (FIG A) 2
3 FÖRPACKNINGSINNEHÄLL 2
4 SYMBOLER 3

5 ALLMÄNNA SÄKERHETSANVISNINGAR FÖR ELEKTRISKA VERKTYG 3

15 KONFORMITETSDEKLARATION

VARO N.V. - Vic. Van Rompuy N.V Joseph Van Instraat 9 - BE2500 Lier - Belgien, deklarerar harmed att,

23/02/2022, Lier - Belgium

23/02/2022, Lier - Belgium

1 IPOBAEIOMENH XP'H2H 2
2 KATAANO EAPTHMATQN (FIG A) 2
3 ΛΙΣΑ έπΕΠΕXΟΜΕΝΟ ΣΥΣΚΕYΑΣΙΑΣ 2
4 SYMBOA 3
5 TENIKEΣYMBOYΛEΣ ΓIA THN AΣΦΑΛEIA 3
5.1 XwpoC epyaia
5.2 HLeKtpiKn aOVaAelia 3
5.3 Atoikn aovapaleia 4
5.4 Ipooektikoc xepiooC kai xpnoT wv nlektipkwv epyaaleiw 4
5.5 2
6 IPOEETOADHIEAΦAIA5
7 AEITOYPTIA 5
7.1 Akoviotipiyia npunavia ano aoraleuynlaicraxurntaC (Fig. 1) .5
7.2 AkovioTnpi paXaipiw kai paAldelta(w (Fig. 2) 6
7.3 AkovioTnpi ouiawv kai pIavwv (Fig. 3) 6
8 KAOAPIEMOe KAI SYNTHPHsH 7
8.1 Kaθαρισμα. 7
9 TEXNIKA XAPAKTHPIETIKA 8
10 8
11 TMHMA ΣEPBIS 8
12 ANOOHKEY8
13 ERTYH2H 8
14 IEPIBAAON 9
15 HAnOeH SyMMOPoOeH

NOPYAEITOYPRIKO AKONIETHPIPOWX1350

1 PPOBAENTOMENH XP'HE

Akoviéi Kottiká ßiatpnonc aTó aToaλι uψnλns taxuŋtac, paαiapia kai ψalidia με iOIA akpn. Akoviéi EK vÉou σμiIεc kai λεπiδεc πλavwv. Akatáλnlo yia επayveλpatikn xρnσ.

IPOEIAOIOIH! Napakaloume diaaote TPOeKTKa to EYxepidio xphoNc
TPIV aTO th xphoN kai qualeto yia va avatpexete oae auto sto meAov.
Eav mtaBaoetae auto to nAektpiko epyaeeio, Tapaadwote ma zi kai tic
OdbyicxphoNs.

2 KATAANOEGEAPTHMATQN (FIG A)

IΩΣAKONIZETE ENA ΨΑΛΙΔΙ (2d-2f)

23/02/2022, Lier - Belgium

1 NAMEJENA UPOTREBA 2
2 OPIS (FIG A) 2
3 LISTASADRZAJAPAKETA 2
4 SIMBOLI 3
5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRICNE ALATE.3
5.1 Radna oblast 3
5.2 Elektricna bezbednost 3
5.3 Bezbednost osoba 4
5.4 Korischenje i odrzavanje elektrichnog alata 4
5.5 Servisiranje 4
6 POSEBNA BEZBEDNOSNA UPUTSTVA 5
7 RUKOVANJE 5
7.1 Ostrac burgija od brzoreznog celika (Fig. 1)
7.2 Ostrac nozeva i makaza (Fig. 2)
7.3 Ostrac deta i nozeva za renda (Fig. 3). 6
8 CIscENJE I ODRZAVANJE 7
8.1 Cijscenje 7
9 TEHNICKI PODACI 7
10 BUKA 7
11 SERVISNO ODELJENJE 7
12 SKLADIsTeNJE 7
13 GARANCIJA 8
14 ZIVOTNA SREDINA 8
15 IZJAVA O USKLADEDONOSTI 9

1 NAMENJENA UPOTREBA

Ostri burgije od brzoreznog celika, nozeve i makaze sa ravnim ivicama. Ponomno bruši ostrice dleta i nozeve za renda. Nije pogodno za profesionalnu upotrebu.

UPOZORENJE! Pazljivo procitajte i upoznajte se sa ovim uputstvom za upotrebu preNgu sto upotrebite ovaj alat i sačuvajte ga za ubuduć. U slućaju prenošenja vlasništa na drugog korisnika, uz elektrčni alat obavezno prilozite ova uputstva.

2 OPIS (FIG A)

1. Prekidač za uključivanje/isključivanje
2. Vodica V-oblika
3. Stezač
4. Prorez za oštrejenje noževa
5. Prorez za oštrenje makaza

6. Stitnik

7. Podesivi ugao brušenja od 15^ do 50^

8. Magneti
9. Graničnik za dleta
10. Dugme za blokadu

3 LISTASADRZAJAPAKETA

• Uklonite svu ambalažu
• Uklonite preostalu ambalažu, kao i transportnu zašitu (ukoliko je ima)
  Proverite da li je sadrzaj pakovanja potpun.
  Proverite da li na aparatu, napojnom kablu, utikaču i pomocnom priboru ima oštecenja usled transporte
• Sačuvajte ambalažu što duže tokom garantnog roka. Posle je odložite na mesno odlagaliste za otpad

6 POSEBNA BEZBEDNOSNA UPUTSTVA

Ne ostavlajte brusni tocak bez nadzora dok je u radu.
Brusenje generise varnice, drzite na odstojanju od svih zapaljivih supstanci i materijala.
Nikada nemojte doditivati brusni točak koji je uPokretu.
- Motor je posebno predvden za isprekidanu upotrebu, za neprekidnu upotrebu od maksimalno 15 minuta.
- Nikada nemojte priključivati module dok je brusni točak uPokretu.
Nemojte koristiti brusni tocak ukoliko modul nije na svom mesti.
- Pre uklanjanja modula, iskljucite elektricni uredj a sacekajte da se brusni tocak zaustavi.

7 RUKOVANJE

7.1 Ostrac burgija od brzoreznog celika (Fig. 1)

Ostri sve burgije od brzoreznog celika od 4 do 13 mm.

Posebna fungcija 'Tačan vrh' ('True Point') osigurava preciznu završnu obradu.
- Precizno fiksira burgije od brzoreznog celika da bi se postigli pravilni uglovi ostrenja.
- Ponovo oštri polomljene burgije.

OSTRENJE BURGIJA OD BRZOREZNOG CELIKA (1a-1i)

1. Skliznite modul 'ostac za burgije od brzoreznog celika' na elektrichi uredaj.
2. Uklonite stezač sa držača stezača i umetnite burgiju (1a).
3. Blago pritegnite stezni prsten takdo burgija i dalje moze da se slobodno pomera.
4. Postavite stezač sa burgijom u prorez za postavljanje pri tome koristećiŽlebove na strani da biste ga pravilno spustili unutra (1b).
5. Pomerite burgiju unapred na gore takao da legne u vodicu V-oblika i dodiruje metalni krajnji granicnik (1c).
6. Okrecite burgiju sve dok vodica V-oblika potpuno ne padne preko nje (1c).
7. Sva Četiri ugla burgije bi sada trebalo da dodiruju strane vodice V-oblika.
8. Dok je burgija u ovom položaju, pritegnite stezni prsten takdo se burgija ne moze pomerati (1d).
9. Podignite na gore vodicu V-obika i skinite stezač.
10. Prenesite stezač i burgiju u držač stezača na modulu elektricnog uredaja (1e).
11. Ukljucite u rad elektrichi ni uredj.
12. Pomerajte držač stezača sa jeder strane na drugu pričvrsćujuci ga blagim pritiskom prsta (1f).
13. Skinite burgiju i drzači obrnite ga (1g).
14. Pomerajte držač stezača sa jeder strane na drugu pričvṛśćujuci ga blagim pritiskom prsta (1f).
15. Proverite da li su vodece ivice obe spirale burgije podjednako ostre. Treba da sesusretnu tačno na sredini kao na sl. (1h) a ne kao na sl. (1i).
16. Iskljucite elektrichi uredaj. Pre nego sto skinete modul, uverite se da se brusni tocak zaustavio.

7.2 Ostrac nozeva i makaza (Fig. 2)

Ostri sve nozeve i makaze sa pravim ivicama.
- Posebna povrsina za oštrené noževa.
- Prorez pod preciznim uglom za oštrenje makaza.

OSTRENJE NOZEVA (2a-2c)

1. Skliznite modul 'ošrač noževa i makaza' na elektrčni urežaj.
2. Ukljucite ur rad elektrichi urejad.
3. Držite dršku noža prema sebi i umetnite sečivo u vodeci prorez (2a).

4. Cim secivo dodirne brusni tocak, vucite ga uz blagi ravnomerni pritisak po tocku. Nemojte prejako pritiskati (2b)

5. Umetnite drugu stranu seciva u drugi vodeci prorez (2c) i ponovite postupak opisan u tacki 4.

6. Ponavljaje ostrenje svake strane sve dok se ne dobije cista ostra ivica.
7. Iskljucite elektricni uredaj Pre nego sto skeinite modul, uverite se da se brusni tocak zaustavio.

OSTRENJE MAKAZA (2d-2f)

1. Skliznite modul 'oštrac noževa i makaza' na elektrčni uredaj.
2. Ukliucite u rad elektrichi uredai.
3. Potpouno otvorite makaze.
4. Skliznite prvo secivo makaza kroz prednji vodeci prorez (2d). Drzite zglob makaza i drugo secivo na desnoj strani.
5. Vucite secivo po brusnom tocku od zgloba do vrha. Primenite blagi ravnomerni pritisak, nemoje prejako pritiskati (2e).
6. Izvadite i obrnite makaze kako biste nostrili drugo secivo (2f).
7. Ponavljaite postupak po potrebi sve dok se ne dobiju chiste ostre ivice.
8. Iskljucite elektricni uredaj Pre nego sto skeite modul, uverite se da se brusni tocak zaustavio.

7.3 Ostrac dleta i nozeva za renda (Fig. 3)

• Ponovno brusi ostrice dleta i nozeve za renda sirine do 50mm.
• Podesivi ugao brusenia od 15^ - 50^
  Snažni ugradeni magnet za pričvršćivanje sečiva.
  Stitnik za dodatnu bezbednost.

OSTRENJE SEČIVA

1. Skliznite modul 'oštrac dleta i noževa za renda' na elektrčni uredal.
2. Postavite secivo uz zadnju ivicu ploce (3a). Magnet pomaje da se secivo drzi na mestu
3. Ugao ostrenja mora da bude isti kao postojeci zakošeni ugao na vrhu sečiva. Podesite ukolko je to potrebno.
4. Da biste promenili ugao, popustite dugme za podesavanje ugla (3c), podesite plocu a zatim pritegnite dugme za podesavanie ugla.
5. Osiguraje da ivica seciva dodiruje brusni tocak i zatim ukliucite elektrichi n uredaj.
6. Klizajte secivo i plocu blagim ravnomernim pritiskom napred i nazad po brusnom tocku neprekidnim kretanjem (3d). Nemojte drzati secivo u mestu, to izaziva nepravino ostrenie.
7. Postepeno podesavajte secivo niz plocu tokom ostrenja (3e). Nemojte jako pritiskati. Brušite postepeno. Ponovite ukolko je to potrebno.
8. Izvadite secivo i proverite da li su zakošena ivica i vrh podjednako ostri. Ukoliki nisu, podesite ugao bruşenja. Važno je da ugao oštrenja odgovara postojćem uglu zakošenja sečiva. Ovime se izbegava da se bespotrebno ukloni previše metala i da se sečiva renda održavaju pod nijhovim optimalnim uglom rendisanja (3f).
9. Kada oštrite tanka sečiva dleta, postavite mali grančnik za dleta na ploču koji ce funkcionisati kao distancer i oštrite na isti način kao i pre (3q).
10. Iskljucite elektricni uredaj. Pre nego sto skine modul, uverite se da se brusni tocak zaustavio.
11. Preporucje se da se se posle brusenja vrh seciva fino obradi (honuje) na finom brusnom kamenu sa uljem.

8 CISCENJE I ODRZAVANJE

23/02/2022, Lier - Belgium

1 ZAMYSLENEPOUZITI 2
2 POPIS (FIG A) 2
3 SEZNAM OBSAHU BALENI 2
4 SYMBOLY 3
5 OBEÇNÁ BEZPEČNOSTNÍ UPOZORNÉNÍ PRO ELEKTRICKÉ NASTROJE 3
5.1 Pracovni oblast 3
5.2 Elektrická bezpečnost 3
5.3 Osobni bezpečnost 4
5.4 Použivani elektrickych nastroju a pece o ne... 4
5.5 Servis 5
6 ZVLASTNI BEZPECNOSTNI POKNY 5
7 PROVOZ 5
7.1 Vysokorychlostni ostrič ocelovych vrták (Fig. 1) 5
7.2 Ostrič nožú a núžek (Fig. 2). 5
7.3 Ostrič dlát a hoblíkù (Fig. 3) 6
8 CISTENIA UDRZBA 7
8.1 CiSteni.. 7
9 TECHNICKE UDAJE 7
10 HLUCNOST 7
11 SERVISNI ODDELENI 7
12 USKLADNENI 7
13 ZARUKA 8
14 ZIVOTNI PROSTREDI 8
15 PROHLASENIO SHODE 9

MULTIFUNKČNÍ OSTRIC

POWX1350

1 ZAMYŠLENÉ POUžITÍ

23/02/2022, Lier - Belgium

1 ZAMYSLANEPOUZITIE 2
2 POPIS (FIG A) 2
3 OBSAH BALENIA 2
4 SYMBOLY 3

5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE. 3

5.1 Pracovná plocha 3
5.2 Elektrická bezpečnost 3
5.3 Osobná bezpečnost 4
5.4 Použivanie elektrického náradia a starostlivost' on 4
5.5 Servis 5
6 SPECIALNE BEZPECNOSTNÉ POKNY 5
7 PREVÁDZKA 5
7.1 Ostric na vrtaky z rychloreznej ocele (Fig. 1) 5
7.2 Ostric nozov a noznic (Fig. 2). 5
7.3 Ostric sekacov a rovnych cepeli (Fig. 3) 6
8 CISTENIE A UDRZBA 7
8.1 Cistenie 7
9 TECHNICKE UDAJE 7
10 HLUK 7
11 SERVISNÁ SLUŽBA 7
12 SKLADOVANIE 7
13 ZARUKA 8
14 ZIVOTNé PROSTREDIE 8
15 VYHLASENIE O ZHODE 9

MULTIFUNKČNÉ OSTRICPOWX1350

1 ZAMYSL'ANE POUZITIE

11 DEPARTMENTAL SERVICE

23/02/2022, Lier - Belgium

23/02/2022, Lier - Belgium

1 RENDELTETESICEL 2
2 LEIRAS (FIG A) 2
3 CSOMAGOLÁS TARTALMA 2
4 JELZÉSEK 3
5 ALTALANOS BIZTONSAGI SZABALYOK 3
5.1 Munkakornyezet 3
5.2 ElektromosBiztonsag 3
5.3 Szemelyi biztonsag 4
5.4 Az elektromos mukodtetesu szerszamok helyes hasznalata. 4
5.5 Szerviz 5
6 KIEGESZITOBIZTONSAGIELOIRASOK HASZNALATAHOZ....5
7 UZEMELTETES. 5
7.1 Gyorsacel-furo elezio (Fig. 1) 5
7.2 Kés-ésollélezo (Fig. 2) 6
7.3 Ves- es gyaluelez (Fig. 3). 6
8 TISZTITAS ES KARBANTARTAS 7
8.1 Tisztitás 7
9 MUSZAKI ADATOK 7
10 ZAJ 7
11 SZERVIZRÉSZLEG 7
12 TÁROLÁS 8
13 JOTALLAS 8
14 KORNYEZETVEDELEM 9
15 MEGFELELOSEGINYILATKOZAT 9

MULTI-FUNKCIONÁLIS ÉLEZÖGÉPPOWX1350

1 RENDELTETÉSICEL

23/02/2022, Lier - Belgium

1 IcnoJIb3OBAHNE IO HA3HAUHNIO 2
2 OINCAHNE (PNC.A) 2
3 COIDEPJKMOE YNAKOBKN 2
4 YCJIOBHBIE O6O3HAUHIN 3
5 OБцЯ ИНСТРУКЦЯ NO TEXHиKE 6E3ОПАСHOCTN ПРИ PABOTE C 3ЛЕКТPOИHСТРУМЕHTOM 3
5.1 Pa6ooye mecmo 3
5.2 3
5.3 1uHn86e3oNaChocmb...4
5.4 3Kcnnyamauua u yxod 3a 3neKmpouHcmpyMeHMOM
5.5 06cnyxueaHue 5
6 OCObIe MEPbl IPEIOCTOPOXHOCTN 5
7 3KcPJIyATAU..5
7.1 Modynl 3amouku cepn u3 6bcmpopekyeu cmaru (Puc. 1) 5
7.2 ModyJIb 3amOuKU HOKeU u HOxHnU (Puc. 2) 6
7.3 ModyIb 3amouku 3y6uI u py6aHko8 (Puc. 3)
8 OBCJYKINBAHNEI YNCTKA 7
8.1 Yucmka 7
9 TEXHnueCKNE DAHHbIE 8
10 8
11 OTdEIOBcJIyJXIBAHN8
12 XPAHEHNE 8
13 TAPAHTIN 8
14 OKPYKAIOUCA PEDA 9
15 DEKJIAPAUZI O COOTBETCTBIM 10

MHOROΦUHKUHOHAJIbHbI 3ATOUHOCTAHOKPOWX1350

1 IcnoJb3OBAHNE IO HA3HauEHNIIO

Ctahok npedHa3HaueH dIy 3aToOKn rOnOBok CBepn n3 6bICTpopeKyuuei CTan, HOKei C npamK kPOMKo HoxHnU. IpeTaunBaETJe3Bn3y6nI py6aHkoB. He npedHa3HaueH dIy KOMMepueeCKoro NcNoIb3ObaHn..

3 CODEPXMOE YNAKOBKN

• YdaJIInTe BCE ynaKOBOuHbIe MaTePnAbI.
• YdaIInTe ocTaKn ynaKOBKn n peKnaHbIe IncTkn-BkJaNbIiN (ecnn ecTb).
• Поверпе NonHOTу KOMNNEKTA NOCTaBKn.
• Поберпе annapat, синоь кавь, Штencь в Се пинадлесхости на пpeДметовржден рп ТраHCNOPТИРОВKE.
  XpaHnTe ynaKOBouHbI MaTePnAblI NO BO3MOxHOCTN Do nCTeueHnraPaHTnHOrO cPOKa. Iocne 3Toro n36aBbTEcB OT HIX, nCNoJIb3yR MeCTHyIO CnCTeMy yTuIN3aunn 6bITOBbIX OTXoIDB.

PPEyIYPEXKDEHNE: YnakoBOuHbIe MaTepnaJIbI -3TO He nIpyuKn! He no3BOJrTe DeTm IrgpaTb c PnactIKOBbIMn NaKeTaM! EcTb onaChocTb ydyweHn!

-MHOrOpyHKUHOHaJIbHbI CTAHOK
-PykoBoDCTBO no 3Kcnnyatauinn

Ecn n deTann OTCyTCTByOT nnn noBpeXdHbI, o6paTnTeCb K CBOemy dInepy.

4 YCJIOBHBIE OBO3HAUEHNIA

B daHOM pykoOCTBe n/nn Ha camo MaunHe nCnoJb3yOTc CneDyUOune cIMBOJI:

6 OCOBbie MEPbI INPEDOCTOPOXHOCTN

He octabTnIe 7nfoBaHbN kpy 6e3 npncmToPa BO BpeMa erpa6oTbI
- Pn 1nnfoBaHm 6pa3yOTcNCKpbI, DepxKte nOaJIbWe IIO6bIe BocnnamEHNIOUneCeBeeCTBa mATEpnaJIbI.
He kacaTeCb BpaaHIOeOra IINFOBaIbHOrO Kpyra.
BnraTeIb cneuaHbHO hAcTpoEH Ha HeperynpyHyO 3KcnnyatauH, He 6onee 15 Mmhyr HnpepbIBHO pa6oTbl.
He KpeHnTe MoDyI npu pa6oTe wJnfoBaJIbHorO kpyra.
He noIb3yItecb IINIOBaaNbHbIM kpyrom 6e3 yCTaHOBneHHORo MoIyJI.
Ipeed CHaTHeM MoUyBbIKHouHTe NHTaHHe CTaHka N DOxKdNTecb NOJHO OCTaHOBKn 1nfoBaJIbHorO kpyra.

7 3KCPJIYATAUHA

7.1 ModyIb dnn 3amouku ceepl u3 6bIcmpopejyuue cmaru (Puc. 1)

3atauHbaetIIO6bIe roJIOBKn CBePn 36bIcTpopeKyuuei cTaNOT 4do13MM.
- YHnKaJIbHbI peKIM «True Point» obecneuBae ToUHyIO DoBODKy.
ToHoe no3nOHOPOBaHne cBepn dIy 6bICTpopejUe CTAIN nI npabNbHbIX yrnoB 3aTOUK.
- NpeToUka NOJOMaHHbIX rOJOBOK CBePJI.

3ATOUKA TOLOBKN I3 BbICTPOPEKUYUEN CTAJN (1a-1i)

1. YcTaHOBnTe MoyIb 3aToUKN CBepn I3 6bICTpOeJyIe CtaJIH Ha npNbOHDH y3eJ.
2. CHIMMTE 3axm m3 3axmHOn ONpaBkn BCTaBBte rOIOBky CBeprna (1a).
3. CnErKa 3aTaNHe 3axmHoe KOJIbO, yTo6bI rOJOBky CBepJa eUe MoXHO 6blno DBrarTb.
4. YctaHOBNTe 3axm C roJIOBko CBepna B yCTaHOBOUHbI na3, nCNoJIb3yra KaHaBKn B 6OKOBo CTOpOHe dJa erO npabunbHoro noDbOda (1b)

5. IoBBeIte roJIOBky CbePna TAK, YTO6bI OHa IerNa B V-06pa3HyO HnPaBnIouyU n KacaIacb MetaJIInueckoro KOHcEBoro ynopa (1c)

6. NOBOPaHbAeTe roNoBky CBePna, noka V-HanpaBnIooaJe noJIHOCTbIO He nonaDeT Ha roNoBky (1c)

7. Bce 4 yrna npn Bepunhe roOBKn CBepe Na DOnKbI Teepb KacaTbcra CToPOH V-06pa3HO HnPaBJIooe.
8. YcTaHOBnB CBepNo B DaHHoN No3uNN, 3aTAHnTe 3axmHoe KOJIbUO Do NOJHOI KcauN rOIOBKn CBepna (1d).
9. POnHnMnte V-06pa3HyU HApPabJIaIooIyU IN CHmMtTe 3axIM.
10. YcTaHOBnTe 3aXIM I rOIOBky CBepNa B 3aXIMHyO OnpaBky Ha npINBOIDHom y3ne (1e).
11. BkIIOUHTe npINBOdHoi y3eJ.
12. CmeuTe 3axmHyIO npaBky n3 CTOpOHbI B CTOpOHy, npnepKINBa erO naJIbueM (1f)
13. CHIMITE roJIOBky CBepna n onpaBky n nepeBepHnte (1g)
14. CmeuTe 3axmHyO onpaBky n3 CTOpOHbI B CTOpOHy, npnepxNBa ero naJIbCeM (1f)
15. PpOBepbTe paBHyO 3aTOUky peKyuIe KpOMKn I3 O6Enx KaHABOK. OHn DoJNkHB BCTpeHaTbCra TOHO IOCePeDInHe, KaK Ha pnc. (1h), a He Ha pnc. (1i)
16. BbIKIOHHTe npINBOJHO y3eI. Ipeep CHaTneM MOyJI, DOxNTecb OCTaHOBKn ⅢnfoBaJIbHOrO kpyra.

7.2 Modynlb 3amoquku HoKeu u HoXHu (Puc. 2)

• PpeHa3HaueHdna3aTOUKNHOKeNHOXHNUCpPmBIMKpOMKaM
  YHnKaIbHaB BepXHЯ YacTb IJa 3aTOUKN HOKeJ
• Na3 C TOHbIM yrnom dIaTOUKN HOXNlC

3ATOUKA HOXEN (2a-2c)

1. YcTaHOBnte MoDyIb 3aTOUKN HOKeN HoxHNu Ha npNbOBDHO y3eJ.
2. BkHouHTe npBODHOy y3eJ.
   3.Деркnte pykoTky HOxa nepei co6oN VBCTaBbTe Je3BnE B HappaBIOuI Na3 (2a)
3. KaK ToJIbKO Ie3BVe KOChETcI JInIOBaIbHOrO Kpyra, npoBeIte erO cJeRKM HaxIMOM nonepek Kpyra. He npinaraIte 6oJIbWoRo ycINnra (2b).
4. BCTaBBTe BTOpyIO CTOpOHy Ie3BnB B DpyroH HAnpaBnIoun I na3 (2c) n nobTOpnte DeiCTBn4-RO nyHKTa.
5. NOBTOPaIe 3aTOUky KaXdoN CTOpOHyI, NOKa He 6yJeT IOCTnHryTa POBHaJ OcTppa KpOMka.
6. BbIKIOUHTe npINBOHOn y3eI. Ipeep cHrTHeM MOyIa, DOxNITecb OCTaHOBKn 1uioBaJIbHorO kpyra.

3ATOUKA HOXHNU (2d-2f)

1. YcTaHOBnTe MoDyJIb 3aToOuKN HOKeI N HOXHnC Ha npINBOdHOY y3eJI.
2. BkIIOUHTe npINBOHOH y3eJ.
   3.ПОЛНOCtBIO OTKpoTte HOXHnCbl.
3. Bctabte nepBoe Ie3Bne HOxHnB npeDnHn HapabJIOuI na3 (2d). Depxnte Ocb HOxHnU n Dpyroe Ie3Bne C npaBOI CTOpOHbl.
4. IpoBcIte ne3Bne nonepek 7JnHPOBaIbHoro kpyra ot ocN K HakoHeuHKy. NcnoJIb3yTe JERKNI HAXIM, Ha npunaraIte 6oJIbWoro ycUNna (2e)
5. OTBeIte I nepeBepHnte HOxHNuIb, YTOsbI 3aToUHT bTOpoe Jne3BnE (2f)
6. NOBTOPRnTe 3aToKy, noka He 6dyT DOCTNHyTbI POBHbIe OcTpblE KpOMKn.
7. BbIKIOUHTe npINBOHOn y3eI. Ipeep cHrTHeM MOyIa, DOxHITecb OCTaHOBKn 1nloBaJIbHorO kpyra.

7.3 ModyJIb 3amOuKu 3y6uJ u py6aHkoB (Puc. 3)

• Празнадазначен дя посяпуочи щe3вий 3убил и рубанков до 50 ммширноi
• Perynipyembl yroI 3aTockn ot 15^ do 50^
  MoUHbB BCTpoEHHbMarrnT dI npOHO yepKaHJJe3Bn
  3aunTHbIKoKyxDJIPOONHHTeBHO6eONaCHOCTN

3ATOUKAJIe3Bn(3a-3g)

1. YctaHOBInTe MoyIb 3aTOUKN HOKe I HOXHNu Ha npINBOHDn y3eJ.
2. YctaHOBnte Ie3BHe HAnpoTnB 3aHrero BbICTyNa IIaCTnHbI (3a).MaHHT daet BO3MOXHOCTb UdepKaTb Ie3BHe Ha MeCTe.
3. YroJ 3aTOUKN DOJKeH COBnaDaTb C cyueCTByOuIUM yrIOM CKOCA Ha HAKOHeuNKeJe3BnJ. Pn Heo6xOAnMOCTn, NOBtOpTe HAcTpOky.
4. TTo6bI n3MeHnTb yron, ocna6bTe pyky perylnpOBKn yrna (3c), oTperylnpynte IJIaCTINHy n 3aTEM 3aTnHTe pyknypeRyInpOBKn yrna.
5. y6eNTecb, yTO KpOMKa Jne3Bna KaCaETcra UINFOBaJbHOrO Kpyra, 3aTeM BKNIOHTe npNBOHOY3eI.
6. Перемаite ЛеЗви и пл actHy HeпрьIBHO C ЛerКIM HaxIMOM B3aД-Bпeped nonepeK shnФobalbHoro kpyra (3d). He derpxte Jel3BVE B HeNoDBrXHOM COCTOHRN, 3TO MOKeT Bbl3BaTb HEOBHyO 3aTOUky.
7. NocTeenHOn onyckaIte ne3Bne K nlaCTnHe npn 3aToUke (3e). He npnaraIte 6oJbWoro ycInna. BblonHraIte wlnΦOBky nocTeenHNo. PpN Heo6xoDmOcTn, NOBTOpTE wlnΦOBky.
8. OTBeIte Ie3BnE n y6eIInTeSc, yTO KpOMka CkOca N HakoHeuHKn paBHomepHo 3aToueHbI. EcHn Het, OTPeryIpyuTe yroI uNΦoBaHn. CoBepSeHHO Heo6xOdHMo, yTo6bI yroI 3aToUck COBnaJaI C mMeHOUMcryrIoM CkOca Ie3BnA. 3TO DaET Bo3MOxHocTb n36ExaTb cNtUKOM 60JbUoro CkOca MeTaJINa I oBeCneYnBaET ONTImaJIbHbI yROI CTPOraHn PINOCKHX Je3Bn (3f).
9. Пи 3aTOUKe TOHkIx Ne3Bn 3y6nI, NOMEcTne He6OJIbIyIO HAnpaBIAHOyIO 3y6nIHa Na IJIaCTnHy, B KaueCTBe IpOKJIaIDKn, IN BBINOJIHЯITe 3aTOUky, KAK yKa3aHO BbISe (3q).
10. BbIKHIOHTe npBODHOy3eI. Ipeep CHaTHeM MoDyJra, DOxNITcB OCTaHOBKn ⅢnfoBaIbHorO Kpyra.
    11.пердшлнфоваимерекOMeHdyeTc npaBka HakoHeuHnka Jez3BnHa OceJIke.

8 OBCJIYJXKBAHNE N UNCTKA

BHHMaHHe! Npeed BbInOpHeHem IIO6bIX pa6OT Ha o6OpydoBaHn BbIHMaTe WTeNceIbHyO BnIKy n3 p03eTKn.

8.1 Yucmka

CoepKHTe BeHTnIaHIOHHbI eOTBepCTN MaunHb I YnCTOTe IJI ppeoTbpauHne HnepepeBa Dnuratela.
PeryIpaH0 ouuuaTe KOpNyc MaunHbIMrKoTpAnKo,KeNaTeJbHO nocJe KaXdoRo NCnOJIb3OBaHn.
He donyckaTe nonadHnBbIn n rpa3n B BeHTNJrOHHbE OTBepCTnA.
EcnI rpa3b He OTXOINT,NCIOB3yIte MmRkyIO TkaHb,CMOeHHYIO B MbJbHOI BOJe.

Hnkorda He nCnoJb3yIe TaKne pactBOpHTeJI, KaK 6eH3HH, CnnpT, aMMNauchna BODa N T.I. 3TN pactBOpHTeJI MOrYT NOBpeDNTb PnactMaccOBBie DeTJI.

9 TEXHnueCKne DAHHbIE

11 OTDEI OBCJYKBAHNA

3aMeHa NOBpeKdEHHbIX BbIKHouaTeNeI DOJIxHa BbINONHrTbcR B HaUeM UeHTpe nocnepoJaqxHorO 06cnykubAHn.
- Ecnn CnIOBOK Ka6eBb (HII N CeTeBOI WTeNCeB) NOBpeXdE H,ero CneJeYET 3aMeHNb aHaONuHHbIM CnIOBBIM Ka6eNEM, KOTOpbI NOCTABJRETCRA HAWM OTDeJOM 06cnykBaHn. 3aMeHa CnIOBORO Ka6eJIa DOJIKA H pON3BOJNTCB TOnbKO HAWM OTDeJOM 06cnykBaHn (CM. NOCJIeDHIIO CTpaHnUy) IIN KBaJIINΦNIUPOBAHbIM CNEuaJIInCTOM (JIeKTPNKOM).

12 XPAHEHNE

TtataeIbHO ouuauTe Bec b Kompeccop I ero ochactky.
XpaHnTe ee BHe DocTyna IJra DeTeB, B npoxnaHOM n cyxom MecTe, n36eraTc cNtukom BbICOKNX n CnIuKOM Hn3Knx TempeaTyp.
3aunuane ero ot BO3eInCTBn npAmbix cOnHeHbIX lyuei. No BO3MOxHOCTN, XpaHHTe ero B TEMHOM MecTe.
He xpaHnte ero B nonn3TnneHOBbIX MeuKax BO n36eKaHne HAKONNeHn BJaXHOCTN.

13「APAHTN

B COOTBETCTBUN C 3aKoHOdaTeNBbIMN Tpe6OBaHnMaM, DaHHbI npOdyKT ObecneuBaetcra rapaHTneHa cpoK 36 Mecra, Ncucnembl C daTbI npno6peTeHnepBBIM NOKyNaTeJIeM.
JaHHa rapaHTn OXBtBaet BCE depeKTb MaTePnaIOB nI npOn3BOdCTBa, NCKIOUa8 6atapen, 3apndhie yctpoiCTBa, depeKTHbIe DeTAn, NOBepraemble eCTeCTBeHOMy n3Hocy, ocObeHNO Takne, KAK NOIuINHNI, uETKN, KaBEnN uTEnCeNBHbE BUNKn, IINI npHaJNeXHOCTN, TAKNE KAK CBePNa, RONOBKn CBepJI, INNbHbIe NOLOTHa N T. D.; OHa He BKJIouaET NOBpeJeHnN IINI DEpeKTB1, BO3HnKaIOUe BCJeDCTBne HeHaJNeXkaUero ObpaueHn, HeCuaCTHBIX CnyaEB NII BHeceHn N3MeHeH N KOHCTpyKUIO, a TaKKe H BKJIouaET TpaHCnOpTHbIe paCXoDbI.
IIOBpeKdEHHNnHnDcΦeKtbl, Bo3HnKaIOUne BCJeCDTBHe HnPaBnBHOJ 3KcJIpyaTauu, TaKKe He nOJaHaOT nOy cNoBn DaHHoR rapaHTm.
MbI TaKke OTKa3bIBaEMcR O T BCeX 063aTeJIbCTB B OTHOWeHn IIO6bIX TeNEChbIX NOBpeKJdeHn, BO3HnKAHOx BCneDCTBHe HEnpaBnBHOkCNpyaTaUHnHCTpyMeHTa.

• PeMoHT MoXeT BbINOJIHrTbcra TOnbKO B aBtOpN3ObaHHOM ueHTpe 06cJyKnBaHn nOKvNaTeNeuHCToyMeHTOB Powerplus.
• DOnOpHInTeIbHyIO INΦopMaζIIO BbI BcERda MoKTe NOJyUHTb NO TeNeΦoHy 00 32 3 292 92 90.
  IIO6bIe TpaHcnpTHbIe pacxOdbI DOJXeH HeCTn NOKyNaTeJIb, ecNI He corJaCoBaHO INHOE B IINcMbHeHOn FOOpMe.
  BmecTe C TeM, He MoKet 6bIb IpeDbraJeHo HnKaKo IpeTeH3nn No rapaHTnn, ecnIOBpeXdEHeYcTPOiCTBa RaJIaETcpe3yJIbTaTOM He6peXHOro 06CJyXnBAHNr ININ pepeDV3KN.
  I3 rapaHTn ONpeJeHNO NCKIOaTcN NOBpeXdHHe, BO3HKnAOUe BCJeDCTBHe npOHKnHOBeHn JNDKOCTN, CNbHOrO 3aNbJIeHn, YMbIuJIeHHOro NOBpeXdHn (npedHaMepeHNo IIN No rpy6oN He6pexKHOCTN), HnPaBnBHOJ kCnPyatauN (NCPOJb3OBaHnY cTpoiCTBa He No Ha3NaueHIO), HnPaBOMOuHOro NCIOJIb3OBaHn (HaNPmep, HecobIODeHn IHCTpykCNI, nPnbEDeHHbIX B pyKOBOdCTBe), HeKBaIIΦnIupoBaHHo c6OpKn, pa3paMoHN, HnPaBUNbHOrO HapJxKeHn CetN. DaHHb cnICOK He JaBIAETcN ChepnbIBaIOUM.
• IpnHrTne npTeH3n no rapaHTn He rBJIeTc8 OCHOBaHNem nI npOJIeHnra paaHTnHO nepNoDa nJn Ha3HaueHnRA HOBO rapaHTnHO rpeNoDA B CJIyuae 3aMeHb VCTPOINCTBa.
  YcTpoIcTBa HnN DeTaHn, 3ameHeHHbIe N0 rapaHTn, OCTaOTc CO6CTBeHHOCTbIO KOMNaHnVaro NV.
  MbI coxpaHЯem 3a co6oI npaBO OTka3aTb B yIDOBNETBopeHn IpeTeH3n BO BCEX cnUyax, KOrDa He MoKet 6bITb NOITBepKdEh PAcK T NOKyIKN, INI KOrDa OueBvIHO, YTO 3a H3eINEM He npOu3BODIncR HaJIeJxAun yXoI. (OChCTKa BeHTUNrAIOHHbIX OTBepCTn, peryJrPHoe O6ClyKuBaHne VOrlbHbIX UETOK n.T.n.).
  Дя подевелядын рокунки сеутхраинтук.
  BaIe yCTpOcTBo CneDyET Bo3BpaAaTb NocTabuNky B Hepa306paHOM BnDE, B npIeMJIeMo YnCTOM COCTOHN (B OpiTuHaNbHOI IpOTuBOyDaPHOYyNAKOBKe, ecn TAKOBa IMeJaCb), pUIOKIN BOKMENT O NOKYnke.

14 OKPYXAIOLJAR CPEDA

EcnB Bau annapat tpe6yet 3aMeHbI nocne dnteJbHO rnoJb3OBaHn, He Bbl6paCbBaIte erO BmecTe C DomaunM Mycopom, a NcNoJIb3yIte 3KoJOnuYeCKn 6e3onachbI cnoc06 dJe erO yTuJIn3aun.

C OTXODAMN DeTaIe NJIeKTpUeCKNX MaUNH HeJIb3aOBpaAaTbcKaK C O6bIyHBIMN 6bITOBbIMN OTXODAMN. I03a6OTbTEcB 6bYtINn3aun TAm, IDe IJN 3TOrO eCTb COOTBETCTByIOUne yCTaHOBKn. IpOKOHcyNbTnpuYTeCb y MeCThblx OprAHOB BJaCTn INN Y npOdaBua O BO3MOXHOCTN YtINn3aUnn.

15 DEKJIAPAUZI O COOTBETCTBNI

Vario

VARO N.V. - Vic. Van Rompuy N.V Joseph Van Instraat 9 - BE2500 Lier - BEBNIA, HACTOUIM 3aBJIeT, UTO,

PpOdyKT: MHOFOyHKUHOHaBbI 3aTOuHOcTaHOK

Mapka: POWERplus

mOeIb:POWX1350

COOTBETCTByET O63aTeIbHbIM Tpe6OBaHnM INHbIM COOTBETCTByIOUm NOIOXeHnM DeiCTByIOuIX EbponeiCKnx DnpeKtNB, OCHOBaHHbIX Ha EbponeiCKnx rapMOHN3IpOBAHHbIX CTaHdapTax. IIO6oe HecaHKUHOHnpoBaHHOE n3MeHeHne yCTpoiCTBa aHHyInpyeT daHHOe 3aYBJIeHne.

Ebponeckne dnpekTbbl (Bknnoaay, ecn npmeHmo, nx nonpaBkn do daTbI noDncaHna);

2011/65/EU

2006/42/EC

2014/30/EU

Ebponeckne rapMOHN3npoBaHHbIe cTaHdapTbI (BKNIOUa, eCNN npIMeHMo, INX nonpaBKn Do DaTbI NOINscaHna);

EN 62841-1:2015

ENIEC55014-1:2021

ENIEC55014-2:2021

ENIEC61000-3-2:2019

EN61000-3-3:2013

Держателlexнческй дokум entaци:Филп Ванkeхов (Philippe Vankerkhove), VARO -Vic.Van RompuN N.V.

HnKeNoDnncabuNc daeCTbyeT OT nMeH NcnonHntelbHOro dIpeKTopa KOMnaHIn,

Mertens Ludo

Ludo Mertens

OTdHn HopMOKoHTpOJa -MeHeJxep no BOpocam cornaobAHm

23/02/2022, Lier - Belgium

1 IPEdHA3HauEHNHe HA yNOTPEbATA. 2
2 OINCAHNE (FIG A) 2
3 CnncbK HA CbIbPjXAHNETO HA IAKETA 2
4 CnMBOJIi 3
5 OБшИнСТРУКUIM 3A BE3ОПАСHОCT 3
5.1 Pa6omHa 3oHa 3
5.2 EneKmpuuecka 6e3onacHocm.. 3
5.3 JIuHa 6e3oNaChocm 4
5.4 3no36aHe u apuxu 3a Mexau3upaHua UhcmpyMeHm... 4
5.5 Cep8u3Ho o6cIyXeAHe 5
6 ⅡОПьЛНITEЛНМЕРКИЗАБE3ОПACHOCT...5
7 PAEBOTA 5
7.1 MauuHa 3a 3amOueAHe Ha 6ucOKocOpocmHu cmOMaHeHu 6ypauu ((Fig. 1) ....5
7.2 MauuHa 3a 3amOueAHe Ha HoxoE u HoXuU (Fig. 2) 6
7.3 MauuHa 3a 3amOeAhe Ha dIemoeBudHu u nlocku ocmpuema (Fig. 3).6
8 NOUHCTBAHE IN IOIDPbJKA 7
8.1 Nocmeane 7
9 TEXHnueCKXAPAKTEPNCIKN 8
10 8
11 OTDEI CEPBn3HO 8
12 CbXPAHEHNE: 8
13 TAPAHU 8
14 OKOJIHACPEDA 9
15 DEKJIAPAUJ3A CbOTBETCTBNE 10

MHOROΦΥHKΙΝΟHAJIHA MAΙΝΗ 3A 3ATOΥBAHEPOWX1350

1 ПЕДHA3HAUECHNE HA YNOTPEBATA

3aTOUBA BNCOKOCKOPOCTHn CTOMaHEH 6yprHn, npaBn DByoCTpn HOKOBe n HOXuN. IJIINFOBa dIeTOBnHN n IIIOCKn OCTpneTa. HenoDxOJa3 a npoPecNoHaJHa ynotpe6a.

IpeynpejdeHne Ipei Da n3noBate ypea npoyeTe BnmaTeJHo TOBa pkoBoDCTBO n 6uHTe HcTpyKcun 3a 6e3onacHOCT, 3apaN BaWata co6CTBeHa cnypHocT. BaWnT MexaHn3npaH INcTpymeH Tp8Ba Da ce npedAba Ha dpyr caMo 3aeDHO c HactOraUte INcTpyKcun.

2 OПИСАНЕ (FIG A)

1. KJIIOU 3a BKN./n3Kn
2. V-6pa3eH BODaU
3. Cko6a
4. Cnot 3a 3aToUbaHe Ha HOKOBe
5. Cnot 3a 3aToUbaHe Ha HOxu

6. 3aunTeH ekpaH

7. Perynpyem bbrn Ha 3aTOUbaHe OT 15^ - 50^

8. MarHHTN
9. Bɔdau Ha dneTOTO
   10.Блokирацбутон

3 CпсьК HA СьдьРжAHNETO HA ПAKETA

• OtctpaheTe BCnKoNAKOBbHm MaTePnAaN.
  OTCTpaHeTe eBHTyaJIHn dpyr n ONaKOBbUHN I BpeMeHHN NOCTaBKN (aKO mMa TaKINBa).
  PpOBepTe daHn naKeTbT CbIbpxKa BCNUK KOMNOHeHTN.
  IpoBepTe daHypeBt,3axpaHbAunrKa6en,ueencnT n akcecoapTe He ca 6nn noBpeDeH np TpaHcnpTupaHe.
• Na3eTe onaKOBbUHnTe MaTePnaI N KOLKOTo e Bb3MOxHO NO-daJeu Do KpaHa rapaHcIOHHn IepNo. 13XbPneTe B nyHKT 3a Cb6ipaHe Ha OTNaIDbU, KOrATo ypeBt n3JIe3e ot ynoTpe6a.

BHIMAHHE! OnakobbHnTe MaepnaHn He ca npraKn! He no3BONBaTe Ha deca da npraT c haJIOHOBn TOP6uKn! Pnck ot 3adywaBaHe!

MHoroofyHKnOHaJHa MaunHa 3a 3aToUbaHe
HapbUnK Ha NTopeBteJra

B cnya, Ye hakon qactn Iuncbat nIc na nobpepeH, CBbpxeTe ce C MeCTHn npedctabnteJ.

4 CnMBOJN

B HacToaHnHaPbUHNK N/INN BbPxv MaunHaTa ca N3NoJ3BaHn CJIeHHTe CmBOJN:

HnBO Ha 3BykoBaTa MoUHOCT LwA 89 dB(A)

BHIMAHHE! HocTe INHINBnDyAJIHN npEJa3Hn cpeCTBa 3a Clyxa (aHTnΦOHH), aKo 3ByKOBOTo HaJraHe npeBnU 85 dB(A).

11 OTDéJI CEPBn3HO

• POBpeHHeIte npeBknUcbTeaIu Tp8Ba Da 6bDat CMeHEn OTo HauNn OToDen no ycnyrncne npodax6a.
  Ako cbeHnHTeHNHa Ka6en (nnu uence) e noBpeDen, ToT Tpr6Ba da 6bde 3aMeHeh Cbc CneunPueH cBeHnHTeEN Ha pa3noJoxEne B HauHn OTeJn NO o6cnyXbaHe. CmHaTa Ha cbeHnHTeHNHa Ka6en MoKe Da 6bJe N3BbPseHa CamO OT HauHn OTdE N0 6cbNyXbaHe (BHX NocJeDHaT a CTpaHnua) nn ot KBAHnΦnUpHo Jnue (KBAHnΦnUpAn ENEKTPOTEXHK).

12 CbXPAHEHNE:

IouncTeTe HnblHo ypea N BCNUKHTe My DonblHNTeHN YacTN.
CbXpaHraBaTe Ha HeIOCTbNHN 3a Deca MeCTa CtaBnHO N 6e3OnaCHO NOLOKeHne, HcTyeHO n cyxo MRCTo, KaTO n36yraBaTe CbXpaHeHneTo npn PpeKaJIeHO BNCOKn HnCKn TEMpePaTypn
3aunTe ypeo aT doctbna Ha npka cHueBa CBeTnHa. CbxpaHraBte ro Ha TBMHO, aKO e Bb3MOXHO.
He cxbxpaHbAaTe ypeBa B noJIeTnJIeHOBn PIIKOBe, 3a da ce n36erHe OBnaXHbAhe.

13 TAPAHUN

To3n npOdyKT nMa rapaHcNoHcPok 36 Meceua, KoITo BnHa BCnna OT daTata Ha NOKyNkA Ha IIpbBnA notpe6nten.
Ta3n rapaHnI npKpBa BCnKn DeeEeKn Ha MaTePnAIn N IpOn3BOODCTBHeN DeeEeKTHN, HO He BKNIOyBa: 6aTeepn, 3apAnHn yCTPOcTBA, DeeEeKTHN Yactn BCJeDCTBne Ha HopMaJIHO n3HOCBaHe n 3TPBaHe KaTo NaReepn, YeTK, Ka6eN n IepeCen nn AkcecoApn KATO CBpeJNa, HApKaHnU 3a npoNBn INHCTpyMeHTn, pexeU n DnCKOB e T.H., NOBpeDN n DeeEeKn PpOu3TuauN OTHnpaBnHa yNOTpe6a, 3NoONyKn Nn HAnpaBeHN npomeHn, HTO TpaHCnOpTHNte pa3XoDn.
- Поврд n/илл дфektn npo3TuHaaun OT He npaBnH O ynoTpe6a He ce obXbaaat OT Te3n rapaHcNoHHu cNoBna.
OcBHe TOBa He Hocm HnKaKbA OTROBOpHOC 3a TeNeCHn HapaHbAHn IpOn3TuHaUN OTHnpaBnHata yNoTpe6a Ha nHCTpyMeHTa.
PemOHn Moar Da 6bDat N3BpWbaHc Camo OT ynbHOMOeH NOTpe6ntenckn cepBu3eH ceHTbp 3a eJNEKTPONHCTpyMeHTn.

Mokete da nojyute donbHnTeHa HOpMaun Ha Homep 00 32 3 292 92 90.
BcunK TpaHcnOpTHn pa3xoDn ige 6bDat noeTn OT nOte6nten, OCBeH aKO nncMeHo He e dorobopeHo dpyro.
BcbuTo BpeMe, He Morat Da ce IpeIaBbAT npeTeHcNn No rapaHcNtA, aKo NOBpeDaTa Ha ypeJa e BCneIcTBHe OT npeHe6peRbaHe Ha TexHueCKOTO 06CnyXBaHe nn npetOBapBaHe.
- Ot rapaunra KaTeOpuHc Ce n3KJIIOUba NOBpeJa, KOrTO e B pe3yIITAT OT npOHKBaHe Ha TeuHOCT, MHOro npax, IpeHaMepeHa NOBpeJa (ymnJneHa nnnpaDi TotAnHO 6e3rpNKe), HeNoXoJaIo No3NoJ3BaHe (n3NoJ3BaHe 3a ceJI, 3a KOnTO ypeDbT He e PNOxOJa), HEKOMNeTeHTHO n3NoJ3BaHe (HaNP. Hecna3BaHe Ha IHCTpyKUnTE B pkoBOdCTBOTo), HEKOMNeTeHTeH MOHTaK, rpbMOTeBnueH yap, HenpaBnHb HO HanpexEHe. To3n cnncbk He e n3YeepNaTeJeH.
- Примано Ha rapaционнпетeциннкога He moxe da dobepe Do ydblkaBaHe Ha rapaционнсpoK, HnTo Do 3anOuBaHe Ha HOB rapaционнсpoK B cnUyai Ha 3amHa Ha yctpoiCTBO.
- UcTPOIcTBaTa NIN DeTaNITE, KONTO ca 3aMeHeH CbO6pa3HO rapaHcNIOHHnTe ycNOBnA, cIeIOBaTeJIHO OCTaBAT CO6CTBEHOCT Ha Varo NV.
Hne cn 3ana3BaMe npaBTo Da OTXBpJIM BcRA Ka npeTeHcNIA, B cIyuae ne NOKyPkata He MoKe da 6bJe npOBepHa Hn, KOrato e aCHO, Ye npOdyKTbT He e NOdkbxahn npabUNHO. (NouchTaHe Ha BeHTnlaUOnHHnTE OTBOp, PeoBHa NoDpBXkKa Ha KapboHOBnTe YETKn,...)
CbxpaHbAaTe PaKTypaTa 3a NOKyPkata KaTO DOKa3aTeJCTBO 3a DaTata, Ha KOrTo e HappabeHa T.
Tp86Ba Da BbPHeTe HeDEmOHHTnpaHn HNCTpyMeHT Ha npOdaBau B npHemNBO YnCTO CbCToRHe, B OpiuHaHTo My JIto Kyapue, aKO yCTpoiCTBOTO mTaKOBa, PnIDpyKaBaHO OT Doka3aTeNCTBOTO 3a NOKyPkata.

14 OKOJIHA CPEDA

3a cnuyaTe kOrato MaunHaTa ce HyKdae ot CmHa Ha qactn cneI npOdbJnxTHeHa yNoTpe6a, cbuTe da He ce n3XBpIaT B KoΦnte 3a 6ntOBn OTnaDbUa, a Da ce n3XBpIaT no ekONOrnHo cbo6pa3eH hauH.

EneKtpoTeXnuecknte npOdykTn 3a 6paK da He ce n3xBbpIaT 3aeDHO B KooHte 3a DomaknHcN OTnaDbuN. CbUNTe Da ce peunKnpaT, aKO mMa cBOpBXeHn 3a TOBa. 3a NOBEe NODpo6HocTn No Ipeopbknte 3a peunKnpaHe Da ce HappaBn 3aINTBaHe Do MeCTHnte Bnactn nn do.

15 DEKJIAPAUÇNIA 3A CbOTBETCTBNE

VARO N.V. - Vic. Van Rompuy N.V Joseph Van Instraat 9 - BE2500 Lier - Bellenia ДекларираТ, чe

Tin MaunHa: MHOpyHKcnoHaJIHa MaunHa 3a 3aToUbaHe

Mapka: POWERplus

Home Ha aptnkyla:POWX1350

e B CbOTBcTCTBnE C OCHOBHnTe N3NCKBaHnry N DpyrN CbOTBeTHn pa3npoe6n Ha npINOxKmnte Ebponeickn DnpekTNBn, 6a3npaHn Bbpxy npJlaraHTo Ha EbponeiCKnTe xapMOH3npaHn CTAndaptN. Bcya HeynbHOMoUeHa MoINΦnKaUng Ha anapaTa anyInpa Ta3n DeKnapauu.

Ebponeckn DnpeKtBn (BKIOHHTeJIHO TexHITe npomeH NbM DaTaTa Ha NOIINCBaHe, aKO ca npINOxIMN);

2011/65/EU

2006/42/EC

2014/30/EU

Ebponeckn xapMOH3npaHn cTaHdapTn (BKnIOHTeJIHO TexHNTe npOMEHN KbM daTaTa Ha noDnncBaHe, aKo ca npNUOxIMN);

EN62841-1:2015

EN IEC55014-1:2021

ENIEC55014-2:2021

EN IEC 61000-3-2:2019

EN61000-3-3:2013

CbXpaHnTeHa TexHnueckata DOKyMeHTaUra: Hnn BaHkepKxOB, VARO - Vic. Van RompuY N.V.

23/02/2022, Lier - Belgium

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

Copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:

IBERICA BRICOLAGE S.L. - ESPANA

ASIA PACIFIC HONG KONG Ltd / SHANGHAI PRC

AUSTRALIA Pty Ltd / GERMANY GmbH
