USER MANUAL POWX1280 PowerPlus

TOURET DOUBLE AVEC ARBRE FLEXIBLE 120 W

Copyright © 2022 VARO P a g e | 3 www.varo.com DOUBLE BENCH GRINDER WITH FLEXIBLE SHAFT 120W POWX1280 1 INTENDED USE This is a combination tool and has several functions:

1. Double bench grinder.

a. The grinding disc was developed mainly for the machining and sharpening of knives, scissors, shears, chisels, etc. and tools with cutting edges. b. The buffing disc is developed mainly for polishing and cleaning.

2. Flexible shaft with rotary multi tool.

With the flexible shaft you can work very precisely. Your rotary multi tool has been designed for drilling, routing, engraving, polishing, cutting, grinding and sanding of wood, metal, plastics and stone. Alt other applications are expressly excluded. Not suitable for professional use. Attention! Only grinding discs must be used which have been tested to DSA standards and which carry information about the maker, kind of bond, dimensions and permissible rotary speed. Warning! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. 2 DESCRIPTION (FIG. A)

8. Rotary multi tool

12. Grinding disc cover

Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug and all accessories for transportation damage. Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system

WARNING: Packaging materials are not toys! Children must not play with

plastic bags! There is a danger of suffocation!

A – 1 x polishing paste B – 5 x abrasive belts Ø15 mm B – 1 x arbor for abrasive belts Ø15 mm B – 5 x abrasive belts Ø9 mm B – 1 x arbor for abrasive belts Ø9 mm C – 5 x polishing felts Ø25 mm C – 5 x polishing felts Ø13 mm C – 1 x arbor for polishing felts D – 4 x cleaning brushes E – 3 x brass brushes F – 12 x cutting discs Ø32 mm F – 40 x cutting discs Ø24 mm F – 1 x arbor for cutting discs G – 2 x collet chucks (2.0 - 2.4 mm) G – 1 x combination spanner H – 1 x dressing stone I – 5 x milling cutters J – 5 x pencil grinders K – 5 x pencil grinders If any parts are missing or damaged, please contact your dealer. 4 SYMBOLS The following symbols are used in this manual and/or on the machine:

Denotes risk of personal injury or damage to the tool.

In accordance with essential requirements of the European directive(s).

Read manual before use.

Mandatory use of eye protection.

Electrical products must not be disposed with the domestic waste.

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructionsPOWX1280 EN Copyright © 2022 VARO P a g e | 5 www.varo.com for future reference. The term "power tool" in the safety warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

Keep working area clean and well lit. Untidy and dark areas can lead to accidents. Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock. Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed. Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock. Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock. When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock. If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury. Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury. Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely. Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury. Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts. If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.POWX1280 EN Copyright © 2022 VARO P a g e | 6 www.varo.com Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired. Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users. Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control. Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR BENCH GRINDERS

The machine is equipped with a three-core power supply cable and a plug with an earth pin. It is therefore essential that it should be plugged into a standard socket, properly earthed and protected upstream against overloads (by a 16 A fuse or a 16 A magneto thermal safety device). If you use an extension cable, make sure it is also three-core with earth. The supply cable is intended for normal conditions of use. It is designed to resist normal mechanical stresses. Do not make loops in the cable or put objects which might damage it on top of it. Also make sure that the cable does not come into contact with any liquid or any source of heat and that it is not used in a damp environment. Do not withdraw the plug from the socket by pulling on the cable. Before any maintenance operation, manipulation or any intervention on the machine (such as assembly, disassembly, adjustment, etc), always disconnect the power supply plug and wait until the machine has come to a standstill. It is compulsory to wear certified gloves and protective goggles when using the device. Never use the machine without its protective guard and “spark guards”. Always check that the work supports are firmly fixed before using the machine. As the wheel wears down, adjust the work support and screen slide: − 1.5 mm between the work support and the wheel; − 2 mm between the slide and the wheel. When using the grinder, stand in a stable, balanced position, without stretching, and keep children at a distance. Never leave the machine running unsupervised. Keep the workshop clean and tidy. Before use, make sure the grinding wheels are not damaged or cracked. If there is the slightest doubt, replace at once (a damaged grinding wheel can fly apart at speed). Replacement grinding wheels must be identical in characteristics and dimensions. This machine is not suitable for grinding soft substances such as lead, magnesium or light alloys.POWX1280 EN Copyright © 2022 VARO P a g e | 7 www.varo.com 7 ASSEMBLY Attention! Before performing any work on the equipment, pull the power plug.

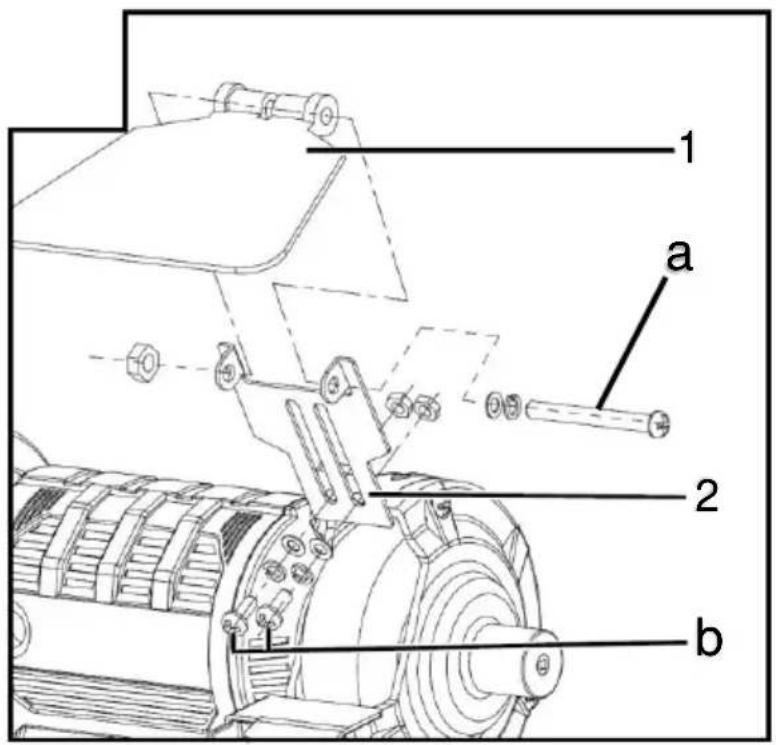

7.1 Eye shields/spark arrestors mounting (Fig. C)

• Before use, the eye shields/spark arrestors (1) must be fitted to the grinder.

• Remove both eye shields and metal mounting brackets from the packaging.

• Fit the 2 metal mounting brackets (2) on the front of the grinding wheel guard with the bolts (a), washers and nuts.

• Position the shields over the two mounting brackets above the grinding wheels with the flanges of the spark arrester facing away from you, fix with the bolts (b), washers and nut provided.

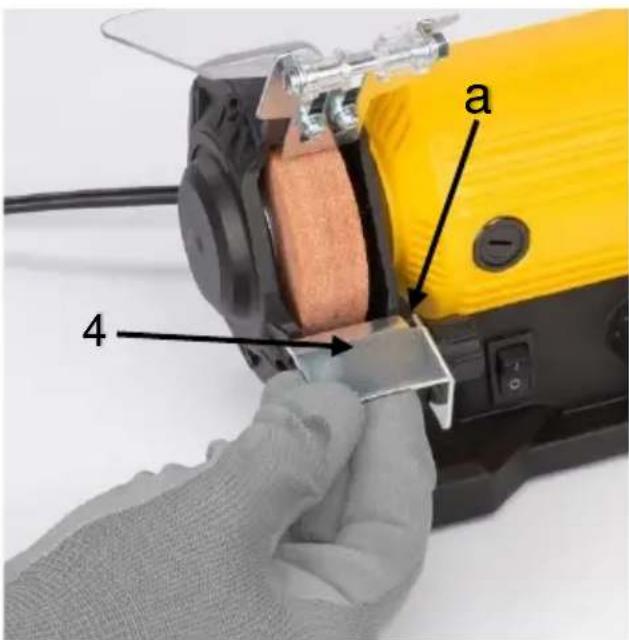

7.2 Work rest mounting and adjustment (Fig. D)

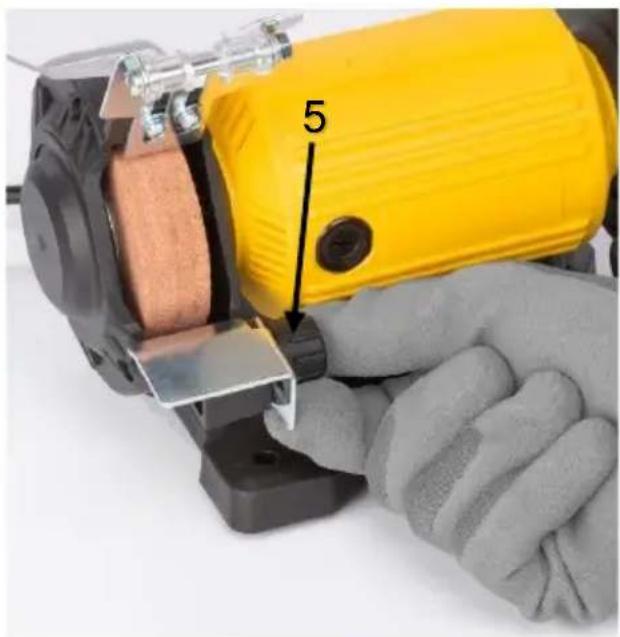

• Take the work rests (4) out of the package, fix on the grinder with the knob (5) and nut provided as shown in figure D.

• Make sure the gap (a) in the edge of the work rest is pointing towards the disc.

• The gap between the rests and the wheels should be checked before use.

• Measure the gap between the grinding wheel and the rests; this should be as small as possible not greater than 2 mm, if not, loosen the two knobs on each of the rests, set the correct gap and fully tighten.

• The gap must be maintained as the wheel wears.

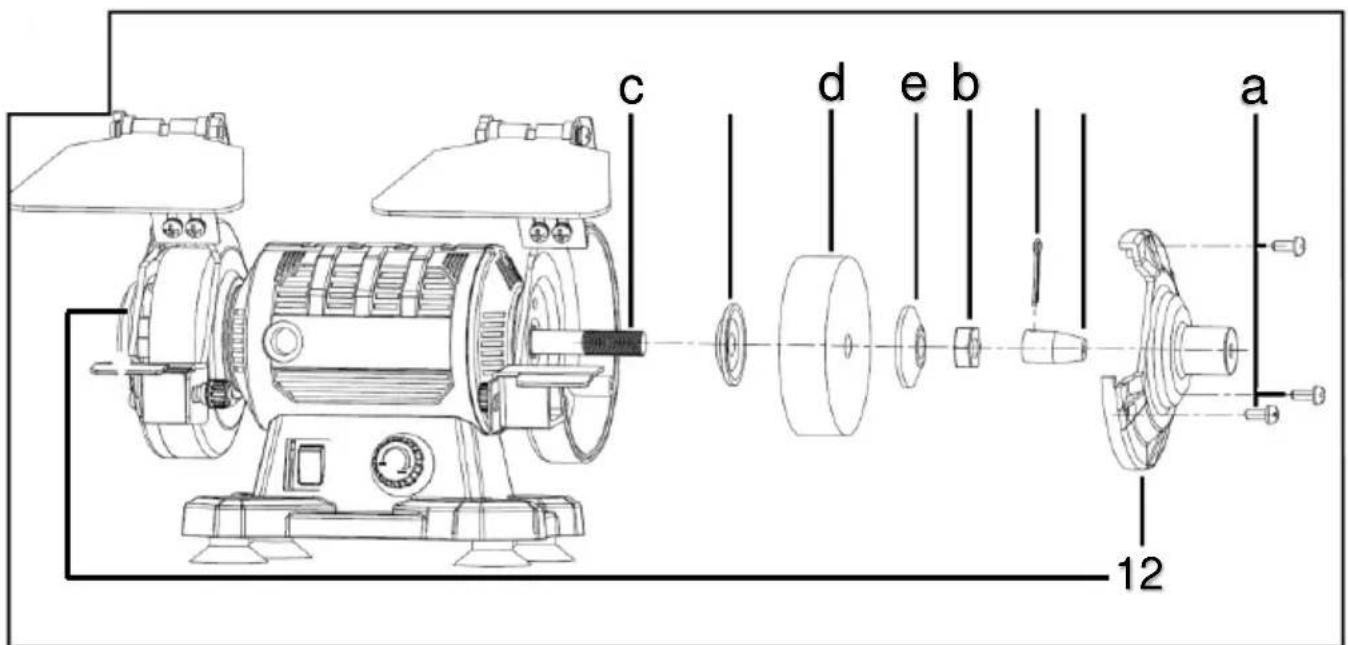

7.3 Changing the grinding wheels (Fig. A & E)

• If you want to change the grinding wheel on the right side (Fig. E):

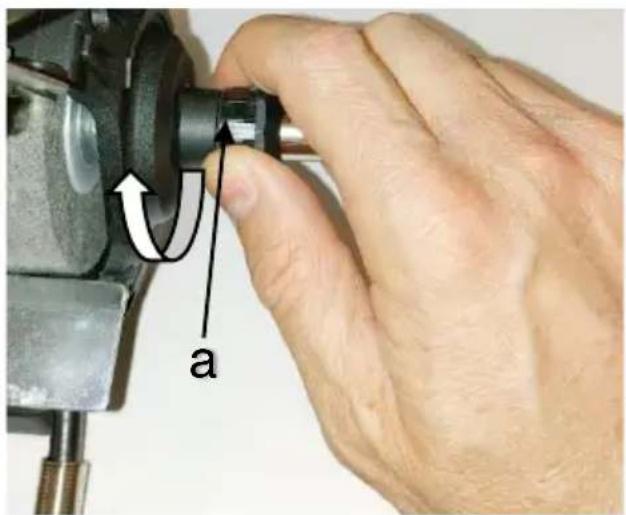

• Unscrew the rotary tool (8) by turning the locking ring (a) clockwise (reverse thread).

• Using a screwdriver, remove the screws (a) from the protective cover.

• Remove the protective cover (12).

• Unscrew the nut (b) from the shaft (c) using a 17 mm wrench.

• Place the new grinding or buffing disc on the shaft (c).

• Push the tension disc (e) back onto the shaft (c).

• Screw the nut (b) back onto the shaft (c).

• Hold the disc (d) that you have just attached firmly in one hand to create a suitable counterpressure.

• Re-tighten the nut (b).

• Refit the protective cover and fix it in place by tightening the screws (a).

• For the right side only (Fig. E): Screw the rotary tool (8) back onto the connecting thread (b) of the appliance.

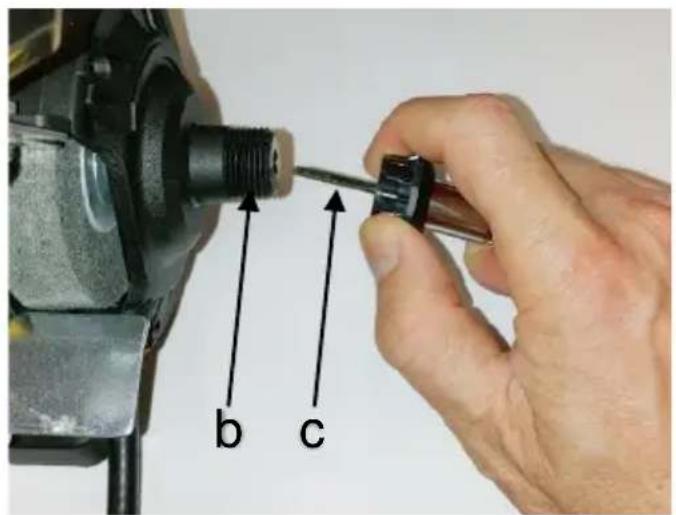

• To do this, push the square axle core (c) of the flexible shaft into the square hole on the connecting thread.

• Turn the locking ring anticlockwise (reverse thread) to tighten it. Never use the grinding or buffing disc without the protective cover! Do not tighten the nut too much since the grinding disc could break.POWX1280 EN Copyright © 2022 VARO P a g e | 8 www.varo.com

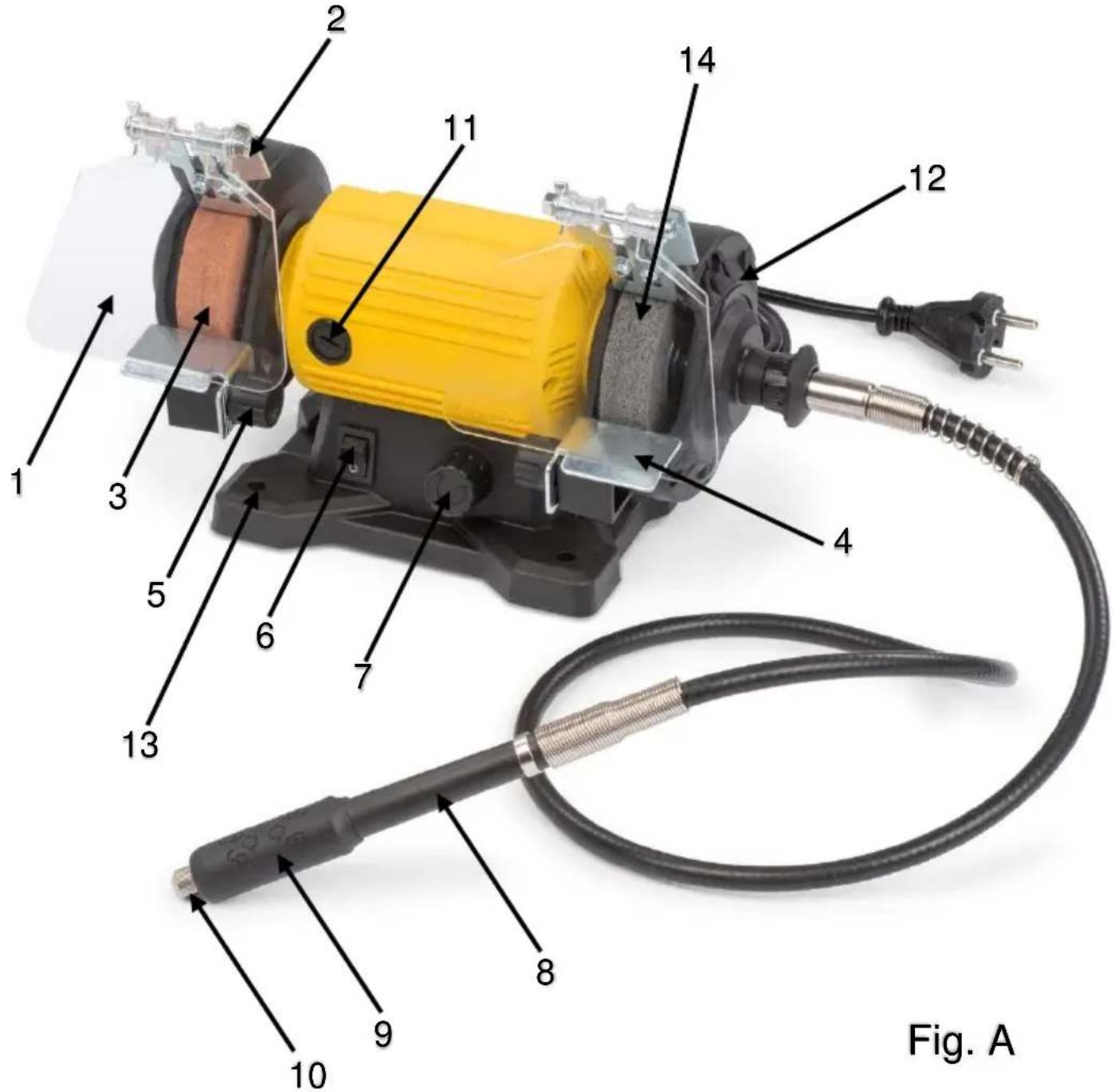

7.4 Changing the fuse (Fig. A)

In the event of an electrical shortcut, the fuse (11) can be replaced by turning and removing the fuse cover (11) with a flat screwdriver.

• Make sure the grinder is securely mounted; mounting holes (13) are provided in the base of the grinder for this purpose, but the screws are not provided.

• Plug in the mains supply and push the on/off switch to the “on” (I) position.

• The grinder speed can be adjusted using the speed dial (7).

• Switch off and unplug the grinder when not in use.

8.2 Using the grinder

• Your bench grinder is useful for sharpening tools, e.g. drills, chisels; refacing tools, e.g. removing burrs from tool edges; removing material, however this is not a heavy duty tool and is designed primarily for light home and hobby use.

• The two different types of wheel will allow the grinder to meet various needs.

• Typically, use the coarse grinding wheel for rough cutting, i.e. removing a larger amount of material.

• Use the medium wheel for finishing to leave a smoother surface.

• If the grinder is used on soft metals such as aluminium, the wheel will soon clog and will have to be changed.

• At all times, let the grinder do the work, do not force it or apply excessive pressure to the wheel/cutter.

• Try to use the tool rest for supporting and guiding the workpiece.

• Do not grind using the side cheeks of the grinding wheel as undue pressure on the side of the wheel could cause the wheel to shatter.

8.3 Using the rotary tool (Fig. A)

Attention! Before performing any work on the equipment, pull the power plug.

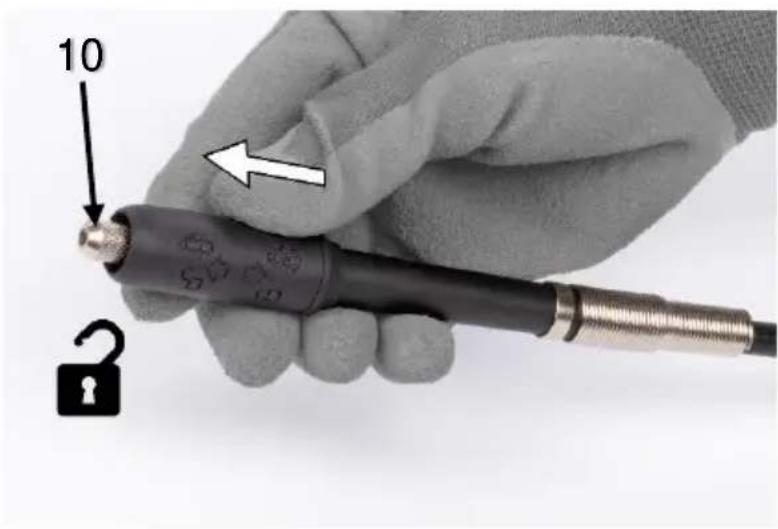

8.3.1 Fitting bits and tools (Fig. G)

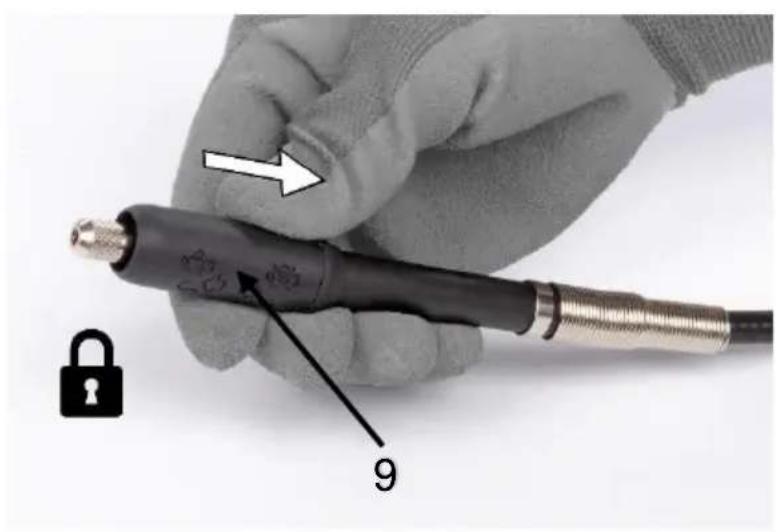

• Push the spindle lock collar (9) all the way back onto the flexible shaft to lock the spindle.

• Loosen the chuck mount (10) an anticlockwise direction.

• Hold the spindle lock collar (9) in this position.

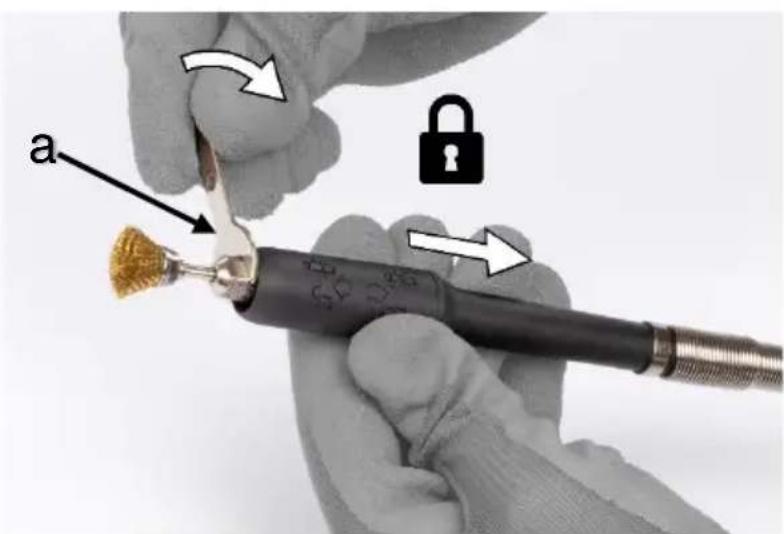

• Use your fingers or the combination spanner (a) to undo the collet chuck mount (10) on the flexible shaft.

• Fit the tool and screw the collet chuck mount (10) back into place.

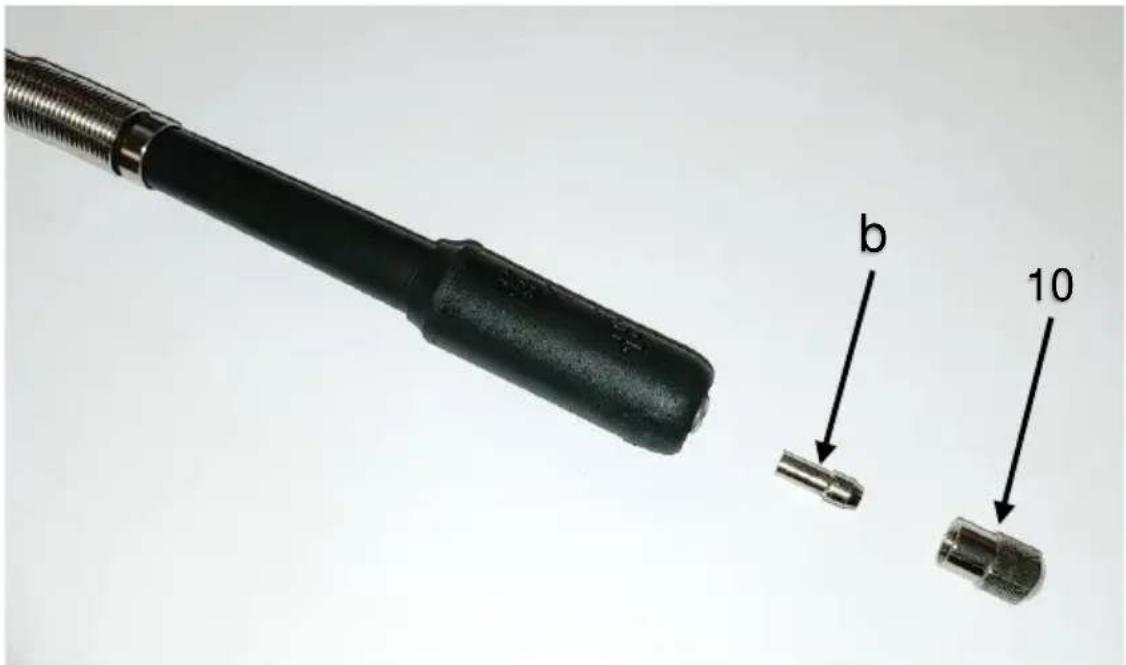

• You can change the collet chuck (b) if the shaft diameter of the tool you want to use is different.

• Push the spindle lock collar (9) all the way back onto the flexible shaft to lock the spindle.

• Make sure that the collet chuck mount (10) is loosened in an anticlockwise direction.

• Hold the spindle lock collar (9) back in position.

• Use your fingers or the combination spanner (a) to undo the collet chuck mount (10) on the flexible shaft.

• Unscrew the collet chuck mount (10).

• Remove the collet chuck (b) and replace it with a collet chuck with the desired diameter.

• Place the collet chuck mount (10) back on the rotary tool shaft.

Attention! Before performing any work on the equipment, pull the power plug. Do not use the tool on light metal with a magnesium content exceeding 80%, as this type of metal is flammable. Always test any bit or tool on a scrap piece or invisible part of the working material to avoid damage to the workpiece.

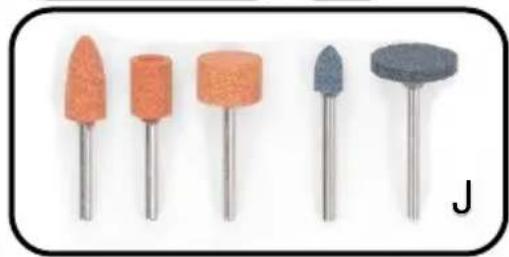

8.4.1 Grinding bits (J & K)

Use: Sharpening, deburring, rust removal, shaping. Tip: Clean and shape the grinding bits with the honing stone (H).

8.4.2 Grinding points (I)

Use: For fine engraving of various materials. Tip: Work on metals at a low speed and process as if it were hardwood. Plastics must be processed at low speeds because of their tendency to melt during processing. Operating multi tool at a higher speed will lessen vibration.

8.4.3 Honing stone (H)

Use: Cleaning and shaping grinding stones

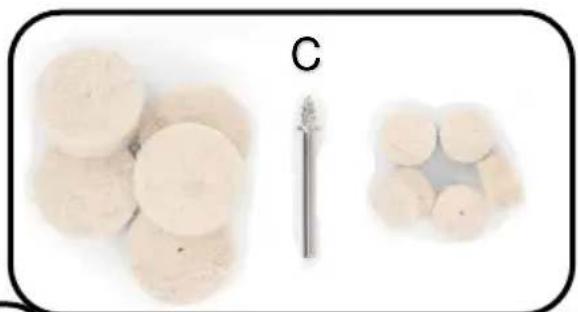

8.4.4 Polishing discs (C)

Use: Polishing metals and grinding stones. Attention: Only polish with the sides of the disc. The head of the stone would will leave scratches on the work piece. These can be used in combination with the polishing paste (A).

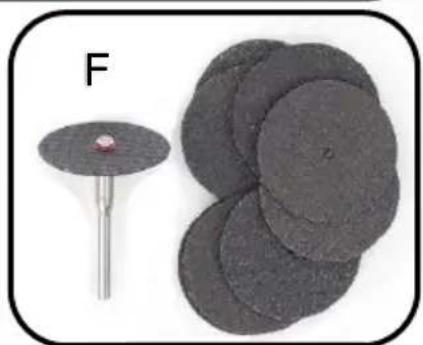

8.4.5 Cutting disc (F)

Use: Cutting or slitting bolts, screws , sheet metal, thin wood and plastic.

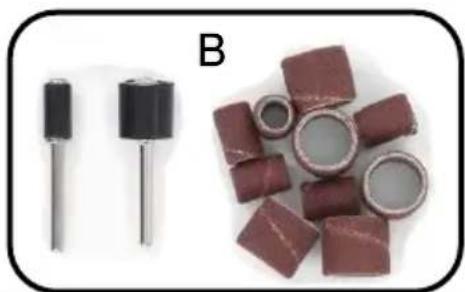

8.4.6 Orbital sander (B)

Use: Sanding , smoothing and shaping wood and fiberglass.

8.4.7 Cleaning brushes (D & E)

• The nylon brushes can be used to clean sensitive materials such as wood and plastics or similar.

• The copper brushes can be used to clean hard metals such as iron and steel or similar.POWX1280 EN Copyright © 2022 VARO P a g e | 10 www.varo.com 9 TECHNICAL DATA Mains voltage 230-240 V Mains frequency 50 Hz Power input 120 W Maximum speed 11500 min

10 NOISE Noise emission values measured according to relevant standard. (K=3) Acoustic pressure level LpA 86 dB(A) Acoustic power level LwA 99 dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A). 11 WARRANTY This product is warranted for a 36-month period effective from the date of purchase by the first user. This warranty covers all material or production flaws excluding: batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation. Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions. We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for Powerplus tools. You can always obtain more information at the number 00 32 3 292 92 90. Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing. At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload. Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive. Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement. Devices or parts which are replaced under the warranty therefore remain the property of Varo NV. We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.). Your purchase receipt must be kept as proof of date of purchase.POWX1280 EN Copyright © 2022 VARO P a g e | 11 www.varo.com Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase. 12 ENVIRONMENT Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

13 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V.- Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product: Bench Grinders trade mark: POWERplus model: POWX1280 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature); 2011/65/EU 2006/42/EC 2014/30/EU European harmonized standards (including, if applicable, their amendments up to the date of signature); EN62841-1 : 2015 EN62841-3-4 : 2016 EN55014-1 : 2017 EN55014-2 : 2015

EN IEC 61000-3-2 : 2019

EN61000-3-3 : 2013 Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Regulatory Affairs – Compliance Manager 10/06/2022, Lier - BelgiumPOWX1280 DE Copyright © 2022 VARO Page | 1 www.varo.com
