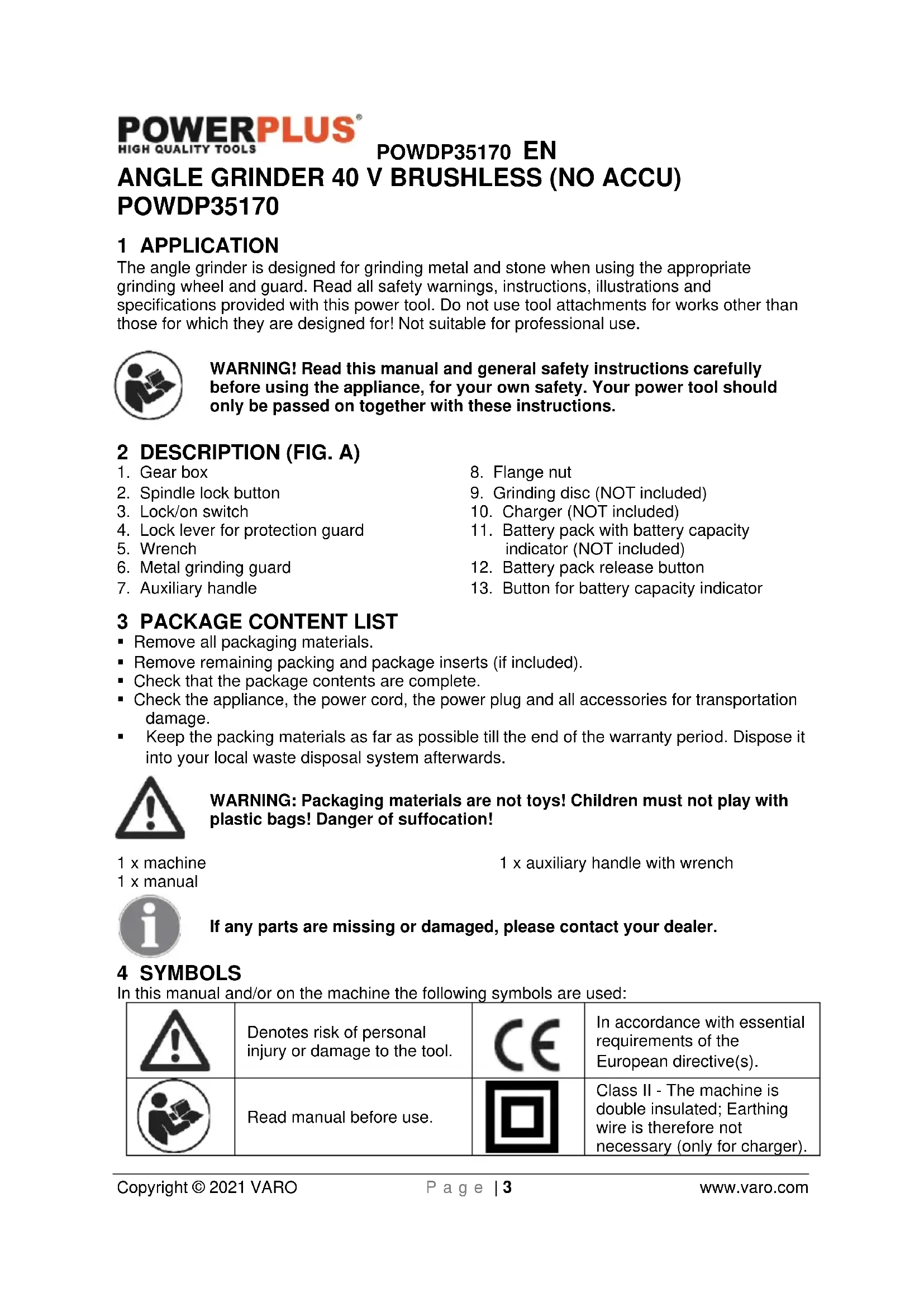

ANGLE GRINDER 40 V BRUSHLESS (NO ACCU) POWDP35170

1 APPLICATION

The angle grinder is designed for grinding metal and stone when using the appropriate grinding wheel and guard. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Do not use tool attachments for works other than those for which they are designed for! Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A)

1. Gearbox
2. Spindle lock button
3. Lock/on switch
4. Lock lever for protection guard
5. Wrench
6. Metal grinding guard

7. Auxiliary handle

8. Flange nut

9. Grinding disc (NOT included)
10. Charger (NOT included)
11. Battery pack with battery capacity indicator (NOT included)
12. Battery pack release button
13. Button for battery capacity indicator

3 PACKAGE CONTENT LIST

• Remove all packaging materials.
• Remove remaining packing and package inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packing materials as far as possible till the end of the warranty period. Dispos it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x machine
1 x manual

1 x auxiliary handle with wrench

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

!	Denotes risk of personal injury or damage to the tool.	CE	In accordance with essential requirements of the European directive(s).
	Read manual before use.		Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for charger).

POWDP35170 EN

Wear noise protection.	MAX. 40°C	Ambient temperature 40 °C max. (only for battery).
Wear eye protection.		Use battery and charger only in closed rooms.
Wear a mask in dusty conditions.		Do not expose charger and battery pack to water.
Wear gloves.		Do not incinerate battery pack or charger.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or

POWDP35170 EN

medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
  If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

POWDP35170 EN

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

5.6 Service

• Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

• Remove any packing material and loose parts from the unit.
• Check the accessories before use. It should be fit with the machine and your purpose.
• If the machine is new, the battery must first be charged.
• Check that the maximum speed indicated on the grinding disc corresponds to the maximum speed of the machine. The speed of the machine must not exceed the value on the grinding disc.
• Make sure that the dimensions of the grinding disc correspond to the specifications of the machine.
• Make sure that the grinding disc has been mounted and fastened properly. Do not use reducing rings or adapters to make the grinding disc fit properly.
• Treat and store grinding discs in conformance with the supplier's instructions.
• Do not use the machine for grinding workpieces with a maximum thickness exceeding the maximum grinding depth of the grinding disc.
• Do not use grinding discs for deburring.
• When grinding discs have to be mounted on the thread of the spindle, make sure that the spindle has sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding surface.
• Before use, inspect the grinding disc for any damage. Do not use grinding discs which are cracked, ripped or otherwise damaged.
• Before use, let the machine run idle for 30 seconds.
• Immediately switch off the machine in case of abnormal vibrations or occurrence of another defect. Carefully inspect the machine and grinding disc before switching the machine on again.
• Make sure that sparks do not put people into danger or that they contact highly flammable substances.
• Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the surface to be cut.
  Always wear safety goggles and hearing protection. If desired or required also use another kind of protection like for example an apron or helmet.
• Ensure that mounted wheels and points are fitted in accordance with the manufacturer's instructions.
• Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required.
• If a guard is supplied with the tool never use the tool without such a guard.
• For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.
• Ensure that ventilation openings are kept clear when working in dusty conditions.

POWDP35170 EN

7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

7.1 Batteries

• Never attempt to open for any reason.

• Do not store in locations where the temperature may exceed 40^ .

• Charge only at ambient temperatures between 4^ and 40^ .

• Store your batteries in a cool dry place (5 °C-20 °C). Never store batteries in discharged state.

It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

• When disposing of batteries, follow the instructions given in the section "Protecting the environment".

• Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.

• Do not heat. If batteries are heated to above 100^ , sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:

• Carefully wipe the liquid off using a cloth. Avoid skin contact.

• In case of skin or eye contact, follow the instructions below:

Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.
In case of eye contact, rinse abundantly with clean water for at least 10 minutes.

Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

7.2 Chargers

• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
  The charger is intended for indoor use only.

8 CHARGING AND INSERTION OR REMOVAL OF BATTERY

8.1 Charger indications (Fig. 1)

Connect the charger to the power outlet socket:

Solid green: ready to charge.
- Flickering red: charging.
Solid green: charged.
Solid green and red: battery or charger damaged.

POWDP35170 EN

Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

1. Frequently monitor the charger and battery pack while connected.
2. Unplug the charger and disconnect it from the battery pack when finished.
3. Allow the battery pack to cool completely before using it.
4. Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.

8.2 Removal / insertion of battery (Fig. 2)

WARNING: Before making any adjustments ensure the machine is switched off or remove the battery pack.

• Hold the tool with one hand and the battery pack (11) with the other.
• To install: push and slide battery pack into battery port, make sure the release latch on the rear side of the battery snaps into place and battery is secure before beginning operation.
• To remove: Press the battery release latch and pull the battery pack out at the same time.

8.3 Battery capacity indicator (Fig. 3)

There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button (13). Before using the machine, please press switch trigger to check if the battery is full enough for properly working.

Those 3 LED might show the status of the capacity level of the battery:

3 LED's are litt: Battery fully charged.
2 LED's are litt: Battery 60% charged.
1 LED is litt: Battery almost discharged.

9 ASSEMBLY

9.1 Fitting the auxiliary handle (Fig. 4)

Warning: Prior to assembly and adjustment always switch off the grinder and pull out the battery pack from the angle grinder body.

The auxiliary handle (7) can be attached to the angle grinder in 3 different positions: left right and topside.
- To assemble the handle, simply screw it into one of the attachment points. Check that the handle has been securely fastened, but don't screw it in too tightly.

9.2 Assembly the protective guard (Fig. 5)

• Loosen the clip of the protective guard (6) by pulling lock lever of protective guard (4) outward.
• Turn the protective guard so that uncovered part of the disc is as far apart as possible from the hand on main handle
  Fix the protection guard by pushing the lock lever inwards (the protective guard should no longer be able to move).

POWDP35170 EN

Note: If the protective guard cannot be fixed firmly by the lock lever (4), use a hexagon wrench to tighten the hexagon nut.

Warning: the protective guard must be positioned to protect the user if the disc shatters during use.

9.3 Replacing the grinding disc (Fig. 6-7)

Beware – a disc which has been used may be very hot!

Warning: prior to assembly and adjustment always pull out the battery pack from the grinder body.

• Depress and hold down the spindle lock button (2) to secure the spindle.
• Turn the output spindle until it locks.
• Remove the outer flange and backing flange by using the two-hole spanner provided.
• Fit the desired disc (9) on the spindle and replace the outer flange and backing flange. Release the spindle lock.

Important! Only ever press the spindle lock when the motor and grinding spindle are at a standstill!

You must keep the spindle lock pressed while you change the wheel!

Switch the grinder on using the lock/on switch (3) and let it run for 30 seconds to check that it is working correctly and that there are no abnormal vibrations. Stop the grinder immediately if heavy vibration occurs, and investigate the cause.

For grinding disc and cutting wheel with a thickness up to approx. 3mm , screw on the outer flange with the flat side facing the grinding disc or cutting wheel.

10 OPERATION

10.1 Switch on/off (Fig. 8)

Before engage the ON/OFF switch button, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened.

• Connect the battery pack onto the angle grinder body.

10.1.1 Switching on

Push the lock/on switch (3) forward, afterwards depress the lock/on switch (3) fully.

10.1.2 Switching off

Release the lock/on switch (3). The switch will return automatically to the locked position.

The wheel continues to rotate after the tool is switched off.

POWDP35170 EN

11 USE

11.1 Wrench storage (Fig. 9)

• For a convenient use and storage, this tool features a wrench storage function. You can store your wrench into the auxiliary handle after use.
• Insert the wrench into the slot available in the auxiliary handle.
• The wrench is totally stored until the prominences on the wrench is locked on the auxiliary handle sockets.
• To use the wrench and take it out of the handle, simply hold the two sides of the wrench pin and pull it out.

11.2 Rough grinding (Fig. 10)

Warning: Never use a cutting disc for grinding. To grind, only use the guard designed for grinding.

CAUTION: Never press the spindle locking button while the disc is rotating. For best grinding results, position the tool at an angle of between 30^ and 40^ . Move the tool backwards and forwards applying light pressure. This way, the item being worked on will not heat up too much, will not discolour and avoids forming grooves.

11.3 Cutting (Fig. 11)

To cut metal, always use the guard designed for cutting.

• While cutting, move the tool forward without forcing it, depending on the material you are cutting.
• Don't apply pressure to the cutting disc.
• Don't tilt the tool or move it from side to side.
• Do not reduce the cutting disc speed when it's been turned off by applying lateral pressure.
• The tool must always work in an abrasive movement directed upwards. Otherwise, it risks being propelled in an uncontrolled manner away from the cutting line.
• When cutting bars with square sections or profiles, it's preferable to start with the straightest part.

NOTE: When you use the right angle grinder for cutting purposes, avoid tilting it in the cutting plane. The cutting wheel must have a clean cutting edge. A diamond cutting wheel is advised to cut hard stone.

WARNING: Never use a grinding disc for cutting.

WARNING: Never use a cutting wheel for rough grinding.

WARNING: Materials containing asbestos must not be processed!

12 CLEANING AND MAINTENANCE

12.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

13 TECHNICAL DETAILS

Model nr.	POWDP35170
Rotation speed	10.000 min-1
Disc diameter	125 mm
Rated voltage	40 V
Spindle lock	Yes
Battery connection	Slide-on
Spindle thread	M14
Soft grip	Yes
Safety guard	Yes
Soft start	Yes

14 NOISE

Noise emission values measured according to relevant standard. (K = 3)

Acoustic pressure level LpA	85 dB(A)
Acoustic power level LwA	96 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

Max. 4.3m / s^2

K = 1.5 m/s²

POWDP35170 EN

15 WARRANTY

This product is warranted for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding: batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.
- Your tool must be charged at least 1x per month to ensure optimal operation of this tool.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

VARO - Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: ANGLE GRINDER 40 V - Battery operated

Trade mark: PowerPlus

Model:POWDP35170

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature):

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature):

EN60745-1:2009

EN60745-2-3: 2011

EN55014-1:2017

EN55014-2: 2015

Keeper of the Technical Documentation: Philippe Vankerkhove, VARO - Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Ludo Mertens

Regulatory Affairs - Compliance Manager

06/10/2020, Lier - Belgium

POWDP35170 DE

06/10/2020, Lier - Belgium

1 APLICACION 3
2 DESCRIPCION (FIG. A) 3
3 LISTA DE CONTENIDO DEL PAQUETE 3
4 SIMBOLOS 3

5 ADVERTECIAS GENERALES EN MATERIALA DE SEGURIDAD . 4

06/10/2020, Lier - Belgium

Regulatory Affairs - Compliance Manager

06/10/2020, Lier - Belgium

POWDP35170 PT

12 RENGJØRING OG VEDLIKEHOLD

12.1 Rengjoring

Bruk参加会议, but he was not able to speak. "I'm sorry," he said, and his voice turned into a low voice. "It's my son," he said, and his voice turned into a high voice.

13 TEKNISKE DATA

06/10/2020, Lier - Belgia

POWDP35170 DA

06/10/2020, Lier - Belgium

1 EΦAPMOrH 3
2 ΠΕΡΑΦH (EIK. A) 3
3 ΛΙΣΑ έπΕΠΕXΟΜΕΝΟύN ΣΥΣΚΕYΑΣΙΑΣ ............................ 3
4 SYMBOA 4

5 TENIKE Π P O E I ΔΟ N O I H Σ E I Σ A Σ F A Σ E I A Σ Γ I A T A H Λ E K T P I K A E P F A Λ E I A

AiaBae OLeC TIC TPOEIOIOnoei Kai Odyiec. H un Tnpon Twv TPOEIOIOneov Kai Odyiwu TPOei va aToteleoi aiia nektpoTnxiac, Tupkayiac /kai oobapow Tpaumatiouw. DualeTe TIC TPOEIOTIOInoei Kai Odyiec aoopaia cya eavlovtikx npon. O opoc «nEKTPIKO epyaleio » TOU xpanoiTOIEiT aTIG TPOEIOTIOInoei avapeptai e NektpiKa epyaleia Tou aeitoupyouv mepeuMa (e Kaawio n e pTatapia (XwpiKaalwoio, ETTavaaopopticova).

5.1 Xwpos εpyaia

• DiatnpieTov xwpo epyaiaoc aac kaapokai va eivaravta kala qomegaevos. H akataotaaia kai o eAaTTnc fwtioaoc otov xwpo epyaiaac dnoioupyouv ouvthetakeyia atuxmuata.

Mny epyaote nAektpika epyaia oTepiabalov otou utapxki kivduoc eknns, T.x. oTou utapxouv eupkta uypa, aepia n okovn. Ta nAektpika epyaia napayouv OTIVhnpes Tous mTopoov va dnoiuopynoov avaee n tsokovn tTwv atuw.

Kata n diapkeia ncs xpnoiou nAekpiokou epyaaleiou, povtiote wote va uny Tnaiocouv kovta naiia kai aaaa atoua. Av anoataei n npooxnoac mtopeiv axoetev Eeyxo Tou epyaleiou.

06/10/2020, Lier - Belgium

1 PRIMJENA 3
2 OPIS (SLIKA A) 3
3 POPIS SADRZAJA PAKETA 3
4 SIMBOLI 3

5 OPÇA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRICNIM ALATIMA 4

5.1 Radno mesto 4
5.2 Elektricna sigurnost 4
5.3 Osobna sigurnost 5
5.4 Uporaba i odrzavanje elektricnog alata.. 5
5.5 Upotreba i odrzavanje akumulatorskog alata 5
5.6 Servis.. 6
6 POSEBNE SIGURNOSNE UPUTE ZA KUTNE BRUSILICE... 6
7 DODATNE SIGURNOSNE UPUTE ZABATERIJE I PUNJACE...7
7.1 Baterije
7.2 Punjači. 7
8 PUNJENJE I UMETANJE ILI UKLANJANJE BATERIJE 7
8.1 Indikatori punjača (slika 1)
8.2 Uklanjanje / umetanje baterije (sika 2). 8
8.3 Indikator kapaciteta baterije (slika 3)
9 SKLAPANJE 9
9.1 Postavljanje pomocne ručka (slika 4)
9.2 Postavljanje stitnika ploce (slika 5) 9
9.3 Zamjena brusne ploce (slika 6-7) 9
10 UPORABA 10
10.1 Ukljucivanje / isključivanje (slika 8) 10
10.1.1 Uključivanje 10
10.1.2 Isključivanje 10
11 UPORABA 10
11.1 Pohrana ključa (slika 9) 10

POWERPLUS

HIGH QUALITY TOOLS

POWDP35170 HR

11.2 Grubo brušenje (sika 10) 10
11.3 Izrezivanje (sika 11) 11
12 CiScENJE I ODRZAVANJE 11
12.1 Cijscenje 11
13 TEHNICKI PODACI 11
14 BUKA 12
15 JAMSTVO 12
16 OKOLIS 13
17 IZJAVA O SUKLADNOSTI 13

KUTNA BRUSILICA 40 V BEZ CETKICA (BEZ BATERIJE) POWDP35170

1 PRIMJENA

Kutna brusilica namijenjena je bruşenju metala i kamera primjenom odgovarajućeg brusnog kotača i štinika. Pročitajte sva upozorenja o sigurnosti, upute, ilustracije i specifikacije isporučene s elektrčnim alatom. Ne koristite nastavke alata za bilo kakve radove osim onih za koje su namijenjeni! Nije namijenjeno za komercijalnu uporabu.

UPOZORENJE! Prije uporabe alata, a radi vase vlastite sigurnosti pažljivo procitajte ovaj prisucnik i opće upute o sigurnosti. Ove upute cine sastavni dio opreme elektricnog alata, pa i u slučaju prodaje drugom vlasniku.

2 OPIS (SLIKA A)

1. Kuciiste pogona
2. Gumb za blokadu vratila
3. Sigurnosna sklopa za uključivanje
4. Poluga za blokadu stitnika
5. Kliguc
6. Šitnik za brusenje metala

7. Pomoćna ručka

8. Matica prirubnice

9. Brusni disk (NIJE uključen)
10. Punjač (NIJE ukljucen)
11. Baterija s indicatorom kapaciteta baterije (NIJE ukljucena)
12. Gumb za oslobadanje baterije
13. Gumb za indicator kapaciteta baterije

3 POPIS SADRŽAJA PAKETA

06/10/2020, Lier - Belgium

1 OBJACTb PIPMEHEHnA 3
2 OINCAHNE (PNC.A) 3
3 CODEPJKMOE YNAKOBKN 3
4 YCJIOBHBIE O6O3HAUEHN 4

5 OБцЯ ИСТРУКЦЯ NO TEXНIKE БE3ОПАСHОCTN ПРИ PавOTEC 3ЛЕКТPOИHCTPUMEHTOM 4

5.1 Pa6oyee Mecmo 4
5.2 3neKmpo6e3onacHocmb.. 5
5.3 1uHa86e3oNaChocmb...5
5.4 3Kcnnyamaaua u yxod 3a 3JekmpouHcmpyMeHMOM...6
5.5 3Kcnnyamauua u yxod 3a akkymyarnopbmu uHcmpymehmau..6
5.6 06cnykueaHue 7

6 CNEUAlbHbIe IHCTPyKcIIN PO TEXHnKE BE3ONACHOCTNДЯ yTIOBbIX IJIuΦMAuIH.7
7ДОПОЛНТЕЛБHБIENHCTPYKUINI NO TEXHNIKEBE3ONACHOCTNДЯAKKUMYJIATOPOBИ3APYdHBIXYCTPOICTB. 8
7.1 Akkymyjnmopbl 8
7.2 3apnHbIe ycmpoucmea .9
8 3APYIKA N YCTAHOBKA IJI IN CHRTNE AKKUMYJATOPA.....9
8.1 INdukamopby 3aprdno ycmpoicmea (Puc. 1) .9
8.2 Chamue/ycmaHOka aKKymyarnopa (Puc. 2) 9
8.3 Hdukamopb3apda akkymyamopa (Puc. 3). 10
9 CBOPKA 10
9.1 YcmaHoska donoJHumelbHo pyKoAmku (Puc. 4) 10
9.2 MoHmax 3auumnoo kOxyxa (Puc. 5) 10
9.3 3aMeHa uIuΦoBaJIbHoZo kpyza (Puc.6-7) 10
10 PABOTA 11
10.1 BkIIOueHue u 6bIKIOueHue (Puc. 8) 11
10.1.1 BkIoueHne 11
10.1.2 BbiknoucheHne 11

11 3KcPJIyATAUra 12
11.1 XpaHHeue KJIoua (Puc. 9) 12
11.2 pyboe wlufoaeaue (Puc. 10) 12
11.3 Pe3ka (Puc. 11) 12
12 CHCTKA N OBCJIYKINBAHNE 13
12.1 4ucmka 13
13 TEXHnueCKNE DAHHbIE 13
14 13
15 TAPAHTIN 14
16 OKpykaIOUaCpeDa 15
17 DEKJIAPAUJIO COOTBETCTBUN 15

AKKUMYJIATOPHAR YIIOBAA IINMMAUNHA 40 B BECUETOCHAH (BE3 AKKUMYJATOPA) POWDP35170

1 OBJACTb IPIPIMEHEHnA

YrnoBaJnHcMaunHa npedHa3NaeHa dIa WnfoBAHn MaTnIaN KAMH np INCNoJIb3OBAHm COOTBeTCTByUoIero WnfoBAbhoro Kpyra N 3aunTHoro KoKxya. IpOuHTte BCE yka3AHn ITO TexHnke 6e3OnacHocTN, HnCTpyKUn, nIIIOCTpaun N TexHnueckne XapakTePncTNk, pInnaeMbIe K DaHHOMy 3NeKtpOHnCTpymEnTy. NcNoJIb3yIte INHCTpyMeHTaNBHe HacaKn TOnbKO dJaTex pa60T, dJa KOtOpbIX OHI npedHa3HaueHb! MaunHa He npedHa3NaeHa dJa KOMMepueckoro nCNoJIb3OBAHn.

IPEyPExEHE! IaBawe nnHou 6e3onacHO TuaTeNbHO O3HaKoMbTeCb C daHHbIM pyKOBoDCTBOM N o6uMMN yKa3aHnMaN NO Texnke 6e3onacHOCTn nepeTcM, KaN pncTyNTb K pa6ote c HnCTpyMeHToM. Pn nepeDaue 3TORO 3NeKtpnueCKoro NHCTpyMeHTa DnA nOJIb3OBaHnA dpyrIm Lnucam 68a3aTeNbHO npINOxNte DaHHbIe HHCTpyKcHn.

2 ONICAHNE (PNC. A)

1. PeDyKTop
2. KhoKa 6noknpOBKn nnHneJra
3. BbIKJIIOuTaTeNb c 6JIoKInpOBoKoN
4. Pbyar 6JIOKINPOBKN 3aunTHoro Koxyxa
5. KnIOu
6. MeTaNnueckn 3aunTHbI KOxuyx UINFOBaJIbHOrO Kpyra
   7.Дононтельная руковka
   8.Фанцевая raika

7. WnfoBaHbI Kpyr (HE BXoNT B KOMJIeKT)

8. 3apAnHoe yctpoiCTBO (HE BXoIIT B KOMnJIeKT)

9. AkkymyIaTOPHbI 6nOK C nHdNkaTopoM 3apJa aKkymyIaTopa (HE BXoIIT B KOMnJIeKT)
10. KhoNka dIa cHraTna aKKyMylrTopHOro 6noka
11. KhoNka HndikaTopa 3apya aKkyMaTopa

3 CODEPXMOE YNAKOBKN

• YdaJInte BCE ynaKOBOHyIe MaTePnAbI.
• YdaJInte ocTaTKn ynaKOBKn n peKNaMhBle JnCTKn-BkJaDbIuN (ecnn ectb).
• PpOBepbTe nonHOTy KOMnneKta NoCTaBKn.
• Пюверьтpe annapaT, синоов Кабел, Stencelb И BCE пинадлжхостп На прдmetповжденп рту ТраHCnOpTupOBke.
  XpaHnTe ynaKOBOHyBle MaTePnAbI NO BO3MOxHOCTN Do nCTeueHn rapaHTnHOro cpoKa. Iocne 3Toro n36aBbTEcB OT HIX, NcNoJIb3yR MeCTHyIO CnCTeMy yTuJIN3aCmN 6bITOBbIX OTXODOB.

I P E D Y N P E X K D E H N E: Y n a k o B O U H b I e M a T e p h a l b i - 3T O He n r p y u s k n! H e n03B O J R I T E d e T A M n I r p a t b c n I n a c t N K O B b I M n n a k e T a m n! E c t b o n a c h o c t b yd u s h e n y!

1 wJnΦMaunHa
1pykoBOIDTO NO 3KcnnyatauIN

1 dononHnteBna pyKoRTKa C KJIOyOM

Ecn n deTaN OTCyTCTByOT Hn NOBpeXdHbI, 6paNTecb K CBOemy dNJIepy.

4 YCJIOBHBIE OBO3HAUEHNA

B daHOM pykoOIOCTBe n/nn Ha cAmo MaunHe nCnoJb3yOTc CneDyUcne CmBOIbI:

XpaHnTe HEnCNoB3yEmbIe 3NeKtpOHNCTpyMeHTbIB HeNOCTynbIX DnI DeTeMecTAX HnO3BOJnTe JIOdAM, He 3HaKoMbIM C 3NeKtpOHNCTpyMeHTOM IIN C DaHHbIMN IHCTpyKUmM, pa60TaTb C 3NeKtpOHNCTpyMeHTom. 3NeKtpOHNCTpyMeHTbI PpeDcTabJIOT NOTEHuaNbHyIO NaCHOCTb B pykax HenoDROTOBHeHHbIX NOnb3OBaTeNei.

Copeknte 3nKtpOHCTpymeHTb B NCnpaBHOCTN. CneIte 3a TEM, YTO6bI He 6bINO CmeuHn Hnn 3aeDAnHn DnKUxxCy qacte, NOBpeJdeHn DeTaneH nn KaKOrO-1n6o DpyrTO O6cToTeNbCTBa, KOTOpoe MOKeT NOBInrTa H a FYNKUnOHpOBaHne 3nKTPOHCTpymeHTa. Ecn n 3nKtpOHCTpymeHT NOBpeXdE, ero He06xOIMO OTPeMOHTPOBaTB. MHOxEcTBO HeCuaCTbIX CNyAeB Bbl3BaHO NcNoJIb3OBAHNEM 3nKTPOHCTpymeHTOB, c KOtOpbIMn He O6paanncb HaNDexKaunm O6pa3OM.

CoepKnte pejxuine HnCTpyMeHTbIOcTpbIMN uHCTbIMN. PpaBnIbHO 06CnyknaEMbIe pejxuine HnCTpyMeHTbIC OCTpbIMN pejxuImN KpOMkAmM Mehwe 3aedAOT N Jerey npabJIOTcra.

IcnoB3yIe 3JekTPOHnHCTpymeHT, npHaadJeKHOCTN, pexyue INHCTpyMeHTbI N.T.I.B COOTBeTCTBUN C DaHHbIMN INHCTpyKUaMm I Ha3HaueHHeM KOHKpeTHoro TINa 3JekTPOHnHCTpyMeHTa, npHIMar BO BHMaHne ycNoBn I XapakTeP BblOnHReMo pa6OtBi. IcnoB3OBaHne 3JekTPOHnHCTpyMeHTa He nO Ha3HaueHIO MOxET npuBecTN K NOTEHuaJIbHO ONaChbIM CNTyaUaM.

5.5 3Kcnnyamauua u yxod 3a akymyarnopbIMU uHcmpyMeHaMu

3apjkaite akkymyIaTOpbI TObKO c NOMOuBIO 3apJHoro yCTPOINCTBa, peKomeHIOBaHHORo n3rOTOBNTeJeM. 3apJHoe yCTPOINCTBO, KOtOpOE NOxODIT dJa ONpeJeJIeHHORo Tnna akkymyIaTOPB, MOKeT CO3DaBaTb PnCK BO3ROPAHNЯ npi erO INCNoJIb3OBAHNc DpyrIMN aKKymyIaTOpaMn.

IcnoJIb3yIte 3JIeKTPoHnHCTpyMeHTbI TOJIbKO CO CneUaJIbHO IpEHa3HaueHHbIMN IJIa HIX aKKMyJrTOpHbIMN 6JIokAMN. IcnoJIb3OBAHHe dpyRnx aKKMyJrTOpHbIX 6JIOKOB MOKeT CO3DaBaTb pIck TpaBMbl N BO3ropaHnI.

Ecnn aKKymjIopHbI 6JOK He nCNoJIb3yETc, depxnte erO B CTOpOHe OT dpYnx MeTaNIIueckNX npEdMeTOB, TAKX KAK KAHcIeJIpCKne cKpeKN, MOHeTbI, KInOuN, rBO3dN, Wypynb IIN dpyrHe He6oJIbUWe MeTaNIIueckNe npEdMeTbI, KOToPbIE MOrTy CO3daBaTb CoEDINHeHne OT OJHO KnEMMbIK Dpyro. KopOTKoe 3aMbIkaHne KEmM aKKymjITopa MoXet 6bITb pInuHOn OXOROB INI BO3RopaHn.

• Pn He6IaropnraTHbIX ycIOBnX n3 aKKyMyJrTopa MoKet BblTeYb 3JIeKTPoNIT; n36eraIte KOHTaTc c 3JIeKTPoNITOM. Pn CnyuayHom nonaHn Ha Koxy CMOIte 3JIeKTPoNIT BOIoN. Pn nonaHn 3JIeKTPoNITa B rna3a dONOHHTenbHO o6paTntecb 3a

POWDP35170 RU

MeINHCKO NOMOIO. BbITEKAIOU IN3 aKKyMyIaTOpa 3JIeKTPoJNT MOKe TB13BaTb pa3dpaxKeHne KOxN INN OXOrn.

He nCnoJIb3yIte aKkyMylTOpHbI 6JOK IIN INHCTpyMeHT, KOToPbI NOBpeXJeH IIN MoNnΦnUPOBaH. NOBpeXJeHHbI e IIN MoNnΦnUPOBaHHbI e AKKymLyTOpbl MOrY T demOHCTpnpOBAt HEnpeDcKa3yeMOe NOBeDeHne, PnIBoJaUe K BO3ropaHIO, B3pbBy IIN pNUCKy NOLyEHNr TpaBMbl.
He noDBepraTe aKKyMnyTopHbI 6nOK nHn HnCTpyMeHT BO3deNCTBnO orHn anHomalbHO BbICOKoTempeatpybl. Bo3deNCTBne orHn nTmpepatpybl Bblse 130 °CMoKET npNBecTN K B3pBlY.
CneyuTe Bcem HnCTpyKqIaM No 3apJKe I He 3apJkaTe aKKymyJIaTOpHbI 6JIOK INn HnCTpyMeHT npi TeMnpaType, HaxoJaIeIcra 3a npedeIaMn dnaana30Ha, yka3aHHoro B HnCTpyKqIaX. HenpaBnIbHna 3apJka IIN 3apJka npi TeMnpaTypax, HaxoJaIuXcra 3a npedeIaMn yka3aHHoro dnaana30Ha, MOKeT npNBecTu K NOBpeJdeHIO aKKymyJIaTOpa I IOBbIaET ONaCHOCTb BO3rOpAHII.

5.6 06cnyxueaHue

BaI 3neKtpOnHCTpyMeHT DOJXeH O6cnykBaTbCRA KBaINΦnUPOBaHHbIM CNEuaNtOM, KOToPbI NcNoJIb3yET TOnbKO CTaHdApTHBie 3aNaChbIe YAcTn. 3TO oBeCneuNT COOTBetCTBnE Tpe6yEmbIM CTaHdApTAm 6e3ONaCHOCTn.

6 CNEUAlbHbIE HNCTPYKcIMI NO TEXHnke B3OpACHOCTIN DJIyTIOBbIX IINΦMAuH

• YdaJIInTe BCE yIaKOBOHyBie MaTePnaIbI n He3aKpeJIeHHbIe DeTaJIIN N3 YCTPOINCTBA.
  PpOBepbTe npHaIeXHOCTn nepeI nCIOB3OBAHHeM. OHN DOJXHbI NOxOHTb dJa MaunHbI ee Ha3HaueHn.
• Ecnn MaunHa HOBa, ChauJaH Heo6xOIMo 3apnTb aKKMyJrTop.
  Y6eHnTeScb,TO MaKcImaJIbHaCkOpOCTb BpaUeHnY,ya3aHHaHa 1uNFOBaJIbHOM Kpyre, COOTBeTCTByET MaKcImaJIbHOcKOpOCTn BpaUeHnMaUNHbI. CkOpOCTb BpaUeHnMaUNHbI He DOJXHa PpeBbIwA Tb 3HaueHnY, Ya3aHHOro Ha UINFOBaJIbHOM Kpyre.
• Y6eIntecb, yTO pa3Mepbl IJIINΦOBaJIbHOrO kpyra COOTBETCTBYOT CneIINKauIN MaINHbl.
  Y6eIntecb, YTO IINFOBaIbHbIKpyr npabIbHO yCTaHOBJIeH 3akpeIIeH. He nCNoJIb3yIte peDyKUIOHHbIe KOJIbua IIN NepexOdHKn dIra HADJIeXaIeJ yCTaHOBKN IINFOBaIbHOrO Kpyra.
• O6paaatae c 5JInoobalbHbIMN Kpyramn IN XpaHNTE INB COOTBETCTBUN C HCTpyKunMNIocTabuNka.
  He nCnoJb3yIne MaunHy dIa IuNFOBaHn 3arOTOBc MAKCMaJIbHOr ToUINHO, npBbIaIOSeMakmMaJIbHyIO rHy6nHy UINFOBaHn UINFOBaHn BOHorO Kpyra.
  He nCnoJIb3yIte wlnfoBaJIbHbIe KpyrI dJIra ChrTnI 3ayceHcE.
• Ecnn uHnfoBaJIbHbIe Kpyr dOJIxHbI KpeNITbcra Ha pe3b6y uHHdeJy, y6eNTecb, yTO uHHdJIb IMeet DOCTaTOHyIO pe3b6y. Y6eNTecb, yTO uHHdJIb IMeET DOCTaTOHyIO 3aHTy H He KacaTc NOBepXHOCTu uHHoBaHn.
  Ipepepa6oTo npOBepbTe 7nHPOBaHbHbIKpyr Ha oTCyTCTBHe NOBpeXdeHn. He nCNoJIb3yIne 7nHPOBaHbHbIE Kpyr, KOtOpbIE NMeIO TpeuHbI, CKOJIb IIN INHbI e NOBpeXdeHn.
  IpeenncnoB3OBaHnem daTe MaunHe npa6oTaTb Ha XOIOCTbIX 06OpOTax B TeueHne 30 cekyHd.
  HeMeIeHNO BbIKIOHTe MaunHy npn NOBHeHn Heo6bHuBx B6paun nn Dpynx DepeKToB. TuaTeJbHO OCMOTpnte MaunHy n JInΦOBaJbHbN Kpyr nepeD NOBTOPbIM BKIOUeHNm MaunHbl.
  Y6eHITecb, YTO BbIeTaIOUne ICKpbI He ONaChbl JJIIODeN UTO OHHe NOnaHaT Ha JERKOBOCIIaMeHJIOUneEC MaTePnAJIbl.

POWDP35170 RU

• Y6eIntecb, yTO 3aROToBka IMeET IOCTaTOUHyO ONOpy IIN ΦIKCaUHO. DePKeNTe pyKn NOaJIbWe OT o6pa6aTbIbAemOn nobepxHOCTN.
  Bcerda HadeBaIte 3aunTHbIe OUYN i CpeCTBa 3aunTbI opraHOB clyxa. Ipn JeaHn nn Heo6xOIMocTN nCnoJIb3yIe TaKKe dpyrHe cpeCTBa 3aunTbI, HapPmEp, fapTyKn nn 3aunTHbIe KAcKn.
  y6eIntecb,yTOIINFOBaJIbHbIe Kpyn I rOIOBKn yCTaHOBJIeHbIB COOTBEcTBUN C HHTpyKUINM N3rTOBNTeJI.
• Y6eIntecb, yTO nCnOJIb3yIOTCa IpOKJaIKN, Cha6KeHHbIe a6pa3NBOM CO CBra3KoI, IN KOrda OHn Heo6xOdIMbl.
  EcnHcHTpymeHOM NoCTaBJIeTc 3aUHTbI KOxYX, HIKoRda He IcNoJIb3yIte HHCTpymeHt 6e3 Takoro KOxYxa.
• IINHCTpyMeHTOB, paccuNTaHHbIX Ha yCTaHOBky IINIOBOABnHO Kpyra C pe3b6OBbIM OTBepCTnEM, y6eIITecB B DOCTaTOUHOI DIIHpe3b6bi Kpyra B COOTBeTCTBnC dJIINHOI 11111111.
• y6eIITecb, yTO BEHTNIAUHOHbIe OTBepCTnA COePxA TcB YnCTOTe npi pa6oTe B 3aIbIeHHoN OKpyXaIOSe CpeE.

7ДОПОЛНТЕЛБHbIE INHCTPyKcIIN NO TEXHnKE B3OПАСHOCTN ДЯ AKKUMYJIATOPOB И 3APЯДHBIX YCTPOICTB

7.1 Akkymyjarnopby

HnB KOem cnyuae He nbTaTecb BCKpbBaTb aKKMyJrTOpbl.

He xpaHnTe aKKymyIaTOpbI B MeCTax, rde TempeaTypa MoKet npeBbIaTaB 40 ^ C

3apjkaTe aKKymyTOpbl TOnbko npu TemnepaTypax OkpykaUeien cpebl ot 4 ^ C do 40 C.

XpaHnTe Baunn akymyIaTOpB b cyxom npoxnaHOM mecTe (5^ - 20^) . HnkOrda He xpaHnTe aKKymyIaTOpB b pa3pJxehHom COCTOHN.

IHTN-HOHbIe AKKMyJrTopbI LyuWe Bcero peryIaHPO pa3pJxTaB I nepe3apJxTaB (MHNmym 4 pa3a B roD).PnI dInTeJbHOM XpaHeHNI JNTN-NOHOrO aKKMyJrTopa NdealbHOJ ABJrTcE rO 3apJka Do 40% MoUHocTn.

Ipn ytnn3aunn akmyJrTOPOB, pyKOBOdCTByTEc b HcTpyKUAMN, npNBedeHHbIMN B pa3dene «3aunTa OkpykaIouei cpebl|.

He Bb3bBaIte KOpOTKne 3aMbIkaHn. Ecnn Co3daeTc coeINHeHne MeJdy NOIOXHTeJIbHOH (+) n OtpuataTeIbHOH (-) KNeMMoH HAnpMyIO NnU Chepe3 CnyaHbIKOHTAKT C MetaJIInueCKIMn PpeDMtAMN, Bo3HkAeT KOpOTKoe 3aMbIkaHne AKKyMynrTopa, n 6ydt IpoteKaTb 60JIbWoT OK, Bbl3bBaB BIdJeHne TENla, KOTOpoe MOKeT npNBecTN K pa3pbIBy KOpNyCa NnN BO3RopaHnIO.

He harpeBaIte akKMyJrTopbI. Ecnn akKMyJrTopbI HarpeBaOTcdo TemnepaTpybl Bblwe 100 ^ C MoryT NOBpeINtbcra yNIOHTHeHna, N3OInpuyUeine cenapaTOpbl n Dpyrne IONIMepHbIe KOMHOENTbl, Bbl3bIBaYTeUYKy 3JIeKTPOINTa n/INn BHyTpEnHee KOPOTKoe 3AmbIKaHne, npBODJaee K BblJeHnTo TENa C NocJeDyUoUm pa3pbIBOM nIN BO3RopAHnEM. Kpome TORo, He 6pocaTe akKMyJrTopbl B OROHb - MoXeT POn3OHTN B3pbIB n/INn CINbHoe ropeHne.

B 3KCTpeMaJIbHbIX yCNOBnX MOKeT npOn3OHTyTeUka aKKMyJrToPA. EcNI Bbl 3aMeTITe KNDKOCTb Ha aKKMyJrTOpe, cDeNaTe cNeDyIOoee:

Octopoxho cotpnte KndKocTb c NMOuBbBeToa. 36eraTe KOHTaTa c KoxeJ.
- Pn KOHTaKTe C Kokei nn Ia3amn, cJeynTe yka3aHm Hxke:

HemeIeHNO IpomOte BDOJ. HeITpaN3yTe cna6o KNCIOTo, TAKO KAK JIMOHbI COK INYKcyc.

POWDP35170 RU

Ipn KOHTaKe T C rna3amn, npomOnTe B 6oJIbWOM KOJIInueCTBe YnCTOu BObl B TeueHne MmHmym 10 mHyT. O6paTntecb K BpaCy.

Onacnoctb Bo3ropaHn! N36eraTe KopoTko 3ambikaHn KOHTaKTOB OToCoeDInHeHHoro aKKymyIaTopa. He cxnraTe aKKymyIaTopbl.

7.2 3apnHbIycmpoucmea

HnKOrda He nbTaTecb 3apXaTb Henpe3apXaemble aKKMyJrTOpbl.
- HemeJeHHO 3aMeHraTe DepeKThbIe UHypbl.
He noDBepraTte DeiuctBnIO BObl.
- He BCKpbIbAaTe 3apAnHoe ycTpoNCTBO.
He BCTabnIte HnkaKnx npedMeTOB 3aprHOn yCTpoNCTBO.
3apnHOe yctpoNCTBO npedHa3HaueHo TOnbKO nIg NcNoB3OBaHn BHyTp nOmeuHn.

8 3APЯДКA И YCTAHOBKA ИЛN CHYТNE AKKUMYJIYTOPA

8.1 Hhukamopby 3apdno ycmpoucmea (Puc. 1)

IopknHouHTe 3apdHoe yctpoCTBO K 3JeKtpnuecko po3etke:

• TOpNT NOCTOARHNO 3eJIeHbIM CBETOM: rTOBO K 3apJKe.
  Muraet KpacHBIM CBeTOM:3aprKa.
• TOpNT NOCTOARH0 3eJIeHbIM CBETOM: 3apJxKeHO.
• TOpNT NOCTOARHNO 3eJIeHbIM IN KpaCHbIM CBETOM: aKKyMyJrTOp INIIN 3apAIDHOE yCTPOIcTBONOBpeKdHebl.

PpHmueaHe. Ecnn akKymyIaTOp HeBO3MOxHO NOkNIOuHTb DnA 3apAKn, OTCoEdHHTe ee n y6eDInTecb, YTO MoJeNb akKymyIaTOpHoro 6NoKa COOTBeTCTByeT MoeJI N 3apAHDoro yCTpoiCTBa, KaK NOKa3aHO B Ta6Nlue TexHnuecknx XapaKTepnCTNK. He 3apJXaIte akKymyIaTOpHbIe 6NoKn DpyrNX MoEneN INN aKKymyIaTOpHbIe 6NoKN, KOToPbIe HeBO3MOxHO HaDeXHO 3akpenTb B 3apAHDOM yCTpoiCTBe.

1. NepnoDnueckn npOBepaTe cocToHne 3apAnHO yCTpoNCTBa n aKKyMyJrTOpHOro 6Ioka npn noDKnUoyehnn.
2. OTKJIIOUaIte 3apAIDHOe yCTPOIcTBO OT CETN IOTCOEINHJTE erO OT aKKyMylrTopHOro 6JOKa nocne OKOHuaHn 3apAdkn.
3. Npeed nCnoB3OBAHnem akKymyIaTOpHOro 6JIOka daIte eMy NOJIHOCTbIO OCTbITb.
4. XpaHnTe 3aprIHOe yCTpOJCTBO n aKKymyIaTOpHbI 6JIOK B NOMEuEHN, B HeIOCTynHom JIa DeTeMecTe.

ПРИМЕЧАНЕ. Ecн noche npodoxTeьно 3Kcnpnyataunn 3NeKtpoHCTpyMeHTa akKymyIaTOp cNlshKom cnIbHo Harpelnc, nepei NaJOM 3apdKn daIte emy octbIb Do KOMHaTHO TempepaTypbI. 3To n03BOINT npoDnITb cpoK cnYk6bl 6aTapei.

8.2 Chmue/ycmaHOeKa aKKymyamopa (Puc. 2)

IPEyPExEHN. IpeB BbINonHeHem KaKx-Jn6o perynpoBOK y6eNTecb, YTO 3JekTpOHnCTpyMeHT OTKnIOueH, INN CHMnTe aKKymyTOpHbI 6nok.

POWDP35170 RU

-Держinte UNCTPVMT OJHOIpyKoJ, a AKKUMYJIaTOHbI 6JIOK (11) dpyroynykoN.
IyctaHOBKn: HaxMNTe N BCTaBBte AkkymJrTOpHbN 6JIOK B AkkymJrTOpHbN OTcEK PepeHaayanom pa6oTbY6eDntEcB, YTO 3aUeIka Ha 3aJHeN CTOPOHe AkkymJrTOpa BCTana Ha MeCTO N AKKYMJrTOp HAJeXHO 3aKePENHe.
-ДяСНТЯ:ODHOBpeMeHHO HaxMnTe 3aUeJIky aKKymJrTopa n N3BJeKnTe aKKyMylTOpHoi6Jok.

8.3 HdukamopbI 3apraaakymyarnopa (Puc. 3)

Ha akKymyIaTOPHom 6IIOKe npedyCMOTpeHbI INDnKaTOpbl 3apra akKymyIaTopa, 6IarOdaPRA KOtOpbIM MOxHO npOBepNTb yPOBeHb 3apra aKKymyIaTOpa, Haxab KONky (13). Npeed IcNoJIb3OBAHHeM IHCTpymEHTa HAXMITE KONky BbIKNoaTeTn I y6eINTEcb, YTO 3apra aKKymyIaTOpa DOCTaTOH DoI HOPMaJIbHO pa6oTbI.

YPOBEH 3a4ra da aKKyMvIaTOpa IOKa3bIbAeTCa TpEMcCBToIOHObIMn HndKATOpamN.

「OPR TPN CBETOIOnda: aKKyMvIaTOp IOnHOCTbU 3aPjKeH.

TopT DBA CBETOДОДА: aKKyMЛТОР 3apЯжЕн Ha 60 %.

[OpyT OINH CBETOINI: aKKyMnyTOp NOUTN pa3PjKeH

9 C6OPKA

9.1 YcmaHoKa donoHumeIbHOy pyKoMku (Puc. 4)

BHHMaHHe! Ipeed yctaHOBko n perynipOBKO yrnoBOJ uNFOBaIbHO mAsnHbI Heo6xOdmo OTKJIHOHTb ee N 3BJeYb aKKyMylrTopHbI 6NOK 3 ee Kopnyca.

DOnONHnTeIbHa pyKoTka (7) MoKeT 6bITb npncOeINHeHa K yrNoBou WInPmaHHe B Tpex Pa3NHybIX N03uX; CneBa, CnpBa n CBepxV.

Дя moTaxa pyKoTkn npocTo BkpyTnTe ee B OJHO n3 MeCT KpePJIeHn. Y6eIITecb, yTO pKoTKa HadeXHO 3akpeNHeHa, HO He 3aKpyHnBaIte ee CnUHKOM NnotHO.

9.2 MoHmax 3auumHoO KoKxya (Puc. 5)

Ocna6bTe 3aJIM 3aIHTHO KOxyxa (6), nOTraHyB pbIur 6nOKnPOBKn 3aIHTHO KOxyxa (4) HApVxv.
IOBepHnTe 3aunTHbIKoKyx TaK, yTo6bl OTkpItaY qactb Kpyra OKa3aJacb KaK MOXHO daIbWe OT PVKN Ha OCHOBHOn DVKOARTE.
3aФИKcIpyIte 3aIITHbI KOKyX,HaJxAB Ha pIur 6IOKIpOBKn BHyTpB (3aIITbI KOKyX 60JIbSe He DoJKeH DBNrA TbcS).

PpimmeaHne: EcIn 3aunTHbI KOxH HeBO3MOXHO npOuHO 3aKcnpoBaTb pbUarOM 6JOKnPOBKn (4), nCNoJIb3yIte WeCTnRpaHHbI KIOUd Ia 3aTAXKn WeCTnRpaHHo raIKN.

PpimueaHHe: 3aunbI NOJb3OBaTeJI B cJyae packoJa Kpyra Bo BpeMa pa60bI Heo6xOdmo yCTaHOBnTb 3aunTHbI KOxyX.

9.3 3aMeHa wJufoBaJIbHo2o Kpya (Puc.6-7)

OcToPoXHo - KpyrK, KOToPbI 6bl NcNoJIb3OBaH, MoKeT 6bl OueHb rOpAum!

POWDP35170 RU

BHHMaHHe! Npeed yctaHOBko n perylnpOBKO uNIOBaJIbHO MaIINHbI Heo6xOdmo n3Bnueb akKymyIaTOpHbI 6JOK n3 ee Kopnyca.

HaxmTe u ydepKnBaIe KhoNky 6JIOKIpOBKn 7nnHdeJy (2), TTo6bl 3akpeNTb nnHdJIb.
IOBepHnTe HNCTpyMeHTaNbHbI uHHDeJIb DO fHKcaUN.
- CHHMTe BHeuHn IaHeu n OIopHbI IaHeu (6) C NOMOsbI raeHoro KJIPOHa.
- YctaHOBInTe HxKbI Kpyr (9) Ha IINHdJIb N 3akpenITE BHeuHn IOnOpHbI IaHeu. OTNyCTIne 6JIOKIPOBky IINHdJIeY.

BhimaHne! HaxMaTe 6JoknPOBky TOnbKO Torda, KOrda DBnraTeJIb m ShnfoBaJIbHbI Kpyr NOJHOCTbIO OCTaHOBNInCb!

Heo6xOIMO dePkaTb haxaToH KhoNk Ky 6nokupOBK uHHneIg BO BpeM 3ameHb kpyra! BknIOHTe 7nnFOBaJIbHyU MaunHy, Haxab Ha BbIKIOUaTeIb (3). IooXdnte 30 cekyHd, YTO6bl y6eINTbcR, yTO INCTpymEt pa6OtaET nCnpaBHO, 6e3 N36bItoHOr Bn6paun. PnHaJInuH CNJIbHO Bn6paun Heo6xOIMO HeMeJeHHO BbIKIOHTb 7nnFOBaJIbHyU MaunHy n HaHTn npuHny.

IpnncnoJIb3OBAHnI IINIOBAbHOro Kpyra IINOTpe3HOrO DnCKa TOnIuHOnIdo
Ipi6IIn3IeJIbHO 3 MM CJIeDyET HABepHyTB BHeUHNI OJIaHEc TAKIM O6pa3OM, YTO6blero
IIIOCKa CTOpHa 6blHa HAnpabHeHa BCTOpOHy IINIOBAbHOrO Kpyra IINOTpe3HOrO DnCKa.

10 PABOTA

10.1 BkIIOyeHue u 8bIKIOyeHue (Puc. 8)

Ipeed haxaTmem BbIKNoaTeNaBKn/BbIKn y6eInTeCb, yTo 1nnΦoBaJIbHbI Kpyr HAdExHo 3akpenHe n PnaBHO BpaAaetcA, a BHeuHmΦlaHeuC XopoOo 3atHyT.

• POncoeHnHTe aKkymyIaTOpHbI 6JIOK KOpnyc yrJIOBOI JInΦMaUNHbI.

10.1.1 BkJIIOUeHne

CdbnHbTe KNONKy BbIKNoaTeTn (3) BnepeD, 3aTeM NOnHOCTbIO HaXMMTE Ha KHONKY BbIKNoaTeTn (3).

10.1.2 BbIKnIOueHne

OTnyctnte KhoNky BbIKHouaTeIa (3).BbIKHouaTeIb aBTOMaTnueckn BepHeTcB 6JOKnPOBaHHoe nOLOKeHne.

Kpyr npoJnkaeT BpaataBcnaocne BbIKIOueHn HNCTpyMeHTa.

11 3KcπIyATAU

11.1 XpaHeHue KIOUa (Puc. 9)

Iydo6HOro nCnOJb3OBaHHn I XpaHeHHn 3TOT NHCTpyMeHT OCHaUeH cyHKuNei XpaHeHHn KInOua. NocIe nCnOJb3OBaHHn KJIIOU MOXHO XpaHITb B DOONHHTeJIbHO pyKoRrKe.
BCTaBbTe KlnuB U IMeUcNcra3 B DoOnJIHtEnbHOpyKoRrKe.
KInu cJIHKOM XpaHNTcI Do Tex nOp, NOKa BbICTyNbI Ha KIOue He 6ydyT 3aФNKcnpoBaHbB THe3dax DOnOJIHTeNbHOYVKOrTKN.
- TTo6bI nCnOJIb3OBaTb KJIIOU H BbIHyt b erO n3 pyKoA rKn, npocTo BO3bMInTeCb 3a TReHylne CTOpOHbI CTePxHr KJIIOU H BbITaunTe erO.

11.2 py6oe uunufoaHue (Puc. 10)

IpeynpejdeHne: HkOrda He nCnoB3ynte dna 7nHPOBaHnO Tpe3HO Kpyr. NcNoB3ynte ToJbKO 3aunTHbIKoKox, npedHa3HaueHHbI dna 7nnΦOBAHn.

BHIMAHNE: HnkOrda He haxmaite KhONky 6nOKnpOBKn 7nnHdnel npn BpaaohemcKpyre.ДЯdoCTnxKeHHaHnyuXnx pe3yIbTaTOB 7nfoBaHn yctahOBHTe INHcTpymeHT noJ yrnom OT 30^ do 40^ IpeMeaTe IHcTpymeHT Ha3ad N Bnepe, npnaar He6oJbwoe daBHeHne.Takm o6pa3OM, o6pa6aTbIBaEma 3arOTOBKa He 6ydet CnIshKom cInbHO HarpeBaTbcR, He 6yDet OBeCuBcYNaTbcR, n 6yDet N36eRaTbcr O6pa3OBAHne KaHaBok.

11.3 Pe3ka (Puc. 11)

IcnoJb3vYte TOJIbKO 3aUHTbIK KOKx, NpeHa3NaeHHbI Dnpe3Kn MeTaJIa.

• Pn pe3ke nepemeaTe nHcTpymeHT Bpeep6e3 npmeHna ycnna, B 3aBncmocntn OT pa3pe3aeMOrMaTePnana
  He npinaraTe daBJeHne KOTpe3HOMy Kpyry.
  He HAKIOHJTe INHCTPYMeHT He NEPeMaJTe eTo I3 CTOPOHBJ CTOPOHV.
  He cnXkaTe cKOpocTb BpaueHn OTpE3HOro Kpyra npN BbIKIOueHn, npNJarra 6OKOBoe daBneHne.

• INHcTpymeHT Bcerda DoJKeH pa6oTaB npn HAnpaBHeHHOM BBepx DBrHexHHa6pa3HBoro Kpyra. B npOTNBHom cIyuae IMeETcR pUCK erO OTbpaCbIBaHHr O T JINHHpe3a HEKOHTPOJIpyEmbIM o6pa3OM.

• Pn pe3ke npyTKOB C KBaDpaTHbIMN CeueHnMa NIN NpOoJnMa NpeDNOHTeJIbHO HauHHaTb C cAmO nPRAMO YactN.

Pn MEUAHNE: Pn nCnoJb3OBaHnn yrNoBn 7nNΦMaunHbI dny pe3Kn
n36eraute ee haknoHa B nIOCKoCTn pe3aHn. OTe3HO Kpyr DOJXeH
nMeTb YnCTyO pexyuyo KpOMky.AIma3HbI OTpe3HO Kpyr
peKOMeHNdyETc NcNOJb3OBaTb Dny pe3KN TBepDOro KaMn.

IPEyPExEHE: HkOrda He nCnoB3yTe dJa pe3Kn wJnfoBaJIbHbI kpyr.

IPEyPPEKDEHNE: HkOrda He nCnoB3yIe dJa rpy6oro shnfoBaHn oTpe3Ho Kpyr.

ПЕДУПЕХДЕНЕ: He DoJnxHbI o6pa6aTbIBaTbcr MaTePnAJIbI, coedePkzaune ac6ecT!

12 YNCTKA N OBCJNYKBAHNE

12.1 Yucmka

Copeknte BHTnraHIOHHbI OTBepCTN MaunHbI B uHCTOTE npeDoTbpauHneperpeBa Dnuratela.
PerynraHOp OunuAte KOpNc MaunHb MrgKo TpRko, XeJaTeNbHO nocJe KaJdoRo HcNoB3OBaHn.
He donyckaIte nonadaHn nIpy3n B BeHTnJraOHhbIe OTBepCTnI.
- Ecnn rpr3b He OTXoJnt, nCNOJIb3yIte MmKyIO TpRAnky, CMOeHHHyIO B MbIbHOB BOJe.

BHIMAHNE! 3BykoBoe daBHeHne MoXeT npEbIaTb 85 d(A). B 3Tom cnyuae Heo6xOdmo HcNoJIb3OBaTb INHdINBnDaJbHbIe cpeIcTba 3aunntbl opraHOB cnyxa.

13 TEXHnueCKNE DAHHbIE

3HaueHn ypoBnIyMa, n3MepeHbIe cOrnaCHO COOTBeTCTByUOcMy CtAndapTy. (K=3)

YpoBHeB 3ByKOBOrO daBHeHnA LpA 85 n6(A)

YpOBeHb 3ByKOBoMOnuHocTn LwA 96 dB(A)

BHIMAHHE! 3BykoBoe daBneHne moKet npebbIaTb 85 d6(A). B 3tOM cnyuae Heo6xOdmo HcNoJIb3OBaTb INHINBnDyalbHbIe cpeICTBa 3aunITbI opraHOB cnYxa.

aw (Bn6paun)

MaKc. 4,3 M/c²

K=1,5M/c²

POWDP35170 RU

15 TAPAHTIN

B COOTBeTCTBnC 3aKHOdaTeJIbHbIMn Tpe6oBaHnAIM, DaHHbI npOdyKT ObecneuBAeTcra rapaHTneHa cpoK 36 MecaE, NcUncJMaEMbI C DaTbI npNo6peTeHnA nepBBIM NOKyNaTeJeM.
- DaaHaa rapaHTna pacnpoCTpaHareTc HbCE DeeKbMaTePnaIOB n Ipon3BOdCTBa, Ho OHa He BkJIIOaAeT DeeKTHbIe DeTaII, NODBepraEMbIe eCTeCTBeHHOMy N3HOcy, TaKne KaN NOINHNK, UeTKn, KaBENu WTeNCelbHbIe BNKn, INN PrNaADNeXHOCTN, TaKne KaC CBepNa, RONOBKn CBepl, NINbHbIe NOnOTHa N T. D.; NOBpeJdeHnN NIn DeeKtbl, BO3HnKaOUsne BCJeDCTBHe HEnaLnxaUero ObpaSeHnry, HeCuaCThIx CnyaEB INN BHeCEHn N3MeHeHn B KOHCTpyKUnH, a TaKke He BkJIIOaAeT TpaHCnOpTbIe paCXoDbI.
IIOBpeKdEHNn/INn DeΦeKtbl, BO3HnKaHOuNE BCJeCDTBHe HnpaBnBHOJ 3KcNpyaTun, TAKKe He NOpNaDAHOT NOD YCJOBNA DAHHO rapaHTUN.
MbTaKKe OTKa3bIbAemc rO BCeX 68a3aTeJIbCTB OTOHOWeHN JIO6bIX TeNEChbIX NOBpeXdEHN, BO3HnKAHOx BCJeDCTBHe HENpaBnJbHOH 3KcnJIyatauIN INHCTpyMeHTa.
- PemOH MT MoXeT BbINONHARbC TOnbKO B aBtOpN3OBAHHOM cEHTpe 06cIyJKBaHnN nOKynatene HnCTpymeHTOB Powerplus.
IOnoHnTeJIbHyIO INΦopMaUIO BbI Bcerda MoKeTe NOJyHTb NO TeJeOHy 00 32 3 292 92 90.
IIO6bIe TpaHCnOpTHbIe pacxOdbI dONKeH HeCTN NOKyNaTeNb, ecNI He corlaocBaHO INHOE B IINcBMeHHoDfOpme.
BmecTe C TeM, He MoKet 6bIb IpeDbraHeHO HnKaKo IpeTeH3n No rapaHTn, ecn NOBpeXdEHNe yCTpOcTBA RaJIaETcpe3yJIbTaTOM He6peXHOrO 06CJyXnBaHnN ININ nepeRpy3KN.
- I3 rapaHTnOnOppeJeHNO NCKIIOUaTcraOBpeXdHne, Bo3HNaIOoee BCJIeCTBHe npOHKnHOBeHHN XIKKOCTn, CINbHOrO 3aNbIeHHN, YMbIuJIeHHOrO NOBpeXdEHn (npedHaMepeHHNo nno rpy6oH He6peXHoCTn), HEnpaBUNbHO 3KcPnyatauHn (NCpONb3OBaHHN yCTpoiCTBa He no Ha3NaueHHO), HEnpaBOMOCHoro NCpONb3OBaHHN (HaNPmep, HecO6JIIODeHHn INCtpyKcui, pInBeDeHHbIX B pyKOBODCTBe), HEKBaIIHfNcIPoBAHHo c6OpKn, pa3pJa MoHNH, HEnpaBUNbHOrO HAnpJxHeHHn CeTN. DaHHb CNICOK He ABnETCraCHePbIBaIOHM.
- IpnHrTne npTeH3n no rapaHTn He raBnEtcOcHOBaHNem nI npOAneHnra paHTnHoro nepNoDa nn Ha3HaueHnHOBOrO rapaHTnHoro nepNoDa B cnUyae 3aMeHb VCTPOJCTBa.
YcTpoIcTBa IIN DeTaII, 3ameHeHHbIe NO rapaHTn, OCTaHOTc CO6CTBEHHOCTbIO KOMpaHmVaroNV
MbI coXpaHЯEM 3a co6oI npaBO OTka3aTb B yOBoNTBopeHn IpTeH3n BO BCExCJyAax, KOrda He MoKet 6bITb IOdTBePckdEh PAKT NOKyIKN, INI KOrda OChEBnHO, YTO 3aN3deJIeM He IPOUN3BOIDNCr HaJIeJaUyxO. (OChCTKa BeHTINJauOnHHbIX OTBepCTn,peYJRAHOE OcClyKJBAHHe VOrlbHbIX UETOK n T.I.).
-Дя noDTBepKdEHHaTbI NOKyNk CneDyeT XpaHHTb Yek.
BaIe yCTpoiCTBO CneDyeET Bo3BpaAaTb NOCTaBUnky B Hepa3O6paHOM BnDE, B npHemMeMo YnCTOM COCToHNN (B OpHINHaJIbHOI nPOTuBOydApHOYnaKOBKe, ecNn TaKOBa IMeJaCb). POnIOJXIB DOKVMeHT O NOKVNke.
Iy oecneeyn onTmAlbHoi paobtI eTO HcTpymeHTa erO Heo6xOIMo 3apjXaTB MNHMYM 1 pa3 B MeCra.

16 OKPYKAIOUCA PEDA

EcnB Bau annapat Tpe6yeT 3ameHbI nocne dInTeNbHO rCNoJb3OBaHn, He BblbpacbBaIte erO BmecTe c DomaunHm Mycopom, a NcnoJb3yIte 3KoJorNueckn 6e3onachbI cnoc6 dIra erO ytnn3aun.

C OTxOaMn 3NeKtpnuecknx MaunH HeJb3ra NOCTyNaTb, KaC C obIHybIMN Domaunm OTxOaMn. N03a6oTbTeCb 6bYtIN3aUN TAm, rJe dIe 3TOrO eCTb COOTBeTCTByUOuIe yCTaHOBKn. PpOKOHcYbTnpyIteCb y MeCThblx OprAHOB Bnactn INy npOdaBua O BO3MOXHOCTN YtIN3aUN.

17ДЕКЛAPAUЯ O COOTBETCTBИ

VARO - Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BJIbIy, HACTOUIM 3aBnEeT, yTO

IpoynkT: AKKYMUYJATOPHAR YIIOBAA UINΦMAUINA 40 B

Mapka: PowerPlus

MoIeIb:POWDP35170

COOTBETCTBYeT 683aTeJIbHbIM Tpe6oBaHnI M INHbIM COOTBETCTByIOUm NOJoxEHNrM DeiCTByIOuNX Ebponecknx DnpeKtNB, OCHOBaHHbIX Ha Ebponecknx rapMOHN3IpOBAHHbIX CTaHdApTaX. IIOBOe HecaHKUHOHpOBAHHoe N3MeHeHne yCTpoiCTBa aHHyInpyeT daHHoe 3aYBJIeHne.

Еврөнөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдөдө 2011/65/EU 2006/42/EC 2014/30/EU

Ebponeckne rapMOHN3npOBaHHbI cTaHdapTbI (BKNIOUOyA,ecnN npIMeHMo,INX NOnpaBKn Do DaTbI NOINSCAHNA):

EN60745-1:2009

EN60745-2-3: 2011

EN55014-1:2017

EN55014-2: 2015

Держателlexhneyеско дokум entaци:ФлпВанkeрхов (Philippe Vankerkhove),VARO -Vic.Van Rompuy N.V.

HxKeNoDnncabWmncr DeIcTByeT OT mMeHN IcnoNHTeJIbHO rIpeKTopa KOMnaHnn,

Mertens Ludo

Ludo Mertens

OTdEn HopMOKoHTpOJa - MeHeJxep no Bonpocam corIacobHn 06/10/2020, Lier - Belgium

POWDP35170 BG

1 IPEДHA3HauEHNHe HA EJEKTPOHCHTPyMeHTA. 3
2 OINCAHNE (ФИ.А) 3
3 CnncbK HA CbIbPjAHNETo HA ONAKOBKATA. 3
4 CnMBOJIH 4

5OBuINIPEyPExEHHa 3A B3OpACHOCT PnN3IOJ3BAHE HA MEXAHn3INPAHn INHCTPYMEHTN.4

5.1 Pa6omHa 3oHa 4
5.2 EneKmpuuecka 6e3onacHocm
5.3 Iuyna 6e3oNaChocm 5
5.4 3no3eaHe u apuxu 3a Mexahu3upaHua UhcmpymeHm .5
5.5 Ynompe6a u 2puku 3a uHcmpyMeHm Ha 6amepuu.. 6
5.6 Cepu3Ho 06cnykeaHe 6
6 CNEUJIHn I3NCKBAHnA 3A B3OJACHA PABOTA...7

7ДОПьНHTЕЛНИHCTPyKUIN3AБE3ONACHOCT3A AKUMYJIATOPHN BATEPNI 3APJdHI YCTPOICTBA......8

7.1 Bamepuu 8
7.2 3apnHu ycmpoUcmea... 8

8 3APEXДАН, NOCTABЯн CBAJЯн HA AKUMYЛATOPHATA BATEPЯ. 9

8.1 Hndukau npu 3apekdahe (Fua. 1)
8.2 Nocmaahe / cBaJIHe Ha akymyamophama 6amepu (Φu2.2) 9
8.3 Hndukamop Ha 3apekdaHemo (Fue. 3) 9
9 CTIO6BAHE 10
9.1 MoHmupaHe Ha cnomazamEnHama pbKoxeamka (Fua. 4) 10
9.2 MoHmupaHe Ha npomekmopa (Fua. 5) 10
9.3 CmHa Ha uufoobhyu duck (Fue. 6-7) 10
10 PAEBOTA 11
10.1 BknoueaHe /N3knOyeaHe (Fua.8) 11
10.1.1 BkIIOUbaHe 11
10.1.2 13KJIIOUBaHe 11
11 yNOTPEBA 12

POWDP35170 BG

11.1 OmdeeneHue 3a cbxpaHeHue Ha 2aeHuN KInOu (Fua. 9) 12
11.2 Fpy6o uJauΦaHe (Φue. 10) 12
11.3 P83ane (Φu2. 11) 12
12 IOUHCTBAHE I NOIDPbXKA 13
12.1 Pocuemeane 13
13 TEXHnueCKn DAHHN 13
14 13
15 TAPAHUN 14
16 OKOJIHACPEIa 14
17 DEKJIAPAUJRA 3ACbOTBETCTBNE 15

БЕЗИЧЕН フЛОШAIMФ 40В БЕ3ЧETКOB ЛNTHEBO- IOHHA (BE3 AKUMYЛATOPHA BATEPЯ) POWDP35170

1 ПРЕДHA3HAUEHNE HA ELEKTPOHCTPUMEHTA

IbIIOUaIeT e npedHa3HaueH 3a IuaIpaHe Ha MeTaI KAMbK, KOraTO ce n3noJI3Ba
NoXoJaIuIINpOBeYueH dNcK I npoTeKTOp. IpoyeTeTe BCnUknpDynpExEHHa 3a
6e3OnacHocT, INCTpyKcUN, INIOCTpaCUN I CpeCNIpKaCUN npEOCTaBcEHn C To3N
eNEKTPoIHnCTpyMeHT. He n3PON3BaIte 3a pa6To npICTabKN 3a INHCTpyMeHTN, OCBEN Te3N, 3a
KOraTO Te ca npedHa3HaueHN! He e npOxoJaIz 3a npoPecNoHaJNa ynoTpe6a.

IpeynpexdHne! Ipei Da n3noJ3BaTe HNCTpyMeHTa, npooyTeBHNMaTeJIHO TOBa pkoBOdCTBO N 06uNTe HNCTpyKcUN 3a 6e3OanachocT,3apaN BaawTa co6CTBeHa cHrypHOCT. BauNr T eNeKTPOHnCTpyMeHTTrpa6Ba Da ce npdaBa Ha dpyr camo 3aeDNo c HactOAnTE NHCTpyKcUN.

2 ONICAHNE (ONR.A)

1. PpebaTeJIHa KyTna
2. ByToH 3a 6JIOKIPAHe Ha IINHdJa
3. 3aKnHouBaI npBkHouBaTeI
   4.ФИКСИРац loCT 3a npOTeKTopa
4. Rauehen KIIOU
5. IpoTeKTop 3a WJaIΦaHe Ha MeTaN
6. CnomaraTeJIHa pbKOXBaTKa
   8.Фланцовaraиka

7. ⅢJnΦOBbueHДИСК (HE e BkJIIOUeH)

8. 3apraHOn yctpoNCTBO (HE e BkIIOueHo)

9. AkymlyaTopHa 6aTepy c nHdkaTop Ha kanaunteta Ha 6aTepyra (HE e BKJIOUeHa)
10. ByToH 3a ocB6OxJaBaHe Ha aKymyJatopHaTa 6aTePnIa
11. BytoH 3a INDnKaTopa Ha KanaunTeTa Ha 6aTepeyra

3 CnncbK HA CbIbPjXAHNETO HA ONAKOBKATA

• OTeTpaHete BCnKo onaKOBbHyMaTePnaJI.
  OTctpaHete octaHaNTe onakOBbHyn IBpeMeHHN NOCTaBKN (ako nMa TaKnBa).
  PpOBepeTe daHn naKeTbT cbDbpxKa BCNUK KOMNoHEHTN.
• PpOBepTe dann ypeBt, 3axpaHbAunrKa6en, uencelT n akcecoapnte He ca 6nn noBpeDeHn np TpaHcnpTuPaHe.
• PanaTe ONaOBbUHIne MaTePnAIn NoTuNoKpaHa rapaHcNIOHHnepnoD.CneToba n3XBpIeTe BnyHKT 3a cb6npaHe Ha OTnaDbu.

BHIMAHHE! OnakobbHnTe MaTePnAn He ca nrgaKn! He no3BOnBaTHe Na Deca Da nrgaT c HainIOHOBn Top6uKn! Pnck OT 3aDywaBaHe!

1xMaunHa
1xpboKOBOCTBO

1xcnomaraTeHa pkoXbTaKa craeueHKnIOU

B cnyuay, ye hakon yactn nnncbat nni ca nobpepeH, cbbpxkete ce C meCTHn npedctabnteJ.

4 CnMBOJIi

B HacToaHnHaBcHnK n/nnBbpxy MaunHaTa ca n3NoJ3BaHn CJIeHNTe CmBOJN:

6 CNEUJIHNI 3NCKBAHNA 3A BE3ONACHA PABOTA

OTcTpaHeTe BCnUKN ONAKObUHN MaTePnaH N CBO6OHN YactN OTypea.
IpoBepaTe akcecoapTe npEn ynoTpe6a. Te Tp8Ba da ca noDxoJn 3a MaunHaTa n BaWata ceJ.
Ako MaunHaTa e HOba, 6atepyTa Tpr6Ba IIpbBO da 6bde 3apeJeHa.
- IpoBepTe daJIIM MAKcImaJIHata CKOpOCT, OT6eJI3aHa Bbpxy 7IINΦOBbUHNr DnCK, OTROBApHa MaKcImaJIHata CKOpOCT (O6OpOTn) Ha MexaHn3uPAHn INCTpyMeHT. CkOpocTTa Ha MexaHn3uPAHn INCTpyMeHT He Tp8Ba Da HADBnUba CTOHOCCTTa, NOCOueHa Bbpxy 7IINΦOBbUHNr DnCK.
- YbepTe ce, Ye pa3MePte Ha 7JInOBoBbHnI dNCK OTROBaprT Ha nOCoHeHt B CneuФkaunraHa MExaHn3npaHn INHCTpyMeHT.
- YBepTeCe, Ye IINΦOBbUHnT DnCK e NoCTaBeH 3aTeHaT npaBnHO Ha MexaHn3IpaHn INcTpymeHT. He n3NoJI3BaIte npexOdHn DnCKObe IIn aIaIaTepn, C KOnTO IINΦOBbUHnT DnCK Da 6bDe HAnacBaH KbM MexaHn3IpaHn INcTpymeHT.
- Na3ete n cbxpaHbAaTe шлфОьчня ДИСК, KaKTo e yka3aHO OT npON3BOUnteJI.
He n3non3BaIte MexaHn3npaHnI INCTpyMeHT 3a p3aHe Ha IeTaJIIN C MaKcMaJIHa De6eHHa, HADBnUbaAua MAKcMaJHata NbIoOuHnHa Ha peKeUInr DnCK.
He n3non3BaIte ⅢnfoOBbHnA INCK 3a 3aunCTbaHe Ha NOBbpxHOCTTa.
IpnMOHTnpaHe Ha IINFOBbueH DnCK Bbpxy pe36ata Ha BaNa Tp8Ba Da ce yBepnte,pe36ata My e DocTaTbUHa. PpOBepTe daNn BaNbTe eo6pe 3auNTeh n He Donnpa Do NOBbpxHOCTTa Ha IINFOBaHe.
- Ipei Da 3aOnuHete pa6oTa npOBepTe wInΦOBbUHN aNcK 3a NOBpei. He n3noJI3BaIte HanykaHn, pa3eHn INI NO dpyr Naunn NobpeHn WInΦOBbUHN dNCKOBe.
Ipei Da 3anoyHe pa6oTa ocTabe Te MexaHn3npaHn HNCTpyMeHT da npa60Ha npa3eH XoB B npOdbJxKeHne Ha 30 cekyn. N3KIOUcTe J He3a6abHO B Cnyau Ha HeobuHn B6paun IIN NOBa HA dpyr DepeKT. BHIMATEJNO npOBepTe MexaHn3npaHn IHCTpyMeHT IN IINΦOBbUHn DnCK, Ppei OTHOBO Da r BO BKIOUHTe.
Ybepete ce,Ye nckpnte He 3actpaWabAT Xopa H He nonaat Bbpxy cnilho 3anaiTeHH BeuecTBA.
- Ybepete ce, ye 6paobTBaHnT deTain e dope noDpRn nn 3axBaHaT. DpbkTe pbcTe cn daeneOT nobbpxHocCTTa, kOTo Ue pekeTe.
BnHarHocTe 3aunTHn Ounna HanyuHnU. Ako e Heo6xOIMo nIIN HANOKeTENHO, n3noJ3BaIte n Dpyr Bn3aunTa, KaTO npectnka nn Kaca.
YBepete Ce,Ye noCTaBeHnte DNCKOBe H npo60n Ca noCTaBeHN B CbOTBetCTBNE Cyka3aHnra Ta Ha npOn3BODntela.
He 3a6paBraIte da noCTaBAre IOIOXHN Wai6n, aKO TaKINBa ca DOCTaBeHn CbC cBOTBeTHnA 6pa3uBEH npoDyKT N KOraTO TOBa ce HaJara.
Ako c MexaHn3npaHn INHCTpyMeHT e DocTaBeH npeDna3nteN, HNKora He pa6oTeTe 6e3 Hero.
- Пи мexанираинстументи, кontо с ппeнэз Hagueи 3a pa60та с дисбе с OTвор на pe36а, тябва на ce уberite, че pe36ata в диска e doctaTbUHO дыгда на NOeMe dbljxHaTa Ha BaJa.
3aIbJxHrTeHnO Tp6Ba Da noDlbPkaTe BeHTnlaUHOHHTE OTBOpN YnCTn, KOraTo pa6oTne B 3anpaueHa cpea.

POWDP35170 BG

7ДОПьЛНTEЛНИНСТРУКЦИ 3AБE3ОПАСHОCT3A AKUMYЛATOPHN BATEPNI N 3APЯДн YCTPOИCTBA

7.1 Bamepuu

He ce ONITBaIte Da IIN OTBaIpe TIO HNKaKbB NOBOD.

He cBxpaHbAaTe Ha MeCTa. KbTeTO TempePaTpata MoXe Da IpeBnH 40 °C.

3apeKdaTe cAmo pnp OKoHn TempeaTpy Mekv4 ^ C n 40 ^ C

CbXpaHraBaiTe CBOITE 6aTePnHa cyxo, XnaHO MrcTo (5 ^ C - 20^) .He cbxpaHraBaTe HNKORA 6aTePnTE B paopeJeHO CbCTO8Hne

Ha-Do6pe 3a JNTHeBO-IOHHTe 6aTeepn e da rna pa3peXdaTe n ppe3apeXdaTe nepnoiHNO (Ha-MAJIKO 4 nbTn roDNIHO).VdeaIHOTo 3apeXdaHe 3a dbliroCPOHcBxaHHeHne Ha BaUata JNTHeBO-IOHHa 6aTeepn e 40% OT KanaHTeta.

• Ipn n3xbpnahe ha 6aTeepnTe cna3BaIte IHCTpykCnTe nocOeHn B pa3deJa "3aunTa Ha OKoHaTcpeDa".

He n3BpWbaiTe CbP3BaHe Ha KbCo. Ako 6bJe HnPaBeHO CbP3BaHe MeXdy NOIOKHTeHATA (+) n OTPuataeHATA (-) KIeMa DnpeKTHO IIN pN cIyuaeH KOHTAKC MeTALH INpeMEn, 6aTePraTa ige 6bJe CbP3aHa Ha KbCo N Ie npoTeue CNIEH TOK, KOITO Ie npuHHr ReHepuHa He TOnnHa, KOrTO MoKe Da nobpeDn Kopnyca IIN da PPnuHN IOxap

He 3aepraBaiTe. Ako 6atepuTe ce 3aepaTdo Temnepatypn ha100°C, yIbTHHeHneTo n3OlauHOHHte cenapaTopn i dpyrno NOnIMepHcBCTaBKn MOrat da 6bDaT NOBpeDeHn OT n3TuHa He eNekTpoJNT u/nn BbTpewHO CBbp3BaHe Ha Kbco, KOeTO BOd n Do TRehepnpaHe Ha TOPiHa, npuHnaBoIO NobpeDa nn noxap. B doNbHneHne He XbPnIte 6atepuTe B OfBn, 3aOTo MOKe Da Bb3HnKHe EKCnlo3n r/nnn INHTeh3NBHO n3rapAHe.

• Ipn ektpemHn ycnoBn moKe da Bb3HnKHe Teu OT 6aTePnTa. Ako 3a6eJXte TeuHOCT Bbpxy 6aTePnTa, NoctbnTe NO CneHNHaHH:

-BHIMATEJHO N36bPwTe TeuHOCTTa C Kbpna. H36raBte KOHTaK T C KOKAta.

-B Cnyuay Ha KOHTaKT C KOKaTa NIN OUYTe CNeDbaIte DOJHInTe IHCTpyKUIN:

He3a6abHO rH n3nPaKHeTe C BODa. HeyTpapan3npaTc MeKa KnceJIHa KaTO JIMMOHO BOK NIN OQT.
B cnuyaHa KOHTaKT C OHTe IIN PnOMuTE C O6nHIO KOJIuYeCTBO YnCTa BOda 3a Hau-MaIKo 10 MmHyTu, KOHCvTnPaJte Ce c nekap.

OnachocT OT noxap! N36yRbaTe CBbp3BaHeTo Ha KbCo HA KOHTaKTnTe Ha Chetata akymylatopHa 6atepna. He n3rapaTe akymylatopHata 6atepna.

7.2 3aprdnu ycmpoucmea

He ce onuTbaIte da 3apejdaTe Hnpe3apejdaun ce 6aTePN.
Ako Ka6eNTe ca DeEeKTHn. 3aMeHeTe rBEdHara.
He n3naarTe Ha Bb3deJeCTBnETo HA BOda.
HeOTbaprTe3apHHTOvCTPOCTBO.
He npo6nBaIte 3apdHOTO yCTPOYCTBO.
3apnHOTO yCTPOIcTBO e npedHa3NaueHo camo 3a pa6ota Ha 3akpnto.

POWDP35170 BG

8 3APEXДАНЕ, NOCTABЯн CBAЛЯн HA AKYMЛATOPHATA BATEРЯ

8.1 Hdukauu npu 3apekdahe (Uz.1)

CbpxKeTe 3apHTo yCTPOINCTBO KbM KOHTaKaT:

• NocToaHHO 3eJIeHo: rTObHOcT 3a 3apeXdaHe.
  Miraio YepBeHo: 3apeKdaHe.
• NOCTOHHo 3eJIeHO: 3apeDeHo.
• IocToaHNo 3eJeHo u CheBaHo: nobpeHa akymyNaTopHa 6aTePnI nn 3apAHO yCTpOJCTBO.

BeneKka: ako akymylaTopHaTa 6aTePnHa He Ira Do6pe B rHe3doTo Ha 3apJHOTO yCTPOIcTBO, n3BaTeE r N npOBepe T Ba6nUcaTa CbC cNeuФnKaun, daN ToBa e npaBnHnMa MoeI 3a TOBa 3apJH0 ycTPOIcTBO. He 3apeJaIte dpyr n akymylaTopn 6aTePn Hnn akymylaTopn 6aTePn, KOnTO He OTROBaprT Ha 3apJHOTO yCTPOIcTBO.

1. Поверяваite чесу вкючehOTO заюноту усточьи akymуларона taTeря.
2. CneI npKJIIOVAHe Ha 3apeXJaHTo n3BaJeTe 3apJHOTO yCTPOINCTBO OT KOHTaKTA m akymyIaTOpHaTAt 6atePn8OT 3apJHOTO yCTPOINCTBO.
3. Octabete akymyataTopHaTa 6aTePnJa n3CTnHe, npei Da y n3NOJ3BaTe.
4. CbXpaHbAaTe 3apJHOTO yCTPOIcTBO n akymyIaTOpHaTa 6aTePnB 3aTBOpEHO NOMEseHne n 3BbH OcCera Ha deua.

БЕЛEXКА: Ако akумлалopнаТа 6aTeря ce 3arpee npn npodbIxHteJIHa pa6Ota c nHcTpymeHTa, ocTaBeTeЯ Дa n3CTnHe Do CTaIHa TeMnepaTpya, npedn DaЯ BKNIOUHTe 3a 3apeXdaHe. ToBa ue ydblxN JxIBOTa Ha akymylalopnHaTa 6aTeprя.

8.2 NocmaaHe / caaane Ha akymyamophama 6amepu (Fua. 2)

PPEyIPEXDEHNE: Ppei Da npaBnTe peryInpOBKn ce yBepTe, YHCTpyMeHTbTe n3KIOueH NJI CBAJeTe aKymJaTOpHaTa 6aTeprna.

XbaHeTe HcTpyMeHTa c eHaTa pKa n aKymyNaTOphata 6aTepe (11) c dpYrata.
IocTabaHe Ha akymlyaTopHaTa 6aTePn: HATncHete Nnnb3HeTe akymyIaTopHaTa 6aTePnB CNOTa Ha yCTpOcTBOTO, yBepTe ce, ye OTKnIOuBaUaTa PnactInHa OT 3aHaT a cTpaHa Ha 6aTePnra Tua pKaBa Ha mAcTo n akymyaTopHaTa 6aTePn e cnrypHo 3akpeNa HPe nn 3aNoUbaHe Ha pa6ota.
- 3BaXdaHe Ha akymyIaTOPHaTa 6aTePn: EJHOBpeMeHHO HATNCHTe OTKIOUbaIaTa PnactHa N3DbpNaTe akymyIaTOPHaTa 6aTePn.

8.3 NHDukamop Ha 3apekdaHemo (Fue.3)

AkyMylatopHaTa 6aTePnI Ma INHdkaTOpn Ha 3apeKdaHeTo - MoKe Da npOBepnte CbCTOAHneTO n, KaTo HATncHete 6byToHa (13). Ppei Da n3noJ3BaTe IHCTpyMeHTa, MOJI, HATNCHE Te 6yToHa, 3a da npOBepTe dann akymylatopHaTa 6aTePnI e DoCTaTBuHO 3apeDeHa 3a HopMaIIHa pa6ota.

TpTe CBToOnoJa Ioka3BaT HnBOTO Ha 3apeXdaHe Ha akymyIaTopHata 6atePna:

CBeT rPnte CBeToDnOda: AkymyNatopHaTa 6aTepeH e HnBJIHo 3apeDeHa.

CBeTЯn DBA CBeToDnOJa: AkymyIaTOPHaTa 6aTePnE e 3apeDHa Ha 60%.

CBeTN eINH CBToIIOJ: AkMylaTOpHaTa 6aTePnE IooTn pa3peDeHa.

9 CΓΙΟΥBAHΕ

9.1 Mohmupahe Ha cnomazamehama pboKoxamka (Fua. 4)

IpeynpexdeHne: Ipei crno6yBaHe n perynpahe BnHaN n3KnIOyBaTte bILOwlaa pa n 3dpbnaTe akymylaTophata 6aTeprna OT TAnOTO Ha bILOwlaa.

CnomaraTeHaTa pkoBbAtka (7) MoKe Ja 6bJe npncBeiHeHa KbM bIouJaΦa B 3 pa3NHy N03uH: JRA, DaCHa n OT rOpHaTcTpaHa.

3a da MOHTnpaTe pBkoXBaTKaTa, npocTo r 3aBnHTeTe B eHa OT TOcKHe Ha nocTABrHe. PpOBepTe dann pBkoXBaTKaTa e cnrgpHo 3aTeHata, Ho He 3aBnHTBaIe TBbpDe CINHO.

9.2 MoHmupaHe Ha npomekmopa (Fua. 5)

Pa3xna6eTe cko6ata Ha npoteKTopa (6) ype3 n3dbpnahe Ha 6JIOKnpaata pkoxbatka Ha npoteKTopa (4) HABbH.
3aBbptete npoteKtopa, Taka ye HENOKpTuTa Taact Ha DnCKa Da e Bb3MOxHO Han-daJeue OT pkoXbaKaTa Ha OCHOBHAt dpkka.
3akpenete npoteKTopa, kato n36ytaTe 6nokupaunna loCT HABbTppe (npoteKTopbT He Tp6Ba da moKe da ce dBuKu).

3a6eJexka: Ako npedna3HnT npoteKTop He moxe da 6bde 3akpehen cnrypHo c fHKcnpaunia loct (4), n3noJ3BaTe WeCTOCTeHr aeyeh KIOU, 3a da 3aterHeTe WeCTOCTeHHata raKa.

3a6eJexka: PpoteKTopbT Tpr6Ba da 6bJe noCTaBeH, 3a da npedna3n notpe6ntela, ako dnckbt ce pa3pyu nO BpeMe Ha ynotpe6a.

9.3 CmHa Ha wlufoobHuur duck (Fue. 6-7)

BHHMaBaIe - Toky-IO n3nOJ3BaHnT dNCK MoKe da 6bJe MHoro ropeu!

IpeynpexdeHne: Ipei crno6BaHe n perynipaHe BnHaHn n3DbpNaTe akymyNatopHata 6aTePna OT TAnOTo Ha bTnOuNaΦa.

HaTnchete n 3aDpBxTe 6Iokpauny 6yToH Ha IINHeNa (2), 3a da 3akpennte nnHdeJa.
3abbpTeTe nXOHNnHnDJI,DOKaTO Ce 3aKJIIOuN.
CbaTe BbHnHnI IaHeu nOnOpHnI IaHeu KaTO n3NoJI3BaTe npEIOCTaBeHnI DBOEH cekTopeH KJIou.
IocTabete XeHaHn DaCK (9) Bbpxy WnHdeJa N BbPHeTe BbHnHn I OnOpHn I PhaHeu Ha Macto. Ocbo6oTe 6nokpOBkata Ha WnHdeJa.

Baxho! Bnhar NahtncKaTe 3akIIOUaKaTa Ha Bana, caMo KOrato DBrataTeT N IINΦOBbUHnT BaI ca HEnoDbuxHnII!

POWDP35170 BG

ДрьжTe 3aКЛЮЧаЛКаТа Ha BaNa HaTиСнЧАТа, ДOKАТо CмЕЯтE ДИССА!

BknueTe bIooIaIpa cIc 3akIIOUbaunna IpeBknIOUbaTe (3) n ro ocTaBeTe da pa6oTn 30 ceKyn, 3a da npOBepnte daHn pa6Otn npabUNHO n daHn HMa HeoBuauHN Bn6paun.

Cnpete bIloJnaiHae3a6abHO, aKO Bb3HNKHAT CNJIHN Bn6paunn I NOTbpcTe npuHaTa.

PnIINFOBbueH DnCK NnO Tpe3eH nck C De6eNHa np6n. 3 MM 3aBnHTe Te BbHnHnA
fnaHeC nIOCKata CTpaHa HacoyeHa KbM IINFOBbUHnA DnCK Nn OTe3HnA DnCK.

10 PABOTA

10.1 BkIIO46aHe /N3KIIIO46aHe (Φu2.8)

Ipei Da 3aedcTBate cnycbka Ha npeBknOuBaTeNa BKJI./N3KJI. npOBepete daJn IJIOBbUHNr DnCK e MOHTnpaH ppaBnHO n daJN Ce BbpTN rJaKO, KaTOn N daJIb BbHWNr OJaHeu e Do6pe 3aTeHaT.

CbeDInHeTe akymyIaTopHaTa 6aTePnca TAnOTo Ha bTnOuIaIpa.

10.1.1 BkHouBaHe

HaTnchTe 3aknHouBaun npebKnOuBaTe (3) Happe, cneKoETo HaTnchTe 3aKnOuBaun npebKnOuBaTe (3) HanbIHO.

10.1.2 N3KIOUBAHe

Ocb6oDeTe 3aknouBaun npBknoyBaTeJ (3).PpeBknouBaTeJrT ue ce BbpHe ABTomATuHOB 3aknoueHaTa NO3uN.

IncbI npOdbJIkaBa da ce BbpTn CneKaTO HhctpyMeHTbTe n3KIOueH.

3a6eJekka: PpeBknHoyBaTeJrHa To3n bIgNoJma fynKcna npedna3HO n3KnIOUcbHe 3a npedOTbpaTBAHe Ha HapaHbaHe Ha Xopa INOBpeDa cIeD cInpAhe Ha eJekTpO3axpaHBAHeTo nopadN Bhe3aneH CTapT npBb3CTaHOBBAHe Ha eJekTpO3axpaHBAHeTo.

11 YNOTPEBA

11.1 OmdeeneHue 3a cbxpaHeHue Ha 2aeuHua KIOU (Fue.9)

3a yI06Ha yIOTpe6a n CbXpaHHe HTo3n INHCTpyMeHT Ce OTJIuYabC cyHKUraTa CbXpaHHe Ha raeHHN KIOU. MoXeTe Da CbXpaHIne CBOr raeueH KIOU B cnOMarATEHNHaT a pBkoXBaTKa cIeD yIOTpe6a.
IocTabete raeHnKJIouB HaJIuHnI npope3 B CnOMaraTeJHaTa pBkoXBaTka.
KloubTe Hnblno CbxpaHeH,doKaTo yactnte Ha KIOUca ca fNKCupaHn B rHe3daTaHa cnomaraTeJHaTpaBkoXBaTKa.
3a da n3no3BaTe raeuHnKIOU n da ro n3BaNTe OT pboKoXBtKaTa, npocTo XbaHeTe. DBete cTpaHn Ha uOHTa Ha raeuHn KIOU n IO n3DbpNaIte.

11.2 py6o wnauphihe (Φua. 10)

PpeynpeKHe: He n3non3BaTe HNKora peKeU dNcK 3a WnaJpaHe. 3a WnaJpaHe n3non3BaTe cMo npoteKTopa npedHa3NaYeH 3a WnaJpaHe.

BHIMAHHE: He haTnckaIte HnKora 6yToHa 3a 6NoKnpaHe Ha nnHdeJa, DOKaTO DNCKbT ce BbPTN. 3a Hau-Do6pn pe3yIaTn npn 7naJfAne P03nUHOHPaTe HnCTpymeHTa nOd bTbn Mekdy 30^ n 40^ . IpeMeCTBaIte HnCTpymeHTa Ha3ad N Hanpeq npnilaraikn Jek HATnck. NToTo3n HauHH 6pa6oTBaHOT O3dEINr HMa Da ce 3arpee TBbPde MHORo, HMa Da ce 06e3cBETn HMA Da ce 6pa3yBat KaHAn.

11.3 P83aHe (Φu2. 11)

3a p3aHe ha metan BnHaHn 3noJ3BaIte npTeKTopa npeHa3HaueH 3a pr3aHe.

• DOKaTO peXeTe, MeCTe TE INHcTpymeHTa HAnpeI 6e3 Da rO HacnJIbATE, B 3aBNCIMOCT OT MaTePnAJa, KOITo peXeTe.
  He npinaraTe HATNCK Bbpxy pexeunr Dnck.
  He HaKlaHryTe INHCTpyMeHTa IIN He rO MecTeOT CTPaHa Ha CTPaHa.
  He HamaJIaBaIe cKOpocTtHapeXeUgNJaCK,KORATo rN3KnIOuHTe, KaTO ynpaxHbATE CTpaHnueH HaTnCK.
  HCTpyMeHTbT Tp86Ba BnHaRn Da pa6oTu C a6pa3NBHO DnBxKeHne HacoyeHo Hanpei. B npOTnBEH cnyaH ce pncyBa da 6bJe 3aDbNxHe NO HeKOHTpoJnpaH NaHH OT JInHnTa Ha P3aHe.
  Korato pekeTe npbTn c KBaapTaHO ceueHne uNn npoPun, npenopbUba ce da 3anoHete OT HAI-npaBATA Yact.

3A6EJIEXKKA: Korato n3noJ3BaTe bIgNoJnФa 3a pJ3aHe, n36rBaIte HaKlaHЯHTo My B paBHHaT ha pJ3aHe. PexeIaT dNcK TpJbDa a NMa YnCT pExeI p6. 3a pJ3aHe Na TBbPd KaMbK ce npenOpbUba DnAmHTepeKeu dNcK.

PPEyIeHHe: Hkora He n3noJ3BaTe wJIOBbueH dNCK 3a p3aHe.

PPEyIpeKDEHNE: Hnkora He n3noI3BaIte pexeI dNcK 3a rpy6o wIIOBOHe.

PNEyIPEXJEHNE: MaTePnaJIncbIbpxaun a36ecr He Tp8Ba da 6bdaT o6pa6oTBaH!

12 NOUHCTBAHE I IOIDPbJKA

12.1 Nocumbahe

BentnlaOnHnTe OTbOpn Ha ypeDa Tp6Ba Da ca YnCTn, 3a Da ce npedotbpaTn nperpbaHeTo Ha DnRaTeJ.
- PeioBHO noHCTBaIte Kopnyca Ha MaunHaTa C MEK napua, NO Bb3MOXHOCT CJeD BCaYnoTpe6a.
Ha BENTnlaaioHnnte OTBOpn He Tp6Ba Da mma npax N Mpbcotna.
Ako Mpbcotnra He naa, n3non3BaTe MeK napcaJ, HAMOKpeh cbc canyHeHa Boda.

He n3noJ3BaIte pa3TBOpHTeH, KaTo 6eH3nH, HApTa, CnnpT, pa3TBOp Ha aMOHrk N.T.H. Te3n pa3TBOpHTeH Morat Da nobpejrt PnaCTMaCOBHTe YactN.

13 TEXHnueCKn DAHHN

06/10/2020, Lier - Belgium

DISCOVER THE ENTIRE PRODUCT RANGE AT

WWW.DUAL-POWER.COM
