POWP1030 - Grinder PowerPlus - Free user manual and instructions

Product type	Angle grinder
Brand	PowerPlus
Model	POWP1030
Power supply	220-240 V / 50 Hz
Power consumption	2300 W
No-load speed	6500 min⁻¹
Max. grinding wheel diameter	230 mm
Spindle thread	M14
Sound pressure level (LpA)	100 dB(A) (K=3)
Sound power level (LwA)	111 dB(A) (K=3)
Vibration level (aw)	9,3 m/s² (K=1,5)
Intended use	Grinding, roughing of metals and stones; polishing and sanding with suitable accessories
Protection	Double insulation (class II) – no earth connection required
Auxiliary handle	3 possible positions (left, top, right)
Items included in the package	1 angle grinder, 1 auxiliary handle, 1 two-hole key, 1 instruction manual
Maintenance	Regular cleaning of ventilation slots; no lubrication required

Frequently Asked Questions - POWP1030 PowerPlus

How to change the grinding disc?

First, unplug the tool. Press the spindle lock button (2) to lock the shaft. Use the two-hole key to remove the outer flange (a) and the rotating flange (b). Install the new disc, then replace the flanges and tighten. Release the lock.

How to install the auxiliary handle?

The auxiliary handle (7) can be fixed on the left, top, or right of the grinder. Screw it firmly into the provided attachment point (3) before use.

What accessories are supplied with the grinder?

The package contains: 1 angle grinder, 1 auxiliary handle, 1 two-hole key, and 1 instruction manual. Grinding wheels and other accessories are sold separately.

What is the required power supply voltage?

The grinder operates on a power supply of 220-240 V / 50 Hz. Check that your outlet matches this voltage before plugging in.

How to start and stop the tool?

To start, push the switch (5) forward and then press it firmly. To stop, simply release the switch. The disc continues to rotate after stopping; wait until it comes to a complete standstill.

What angle should be maintained for optimal grinding?

Hold the grinder at an angle of 15 to 30° relative to the surface being ground. Move the tool gently without applying too much pressure.

How to clean and maintain the grinder?

Always unplug the tool before cleaning. Regularly clean the ventilation slots with a soft cloth and soapy water if necessary. Do not use solvents. No lubrication is required.

What safety precautions should be observed?

Always wear safety goggles, gloves, and hearing protection (as noise exceeds 85 dB). Use the auxiliary handle and guard. Do not wear loose clothing and keep children away.

What to do in case of excessive vibration?

If the grinder vibrates strongly during a no-load test, turn it off immediately. Check that the disc is not damaged, cracked, or incorrectly mounted. Replace the disc if necessary.

Where to find after-sales service?

After-sales service is provided by Varo NV. For any repair, contact your dealer or an authorized Powerplus workshop. The information number is 00 32 3 292 92 90.

USER MANUAL POWP1030 PowerPlus

EL | HR | SR | CS | SK | RO | PL | HU | RU | BG

POWP1030

i

POWERPLUS

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

Close-up of a green and black power tool with a circular cutterhead, labeled with number 6 (no text or symbols on the tool itself)

Fig.1

Close-up of a hand using a power tool to clean or adjust a small component, labeled with number 1 (no text or symbols on the tool itself)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Fig. 2 Fig. 3

Two-hole spanner 2

a. Outer flange 8 b. Backing flange c. Output spindle

Fig. 4 Fig. 5

1 2 4 5

Fig. 6

POWERPLUS

POWP1030 NL

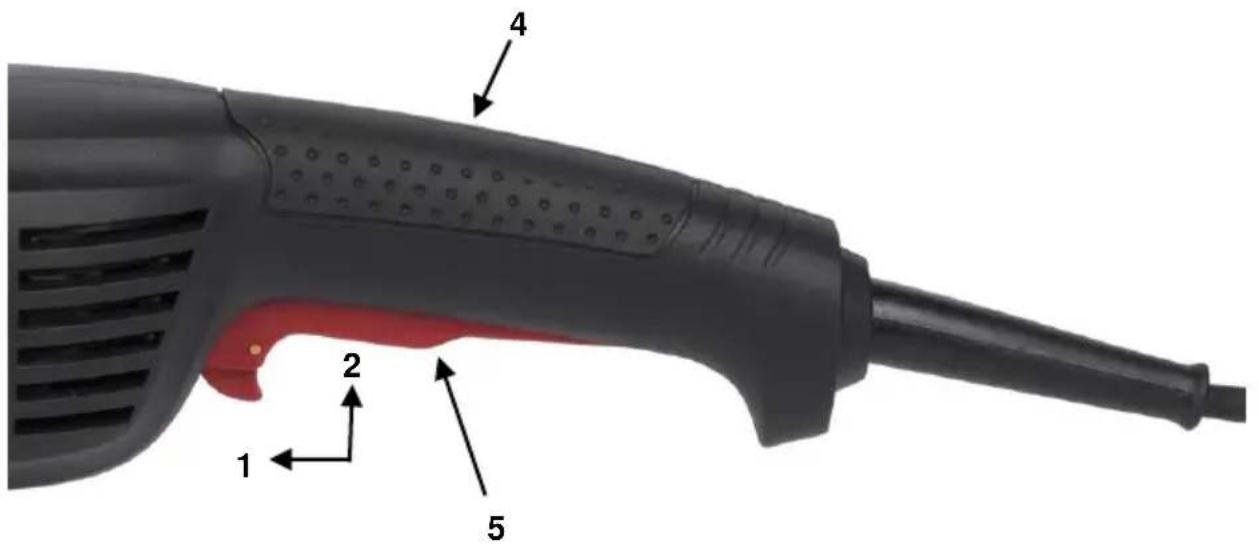

2 BESCHRIJVING (FIG. A)

Two-hole spanner = pensleutel

Product: Haakse slijper

Handelsmerk: POWERplus

Model: POWP1030

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 FR

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 EN

1 INTENDED USE....3

2 DESCRIPTION (FIG. A) 3

3 PACKAGE CONTENT LIST .... 3

4 SYMBOLS....4

5 GENERAL POWER TOOL SAFETY WARNINGS....4

5.1 Working area....4

5.2 Electrical safety....4

5.3 Personal safety .... 5

5.4 Power tool use and care....5

5.5 Service....5

6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS ..... 6

7 OPERATION....6

7.1 Fitting the auxiliary handle (Fig. 1)....6

7.2 Assembly the protective guard (Fig. 2 & 3)....7

7.3 Replacing the grinding disc (Fig. 4 & 5)....7

7.4 Switching on / off (Fig. 6)....7

7.4.1 Switching on....7

7.4.2 Switching off....7

8 OPERATON MODES 8

8.1 Grinding....8

9 FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS . 8

9.1 Flange arrangements when using a depressed centre or straight grinding wheel 8

10 CLEANING AND MAINTENANCE 8

10.1 Cleaning....8

10.2 Lubrication 8

11 TECHNICAL DATA....9

12 NOISE....9

13 SERVICE DEPARTMENT....9

14 STORAGE....9

POWERPLUS POWP1030 EN

15 WARRANTY....10
16 ENVIRONMENT....10
17 DECLARATION OF CONFORMITY....11

POWERPLUS POWP1030 EN ANGLE GRINDER 2300W—230MM POWP1030

1 INTENDED USE

This machine is developed for grinding and roughing of metal and stone. With help of the correct accessories the machine can also be used for brushing and sanding.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

2 DESCRIPTION (FIG. A)

1. Lock for protection guard
2. Spindle lock button
3. Attachment point for auxiliary handle (Above)
4. Main handle
5. On/Off switch with safety button
6. Auxiliary handle
7. Guard
8. Grinding disc (not included)

3 PACKAGE CONTENT LIST

• Remove all packaging materials.
• Remove remaining packaging and packing inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system.

WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 x angle grinder
1 x auxiliary handle
1 x pin spanner
1 x instruction manual

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Wear gloves		Always wear safety goggles.
	In accordance with essential requirements of the European directive(s).		Class II - The machine is double insulated; Earthing wire is therefore not necessary.
	Denotes risk of personal injury or damage to the tool.		Read manual before use

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

• Check that the maximum speed indicated on the grinding disc corresponds to the maximum speed of the machine. The speed of the machine must not exceed the value on the grinding disc.
• Make sure that the dimensions of the grinding disc correspond to the specifications of the machine.
• Make sure that the grinding disc has been mounted and fastened properly. Do not use reducing rings or adapters to make the grinding disc fit properly.
• Treat and store grinding discs in conformance with the supplier's instructions.
• Do not use the machine for grinding workpieces with a maximum thickness exceeding the maximum grinding depth of the grinding disc.
• Do not use grinding discs for deburring.
• When grinding discs have to be mounted on the thread of the spindle, make sure that the spindle has sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding surface.
• Before use, inspect the grinding disc for any damage. Do not use grinding discs which are cracked, ripped or otherwise damaged.
  ■ Before use, let the machine run idle for 30 seconds.
• Immediately switch off the machine in case of abnormal vibrations or occurrence of another defect. Carefully inspect the machine and grinding disc before switching the machine on again.
• Make sure that sparks do not put people into danger or that they contact highly flammable substances.
• Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the surface to be cut.
• Always wear safety goggles and hearing protection. If desired or required also use another kind of protection like for example an apron or helmet.
• Ensure that mounted wheels and points are fitted in accordance with the manufacturer's instructions.
• Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required.
• If a guard is supplied with the tool never use the tool without such a guard.
• For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.
• Ensure that ventilation openings are kept clear when working in dusty conditions. If it should become necessary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts.
  Though poor conditions of the electrical mains, shortly voltage drops can appear when starting the equipment. This can influence other equipment (eq. blinking of a lamp). If the mains-impedance Zmax <0.348 Ohm, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.

7 OPERATION

7.1 Fitting the auxiliary handle (Fig. 1)

Ensure that the plug is not in the socket when fitting or removing the auxiliary handle.

The auxiliary handle (7) can be attached to the angle grinder in three different positions: left, on top and right.

7.2 Assembly the protective guard (Fig. 2 & 3)

Mount the guard before using the machine.

• Place the protective guard (7) on the housing. Be aware that the notch of the guard falls across the edge of the housing.
• Fix the protective guard (7) by screwing the bolt
  The closed side of the guard always has to point in the user's direction.

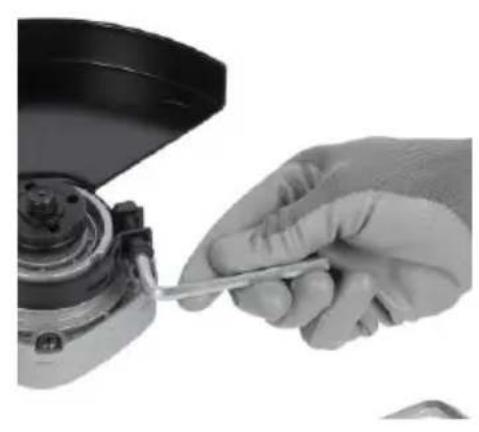

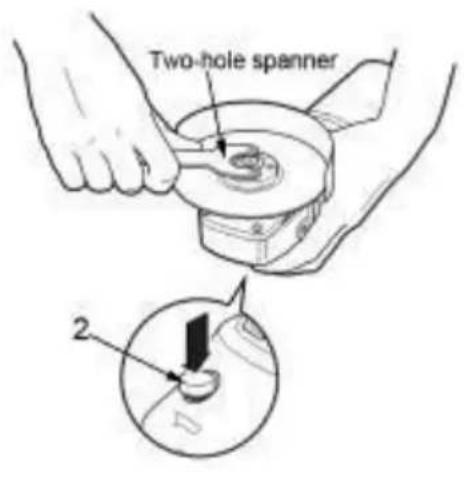

7.3 Replacing the grinding disc (Fig. 4 & 5)

Beware – a disc which has been used may be very hot!

• Pull out the power plug from the mains socket.
  ■ Depress and hold down the spindle lock button (2) to secure the spindle.
  ■ Turn the shaft until it locks.
• Remove the outer flange (a) and backing flange (b) by using the two-hole spanner provided.
• Fit the desired disc (9) on the spindle and replace the outer flange and backing flange. Release the spindle lock.

Important! Only ever press the spindle lock when the motor and grinding spindle are at a standstill!

You must keep the spindle lock pressed while you change the wheel!

For grinding wheels up to approx. 3 mm thick, screw on the flange nut with the flat side facing the grinding wheel.

7.4 Switching on / off (Fig. 6)

Before working with the angle grinder, check that the voltage shown on the machine's model plate is the same as the mains voltage being used.

Before engage the ON/OFF switch trigger, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened.

7.4.1 Switching on

1. Insert the plug into a correctly installed mains socket.
2. Push forward the ON / OFF switch with safety button (5) (See the arrow (1) on Fig. 6), and at the same time depress it firmly inwards and keep it pressed (See the arrow (2)).

7.4.2 Switching off

■ When you release the switch, the tool turns off.
- Do not let go of grinder until it has stopped running.

The wheel continues to rotate after the tool is switched off.

8 OPERATON MODES

8.1 Grinding

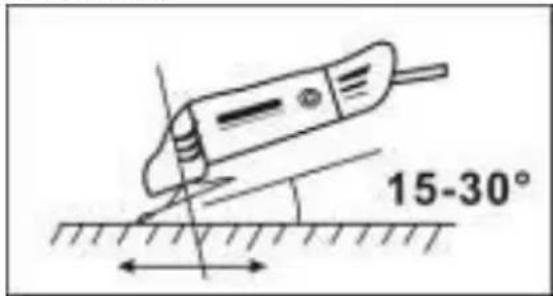

15-30°

Hold the handle (4) and auxiliary handle (7) firmly and switch on. Avoid blocking the ventilation slots with your hand, as this may cause the grinder to overheat. Let the disc reach full speed. Apply the grinder to the item. Maximum effect is achieved when the grinder is held at an angle of 15-30^ in relation to the item. Move the grinder gently along the item. Give the grinder time to work. It is rarely necessary to

press the disc hard against the surface to be worked. Sparks can occur in the motor compartment during use. This is normal and does not mean the grinder is defective. Switch off the grinder after use.

9 FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS

9.1 Flange arrangements when using a depressed centre or straight grinding wheel

1 1 2

1 Clamping flange
2 Flange nut

10 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

10.2 Lubrication

The machine does not require any specific lubrication.

POWERPLUS

POWP1030 EN

11 TECHNICAL DATA

Voltage / frequency	220-240 V / 50 Hz
Power input	2300 W
No load speed	6500 min-1
Max. disc diameter:	∅ 230 mm
Drive spindle thread:	M 14

12 NOISE

Noise emission values measured according to relevant standard. (K=3)

LpA (Sound pressure level) : 100 dB(A)

LwA (Sound power level) : 111 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration) :

9,3m/s²

13 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).

14 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

15 WARRANTY

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

CE

varo

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Angle grinder

trade mark: POWERplus

model: POWP1030

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009

EN60745-2-3 : 2011

EN IEC55014-1 : 2021

The undersigned acts on behalf of the company CEO,

Mertens Lido

Ludo Mertens

Regulatory Affairs – Compliance Manager

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 DE

Two-hole spanner = Lochschlüssel

16/11/2021, Lier - Belgium

POWERPLUS POWP1030 ES

Two-hole scanner = Llave de espigas

16/11/2021, Lier - Belgium

POWERPLUS POWP1030 IT

Regulatory Affairs – Compliance Manager

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 PT

Two-hole spanner = Chave de pinos

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 NO

1 TILTENKT BRUK 3
2 BESKRIVELSE (FIG. A) 3
3 PAKKENS INNHOLD....3
4 SYMBOLFORKLARING 4
5 GENERELLE SIKKERHETSADVARSLER....4
5.1 Arbeidsplassen ....4
5.2 Elektrisk sikkerhet ....4
5.3 Personsikkerhet....5
5.4 Vær nøyaktig og omhyggelig når du omgås elektroverktøy ....5
5.5 Service....5
6 SPESIELLE SIKKERHETSFORSKRIFTER FOR VINKELSLIPER..6
7 BRUK 6
7.1 Feste hjelpehåndtaket (Fig. 1)....6
7.2 Montere vernet (Fig. 2 & 3)....7
7.3 Skifte slipeskiven (Fig. 4 & 5)....7
7.4 Slå på/av (Fig. 6)....7
7.4.1 Slå på 7
7.4.2 Slå av....7
8 ARBEIDSMODUSER....8
8.1 Sliping....8
9 FLENSENES ANORDNING VED BRUK AV SLIPESKIVER......8
9.1 Bruk av flensen med forsenket senter eller rett slipeskive 8
10 RENGJ∅RING OG VEDLIKEHOLD....8
10.1 Rengjøring....8
10.2 Smøring 8
11 TEKNISKE DATA 9
12 ST∅Y 9
13 SERVICEAVDELING 9
14 OPPBEVARING 9
15 GARANTI 10

POWERPLUS POWP1030 NO

16 MILJ∅....10
17 SAMSVARSERKLÆRING....11

POWERPLUS POWP1030 NO VINKELSLIPER 2300W - 230MM POWP1030

1 TILTENKT BRUK

Two-hole spanner = Hakenøkkel

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 DA

Two-hole spanner = Tapnøgle

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 SV

3 FÖRPACKNINGSINNEHÅLL

Hexagon wrench = Insexnyckel

Hexagon nut = Insexmutter

Two-hole spanner = Tappnyckel

Outer flange = Flänsmutter

Backing flange = Stödfläns

Output spindle = Spindel

17 KONFORMITETSDEKLARATION

VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – BE2500 Lier – Belgien, deklarerar härmed att,

Produkt: Vinkelslip

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 FI

Outer flange = Ulkolaippa

Backing flange = Aluslaippa

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 EL

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 HR

1 NAMJENA 3

2 OPIS (SL. A) 3

3 POPIS SADRŽAJA PAKETA 3

4 SIMBOLI 4

5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA......4

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 SR

1 NAMENJENA UPOTREBA....3
2 OPIS (SL. A) 3
3 LISTA SADRŽAJA PAKETA....3
4 SIMBOLI....4
5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRIČNE ALATE...4
5.1 Radna oblast 4
5.2 Električna bezbednost 4
5.3 Bezbednost osoba....5
5.4 Korišćenje i održavanje električnog alata....5
5.5 Servisiranje....5
6 POSEBNA BEZBEDNOSNA UPUTSTVA ZA UGAONE BRUSILICE 6
7 RAD....6
7.1 Montiranje pomoćnog rukohvata (SI. 1)....6
7.2 Montiranje štitnika (Sl. 2 & 3)....7
7.3 Zamena brusnog diska (SI 4 & 5)....7
7.4 Uključivanje / isključivanje (Sl. 6)....7
7.4.1 Uključivanje....7
7.4.2 Isključivanje....8
8 REŽIMI RADA....8
8.1 Brušenje 8
9 RASPOREDI PRIRUBNICA PRILIKOM UPOTREBE BRUSNIH DISKOVA 8
9.1 Raspored prirubnica pri upotrebi ravnog brusnog diska ili brusnog diska sa upuštenom sredinom....8
10 ČIŠĆENJE I ODRŽAVANJE....9
10.1 Čišćenje....9
10.2 Podmazivanje....9
11 TEHNIČKE KARAKTERISTIKE 9
12 BUKA 9
13 SERVISNO ODELJENJE....9

POWERPLUS POWP1030 SR

14 SKLADIŠTENJE 9
15 GARANCIJA 10
16 ŽIVOTNA SREDINA....10
17 IZJAVA O USKLAĐENOSTI....11

POWERPLUS POWP1030 SR UGAONA BRUSILICA 2300W—230MM POWP1030

1 NAMENJENA UPOTREBA

Ova mašina je namenjena za brušenje i grubu obradu metala i kamena. Uz pomoć odgovarajuće dodatne opreme mašina se može koristiti i za čišćenje (poliranje) obrađene površine i fino brušenje.

16/11/2021, Lier - Belgium

POWERPLUS POWP1030 SK

1 ZAMÝŠL'ANÉ POUŽITIE....3
2 POPIS (OBR. A)....3
3 OBSAH BALENIA....3
4 VYSVETLENIE SYMBOLOV 4
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE 4
5.1 Pracovná plocha ....4
5.2 Elektrická bezpečnost'......4
5.3 Osobná bezpečnost'......5
5.4 Používanie elektrického náradia a starostlivost' oň....5
5.5 Servis....6
6 ŠPECIFICKÉ BEZPEČNOSTNÉ POKYNY PRE UHLOVÉ BRÚSKY 6
7 PREVÁDZKA 6
7.1 Inštalácia pomocnej rukoväte (Obr. 1)....6
7.2 Montáž ochranného krytu (Obr. 2 & 3)....7
7.3 Výmena brúsneho kotúča (Obr. 4 & 5)....7
7.4 Zapnutie / vypnutie (Obr. 6)....7
7.4.1 Zapnutie....7
7.4.2 Vypnutie....7
8 REŽIMY PREVÁDZKY......8
8.1 Brúsenie 8
9 USPORIADANIE PRÍRUBY PRI POUŽÍVANÍ BRÚSNYCH KOTÚČOV....8
9.1 Usporiadanie príruby pri používaní brúsneho kotúča so stredovou priehlbinou a rovného brúsneho kotúča 8
10 ČISTENIE A ÚDRŽBA....8
10.1 Čistenie....8
10.2 Mazanie....8
11 TECHNICKÉ ÚDAJE 9
12 HLUK....9

POWERPLUS POWP1030 SK

13 SERVISNÁ SLUŽBA....9
14 SKLADOVANIE 9
15 ZÁRUKA....10
16 ŽIVOTNÉ PROSTREDIE....10
17 VYHLÁSENIE O ZHODE 11

POWERPLUS POWP1030 SK UHLOVÁ BRÚSKA 2300W—230MM POWP1030

1 ZAMÝŠL'ANÉ POUŽITIE

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 RO

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 PL

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 HU

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 RU

16/11/2021, Lier - Belgium

POWERPLUS

POWP1030 BG

16/11/2021, Lier - Belgium

Green and white DRO power tool with meshing and red-lit end (no visible text or symbols)

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
