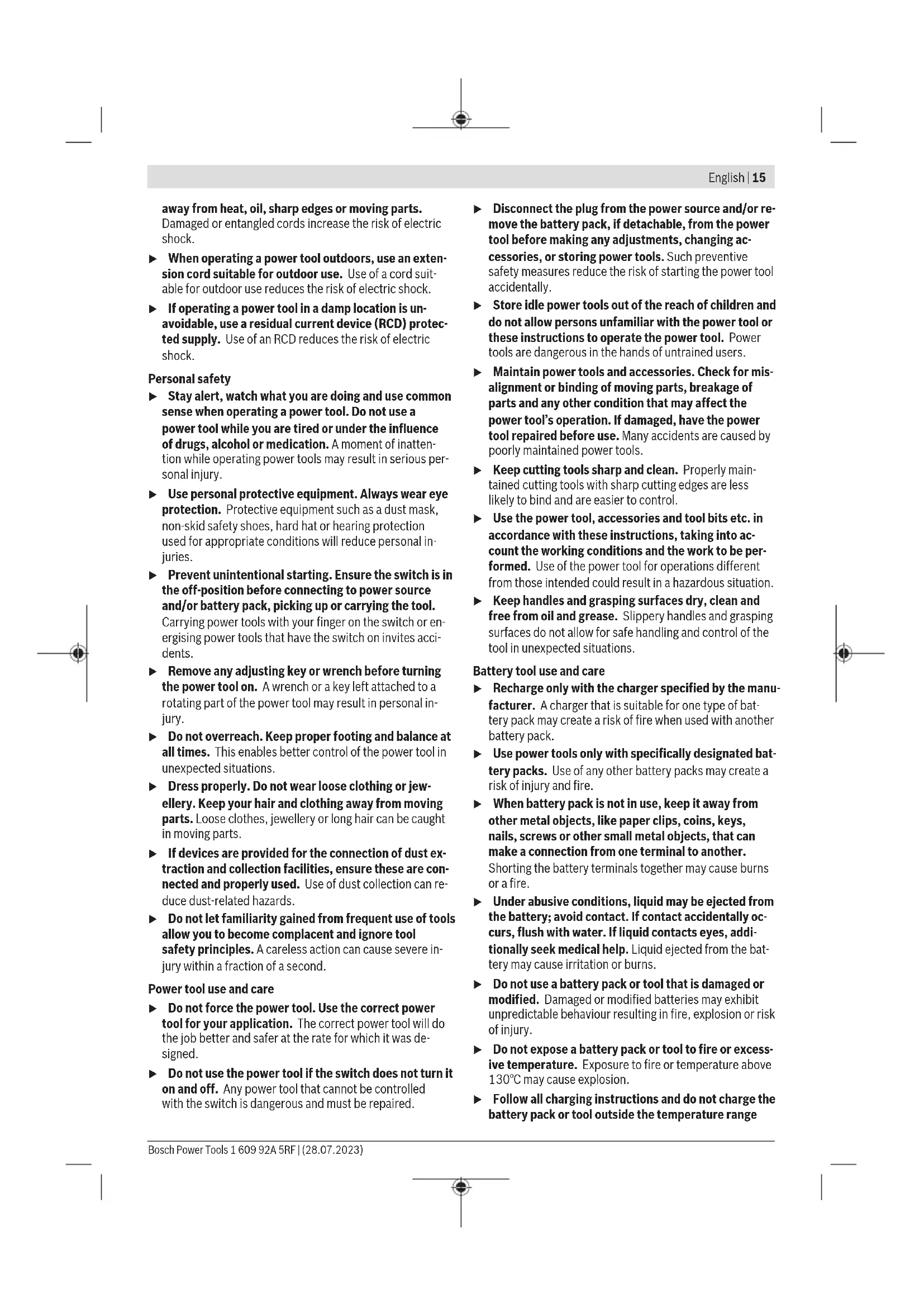

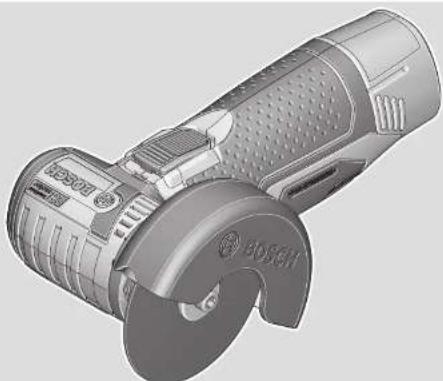

(5) Rechargeable battery release button

(6) Battery charge indicator (7) Protective guard for grinding (8) Grinding spindle (9) Handle (insulated gripping surface) (10) Protective guard for cutting (11) Clamping bolt with washer (12) Cutting disc

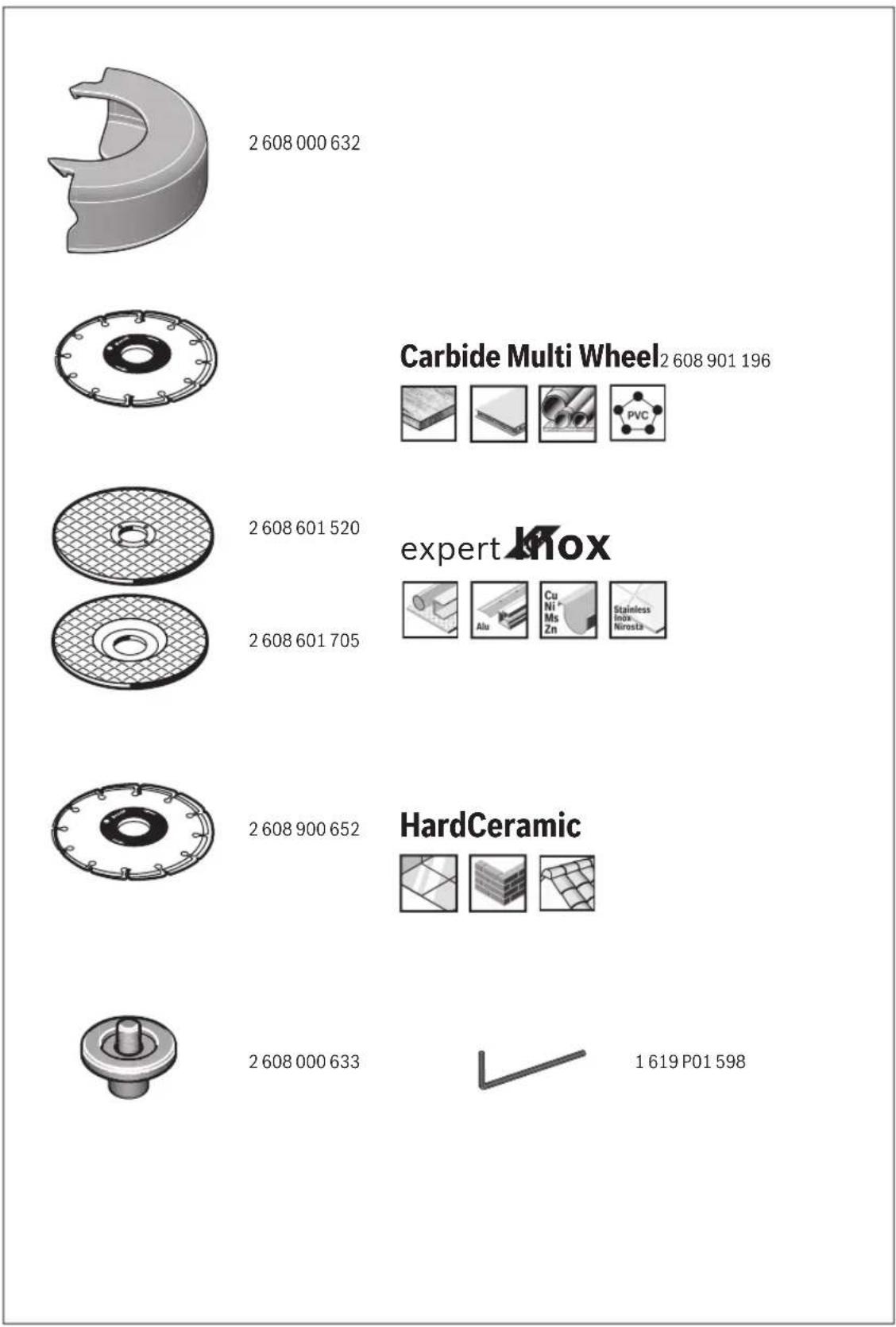

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Grinder GWS 12V-76 Article number 3601JF20.. Rated voltage V= 12 Rated no-load speed

19,500 Max. grinding disc diameter mm 76 Mounting diameter mm 10 Weight according to EPTA-Proced- ure01:2014

kg 0.70–0.90 Recommended ambient temperat- ure during charging °C 0to+35 Permitted ambient temperature during operation

and during stor- age °C –20to+50 Recommended rechargeable bat- teries GBA 12V... Recommended chargers GAL 12... GAX 18... A) Rated no-load speed for the selection of appropriate application tools in accordance with ENIEC62841-2-3. The actual no-load speed must not exceed the rated no-load speed and is therefore lower.

Depends on rechargeable battery(4) and protective guard((7), (10)) in use C) Limited performance at temperatures <0°C Values can vary depending upon the product and are subject to ap- plication and environmental conditions. For further information www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according to ENIEC62841-2-3. Typically, the A-weighted sound pressure level of the power tool is 78dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Grinding thin metal sheets or other materials that tend to easily vi- brate with a large surface area can cause the noise emission value to increase by up to 15dB. Suitable, heavy damping mats can reduce the increased noise emissions. Increased noise emissions must be taken into consideration, both for the risk assessment of the noise output and for selecting suitable hearing protection. Vibration total values a

(triax vector sum) and uncertainty K determined according to ENIEC62841-2-3: 1 609 92A 5RF | (28.07.2023) Bosch Power ToolsEnglish | 19 Surface grinding (roughing) and cut-off grinding:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ac- cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly in- crease the vibration and noise emissions over the total work- ing period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly. Rechargeable battery Bosch sells some cordless power tools without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the power tool by looking at the pack- aging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting the Battery Push the charged battery into the battery holder until it clicks into place. Removing the Battery To remove the rechargeable battery, press the battery re- lease buttons and pull the battery out. Do not use force to do this. Battery charge indicator The three green LEDs on the battery charge indicator indic- ate the state of charge of the rechargeable battery. The bat- tery charge indicator only lights up for threeseconds after start-up. LED Capacity 3× continuous green light 60–100% LED Capacity 2× continuous green light 30–60% 1× continuous green light 5–30% 1× flashing green light 0–5% Temperature-dependent overload protection In normal conditions of use, the power tool cannot be over- loaded. If the power tool is overloaded or not kept within the permitted battery temperature range, the speed is reduced or the power tool switches off. At reduced speed, the power tool will run again at full speed once the permitted battery temperature is reached or the load is reduced. If it automat- ically shuts down, switch the power tool off, allow the bat- tery to cool down, then switch the power tool back on. Temperature monitoring/overload protection indicator The red LED indicator helps you to protect the rechargeable battery against overheating and the motor against overload. If the LED indicator is lit up permanently in red, the temper- ature of the rechargeable battery is too high and the power tool switches off automatically. – Switch the power tool off. – Allow the battery to cool down before you carry on work- ing. If the LED indicator is flashing red, then the power tool is blocked and will switch off automatically. Pull the power tool out of the workpiece. The power tool will continue to work as soon as the blockage is rectified. Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Fitting Fitting Protective Equipment u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales ser- vice immediately; see the "After-Sales Service and Applica- tion Service" section for addresses. Protective guard for grinding u Always use the protective guard for grinding (7) when grinding. Bosch Power Tools 1 609 92A 5RF | (28.07.2023)20 | English Protective guard for cutting u When cutting, always use the protective guard for cutting(10). u Provide sufficient dust extraction when cutting stone. Fitting the Protective Guard (seefigureA) Insert the protective guard for cutting(10) onto the protect- ive guard for grinding(7) until this engages firmly. Adjusting the Protective Guard (seefigureA) Turn the protective guard to the required position and en- sure the protective guard is engaged. No tool is required for this. u Adjust the protective guard (7) such that sparking in the direction of the operator is prevented. Fitting the abrasive tools u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. u Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while work- ing. Clean the grinding spindle(8) and all parts to be mounted. To tighten or loosen the abrasive tools, push the spindle lock button(2) forwards and simultaneously turn the grinding tool to fix the grinding spindle in place. u Do not press the spindle lock button while the grind- ing spindle is moving. The power tool may become dam- aged if you do this. Grinding/cutting disc Pay attention to the dimensions of the abrasive tools. The diameter of the hole must match that of the mounting flange. Do not use an adapter or reducer. When using diamond cutting discs, make sure that the direc- tion of rotation arrow on the diamond cutting disc corres- ponds to the direction of rotation of the machine (see direc- tion of rotation arrow on the housing). See the graphics page for fitting instructions. Note: When assembling bonded grinding or cutting discs us- ing the supplied clamping bolt with washer(11), the use of intermediate layers is not necessary. To remove the grinding/cutting disc, push the spindle lock button(2) forwards while simultaneously turning on the grinding/cutting disc(12) in order to fix the grinding spindle(8) in place (seefigureB1). Use a hex key(13) to remove the clamping bolt with washer(11) and take off the grinding/cutting disc (12) (seefigureB2). To attach the grinding/cutting disc, screw in the clamping bolt with washer(11). Tighten the bolt using the hex key(13) until the washer of the bolt is flush with the grind- ing/cutting disc(12) (seefigureB3). Then push the spindle lock button(2) back again (seefigureB4). u After fitting the abrasive tool, check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool. Make sure that the abras- ive tool does not brush against the protective guard or other parts. Approved Grinding Tools You can use all the abrasive tools mentioned in these operat- ing instructions. The permissible speed [min

] or the circumferential speed [m/s] of the abrasive tools used must at least match the val- ues given in the table. It is therefore important to observe the permissible rota- tional/circumferential speed on the label of the abrasive tool. max. [mm] [mm] D b s d α [min

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Grinder Article number

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015+A11:2022

EN IEC 62841-2-3:2021+A11:2021

EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 04/04/2023 Bosch Power Tools 1 609 92A 5RF | (28.07.2023)
