D

Anwendungsbereich

F- E7: 40.691.001 (Magnesium)

The GROHE Blue ^圆 cooler/carbonator is designed for use in the private, non-commercial sector.

The cooler/carbonator works with environmentally-friendly refrigerant.

Safety notes

This device is not intended for use by persons (including children) with physical, sensory or mental impairments or a lack of experience or knowledge in using devices of this type.

Children must be supervised to ensure that they do not play with the device.

Prevent danger resulting from damaged power supply cables. In the case of damage, the mains cable must be replaced by the manufacturer or his customer service department, or an equally qualified person.

CO2 (carbon dioxide) is a gas and must not be inhaled due to danger of suffocation. Only CO2 cylinders up to max. 2kg may be used. When using these, the floor space must be at least 13m^2

The CO_2 cylinder is pressurised. It must only be operated in the vertical position and must be secured against falling over.

Operation is only permissible in conjunction with the accompanying adapter with pressure gauge.

• The mains plug provided (type EF plug) is only suitable for use with Schuko (CEE 7/4) sockets.
• The system must not be transported with the CO_2 cylinder connected.
  The CO cylinder must not be maintained or repaired by unauthorised persons.
• During cleaning, do not spray the cooler/carbonator or the plug directly or indirectly with water.
• The cooler/carbonator must be connected to a permanent power supply.
• At the installation location, the cooler/carbonator, CO_2 cylinder and filter system must be protected from mechanical damage, heat and direct sunlight. Do not install near heat sources or an open fire.
• The cooler/carbonator must be placed in an upright position.
• The cooler/carbonator must not be opened.
• Installation of the fitting and cooler/carbonator with filter cartridge is only permitted in frost-free rooms.
  The cooler/carbonator is only suitable for indoor use.
• Adequate ventilation must be ensured. If necessary, provide ventilation grilles in the cover of the lower cabinet.
• Use only genuine replacement parts and accessories. The use of other parts will result in voiding of the warranty and the CE identification, and could lead to injuries.

Technical data

Cooler/carbonator electrical data:

• Connection: Wall socket with earth wire, protected

via a 10 A fuse

Voltage supply: 230 V AC / 50 Hz
Max. power consumption: 270 W
Type of protection: IP21
Relative air humidity: max. 75%
- Refrigerant: 0.065 kg - R134a
- Safety shut-off of pump: approx. 4:30 min

Sanitary data:

• Cooler/carbonator cooled water capacity: 1.4 l
• System operating pressure: max. 0.6 MPa
• Flow rate at 0.3 MPa flow pressure:
• Ambient temperature:
• Temperature

-Cooler /carbonator water inlet:

max. 20^

Cooled water temperature:

approx. 5 - 10^

Sound pressure level LpA (frestanding):

50 ± 4 dB

• Adjustable bypass, factory setting:

2

Filter capacity at bypass setting 2

(Carbonate hardness 10 - 24°KH):

max. 600 liters

corresponds to max. 12 months

Water connection

cold - blue

Electrical test data

Software class:
- Contamination class:
Rated surge voltage

A

2.500V

The test for electromagnetic compatibility (interference emission test) was performed at the rated voltage and rated current.

Approval and conformity

This product conforms to the requirements of the relevant EU guidelines.

The conformity declarations can be obtained from the following address:

Electrical installation

Electrical installation work must only be performed by a qualified electrician. This work must be carried out in accordance with the regulations according to IEC 60364-7-701 (corresponding to VDE 0100 Part 701) as well as all national and local regulations.

Installation

Refer to the installation dimensions on fold-out page I.

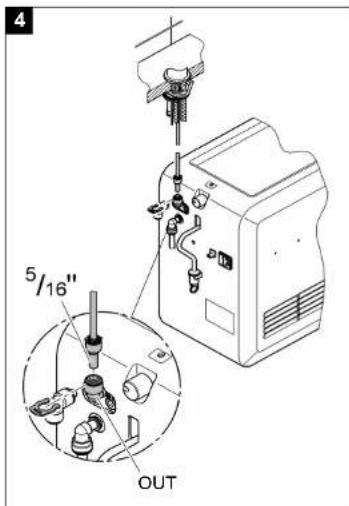

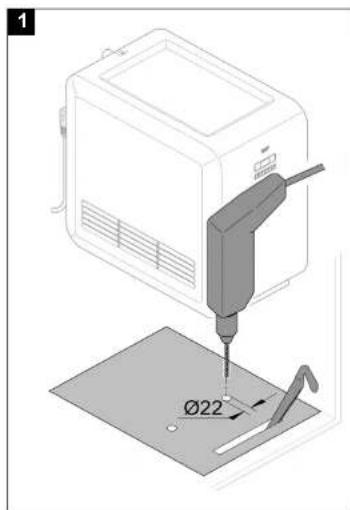

Install cooler/carbonator, see fold-out page I, Fig. [1].

When transporting or installing the cooler/carbonator, cooling fluid may have run into the lines. In order to ensure that the cooling fluid has run back, the cooler/carbonator may only be switched on following a pause of 24 hours.

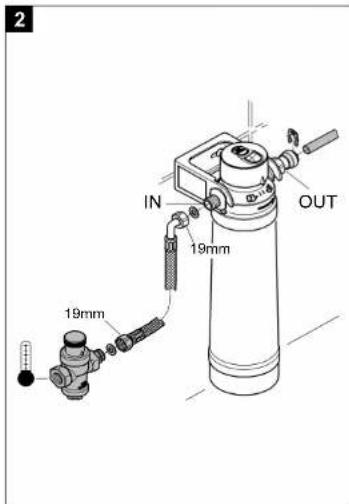

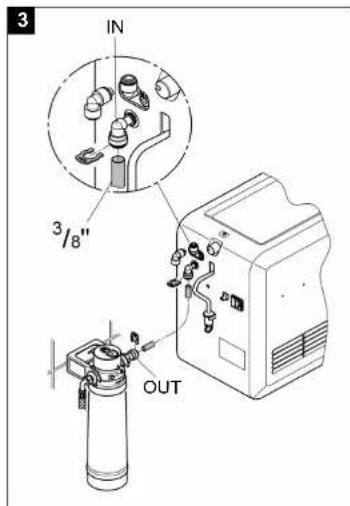

Connect cooler/carbonator and filter cartridge, see fold-out page I, Figs. [2] to [4].

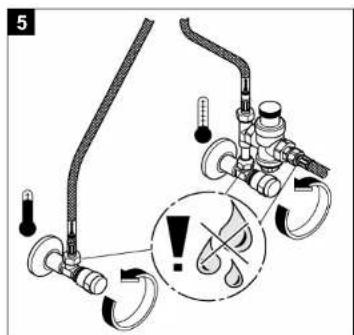

Open hot and cold water supply and check that

connections are watertight, see fold-out page II, Fig. [5].

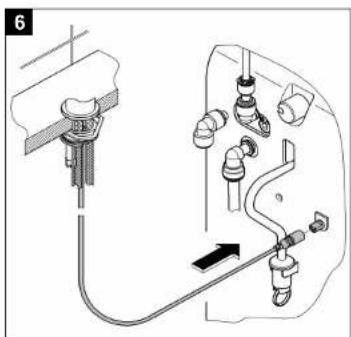

Connect plug-in connection between fitting and cooler/ carbonator, see Fig. [6].

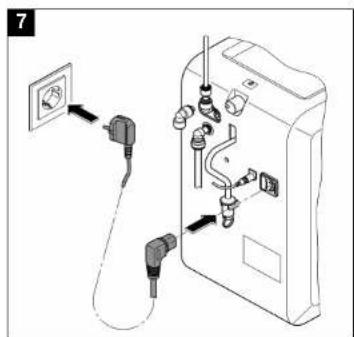

Establish voltage supply via mains plug, see Fig. [7]. The display illuminates and the remaining filter capacity is displayed in percent.

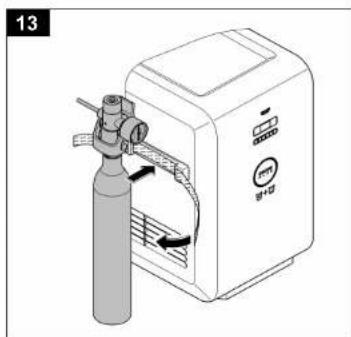

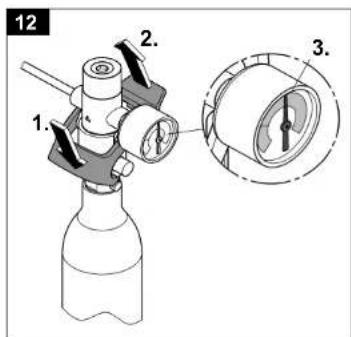

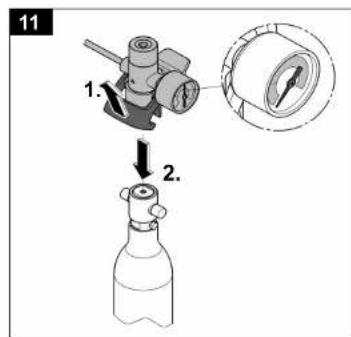

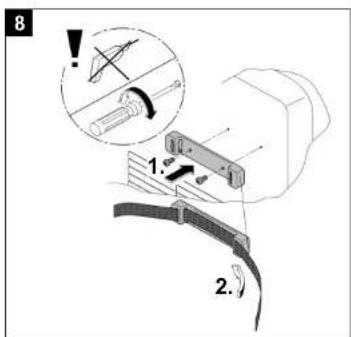

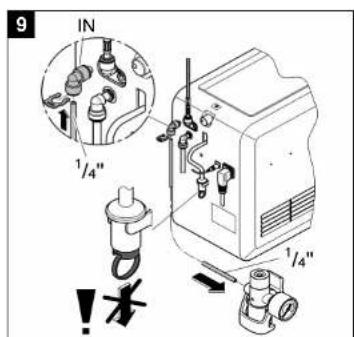

Connect CO_2 cylinder, see Figs. [8] to [13].

Do not operate the valve on the back of the cooler/ carbonator as otherwise CO_2 will escape, see Fig. [9].

• The valve is only needed when cleaning the cooler/ carbonator.

The fitting has a system-related run-on time of approx. 1 second each time carbonated water is drawn. The display in the handle illuminates blue.

If the Blue handle is flashing red and E4 or E6 appears in the display, the fitting and cooler/carbonator must be synchronised as follows, see Fig. [14]:

• Press and hold the and buttons simultaneously until SE flashes in the display.
• Press the button until SE stops flashing.
• Release the button, C- flashes in the display.
• Keep pressing the or O button until H- flashes in the display.
• Press the button until H- stops flashing.
• Blue® handle synchronisation starts; HC appears in the display and the Blue® handle lights up red.
• As soon as the Blue® handle lights up green, open the fitting fully by turning the Blue® handle.
• As soon as the Blue® handle briefly flashes green, close the fitting by turning the Blue® handle, HC flashes in the display.
• Confirm the setting by pressing the button longer, HC appears.
• Release the button. The remaining filter capacity is displayed.

Commissioning

Control, see fold-out page II, Fig. [14].

The buttons have the following functions:

Filter replacement reset

Filter size selection

Carbonate hardness adjustment

Display, see Fig. [14].

In the inactive state, the remaining filter capacity is displayed in percent.

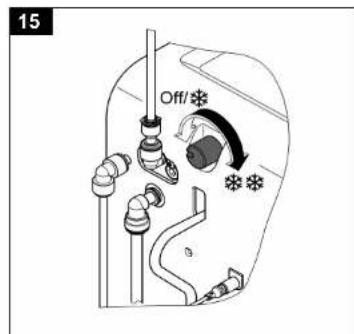

Set the temperature of the cooled, carbonated water on the cooler/carbonator, see Fig. [15].

Set the filter size, see Fig. [14] and [16].

button for filter size selection:

• Press and hold button once until the currently setted value (e.g. F1) flashes in the display

Press the button and select the required value appears -F1:40404000

-F2:40430000
-F3:40412000
-F4:40404001
-F5:40430001
F6:40412001
F7:40691001 (Magnesium)
-F8:40547001(Activcarbon)
Press and hold the button until the required value stops flashing
- Release the button: The remaining filter capacity is displayed.

Note: The various filter cartridges can be ordered at www.grohe.com.

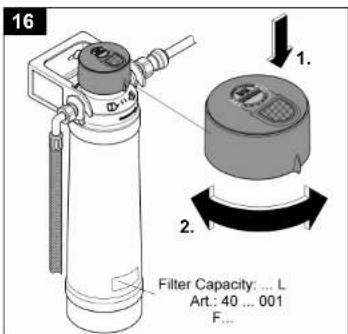

Set carbonate hardness at filter head, see Fig. [16].

The relevant water supplier can provide information on the carbonate hardness.

Set carbonate hardness at bypass setting of filter head to local conditions, see table column A on fold-out page III.

Display and setting of carbonate hardness on cooler/ carbonator, see table column B on fold-out page III and Fig. [14].

button for carbonate hardness adjustment:
- Press and hold the O button once until the currently settled value (e. g. C3) flashes in the display
- Press the O button and select the required value:

-C4:carbonate hardness

1

Y

p

a

S

-Factory setting:

C3: carbonate hardness 10 - 24 (bypass 2)
- C2: carbonate hardness 25 - 29 (bypass1)
C1: carbonate hardness ≥30 (bypass 0)

Press and hold the O button until the settled value stops flashing
- Release the O button.

The remaining filter capacity is displayed.

The liter capacity of the filter cartridge varies according to the water hardness set and the size of the filter cartridge, see table on fold-out page III.

The cooler/carbonator is set for operation with the 600 litre filter cartridge (Prod no.: 40 404 001) at the factory.

For operation with other filter cartridges the cooler/carbonator must be set out.

The fitting with cooler/carbonator is now fully installed and ready for operation.

Maintenance

Resetting filter capacity after changing filter cartridge, see fold-out page II, Fig. [14].

□ button for filter replacement reset:

• Press and hold button until rF flashes in the display.
• Release the button and press again until rF stops flashing.
• Release the button. The remaining filter capacity is reset and then displayed again.

Restore factory settings, see Fig. [14].

Reset O buttons to factory settings:

Press and hold the buttons simultaneously until PA starts flashing in the display.
- Release the O buttons.

The remaining filter capacity is displayed.

Important:

Risk of damage!

Always disconnect the power supply and interrupt the CO_2 supply before carrying out maintenance work on the system. The plug-in connector can then be disconnected, see fold-out page II, Figs. [6] and [7].

Inspect and clean all components and replace if necessary.

Assemble in reverse order.

Cleaning cooler/carbonator

For hygienic and healthy reasons, the cooler/carbonator must be cleaned once a year. Cleaning must be performed before changing the filter cartridge, in order to prevent contamination of the replacement filter cartridge.

Note: The cleaning kit (Prod. no.: 40 434 001) and the accompanying adapter (Prod. no.: 40 694 000 or 40 699 000) could be ordered at www.grohe.com.

Service

Note the Fault/ Cause/ Remedy table for information on eliminating problems.

If EE flashes or the problem cannot be rectified, interrupt the power supply to the cooler/carbonator. Note down the serial number of the cooler/carbonator on the rear of the device and consult a specialist installer or contact the GROHE Service Hotline via email under [e-mail]. The GROHE BlueChilled cooler/carbonator may only be repaired by GROHE Service.

Environment and recycling

Used filter cartridges can be disposed of hazard-free in domestic waste.

The accompanying CO_2 cylinder can be refilled locally.

The CO_2 cylinder must not be sent back. At the end of its useful life it must be disposed of locally in accordance with the applicable regulations.

Note: A 2 kg CO _2 cylinder (Prod. no: 40 423 000) can be ordered at www.grohe.com.

The cooler/carbonator is an electrical device, to which return and take-back obligations apply in many countries. GROHE participates in such take-back systems in all relevant countries.

This category of device does not belong in the domestic waste, but must be disposed of separately in accordance with the relevant local national regulations.

Fault Cause Remedy
Water not flowing · Water supply interrupted - Open shut-off valves
No filtered water, Blue® handle flashes red, E1 in the display	·Safety shut-off of pump - Open shut-off valves	- Disconnect mains supply, wait 30 seconds and reconnect
No filtered water, E2 in the display	·Exceeding the drawing time	- Close Blue® handle
No filtered water, E3 in the display	·No connection between fitting and cooler/carbonator ·Cable or connector faulty	- Connect plug-in connector - Contact GROHE Service
No filtered water, Blue® handle flashes red, E4 in the display	·Fitting and cooler/carbonator not synchronized	- Synchronise with one another, see section Installation
No filtered water, Blue® handle flashes red, E5 in the display	·Fault function of cooler/carbonator - Connect mains supply, wait 30 seconds and reconnect
No filtered water, Blue® handle flashes red, E6 in the display	·Values range does not concur - Synchronise with one another, see section Installation
No filtered water, E7 In the display	·Fault function of cooler/carbonator - Connect mains supply, wait 30 seconds and reconnect
Blue® handle flashes orange, E8 in the display	·Filter capacity exceeded - Change filter cartridge immediately
E9 flashes alternately with HI in the display	·cooler/carbonator overheated	- Close Blue® handle, ensure ventilation and reduce ambient temperature to max. 50°F - Disconnect mains supply, wait 30 seconds and reconnect
No carbon dioxide in positions Medium and Sparkling	·CO2 cylinder not opened or empty - Fully open valve of CO2 cylinder or replace cylinder
