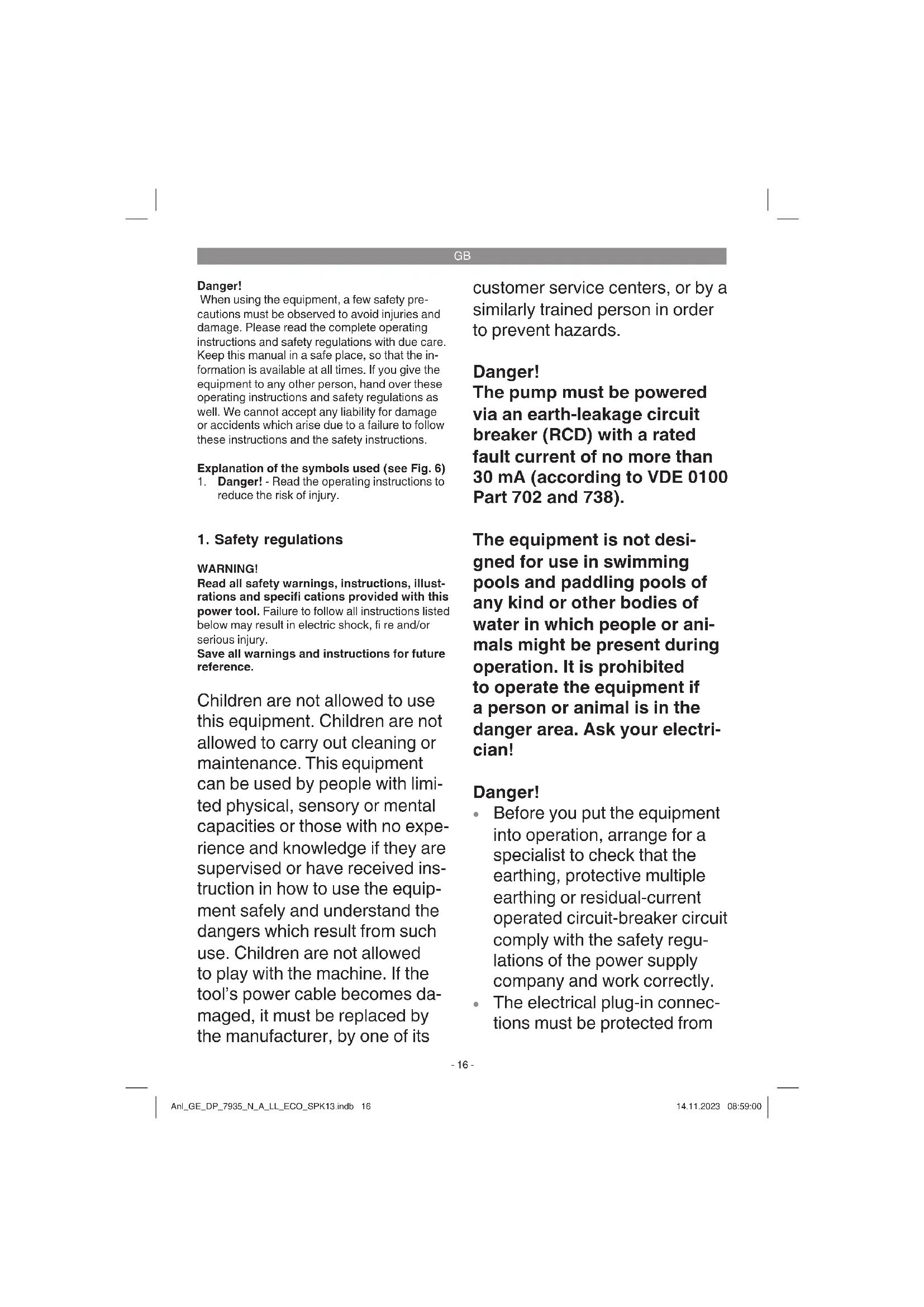

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the symbols used (see Fig. 6)

1. Danger! - Read the operating instructions to

reduce the risk of injury.

1. Safety regulations

WARNING! Read all safety warnings, instructions, illust- rations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. Children are not allowed to use this equipment. Children are not allowed to carry out cleaning or maintenance. This equipment can be used by people with limi- ted physical, sensory or mental capacities or those with no expe- rience and knowledge if they are supervised or have received ins- truction in how to use the equip- ment safely and understand the dangers which result from such use. Children are not allowed to play with the machine. If the tool’s power cable becomes da- maged, it must be replaced by the manufacturer, by one of its customer service centers, or by a similarly trained person in order to prevent hazards. Danger! The pump must be powered via an earth-leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100

The equipment is not desi- gned for use in swimming pools and paddling pools of any kind or other bodies of water in which people or ani- mals might be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electri- cian! Danger!

Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regu- lations of the power supply company and work correctly.

If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.

Strictly avoid pumping aggres- sive liquids and abrasive sub- stances.

Protect the equipment from frost.

Protect the equipment from dry running.

Take suitable measures to keep the equipment out of the reach of children.

There is a risk of the liquid becoming contaminated by escaping lubricant.

2. Layout and items supplied

2.1 Layout (Fig. 1/2/3)

1. Universal hose connection

6. Suspension eyelet

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Universal hose connection

Original operating instructions

The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C. This equipment must never be used for other liquids, especially engine fuels, cleaning agents and other chemically-based products! Before you use the pump, clarify any possible special conditions which need to be fulfi lled for the installation! For example, additional safety measures might be needed if damage to property could result from a power failure, soiling or a defective gasket. Examples of such safety measures: Pumps run- ning in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt. The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools! If you want to use the equipment in bodies of wa- ter with a natural, muddy bottom, place the equip- ment in a slightly elevated position, e.g. on bricks. The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment‘s anticipated life will be greatly shortened because the equipment was not designed for continuous loading. Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 17Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 17 14.11.2023 08:59:0014.11.2023 08:59:00GB

The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes. The water might be contaminated by escaping lubricating oil/lubricant.

5. Before starting the equipment

Before you connect the tool to the power supply make sure that the data on the rating plate is the same as the mains data.

The equipment can be installed either:

Stationary with a rigid pipe line

Stationary with a flexible hose line Note: Before you use the pump, clarify any possible special conditions which need to be fulfi lled for the installation! For example, additional safety measures might be needed if damage to property could result from a power failure, soiling or a defective gasket. Examples of such safety measures: Pumps run- ning in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt. The equipment must be fastened to the suspensi- on eyelet with a rope (Fig. 2/Item 6). The maximum pumping rate can be achieved only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced. Therefore, when the universal hose connection (Fig. 1/Item 1) is in use it should be shortened (see Fig. 3) to the connection that is actually being used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply). The non-return valve (Fig. 3/Item 7) prevents the water in the hose fl owing back when the pump is switched off . Using the non-return valve reduces the maximum delivery rate. Fast connector (Fig. 1/3 / Item 2) To disconnect the discharge hose easily and quickly from the pump you must press the release button (Fig. 3/Item A). Note! When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung up by the provided carry handle or suspension eyelet, or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft must al- ways be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).

5.2 Mains connection

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V ~ 50 Hz. Make sure that the socket-outlet is suffi ciently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation. Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 18Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 18 14.11.2023 08:59:0114.11.2023 08:59:01GB

6.1 Using for the fi rst time

You can put the equipment into operation after you have thoroughly read the installation and ope- rating instructions. Pay attention to the following points:

Make sure that the equipment is set up secu- rely.

Check that the discharge line is fitted correct- ly.

Make sure that the electrical connection is 230 V ~ 50 Hz.

Check that the electrical socket-outlet is in good working order.

Make sure that no moisture or water can ever reach the power connection.

Take care that the equipment does not run dry.

6.2 Shallow suction mode and dirty water

Turn the equipment counter-clockwise and press it to the bottom.

In shallow suction mode, water can be su- cked up down to a level of 1 mm.

Only clear water can be pumped in shallow suction mode.

6.2.2 Dirty water mode (Fig. 4b)

In dirty water mode the equipment can be set for three diff erent sizes (15/25/35 mm).

Turn the equipment clockwise and pull it upwards by the handle to the setting that you require. Make sure that the locking screws latch in place (B).

6.3 Operating mode (Fig. 5)

The equipment can be operated in manual mode and in autostart mode.

6.3.1 Manual mode: Switch (C) in “ON” posi-

tion In ON mode the equipment will run continuously.

6.3.2 Autostart mode

In autostart mode you can set 3 activation heights at switch (C). The activation heights will change as soon as you switch between shallow suction mode and dirty water mode. Shallow suction mode Autostart level 1: Activation height 15 mm Autostart level 2: Activation height 100 mm Autostart level 3: Activation height 150 mm Dirty water mode (example: 35 mm) Autostart level 1: Activation height 50 mm Autostart level 2: Activation height 130 mm Autostart level 3: Activation height 180 mm If the intake cage is adjusted to 15/25 mm, the activation heights will change accordin- gly.

6.4 How the integrated fl oat switch works

Application 1: In On mode the equipment will run continuously and the water can be sucked up in shallow suc- tion mode down to a level of 1 mm. In dirty water mode (e.g. 35 mm), the water can be sucked up down to a level of 40 mm. To prevent dry running, this operating mode is allowed only under supervision. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line. Please note: For the equipment to suck up water in ON mode there must be following water level.

Shallow suction mode: 15 mm

Dirty water mode: 50 mm (example: 35 mm) Application 2: The pump is used in autostart mode when there is a rising level of water. When the preset auto- start level is reached, the pump will start automa- tically. Regardless of the preset autostart level, in shallow suction mode the pump will pump off the water down to a level of 1 mm, will then continue to run for approximately another 15 seconds, and will then switch off automatically. In dirty water mode (35 mm) the pump will switch off at 40 mm. Please note: Switching off automatically after 15 seconds pre- vents the pump from running without water for a Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 19Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 19 14.11.2023 08:59:0114.11.2023 08:59:01GB

longer time. Because the pump continues to run, a little noise might be generated when there is no liquid, but this will not cause any damage to the pump. When you use the pump in autostart mode, make sure that the area from which you want to pump off the water is large enough. In autostart mode, use the non-return valve (7) in the universal hose connection (1). The pump cannot be used in au- tostart level 1 (15 mm) in the case of small shafts or vessels. The pump will switch on repeatedly due to the small quantities of water fl owing back out of the pump. Use a higher autostart level ac- cordingly. Application 3: The pump can be used in autostart mode when the initial water level is higher than the preset au- tostart level. Regardless of the selected autostart level, the pump will pump off the water until 1 mm is left and will then continue to run for approxi- mately another 15 seconds and will then switch off automatically. In dirty water mode (35 mm) the pump will switch off at 40 mm.

7. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Cleaning the impeller

If a lot of deposits collect in the intake housing, the bottom part of the equipment must be dis- mantled as follows:

Undo the three locking screws (Fig. 4/Item B) and remove the intake cage.

Clean the impeller wheel with clear water.

Assemble in reverse order.

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 20Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 20 14.11.2023 08:59:0114.11.2023 08:59:01GB

Faults Cause Remedy The equipment does not start - Power supply not connected - Observe the autostart level - Check power supply - Turn the autostart level to the cor- rect position The equipment does not pump - Intake sieve clogged - Discharge hose kinked - Clean intake sieve with water jet - Unkink the hose The equipment does not cut out - Observe the autostart level - Turn the autostart level to the cor- rect position Insuffi cient pumping rate - Intake sieve clogged - Performance reduced due to heavily contaminated and abra- sive water impurities - Clean intake sieve - Clean equipment and replace wear parts The equipment switches off after briefl y running - Motor circuit-breaker switches the equipment off due to exces- sive water contamination - Water temperature too high; mo- tor circuit-breaker switches the equipment off - Unplug power plug and clean equipment and shaft - Ensure that maximum permissible water temperature (35 °C) is not exceeded Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 21Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 21 14.11.2023 08:59:0114.11.2023 08:59:01GB

Disposal Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental- friendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EU countries: According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transpo- sition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/ EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful eff ects on the envi- ronment and human health, due to the potential presence of hazardous substances. Only for United Kingdom: According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 22Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 22 14.11.2023 08:59:0214.11.2023 08:59:02GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Impeller Consumables* Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 23Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 23 14.11.2023 08:59:0214.11.2023 08:59:02GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unli- kely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this pro-

duct in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product

which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectifi cation of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name “Professional” has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environ- mental conditions; damage resulting from poor care and maintenance.

Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ….) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design- related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

4. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee

claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guaran- tee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fi tted. This also applies if on-site service is used.

5. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will

need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and retur- ned to you or we will send you a new replacement.

6. If you have taken the equipment with you to a diff erent EU country than where you bought it, we will arran-

ge for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply. Of course, we are also happy to off er a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumab- les and missing parts as presented in the service information included in this operating manual. Warrantor/ Service: Einhell UK Ltd, Unit 10, 1st Floor, Champion‘s Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 24Anl_GE_DP_7935_N_A_LL_ECO_SPK13.indb 24 14.11.2023 08:59:0214.11.2023 08:59:02F
