USER MANUAL RB29FSRNDBC SAMSUNG

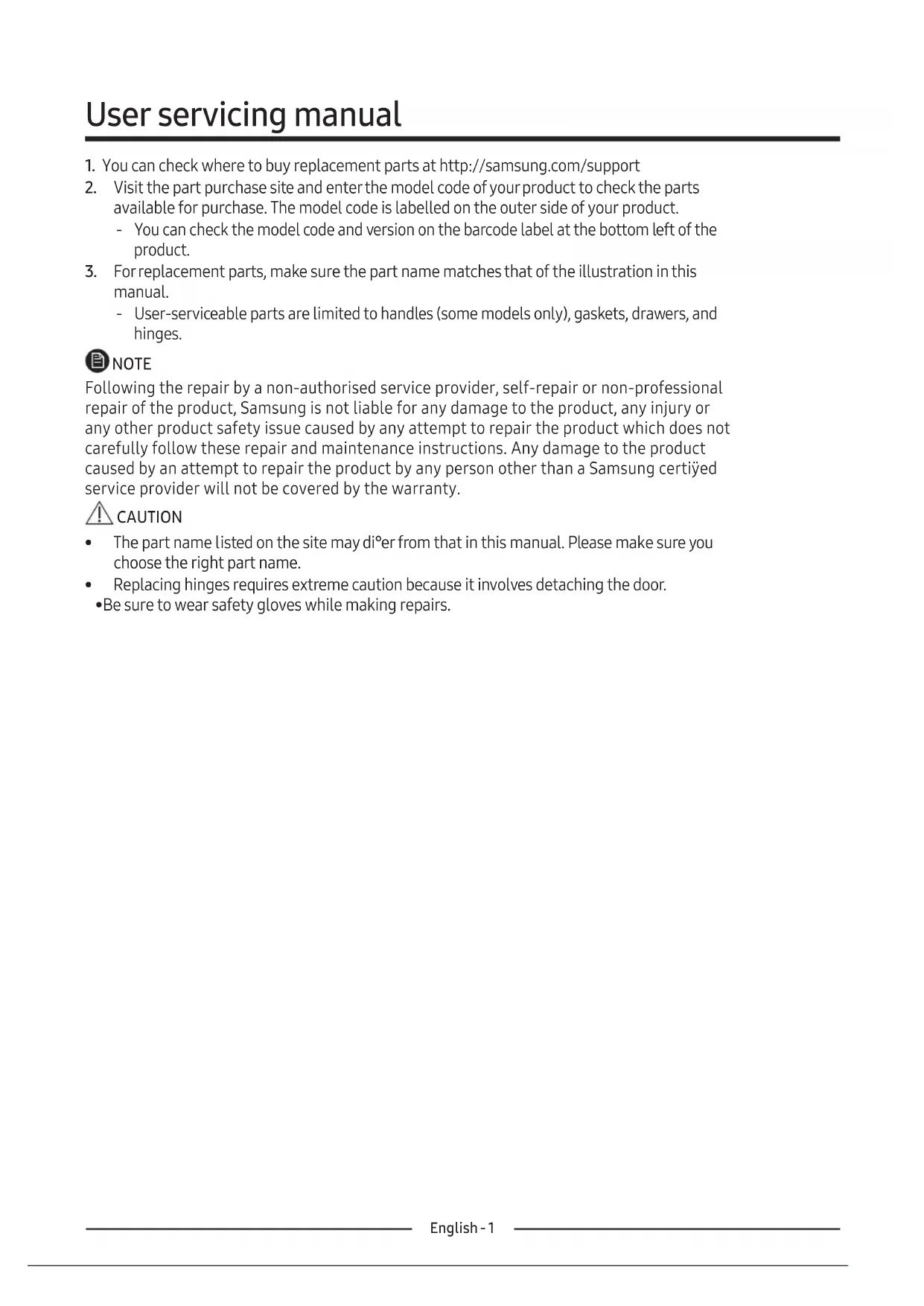

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. ‐ You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. ‐ User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certiÿed service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may di°er from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.English - 2 The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

Handles (Applicable models only)

04English - 3 Handle replacement Tools required (not provided) To detach the handles NOTE This procedure applies to both the fridge and freezer compartment. Model name looks like this: RB29F*, RB29H*, RB30J*, RB31F*, RB31H*, RB33J*, RB34J*, RB3CJ* What replaces the asterisks may dier depending the model. Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code. CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product. Philips screwdriver Flat-head screwdriver

1. Use a at-head screwdriver to remove the

screw covers. ‐ After detaching the handle, attach the screw covers back on the screw holes.

2. Use a Phillips screwdriver to remove the

screws and detach the handle. NOTE Use these screws to fasten the handle on the opposite side.

3. Assemble the new handle in the reverse

order of disassembly.English - 4 Gasket replacement Drawer replacement CAUTION Make sure you ÿrmly attach the gasket. Otherwise, cold air from the refrigerator may leak. CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the gasket Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door. To remove the drawer Gently lift up the front of the drawer and slide it out. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps.English - 5 Hinge replacement Tools required (not provided) Philips screwdriver Flat-head screwdriver 11 mm spanner 10 mm socket wrench 8 mm socket wrench 10 mm spanner To replace the hinges, you must remove the doors ÿrst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.English - 6 Reversing the door NOTE For the models with handles, reverse the handles rst. (For detailed information, see the “Reversing the door handle position (For models with bar handles)” section.)

2. Remove the Cover Hinge to push a hook

‐ Insert a at-head screwdriver and put it back ‐ Lever up the cover and push a hook (Take care not to damage the Cover Hinge Wire by pushing by pushing it too hard) ‐ Disassemble it by pushing

3. Disconnect the wiring connector for the fridge

door. ‐ This step may not apply to some models. CAUTION Do not pull the connectors too hard.

4. Remove the screws.

‐ (Be careful not to drop the door when you disassemble it.)English - 7

5. Remove the fridge door from the middle hinge by

carefully lifting the door straight up. CAUTION The door is heavy, be careful not to injure yourself when removing the door.

6. Disassemble the middle hinge by removing the

screws using a Phillips Head (+) screwdriver. CAUTION The freezer door may fall forward so please support the door.

7. Remove the freezer door from the bottom hinge

by carefully lifting the door straight up. CAUTION The door is heavy, be careful not to injure yourself when removing the door.English - 8

8. With the freezer door sitting on the bottom

hinge (A) , slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B) . CAUTION To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

9. Use a Phillips screwdriver and socket wrench

(10mm) to remove the screws fastening the middle hinge (A).

10. Reassemble in the opposite order of

disassembly after replacing the top, middle, and/or bottom hinge. CAUTION

• Make sure the wire connectors are connected properly.
