USER MANUAL V5200S Vicks

Operating Instructions

α ULTRAZVUKOVÝ ZVLHČOVAČ VZDUCHU Návod k obsluze

Exterior view of a Vicks water purifier with black and white casing (no text or symbols visible)

V-5200S

V-5200S

ENGLISH	4 CONTENTS
ČESKY	8 OBSAH
DEUTSCH	12 INHALT
DANSK	16 INDHOLD
EESTI	20 SISUKORD
ESPAÑOL	24 ÍNDICE
SUOMI	28 SISÄLLYSLUETTELO
FRANÇAIS	32 CONTENU
ΕΛΛΗΝΙΚΑ	36 ΠΕΡΙΕΧΟΜΕΝΑ
HRVATSKY	40 SADRŽAJ
MAGYAR	44 TARTALOMJEGYZÉK
ITALIANO	48 INDICE
LIETUVIU	52 TURINYS
LATVIEŠU	56 SATURA RĀDĪTĀJS

NEDERLANDS	60	INHOUD
NORSK	64	INNHOLD
POLSKI	68	SPIS TREŚCI
PORTUGUÊSE	72	CONTEÚDO

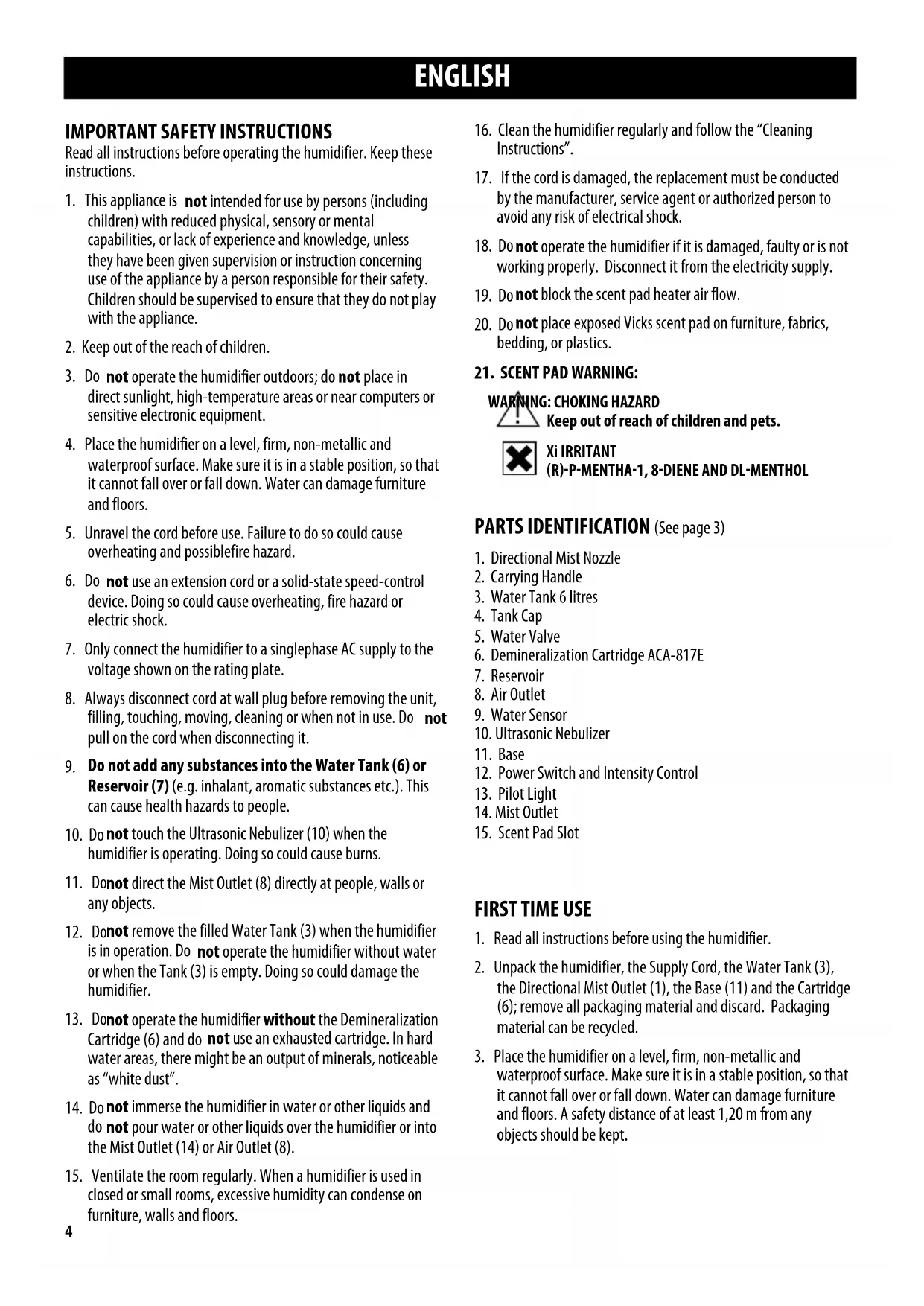

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before operating the humidifier. Keep these instructions.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Keep out of the reach of children.
3. Do not operate the humidifier outdoors; do not place in direct sunlight, high-temperature areas or near computers or sensitive electronic equipment.
4. Place the humidifier on a level, firm, non-metallic and waterproof surface. Make sure it is in a stable position, so that it cannot fall over or fall down. Water can damage furniture and floors.
5. Unravel the cord before use. Failure to do so could cause overheating and possiblefire hazard.
6. Do not use an extension cord or a solid-state speed-control device. Doing so could cause overheating, fire hazard or electric shock.
7. Only connect the humidifier to a singlephase AC supply to the voltage shown on the rating plate.
8. Always disconnect cord at wall plug before removing the unit, filling, touching, moving, cleaning or when not in use. Do not pull on the cord when disconnecting it.
9. Do not add any substances into the Water Tank (6) or Reservoir (7) (e.g. inhalant, aromatic substances etc.). This can cause health hazards to people.
10. Do not touch the Ultrasonic Nebulizer (10) when the humidifier is operating. Doing so could cause burns.
11. Donot direct the Mist Outlet (8) directly at people, walls or any objects.
12. Donot remove the filled Water Tank (3) when the humidifier is in operation. Do not operate the humidifier without water or when the Tank (3) is empty. Doing so could damage the humidifier.
13. Donot operate the humidifier without the Demineralization Cartridge (6) and do not use an exhausted cartridge. In hard water areas, there might be an output of minerals, noticeable as "white dust".
14. Do not immerse the humidifier in water or other liquids and do not pour water or other liquids over the humidifier or into the Mist Outlet (14) or Air Outlet (8).

15. Ventilate the room regularly. When a humidifier is used in closed or small rooms, excessive humidity can condense on furniture, walls and floors.

16. Clean the humidifier regularly and follow the "Cleaning Instructions".

17. If the cord is damaged, the replacement must be conducted by the manufacturer, service agent or authorized person to avoid any risk of electrical shock.
18. Do not operate the humidifier if it is damaged, faulty or is not working properly. Disconnect it from the electricity supply.
19. Do not block the scent pad heater air flow.
20. Do not place exposed Vicks scent pad on furniture, fabrics, bedding, or plastics.

21. SCENT PAD WARNING:

G: CHOKING HAZARD

Keep out of reach of children and pets.

Xi IRRITANT

(R)-P-MENTHA-1, 8-DIENE AND DL-MENTHOL

PARTS IDENTIFICATION (See page 3)

1. Directional Mist Nozzle
2. Carrying Handle
3. Water Tank 6 litres
4. Tank Cap
5. Water Valve
6. Demineralization Cartridge ACA-817E
7. Reservoir
8. Air Outlet
9. Water Sensor
10. Ultrasonic Nebulizer
11. Base
12. Power Switch and Intensity Control
13. Pilot Light
14. Mist Outlet
15. Scent Pad Slot

FIRST TIME USE

1. Read all instructions before using the humidifier.
2. Unpack the humidifier, the Supply Cord, the Water Tank (3), the Directional Mist Outlet (1), the Base (11) and the Cartridge (6); remove all packaging material and discard. Packaging material can be recycled.
3. Place the humidifier on a level, firm, non-metallic and waterproof surface. Make sure it is in a stable position, so that it cannot fall over or fall down. Water can damage furniture and floors. A safety distance of at least 1,20 m from any objects should be kept.

ENGLISH

DEMINERALIZATION CARTRIDGE ACA-817E

1. The durability and performance of the ACA-817E Cartridge (6) depends on the mineral content of the water.
2. When using the humidifier under normal conditions the Cartridge (6) should be replaced every 30 – 40 fillings. Replace more often in hard water areas.
3. Replacement ACA-817E Cartridges (6) are available where you purchased your humidifier.
4. Do not operate the humidifier without the Demineralization Cartridge (6) and do not use an exhausted cartridge. In areas, where water has a high hardness, there might be an output of minerals, noticeable as "white dust" (see extra filters).

EXTRA FILTERS

In hard water areas, there might be an output of minerals, noticeable as "white dust". In order to determine the hardness of the water you may ask your water company.

KF-520E K-Filter (sold separately)

1. If the hardness of the water is extremely high the cold tap water should be filtered with the KF-520E K-Filter before filling it into the Water Tank (6).
2. The KF-520E K-Filter reduces the calcium carbonate content 24 of the water.
3. The KF-520E K-Filter can be regenerated and therefore has a long lifetime.
4. Using the KF-520E K-Filter please carefully read and follow the special instructions included in each filter package.

SF-530E A-Filter (sold separately)

1. The SF-530E A-Filter should be used when salt is added to the water by use of a water softening plant. If the water has an extremely high salt content the cold tap water should first be filtered with the SF-530E filter.
2. Then filter the water with the KF-520E K-Filter. The water, filtered twice, can now be filled into the Water Tank (6).
3. The SF-530E A-Filter can be regenerated and therefore has a long lifetime.
4. Using the SF-530E please carefully read and follow the special instructions included in each filter package.

FILLING THE WATER TANK

1. Check that the Power Switch (12) is in the Off position and that the plug and not plugged in.

2. Remove the Directional Mist Nozzle (1) from the Water Tank (3).

3. Remove the Water Tank (3) from the Base (11) and turn it upside down. Open the Tank Cap (4) by turning it counter-clockwise.

4. Fill the Water Tank (3) only with clean, cool tap water (approx. 6 litres). Do not use warm or hot water. This can damage the Cartridge (6) and the Ultrasonic Nebulizer (10) and void the warranty.
5. Do not add any substances into the Water Tank (3) or Reservoir (7) or onto the Cartridge (6) (e.g. inhalant, aromatic substances etc.). This can cause health hazards.
6. Close the Water Tank (3) with the Tank Cap (4) by turning it clockwise.
7. Check that the Cartridge (6) is in place.
8. Turn the Water Tank (3) upright. Make sure that the Tank Cap (4) is in place and check it for leaks.
9. Replace the filled Water Tank (3) on the Base (11) and the Directional Mist Nozzle (1) into the Water Tank (3). Wait for approx. 15 minutes before operating the humidifier, so that the water can run through the Cartridge (6) into the Reservoir (7).

SCENT PAD HEATER DIRECTIONS FOR USE:

Your Vicks Ultrasonic Humidifier includes a scent pad heater so that you can enjoy Vicks soothing menthol vapors to increase your comfort. Each scent pad is designed to last for 6-8 hours of use.

1. Remove the water tank and locate the scent pad slot on the base.
2. Place one scent pad in the slot, being careful not to touch the scent pad with your hands. If your hands do come in contact with the pad, please wash them thoroughly as the menthol can be an irritant.
3. Replace the tank and turn the unit on.

Note: As long as your humidifier is on, the scent pad heater will also be activated. This area can be warm to the touch.

Replacing Pads:

1. Turn off and unplug your humidifier.
2. Remove tank and set aside.
3. Gently pull old scent pad out of the slot and discard.
4. Open refill pad and insert as described above.

OPERATING INSTRUCTIONS

1. Check that the Water Tank (3) is filled and that the Cartridge (6) is in place.
2. Check that the Power Switch (12) is in the Off-position. Plug the supply cord into the outlet. Do not touch the supply cord with wet hands.
3. Turn the Power Switch (12) to the desired position. The Pilot Light (13) illuminates. Turn the Power Switch (12) clockwise to increase mist output; turn it counterclockwise to decrease mist output.
4. Direct the Mist Nozzle (1) away from people, objects or walls.
5. If surplus humidity condenses on furniture, walls or floors in closed or small rooms, turn the Power Switch (12) counterclockwise to decrease mist output and open the door to the room. If this does not solve the problem turn the Power Switch (12) to the Off-position and unplug the humidifier.
6. Before removing the humidifier or filling the Water Tank (3) turn the Power Switch (12) to the Off-position and unplug the humidifier.

CLEANING, CARE AND STORAGE

We recommend cleaning the humidifier frequently. In order to not impair the performance of the humidifier, follow the instructions for Cleaning, Care and Storage.

Daily Cleaning

1. Before cleaning, turn the Power Switch (12) to the Off-position and unplug the unit.
2. Remove the Directional Mist Nozzle (1) from the Water Tank (3) and remove the Water Tank (3) from the Base (11).
3. Remove the Cartridge (6) from the Base (11). Do not wash or clean the Cartridge (6). Do not attempt to remove or in any other way modify the Water Sensor (9). Even touching it can damage this delicate Sensor.
4. Empty excess water from the Reservoir (7) where indicated by the arrow and make sure that water does not enter into the Air Outlet (8) or the Scent Pad Slot (15)
5. Open the Tank Cap (4) by turning it counter-clockwise and drain any water from the Water Tank (3).
6. Rinse the Water Tank (3) thoroughly with lukewarm water.
7. Wipe the outer surfaces of the Water Tank (3) with a clean, damp cloth.
8. To operate the humidifier follow the instructions under "Filling the Water Tank" and "Operating Instructions".

Weekly Cleaning

1. Before cleaning, turn the Power Switch (12) to the Off-position and unplug the unit.
2. Remove the Directional Mist Nozzle (1) from the Water Tank (3) and remove the Water Tank (3) from the Base (11).
3. Remove the Cartridge (6) from the Base (11). Do not wash or clean the Cartridge (6). Do not attempt to remove or in any other way modify the Water Sensor (9). Even touching it can damage this delicate Sensor.
4. Empty excess water from the Base (11) only on side opposite to the Water Sensor (9) and make sure, that water does not enter into the Air Outlet (8).
5. Open the Tank Cap (4) by turning it counter-clockwise and drain any water from the Water Tank (3).
6. Clean the Water Tank (3) with a solution of bleach and water (one teaspoon of bleach to one gallon of water). Fill tank partially with this solution, let stand twenty (20) minutes, shaking vigorously every few minutes, drain, and rinse with clean water until the bleach smell is gone.
7. Wipe the Reservoir (7) with a soft cloth dampened in this solution. If mineral deposits are evident around the Nebulizer and Water Sensor, clean their surfaces with a soft, clean cloth and a small amount of undiluted vinegar. If necessary for removal of mineral deposits, mix a solution of 50% white vinegar and 50% water and fill the Reservoir with enough solution to cover the Nebulizer. Allow it to soak for an hour, then use a cotton swab to gently loosen buildup on the Nebulizer. Rinse out the Reservoir and wipe clean. Do not touch Nebulizer or the Water Sensor with bare fingers as any fingerprints or residue can reduce mist output. Do not immerse the Base (11) in water.
8. To operate the humidifier follow the instructions under "Filling the Water Tank" and "Operating Instructions".

Care and Storage

1. Follow the "Weekly Cleaning" instructions when the humidifier is not used for a longer period (one week or more).
2. Let the humidifier and all its parts dry completely.
3. Remove the Cartridge (6) from the Base (11) and discard.
4. Do not store the humidifier with a filled Water Tank (3) nor with a used Cartridge (6).
5. Store the humidifier in a cool, dry place.

ENGLISH

TROUBLE SHOOTING

Problem	Possible Cause	Solution
The Power Switch is in On position. The Pilot Light (13) does not illuminate.	1. The plug is not plugged in.2. There is no power at the outlet.	1. Plug the humidifier in.2. Check the circuits and fuses or ask a specialist or please contact your retailer.
The humidifier produces little or no mist.	1. No water in Tank (3).2. The unit is not placed on a firm, level surface.3. The Water Tank (2) was washed with a washing liquid andnot rinsed thoroughly.4. Mineral deposits on Water Sensor (9) or Nebulizer (10).5. Blower not operating (10).6. Cartridge (6) is clogged.7. Nebulizer not functioning.	1. Fill the Water Tank (3).2. Place the humidifier on a firm, level surface.3. Empty the water tank (3) and rinse thoroughly with warm water.4. Clean Water Sensor (9) and Nebulizer (10).5. Ensure water in Reservoir (7) is adequate to immerse Water Sensor (9).6. Replace used Cartridge with a new one (6).7. Please ask a specialist or contact a retailer and follow instructions in the warranty manual.
Humidity condenses on furniture, walls or floors.	1. The relative humidity in the room is too high.	1. Follow the“Operating Instructions”.
White dust	1. The water hardness is too high.2. The Cartridge (6) is exhausted.	1. Follow instructions under “Demineralization Cartridge ACA- 817E” and use the extra filter KF-520E.2. Replace exhausted Cartridge with a new one.
Cannot smell Vicks vapors	1. Scent Pad has been in your humidifier for over 8 hours.	1. Replace Scent Pad with fresh pad.

DISPOSAL

Please do not dispose of this product in the household waste at the end of its useful life. Disposal can take place at your local retailer or at appropriate collection points provided.

This regulation is valid only in EU member states.

CONDITION OF SALE

As a condition of sale, the purchaser assumes responsibility for the proper use and care of this appliance in accordance with these printed instructions. The purchaser or user must judge himself or herself when to use the appliance and the length or use.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HUMIDIFIER PLEASE SEE WARRANTY FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO REPAIR THE HUMIDIFIER YOURSELF. DOING SO WILL VOID THE WARRANTY AND COULD CAUSE DAMAGE OR PERSONAL INJURY.

Technical specifications are subject to change.
