Product Type	Warm Mist Humidifier
Brand	Vicks
Model	Warm Mist VH845
Dimensions (L x W x H)	10.2 x 10.2 x 14.5 inches
Weight	4.5 lbs
Power Supply	AC 120V, 60Hz
Wattage	300W
Water Tank Capacity	1 gallon
Output	Up to 1.5 gallons per day
Coverage Area	Up to 250 sq ft
Noise Level	Quiet operation
Auto Shut-Off	Yes, when water level is low
Adjustable Mist Output	Yes
Night Light	Yes, optional
Medicine Cup	Yes, for Vicks VapoSteam
Filter	Demineralization cartridge (recommended)
Cleaning	Weekly with vinegar solution
Safety	Cool-touch exterior, auto shut-off
Warranty	1 Year Limited

Frequently Asked Questions - Warm Mist VH845 Vicks

How do I clean the Vicks Warm Mist VH845 humidifier?

Unplug the unit and allow it to cool. Remove the tank and empty any water. Fill the tank with a mixture of 1 part white vinegar to 2 parts water. Let it soak for 20 minutes, then scrub with a soft brush. Rinse thoroughly with clean water. Weekly cleaning prevents mineral buildup.

Can I use tap water in this humidifier?

Yes, but using distilled or demineralized water is recommended to reduce white dust and mineral deposits. If you use tap water, clean the unit more frequently to prevent scale buildup.

How often should I replace the filter?

The demineralization cartridge should be replaced every 2-3 months, depending on water hardness. Some models have a filter change indicator. Regular replacement ensures optimal performance and reduces mineral dust.

Why is my humidifier not producing mist?

Check if the unit is plugged in and the water tank is filled. The auto shut-off may have activated if the tank is empty. Also, ensure the tank is seated properly and the mist nozzle is not blocked. If the heating element is clogged with scale, clean it with vinegar.

Can I add essential oils to the water?

No, do not add essential oils directly to the water tank. The Vicks Warm Mist VH845 has a medicine cup designed for Vicks VapoSteam or similar liquid inhalants. Adding oils can damage the unit and void the warranty.

Is it safe to leave the humidifier on overnight?

Yes, it is safe to use overnight. The unit has auto shut-off when the water level is low and a cool-touch exterior. Place it on a flat, stable surface away from walls and curtains for proper airflow.

How do I assemble the humidifier?

1. Remove all packaging. 2. Place the base on a flat surface. 3. Fill the water tank with cool tap water and replace the cap. 4. Insert the tank onto the base, ensuring it clicks into place. 5. Attach the mist nozzle. 6. Plug in and press the power button. Refer to the manual for detailed assembly instructions.

What does the auto shut-off feature do?

The auto shut-off automatically turns off the humidifier when the water tank is empty or when the unit is accidentally knocked over. This prevents damage and reduces the risk of fire.

How do I use the medicine cup?

Open the medicine cup located on the top of the unit. Add Vicks VapoSteam or other recommended liquid inhalants up to the fill line. Close the cup. The warm mist will carry the vapors into the room. Do not exceed the fill line.

What is the difference between warm mist and cool mist?

Warm mist humidifiers boil water to produce a warm vapor, which can help with congestion and coughs. They are quieter than cool mist ultrasonic models but consume more electricity. Cool mist humidifiers use a fan or ultrasonic vibration and are more energy-efficient, but they can spread germs if not cleaned regularly.

USER MANUAL Warm Mist VH845 Vicks

White electric air fryer with a water filter and VICKS logo, shown from the side (no text or symbols on device body)

FILLING/REFILLING

USING VAPOPADS

Fig. 5 Fig. 6 Fig. 7 Fig. 8

Three-step diagram showing mechanical assembly: top view with internal components, middle view with tool, and bottom view with a cylindrical component (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
DISHWASHER SAFE REASSEMBLING

IMPORTANT SAFETY INSTRUCTIONS

Read through all the instructions before starting to use the appliance. Keep this manual in a safe place for future reference. These instructions are also available on our website. Please visit www.helenoftroy.com.

WARNING: The vapour emitted from appliance is hot, please take care when appliance is in operation

WARNING: Unplug the appliance during filling and cleaning

• Keep out of reach of children.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the humidifier outdoors.
• Place the humidifier on a level, firm, heat-resistant, non-metallic and waterproof surface. Make sure it is in a stable position, so that it cannot fall over or fall down. Water can damage furniture and floors. Helen of Troy will not accept any responsibility for property damage caused by water spillage.
• Unravel the power cord before use. Failure to do so could cause overheating and possible fire hazard.
• Do not use an extension cord. Doing so could cause overheating, fire hazard or electric shock.
• Only connect the humidifier to a single-phase AC supply to the voltage shown on the rating plate.
  • Always disconnect power cord at wall plug and allow the humidifier to cool down for at least 30 minutes, before removing the unit, filling, touching, moving, cleaning or when not in use. Some parts can get

hot. Do not pull on the power cord when disconnecting it.

• Do not add any substances into the water tank or heating chamber (e.g. inhalant, aromatic substances etc.). This can cause health hazards to people and can cause overheating, fire hazard, potentially void warranty.
• Do not direct the steam outlet directly at people, walls or any objects.
• Do not touch the steam. Steam can cause burns.
• Do not remove the water tank or the cooling chamber during operation or within 30 minutes after the humidifier is turned off and unplugged.
• Do not immerse the humidifier in water or other liquids and do not pour water or other liquids over the humidifier or into the steam outlet.
• Ventilate the room regularly. When a humidifier is used in closed or small rooms, excessive humidity can cause condensation on walls and windows.
• Clean the humidifier regularly and follow the "Cleaning Instructions".
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not operate the humidifier if it is damaged, faulty or is not working properly. Disconnect it from the electrical supply.

HOW IT WORKS:

The Warm Mist Humidifier is designed to quietly provide visible warm mist. The tank feeds water into the boiling chamber where it is heated to a steam vapor. The steam vapor mixes with dry air in the mist chimney and warm moist air is released into the room.

COMPONENTS (See page 1)

1 Inhalant Cup
2 Mist Chimney
3 Reset Light
4 Power Knob
5 Heating Element
G Heating Element Cover

7 Water Tray
8 Water Tray Tab
9 Heating Chamber
10 Reservoir
11 Base
12 Locking Latch
13 Scent Pad Door
14 Water Tank Handle
15 Water Tank
16 Tank Cap
17 Plunger

SETTING UP YOUR WARM MIST HUMIDIFIER

• Remove packaging materials. Keep this Instruction Manual for reference.
• Remove twist tie from power cord and extend power cord full length.
• Ensure Proper Assembly. Make sure Mist Chimney, Medicine Cup, and Water Tray are securely in place and that Heating Element Cover is secured. See Reassembling instructions for reference.
• Place humidifier on a firm, level, water resistant surface a minimum of 30 cm from walls. Steam should be directed away from any walls, bedding, or furniture (See fig. 1- page 2).

Warning: keep out of reach of children. This product produces hot steam and should be placed in an area not accessible to children or pets, with the power cord out of reach.

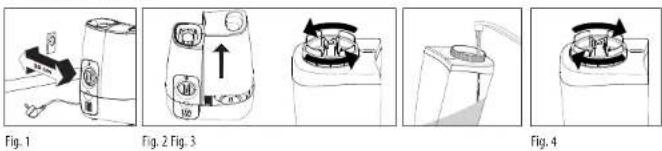

FILLING / REFILLING

NOTE: WATER TANK SHOULD BE CARRIED USING TWO HANDS; ONE HAND ON THE TANK HANDLE AND THE OTHER SUPPORTING THE BOTTOM OF THE TANK.

Helen of Troy will not accept responsibility for property damage caused by water spillage.

• Remove Water Tank by grasping Handle and pulling up. Remove Tank Cap by turning counter clockwise. (to left) (See fig. 2 - page 2).
• Fill Tank with cool water. DO NOT fill with warm or hot water. DO NOT ADD ESSENTIAL OILS, MEDICATIONS, OR IMHALANT LIQUIDS IN THE WATER TANK. Doing so could cause damage to the humidifier and void the warranty (See fig. 3 - page 2).
• Replace Tank Cap by turning clockwise (to right) to screw back in place. DO NOT over-tighten. Place Tank back on humidifier Base (See fig. 4 - page 2).

RESETTING WHEN RESET LIGHT ILLUMINATES

When your humidifier is out of water, the Reset Light will illuminate. To reset:

• Turn power OFF ( ○
- Refill and replace Water Tank.
- Wait 5 minutes and turn power ON ( )
Note: If Reset Light ( 14 ), still on, clean Heating Element (see cleaning instructions)

• Power: With the Power Knob in the OFF position ( ), Ping the filled humidifier into a suitable mains outlet. Make sure the voltage in your home corresponds to the voltage marked on the device.
  CAUTION: To avoid electric shock, DO NOT plug in humidifier with wet hands.
• Output: Turn Power Knob to high ( ) or low ( ). A green light will indicate the humidifier is working, but it will take 3-4 minutes for visible steam to appear.
• Humidity Level: Once a comfortable humidity level has been reached, turn to the low setting. A comfortable humidity level is between 40-60%.

Consider using a humidity monitor such as the recommended by Vicks V70 Hygrumeter & Thermometer to display current room humidity and temperature. If condensation forms on walls, windows, or around unit, turn humidifier off; the humidity level is too high.

CAUTION: Hot steam

CAUTION: TURN HUMIDIFIER OFF, UNPLUG AND WAIT 20-30 MINUTES FOR UNIT TO COOL BEFORE MOVING OR CLEANING. DO NOT OPERATE YOUR HUMIDIFIER WITHOUT THE TANK IN PLACE OR IF THE UNIT IS EMPTY. DO NOT OPERATE YOUR HUMIDIFIER WITHOUT THE MIST CHIMNEY, WATER TRAY, HEATING ELEMENT COVER, OR INHALANT CUP PROPERLY ASSEMBLED.

VH845 ACCESSORIES

The following accessories work great with your humidifier. These accessories can be purchased at most major retailers.

VapoPads Scent pad can be used to provide soothing menthol (VH7) or lavender/rosemary (VBR7) vapors. (One complimentary menthol scent pad included with product)

VapoPads Rosemary & Lavender (VBR7) or Menthol (VH7)

Hygrometer (V70EMEA) enables you to monitor the humidity level & room temperature to ensure you maintain a 40-60% humidity rate thus reducing the survival of flu viruses on surfaces and in the air.

The Pratec™ Antimicrobial Cleaning Product (TWT001EU) features an antimicrobial, Aquastat ^® , that helps keep your humidifier cleaner, longer. Simply drop in the tank for fresh, clean mist! Benefits of using these products include:
- Kills up to 99% of odor causing bacteria - Keeps cleaning for 30 days
- Contains no harmful chemicals

USING VAPOPADS

Your Warm Mist Humidifier can be used with VapoPads to provide up to 8 hours of soothing vapors. Two free samples of the menthol VapoPad is included with your humidifier.

To use your unit with scent pads:

- Open Scent Pad Door (See fig. 5 - page 2).

- Open Scent Pad by tearing notch on pad bag. Do not touch pad with hands. If pad is touched, Do not rub face or eyes as it may cause irritation (See fig. 6 - page 2).

- Insert Scent Pad with angled end facing towards the product. Up to two scent pads can be inserted. Close door (See fig. 7 - page 2).

• After 8 hours, discard scent pad. To cor repeat steps 1-4 (See fig. 8 - page 2).

This Warm Mist (with or without VapoPads) is not recommended for use by children.

WARNING:

Pad May present a choking hazard. Keep out of reach of children and pets.

H317 May cause an allergic skin

reaction. P102 Keep out of reach of children. P302 + P352 IF ON SKIN: wash with plenty of soap and water. P333 + P313 If skin irritation or rash occurs: Get medical advice / attention

Ingredients: eucalyptus oil, menthol, glycol, cedar leaf oil & others 2 menthol VapoPads included.

WARNING: Chokling hazard, keep out of reach of children and pets. Do not use for babies less than 36 month old, for more than 16 hours in a 24 hour period and/or not more than 2 pads in a 24 hour period.

CLEANING YOUR HUMIDIFIER

BEFORE CLEANING:

• Turn off and unplug humidifier. NEVER clean the humidifier when it is running. If the humidifier has recently been in use, wait at least 20-30 minutes for unit to cool before beginning cleaning process (See fig. 9 - page 2).
• Remove any accessories and empty Inhalant Cup. Then remove and empty Water Tank and set aside (See fig. 10 - page 2).
• Pull blue Locking Latch toward front of unit (a) and lift Mist Chimney up (b) to remove. Remove Water Tray from Base by pulling up from the Tab (c) and the opening in front of the Latch, then empty Water Tray (See fig. 11 - page 2).
• Replace Water Tray and Mist Chimney. These must be in place for cleaning. See Reassembling section (See fig. 12 - page 2).

SCALE REMOVAL:

- Remove Water Tank and slowly pour 0.5 liters of undiluted, distilled white vinegar into the Reservoir on the Water Tray. DO NOT pour vinegar over the blue Locking Latch. Only pour into the deep Reservoir. Note: Pour slowly to give enough time for vinegar to flow from the Reservoir into the Heating Chamber. The vinegar will slowly begin to fill the Heating Chamber, located under the Mist Chimney. Let soak for 20 minutes to loosen scale on the Heating Element (See fig. 13 - page 2).

Water Tank scale removal steps:

Pour additional vinegar into the Water Tank, replace Cover and swish

to coat inside of Tank. Use a cloth dampened with vinegar to wipe away any scale on the inside of the Tank and Cap.

• Remove the Mist Chimney by gently sliding blue Locking Latch towards the front of the unit (a) and lifting Chimney upwards (b) (See fig. 14 - page 2).
• Remove Heating Element Cover by lifting from the large round opening and pulling away from the Chimney (See fig. 15 - page 2).
• Wet the bristles of a soft brush with vinegar from the Water Tray and gently scrub the surface of the Heating Element, Heating Element Cover, Reservoir, and Heating Chamber to remove mineral deposits (See fig. 16 - page 2).

DO NOT USE HARD BRUSHES, STEEL WOOL, OR OTHER HARD ABRASIVES ON THE HEATING ELEMENT. DOING SO WILL DAMAGE THE HEATING ELEMENT.

DO NOT POUR VINEGAR DIRECTLY ONTO THE HEATING ELEMENT.

NOTE: If scale is still visible on the Heating Element, moisten a paper towel with vinegar, and wrap it around the Heating Element. Let it sit for 30 minutes or until scale loosens.

IMPORTANT: Remove paper towel from the Heating Element before proceeding to the next step.

Remove Water Tray by gently lifting from the Tab and the opening in front of the Latch, and empty vinegar in sink. Rinse Water Tray and Heating Element Cover with water until the smell of vinegar is gone (See fig. 17 - page 2).

- With a soft damp cloth, wipe Heating Element to remove any excess scale. Snap Heating Element Cover back on the bottom of the Mist Chimney. It will only fit one way (See fig. 18 - page 2).

We recommend to use the Protec cleaning fish TWT001EU to prevent growth of bacteria in the water tank and keep your humidifier clean.

CAUTION: DO NOT RINSE HEATING ELEMENT OR MIST CHIMNEY IN SINK OR UNDER RUNNING WATER AS WATER CAN GET INTO INTERNAL PARTS. DOING SO WILL DAMAGE THE HUMIDIFIER AND VOID THE WARRANTY. ONLY USE A WET CLOTH OR PAPER TOWEL TO CLEAN THIS PART.

DISINFECTING:

Before starting the disinfecting process, follow Steps 1-4 in Before Cleaning section.

NOTE: Bleach may stain clothes. It is recommended that you wear rubber gloves during this process to protect your hands.

- Mix 1.9 L of water with 2.5 ml of bleach. Pour the bleach solution into the Water Tank. Replace Tank Cap and gently swish to coat the entire inside (See fig. 19 - page 3).

NOTE: Using more than 2.5 ml of bleach to 1.9 L of water may result in damage to the humidifier.

- Place Water Tank on Base. Bleach solution will drain into the Water Tray. Let soak for 20 minutes (See fig. 20 - page 3).

- Remove Tank and slowly empty bleach solution into sink. Rinse with water until the smell of bleach is gone (See fig. 21 - page 3).

- Remove the Mist Chimney by gently sliding blue Locking Latch towards the front of the unit (a) and pulling Chimney upwards (b) (See fig. 22 - page 3).

- Remove Heating Element Cover by lifting from the large round opening and pulling away from the Chimney, and rinse with Water. With a soft damp paper towel, wipe Heating Element until the smell of bleach is gone (See fig. 23 - page 3).

CAUTION: DO NOT rinse Heating Element or Mist Chimney in sink OR

UNDER RUNNING WATER as water can get into internal parts. Doing so will damage the humidifier and void the warranty. Only use a wet cloth or paper towel to clean this part.

- Carefully remove Water Tray by lifting from the Water Tray Tab and the opening in front of the Latch, and empty bleach solution into sink. Rinse Water Tray and Heating Element Cover with water until the smell of bleach is gone. Wipe Water Tray to dry (See fig. 24 – page 3).

DISHWASHER SAFE:

The Inhalant Cup, Water Tray and Heating Element Cover are TOP RACK dishwasher safe for residential dishwashers operating at temperatures below 70°C/158°F.

Run the dishwasher on the light duty or normal cycle. DO NOT wash with soiled articles/dishes. DO NOT use detergents.

Note: DO NOT place parts on lower rack of dishwasher. Doing so could cause damage to the humidifier parts and dishwasher.

THE MIST CHIMNEY, BASE, AND WATER TANK ARE NOT DISHWASHER SAFE.

Placing these parts in the dishwasher will damage your humidifier and render it unable to operate properly.

To clean the scent pad area, gently wipe out scent pad heater area with a soft damp cloth.

DO NOT USE VINEGAR OR BLEACH SOLUTION TO CLEAN THIS AREA.

REASSEMBLING

1. Place Water Tray back in Base.
2. Ensure Heating Element Cover is secured back on the bottom of the Mist Chimney by snapping in place.
3. Slide blue Locking Latch toward the front of the unit (a) and secure Mist Chimney to Base (b). Ensure Mist Chimney is secured to the Base and the Locking Latch is in the closed position.
4. Press Inhalant Cup back in place.
5. Put Tank Cap back on Water Tank and place back on unit.

END-OF-SEASON CARE AND STORAGE

Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. At the end of the season, remove any accessories from the humidifier.

Dry the humidifier completely before storing. DO NOT store with water inside the Water Tray or Water Tank. Pack unit in original carton and store in a cool, dry location.

DISPOSAL

This appliance complies with EU legislation 2012/19/EU on end of life recycling. Products showing the 'Crossed Through' wheeled bin symbol on either the rating label, gift box or instructions must be recycled separately from household waste at the end of their useful life.

Please DO NOT dispose of appliance in normal household waste. Your local appliance retailer may operate a 'take-back' scheme when you are ready to purchase a replacement product, alternatively contact your local government authority for further help and advice on where to take your appliance for recycling.

GUARANTEE

Please read all instructions before attempting to use this device. Please retain the receipt as proof of and date of purchase. The receipt must be presented when making any claim within the relevant guarantee period. Any claim under the guarantee will not be valid without a proof of purchase.

Your device is guaranteed for two Years (2 Years) from date of purchase. This guarantee covers defects in materials or workmanship that occur under normal use; defective devices meeting these criteria will be replaced free of charge.

The guarantee DOES NOT cover defects or damage resulting from abuse or failure to follow the user instructions. The guarantee becomes void if the device is opened, tampered with or used with other parts or accessories, or if repairs are undertaken by unauthorised persons.

Accessories and consumables are excluded from any warranty.

For support requests, please visit www.helenoftroy.com/emea-en/ or find service contact information at the end of this owner's manual.

This Guarantee is applicable to Europe, Russia, Middle East and Africa only.

UK Only: This does not affect your consumer statutory rights.

The LOT of your device are printed on the rating label on the packaging of the product.

CONDITION OF SALE

As a condition of sale, the purchaser assumes responsibility for the proper use and care of this appliance in accordance with these printed instructions. The purchaser or user must judge himself or herself when to use the appliance and the length or use.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HUMIDIFIER PLEASE SEE WARRANTY FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO REPAIR THE HUMIDIFIER YOURSELF. DOING SO WILL VOID THE WARRANTY AND COULD CAUSE DAMAGE OR PERSONAL INJURY.

This product carries the CE mark and is manufactured in conformity with the Electromagnetic Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU.

Technical specifications are subject to change.

VH845E

220-240V \~ 50-60Hz 365W

TROUBLE SHOOTING
If your Humidifier is not working properly, refer to the following:

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Power switch is set to “on” and Power Light is off	Unit not plugged in Plug unit in
	No power at outlet Check circuits, fuses, test outlet
Power is “On” and no mist appears	Water has not heated to boiling to produce steam	Wait 3-4 minutes after turning on
Little or no mist is produced	No water in Tank Fill Water Tank
	Unit is not level Place on a level surface
	Mineral deposits on Heater Element or Water Tray	Follow Cleaning Instructions
Reset Light illuminated	Water Tank is empty Refill Water Tank
	Unit not reset after refill Follow Reset Procedure
	Heating Element is covered in scale See Cleaning Instructions
Water overflows from Reservoir	Tank may be damaged Check the Tank for leak and replace if necessary
	Tank Cap is not tight Tighten Tank Cap
	Water Tray not seated properly Check Water Tray and secure onto Base
Condensation forms around humidifier or windows	Mist Intensity is set too high for room size or pre-existing humidity level	Decrease mist output to low setting or open door to the room

PERFORMANCE SPECIFICATION

Tank capacity (litre): 3.8L

Duration - Full tank at minimum setting (hour): 24h

Ideal for rooms (square meter): 37m ^2

Support contact numbers

Austria

[phone]

Bahrain

[phone]

Belgium/Luxemburg

[phone]

Bosnia

[phone]

Bulgaria

[phone]

Croatia

[phone]

Cyprus

[phone]

Cyprus Northern region

+0392 22 72 367

Czech Republic

[phone]

Denmark

[phone]

Finland

[phone]

France

[phone]

Germany

Ireland (Republic of)

[phone]

Israel

[phone]

Italy

[phone]

Jordan

[phone]

Kuwait

[phone]

Lebanon

[phone]

Netherlands

[phone]

Norway

[phone]

Poland

[phone]

Portugal

[phone]

Qatar

[phone]

Romania

[phone]

Saudi-Arabia

[phone]

Western Region - Jeddah

[phone]

Central Region - Riyadh

[phone]

Eastern Region - Al-Khobar

[phone]

South Region - Abha

[phone]

Slovakia

[phone]

Slovenia

[phone]

South Africa

[phone]

Spain

[phone]

Sweden

[phone]

Switzerland

[phone]

Tunisia

[phone]

Turkey

[phone]

UAE

[phone]

United Kingdom/Northern Ireland

[phone]

Certain trademarks used under license from

The Procter & Gamble Company or its affiliates.

Protec™ is a trademark of Helen of Troy Limited.

© 2019, All rights reserved.

Kaz Europe Sàrl

A Helen of Troy Company

Place Chauderon 18

CH-1003 Lausanne - Switzerland

www.helenoftroy.com

PAP

Made and printed

in China

P/N: A003343R0

08MAY19

Helen of Troy

Creative Department Artwork Specifications

Brand:

Vicks

Category:

Humidifier

Model: VH845E1

Artwork Part #: A003343Ro

Die Line Part #: N/A

Subject: Owner's Manual

Region:

EMEA

Flat Size:

MM: W296 x H210

Folded Size:

MM: W148 x H210

Scale:

1/1

Material: 50# matte text

Page Count: 24

Revision: 6

Date: 08MAY19

Release Date: 15MAY19

Re-release Date:

Colors:

Dielines (Do not print) Spot Colors

Cyan 0%

Magenta 0%

Yellow 0%

Black 100%

PMS XXXX

PMS XXXX

Special Instructions:

Quality Requirement of Artwork and Quality Clarification Process of Artwork Printing: Meet Eng-QS-06&02

Helen of Troy

Creative Services

Marlborough, MA 01752, USA

[phone]
