USER MANUAL DW210E DURACRAFT

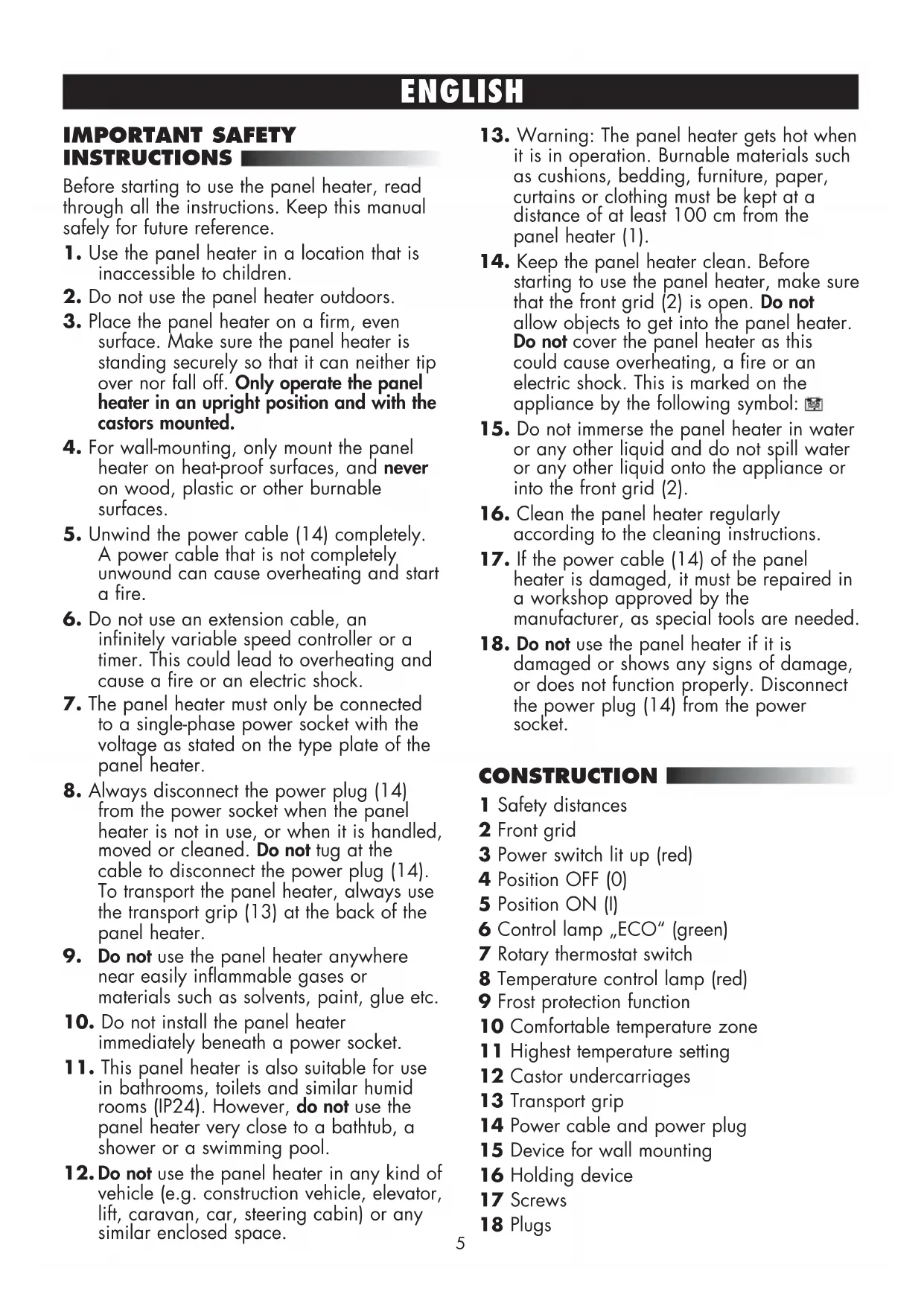

1 (NOT for UK)4 FIG. 1 FIG. 273ENGLISH IMPORTANT SAFETY INSTRUCTIONS Before starting to use the panel heater, read through all the instructions. Keep this manual safely for future reference.

1. Use the panel heater in a location that is

inaccessible to children.

2. Do not use the panel heater outdoors.

3. Place the panel heater on a firm, even

surface. Make sure the panel heater is standing securely so that it can neither tip over nor fall off. Only operate the panel heater in an upright position and with the castors mounted.

4. For wall-mounting, only mount the panel

heater on heat-proof surfaces, and never on wood, plastic or other burnable surfaces.

5. Unwind the power cable (14) completely.

A power cable that is not completely unwound can cause overheating and start a fire.

6. Do not use an extension cable, an

infinitely variable speed controller or a timer. This could lead to overheating and cause a fire or an electric shock.

7. The panel heater must only be connected

to a single-phase power socket with the voltage as stated on the type plate of the panel heater.

8. Always disconnect the power plug (14)

from the power socket when the panel heater is not in use, or when it is handled, moved or cleaned. Do not tug at the cable to disconnect the power plug (14). To transport the panel heater, always use the transport grip (13) at the back of the panel heater.

9. Do not use the panel heater anywhere

near easily inflammable gases or materials such as solvents, paint, glue etc.

10. Do not install the panel heater

immediately beneath a power socket.

11. This panel heater is also suitable for use

in bathrooms, toilets and similar humid rooms (IP24). However, do not use the panel heater very close to a bathtub, a shower or a swimming pool.

12. Do not use the panel heater in any kind of

vehicle (e.g. construction vehicle, elevator, lift, caravan, car, steering cabin) or any similar enclosed space.

13. Warning: The panel heater gets hot when

it is in operation. Burnable materials such as cushions, bedding, furniture, paper, curtains or clothing must be kept at a distance of at least 100 cm from the panel heater (1).

14. Keep the panel heater clean. Before

starting to use the panel heater, make sure that the front grid (2) is open. Do not allow objects to get into the panel heater. Do not cover the panel heater as this could cause overheating, a fire or an electric shock. This is marked on the appliance by the following symbol: .

15. Do not immerse the panel heater in water

or any other liquid and do not spill water or any other liquid onto the appliance or into the front grid (2).

16. Clean the panel heater regularly

according to the cleaning instructions.

17. If the power cable (14) of the panel

heater is damaged, it must be repaired in a workshop approved by the manufacturer, as special tools are needed.

18. Do not use the panel heater if it is

damaged or shows any signs of damage, or does not function properly. Disconnect the power plug (14) from the power socket. CONSTRUCTION 1 Safety distances 2 Front grid 3 Power switch lit up (red) 4 Position OFF (0) 5 Position ON (I) 6 Control lamp „ECO“ (green) 7 Rotary thermostat switch 8 Temperature control lamp (red) 9 Frost protection function 10 Comfortable temperature zone 11 Highest temperature setting 12 Castor undercarriages 13 Transport grip 14 Power cable and power plug 15 Device for wall mounting 16 Holding device 17 Screws 18 Plugs 5ENGLISH

1. Before starting to use the panel heater,

read through all the instructions.

2. Unpack the panel heater, all accessories

and the power cable. Remove all packaging materials and dispose of them in an environmentally friendly manner.

3. Stand the panel heater upside down.

Please note that the panel heater is only standing upside down if the end of the power cable leading into the appliance is also on the top.

4. Fix the two castor undercarriages (12) on

the two ends of the base of the panel heater. Adjust them so that each screw on each undercarriage is fitted into its special hole located on the base of the panel heater. Tighten the castor undercarriages (12) with a cross recess (Phillips-tip) screw-driver. Make sure that the castor undercarriages (12) are firmly attached to the panel heater. (Fig.1)

5. Stand the panel heater upright on a firm,

even surface. Make sure the panel heater is standing securely so that it cannot tip over or fall off. Observe a safety distance of at least 100 cm from other objects. For use in bathrooms, a minimum distance of 60 cm from showers, bathtubs and washbasins must be observed, as shown unter „safety distances“ (1). The local safety regulations of the country must al- ways be observed.

6. When the panel heater is used for the first

time or after it has been stored for a longer period, it could release a smell, but this disappears after a short period of use. WALL MOUNTING (Fig. 2)

1. Make sure that the power switch (3) is in

the OFF position (4). Disconnect the power plug (14) from the power socket. Do not touch the power cable with wet hands.

2. Hold the wall-mounting device (16) against

the wall and mark the first drilling hole. In- sert a plug into the drilling hole. Observe the minimum spacing as shown under safety distances (1): at least 70cm to the floor from the bottom edge of the panel heater and at least 100cm distance from the top edge of the panel heater to other objects (1). When mounting on a bathroom wall, also make sure that the panel heater is at least 60cm away from a shower, bathtub or washbasin. The local safety regulations of the country must always be observed.

3. After you have drilled the first hole, push

a plug into the hole and fix the holding device (16) lightly to the wall on the one side using a cross recess screw.

4. Mark the second drilling hole on the wall,

using a spirit level (distance of hole: 138 mm).

5. After you have drilled the second hole,

push the second plug into it and fix the holding device (16) to the wall with the second cross recess screw.

6. Tighten the cross recess screws. Make

sure that the holding device (16) is attached firmly to the wall.

7. Using the device provided at the rear (15),

attach the panel heater without the castor undercarriages to the wall-mounting device (16) and press the panel heater lightly in a downwards direction. Mark the other two drilling holes for the wall-mounting devices on the underside of the panel heater.

8. Remove the panel heater from the wall,

drill both holes and insert the remaining plugs into the wall.

9. Again using the device provided at the

rear (15), attach the panel heater without the castor undercarriages to the wall-mounting device (16) and press the panel heater lightly in a downwards direction. Make sure that the panel heater is securely attached to the wall-mounting device so that it cannot fall off. Now attach the two wall-mounting devices at the bottom of the panel heater using the two remaining cross recess screws. OPERATING INSTRUCTIONS DW-210E panel heater 1000 Watt DW-215E panel heater 1500 Watt

1. Make SURE that the power switch (3) is in

the OFF position (4). Connect the power plug (14) with the power socket. Do not touch the power cable with wet hands. 6ENGLISH

2. Make sure that the front grid (2) is open

and that the panel heater is not covered. The front grill must always be kept free during the heating operation. The panel heater must not be covered when it is in use.

3. Use the power switch (3) and the rotary

thermostat switch (7) for the heating function, as described below.

4. When the panel heater is not in use, or

when it is moved, cleaned or stored, press the power switch (3) to the OFF position (4) and disconnect the power plug (14) from the power socket. During transport, always use the transport grip (13) at the back of the panel heater. Power switch and rotary thermostat switch

1. Press the power switch to the ON position

(5). The power lamp lights up.

2. Turn the rotary thermostat switch (7) in a

clockwise direction to the highest position. The temperature control lamp (8) lights up.

3. When the desired temperature is reached,

turn the rotary thermostat switch (7) in an anti-clockwise direction until you hear a clicking noise. Now the panel heater has switched off the heating function.

4. Now turn the rotary thermostat switch (7)

back slightly in a clockwise direction. The panel heater now switches the heating function on and off automatically so as to maintain the desired room temperature. The temperature control lamps (8) go on and off accordingly.

5. The further you turn the rotary thermostat

switch (7) in a clockwise direction, the higher the heating temperature will be.

6. In order to make it easier to set a

comfortable room-temperature, choose a setting within the marked comfortable temperature zone (10).

7. When the thermostat is set to the frost

protection function (9) and the power switch (3) is ON, the panel heater begins to heat as soon as the room temperature drops below about + 5 °C. The panel heater will continue the heating operation until the room temperature has risen to above about + 5 °C.

8. When the rotary thermostat switch (7) is

at the highest position (11), you cannot turn it in a clockwise direction, but only in an anti-clockwise direction. ECO-Function

1. The ECO-Function switches itself on as

soon as the set room temperature has more or less been reached. The green ECO control lamp (6) lights up.

2. The panel heater is now heating with a

third less energy: 1000 Watt runs with 650 Watt 1500 Watt runs with 1000 Watt Overheating protection

1. The panel heater is equipped with

overheating protection which automatically switches off the panel heater if it overheats.

2. If this happens, switch the power switch

(3) to the OFF position (4) and disconnect the power plug (14) from the power socket.

3. Allow the panel heater to cool for at least

4. Now remove any objects which may have

got into, in front of or onto the panel heater and caused the faulty functioning or overheating.

5. Resume using the panel heater as

described in the „user’s manual“.

CLEANING AND STORAGE

We recommend that you clean the panel heater regularly. To avoid impairing the func- tioning of the panel heater, please follow the instructions for cleaning and storage. Cleaning

1. Before you start cleaning the panel heater,

press the power switch (3) to the OFF position (4) and disconnect the power plug (14) from the power socket.

2. Clean the frond grid (2) with the brush

attachment of your vacuum cleaner.

3. Wipe the outer surfaces of the panel

heater with a soft, damp cloth.

4. Resume using the panel heater as

described in the „user’s manual“. 7ENGLISH Storage

1. Clean the panel heater as described in

the section on „cleaning“.

2. Store the panel heater in a cool, dry

As condition of purchase the purchaser assumes responsibility for the correct use and care of this panel heater according to these operating instructions. The purchaser or user must himself or herself decide when and for how long the panel heater is to be in operation.

WARNING: IF PROBLEMS ARISE WITH

YOURSELF, AS THIS COULD LEAD TO

TERMINATION OF THE GUARANTEE

AND CAUSE DAMAGE TO PERSONS
