USER MANUAL TT 1800 Starmix

TT 1800, TT 1800E, TTH 1800, TTH 1800E

Hot air hand dryers and hair dryers. Installation and operating instructions

Be3oNaChn pa3CTOaHHN

Ohutusvahemaad

For additional safety information, please refer to the minimum distance and safety notes chapters in these instructions.

We have compiled these operating instructions so that you become familiar with your new appliance quickly and comprehensively.

• Please read these instructions carefully before using this appliance. It provides you with important information on its safety, operation, maintenance and disposal.
• Familiarise yourself with your new appliance and its various functions following the sequence of the instructions.
• Follow all notes and explanations referring to the correct operation and handling. This will ensure the continuous availability and a long life for your appliance.
• The safety notes, in particular, must be followed. They help you to prevent accidents and to protect your appliance from damage..
• Please keep these instructions for future reference.

This appliance complies with the current state of technology and the applicable safety regulations for electrical appliances. The manufacturer will not accept any liability for damage caused by improper use or incorrect operation.

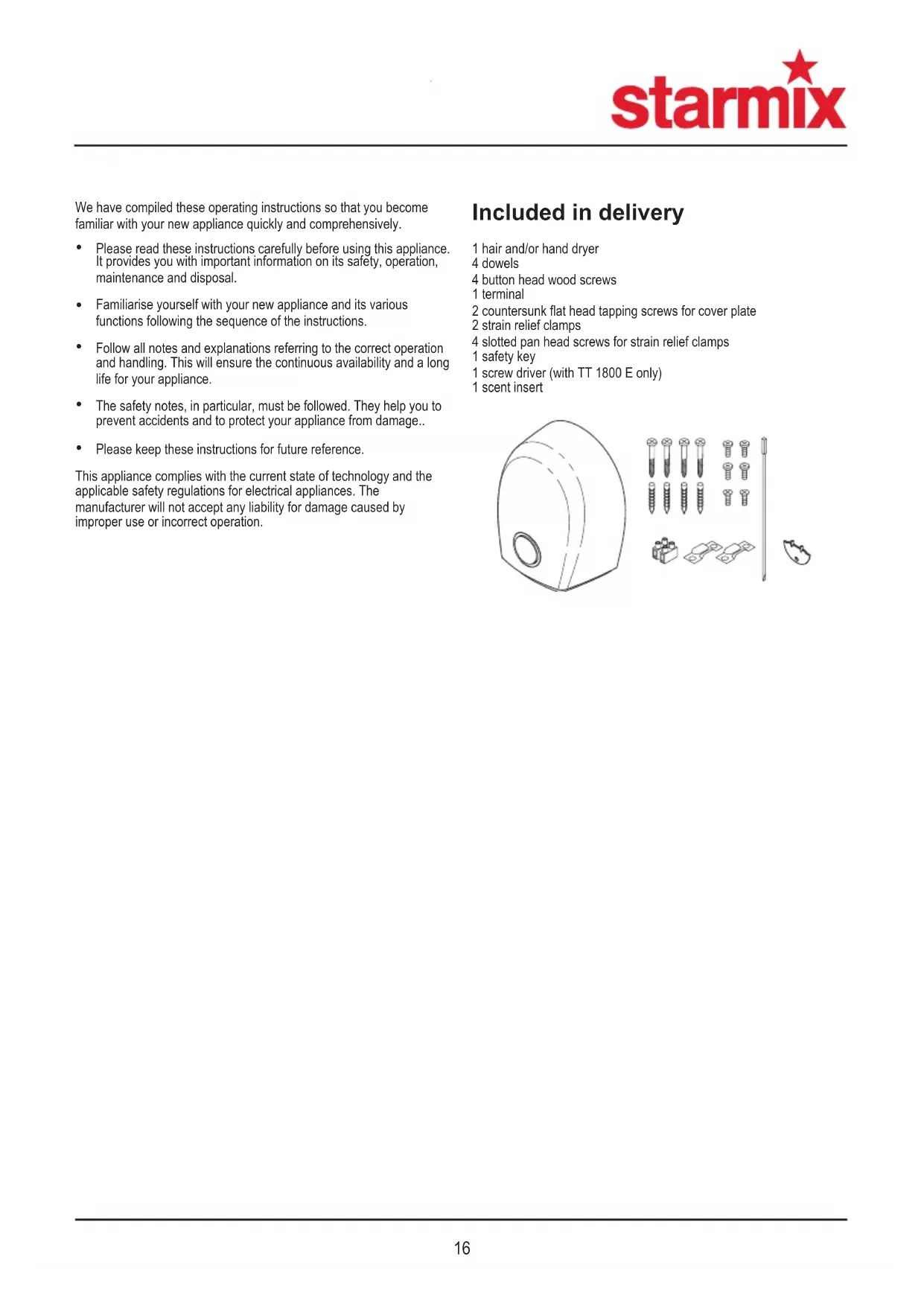

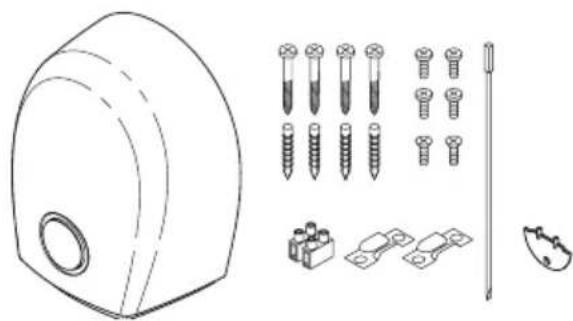

Included in delivery

1 hair and/or hand dryer
4 dowels
4 button head wood screws
1 terminal
2 countersunk flat head tapping screws for cover plate
2 strain relief clamps
4 slotted pan head screws for strain relief clamps
1 safety key
1 screw driver (with TT 1800 E only)
1 scent insert

Technical data CCA IP 23 CE		Hot air hand dryer Hot air hair dryer
		TT 1800 TT	1800E TT 1800E	Active Oxygen	TT 1800E scent	TTH1800 TTH	1800E
Rated output 1800 watts X XXX X X
Rated output 1700 watts X XXX X X
Motor output 100 watts X XXX X
Air volume: 38 l/s XXX X X
Appliance dimensions w 270, d 161, h 330 mm
Weight incl. wall bracket:	[kg]	3,2	3,2	3,5	3,5	3,2	3,2

Features	Hot air hand dryer				Hot air hair dryer
	TT 1800	TT 1800E	TT 1800E Active Oxygen	TT 1800E scent	TTH1800	TTH1800E
Electronic timer switch: time delay 32 sec.	X
Electronic timer switch: time delay 4 mins.					X
Electronic proximity switch		X	X	X		X
Safety mains plug connection	X	X	X	X	X	X
Safety temperature limiter	X	X	X	X	X	X
Thermal fuse	X	X	X	X	X	X
Safety cut-out sensor		X	X (4min)	X (4min)		X (10min)
Integrated mounting plate	X	X	X	X	X	X
Anti-theft cover plate	X	X	X	X	X	X
Air intake grille suitable for vacuum cleaning	X	X	X	X	X	X
Active oxygen
Scent dispensing cartridges				X
LED light		X	X	X

Installation instructions

The installation must be carried out by qualified personnel to ensure that the appliance is connected in accordance with safety regulations. In rooms with showers and bath tubs the appliance must be installed with the minimum distances laid down in the VDE regulations (0.6 mtrs (24 inches) from the edge of the shower and/or bath and 1.2 mtrs (48 inches) from a shower head).

Installation sequence

The maintenance-friendly installation concept

The TT1800 installation system enables simple, maintenance-friendly wall mounting without having to open up the appliance. For ease of installation, we have separated the appliance into two components: The installer installs a socket (or a permanent connection), screws the mounting plate on, slides the ready-to-use appliance onto it, inserts the mains plug into the socket (or connects), screws the anti-theft cover plate on - finished. It's as easy as that!

1. Pull the cover plate [1] (not screwed on) down and out of the appliance. Pull the mounting plate [2] which has been inserted at the back of the appliance downwards and out.
2. Confirm where the appliance is to be located, mark the 4 fixing holes [12], using mounting plate [2] as a template, drill the holes (8 mm Ø), insert the dowels and fix the mounting plate with the enclosed button-head wood screw A. We recommend mounting heights as shown in figures A, B or C. It must be ensured that the appliance is firmly secured to a solid wall.
3. There are 5 different ways to connect the appliance as described below.
   a) Mounting via an installed flush socket. The upper part of the cover plate [1] is not required. Break it off at the predetermined breaking point [4]. When the mounting plate [2] has been fixed, push the appliance onto to the mounting plate from the top as shown in figure B, insert the plug into the socket [3] und push the appliance all the way down. Fasten the cover plate with the 2 enclosed countersunk flat head tapping screws.
   b) Concealed wiring Connection via wiring concealed in the wall [7] (instead of a socket). Fix mounting plate [2] to wall as shown in fig. C. Slide the cover plate into the mounting plate from below and route the wiring from the wall through the opening in the cover plate. Insert the attached terminal [11]. Cut the plug at the connection lead [5] of the appliance, strip the cable and, squeeze the wire end ferrules on. Connect both lead as shown in fig. C. Ensure that L (brown) and N (blue) are connected correctly. Secure the connecting lead of the appliance with the enclosed strain-relief clamp [8]. Push appliance fully down onto the cover plate and screw in the 2 enclosed countersunk flat head tapping screws.
   c) Surface mount wiring from above Break out the wiring lead through at the rear of the appliance, top centre. When the mounting plate [2] has been attached as shown in fig. C, route the surface mount wiring on the mounting plate down under the cover plate [1] and through the opening. Continue with the connection as described in the 2nd paragraph under B.

d) Surface mount wiring from below On the cover plate [1], bottom centre, break out the wiring lead through [9]. When the mounting plate [2] has been attached as shown in fig. C, route the surface mount wiring through the opening in the cover plate. Continue with the connection as described in the 2nd paragraph under B.
e) Connecting lead with plug. Connection to a nearby socket with a flexible connecting lead with plug. On the cover plate [1], bottom centre, break out the wiring lead through [9]. Slide the cover plate into the mounting plate from below. Insert the attached terminal [11]. Cut the plug at the connection lead [5] of the appliance, strip the cable and, squeeze the wire end ferrules on. Prepare the connecting lead with the plug in the same way and route through the opening in the cover plate. Connect both wires as shown in fig. C and secure with the enclosed strain relief clamps [8]. Push appliance fully down onto the cover plate and screw in the 2 enclosed countersunk flat head tapping screws.

The appliances are now operational.

Switching options

Operate electronic timer switch on TT 1800 and TTH 1800. The time delay for TT 1800 is 32 secs. and, for TT 1800 E, 4 mins.

The appliances will switch off automatically.

TT 1800 E, TTH 1800 E Active Oxygen / scent, TTH1800 E

The appliances are operated without touching via infrared proximity switches.

The switching distance (distance between the underside of the appliance and hands and/or head) is approx. 15 cm (6 inches) for the TT 1800 and approx. 40 cm (16 inches) for the TTH 1800 E. The switching sensitivity can be changed by a technician.

Safety cut-out sensor

TT 1800 E, TTH 1800 E

The integrated electronics prevent continuous operation if the infrared proximity switch has been covered, e.g. due to chewing gum vandalism

TT 1800 E-models will switch off after 4 mins and TTH 1800 E models after 10 mins. After the source of interference has been removed, the dryers are operational again.

Height adjustment for Starmix hair dryers

The attractive, robust Starmix THH500 / TTHH1800 height adjustment, order no. 19 07 09 makes it possible to adjust the hair dryer continuously and to the user's height.

This makes drying hair much easier, particularly for children and wheelchair users.

As an alternative to the height adjustment, two hair dryers can be mounted at different heights, 40 cms (16 inches) apart (range of the electronic infrared proximity switch 40 cm (16 inches) max.).

Cleaning and maintenance

Vacuum the air intake grille [6] at the underside of the appliance with the crevice nozzle of a vacuum cleaner to remove any lint and dust, if required. Remove any dirt that is stuck to the grille with a brush.

Safety notes

Before connecting the appliance check that the voltage stated on the name plate corresponds with your mains voltage. The name plate is located on the underside of the enclosure.
- Fuse the appliance with 16 A max.
- Please note that improper use of electrical appliances can generate hazards which may not be recognised by children.
Please make these operating instructions also available to other users of the appliance, so that they can learn about all the features and notes.
- carrying out any work or cleaning the appliance, make sure that it is isolated from the power supply!

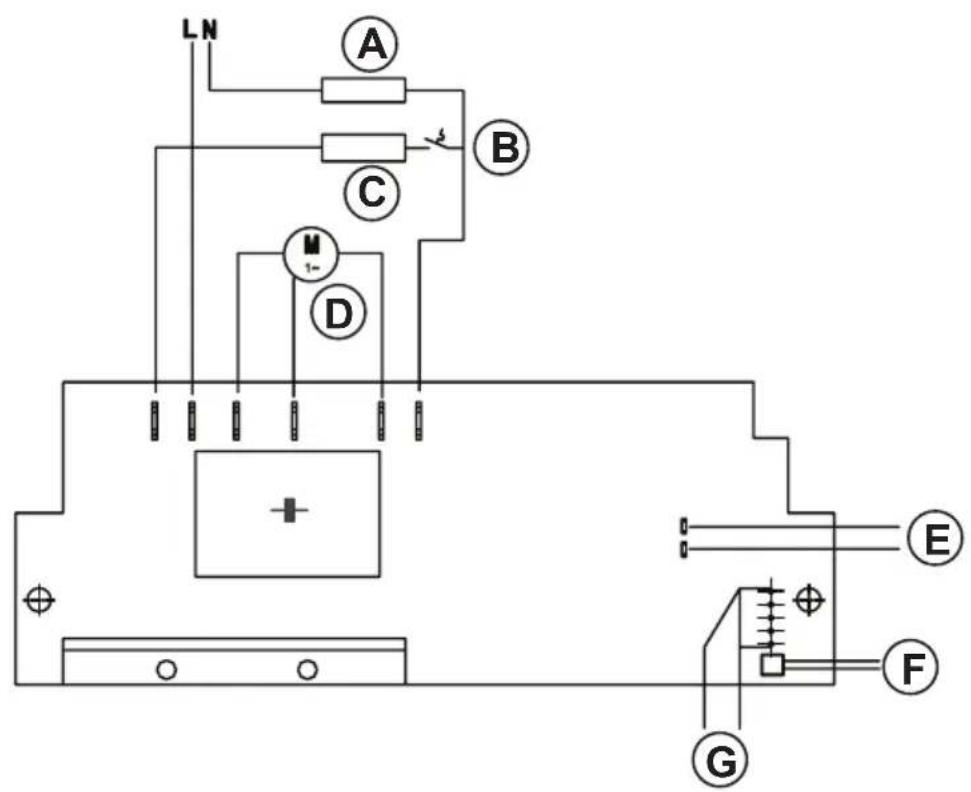

Scheme electrique

TT1800, TT1800E, TTH1800, TTH1800E

Bb3MOXHOCTn 3a n3KJIIOUyBaHe

Pn moen TT 1800 n TTH 1800 akTbnpaTe enektpueckn npekcbayc yacobnokmexAHmB. BpemTo 3a n3knHOBHe npn moen TT 1800 e 32 cek, npn moen TT 1800 E-4 mH.

YpeINTEce IN3KIIIOUBOBATABTOMATNUHO.

TT 1800 E, TTH 1800 E aKTHBEN KncIopod / apomat, TTH1800 E

YpeIeTe Ce BkIIOvBaT 6e3 IOKoCBAHe 6naIarOapEnHe Ha HnΦpauepeBHeA eNEKtpOnHka, KOToCe 3aIeNCTBa npn npbIaKaBaHe.

Pa3CTOaHHe 3a BkIIOUBaHe (pa3CToHHeTo MExdy OJINHnKpAHa ypea n pBcTe, CbOTB. rnaBata) npn TT 1800 e OKoNo 15 cm, a npn TTH 1800 E - OKoNo. 40 cm. TexHNKbT MoKe da npomeHnyBCTBnteJIHOCTTa HA BkIIOUBaHe.

Ceh3open npedna3nteJeH npekbcBauch

TT 1800 E, TTH 1800 E

Brpadehata eIektpoHnka npedotbpaTBA npOdbNkntHaTa pa6ota, BcnyaHye HnphiapaepeBHeHnT pnekcbau, KOITc ce 3aJeCTBa npn np6bnKabane, e nokpnt, Hanpimep ot 3aJIeHa DkBka.

MoeT 1800 E ce n3knOuBa Cne4 MNH, a MoeT TTH 1800 E -Cne10 MnH. CneI OTcPaHraBaHe Ha n3ToUHnKa Ha CMyueHnA, ceWoapTe MORAT da CE n3No3Bat OTHOBO.

TT 1800 E, TTH 1800 E AKTINBbI KNCJOpOd / Apomatn3aTOp, TTH 1800 E

Pp6bBkHIOaIOTc/ByKIOHOaIOTcYepe3JNEKTOHHbIMnHpapacpaCHbMBeCKoHTaKTHbN DaTnK,peaNPyUuHaHa np6JnxKeHne.

PacctoHne, npn KOTOpOM npOnCXoNDt ABTomaTHueCKoe BKNIOUeHne, TO eCTb pacCToHne MeKdy HxKHe rpaHnce npN6opa n pykAmn IINI TOnOB0 COCTABnREy moEtn TT 1800 npm. 15 cm, a y TTH 1800 E -npm.40 cm. YBCTBNTeNBHOCTb ABTomaTHueCKO CnCTeMbI MoXET 6bITb N3MeHeHa CNEuaJIACTOM.

TT 1800E, TTH 1800 E
