Product type	Automatic hand dryer
Brand	Starmix
Model	XT 1001 M
Supply voltage	220-240 V~, 50/60 Hz
Total power	800-880 W
Motor power	200-450 W (brushless)
Heating element power	450 W (switchable)
Air speed	56.5-81.8 m/s
Airflow	64-92 m³/h (38-54 CFM)
Drying time	Less than 10-15 seconds
Standby consumption	Less than 1.5 W
Sensor range	200 mm ± 20 mm (adjustable)
Automatic stop	After 60 seconds
IP protection class	IPX1
Insulation	Class I (earthing mandatory)
Net weight	3.8 kg

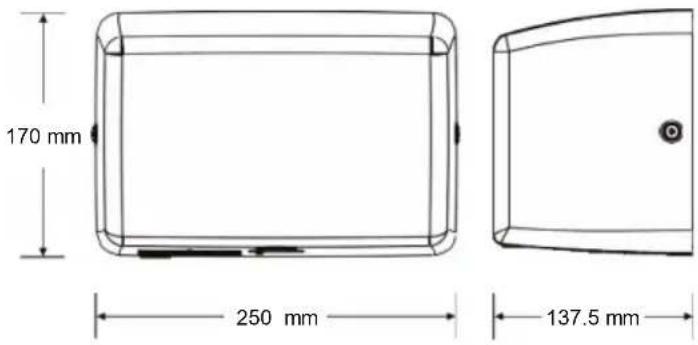

Dimensions (W x H x D)	170 x 250 x 137.5 mm
Recommended mounting height	Men: 1270 mm, Women: 1194 mm, Children (4-7 years): 889 mm
Sensor	Automatic infrared, self-adjusting
Motor type	Brushless, 20,000-28,000 rpm
HEPA filter	Replacement recommended every 6 months
Cleaning	Wipe with a damp cloth and mild solution; do not rinse with water
Safety	Thermostat at 85 °C, thermal fuse at 142 °C; not suitable for domestic use

Frequently Asked Questions - XT 1001 M Starmix

What is the recommended mounting height for the Starmix XT 1001 M hand dryer?

The recommended height depends on the user: 1270 mm for men, 1194 mm for women, 889 mm for children aged 4 to 7. For wheelchair users, count 1016 mm (measurement from the bottom edge of the hand dryer to the finished floor).

How to clean the hand dryer?

Unplug the power supply. Remove the cover and clean the inside to remove dust and lint. Do not rinse with water. Wipe the cover with a damp cloth and a mild solution. Do not use abrasive products.

When and how to replace the HEPA filter?

It is recommended to replace the HEPA filter every six months. To do so, unplug the device, remove the two cover screws, take out the old filter and insert a new filter. Put the cover back and screw it on.

What to do if the hand dryer does not turn on?

First check that the circuit breaker is on and that the power supply is connected. If the problem persists, cut the power, remove the cover and check the electrical connections on the terminal block. Ensure the voltage matches that indicated on the rating plate.

Can the hand dryer be used for domestic purposes?

No, this model is intended for professional use (public restrooms, businesses) and is not suitable for domestic use. It can cause burns if used incorrectly.

How to adjust the air speed?

Unplug the device, remove the cover and use a small Phillips screwdriver to turn the VR shaft. Turn clockwise to increase power, counterclockwise to reduce. Do not overtighten.

How to enable or disable the heating?

Unplug the device, remove the cover. On the printed circuit board, slide the 'SW. FOR HEATING' switch to ON to enable heating, to OFF to disable it. Use a small flat plastic or wooden tool.

What do the flashing lights mean?

A flashing purple light indicates a malfunction. Try turning the device off and on again after 1 minute. If the problem persists, contact after-sales service. A yellow light indicates a heating issue; check the heating switch. A pink light signals a sensor fault, and a blue one indicates low airflow (check the filter and voltage).

What is the standby power consumption?

Standby consumption is less than 1.5 W, which allows energy savings when the device is not in use.

What safety precautions should be taken during installation?

Installation must be carried out by a qualified electrician. Cut off the power before any intervention. Use 1.5 mm² conductors and respect the wiring: phase (L), neutral (N) and earth (green/yellow). Incorrect earthing can cause serious electric shock. Do not install above a sink.

USER MANUAL XT 1001 M Starmix

450 W, On: 450 W, off: 0 W

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Anschlüsse:

Three identical wireframe rectangular frames with a hand placed on top, and two circular icons labeled 'A' and '-X' above them (no text or symbols on the frames themselves)

Betrieb

Simple line drawing of a rectangular box with an upward arrow and a small circular mark below, no text or symbols present.

Air Output Temperature

Warm Air Speed Output

Dryer shall Deliver

Motor Type

Heater Element

Heater Thermal Protection

Drying Time

Stand-by Power

Circuit Operation

Sensor Range

Timing Protection

Drip Proof

Isolation

Net Weight

Shipping Weight

PERFORMANCE DATA

220-240 Vac, 50/60 Hz, 3.7 A, 800-880 W

55 °C – Ambient Temp. 25 °C

56.5-81.8 m/s

64-92 m³/h (38-54 CFM)

200-450 W, 20,000-28,000 R.P.M., Brushless Type

450 W, On: 450 W, off: 0 W

Auto Resetting Thermostat turns unit off at 85 °C,

Thermal fuse cuts unit off at 142 °C

Less than 10-15 seconds

Less than 1.5 W

Infrared Automatic, self-adjusting

Standard 200 mm ± 20 mm, adjustable

60 seconds auto shut off

IPX1

Class 1

3.8 kg

4.2 kg

General safety information

WARNING

This product is

intended for installation by a qualified service person. Use 1.5 mm ^2 for wiring.

WARNING

Disconnect power at

the service breaker before installing or servicing. NOT FOR HOUSEHOLD USE - MAY CAUSE BURNS.

DANGER

Failure to properly

ground unit could result in severe electrical shock and/or death.

WARNING

All units must be

supplied with a 3-wire service. The ground wire must be connected to the dryer's backplate.

NOTE: Do not install this dryer above a basin.

Type Y attachment

If the power supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard. Disconnect the fixed wiring only in accordance with the wiring rules.

This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

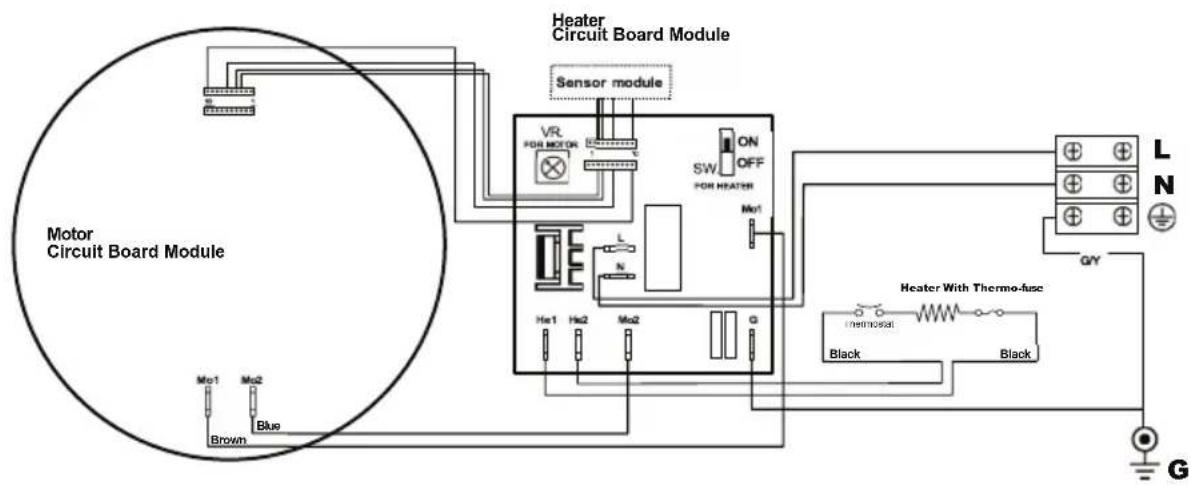

Circuit Diagram

Installation

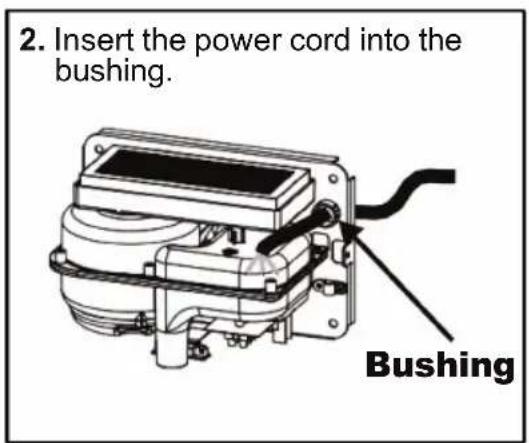

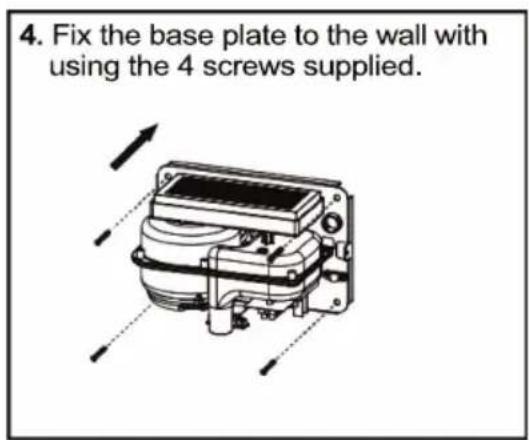

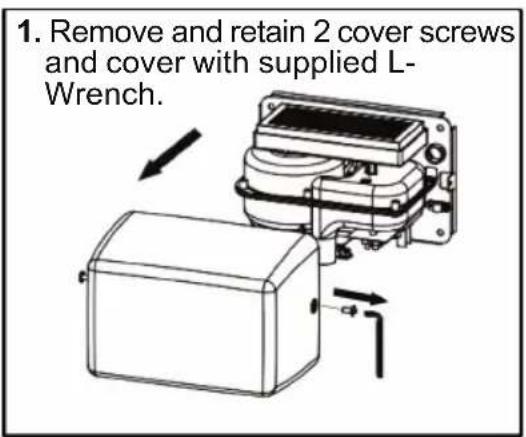

1. Make sure the power supply breaker is switched off. Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician.
2. Place template against wall at desired height (see mounting height recommendations) and mark locations of 4 mounting holes and wire service entry at knockout (KO) location.

Note: For two or more dryers, dryers should be no closer than 350 mm.

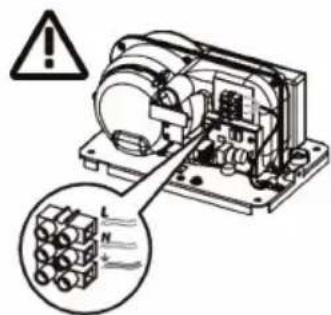

3. Connect the wire into terminal as below:

Connections:

A. Connect the live wire (colored black, brown or dark) to the terminal block marked "L".
B. Connect the neutral wire (colored white, blue or light) to the terminal block marked "N".
C. Connect the ground wire (colored green or green and yellow) to the terminal block marked "÷".

Note that colors of live and neutral wires depend on voltage of supply service.

Recommended Mounting Heights

• From bottom edge of dryer above finished floor (AFF)

Men	1270 mm
Women	1194 mm
Children 4-7 years	889 mm
Children 8-10 years	991 mm
Children 11-13 years	1092 mm
Children 14-16 years	1194 mm
Handicapped	1016 mm

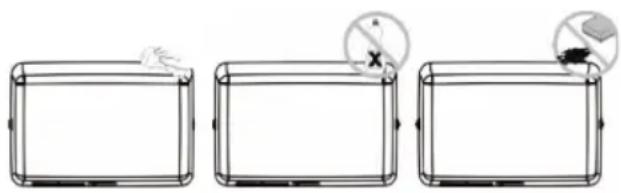

Cleaning and Maintenance

Periodic cleaning of the unit is recommended to ensure optimum performance.

• Disconnect the electrical supply.
• Remove the two cover-mounting screws.
• Remove the cover.
• Clean all dust lint from the interior of the dryer.
• Do not flush with water.
• Wipe the cover with a damp cloth and mild cleaning solution. Do not Soak. Never use abrasives to clean the cover.
• Replace the cover. Do not overtighten the screws.

Three identical line drawings of a rectangular frame with a hand placed on top, and two circular icons showing a cross symbol (no text or labels)

Operation

• No-touch operation.
• Shake excess water from hands.
• Place hands under the outlet to start operation.
• Rub hands lightly and rapidly.
• Stops automatically after hands are removed.

Warm Air Speed Adjustment

1. Disconnect the device from the power supply, loosen the cover screws and remove the cover.
2. Use a small Philips head screwdriver or plastic flat blade probe to turn VR shaft. Turn it gently clockwise
   [CW] to increase power to maximum (+)
   to reduce power as required (-)

1. DO NOT OVERTURN!

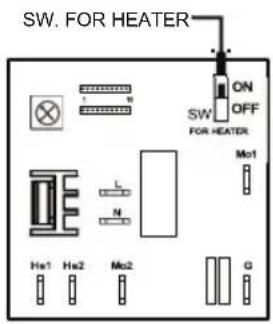

Heater Element Switch ON / OFF

1. Disconnect the device from the power supply, loosen the cover screws and remove the cover.
2. Adjust the heater switch on the PCB with a small plastic or wood flat blade probe.
   2-1. Slide the switch to "ON": Heater ON.
   2-2. Slide the switch to "OFF": Heater OFF.

Sensor range adjustment

To adjust the set sensor range, please contact customer service or the manufacturer.

Simple line drawing of a rectangular box with an upward arrow and a small circular mark below, resting on a surface with fingers (no text or symbols)

(+49 (0)7163/9988-100)

Change filter assembly

It is recommended to change the filter every six months.

Diagram of a mechanical device with a box and housing, showing internal components and directional arrows (no text or symbols)

Diagram of a rectangular electronic component with an arrow indicating direction, no text or symbols present

Remove and retain the 2 cover screws and the cover. Dispose of the old filter properly.

Replace the HEPA filter with a new one.

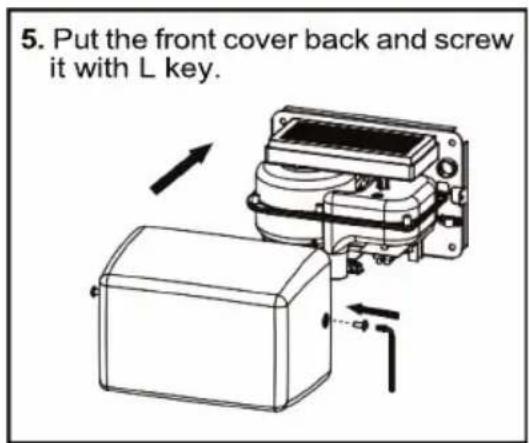

Put the cover back and screw it with L key.

Diagnostics and Remedies

Symptom	Corrective Actions for Initial Installation Failures
If the dryer will not run	First ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Taking suitable precautions to avoid shock hazard, reconnect the power and check for voltage at the terminal block. Verify that connections are made correctly.
The dryer cycles by itself or runs constantly	Ensure that there is no obstruction on or in front of the IR sensor. Clean any dirt or debris off the sensor lens. If problem persists, replace sensor.
The dryer makes a loud noise and does not run for a complete cycle	Ensure that the supply voltage is correct. Dryer will make a loud humming noise if the input voltage is too high. Verify voltage requirement on unit rating label and correct supply as required. If CBM has been damaged, replace CBM, IR sensor module and VR component and cable.
The dryer runs but air stream is low pressure and/or low velocity	Ensure that the supply voltage is correct. Dryer will run weakly if the input voltage is too low. Verify voltage requirement on unit rating label and correct supply as required. Check the filter and replace it if necessary.

Symptom	Corrective Actions for In-Service Failures
If the dryer will not run(Flashing purple light)	Turn off the power then activate the unit again. Wait at least 1 minute in between. If a warning display appears again, contact the service centre.
If the dryer will not run(Flashing yellow light)
If the dryer will not run(Flashing pink light)
The dryer runs but air stream is low pressure and/or low velocity(Flashing blue light)
No hot air available	Check the heating element is on or off. If it is off, turn it on. If there is still no hot air, contact the service centre.

Important Information

This Product falls within the scope of the Waste Electrical & Electronic Equipment Directive 2012/19/EU (WEEE)

NOTE:

This Product should not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authority for recycling advice.

DONNÉES TECHNIQUES

CATÉGORIE DONNÉES DE PERFORMANCE

Connexions:

Three identical wireframe diagrams showing a rectangular object with a hand placed on top, and two circular icons with symbols (no text or labels)

Opération

Simple line drawing of a box with an arrow pointing to a small object, no text or symbols present.

(+49 (0)7163/9988-100)

Technical illustration of a mechanical component with an inset showing internal structure (no text or symbols)

Diagram showing a device with a box and a mechanical component, no text or symbols present

450 W, On: 450 W, off: 0 W

Conexiones:

Three identical wireframe rectangular panels, each with a hand and a circular icon showing a cross symbol (no text or labels)

Operación

Simple line drawing of a rectangular box with an upward arrow and a small object below, no text or symbols present.

(+49 (0)7163/9988-100)

Technical line drawing of a mechanical component with an inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with an inset showing internal structure (no text or symbols)

450 W, On: 450 W, off: 0 W

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Verbindingen:

Three identical wireframe diagrams showing a rectangular object with a hand placed on top, and two circular icons with symbols (no text or labels)

Operatie

Schakelaar verwarmingselement AAN / UIT

Simple line drawing of a box with an upward arrow and a small mark below, no text or symbols present.

(+49 (0)7163/9988-100)

Filter vervangen

Technical illustration of a mechanical component with an inset showing internal structure (no text or symbols)

Diagram showing a mechanical component with an inset view of its internal structure (no text or symbols present)

„DIRECTIVE OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits“

EN 60335-1:2012; A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019 + A15:2021

EN 60335-2-23:2003; A2:2015 + A1:2008 + A11:2010

2014 / 30 / EU

"DIRECTIVE OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on the harmonization of the laws of the Member States relating to electromagnetic compatibility"

EN IEC 55014-1:2021

EN IEC 55014-2:2021 Kat IV

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3 :2013 + A1:2019

IEC 61000-4-2 :2008; IEC 61000-4-3 :2020; IEC 61000-4-4 :2012

IEC 61000-4-5 :2017; IEC 61000-4-6 :2013; IEC 61000-4-11 :2020

ROHS 2011 / 65 / EU

EN 63000:2018
