Product type	Multifunction appliance with interchangeable plates (panini press, waffle maker, grill)
Model	RSMM1404E
Brand	Redmond
Power supply	220-240 V, 50/60 Hz, 700-800 W
Electrical protection class	Class I (mandatory grounding)
Dimensions (L x D x H)	236 x 236 x 101 mm
Net weight	1.99 kg ±3%
Power cord length	0.8 m
Body material	Plastic and metal
Plate material	Metal with non-stick coating
Number of plate sets included	3 (grill, waffle, sandwich)
Heating indicator light	Yes (red) - lights up while heating
Ready indicator light	Yes (green) - indicates temperature is reached
Keep warm function	Automatic (green light off)
Oil-free use	Possible thanks to non-stick coating
Cleaning removable plates	With soapy water, do not put in dishwasher
Cleaning the body	Damp cloth, do not immerse
Child safety	Use by children over 8 years old under supervision
Warranty	2 years
Estimated lifespan	3 years

Frequently Asked Questions - RSMM1404E Redmond

How to use the appliance for the first time?

Before first use, clean the body with a damp cloth and wash the removable plates in soapy water. Run a dry heating cycle (without food) for about 5 minutes to remove the protective lubricant. Let cool, then clean the plates again. You can then use the appliance normally.

How to clean the plates?

Unplug the appliance and wait for it to cool completely. Remove the removable plates by pressing the locking buttons. Wash them in warm soapy water with a soft sponge. Do not put them in the dishwasher and do not use abrasive products. Dry thoroughly before putting them back.

Can I use oil or butter?

The non-stick coating allows cooking without fat. If desired, you can add a very small amount of oil or butter to the plates for extra flavor, but this is not necessary.

What to do if the indicator lights do not turn on?

Check that the power cord is properly plugged into a functioning outlet (test with another appliance). If the problem persists, the appliance may be defective; contact authorized after-sales service.

Are the plates dishwasher safe?

No, the removable plates should not be washed in the dishwasher. Clean them by hand with a soft sponge and soapy water to preserve the non-stick coating.

Can I leave the appliance on unattended?

It is not recommended to leave the appliance unattended while in use. Although it has an automatic keep-warm function, there is a risk of overheating or fire. Always unplug after use.

How to change the plates?

Open the lid and press the locking buttons on the body to release the plate. Remove it, then place the new plate by aligning the tabs with the grooves. Press gently until it clicks. Only change plates when the appliance is unplugged and cold.

What is the typical cooking time?

On average, cooking takes 4 to 5 minutes for sandwiches or waffles. Time varies depending on food thickness and your browning preference. Monitor cooking and open the lid to check the color.

The appliance emits a plastic smell at first, is this normal?

Yes, it is normal. A 'new' smell may occur during initial uses due to technical protection. It disappears after a few heating cycles. Ventilate the room during initial use.

How to store the appliance?

Ensure the appliance is unplugged, cool, and clean. Wind the power cord without bending it. Store in a dry place, away from direct sunlight and heat sources. Avoid placing heavy objects on top.

USER MANUAL RSMM1404E Redmond

Read the user manual carefully and keep it as a reference book. Proper use of the appliance will significantly prolong its life.

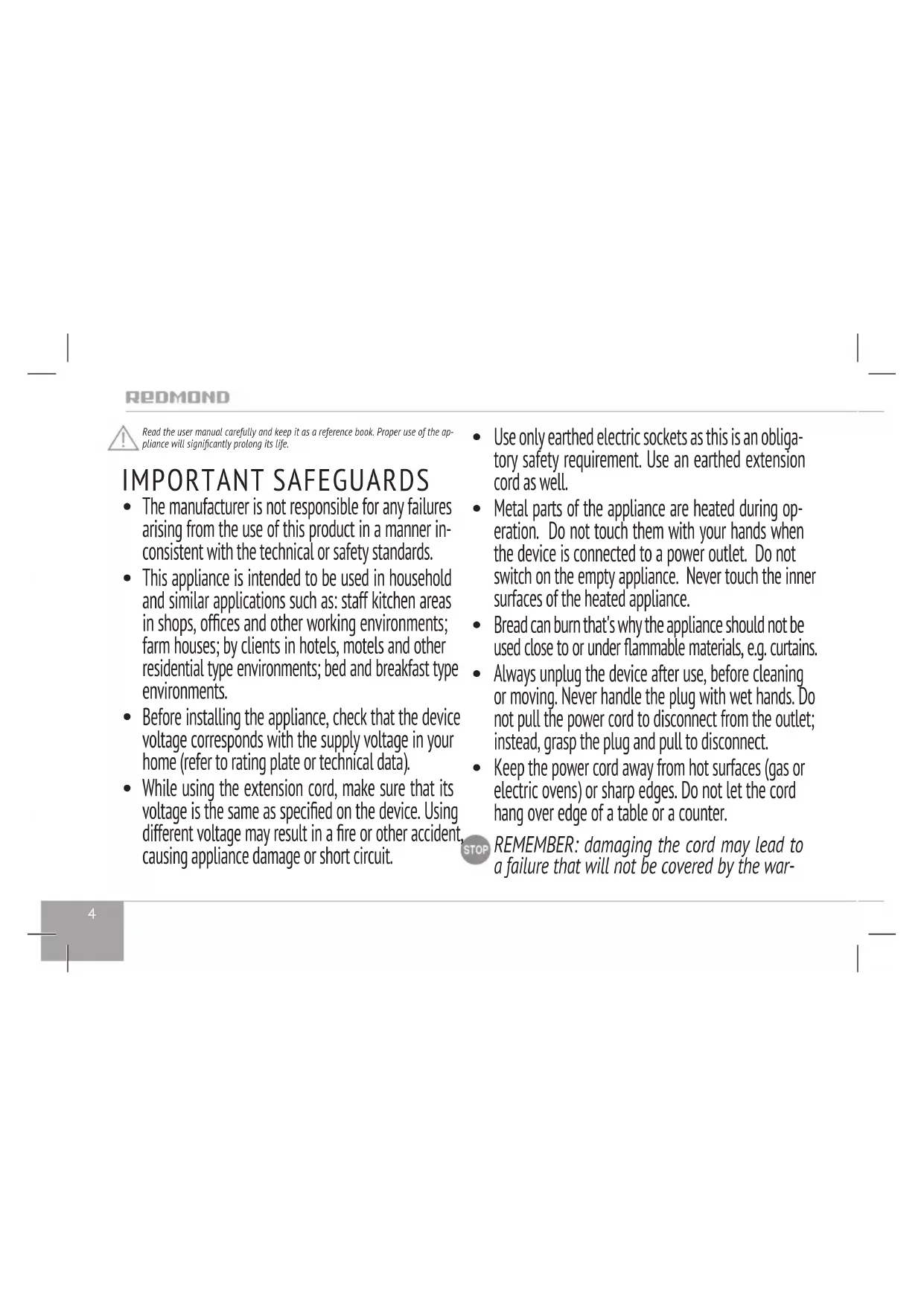

IMPORTANT SAFEGUARDS

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Before installing the appliance, check that the device voltage corresponds with the supply voltage in your home (refer to rating plate or technical data).

• While using the extension cord, make sure that its voltage is the same as specified on the device. Using different voltage may result in a fire or other accident causing appliance damage or short circuit.

• Use only earthed electric sockets as this is an obligatory safety requirement. Use an earthed extension cord as well.

• Metal parts of the appliance are heated during operation. Do not touch them with your hands when the device is connected to a power outlet. Do not switch on the empty appliance. Never touch the inner surfaces of the heated appliance.
• Bread can burn that's why the appliance should not be used close to or under flammable materials, e.g. curtains.
  Always unplug the device after use, before cleaning or moving. Never handle the plug with wet hands. Do not pull the power cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Keep the power cord away from hot surfaces (gas or electric ovens) or sharp edges. Do not let the cord hang over edge of a table or a counter.

REMEMBER: damaging the cord may lead to a failure that will not be covered by the war

ranty. If the cable is damaged or requires replacing, contact an authorized service center only to avoid all risks.

• The appliance can be used only with the closed lid.
• Do not cover the appliance during operation. It may lead to overheating and breakage of the appliance.
• Do not operate the appliance outdoors, to prevent water or any foreign object or insect from getting into the device. Doing so may result in serious damage of the appliance.
  Always unplug the device and let it cool down before cleaning. Follow cleaning and general maintenance guidelines when cleaning the unit.

DO NOT immerse the device in water or wash it under running water!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the packaging (film, foam plastic and other) out of reach of children as they may choke on them.
• No modifications or adjustments to the product are allowed. All the repairs should be carried out by an authorized service center. Failure to do so may result in device and property damage or injury.

CAUTION! Do not use the appliance in case of any malfunctions.

REDMOND

Technical Specifications

Model RSM-M1404-E

Voltage 220-240 V,50/60 Hz

Rated power. 700-800 W

Electrical safety.. class I

Number of removable plate sets. 3

Housing material. plastic+metal

Material of removable plates..

Heating indicator. yes

Operation indicator.. yes

Overall dimensions 236 x 236 x 101 mm

Net weight. 1,99kg± 3%

Power card length .0,8 m

Package Includes

Sandwich maker. 1 pc.

The set of removable plates. 3 pcs.

User manual 1 pc.

Service booklet. 1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice.

Parts of Appliance A1

1.Appliance housing 6.Power cord
2. Heating indicator 7. Set of grill plates
3. Operation indicator 8. Set of waffle plates
4. Plastic handles 9. Set of sandwich plates
5. Lid lock 10. Lock-on buttons of removable plates

I.PRIOR TO FIRST USE

Carefully remove the unit and its accessories from the packaging. Dispose of all packaging materials and promotional stickers.

Keep all warning labels, warning stickers (if any), and the serial number identification label located on the housing. The absence of the serial number will deprive you of your warranty benefits!

Completely unwind the power cord. Wipe the unit with a moist cloth. Rinse the removable details with soapy water; dry all elements of the appliance before plugging in. Unwanted odour during the first use doesn't signify the appliance defect.

After transportation or storage at low temperatures allow the appliance to stay at room temperature for at least 2 hours before use.

Place the appliance on a hard, even and horizontal surface so that the escaping hot steam does not fall on wallpaper, decorative coatings, electronic devices or any other objects or materials that could be damaged by humidity, or high temperatures.

Ensure that outer and visible inner parts of the appliance are not damaged, do not have chips and other defects.

Before using the appliance as intended, perform the heating cycle with the empty sandwich maker (having preliminarily fixed the working plates) to remove technical protective oil. Then unplug the appliance, let cool down and clean according to section "Cleaning and maintenance". This process should be performed for each set of the removable plates.

II.OPERATION

Replacement of the removable metal plates

1. Open the main lid.
2. Press the lock-on buttons alternately on the housing of the appliance and remove the metal plates.
3. Fix the selected removable plates into the appliance so that the perforations on the plates align with the slots in the housing. Carefully press the plates until they click.

STOP DO NOT replace the metal plates if the appliance is plugged in.

Use of the appliance

1. Plug in the appliance. Red power indicator will light up solid. When the appliance reaches the required temperature the green indicator will light up solid. The appliance is ready for operation. You can use the appliance irrespectively of green indicator lighting if the appliance is plugged in.
   If the green indicator goes out during operation that means the Keep Warm function was automatically enabled.
2. Open the appliance. Depending on the type of adjusted plates put ingredients for sandwiches, the dough for waffles or products for cooking on a grill onto the lower heating surface (meat, vegetables, etc.). Ensure the plates are not overfilled.

Non-stick plate coating allows to cook without oil. However, you may apply a small amount of vegetable oil or butter to plate working surface if desired.

1. Press products with the upper plate until the lid lock mechanism clicks. There can be a small distance between plates.
2. The heating indicator will be occasionally lit up during cooking. The cooking time is defined by the type of product (the type of bread, filling) and your taste. Cooking process takes 4-5 minutes on an average.
3. Open the lid of the appliance after a while. If the dish has acquired golden crust, remove it with a wooden or silicone spatula.
4. Unplug the appliance at the end of operation. Clean the appliance according to recommendations of the section "Cleaning and maintenance".

III. CLEANING AND MAINTENANCE

DO NOT use coarse tissues or sponges, abrasive pastes for cleaning. It is also not recommended to use any chemically aggressive or other substances, not recommended for use with items which contact with food.

DO NOT immerse the housing and power cord into water or rinse it under running water.

Wipe the housing of the appliance with a damp soft cloth, ensure the moist doesn't get inside the appliance.

Wash the removable metal plates with warm soapy water after each use. Do not wash metal plates in a dishwashing machine.

Completely dry all parts of the appliance before operation or storage. Store the appliance in a dry ventilated place far away from sun rays and heating devices.

IV. BEFORE CONTACTING SERVICE CENTER

Problem Possible cause Solution
Indicators are not lit up, plates are not heated	Power cord is not connected to an electrical outlet	Connect the power cord to an electrical outlet
	Electrical outlet is not working properly	Connect to properly working electrical outlet

Problem Possible cause Solution
Plastic smell during use	Appliance is overheated	Reduce continuous operation time. Increase time intervals between uses.
	Appliance is new, the smell is coming from protective cover	Thoroughly clean the appliance (refer to "Cleaning and Maintenance" section). The smell will disappear after few uses.

V.PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge.

This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in accordance with the instructions on the proper use and maintenance of the product, or any kind of repair works. Do not try to disassemble the appliance and keep all package contents. This warranty does not cover normal wear of the appliance and its parts (filters, bulbs, non-stick coating, gaskets, etc.).

The service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established).

You can determine the manufacture date by the serial number, located on the identification label on the housing of the appliance. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture. The service life of the product, established by the manufacturer is 3 years from the date of purchase, provided that the unit is used and maintained in accordance with the user manual and applicable technical standards.

Environmentally friendly disposal (WEEE)

The packaging, user manual and the device itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste to help protect the environment.

Old appliances must not be disposed with other household waste but must be collected separately. Municipal disposal of recyclable wastes

REDMOND

is free of charge. The owners of old appliances are required to bring it to a waste facility centre. With this little extra effort, you can help to ensure that valuable raw materials are recycled and pollutants are treated as appropriate.

This appliance is labelled in accordance with European Directive 2012/19/EU - concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
