Arena Sub100 - Subwoofer JBL - Free user manual and instructions

Brand	JBL
Model	Arena Sub100 / SUB100P
Product Type	Active Subwoofer (Powered Subwoofer)
Transducer	Integrated bass driver with amplifier
Amplifier	Integrated, high performance
Power Supply	Mains, direct plug (not on accessory)
Consumption (standby)	Low, Auto mode with standby after 10 minutes
Audio Input	1 x Subwoofer/LFE (RCA)
Settings	Volume, Low-pass filter (50-150 Hz), Phase (Normal/Reverse), Power mode (Auto/On/Off)
LED Indicator	Blue (on), Red (standby)
Special Features	Auto power on/off, adjustable filter, phase switch
Dimensions (approx.)	350 x 370 x 420 mm (estimated)
Weight (approx.)	12 kg (estimated)
Included Accessories	4 metal spikes for carpet
Recommended Placement	Along the same wall as the speakers, or in a corner for more bass
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture, do not block openings, unplug during storms or prolonged non-use
Repairability	Contact an authorized HARMAN service center. No user-serviceable parts.
Manual Available	French, English and other languages at notice-facile.com

Frequently Asked Questions - Arena Sub100 JBL

How do I connect the subwoofer to my receiver?

Use a subwoofer/LFE RCA cable (not included) to connect the Subwoofer/LFE output of your receiver to the Subwoofer Input of the subwoofer. Turn the subwoofer's filter knob fully clockwise to use the receiver's filter.

What do the blue and red LEDs on the subwoofer mean?

The blue LED indicates the subwoofer is on. The red LED indicates it is in standby.

How do I adjust the low-pass filter (crossover)?

The Crossover control adjusts the cutoff frequency from 50 to 150 Hz. The lower the setting, the less high frequencies the subwoofer reproduces. Adjust until you get a smooth transition with your speakers.

How do I adjust the phase?

The Phase switch allows you to set the subwoofer in phase (Normal) or out of phase (Reverse) with the speakers. Listen to music with percussion and choose the position that gives the most impact.

What is the best placement for the subwoofer?

Place the subwoofer along the same wall as the front speakers (position 2) for good integration. A corner (position 1) maximizes bass. Experiment by placing the subwoofer at the listening position and moving around the room.

The subwoofer does not turn on, what should I do?

Check that the Power switch is set to On and that the Power Mode is set to Auto (or On). Make sure the power cord is plugged into a live outlet. If the LED remains off, contact an authorized service center.

Can I use the subwoofer on a hard floor?

Yes, but do not use the supplied metal spikes on a hard floor. Use the original rubber feet. Spikes are for carpet only.

How do I clean the subwoofer?

Use a soft, dry cloth to dust. Never use chemical or abrasive cleaners. Avoid moisture.

What should I do if the bass sound is too loud or too soft?

Adjust the Volume on the subwoofer. If the problem persists, try moving the subwoofer: move it closer to a corner for more bass, farther away for less. Also adjust the Crossover and Phase.

How do I use the auto standby mode?

Set the Power Mode to Auto. The subwoofer automatically turns on when an audio signal is detected and goes into standby after about 10 minutes without a signal. The LED turns red in standby.

USER MANUAL Arena Sub100 JBL

Front view of a rectangular appliance with a blank front panel and two side bowls at the bottom (no text or symbols)

Powered Subwoofer • Caisson de graves actif • Subwoofer alimentado • Leistungsstarker Subwoofer • Subwoofer alimentato • パワード・サブウーファー • 강력한 서브우퍼 • Subwoofer alimentado • Aktiv subwoofer • Aktiivinen alibassokaiutin • Aktiv subwoofer • Aktiv subwoofer • Aangedreven subwoofer • Aktywny głosnik niskotonowy • 通電式重低音喇叭 • 有源低音扬声器 • Subwoofer bertenaga • Активный сабвуфер

Mode d'emploi

Illustration of two people in conversation, one gesturing with a question mark above the other (no text or symbols present)

Besoin d'aide?

Line drawing of a front-mounted TV or appliance with two small bowls at the base (no text or symbols)

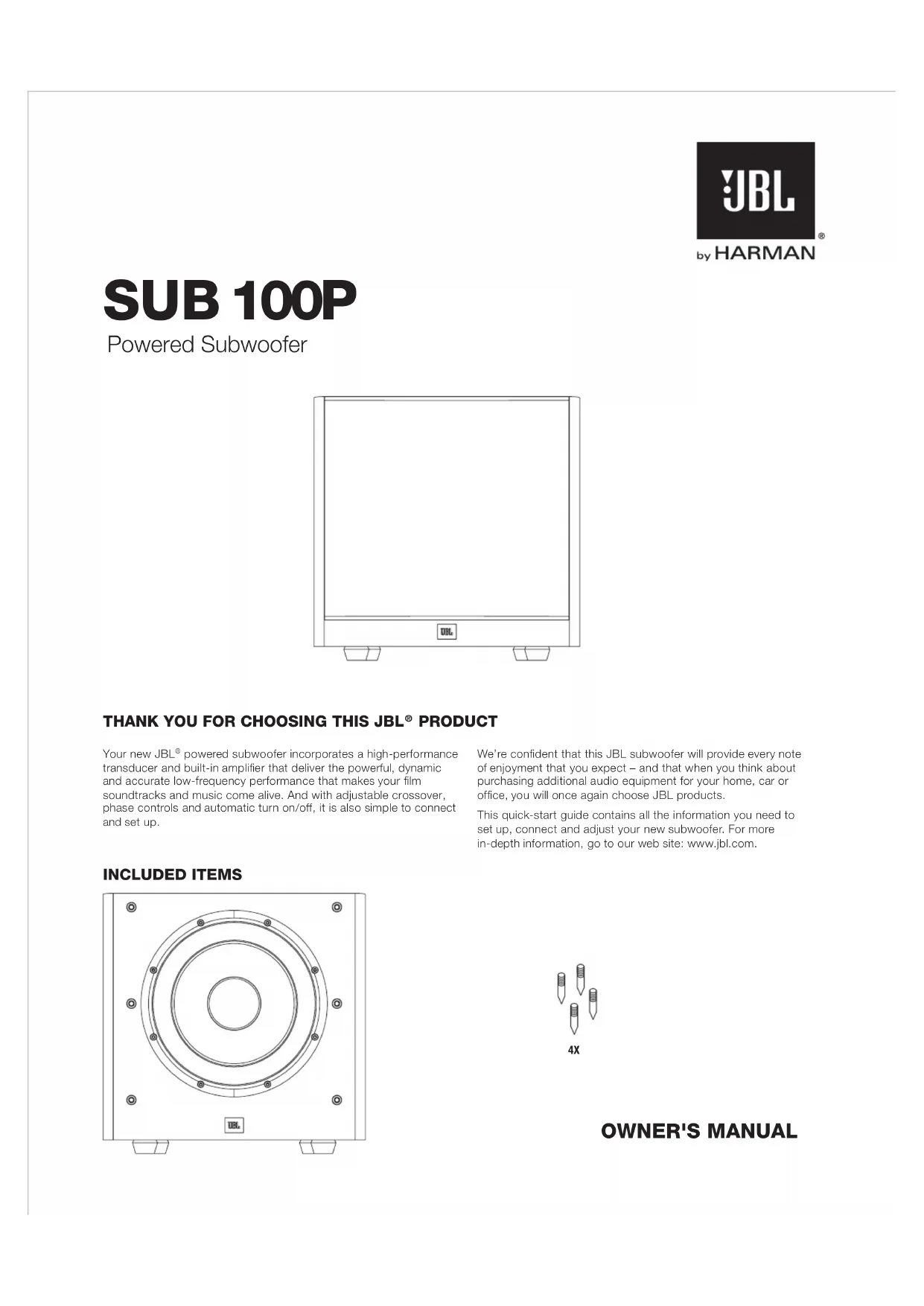

THANK YOU FOR CHOOSING THIS JBL® PRODUCT

Your new JBL ^® powered subwoofer incorporates a high-performance transducer and built-in amplifier that deliver the powerful, dynamic and accurate low-frequency performance that makes your film soundtracks and music come alive. And with adjustable crossover, phase controls and automatic turn on/off, it is also simple to connect and set up.

INCLUDED ITEMS

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

We're confident that this JBL subwoofer will provide every note of enjoyment that you expect – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL products.

This quick-start guide contains all the information you need to set up, connect and adjust your new subwoofer. For more in-depth information, go to our web site: www.jbl.com.

OWNER'S MANUAL

SUBWOOFER REAR-PANEL CONTROLS AND CONNECTION

POWER MODE ON PHASE NORMAL AUTO FLOW PWR BLUE ON RED STANDAYE CHROSS/ROSS 50Hz 150Hz VOLUME MIN MAX SUBWOOFER INPUT

JBL
SUB 100P

1) Power Mode:

When switched to 'Auto' position, the subwoofer will then be in Standby mode. It will automatically turn on when an audio signal is detected and will return to the Standby mode when no audio signal is detected after approximately 10 minutes. Setting this switch to 'On' keeps the subwoofer powered until Power Switch is turned 'Off.'

2) On/Standby LED:

When the Power Switch is in the 'On' position, this LED indicates whether the subwoofer is in the On or Standby state.

• When the LED glows blue, the subwoofer is turned On.
• When the LED glows red, the subwoofer is in the Standby mode.

3) Phase Switch:

This switch determines whether the subwoofer transducer's piston-like action moves in and out in phase with the main speakers. If the subwoofer were to play out of phase with the main speakers, the sound waves from the main speakers could partially cancel out the sound waves from the subwoofer, reducing bass performance and sonic impact. This phenomenon depends in part on the placement of all the speakers relative to the listening position and to each other in the room.

4) Crossover Control:

This control determines the highest frequency at which the subwoofer reproduces sounds. The higher you set the Crossover control, the higher in frequency the subwoofer will operate and the more its bass will "overlap" that of the speakers. This adjustment helps achieve a smooth transition of bass frequencies between the subwoofer and the speakers for a variety of different rooms and subwoofer locations.

5) Volume:

Use this control to adjust the subwoofer's volume. Turn the knob clockwise to increase the volume; turn the knob counterclock-wise to decrease the volume.

Connect the subwoofer to the dedicated subwoofer / LFE output of a receiver/processor.

7) Power Switch:

Set this switch in the 'On' position to turn the subwoofer on. If you will be away from home, or will not be using the subwoofer for an extended period, set this switch in the 'Off' position to conserve energy.

8) Power Input:

After you have made and verified the subwoofer's input connection, plug the power cord into an active, unswitched electrical outlet for proper operation of the subwoofer.

DO NOT plug the power cord into the accessory outlets found on some audio components.

PLACING THE SUBWOOFER

The performance of a subwoofer is directly related to its placement in the listening room and its physical position relative to the other speakers in the system.

While it is true that in general our ears do not hear directional sounds at the low frequencies where subwoofers operate, when installing a subwoofer within the limited confines of a room, the reflections, standing waves and absorptions generated within the room will strongly influence the performance of any subwoofer system. As a result, the specific location of the subwoofer in the room does become important to the amount and quality of bass that is produced.

For example, placing the subwoofer next to a wall generally will increase the amount of bass in the room; placing it in a corner (1) generally will maximize amount of bass in the room. However, corner placement can also increase the destructive effect of standing waves on bass performance. This effect can vary depending on the listening position – some listening positions may yield very good results while others may have far too much (or too little) bass at certain frequencies.

In many rooms, placing the subwoofer along the same plane as the left and right speakers (2) can produce the best integration between the sound of the subwoofer and that of the left and right speakers. In some rooms, the best performance could even result from placing the subwoofer behind the listening position (3).

We strongly recommend that you experiment with placement before choosing a final location for your subwoofer. One way you can determine the best location for the subwoofer is by temporarily placing it in the listening position and playing music with strong bass content. Move around to various locations in the room while the system is playing (putting your ears where the subwoofer would be placed), and listen until you find the location where the bass performance is best. Place the subwoofer in that location.

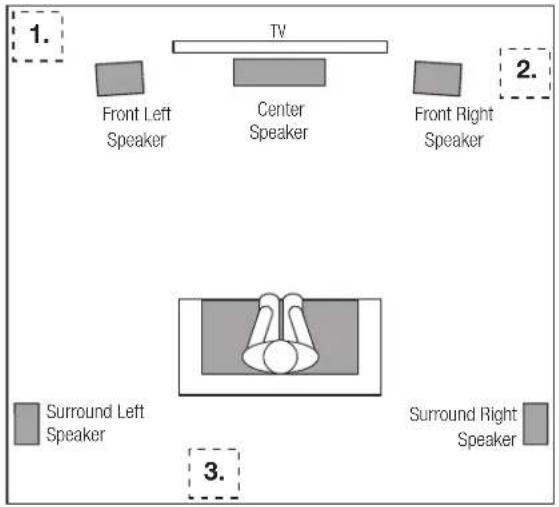

1. TV Front Left Speaker Center Speaker Front Right Speaker 2. Surround Left Speaker Surround Right Speaker 3.

CONNECTING THE SUBWOOFER

TO A RECEIVER OR PREAMP/PROCESSOR WITH A LOW-PASS FILTERED DEDICATED SUBWOOFER OUTPUT (LFE)

Receiver/Processor SUBWOOFER LFE OUT NOTE: This subwoofer / LFE cable is not included, but can be purchased from an electronics retailer. SUBWOOFER LFE • File sure to turn the Crossover on the subwoofer clockwise when using this type of connection. The type of setting bypasses the subwoofer's internal prossover and uses your receiver or processor's crossover. • Check your receiver or processor menu settings and set the subwoofer switching by 'On' or 'Yes'.

TO A RECEIVER OR PREAMP/PROCESSOR WITH PREAMP OUTPUTS

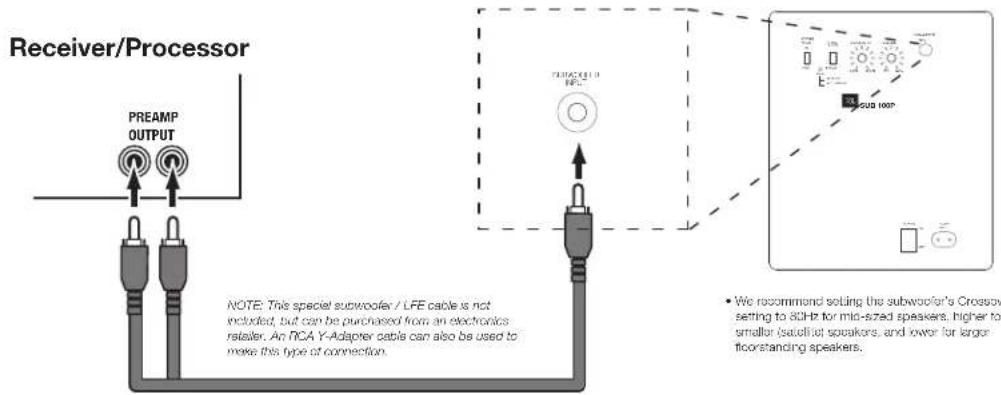

Receiver/Processor PREAMP OUTPUT NOTE: This special subwoofer / LFE cable is not included, but can be purchased from an electronics retailer. An NCA Y-Adapter cable can also be used to make this type of connection. • We recommend setting the subwoofer's Crossbow setting to 8GHz for mid-sized speakers, higher to smaller satellite speakers, and lower for larger floorstanding speakers.

• Be sure to turn the Crossover on the subwoofer fully clockwise when using this type of connection. This type of setting bypasses the subwoofer's internal crossover and uses your receiver or processor's crossover.
• Check your receiver or processor menu settings and set the subwoofer selection to 'On' or 'Yes.'
  Please be sure to review the owner's manual for your receiver or processor for more information on speaker setup and configuration.

SUG 100P

• We recommend setting the subwoofer's Crossover setting to 80Hz for mid-sized speakers, higher for smaller (satellite) speakers, and lower for larger floorstanding speakers.

OPERATING THE SUBWOOFER

TURNING THE SUBWOOFER ON AND OFF

Set the subwoofer's Power Switch to the 'On' position. Now set the subwoofer's Power Mode to the 'Auto' position. The subwoofer will automatically turn itself on when it receives an audio signal, and it will go into Standby mode after it has received no audio signal for approximately 10 minutes. The subwoofer's LED will glow blue when the subwoofer is on and will glow red when the subwoofer is in Standby.

If you will not be using the subwoofer for an extended period – for instance, if you're going on vacation – set the Power Switch to the 'Off' position.

SUBWOOFER ADJUSTMENTS: CROSSOVER

The Crossover control adjusts the subwoofer's built-in low-pass filter crossover between 50Hz and 150Hz. The higher you set the Crossover control, the higher in frequency the subwoofer will operate and the more its bass will 'overlap' that of the speakers. This adjustment helps achieve a smooth transition of bass frequencies between the subwoofer and the speakers for a variety of different rooms and subwoofer locations.

To set the Crossover control, listen for the smoothness of the bass. If the bass seems too strong at certain frequencies, try a lower Crossover control setting. If the bass seems too weak at certain frequencies, try a higher Crossover control setting.

SUBWOOFER ADJUSTMENTS: VOLUME

Use the volume control to set the subwoofer's volume. Turn the knob clockwise to increase the subwoofer's volume; turn the knob counterclock-wise to decrease the volume. Once you have balanced the subwoofer's volume with that of the other speakers in your system, you shouldn't have to change the volume control setting.

Notes on Setting Subwoofer Volume:

- Sometimes the ideal subwoofer volume setting for music is too loud for films, while the ideal setting for films is too quiet for music. When setting the subwoofer volume, listen to both music and films with strong bass content and find a 'middle ground' volume level that works for both.

- If your subwoofer always seems too loud or too quiet, you may want to place it in a different location. Placing the subwoofer in a corner will tend to increase its bass output, while placing it away from any walls or corners will tend to lessen its bass output.

SUBWOOFER ADJUSTMENTS: PHASE

The Phase switch determines whether the subwoofer driver's piston-like action moves in and out in phase with the speakers. If the subwoofer were to play out of phase with the speakers, the sound waves from the speakers could partially cancel out the waves from the subwoofer, reducing bass performance and sonic impact. This phenomenon depends in part on the placement of all the speakers relative to each other and the listener(s) in the room.

Although in most cases you should leave the Phase switch in the 'Normal' position, there is no absolutely correct setting for the Phase switch. When the subwoofer is properly in phase with the speakers, the sound will be clearer and have maximum impact, and percussive sounds like drums, piano and plucked strings will sound more life-like. The best way to set the Phase switch is to listen to music that you know well and to set the switch in the position that gives drums and other percussive sounds maximum impact.

USING THE SUPPLIED CARPET SPIKES

Four metal spikes are supplied for use when you place the subwoofer on a carpeted surface. Do not use these spikes when placing subwoofer on non-carpeted surfaces.

To insert the spikes:

1. Gently lay the subwoofer on its side (not its front or back) on a soft, nonabrasive surface.

2. Screw each spike into the threaded insert in each foot. Make sure all four spikes are screwed in completely for stability.

Note: NEVER drag the subwoofer to move it. Always carefully lift the subwoofer and carry it to its new location.

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 HARMAN International Industries, Inc. All rights reserved.

JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

www.jbl.com

SUB 100P

Front view of a rectangular appliance with a label 'OK' on the front panel (no other text or symbols)

MERCI D'AVOIR CHOISI CE PRODUIT JBL®

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Front view of a rectangular appliance with a label 'OK' on the front panel (no other text or symbols)

GRACIAS POR ELEGIR ESTE PRODUCTO JBL®

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 HARMAN International Industries, Inc. Todos los derechos reservados.

Line drawing of a front-mounted TV or appliance with two small bowls at the base (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

BEDIENUNGSANLEITUNG

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Line drawing of a front-mounted TV or appliance with two small bowls at the base (no text or symbols)

GRAZIE PER AVER SCELTO QUESTO PRODOTTO JBL®

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Line drawing of a front-mounted TV or appliance with two small bowls at the base (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

Front view of a rectangular appliance with a label 'OK' on the front panel (no other text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 HARMAN International Industries, Inc. All rights reserved.

Line drawing of a front-mounted TV or appliance with two small bowls at the base (no text or symbols)

MUITO OBRIGADO POR ESCOLHER UM PRODUTO JBL®

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

HARMAN International Industries, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 EUA

Front view of a rectangular appliance with a label 'OK' on the front panel (no other text or symbols)

TAKK FOR VALG DETTE JBL® PRODUKTET

Technical line drawing of a circular mechanical component with mounting holes and central concentric rings (no text or symbols)

KOBLE TIL SUBWOOFEREN

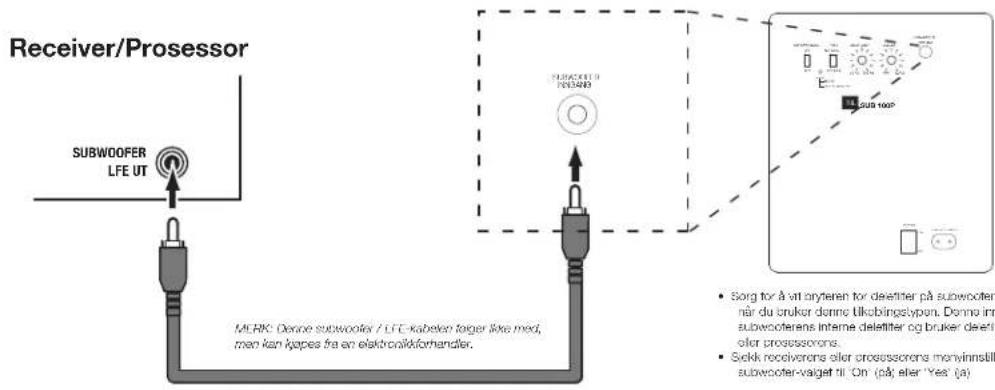

TIL EN REVEIVER ELLER FORFORSTERKER / PROSESSOR MED LAVPASSFILTRERT DEDIKERT SUBWOOFERUTGANG (LFE)
