Product Type	Subwoofer
Brand	JBL
Model	Stadium Marine 102
Category	Marine Audio
Continuous Power Handling	300W
Peak Power Handling	900W
Frequency Response	20Hz – 2kHz
Nominal Impedance	2 or 4 Ohms (selectable via switch)
Sensitivity	89dB
External Diameter	11-5/8" (295.3mm)
Mounting Cutout Diameter	9-9/16" (235.6mm)
Total Depth	6-9/16" (167mm)
Mounting Depth	4-7/8" (123mm)
Recommended Sealed Box Volume	2 ft³ (56.6L) to 4 ft³ (113L)
Recommended Vented Box Volume	2 ft³ (56.6L) to 4 ft³ (113L) with 100mm port
LED Illumination	RGB with 7 color options
Speaker Wire Connection	Positive and negative terminals
LED Wire Connection	24-gauge black (+), blue, green, red wires
Water Resistance	Marine grade (splashproof)
Included Accessories	Mounting screws, speed clips, foam seal, LED connector

Frequently Asked Questions - Stadium Marine 102 JBL

How do I wire the speaker signal?

Connect the positive (+) and negative (-) speaker wires to the appropriate outputs of your source unit or amplifier, observing proper polarity.

How do I connect the LED lights?

Plug the 24-gauge black (+), blue, green, and red LED wires into the included female connector, then run to a 12V power source or light controller. For direct wiring, connect black to positive and any combination of R, G, B wires to negative to produce different colors.

What colors can the LEDs produce?

Seven colors: Red, Green, Blue, Yellow (R+G), Purple (R+B), Aquamarine (B+G), and White (R+G+B) depending on wire connections.

What is the recommended enclosure for the Stadium Marine 102?

For sealed box, use 2-4 ft³; for vented box, use 2-4 ft³ with a 100mm diameter port. Tuning frequencies vary with volume (see manual).

Can I use this subwoofer with a 2-ohm or 4-ohm amplifier?

Yes, it has a switch to select 2-ohm or 4-ohm impedance to match your amplifier.

Is this subwoofer suitable for marine use?

Yes, it is designed with marine-grade materials to withstand moisture and splashes, but proper installation with foam seal is recommended.

How do I mount the subwoofer?

Use the included screws and speed clips if needed. Apply the self-adhesive foam seal to the frame for waterproofing and acoustic seal. Be careful with fiberglass to avoid cracks.

What is the power handling of this subwoofer?

Continuous 300W, peak 900W.

How do I maintain the subwoofer?

Clean with a soft cloth; do not use harsh chemicals. Ensure connections are tight and free from corrosion. Check foam seal periodically.

Can I use multiple subwoofers together?

Due to low impedance, do not wire two or more in parallel to an amplifier to avoid overheating and damage. Use series connections or separate amplifier channels.

USER MANUAL Stadium Marine 102 JBL

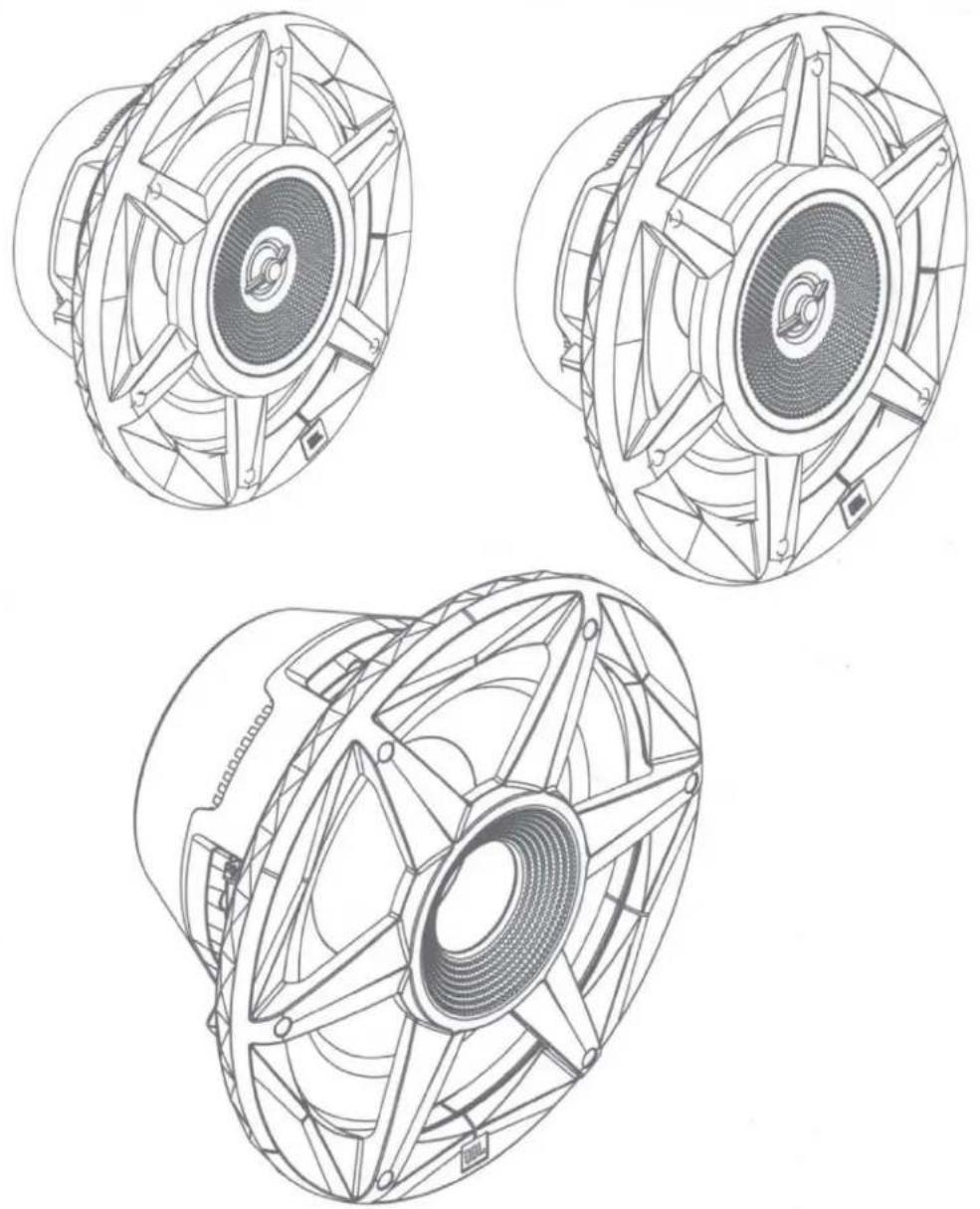

JBL STADIUM 6, STADIUM 8, AND STADIUM 10 MARINE SPEAKER

JBL Stadium 6, Stadium 8, and Stadium 10 marine speaker - Owner's Manual

Your JBL product has been designed to provide you with the performance and ease of operation you would expect from JBL.

ABOUT THE MANUAL

This manual describes general installation guidelines. However, please note that proper installation of marine audio components requires qualified experience. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized JBL dealer about your installation options. Keep all instructions and sales receipts for reference.

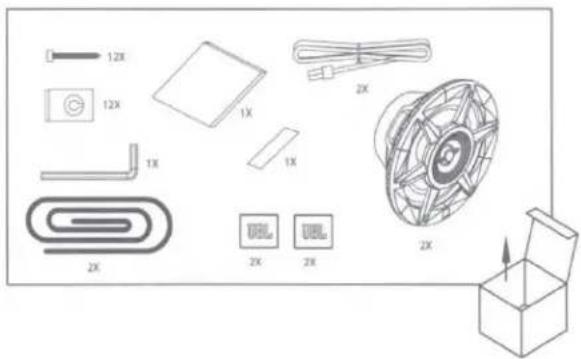

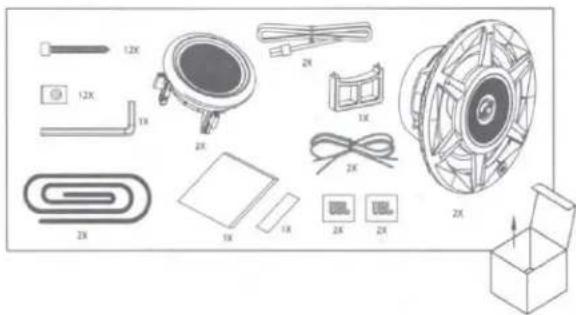

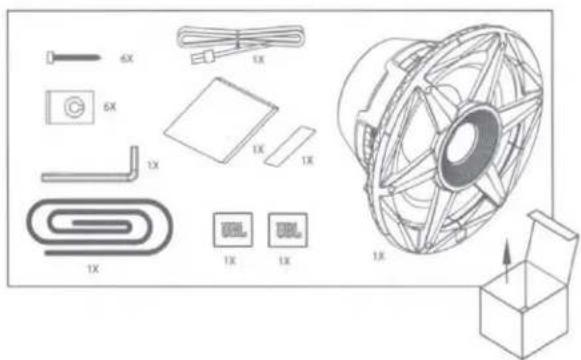

WHAT'S IN THE BOX

Stadium 6

Stadium 8

Stadium 10

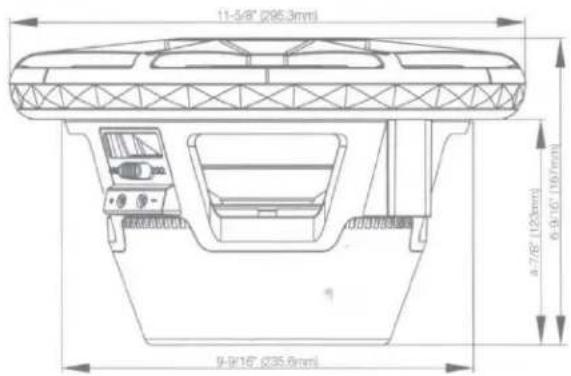

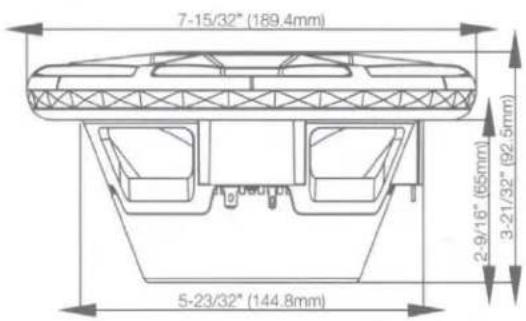

DIMENSIONS

Stadium 6

Stadium 8

Stadium 10

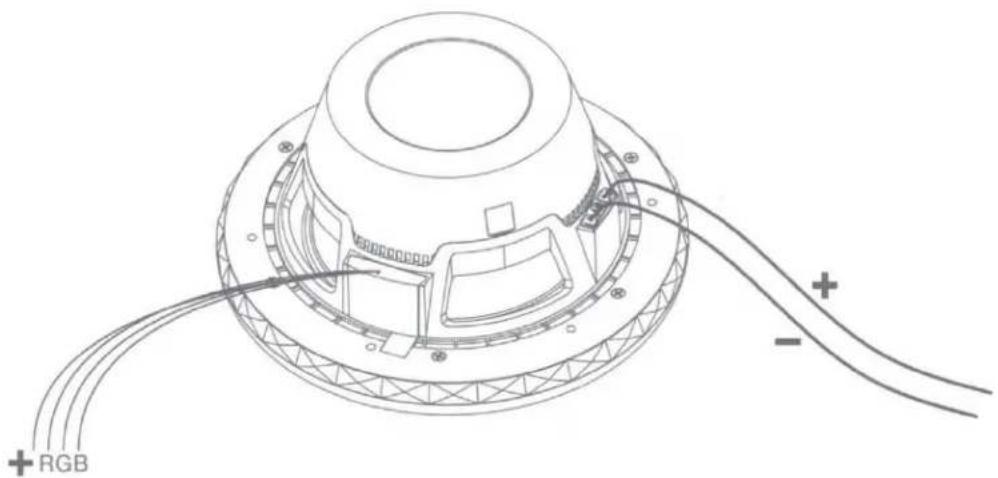

SPEAKER SIGNAL WIRING

To send signal to the JBL marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker outputs of your source unit or amplifier. Be sure to observe proper polarity.

Technical line drawing of a mechanical component with labeled RGB and plus signs, no readable text or symbols beyond labels

SPEAKER LED WIRING

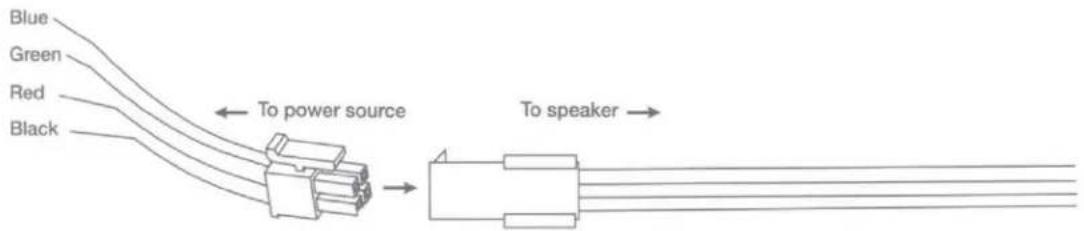

To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the included female connector, then run the wires from the female connector to your compatible 12-volt power source or light controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.

If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.

There are 7 possible colors, depending on the wiring configuration you choose:

Wire connected to positive (+12V) terminal	Wire connected to negative (-) terminal	Color produced
Black	Red	Red
	Green	Green
	Blue	Blue
	Red + Green	Yellow
	Red + Blue	Purple
	Blue + Green	Aquamarine
	Red + Blue + Green	White

APPLYING FOAM SEAL

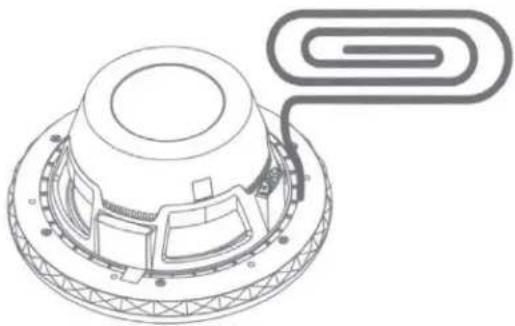

To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the speaker frame.

Technical line drawing of a mechanical component with a coiled spring and flange (no text or symbols)

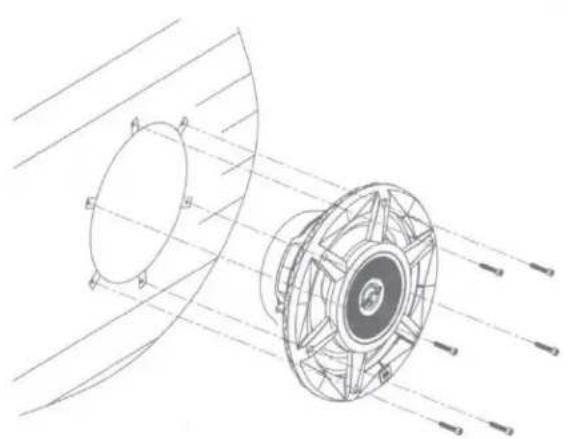

MOUNTING THE SPEAKER

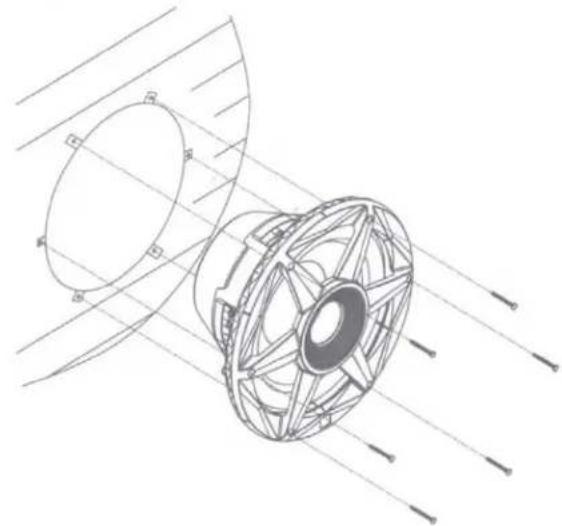

Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure mount.

NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.

Stadium 6 and Stadium 8

Technical line drawing of a mechanical component with no visible text or symbols

Stadium 10

Technical line drawing of a mechanical component with radial lines and circular features (no text or symbols)

REMOVING THE TWEETER FOR SEPARATE MOUNTING (STADIUM 8 ONLY)

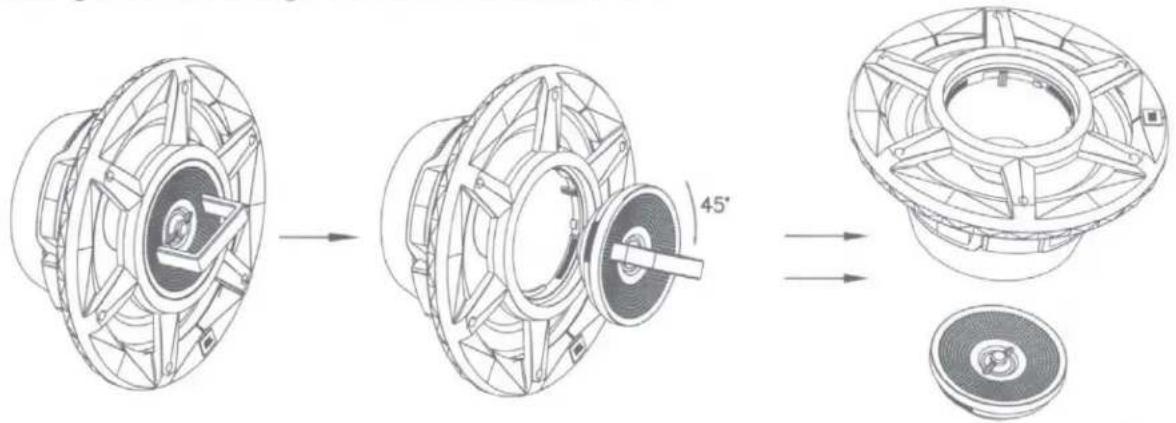

Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the tweeter grille and rotate 45 degrees clockwise to loosen and remove.

Technical line drawing of a mechanical component showing three sequential steps: disassembly, assembly, and final assembly (no text or symbols present)

FLUSH-MOUNTING THE TWEETER

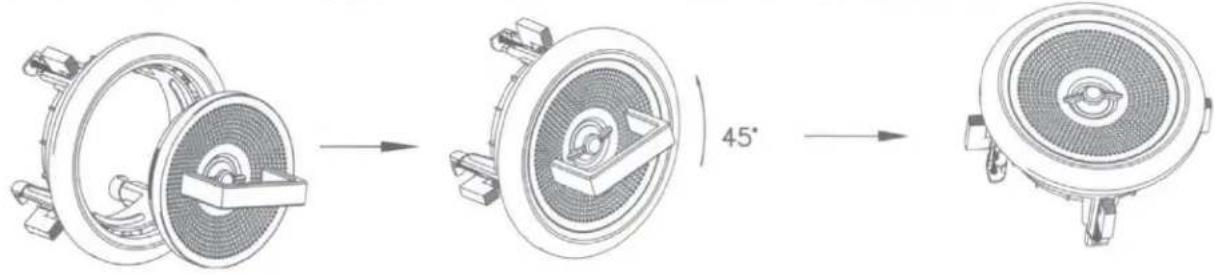

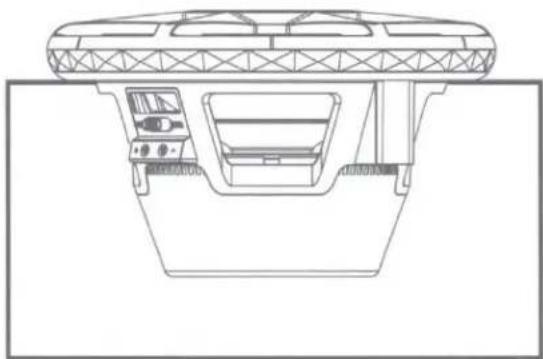

Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.

Three technical line drawings of a mechanical component with a 45° angle indicator (no text or symbols present)

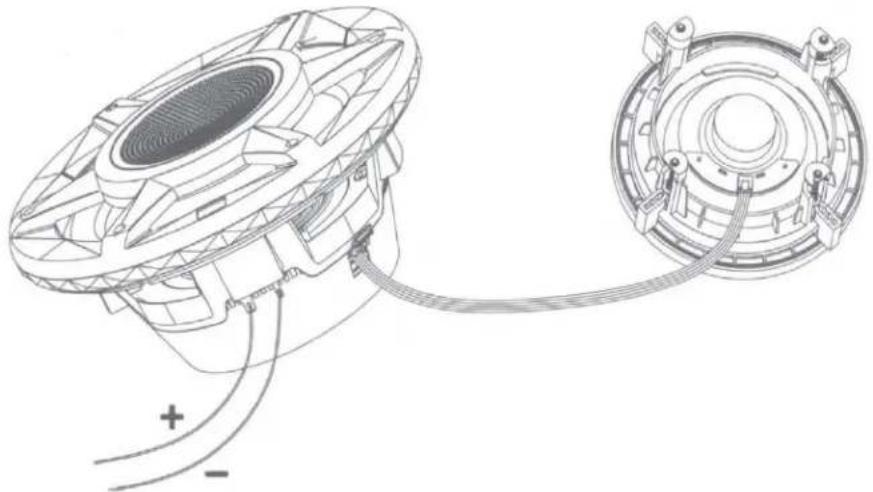

To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.

Technical line drawing of a speaker with attached circular components and wiring (no text or symbols)

EN

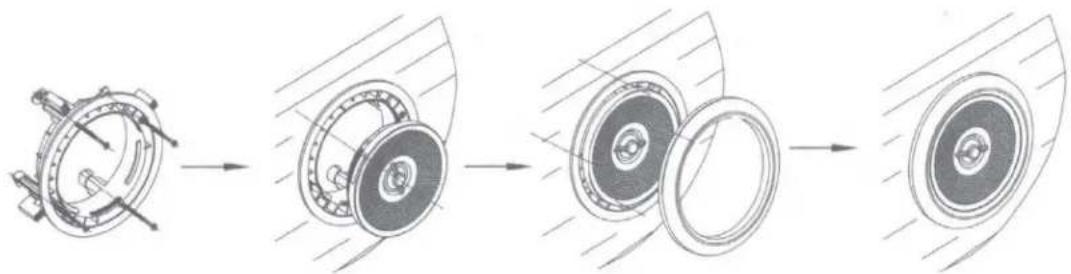

Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.

Mechanical assembly diagram showing progressive assembly of a bearing housing (no text or labels)

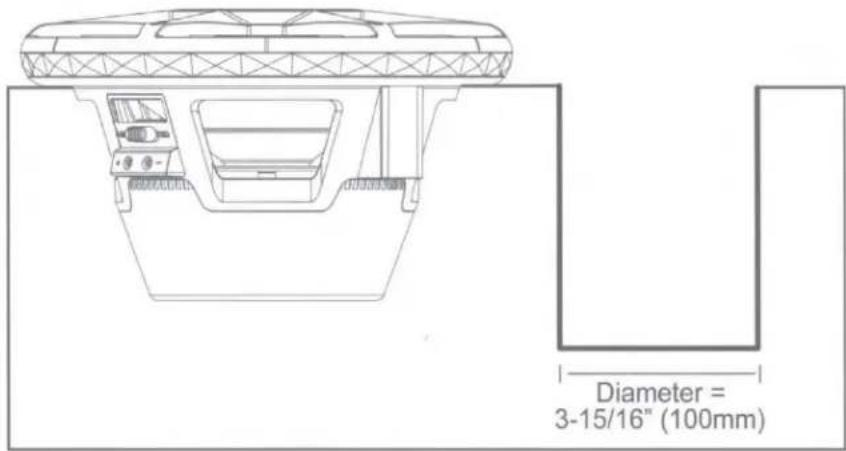

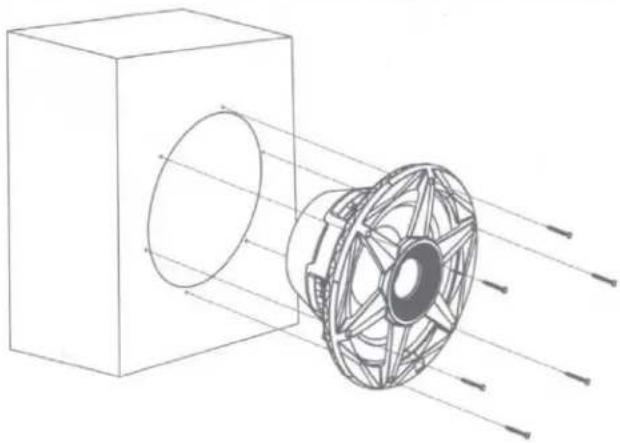

MOUNTING IN AN ENCLOSURE (STADIUM 10 ONLY)

Technical line drawing of a mechanical component with concentric circular features and light rays, no text or symbols present

SEALED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT)

Technical line drawing of a mechanical assembly or support structure (no text or symbols)

V_BOX

Size	Tuning frequency
Free air	40Hz
2 ft3 (56.6L)	52.2Hz
3 ft3 (85L)	48.3Hz
4 ft3 (113L)	46.3Hz

VENTED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT)

V_BOX

Size	Port length	Port diameter	Tuning frequency
2 ft3 (56.6L)	7-9/32" (185mm)	3-15/16" (100mm)	41Hz
3 ft3 (85L)	5-1/2" (140mm)	3-15/16" (100mm)	40.6Hz
4 ft3 (113L)	4-1/4" (108mm)	3-15/16" (100mm)	40.4Hz
TECHNICAL DATATHIELE-SMALL PARAMETERS		Stadium Marine 10"(250mm) Subwoofer 2-ohm	Stadium Marine 10"(250mm) Subwoofer 4-ohm
Voice coil DC resistance:	R_EVC (OHMs)	1.96	3.7
Electrical inductance:	L_CES (mH)	10.49	17.52
Driver radiating area:	S_D (CM2)	356.33	356.33
Motor force factor:	B_i (TM)	8.953	11.491
Compliance Volume:	V_AS (Liters)	23.5	23.8
Suspension compliance:	C_MS (mm/N)	0.131	0.133
Moving mass, air load:	M_MS (Grams)	107.338	106.389
Moving mass, without air load:	M_MD (Grams)	99.737	98.789
Free-air resonance:	F_S (Hz)	42.5	42.4
Mechanical Q:	Q_MS	9.913	4.025
Electrical Q:	Q_ES	0.699	0.793
Total Q:	Q_TS	0.653	0.663
SPL, 1W/1m @ 4ohm:	Lm (dB)	86.14	85.62

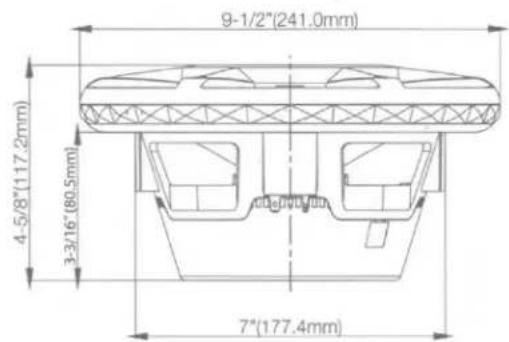

Specifications	Stadium 6	Stadium 8	Stadium 10
Continuous power handling	100W	200W	300W
Peak power handling	300W	500W	900W
Frequency response	40Hz – 25kHz	30Hz – 22kHz	20Hz – 2kHz
Nominal impedance	3 Ohms*	3 Ohms*	2 or 4 Ohms (use switch to select)
Sensitivity	92dB	92dB	89dB
External diameter	7-15/32" (189.4mm)	9-1/2" (241mm)	11-5/8" (295.3mm)
Mounting cutout diameter	5-23/32" (144.8mm)	Woofer: 7" (177.4mm)Tweeter bracket: 4-9/16"(115.9mm)	9-9/16" (235.6mm)
Total depth	3-21/32" (92.5mm)	4-5/8" (117.2mm)	6-9/16" (167mm)
Mounting depth	2-9/16" (65mm)	3-3/16" (80.5mm)	4-7/8" (123mm)

*NOTE: Because of the woofer's low impedance, do not wire two or more in parallel to an amplifier; doing so can result in overheating and damage to the amplifier.
