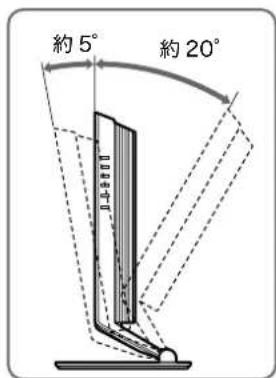

約5° 約20°

Diagram showing hand cursor clicking and clicking a button with 'OK' button, indicating press or click action

3 調整したい項目を選ぶ。

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

が表示されているときは

→を選ぶと、前の画面に戻ります。

4 調整する。

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

5 メニューを消す。

Two-panel image showing a textured surface before and after transformation: left panel with grid lines, right panel with vertical striped pattern (no text or symbols)

8 OK ボタンを押す。

メニュー画面に戻ります。

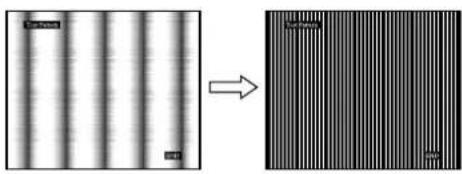

Two-panel image showing a vertical striped pattern on the left and a grayscale striped pattern on the right, with no visible text or symbols.

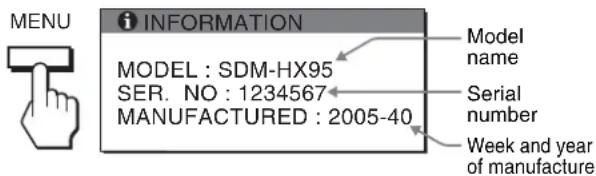

INFORMATION CABLE D I S CONNECTED I NPUT#:XXXXX

本機の症状と対処のしかた

This display is designed for use in Japan only and cannot be used in any other country.

主な仕様

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Two technical line drawings of electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Table of Contents

Precautions 4

Identifying parts and controls 5

Setup 7

Setup 1: Connect the video signal cables ..... 7

Setup 2: Connect the audio cord ....8

Setup 3: Connect the power cord ....8

Setup 4: Bundle the cords and cables ..... 9

Setup 5: Turn on the monitor and computer ..... 9

Setup 6: Adjust the tilt and swivel ..... 10

Selecting the input signal (INPUT button) 11

Customizing Your Monitor....12

Navigating the menu 12

FIGURE/AUDIO menu 13

MODE menu 13

PICTURE menu 13

Adjusting the BACKLIGHT |: 13

Adjusting the CONTRAST ① 13

Adjusting the BRIGHTNESS 14

Adjusting the GAMMA 14

Adjusting the COLOR 14

Adjusting the SHARPNESS 15

AUDIO menu 15

Adjusting TREBLE, BASS or BALANCE ..... 15

Adjusting SURROUND 15

MODE RESET menu (resetting every mode to the default) →← .... 15

A SCREEN menu (analog RGB signal only) 16

MENU POSITION menu 17

→ INPUT SENSING ON/OFF menu 17

A LANGUAGE menu 18

→← RESET menu (reset to the default setting) 18

ON MENU LOCK menu 18

Technical Features ....19

Controlling the volume 19

Power saving function 19

Setting the MODE (PICTURE/AUDIO) (mode) 20

Automatic brightness adjustment function (light sensor) ..... 20

Automatic picture quality adjustment function

(analog RGB signal only) 20

Troubleshooting ....21

On-screen messages 21

Trouble symptoms and remedies 22

Specifications 24

Precautions

Warning on power connections

- Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

Three line drawings of different types of electrical plugs (no text or symbols)

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the monitor by a window.
• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.
• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.
• The LCD panel becomes warm during operation. This is not a malfunction.

About the built-in stereo speakers

Be sure to keep magnetic recording equipment, tapes, and floppy discs away from the speaker's opening as the speakers generate a magnetic field. This magnetic field may affect data stored on magnetic tapes and discs.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction.

(Effective dots: more than 99.99%)

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen's coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all cables from the monitor, and grasp both side of the LCD display firmly taking care not to scratch the screen when transporting. If you drop the monitor, you may be injured or the monitor may be damaged.
• When you transport this monitor for repair or shipment, use the original carton and packing materials.

Disposal of the monitor

• Do not dispose of this monitor with general household waste.
• The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance to the regulations of your local sanitation authority.

Identifying parts and controls

See the pages in parentheses for further details.

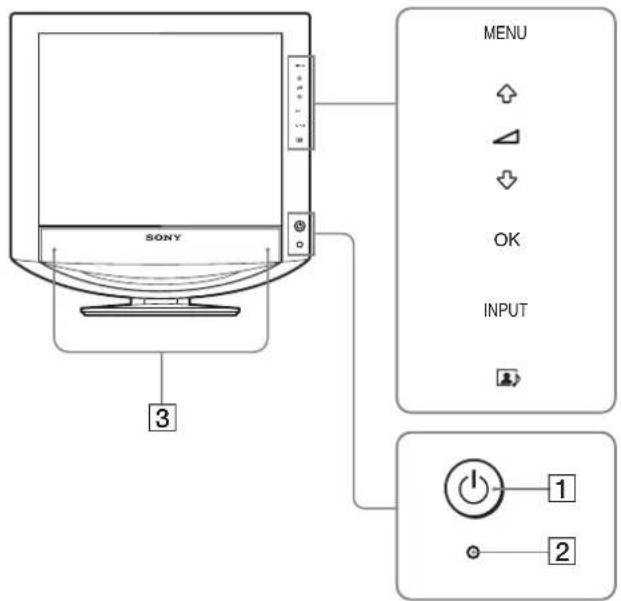

Front of the LCD display

SONY MENU OK INPUT 3 1 2

Side view of the LCD display

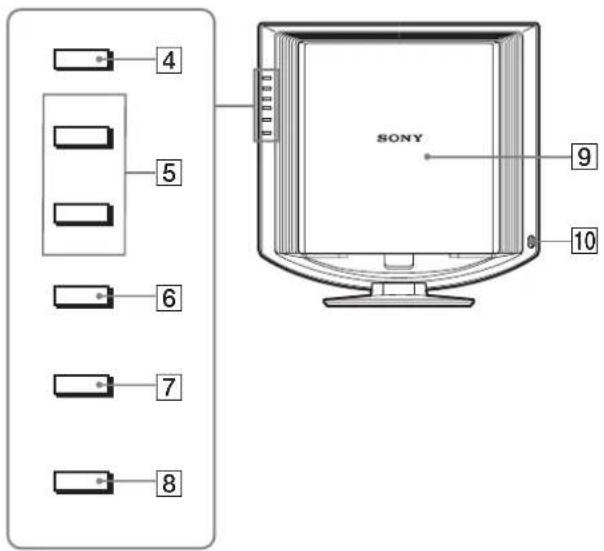

4 5 6 7 8 SONY 9 10

① ⏻ (Power) switch and ⏻ (power) indicator (pages 9, 19) To turn the display on or off, press the ⏻ (power) switch. The power indicator lights up in green when the display is turned on, and lights up in orange when the display is in the power saving mode.
② Light sensor (page 20) This sensor measures the brightness of the surrounding area. Be sure not to cover the sensor with papers, etc.
③ Stereo speakers (page 19) These speakers output the audio signals as sound.
4 MENU button (page 12) This button turns the menu screen on and off.
5 ↓/↑ and △ (volume control) buttons (pages 12, 19) These buttons are used to select the menu items and make adjustments, and also display the "Volume" menu to control the volume.
⑥ OK button (page 12) This button activates the selected menu item and adjustments made using the ↓/↑ buttons (⑤).
7 INPUT button (page 11) This button switches the video input signal between INPUT1, INPUT2 and INPUT3 when two computers are connected to the monitor.
8 button (page 20) This button changes the MODE (PICTURE/AUDIO).
⑨ Back cover (page 7) Slide up this cover when you connect cables or cords.
10 Headphones jack (page 19) This jack outputs audio signals to the headphones.

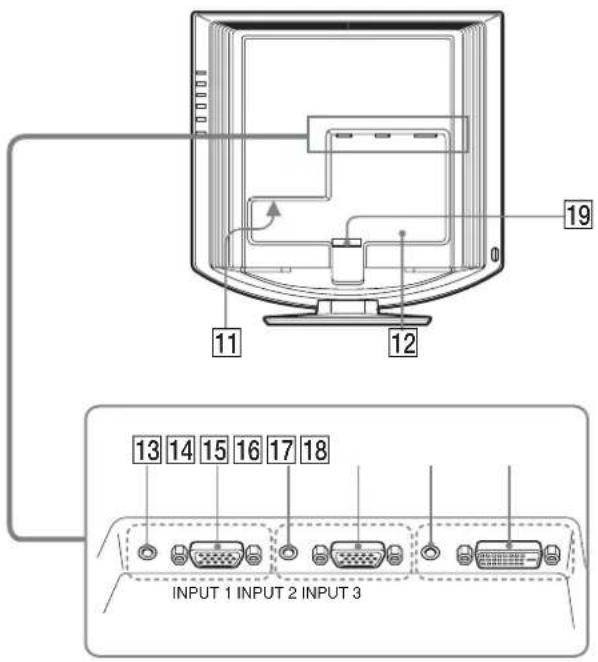

Rear of the LCD display

19 11 12 13 14 15 16 17 18 INPUT 1 INPUT 2 INPUT 3

11 AC IN connector (page 8)

This connector connects the power cord (supplied).

12 Security Lock Hole

The security lock hole should be used with the Kensington Micro Saver Security System. Micro Saver Security System is a trademark of Kensington.

13 Audio input jack for INPUT1 (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT1.

14 HD15 input connector (analog RGB) for INPUT1 (page 7)

This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

15 Audio input jack for INPUT2 (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT2.

16 HD15 input connector (analog RGB) for INPUT2 (page 7)

This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

17 Audio input jack for INPUT3 (page 8)

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT3.

18 DVI-D input connector (digital RGB) for INPUT3 (page 7)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

19 Cable holder (page 9)

This part secures cables and cords to the monitor.

Setup

Before using your monitor, check that the following items are included in your carton:

• LCD display
• Power cord
  • HD15-HD15 video signal cable (analog RGB)
  • DVI-D video signal cable (digital RGB)
  • Audio cord (stereo miniplug)
• CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc)
• Warranty card
• Quick Setup Guide

Setup 1: Connect the video signal cables

• Turn off the monitor and computer before connecting them.
• When connecting the computer to the monitor's HD15 input connector (analog RGB), refer to "Connect a computer equipped with an HD15 output connector (analog RGB)."

Note

Do not touch the pins of the video signal cable connector as this might bend the pins.

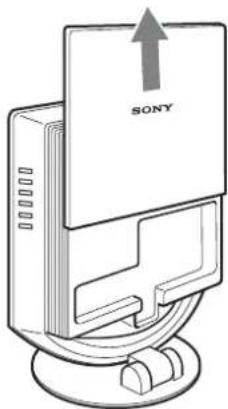

Slide up the back cover.

SONY

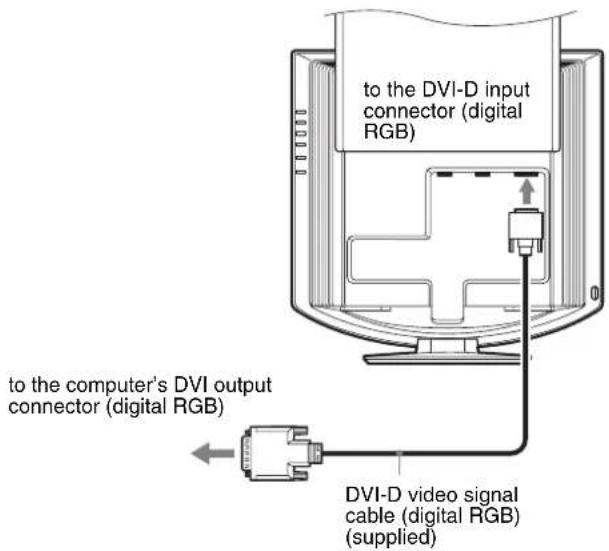

Connect a computer equipped with a DVI output connector (digital RGB)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the monitor's DVI-D input connector (digital RGB) for INPUT3.

to the DVI-D input connector (digital RGB) to the computer's DVI output connector (digital RGB) DVI-D video signal cable (digital RGB) (supplied)

Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the monitor's HD 15 input connector (analog RGB) for INPUT1 or INPUT2.

Connect the computer according to the following illustrations.

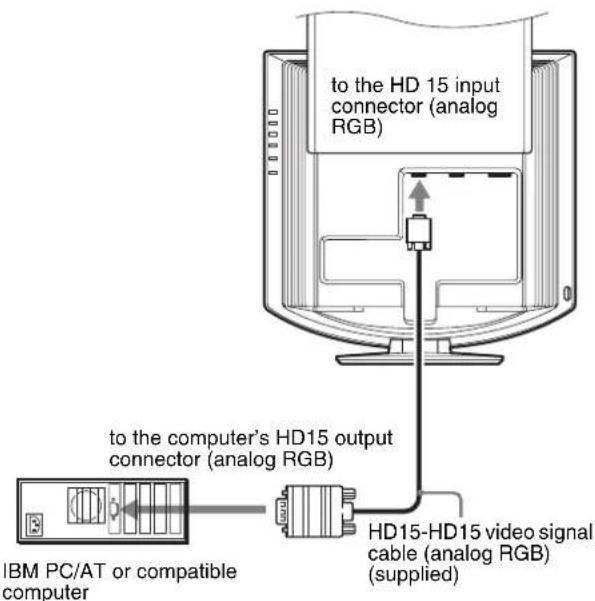

■ Connecting to an IBM PC/AT or compatible computer

to the HD 15 input connector (analog RGB) IBM PC/AT or compatible computer to the computer's HD15 output connector (analog RGB) HD15-HD15 video signal cable (analog RGB) (supplied)

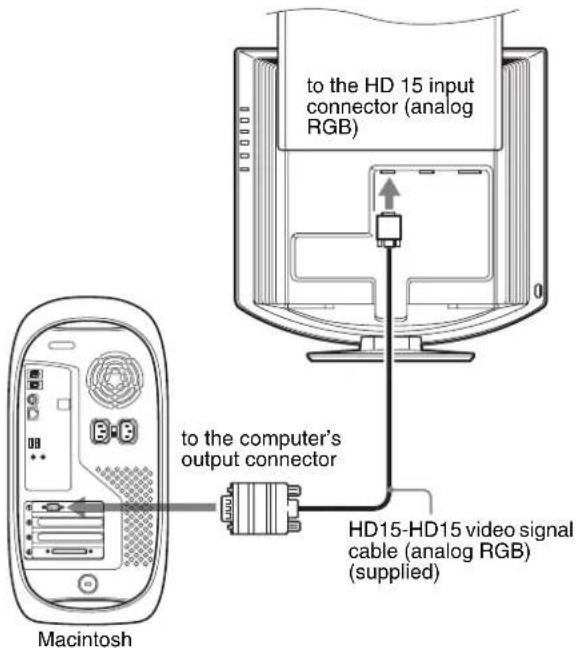

■ Connecting to a Macintosh

to the HD 15 input connector (analog RGB) to the computer's output connector HD15-HD15 video signal cable (analog RGB) (supplied) Macintosh

When connecting a Macintosh computer, use an adapter (not supplied), if necessary. Connect the adapter to the computer before connecting the video signal cable.

Setup 2: Connect the audio cord

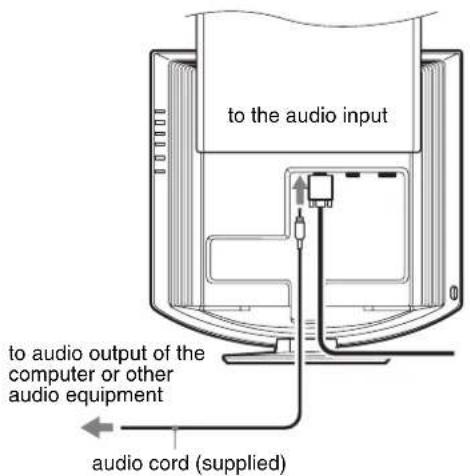

Connect the supplied audio cord to the monitor's corresponding audio input jack.

Using the monitor's speakers or headphones, you can listen to sound from your computer or other audio equipment connected to the monitor's audio input jacks.

For more information, see "Controlling the volume" on page 19.

to the audio input to audio output of the computer or other audio equipment audio cord (supplied)

Setup 3: Connect the power cord

1 Connect the supplied power cord securely to the monitor's AC IN connector.

2 Connect the other end securely to a power outlet.

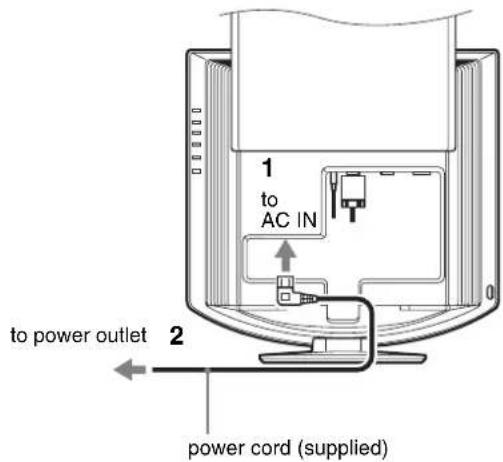

1 to AC IN 2 to power outlet power cord (supplied)

Setup 4: Bundle the cords and cables

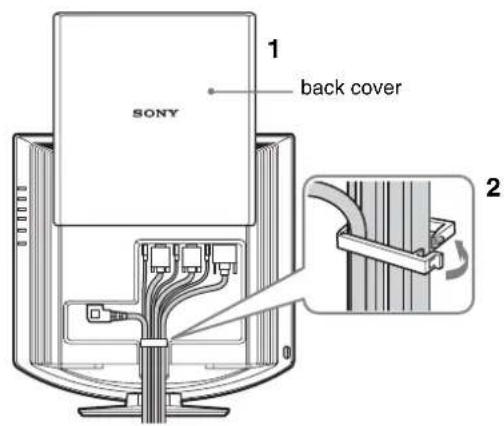

1 Slide up the back cover.
2 Secure the video signal cable, audio cords and the power cord using the cable holder on the cabinet.
3 Slide down the back cover.

1 back cover SONY 2

Illustration of a Sony TV stand with a curved screen and stand (no text or symbols on the screen itself)

Setup 5: Turn on the monitor and computer

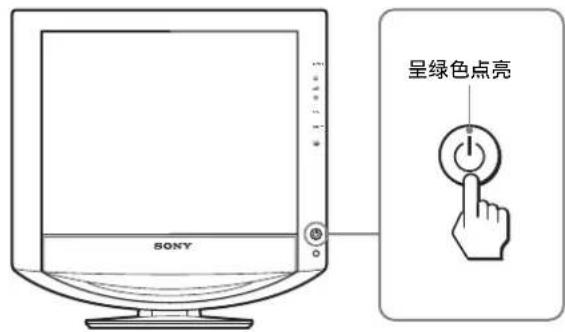

1 Press the ⏻ (power) switch on the front of the monitor.

The ⏻ (power) indicator lights up in green.

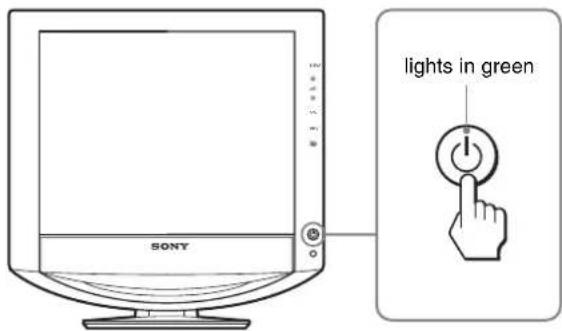

lights in green SONY

2 Turn on the computer.
3 Press the INPUT button to select the desired input signal.

The selected input's picture appears on the screen.

For more information, see "Selecting the input signal (INPUT button)" on page 11.

The installation of your monitor is complete. If necessary, use the monitor's controls to adjust the picture (page 12).

If no picture appears on your screen

- Check that the power cord and the video signal cable are properly connected.

- If "NO INPUT SIGNAL" appears on the screen:

• The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.
• Check that the input signal setting is correct by pressing the INPUT button (page 11).

- If "CABLE DISCONNECTED" appears on the screen:

• Check that the video signal cable is properly connected.
• Check that the input signal setting is correct by pressing the INPUT button (page 11).

- If "OUT OF RANGE" appears on the screen, reconnect the old monitor. Then adjust the computer's graphics board within the following ranges.

	Analog RGB Digital RGB
Horizontal frequency	28–80 kHz 28–64 kHz
Vertical frequency	48–75 Hz 60 Hz
Resolution	1280 × 1024 or less	1280 × 1024 or less

For more information about on-screen messages, see "Trouble symptoms and remedies" on page 22.

No need for specific drivers

The monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed on the computer.

The first time you turn on your computer after connecting the monitor, the setup Wizard may appear on the screen. In this case, follow the on-screen instructions. The Plug & Play monitor is automatically selected so that you can use this monitor.

The vertical frequency is set to 60 Hz.

Since flickers are unobtrusive on the monitor, you can use it as it is. You do not need to set the vertical frequency to any particular high value.

Setup 6: Adjust the tilt and swivel

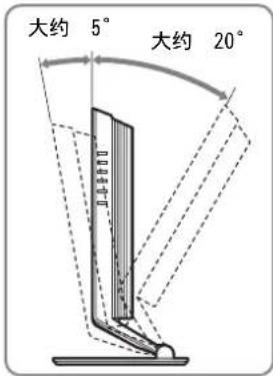

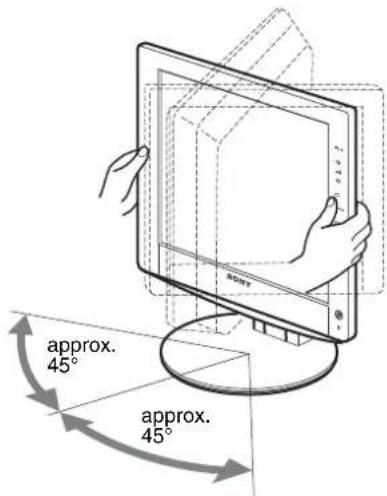

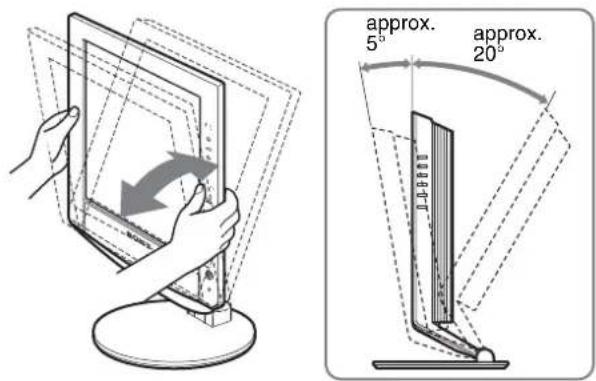

This monitor can be adjusted within the angles shown below.

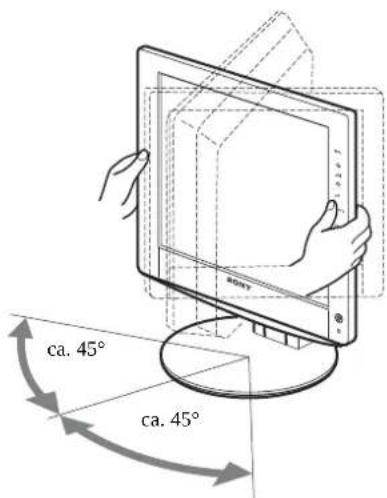

Grasp the sides of the LCD panel, then adjust screen angles.

approx. 5° approx. 20°

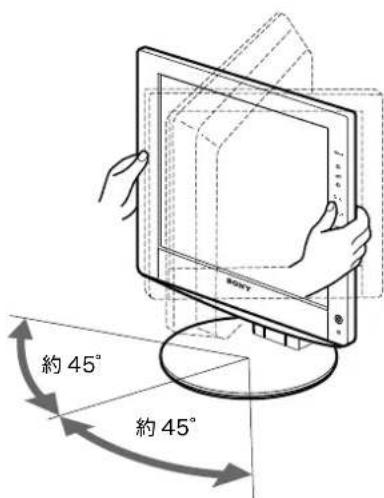

approx. 45° approx. 45°

To use the monitor comfortably

Adjust the viewing angle of your monitor according to the height of your desk and chair, and so that light is not reflected from the screen to your eyes.

Note

When adjusting the screen tilt and height, proceed slowly and carefully, being sure not to hit the monitor against the desk.

Selecting the input signal

(INPUT button)

Press the INPUT button.

The input signal change each time you press this button.

On-screen message (Appears about 5 seconds on the upper left corner.)	Input signal configuration
INPUT1: HD15 HD15 input connector (analog RGB) for INPUT1
INPUT2: HD15 HD15 input connector (analog RGB) for INPUT2
INPUT3: DVI-D DVI-D input connector (digital RGB) for INPUT3

Customizing Your Monitor

Before making adjustments

Connect the monitor and the computer, and turn them on. For the best results, wait for at least 30 minutes before making adjustments.

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

1 Display the main menu.

Press the MENU button to display the main menu on your screen.

MENU P C TURE/AUDIO1 MOVIE 1280 1024 60 Hzx EX I MENU

2 Select the menu.

Press the ↓/↑ buttons to display the desired menu. Press the OK button to move to the first menu item.

Diagram showing finger pressing and clicking a button with 'OK' label, alongside icons for up/down and left-pointing arrows.

3 Select the item you want to adjust.

Press the ↓/↑ buttons to select the item you want to adjust, then press the OK button.

Diagram showing finger pressing and clicking a button, with arrows indicating direction and 'OK' label

If is one of the menu items.

When you select and press the OK button, the display returns to the previous menu.

4 Adjust the item.

Press the ↓/↑ buttons to make the adjustment, then press the OK button.

When you press the OK button, the setting is stored, then the display returns to the previous menu.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

5 Close the menu.

Press the MENU button once to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 45 seconds.

■ Resetting the adjustments to the default settings

You can reset the adjustments using RESET menu. For more information about resetting the adjustments, see ⋯ (RESET) on page 18.

PICTURE/AUDIO menu

You can adjust the following items using PICTURE/AUDIO menu.

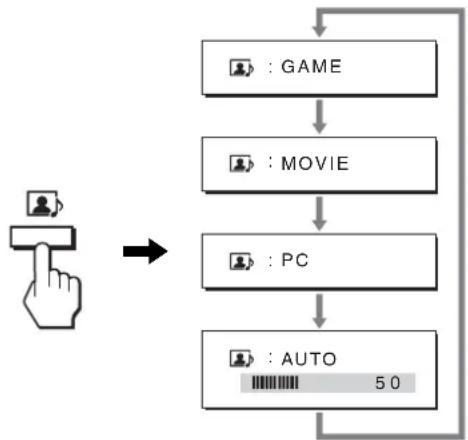

• MODE (GAME/MOVIE/PC/AUTO)
• P I C T R E
• AUDIO
- MODE RESET →←

P C T U R E / A U D I O I MOVIE 1 2 8 0 x 1 0 2 4 / 6 0 Hz EX | 1 95L

■ MODE menu

You can select the appropriate screen brightness for your purpose. The PICTURE/AUDIO settings can be set for each mode. Furthermore, you can change the mode for each input (INPUT1/INPUT2/INPUT3).

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📁 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ button to select "MOVIE" and press the OK button.

The MODE menu appears on the screen.

MODE GAME ■MOVIE PC AUTO 1 2 8 0x 1 0 2 4 /6 0 Hz OK EX I MENU

4 Press the ↓/↑ button to select the desired mode and press the OK button.

The default setting is MOVIE.

• GAME: Bright picture.
• MOVIE: Clear picture with strong contrast.

• PC: Soft tone picture.

- AUTO: Automatically adjusts the screen brightness according to the brightness of the surroundings (automatic brightness adjustment function). For more information, see “Automatic brightness adjustment function (light sensor)” (page 20).

NOTE

In the AUTO mode, you cannot adjust the backlight.

■ PICTURE menu

You can adjust the following items using the PICTURE menu.

• BACKLIGHT
  • CONTRAST ①
  • BRIGHTNESS
  • GAMMA menu γ
• COLOR menu
• SHARPNESS

PICTURE MOVIE ID: 100 ●: 70 ☆: 50 7 # 1280x1024/60Hz OK EX I (TWO)

Adjusting the BACKLIGHT

If the screen is too bright, adjust the backlight to make the screen easier to see.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📋 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button.

The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select " |:ON BACKLIGHT" and press the OK button.

The "BACKLIGHT" menu appears on the screen.

5 Press the ↓/↑ buttons to adjust the light level and press the OK button.

Adjusting the CONTRAST Ⓞ

Adjust the picture contrast.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📄 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button.

The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select "○ CONTRAST" and press the OK button.

The "CONTRAST" menu appears on the screen.

5 Press the ↓/↑ buttons to adjust the contrast and press the OK button.

Adjusting the BRIGHTNESS Adjust the picture brightness (black level).

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📁 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button.

The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select "○ BRIGHTNESS" and press the OK button.

The "BRIGHTNESS" menu appears on the screen.

5 Press the ↓/↑ buttons to adjust the brightness and press the OK button.

Adjusting the GAMMA γ

You can associate the picture's color shade on the screen with the picture's original color shade.

GAMMA ■GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0 1 0 2 4 /6 0 Hz x

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📄 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button.

The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select “γ (GAMMA)” and press the OK button.

The GAMMA menu appears on the screen.

5 Press the ↓/↑ buttons to select the desired mode and press the OK button.

Adjusting the COLOR

You can select the picture's color level for the white color field from the default color temperature settings.

Also, if necessary, you can fine tune the color temperature.

COLOR 9300K 6500K USER LADJUST 1280 1024 /60Hz x

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📁 (PICTURE/AUDIO) and press the OK button. The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button. The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select “☐ (COLOR)” and press the OK button. The COLOR menu appears on the screen.

5 Press the ↓/↑ buttons to select the desired color temperature and press the OK button. White balance changes from bluish to reddish as the color temperature is adjusted from 9300K to 6500K.

Fine tuning the color temperature

The color temperature can be set for each mode (GAME/MOVIE/PC/AUTO).

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📋 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button. The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select “☐ (COLOR)” and press the OK button. The COLOR menu appears on the screen.

5 Press the ↓/↑ buttons to select "ADJUST" and press the OK button.

The fine tuning menu for color temperature appears on the screen.

USER ADJUSTMENT R 128 G 128 B 128 1280 1024 60 Hzx OK EX I MEU

6 Press the ↓/↑ buttons to select R (Red) or B (Blue) and press the OK button. Then press the ↓/↑ buttons to adjust the color temperature and press the OK button.

Since this adjustment changes the color temperature by increasing or decreasing the R and B components with respect to G (green), the G component is fixed.

7 Press the ↓/↑ buttons to select ↻, then press the OK button.

The new color setting is stored in memory and automatically recalled whenever "User" is selected.

The COLOR menu appears on the screen.

Adjusting the SHARPNESS

Adjust to sharpen the edge of images, etc.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📋 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select 📄 (PICTURE) and press the OK button.

The PICTURE menu appears on the screen.

4 Press the ↓/↑ buttons to select "☐ SHARPNESS" and press the OK button.

The "SHARPNESS" menu appears on the screen.

5 Press the ↓/↑ buttons to adjust the sharpness and press the OK button.

AUDIO menu

You can adjust the following items using the AUDIO menu.

• TREBLE

• B A S S

• BALANCE

- SURROUND

AUDIO MOVIE TREBLE BASS BALANCE SURROUND 1 280x 1024 /60 Hz OK EX I TMOL

Adjusting TREBLE, BASS or BALANCE

1 Press the MENU button.
The main menu appears on the screen.
2 Press the ↓/↑ button to select 📋 (PICTURE/AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3 Press the ↓/↑ buttons to select ▶ (AUDIO) and press the OK button.
4 Press the ↓/↑ buttons to select TREBLE, BASS or BALANCE, and press the OK button.
5 Press the ↓/↑ buttons to select the desired mode and press the OK button.

Adjusting SURROUND

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📄 (PICTURE/AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3 Press the ↓/↑ buttons to select ▶ (AUDIO) and press the OK button.
4 Press the ↓/↑ buttons to select SURROUND and press the OK button.

5 Press the ↓/↑ buttons to select the desired mode and press the OK button.

SURROUND SRS WOW OFF 1 2 8 0x 1 0 2 4 /6 0 Hz

• SRS WOW: Deep rich bass tone and clear high tone creates a rich surround sound experience, and movies and games, especially, can be enjoyed with powerful sound.
• OFF: Turns off the SRS WOW effect.

Adopting the latest technology developed by SRS Labs, Inc., SRS WOW significantly improves the sound quality of various audio sources.

■ MODE RESET menu (resetting every mode to the default) →←

You can reset the adjustments to the default settings.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ button to select 📁 (PICTURE/AUDIO) and press the OK button.

The PICTURE/AUDIO menu appears on the screen.

3 Press the ↓/↑ buttons to select “→← RESET” and press the OK button.

The "RESET" menu appears on the screen.

4 Press the ↓/↑ buttons to select the desired mode and press the OK button.

• OK: To reset every mode in the PICTURE/AUDIO menu to the default settings.
• CANCEL: To cancel resetting and return to the PICTURE/AUDIO menu.

A SCREEN menu (analog RGB signal only)

You can adjust the following items using the SCREEN menu.

• AUTO
• PHASE
• PITCH
• H CENTER
• V CENTER

SCREEN AUTO PHASE PITCH H CENTER V CENTER 1280 1024 60Hzx OK EX I TIVEW

Note

When receiving digital RGB signals from the DVI-D input connector for INPUT3, adjustment is unnecessary.

■ Automatic picture quality adjustment function

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen (page 20).

Note

While the automatic picture quality adjustment function is activated, only the ⏻ (power) switch will operate.

If the automatic picture quality adjustment function of this monitor seems to not completely adjust the picture

You can make further automatic adjustment of the picture quality for the current input signal (See "AUTO" below).

If you still need to make further adjustments to the picture quality

You can manually adjust the picture's sharpness (phase/pitch) and position (horizontal/vertical position).

These adjustments are stored in memory and automatically recalled when the monitor receives a previously input and registered input signal.

■ Make further automatic adjustments to the picture quality for the current input signal (AUTO)

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ⚪ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

3 Press the ↓/↑ buttons to select "AUTO" and press the OK button.

Make the appropriate adjustments of the screen's phase, pitch and horizontal/vertical position for the current input signal and store them.

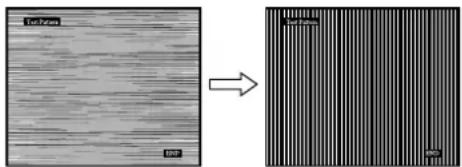

- Adjust the picture's sharpness manually (Phase/Pitch)

You can adjust the picture's sharpness as follows. This adjustment is effective when the computer is connected to the monitor's HD15 input connector (analog RGB).

1 Set the resolution to 1280 × 1024 on the computer.

2 Load the CD-ROM.

3 Start the CD-ROM, and display the test pattern.

For Windows User

When Auto run operates:

Click Display Adjustment tool (Utility).

Click "Adjust" and confirm the resolution and then click

"Next".

Test pattern for PITCH and PHASE appears in order.

When Auto run fails to operate:

1 Open "My Computer" and right click the CD-ROM icon. Go to "Explorer" and open the CD-ROM icon.
2 Open [Utility] and then select [Windows].
3 Start [Win_Utility.exe].
Test pattern appears.

For Macintosh User

1 Open [Utility] and then select [Mac].

2 Start [Mac_Utility.exe].

Test pattern appears.

4 Press the MENU button.

The main menu appears on the screen.

5 Press the ↓/↑ buttons to select Ⓐ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

6 Press the ↓/↑ buttons to select "PHASE" and press the OK button.

The "PHASE" adjustment menu appears on the screen.

7 Press the ↓/↑ buttons until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

Ludon BUT

8 Press the OK button.

The main menu appears on the screen.

If vertical stripes are observed over the entire screen, adjust the pitch using the following procedures.

9 Press the ↓/↑ buttons to select "PITCH" and press the OK button.

The "PITCH" adjustment menu appears on the screen.

10 Press the ↓/↑ buttons until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

Two-panel image showing a striped pattern before and after transformation, with no visible text or symbols.

11 Click END on the screen to turn off the test pattern.

■ Adjust the picture's position manually (H CENTER /V CENTER)

If the picture is not in the center of the screen, adjust the picture's centering as follows.

1 Set the resolution to 1280 × 1024 on the computer.

2 Load the CD-ROM.

3 Start the CD-ROM, and display the test pattern.

For Windows User

When Auto run operates:

Click Display Adjustment tool (Utility).

Click "Adjust" and confirm the resolution and then click "Next".

Test pattern for H CENTER and V CENTER appears in order.

When Auto run fails to operate:

1 Open "My Computer" and right click the CD-ROM icon.

Go to "Explorer" and open the CD-ROM icon.

2 Open [Utility] and then select [Windows].

3 Start [Win_Utility.exe].

Test pattern appears.

For Macintosh User

1 Open [Utility] and then select [Mac].

2 Start [Mac_Utility.exe].

Test pattern appears.

4 Press the MENU button.

The main menu appears on the screen.

5 Press the ↓/↑ buttons to select ⚪ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

6 Press the ↓/↑ buttons to select "H CENTER" or "V CENTER" and press the OK button.

The "H CENTER" adjustment menu or "V CENTER" adjustment menu appears on the screen.

7 Press the ↓/↑ buttons to center the test pattern on the screen.

8 Click END on the screen to turn off the test pattern.

MENU POSITION menu

You can change the menu position if it is blocking an image on the screen.

MENU POS T ONI 1 2 8 0 1 0 2 4 /6 0 Hz x OK EX I MENU

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ☐ (MENU POSITION) and press the OK button.

The "MENU POSITION" menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired position and press the OK button.

You can choose one of 9 positions where the menu will appear.

→ INPUT SENSING ON/OFF menu

When you select AUTO ON in the INPUT SENSING ON/OFF menu, the monitor automatically detects an input signal to an input terminal, and changes the input automatically before the monitor goes into the power saving mode.

INPUT SENSING AUTO ON AUTO OFF 1 2 8 0 1 0 2 4 /6 0 Hz x

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select → (INPUT SENSING ON/OFF) and press the OK button.

The INPUT SENSING menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired mode and press the OK button.

- ON: When the selected input terminal has no input signal, or when you select an input terminal by the INPUT button on the monitor and the terminal has no input signal, the on-screen message appears (page 21) and the monitor checks the input signal to another input terminal automatically to change the input. When the input is changed, the selected input terminal is displayed on the left upper of the screen. When there is no input signal, the monitor goes into the power saving mode automatically.

- OFF: The input is not changed automatically. Press the INPUT button to change the input.

LANGUAGE menu

LANGUAGE ■ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO 1280 x 1024 / 60 Hz

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ☑ (LANGUAGE) and press the OK button.

The LANGUAGE menu appears on the screen.

3 Press the ↓/↑ buttons to select a language and press the OK button.

• English
• Français: French
  • Deutsch: German
• Español: Spanish
• Italiano: Italian
  • Nederlands: Dutch
  • Svenska: Swedish
  • Русский:
  • : 田本涵ese
• 中文：C h i n e s e

→← RESET menu (reset to the default setting)

RESET OK CANCEL 1 280 x 1024 / 60 Hz

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select →← (RESET) and press the OK button.

The RESET menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired mode and press the OK button.

• OK: To reset all of the adjustment data to the default settings. Note that the “LANGUAGE” setting is not reset by this method.
• CANCEL: To cancel resetting and return to the menu screen.

MENU LOCK menu

Lock the control of buttons to prevent accidental adjustments or resetting.

MENU LOCK ON OFF 1280 x 1024 / 60 Hz OK EX | TNEW

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select Oπ (MENU LOCK) and press the OK button.

The MENU LOCK menu appears on the screen.

3 Press the ↓/↑ buttons to select either "On" or "Off."

• ON: Only the ⏻ (power) switch and INPUT button will operate. If you attempt any other operation, the icon appears on the screen.
• OFF: Set “MENU LOCK” to off. If “MENU LOCK” has been set to “ON,” when you press the MENU button “MENU LOCK” is automatically selected.

Technical Features

Controlling the volume

Using the monitor's speakers or headphones, you can listen to sound from your computer or other audio equipment connected to the monitor's audio input jacks.

You can control the volume by using a separate "Volume" menu from the main menu.

1 Press the ↓/↑ buttons when no menu appears on the screen.

2 Press the ↓/↑ buttons to control the volume.

The menu automatically disappears after about 5 seconds.

Notes

• You cannot adjust the volume when the main menu is displayed on the screen.
• When your monitor is in power saving mode, no sound comes from the speakers or the headphones.

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR (SDM-HX75 only), and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Standard) for Analog input/DMPM (DVI Digital Monitor Power Management) for Digital input compliant, the monitor will automatically reduce power consumption as shown below.

SDM-HX75

Power mode	Power consumption ⏻ (power) indicator
normal operation	50 W (max.) green
active off* (deep sleep)**	1 W (max.) amber
( power) off	1 W (max.) off

SDM-HX95

Power mode	Power consumption	+ (power) indicator
normal operation	60 W (max.) green
active off* (deep sleep)**	1 W (max.) amber
+ (power) off	1 W (max.) off

* When your computer enters the "active off" mode, the input signal is cut and "NO INPUT SIGNAL" appears on the screen. After 5 seconds, the monitor enters the power saving mode.
** "Deep sleep" is a power saving mode defined by the Environmental Protection Agency.

Setting the MODE (PICTURE/AUDIO) (mode)

If you press the 📁 button on the right side of the monitor repeatedly, you can select the MODE from GAME → MOVIE → PC → AUTO.

When you select “AUTO,” the monitor automatically adjusts the screen brightness according to the brightness of the surroundings (Automatic brightness adjustment function). For more information, see “Automatic brightness adjustment function (light sensor)”.

Press the button repeatedly.

The default setting of the MODE is set to "MOVIE". When you press the Button once, "MOVIE" (the default setting) is displayed, and when you press again, "PC" is displayed.

Each time you press the button, the mode changes as follows.

Each mode appears on the screen and the MODE is changed. The menu automatically disappears after about 5 seconds.

Automatic brightness adjustment function (light sensor)

This monitor is provided with a feature to automatically adjust the screen brightness according to the brightness of the surroundings. The brightness of the screen is set to the most appropriate level by setting the ☐ode to AUTO with the ☐ button on the right side of the monitor, or in the PICTURE/AUDIO menu. The default setting of the brightness of the screen is set to MOVIE. Also, when you set the ☐ode to AUTO with the but ☐ on the right side of the monitor, the adjustment bar is also displayed. You can adjust the bar with the ↓/↑ buttons. Screen brightness changes according to the level you set.

Automatic picture quality adjustment function (analog RGB signal only)

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen.

The factory preset mode

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. If the input signal matches the factory preset mode, the picture appears on the screen automatically with the appropriate default adjustments.

If input signals do not match one of the factory preset modes

When the monitor receives an input signal that does not match one of the factory preset modes, the automatic picture quality adjustment function of this monitor is activated to ensure that a clear picture always appears on the screen (within the following monitor frequency ranges):

Horizontal frequency: 28–80 kHz

Vertical frequency: 48–75 Hz

Consequently, the first time the monitor receives input signals that do not match one of the factory preset modes, the monitor may take a longer time than normal to display the picture on the screen. This adjustment data is automatically stored in memory so that next time, the monitor will function in the same way as when the monitor receives the signals that match one of the factory preset modes.

If you adjust the phase, pitch, and picture position manually

For some input signals, the automatic picture quality adjustment function of this monitor may not completely adjust the picture position, phase, and pitch. In this case, you can set these adjustments manually (page 16). If you set these adjustments manually, they are stored in memory as user modes and automatically recalled whenever the monitor receives the same input signals.

Troubleshooting

Before contacting technical support, refer to this section.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see “Trouble symptoms and remedies” on page 22.

If "OUT OF RANGE" appears on the screen

This indicates that the input signal is not supported by the monitor's specifications. Check the following items. For more information about on-screen messages, see “Trouble symptoms and remedies” on page 22.

If "xxx.x kHz / xxx Hz" is displayed

This indicates that either the horizontal or vertical frequency is not supported by the monitor's specifications. The figures indicate the horizontal and vertical frequencies of the current input signal.

OINFORMATND OUT OF RANGE INPUT#:XXXXXX XXX . XKHz / XXXHz

If "RESOLUTION > 1280 × 1024" is displayed

This indicates that the resolution is not supported by the monitor's specifications (1280 × 1024 or less).

OUT OF RANGE INPUT#:XXXXX RESOLUTION > 1280X1024

If "NO INPUT SIGNAL" appears on the screen

This indicates that no signal is being input via the currently selected connector. When INPUT SENSING ON/OFF (page 17) is set to ON, the monitor finds another input signal and changes the input automatically.

INFORMATION NO INPUT SIGNAL INPUT#:XXXXX GO TO POWER SAVE

"GO TO POWER SAVE"

The monitor will enter the power saving mode after about 5 seconds from the time the message is displayed.

If "CABLE DISCONNECTED" appears on the screen

This indicates that the video signal cable has been disconnected from the currently selected connector.

When INPUT SENSING ON/OFF (page 17) is set to ON, the monitor finds another input signal and changes the input automatically.

INFORMATION CABLE D I S CONNECTED INPUT#:XXXXX

Trouble symptoms and remedies

If a problem occurs as a result of a connected computer or other equipment, refer to the connected computer/equipment's instruction manual.

Symptom Check these items
No picture
If the ⏻ (power) indicator is not lit,or if the ⏻ (power) indicator will notlight up when the ⏻ (power) switchis pressed,	Check that the power cord is properly connected.
If “CABLE DISCONNECTED”appears on the screen,	Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 7).Check that the video input connector’s pins are not bent or pushed in.Check that the input select setting is correct (page 11).A non-supplied video signal cable is connected. If you connect a non-supplied videosignal cable, “CABLE DISCONNECTED” may appear on the screen. This is not amalfunction.
If “NO INPUT SIGNAL” appears onthe screen, or the ⏻ (power)indicator is amber,	Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 7).Check that the video input connector’s pins are not bent or pushed in.Check that the input select setting is correct (page 11).Problem caused by a connected computer or other equipment, and notcaused by the monitorThe computer is in the power saving mode. Try pressing any key on the keyboard ormoving the mouse.Check that your graphics board is installed properly.Check that the computer’s power is on.
If “OUT OF RANGE” appears onthe screen (page 21),	Problem caused by a connected computer or other equipment, and notcaused by the monitorCheck that the video frequency range is within that specified for the monitor. If youreplaced an old monitor with this monitor, reconnect the old monitor and adjust thecomputer’s graphics board within the following ranges:Horizontal frequency: 28–80 kHz (Analog RGB), 28–64 kHz (Digital RGB)Vertical frequency: 48–75 Hz (Analog RGB), 60 Hz (Digital RGB)Resolution: 1280 × 1024 or less
If using Windows, • If you replaced an old monitor with this monitor, reconnect the old monitor and do thefollowing. Select “SONY” from the “Manufacturers” list and select “SDM-HX75 orSDM-HX95” from the “Models” list in the Windows device selection screen. If “SDMHX75 or SDM-HX95” does not appear in the “Models” list, try “Plug & Play.”
If using a Macintosh system, • When connecting a Macintosh computer, use an adapter (not supplied) if necessary.Connect the adapter to the computer before connecting the video signal cable.
Picture flickers, bounces,oscillates, or is scrambled.	Adjust the pitch and phase (analog RGB signal only) (page 16).Try plugging the monitor into a different AC outlet, preferably on a different circuit.
	Problem caused by a connected computer or other equipment, and notcaused by the monitorCheck your graphics board manual for the proper monitor setting.Confirm that the graphics mode (VESA, Macintosh 19" Color, etc.) and the frequency ofthe input signal are supported by this monitor. Even if the frequency is within the properrange, some graphics boards may have a sync pulse that is too narrow for the monitor tosync with correctly.This monitor does not process interlace signals. Set for progressive signals.Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture(60 Hz is recommended).
Picture is fuzzy. • Adjust the contrast and brightness (page 13, 14).Adjusting the sharpness (page 15).Adjust the pitch and phase (analog RGB signal only) (page 16).Problem caused by a connected computer or other equipment, and notcaused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is ghosting.	Eliminate the use of video cable extensions and/or video switch boxes.Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly (analog RGB signal only).	Adjust the pitch and phase (page 16).Adjust the picture position (page 17). Note that some video modes do not fill the screen to the edges.
Picture is too small.	Problem caused by a connected computer or other equipment, and not caused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is dark. • Adjust the backlight (page 13).	Adjust the brightness (page 14).Adjust the gamma on the GAMMA menu (page 14).It takes a few minutes for the display to become bright after turning on the monitor.When themodeis set to AUTO, the display brightness may become dark in low ambient light (page 13, 20).
Wavy or elliptical pattern (moire) is visible.	Adjust the pitch and phase (analog RGB signal only) (page 16).
Color is not uniform.	Adjust the pitch and phase (analog RGB signal only) (page 16).
White does not look white.	Adjust the color temperature (page 14).
Monitor buttons do not operate (appears on the screen).	If “MENU LOCK” is set to “ON,” set it to “OFF” (page 18).
Resolution displayed on the menu screen is incorrect.	Depending on the graphics board setting, the resolution displayed on the menu screen may not coincide with the one set on the computer.

Displaying this monitor's information

While the monitor is receiving a video signal, press and hold the MENU button for more than 5 seconds until the information box appears.

Press the MENU button again to make the box disappear.

Example

MENU i INFORMATION MODEL : SDM-HX95 SER. NO : 1234567 MANUFACTURED : 2005-40 Model name Serial number Week and year of manufacture

If any problem persists, call your authorized Sony dealer and give the following information:

• Model name: SDM-HX75 or SDM-HX95
• Serial number
  • Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board
• Type of input signals (analog RGB/digital RGB)

Specifications

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 17 inch (43 cm)

(SDM-HX75)

19 inch (48 cm)

(SDM-HX95)

Input signal format RGB operating frequency*

Horizontal:

28–80 kHz (analog RGB)

28–64 kHz (digital RGB)

Vertical:

48–75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal:

0.7 Vp-p, 75 Ω, positive

SYNC signal:

TTL level, 2.2 kΩ,

positive or negative

(Separate horizontal and vertical,

or composite sync)

Digital RGB (DVI) signal:

TMDS (Single link)

Audio input Stereo minijack, 0.5 Vrms

Speaker output 3 W × 2

Headphones jack Stereo minijack

Power requirements SDM-HX75

100–240 V, 50–60 Hz, Max. 1.0 A

SDM-HX95

100–240 V, 50–60 Hz, Max. 1.1 A

Power consumption Max. 50 W (SDM-HX75)

Max. 60 W (SDM-HX95)

Operating temperature 5–35 °C

Dimensions (width/height/depth)

Display (upright):

SDM-HX75

Approx. 414 × 418.5 × 232 mm

(16 ^3 /8 × 16 ^1 /2 × 9 ^1 /4 inches)

SDM-HX95

Approx. 466.5 × 468 × 265 mm

(18^3/8× 18^1/2× 10^1/2 inches)

Mass SDM-HX75

Approx. 6.5 kg (14 lb 5 oz)

SDM-HX95

Approx. 8.5 kg (18 lb 12 oz)

Plug & Play DDC2B

Accessories See page 7.

* Recommended horizontal and vertical timing condition

- Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8 sec , whichever is larger.

• Horizontal blanking width should be more than 2.5 μsec.

• Vertical blanking width should be more than 450 μsec.

Design and specifications are subject to change without notice.

TFT LCD Color Computer Display

SDM-HX75

SDM-HX95

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Inhalt

ca. 5° ca. 20°

ca. 45° ca. 45°

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to the button.

Diagram showing hand cursor clicking and clicking a button with an 'OK' button, indicating navigation or press function

GAMMA ■GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0 1 0 2 4 /6 0 Hz x OK EX I NEW

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

100–240 V, 50–60 Hz, max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, max. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Table des matières

Précautions....4

Menu DETECT ENTREE ACTIV/DESACTIV....17

Menu LANGUAGE 18

Réglage du MODE (IMAGE/AUDIO) (mode 20

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

Diagram showing finger pressing and clicking a button, with arrows indicating direction and 'OK' label

5 Quittez le menu.

GAMMA GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0x 1 0 2 4 .6 0 Hz

Top Surface 100 → Top Surface Bottom

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

VOLUME 30

Réglage du MODE (IMAGE/AUDIO) (mode 📁)

100–240 V, 50–60 Hz, Max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Max. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Índice

Precauciones 4

Line drawing of a Sony TV stand with a stand and top panel, no text or symbols present

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with directional arrows and a hand icon pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to the button.

5 Cierre el menú.

Soil Pattern SAB Soil Pattern SAB

Two-panel image showing a grid of vertical lines on the left and a striped pattern on the right, both without any text or symbols.

"IR A AHORRO ENERGÍA"

MANUFACTURED : 2005-40

Nombre del

modelo

Número

de serie

Semana y año

de fabricación

(Horizontal y vertical

100–240 V, 50–60 Hz, Máx. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Máx. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two different types of electrical connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Indice

Precauzioni 4

Line drawing of a Sony TV stand with a stand and top panel, no text or symbols present

circa 5° circa 20° circa 45° circa 45°

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with directional arrows and a hand icon pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to the button.

5 Chiusura del menu.

GAMMA ■GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0x 1 0 2 4 6 0 Hz

Lan Jones → Lan Jones

Two-panel image showing a striped pattern before and after transformation, with no visible text or symbols.

RIPRISTINO OK ANNULLA 1280x1024/60Hz OK EXI TMEU

VOLUME 30

"VAI A RISPARMIO ENERG"

100–240 V, 50–60 Hz, massimo

1,0 A

SDM-HX95

100–240 V, 50–60 Hz, massimo

1,1 A

Consumo energetico Massimo 50 W (SDM-HX75)

Massimo 60 W (SDM-HX95)

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

BZ03

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

Diagram showing hand cursor clicking and pointing at a button labeled 'OK', with directional arrows indicating movement.

Diagram showing finger pressing and clicking a button, with arrows indicating direction and 'OK' label

5 Закройте меню.

GAMMA ■ GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0 1 0 2 4 .6 0 Hz x OK EX I TINNU

Two-panel image showing a grid of vertical striped patterns on the left and a striped pattern on the right, with no visible text or symbols.

MANUFACTURED : 2005-40

Название

модели

Серийный

Номер

Неделя и год

выпуска

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

1 bakre panel SONY 2

SONY 3

Diagram showing finger pressing and clicking icons with an 'OK' button, indicating press or navigation control.

Diagram showing finger pressing and clicking icons with directional arrows, ending with 'OK' button

Diagram showing finger pressing and clicking a button, with an arrow indicating direction and 'OK' label

5 Stäng menyn.

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, with no visible text or symbols.

28–64 kHz (digital RGB)

Vertikal:

48–75 Hz (analog RGB)

60 Hz (digital RGB)

Upplösning Horisontell: Max. 1280 punkter

Digital RGB-signal (DVI):

TMDS (Enkel länk)

100–240 V, 50–60 Hz,

Max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz,

Max. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Inhoudsopgave

Line drawing of a Sony monitor with a stand and top panel, no text or symbols present

ca. 5° ca. 20° ca. 45° ca. 45°

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing hand cursor clicking and clicking a button with 'OK' button, indicating press or navigation instruction.

5 Sluit het menu.

GAMMA ■GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0 1 0 2 4 /6 0 Hz x EX I NOU

Klik op Display Adjustment tool (Utility).

3 Start [Win_Utility.exe].

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a striped pattern on the left and a grayscale striped pattern on the right, both without any text or symbols.

Klik op Display Adjustment tool (Utility).

"GA NAAR STROOMSPAAR"

100–240 V, 50–60 Hz, Max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Max. 1,1 A

Stroomverbruik Max. 50 W (SDM-HX75)

Max. 60 W (SDM-HX95)

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Índice

Precauções 4

Regular a SHARPNESS 15

Menu AUDIO 15

Regular TREBLE, BASS ou BALANCE ..... 15

Regular SURROUND 15

Menu MODE RESET (REPOSIÇÃO DE MODO)

Three line drawings of different types of electrical plugs (no text or symbols)

Illustration of a Sony TV stand with a curved screen and stand (no text or symbols on the screen itself)

Diagram showing finger pressing and clicking a button, with arrows indicating left/right movement and a hand pointing to the right button.

Diagram showing finger pressing and clicking a button, with arrows indicating direction and 'OK' label

Se for um dos itens de menu.

Diagram showing a hand cursor clicking and pointing at a button labeled 'OK', with directional arrows indicating movement.

5 Feche o menu.

PICTURE/AUDIO MOVIE 1 280x 1 0 24/60 Hz EX | MEAL

■ Menu MODE

USER ADJUSTMENT R 128 G 128 B 128 1280 1024 60 Hz x OK EX I Meu

Regular TREBLE, BASS ou BALANCE

3 Execute [Win_Utility.exe].

2 Execute [Mac_Utility.exe].

Lef. Zins B10 → Lef. Zins B10

8 Prima o botão OK.

Surge no ecrã o menu principal.

Two-panel image showing a striped pattern before and after transformation, with no visible text or symbols.

3 Execute [Win_Utility.exe].

2 Execute [Mac_Utility.exe].

INFORMATION CABLE D I S CONNECTED I NPUT#:XXXXX

100–240 V, 50–60 Hz, Máx. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Máx. 1,1 A

Consumo de energia Máx. 50 W (SDM-HX75)

Máx. 60 W (SDM-HX95)

Temperatura de funcionamento

5-35°C

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Two technical line drawings of electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

目录

使用前注意事项 4

识别部件和控制钮 5

安装....7

Line drawing of a Sony monitor with a stand and top panel, no text or symbols present

安装 5: 打开监视器和计算机

1 按监视器前面的 ⏻（电源）开关。

(电源)指示灯以绿色点亮。

呈绿色点亮 SONY

2 打开计算机。

Illustration of hands holding a tablet with arrows indicating rotation (no text or symbols)

Diagram showing finger pressing and clicking a button, with an arrow indicating the process to press or click.

3 选择您想要调整的项目。

Diagram showing finger pressing and clicking a button, with an arrow indicating transformation to 'OK'

若是菜单项目之一。

Diagram showing finger pressing and clicking icons with an 'OK' button, indicating press or navigation control.

5 关闭菜单。

Two-panel image showing a grid of vertical striped patterns on the left and a striped pattern on the right, with no visible text or symbols.

VOLUME 30

2按 ↓/↑按钮控制音量。

5 秒钟后菜单自动消失。

注意

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Obsah

Illustration of a Sony TV stand with a stand and screen, no text or symbols present

Diagram showing hand cursor clicking and clicking a button with an 'OK' button, indicating press or navigation instruction.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button with an 'OK' button, alongside a hand cursor icon pointing to the button.

5 Zavřete nabídku.

PICTURE/AUDIO MOVIE 1 280x 10 24/60 Hz EX | MRL

■ MODE nabídka

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a grid of vertical stripes on the left and a striped pattern on the right, with no visible text or symbols.

INFORMATION CABLE D I S CONNECTED INPUT#:XXXXX

100–240 V, 50–60 Hz, Max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Max. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Tartalomjegyzék

Óvintézkedések 4

Line drawing of a Sony TV stand with a stand and top panel, no text or symbols present

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to it.

5 Lépjen ki a menüböl.

Lip Layer BMP → Lip Layer BMP

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, with no visible text or symbols.

100–240 V, 50–60 Hz, Max. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Max. 1,1 A

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Spis treści

ZERO (BOLEC OCHRONNY)

ZERO FAZA

Line drawing of a Sony monitor with a stand (no text or symbols on the device itself)

Technical diagram showing two views of a device with angular measurements labeled 'ok. 5°' and 'ok. 20°', illustrating the process of rotation or positioning.

Diagram showing hand cursor clicking and pointing at a button labeled 'OK', with directional arrows and arrowhead symbols

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

5 Zamykanie menu.

Low Density High Density

Two-panel image showing a striped pattern on the left and a striped pattern on the right, with no visible text or symbols.

INFORMATION CABLE DIS CONNECTED INPUT#:XXXXX

100–240 V, 50–60 Hz, Maks. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Maks. 1,1 A

Pobór mocy Maks. 50 W (SDM-HX75)

Maks. 60 W (SDM-HX95)

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

Kazalo

Pozor 4

Deli monitorja in elementi za nastavljanje ....5

Nastavitev 7

Nastavitev 1: Priključite video signalne kable ..... 7

Nastavitev 2: Priključite avdio kabel ....8

→ INPUT SENSING ON/OFF meni 17

A LANGUAGE meni 18

Three line drawings of different types of electrical plugs (no text or symbols)

Illustration of a Sony TV stand with a curved screen and stand (no text or symbols on the screen itself)

Nastavitev 5:Vklopite monitor in računalnik

1 Pritisnite ⏻ stikalo napajanja na čelni str monitorja.

ca. 5° ca. 20° ca. 45° ca. 45°

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

3 Izberite meni s katerim želite nastavljati.

Za izbiro elementa, ki ga želite nastavljati, pritisnite gumba ↓/↑ nato pa gumb OK.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand cursor pointing to the button.

5 Z a p r i t e m e n i.

Z enkratnim pritiskom na gumb MENU se vrnite v normalni prikaz. Če gumba ne pritisnete, se meni po cca. 45 s zapre sam.

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

8 Pritisnite gumb OK

Na zaslonu se prikaže glavni meni.

Two-panel image showing a striped pattern before and after transformation, with no visible text or symbols.

→ INPUT SENSING ON/OFF meni

2 Pritiskajte gumba ↓/↑ za nastavitev jakosti zvoka.

Meni po 5 s samodejno izgine.

Opombe

• Ko je na zaslonu prikazan glavni meni, ne morete nastavljati jakosti zvoka.
• Ko je vaš monitor v načinu varčevanja energije, iz zvočnikov in slušalk ne prihaja zvok.

100–240 V, 50–60 Hz, Maks. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Maks. 1,1 A

Porabljena moč Maks. 50 W (SDM-HX75)

Maks. 60 W (SDM-HX95)

Delovna temperatura 5–35 °C

Pribl. 414 × 418,5 × 232 mm

SDM-HX95

Pribl. 466,5 × 468 × 265 mm

Masa SDM-HX75

Pribl. 6,5 kg

SDM-HX95

Pribl. 8,5 kg

Plug & Play DDC2B

Dodatki Glej stran 7.

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-HX75/HX95

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Technical line drawing of two electrical plug connectors (no text or symbols)

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

(SDM-HX75 only)

İçindekiler

Uyarılar 4

Three line drawings of different types of electrical plugs (no text or symbols)

Illustration of a Sony TV stand with a blank screen and stand (no text or symbols on the screen itself)

SONY yeşil yanar

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating direction of movement.

Diagram showing finger pressing and clicking a button labeled 'OK', with arrows indicating movement and a hand pointing to the button.

Diagram showing a hand cursor clicking and pointing at a button labeled 'OK', with directional arrows indicating movement.

5 Menüyü kapatma.

P C T U R E /A U D I O I MOVIE 1 2 8 0 x 1 0 2 4 / 6 0 Hz OK EX I MEL

■ MODE menüsü

GAMMA GAMMA 1 GAMMA 2 GAMMA 3 GAMMA 4 1 2 8 0 1 0 2 4 .6 0 Hz x

Two grayscale images showing vertical striped patterns before and after transformation, with no visible text or symbols.

Dikey frekans:48–75 Hz

MANUFACTURED : 2005-40

Model

ismi

Seri

numarası

Üretim yılı ve

haftasi

100–240 V, 50–60 Hz, Maks. 1,0 A

SDM-HX95

100–240 V, 50–60 Hz, Maks. 1,1 A
