USER MANUAL FW-43BZ35J SONY

Connection Diagram....4

Remote Control and LCD Monitor....7

Settings....8

Pro mode....8

Recommended settings....9

Control functions .....10

RS-232C....10

IP 11

Appendix 13

Extended software 13

Installing the LCD Monitor to the Wall....14

Troubleshooting....15

Specifications 15

About Manuals

This LCD Monitor comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• LCD Monitor installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help

Find more troubleshooting and other useful information directly from your LCD Monitor. Press HELP on the remote control to display a list of topics.

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [System] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the LCD Monitor, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

Location of the identification label

Labels for the LCD Monitor Model No., Production Date (year/month) and Power Supply rating are located on the rear of the LCD Monitor or package.

For models with supplied mains adaptor: Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types FW-100BZ40J, FW-75BZ30J, FW-65BZ30J, FW-55BZ30J, FW-55BZ30J, FW-50BZ35J, FW-50BZ30J, FW-43BZ35J, FW-43BZ30J, FW-32BZ30J are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types FW-100BZ40J, FW-75BZ30J, FW-65BZ30J, FW-55BZ30J1, FW-55BZ30J, FW-50BZ35J, FW-50BZ30J, FW-43BZ35J, FW-43BZ30J, FW-32BZ30J are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo: 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the LCD Monitor in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The LCD Monitor should be installed near an easily accessible mains socket.
• Place the LCD Monitor on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the LCD Monitor where it cannot be pulled, pushed, or knocked over.

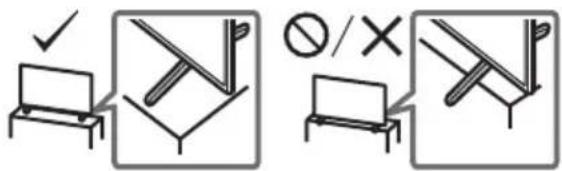

- Install the LCD Monitor so that the LCD Monitor's Table-Top Stand does not protrude out from the LCD Monitor stand (not supplied). If the Table-Top Stand protrudes out from the LCD Monitor stand, it may cause LCD Monitor set to topple over, fall down, and cause personal injury or damage to the LCD Monitor.

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Transporting

• Before transporting the LCD Monitor, disconnect all cables.
• Two or more people (four or more people for FW-100BZ40J) are needed to transport a large LCD Monitor.

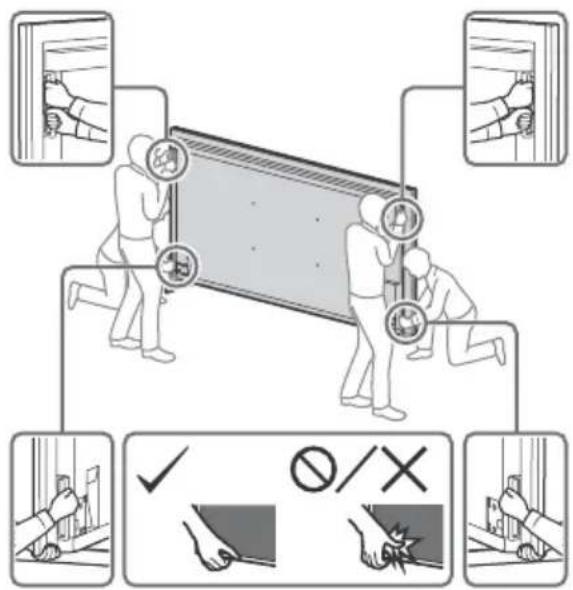

• When transporting the LCD Monitor by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the LCD Monitor, hold it firmly from the bottom.

FW-100BZ40J

Diagram illustrating a procedure involving hand movement and safety check symbols, with labeled instructions for handling or clearing objects.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

• When transporting the LCD Monitor, do not subject it to jolts or excessive vibration.
• When transporting the LCD Monitor for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

FW-100BZ40J

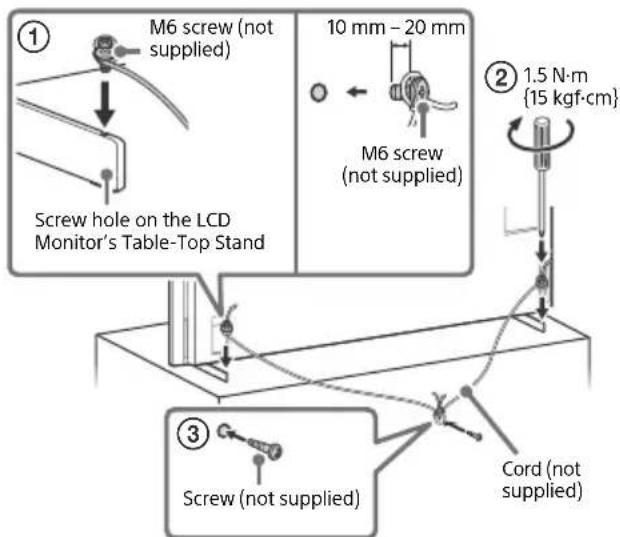

M6 screw (not supplied) 10 mm - 20 mm M6 screw (not supplied) Screw hole on the LCD Monitor's Table-Top Stand 1.5 N·m {15 kgf·cm} Screw (not supplied) Cord (not supplied)

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J

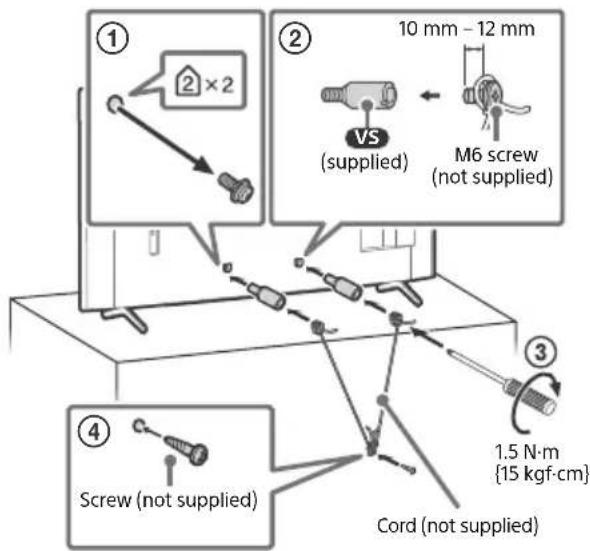

① ② ×2 10 mm - 12 mm VS (supplied) M6 screw (not supplied) ③ 1.5 N·m {15 kgf·cm} Screw (not supplied) Cord (not supplied) ④

FW-32BZ30J

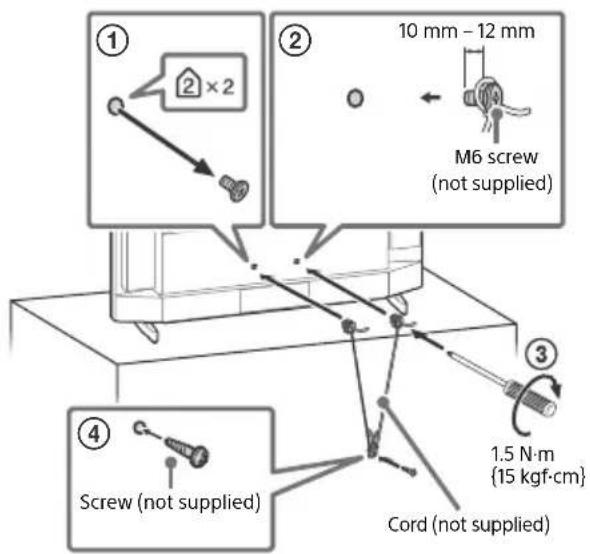

① ② ×2 10 mm - 12 mm M6 screw (not supplied) ③ Screw (not supplied) ④ 1.5 N·m {15 kgf·cm} Cord (not supplied)

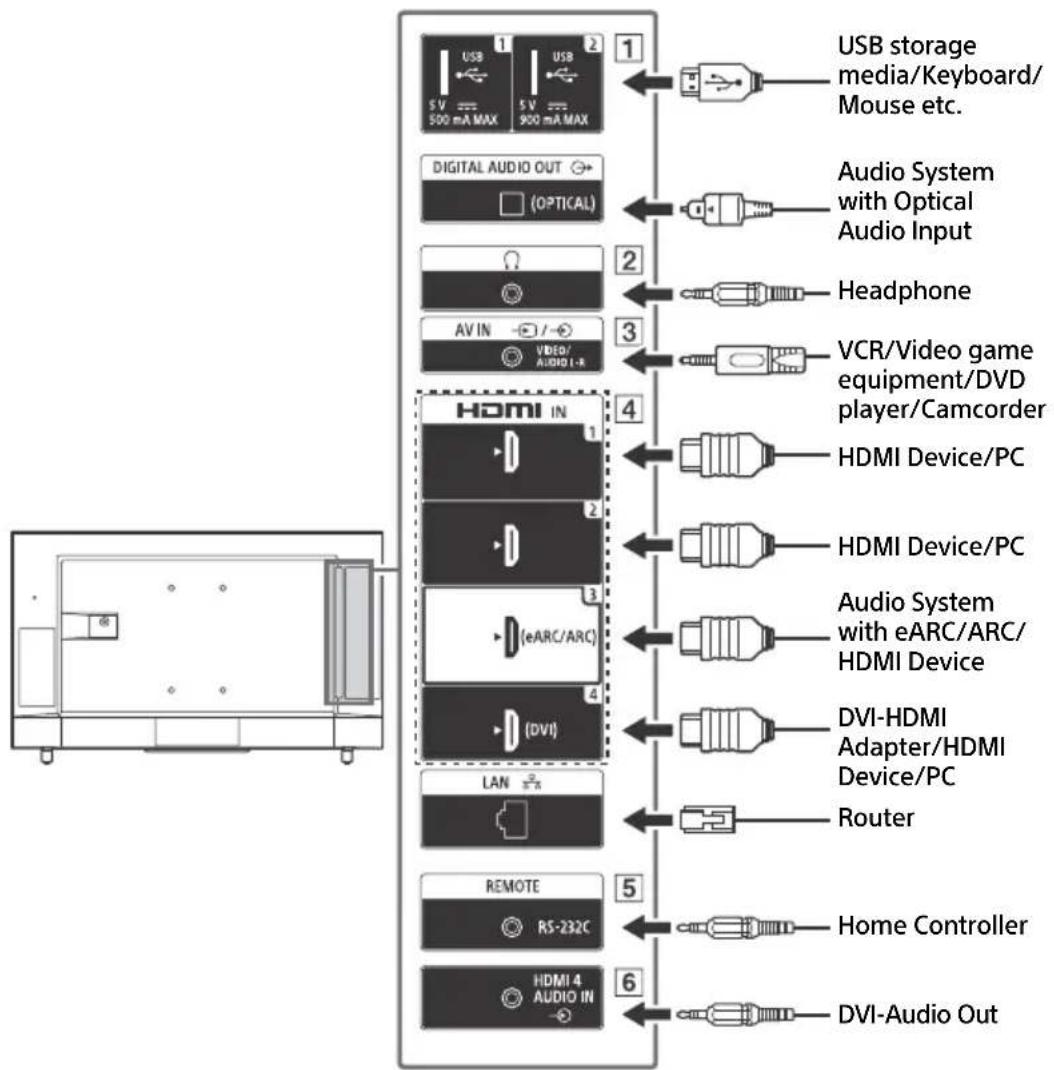

Connection Diagram

Note

- Terminals and labels may vary depending on region/country/LCD Monitor model.

FW-100BZ40J / 50BZ35J / 43BZ35J

USB

USB

2

- Connecting a large USB device may interfere with other connected devices beside it.

2 Ⓝ (Headphone)

• Supports 3-pole stereo mini jack only.
- You cannot output sound from both the headphone and the LCD Monitor speakers at the same time.

3 A V I N

- For a composite connection, use an Analogue Extension Cable (not supplied).

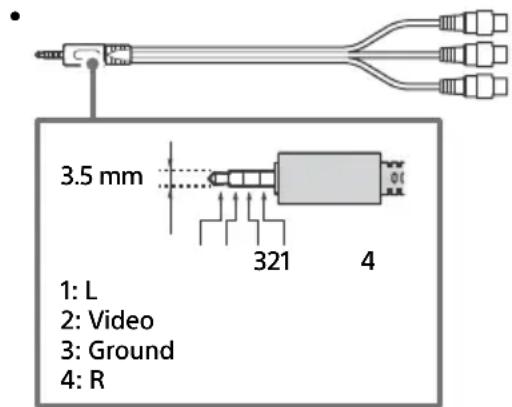

3.5 mm 1: L 2: Video 3: Ground 4: R

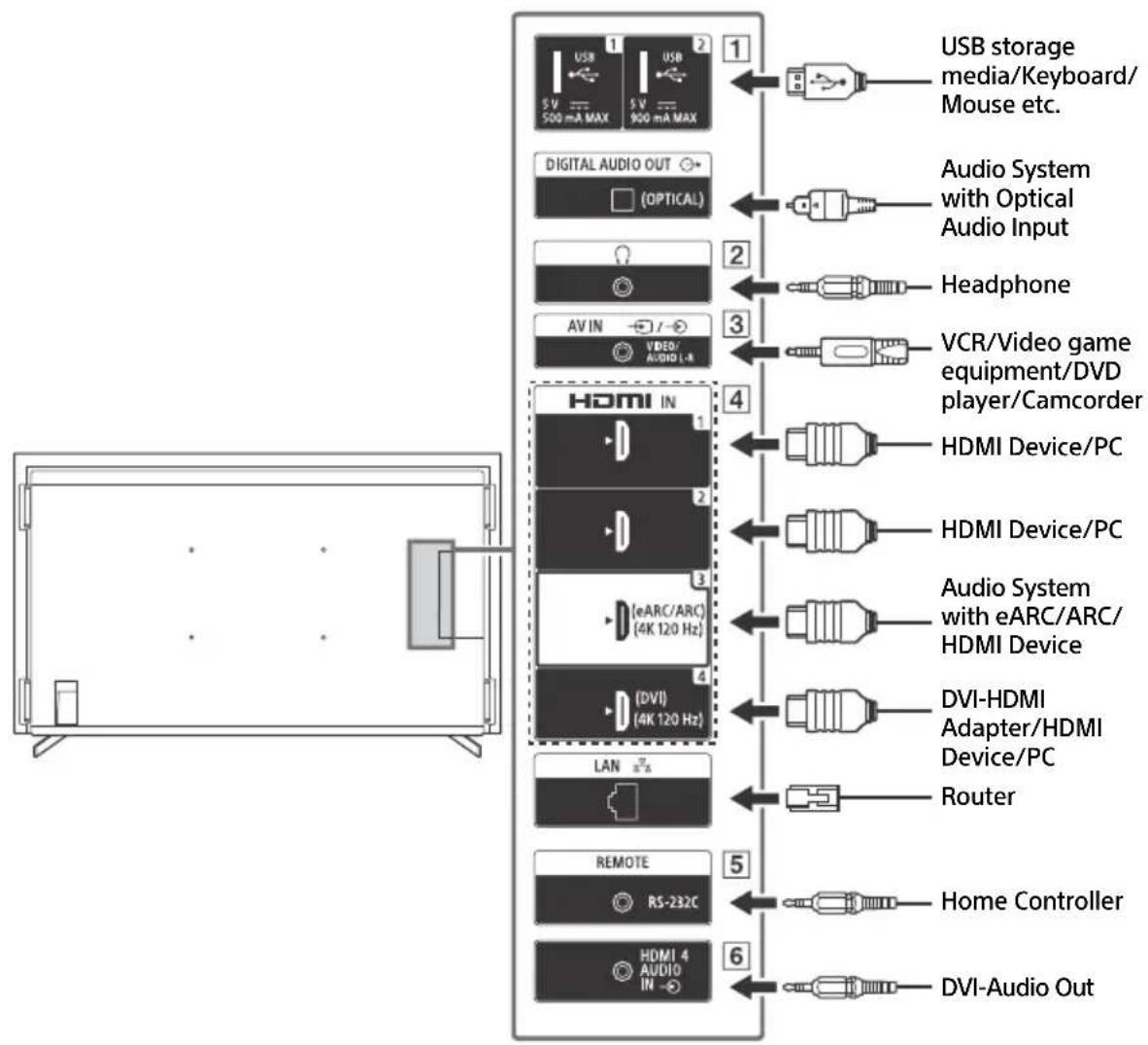

4 HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.
• If the device has a DVI jack, connect it to HDMI IN 4 through a DVI - HDMI adaptor interface (not supplied), and connect the device's audio out jack to HDMI 4 AUDIO IN.

< 12 mm < 21 mm

• HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) Connect your audio system to the HDMI IN 3 to route LCD Monitor audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the LCD Monitor, and receive audio from the LCD Monitor via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
• Use the HDMI cable with Ethernet to connect audio system with eARC.

5 REMOTE RS-232C

- Terminal for serial communication. For details, see "Control functions".

6 HDMI 4 AUDIO IN

- If the device has a DVI jack, connect it to HDMI IN 4 through a DVI - HDMI adaptor interface (not supplied), and connect the device's audio out jack to HDMI 4 AUDIO IN.

Remote Control and LCD Monitor

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/LCD Monitor model/LCD Monitor settings.

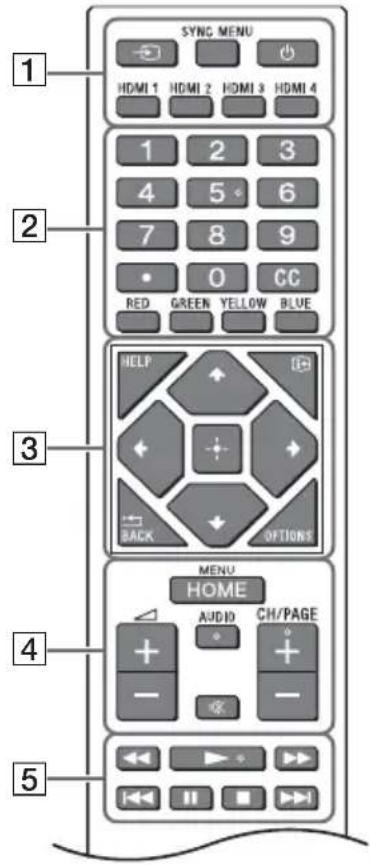

SYNC MENU HDMI 1 HDMI 2 HDMI 3 HDMI 4 1 2 3 4 5 6 7 8 9 0 CC RED GREEN YELLOW BLUE HELP BACK OPTIONS MENU HOME AUDIO CH/PAGE + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1 (Input select): Display and select the input source, etc.

SYNC MENU: Display the BRAVIA Sync Menu.

(Power)

HDMI 1/2/3/4

2 Number buttons

(dot)

CC

Colour buttons

3 HELP: Display the Help menu.

i+ (Screen display): Display information.

/BACK

OPTIONS: Displays a list of functions that can be used at that time.

////+ (Navigation D-Pad): On screen menu navigation and selection.

4 HOME/MENU

△ +/- (Volume)

AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

※ (Mute)^*

CH/PAGE +/-

5

6 ⏻ (Power)

7 Remote Control sensor / Light sensor / LED

* Accessibility shortcut is available by pressing and holding ☐ (Mute).

Settings

Pro mode

In [Pro mode], you can use various convenient functions for professional use. Here, we introduce how to change to [Pro mode] and typical functions of [Pro mode].

Pro mode

Normal mode: This is the default mode. [Pro mode] functions are not available in this mode.

Pro settings mode: This mode allows you to set various settings of [Pro mode] functions.

Pro mode: This is the operation mode for professional use where you can use the [Pro mode] functions.

How to change the mode

When the Monitor is in Normal mode and Pro settings mode

- Go to [Home (Menu)] [Apps] [Pro mode tool], then select the mode you want to change.

When the Monitor is in the Pro mode

- Press the activation keys described below on the remote control in order within a one second interval.

After restarting the Monitor, the mode changes to [Pro settings mode].

Activation key: i+ (Screen display) / ☐ (Mute) / △ +/- (Volume +) / HOME/MENU

*Initially you cannot change the mode from [Pro mode tool] in [Pro mode]. If you want to change the mode from [Pro mode tool], go to [Pro settings] → [Function restrictions] → [Apps] and change [Pro mode tool] to [Enable] in [Pro settings mode].

Introduction of the Pro mode functions

In [Pro mode], you can use various convenient functions. Typical [Pro mode] functions are introduced below.

— Setting Monitor operation when turning the AC power on

You can set the operation of the Monitor when unplugging and reinserting the AC power plug.

— Optimized display of the PC input screen

The screen displays the PC input screen with optimum size according to the PC format.

— Power supply control and automatic input switching by HDMI signal detection

If you turn on the Monitor when the HDMI device is connected, you can change to the connected HDMI input automatically.

- Settings of the displaying menu when pressing the HOME/MENU button

You can select the menu displayed when pressing the HOME/MENU button on the remote control.

— Initial input source designation when starting the Monitor

You can designate the initial input source when starting the Monitor.

- Pro mode lock

You can protect the settings of [Pro mode] by using a PIN.

– Initial/maximum volume setting

You can set the initial and maximum volume of the Monitor.

— Restriction of the Monitor operation on the remote control

You can restrict the Monitor operation using the remote control.

— Restriction of external inputs

You can restrict the use of external inputs.

— Restriction of using applications

You can restrict the use of Monitor applications.

How to set Pro mode functions

Go to [Home (Menu)] → [Settings] → [Pro settings] when the Monitor is in [Pro settings mode].*

*Varies depending on the version of the OS.

Recommended settings

This section introduces recommended settings when using the Monitor for professional use.

Setting ECO features

1 Go to [Settings] → [System] → [Power and energy].

- Set [Idle TV power off] to [Off].

Setting IP features

2 Go to [Settings] → [Network & Internet] → [Home network setup] → [IP control].

• Set [Authentication] to [Normal and Pre-Shared Key].
• Set [Simple IP control] to [On].

Automatic Software Download

3 Go to [Settings] → [System] → [About] → [System software update].

- Set [Automatically check for update] to [Off].

Picture settings

4 Go to [Settings] → [Display & Sound] → [Picture].

• Set [Light sensor] to [Off].
• Select [Picture mode] according to usage.

[Vivid]: When using the digital signage display

[Custom]: When displaying the original image as is

[Graphics]: When displaying the PC screen

Control functions

RS-232C

You can control the Monitor from an external service via RS-232C. The RS-232C connection is briefly explained in this page.

Interface

Establish the RS-232C connection to the Monitor by using a 3.5 mm stereo mini plug.

TIP: Monitor → Controller RING: Controller → Monitor

Connection settings

When establishing the RS-232C connection, make connection settings as below.

Baud rate 9600 bps

Data 8 bit

Parity None

Start bit 1 bit

Stop bit 1 bit

Flow control None

Data format

We introduce the data format for the RS-232C communication below.

(a) Requests from the controller to the Monitor

No. Item Value
1	H	e	a	d	e	r	0
2	Category		0x00	(fixed)
3	Function		0xXX
4	Length		0xXX	(=Data X+1 byte)
5	Data 1		0xXX
:	:		0xXX
:	:		0xXX
X+4	Data X		0xXX
X+5 Check Sum		0xXX

(b) Responses from the Monitor to the controller

No. Item Value
1	H	e	a	d	e	r	0
2 Answer 0x00 Completed (Normal End)
			0x01 : Limit Over(Abnormal End-Exceed maximum value)
			0x02 : Limit Over(Abnormal End-Exceed minimum value)
			0x03 : Command Canceled (Abnormal end)
			0x04 : Parse Error (Data Format Error)
3	C	h	e	c	k	S	u	m

Command example

Examples of RS-232C communication command are explained below.

Control	Head	Category	Function	Length	Data 1	Data X	Checksum
Power on/off	0x8C	0x00	0x00	0x02	0x00 (off)	-	0x8E
					0x01 (on)	-	0x8F
HDMI input selection	0x8C	0x00	0x02	0x03	0x04 (HDMI)	0x01 (#1)	0x96
						0x02 (#2)	0x97
						0x03 (#3)	0x98
						0x04 (#4)	0x99

For more details on RS-232C, please contact your sales representative.

IP

You can control the Monitor via IP from an HTML5/Android application on the Monitor or on the external device. You can manage and monitor information of input/power, start and terminate applications, control the display such as input source and volume. You can also restrict commands by the authentication function.

Supported IP protocol

Protocol name	Layer	Format	Authentication	Explanation
REST API	HTTP	JSON-RPC	Yes	The APIs whose purpose is device control.
IRCC-IP	HTTP	SOAP	Yes	Infrared Compatible Control over Internet Protocol.The technology and formats to transmit remote control commands via the Internet.
Simple IP control	TCP	Byte stream	N/A	Only typical functions are supported.

Monitor settings

When using [IP control], set the Monitor as follows first.

Go to [Settings] → [Network & Internet] → [Home network setup] → [IP control].

For REST API and IRCC-IP,

• Select [Authentication].
• Set [Pre-Shared Key] if needed.
  For Simple IP control,
• Enable [Simple IP control].

Example of HTTP request and response for REST API

Here is the example of a request and response to acquire the power status to the Monitor (IP address: 192.168.0.1 Pre-shared Key "1234").

URL

http://192.168.0.1/sony/system

Request

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Response

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

For more details on [IP control], please contact your sales representative.

Appendix

Extended software

You can use the Monitor more conveniently by using extended software. This page introduces an example of extended software.

For more details, please contact your sales representative.

Software for office Monitors

Provides convenient functions for using the Monitor as an office Monitor connected to a PC in a conference room or the like.

Function examples:

• Power management/Power supply monitoring functions.
• White board function.
• Presentation timer.
• You can change inputs or turn the power on/off without the remote control.

Software for digital signage

When using the Monitor as a digital signage display, the software provides convenient functions. Function examples:

• Digital signage distribution management function to multiple Monitors via the network.
• Easy signage playback function with USB memory.
• Contents and playlist management function.
• Flexible delivery schedule setting by time and day of the week.

Installing the LCD Monitor to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your LCD Monitor model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Monitor, especially to determine the strength of the wall for withstanding the LCD Monitor's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL850 —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the LCD Monitor. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the LCD Monitor or cause it to fall, etc.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J

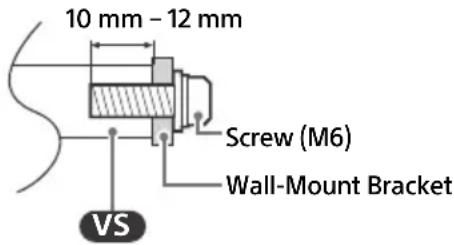

10 mm - 12 mm Screw (M6) Wall-Mount Bracket VS

FW-32BZ30J

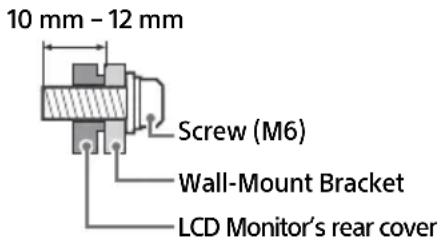

10 mm - 12 mm Screw (M6) Wall-Mount Bracket LCD Monitor's rear cover

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
  * Only for limited region/country/model.

Using the optional Wall-Mount Bracket (Except SU-WL850 or SU-WL450) (not supplied)

This LCD Monitor's instruction manual only provides the steps to prepare the LCD Monitor for Wall-Mount installation before it is installed on the wall.

Your LCD Monitor can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the LCD Monitor, the LCD Monitor may require detaching the Table-Top Stand.

Prepare the LCD Monitor for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Monitor, especially to determine the strength of the wall for withstanding the LCD Monitor's weight.
• The screws for installing the Wall-Mount Bracket to the LCD Monitor are not supplied.

- The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please refer to below illustration.

FW-100BZ40J

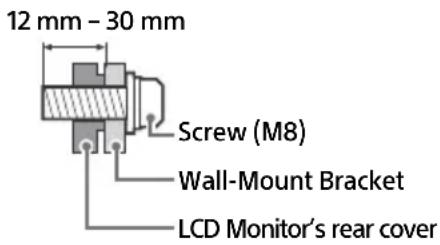

12 mm - 30 mm Screw (M8) Wall-Mount Bracket LCD Monitor's rear cover

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J

10 mm - 12 mm Screw (M6) Wall-Mount Bracket VS

FW-32BZ30J

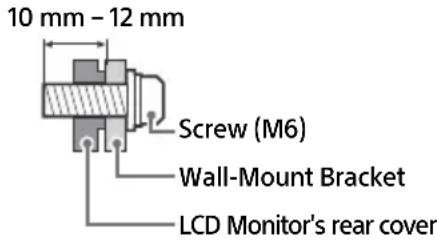

10 mm - 12 mm Screw (M6) Wall-Mount Bracket LCD Monitor's rear cover

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, LCD Monitor does not respond, or network is lost, do the following steps.

1 Restart your LCD Monitor by pressing the power button on the remote control for about five seconds. The LCD Monitor will restart. If the LCD Monitor does not recover, try unplugging the mains lead then press the power button on the LCD Monitor and release it. Wait for two minutes, and plug in the mains lead.

Or, press the power button on the LCD Monitor for about 40 seconds until the LCD Monitor turns off.

2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your LCD Monitor to the Internet and perform a software update. Sony recommends you to keep your LCD Monitor software updated. Software updates provide new features and performance improvements.

When you plug in the LCD Monitor, the LCD Monitor may not be able to turn on for a while even if you press the power button on the remote control or the LCD Monitor.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

Sound output:

FW-32BZ30J: 5 W + 5 W

FW-100BZ40J / 75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J /

43BZ30J: 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency range Output power
Wireless LAN (LCD Monitor)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(LCD Monitor)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

→/→ AVIN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video (FW-100BZ40J / 50BZ35J / 43BZ35J)

only):

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats

3840 × 2160p (100, 120 Hz)*2*3

Video (FW-75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J only):

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC Formats

Audio:

In eARC (Enhanced Audio Return Channel) mode

7.1 channel linear PCM: 32/44.1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

DTS, Dolby TrueHD, DTS-HD MA, Dolby

Atmos, DTS:X Master Audio

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*4

In eARC mode

7.1 channel linear PCM: 32/44.1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus, DTS,

Dolby TrueHD, DTS-HD MA, Dolby Atmos,

DTS:X Master Audio

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

HDMI 4 AUDIO IN

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.1

Gen 1)

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

- ⊕ + 19.5 V (FW-32BZ30J only)

Mains adaptor input

REMOTE

RS-232C, mini jack

This jack is for receiving the external control signal.

Power, Product Fiche and others

Power requirements

Except models with supplied mains adaptor

220 V - 240 V AC, 50 Hz

Models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class ^4

FW-100BZ40J: A+

FW-75BZ30J: A

FW-65BZ30J: A

FW-55BZ30J: B

FW-50BZ35J: A

FW-50BZ30J: B

FW-43BZ35J: B

FW-43BZ30J: A

FW-32BZ30J: B

Screen size (measured diagonally) (Approx.)

FW-100BZ40J: 252.8 cm / 100 inches

FW-75BZ30J: 189.3 cm / 75 inches

FW-65BZ30J: 163.9 cm / 65 inches

FW-55BZ30J1: 138.8 cm / 55 inches

FW-55BZ30J: 138.8 cm / 55 inches

FW-50BZ35J: 125.7 cm / 50 inches

FW-50BZ30J: 125.7 cm / 50 inches

FW-43BZ35J: 108.0 cm / 43 inches

FW-43BZ30J: 108.0 cm / 43 inches

FW-32BZ30J: 80.1 cm / 32 inches

Power consumption ^4

In [Standard] mode

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

Annual energy consumption ^5*6

FW-100BZ40J: 298 kWh per year

FW-75BZ30J: 259 kWh per year

FW-65BZ30J: 201 kWh per year

FW-55BZ30J: 171 kWh per year

FW-50BZ35J: 132 kWh per year

FW-50BZ30J: 135 kWh per year

FW-43BZ35J: 105 kWh per year

FW-43BZ30J: 89 kWh per year

FW-32BZ30J: 75 kWh per year

Standby power consumption ^578

FW-100BZ40J / 75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J /

43BZ30J: 0.50 W (25 W in software/EPG

update mode)

FW-32BZ30J: 0.50 W (10 W in software/EPG

update mode)

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output Rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

FW-100BZ40J: 226.0 × 134.6 × 47.5

FW-75BZ30J: 168.6 × 104.5 × 41.0

FW-65BZ30J: 146.2 × 91.2 × 33.8

FW-55BZ30J1: 124.3 × 78.7 × 33.8

FW-55BZ30J: 124.3 × 78.7 × 33.8

FW-50BZ35J: 111.9 × 71.5 × 28.6

FW-50BZ30J: 112.6 × 71.8 × 28.6

FW-43BZ35J: 96.4 × 62.8 × 28.6

FW-43BZ30J: 97.2 × 63.2 × 28.6

FW-32BZ30J: 72.6 × 45.4 × 17.2

Narrow position:

FW-75BZ30J: 168.6 × 104.5 × 41.0

FW-65BZ30J: 146.2 × 91.2 × 33.8

FW-55BZ30J1: 124.3 × 78.7 × 33.8

FW-55BZ30J: 124.3 × 78.7 × 33.8

without Table-Top Stand

FW-100BZ40J: 226.0 × 129.7 × 9.8

FW-75BZ30J: 168.6 × 96.9 × 7.2

FW-65BZ30J: 146.2 × 84.2 × 7.1

FW-55BZ30J1: 124.3 × 72.1 × 7.1

FW-55BZ30J: 124.3 × 71.9 × 7.1

FW-50BZ35J: 111.9 × 64.9 × 7.0

FW-50BZ30J: 112.6 × 65.3 × 7.0

FW-43BZ35J: 96.4 × 56.3 × 6.9

FW-43BZ30J: 97.2 × 56.7 × 7.0

FW-32BZ30J: 72.6 × 43.0 × 7.6

Stand width (Approx.) (cm)

Standard position:

FW-100BZ40J: 190.1

FW-75BZ30J: 133.0

FW-65BZ30J: 113.0

FW-55BZ30J1 / 55BZ30J: 98.3

FW-50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J:

66.5

FW-32BZ30J: 60.6

Narrow position:

FW-75BZ30J: 55.9

FW-65BZ30J: 47.8

FW-55BZ30J1 / 55BZ30J: 45.8

Mass (Approx.) (kg)

with Table-Top Stand

FW-100BZ40J: 92.6

FW-75BZ30J: 32.9

FW-65BZ30J: 22.5

FW-55BZ30J1 / 55BZ30J: 16.6

FW-50BZ35J: 13.3

FW-50BZ30J: 12.9

FW-43BZ35J: 10.7

FW-43BZ30J: 10.5

FW-32BZ30J: 7.7

without Table-Top Stand

FW-100BZ40J: 88.9

FW-75BZ30J: 31.6

FW-65BZ30J: 21.6

FW-55BZ30J1 / 55BZ30J: 15.7

FW-50BZ35J: 12.7

FW-50BZ30J: 12.3

FW-43BZ35J: 10.2

FW-43BZ30J: 10

FW-32BZ30J: 7.5

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 (FW-75BZ30J /

65BZ30J / 55BZ30J1 / 55BZ30J only)

Wall-Mount Bracket: SU-WL450 (Except

FW-100BZ40J)

Camera and Microphone Unit: FWA-CE100

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH (non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].
*2 Refer to the on screen menu to set [HDMI signal format].
*3 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.
*4 Connect your audio system to the HDMI IN 3 to route LCD Monitor audio to your audio system.
*5 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.
*6 Energy consumption in kWh per year, based on the power consumption of the LCD Monitor operating 4 hours per day for 365 days. The actual energy consumption will depend on how the LCD Monitor is used.
*7 Specified standby power is reached after the LCD Monitor finishes necessary internal processes.
*8 Standby power consumption will increase when your LCD Monitor is connected to the network.

Note

• Optional accessories availability depends on countries/region/LCD Monitor model/stock.
• Design and specifications are subject to change without notice.
• Some of the on-screen instructions may not apply to your LCD Monitor model.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.
• Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.
• Google and Android are trademarks of Google LLC.
• Wi-Fi ^ , Wi-Fi Alliance ^ and Wi-Fi Direct ^ are registered trademarks of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.
• All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

FW-100BZ40J (495597), FW-75BZ30J (527375), FW-65BZ30J (527373), FW-55BZ30J1 (1218503), FW-55BZ30J (527370), FW-50BZ35J (526764), FW-50BZ30J (527368), FW-43BZ35J (526771), FW-43BZ30J (527366), FW-32BZ30J (527365), FW-32BZ30J/1* (1278992).

* Model identifier followed by "/1" provide a new product registration number in the EPREL database in accordance with Tier 2 requirements enforced from March 2023. Please refer to the energy label included in this product to confirm which model identifier corresponds to your unit.

Table des matières

AVIS IMPORTANT....2

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Transport

Diagram illustrating a procedure involving hand positioning and safety check, with labeled icons for correct/incorrect handling.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two human silhouettes holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Requête

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Réponse

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC

3840 × 2160p (100, 120 Hz)*2*3

Vidéo (FW-75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J

uniquement) :

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formats PC

Audio :

En mode eARC (Enhanced Audio Return Channel)

PCM linéaire 7,1 canaux : 32/44,1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

Sauf mode eARC

PCM linéaire 5,1 canaux : 32/44,1/48/88,2/96/176,4/192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (HDMI IN 3

uniquement)*4

En mode eARC

PCM linéaire 7,1 canaux : 32/44,1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

En mode ARC

→ DIGITAL AUDIO OUT (OPTICAL)

FW-75BZ30J:168,6×104,5×41,0

FW-65BZ30J:146,2×91,2×33,8

FW-55BZ30J1:124,3×78,7×33,8

FW-55BZ30J:124,3×78,7×33,8

FW-50BZ35J:111,9×71,5×28,6

FW-50BZ30J:112,6×71,8×28,6

FW-43BZ35J:96,4×62,8×28,6

FW-43BZ30J:97,2×63,2×28,6

FW-65BZ30J:146,2×84,2×7,1

FW-55BZ30J1:124,3×72,1×7,1

FW-50BZ35J:111,9×64,9×7,0

FW-50BZ30J:112,6×65,3×7,0

FW-43BZ35J:96,4×56,3×6,9

FW-43BZ30J:97,2×56,7×7,0

FW-32BZ30J:72,6×43,0×7,6

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Transporte

Diagram illustrating a procedure involving hand positioning and safety check symbols, with labeled instructions for handling or clearing objects.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two people holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Solicitud

POST /sony/system HTTP/1.1

Host: 192.168.0.1

Content-Type: application/json; charset=UTF-8

Content-Length: 70

X-Auth-PSK: 1234

{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Respuesta

HTTP/1.1 200 OK

Content-Type: application/json; charset=UTF-8

Content-Length: 44

{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC

3840 × 2160p (100, 120 Hz)*2*3

Vídeo (solo FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formatos de PC

Audio:

En el modo eARC (Enhanced Audio Return Channel)

PCM lineal de 7,1 canales: 32/44,1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (solo HDMI IN 3)*4

En el modo eARC

PCM lineal de 7,1 canales: 32/44,1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

En el modo ARC

PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)

HDMI 4 AUDIO IN

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

- Google y Android son marcas comerciales de Google LLC.

- Wi-Fi®, Wi-Fi Alliance® y Wi-Fi Direct® son marcas registradas de Wi-Fi Alliance.

Specifications....16

Over handleidingen

Diagram illustrating three different viewing or viewing methods with checkmark and prohibition symbols

Transport

Diagram illustrating a procedure involving hand positioning and handling of items, with Chinese annotations indicating correct/incorrect actions.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

RING: Controller → Monitor

Verbindingsinstellingen

http://192.168.0.1/sony/system

Verzoek

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Antwoord

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Draadloze technologie

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth ^® versie 4.2

Frequentiebereik Uitgangsvermogen
Draadloos LAN (LCD-monitor)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(LCD-monitor)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten

3840 × 2160p (100, 120 Hz)*2*3

Video (alleen FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Pc-formaten

Audio:

In eARC (Enhanced Audio Return

Channel)-modus

7,1-kanaals lineaire PCM: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

DTS, Dolby TrueHD, DTS-HD MA, Dolby

Atmos, DTS:X Master Audio

Behalve eARC-modus

5,1-kanaals lineaire PCM: 32/44,1/48/88,2/

96/176,4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (alleen HDMI IN 3)*4

In eARC-modus

7,1-kanaals lineaire PCM: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

In ARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 inch

FW-43BZ30J: 108,0 cm / 43 inch

FW-32BZ30J: 80,1 cm / 32 inch

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

Standaardpositie:

FW-100BZ40J: 226,0 × 134,6 × 47,5

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

FW-50BZ35J: 111,9 × 71,5 × 28,6

FW-50BZ30J: 112,6 × 71,8 × 28,6

FW-43BZ35J: 96,4 × 62,8 × 28,6

FW-43BZ30J: 97,2 × 63,2 × 28,6

FW-32BZ30J: 72,6 × 45,4 × 17,2

Smalle positie:

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

Diagram illustrating three different viewing or viewing methods: check, no/×, and checkmark.

Transport

Diagram illustrating a procedure involving hand positioning and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Anforderung

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Antwort

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Wireless-Technologie

Protokoll IEEE 802.11a/b/g/n/ac

Bluetooth ^® Version 4.2

Frequenzbereich Ausgangsleistung
WLAN (LCD-Monitor)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(LCD-Monitor)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate

3840 × 2160p (100, 120 Hz)*2*3

Video (nur FW-75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p,

Computerformate

Audio:

Im eARC (Enhanced Audio Return

Channel)-Modus

7,1-Kanal linear PCM: 32/44,1/48 kHz 16 Bit,

Dolby Digital, Dolby Digital Plus, DTS,

Dolby TrueHD, DTS-HD MA, Dolby Atmos,

DTS:X Master Audio

Außer eARC-Modus

5,1-Kanal linear PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 Bit, Dolby Audio,

Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*4

Im eARC-Modus

7,1-Kanal linear PCM: 32/44,1/48 kHz 16 Bit,

Dolby Digital, Dolby Digital Plus, DTS, Dolby

TrueHD, DTS-HD MA, Dolby Atmos, DTS:X

Master Audio

Im ARC-Modus

→ DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.1 Gen 1)

LAN

FW-43BZ35J: 108,0 cm / 43 Zoll

FW-43BZ30J: 108,0 cm / 43 Zoll

FW-32BZ30J: 80,1 cm / 32 Zoll

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

https://compliance.sony.eu

Diagram illustrating three different types of furniture or fixtures with check, no/× symbols indicating selection or rejection.

Transporte

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Pedido

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Resposta

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

43BZ30J: 10 W + 10 W

Tecnologia sem fios

Protocolo IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC

3840 × 2160p (100, 120 Hz)*2*3

Vídeo (Apenas nos modelos FW-75BZ30J /

65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ30J /

43BZ30J / 32BZ30J):

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formatos PC

Áudio:

No modo eARC (Enhanced Audio Return Channel)

PCM linear do canal 7,1: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

DTS, Dolby TrueHD, DTS-HD MA, Dolby

Atmos, DTS:X Master Audio

Exceto no modo eARC

PCM linear do canal 5,1: 32/44,1/48/88,2/

96/176,4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3)*4

No modo eARC

PCM linear do canal 7,1: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus, DTS,

Dolby TrueHD, DTS-HD MA, Dolby Atmos,

DTS:X Master Audio

No modo ARC

PCM linear de dois canais: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

HDMI 4 AUDIO IN

Entrada de áudio analógica (mini-tomada estéreo)

FW-43BZ35J: 108,0 cm / 43 polegadas

FW-43BZ30J: 108,0 cm / 43 polegadas

FW-32BZ30J: 80,1 cm / 32 polegadas

Consumo de energia ^5

No modo [Standard]

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Trasporto

Illustration showing a person carrying a large screen with circular buttons, surrounded by four hand gestures and a checkmark indicating no change.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Richiesta

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Risposta

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Tecnologia wireless

Protocollo IEEE 802.11a/b/g/n/ac

Bluetooth® Versione 4.2

Gamma di frequenza P	Potenza in uscita
LAN wireless (Monitor LCD)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth® (Monitor LCD)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formati PC

3840 × 2160p (100, 120 Hz)*2*3

Video (solo FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formati PC

Audio:

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (solo HDMI IN 3)*4

In modalità eARC

PCM lineare 7,1 canali: 32/44,1/48 kHz 16 bit, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X

Master Audio

In modalità ARC

PCM lineare due canali: 48 kHz 16 bit, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 pollici

FW-43BZ30J: 108,0 cm / 43 pollici

FW-32BZ30J: 80,1 cm / 32 pollici

Diagram illustrating three different types of furniture or fixtures with check, no/× symbols indicating selection or tolerance.

Transport

Diagram illustrating a procedure involving hand movement and safety check symbols, with labeled instructions for handling or clearing objects.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Begäran

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Svar

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

43BZ30J: 10 W + 10 W

Trådlös teknik

Protokoll IEEE 802.11a/b/g/n/ac

Bluetooth ^® version 4.2

Frekvensområde Utgångseffekt
Trådlöst LAN (LCD-bildskärm)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(LCD-bildskärm)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format

3840 × 2160p (100, 120 Hz)*2*3

Video (Endast FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-format

Ljud:

I eARC (Enhanced Audio Return

Channel)-läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*4

I eARC-läge

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 tum

FW-43BZ30J: 108,0 cm / 43 tum

FW-32BZ30J: 80,1 cm / 32 tum

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Transport

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Anmodning

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Svar

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Trådløs teknologi

Protokol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frekvensområde Udgangseffekt
Trådløst LAN (LCD-skærm)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(LCD-skærm)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater

3840 × 2160p (100, 120 Hz)* ^2*3

Video (kun FW-75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Pc-formater

Lyd:

I eARC (Enhanced Audio Return

Channel)-tilstand

7,1-kanals lineær PCM: 32/44,1/48 kHz

16 bit, Dolby Digital, Dolby Digital Plus,

DTS, Dolby TrueHD, DTS-HD MA, Dolby

Atmos, DTS:X Master Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*4

I eARC-tilstand

7,1-kanals lineær PCM: 32/44,1/48 kHz 16 bit,

Dolby Digital, Dolby Digital Plus, DTS, Dolby

TrueHD, DTS-HD MA, Dolby Atmos, DTS:X

Master Audio

I ARC-tilstand

To-kanals lineær PCM: 48 kHz 16 bit, Dolby

Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

HDMI 4 AUDIO IN

Analog lydindgang (Stereo-minijack)

(Stereo-minijack)

Hovedtelefoner

1, 2

FW-43BZ35J: 108,0 cm / 43 tommer

FW-43BZ30J: 108,0 cm / 43 tommer

FW-32BZ30J: 80,1 cm / 32 tommer

Strømforbrug ^5

I [Standard] tilstand

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

500 mA (for USB 1), 900 mA (for USB 2)

Mål (Ca.) (b × h × d) (cm)

Inkl. LCD-skærmfod

Standardposition:

FW-100BZ40J: 226,0 × 134,6 × 47,5

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

FW-50BZ35J: 111,9 × 71,5 × 28,6

FW-50BZ30J: 112,6 × 71,8 × 28,6

FW-43BZ35J: 96,4 × 62,8 × 28,6

FW-43BZ30J: 97,2 × 63,2 × 28,6

FW-32BZ30J: 72,6 × 45,4 × 17,2

Smal position:

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

Uden LCD-skærmfod

FW-100BZ40J: 226,0 × 129,7 × 9,8

FW-75BZ30J: 168,6 × 96,9 × 7,2

FW-65BZ30J: 146,2 × 84,2 × 7,1

FW-55BZ30J1: 124,3 × 72,1 × 7,1

FW-55BZ30J: 124,3 × 71,9 × 7,1

FW-50BZ35J: 111,9 × 64,9 × 7,0

FW-50BZ30J: 112,6 × 65,3 × 7,0

FW-43BZ35J: 96,4 × 56,3 × 6,9

FW-43BZ30J: 97,2 × 56,7 × 7,0

FW-32BZ30J: 72,6 × 43,0 × 7,6

Stativets bredde (Ca.) (cm)

Standardposition:

FW-100BZ40J: 190,1

FW-75BZ30J: 133,0

FW-65BZ30J: 113,0

FW-55BZ30J1 / 55BZ30J: 98,3

FW-50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J:

66,5

FW-32BZ30J: 60,6

Smal position:

FW-75BZ30J: 55,9

FW-65BZ30J: 47,8

FW-55BZ30J1 / 55BZ30J: 45,8

Vægt (Ca.) (kg)

Inkl. LCD-skærmfod

FW-100BZ40J: 92,6

FW-75BZ30J: 32,9

FW-65BZ30J: 22,5

FW-55BZ30J1 / 55BZ30J: 16,6

FW-50BZ35J: 13,3

FW-50BZ30J: 12,9

FW-43BZ35J: 10,7

FW-43BZ30J: 10,5

FW-32BZ30J: 7,7

Uden LCD-skærmfod

FW-100BZ40J: 88,9

FW-75BZ30J: 31,6

FW-65BZ30J: 21,6

FW-55BZ30J1 / 55BZ30J: 15,7

FW-50BZ35J: 12,7

FW-50BZ30J: 12,3

FW-43BZ35J: 10,2

FW-43BZ30J: 10

FW-32BZ30J: 7,5

Andre

Ekstraudstyr

Diagram illustrating three different types of furniture or fixtures with checkmark and prohibition symbols, likely for safety or inspection.

Diagram illustrating a procedure involving hand movement and checkmark/stop buttons, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Pyyntö

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Vastaus

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Langaton teknologia

Protokolla IEEE 802.11a/b/g/n/ac

Bluetooth ^® versio 4.2

Taajuusalue Lähtöteho
Langaton LAN (LCD-näyttö)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(LCD-näyttö)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot

3840 × 2160p (100, 120 Hz)*2*3

Video (Vain FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-muodot

Audio:

eARC (Enhanced Audio Return

Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (vain HDMI IN 3)*4

eARC-tilassa

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 tuumaa

FW-43BZ30J: 108,0 cm / 43 tuumaa

FW-32BZ30J: 80,1 cm / 32 tuumaa

Virrankulutus ^5

[Vakio]-tilassa

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

Diagram illustrating correct and incorrect viewing conditions for a TV, with checkmark and prohibition symbols indicating correct/incorrect views.

Bæring

Diagram illustrating a procedure involving medical or surgical procedures, with labeled steps and symbolic icons for check, no check, and no cross.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Forespørsel

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Responses

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Trådløs teknologi

Protokoll IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-formater

3840 × 2160p (100, 120 Hz)* ^2*3

Video (kun FW-75BZ30J / 65BZ30J / 55BZ30J1 /

55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J):

4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-formater

Lyd:

I eARC (Enhanced Audio Return

Channel)-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

→ HDMI 4 AUDIO IN

Analog lydinngang (minijack, stereo)

○ (minijack, stereo)

Hodetelefon

1, 2

FW-43BZ35J: 108,0 cm / 43 tommer

FW-43BZ30J: 108,0 cm / 43 tommer

FW-32BZ30J: 80,1 cm / 32 tommer

Strømforbruk\*5

I [Standard]-modus

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

500 mA (for USB 1), 900 mA (for USB 2)

Mål (ca.) (b × h × d) (cm)

med bordstativ

Standardplassering:

FW-100BZ40J: 226,0 × 134,6 × 47,5

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

FW-50BZ35J: 111,9 × 71,5 × 28,6

FW-50BZ30J: 112,6 × 71,8 × 28,6

FW-43BZ35J: 96,4 × 62,8 × 28,6

FW-43BZ30J: 97,2 × 63,2 × 28,6

FW-32BZ30J: 72,6 × 45,4 × 17,2

Snever plassering:

FW-75BZ30J: 168,6 × 104,5 × 41,0

FW-65BZ30J: 146,2 × 91,2 × 33,8

FW-55BZ30J1: 124,3 × 78,7 × 33,8

FW-55BZ30J: 124,3 × 78,7 × 33,8

uten bordstativ

FW-100BZ40J: 226,0 × 129,7 × 9,8

FW-75BZ30J: 168,6 × 96,9 × 7,2

FW-65BZ30J: 146,2 × 84,2 × 7,1

FW-55BZ30J1: 124,3 × 72,1 × 7,1

FW-55BZ30J: 124,3 × 71,9 × 7,1

FW-50BZ35J: 111,9 × 64,9 × 7,0

FW-50BZ30J: 112,6 × 65,3 × 7,0

FW-43BZ35J: 96,4 × 56,3 × 6,9

FW-43BZ30J: 97,2 × 56,7 × 7,0

FW-32BZ30J: 72,6 × 43,0 × 7,6

Stativbredde (ca.) (cm)

Standardplassering:

FW-100BZ40J: 190,1

FW-75BZ30J: 133,0

FW-65BZ30J: 113,0

FW-55BZ30J1 / 55BZ30J: 98,3

FW-50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J:

66,5

FW-32BZ30J: 60,6

Snever plassering:

FW-75BZ30J: 55,9

FW-65BZ30J: 47,8

FW-55BZ30J1 / 55BZ30J: 45,8

Vekt (ca.) (kg)

med bordstativ

FW-100BZ40J: 92,6

FW-75BZ30J: 32,9

FW-65BZ30J: 22,5

FW-55BZ30J1 / 55BZ30J: 16,6

FW-50BZ35J: 13,3

FW-50BZ30J: 12,9

FW-43BZ35J: 10,7

FW-43BZ30J: 10,5

FW-32BZ30J: 7,7

uten bordstativ

FW-100BZ40J: 88,9

FW-75BZ30J: 31,6

FW-65BZ30J: 21,6

FW-55BZ30J1 / 55BZ30J: 15,7

FW-50BZ35J: 12,7

FW-50BZ30J: 12,3

FW-43BZ35J: 10,2

FW-43BZ30J: 10

FW-32BZ30J: 7,5

Annet

Tilleggsutstyr

Pilot i Monitor LCD ....7

Ustawienia 8

Tryb Pro 8

Ustawienia zalecane....9

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Transport

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two people holding a large rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Żądanie

POST /sony/system HTTP/1.1

Host: 192.168.0.1

Content-Type: application/json; charset=UTF-8

Content-Length: 70

X-Auth-PSK: 1234

{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Odpowiedź

HTTP/1.1 200 OK

Content-Type: application/json; charset=UTF-8

Content-Length: 44

{"result": [{"status": "active"}], "id": 50}

43BZ30J: 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty komputerowe

3840 × 2160p (100, 120 Hz)*2*3

Wideo (tylko model FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J / 32BZ30J):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

W trybie eARC (Enhanced Audio Return Channel)

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 cali

FW-43BZ30J: 108,0 cm / 43 cali

FW-32BZ30J: 80,1 cm / 32 cali

Pobór mocy ^*5

W trybie [Standardowy]

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Μεταφορά

Diagram illustrating a procedure involving hand movement and safety check symbols, with labeled instructions for handling or clearing objects.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two human figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

http://192.168.0.1/sony/system

Αίτηση

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Απόκριση

HTTP/1.1 200 OK

Content-Type: application/json; charset=UTF-8

Content-Length: 44

{"result": [{"status":"active"}], "id": 50}

https://www.sony.eu/support

43BZ30J: 10 W + 10 W

Ασύρματη τεχνολογία

Прωτόκολλο IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Μορφές υπολογιστή

3840 × 2160p (100, 120 Hz)*2*3

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC Μορφές

υπολογιστή

'Ηχος:

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2021 Vewd Software AS. All rights reserved.

Diagram illustrating correct and incorrect assembly methods for table lighting, with checkmark and prohibition symbols indicating correct and incorrect states.

Nakliye

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Talep

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Yan it

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

43BZ30J: 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formatları

3840 × 2160p (100, 120 Hz)*2*3

Video (sadece FW-75BZ30J / 65BZ30J /

55BZ30J1 / 55BZ30J / 50BZ30J / 43BZ30J /

32BZ30J):

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC Formatlari

Ses:

eARC (Enhanced Audio Return Channel)

modunda

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3)*4

eARC modunda

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 108,0 cm / 43 inç

FW-43BZ30J: 108,0 cm / 43 inç

FW-32BZ30J: 80,1 cm / 32 inç

Güç tüketimi*5

[Standart] modunda

FW-100BZ40J: 215 W

FW-75BZ30J: 187 W

FW-65BZ30J: 145 W

FW-55BZ30J: 123 W

FW-50BZ35J: 95 W

FW-50BZ30J: 97 W

FW-43BZ35J: 76 W

FW-43BZ30J: 64 W

FW-32BZ30J: 54 W

Yıllık enerji tüketimi ^5 ^6

FW-100BZ40J: yılda 298 kWh

FW-75BZ30J: yılda 259 kWh

FW-65BZ30J: yılda 201 kWh

FW-55BZ30J: yılda 171 kWh

FW-50BZ35J: yılda 132 kWh

FW-50BZ30J: yılda 135 kWh

FW-43BZ35J: yılda 105 kWh

FW-43BZ30J: yılda 89 kWh

FW-32BZ30J: yılda 75 kWh

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

Перемещение

Diagram illustrating a procedure involving hand gestures and a monitor, with checkmark and no/x mark instructions.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Illustration of two human figures holding a rectangular device (no text or symbols visible)

http://192.168.0.1/sony/system

Запрос

POST /sony/system HTTP/1.1

Host: 192.168.0.1

Content-Type: application/json; charset=UTF-8

Content-Length: 70

X-Auth-PSK: 1234

{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Ответ

HTTP/1.1 200 OKContent-Type: application/json; charset=UTF-8Content-Length: 44{"result": [{"status": "active"}], "id": 50}

1080/24p, 1080i (50, 60 Гц), 720p (30, 50,

→ DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating correct and incorrect assembly methods for a table, including checkmark and prohibition symbols

Транспортування

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

FW-75BZ30J / 65BZ30J / 55BZ30J1 / 55BZ30J / 50BZ35J / 50BZ30J / 43BZ35J / 43BZ30J / 32BZ30J

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

http://192.168.0.1/sony/system

Запит

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Відповідь

HTTP/1.1 200 OK

Content-Type: application/json; charset=UTF-8

Content-Length: 44

{"result": [{"status": "active"}], "id": 50}

1080/24p, 1080i (50, 60 Гц), 720p (30, 50,

→ DIGITAL AUDIO OUT (OPTICAL)

FW-43BZ35J: 76 B _T

FW-43BZ30J: 64 Bt

FW-32BZ30J: 54 Bτ

© Bluetooth SIG, Inc. © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation© Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation © Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony Corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation ©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©Sony corporation©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business division©USN business Division

(בְרִי) (בְרִי) (בְרִי)

תְבָרִי בְאַעֹם אַל

: בַלְרָה אַתִי

47.5×134.6×226.0:FW-100BZ40J

41.0 × 104.5 × 168.6 : FW-75BZ30J

33.8×91.2×146.2:FW-65BZ30J

33.8×78.7×124.3:FW-55BZ30J1

33.8 × 78.7 × 124.3 : FW-55BZ30J

28.6×71.5×111.9:FW-50BZ35J

28.6×71.8×112.6:FW-50BZ30J

28.6×62.8×96.4:FW-43BZ35J

28.6×63.2×97.2:FW-43BZ30J

17.2×45.4×72.6:FW-32BZ30J

: כָרִי לְקַב

41.0× 104.5× 168.6:FW - 75BZ30J

33.8× 91.2× 146.2:FW - 65BZ30J

33.8 × 78.7 × 124.3 : FW-55BZ30J1

33.8 × 78.7 × 124.3 : FW-55BZ30J

תְבָרִי הַלְהָם

9.8×129.7×226.0:FW-100BZ40J

7.2 × 96.9 × 168.6 : FW-75BZ30J

7.1×84.2×146.2:FW-65BZ30J

7.1×72.1×124.3:FW-55BZ30J1

7.1×71.9×124.3:FW-55BZ30J

7.0×64.9×111.9:FW-50BZ35J

7.0 × 65.3 × 112.6 : FW-50BZ30J

6.9×56.3×96.4:FW-43BZ35J

7.0×56.7×97.2:FW-43BZ30J

7.6×43.0×72.6:FW-32BZ30J

(בִרְה) (בִרְה)

: כְרִיָה אַרְבָר

190.1:FW-100BZ40J

133.0:FW-75BZ30J

113.0:FW-65BZ30J

98.3:55BZ30J / FW-55BZ30J1

:43BZ30J/43BZ35J/50BZ30J/FW-50BZ35J

66.5

60.6 : FW-32BZ30J

: כְרָה לַעֹל

55.9 : FW-75BZ30J

47.8 : FW-65BZ30J

45.8:55BZ30J/FW-55BZ30J1

*הכלהה

A+:FW-100BZ40J

A : FW-75BZ30J

A : FW-65BZ30J

B : FW-55BZ30J

A:FW-50BZ35J

B : FW-50BZ30J

B : FW-43BZ35J

A : FW-43BZ30J

B : FW-32BZ30J

(בְרָהִי) (בְרָהִי)

/50BZ30J/50BZ35J/55BZ30J/55BZ30J1

הכלה 25) 0.50 : 43BZ30J / 43BZ35J

(EPG/תְבָרִי)

eARC/ARC (Enhanced Audio Return Channel/

^4* (הכלה HDMI IN 3) (Audio Return Channel

eARC

DIGITAL AUDIO OUT (OPTICAL)

(DTS, Dolby Audio, 16

HDMI 4 AUDIO IN

eARC (Enhanced Audio Return Channel)

,DTS-HD MA ,Dolby TrueHD ,DTS ,Plus

DTS: X Master Audio, Dolby Atmos

תְרָה בְּרָה

/55BZ30J1/65BZ30J/FW-75BZ30J

/43BZ35J/50BZ30J/50BZ35J/55BZ30J

43BZ30J

https://www.sony.eu/support

• כְרָה אַב

.(192.168.0.1 Pre-shared Key "1234" : IP

URL

http://192.168.0.1/sony/system

ナサアコ

POST /sony/system HTTP/1.1

Host: 192.168.0.1

Content-Type: application/json; charset=UTF-8

Content-Length: 70

X-Auth-PSK: 1234

{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

תְבָרִי

HTTP/1.1 200 OK

Content-Type: application/json; charset=UTF-8

Content-Length: 44

{"result": [{"status":"active"}], "id": 50}

. [הכלהה] ← [הכלה] ← [הכלה] 1

•.[בְרִיָה]–ה [בְרִיָה]

IP

.[IP הַלְה] ← [הַרָהִיָהִיָהִיָהִיָה] ← [בַרָהִיָהִיָה] ← [הַרָהִיָה] 2

Diagram illustrating a procedure involving hand movement and checkmark/unknown symbols, with labeled steps and visual examples.

/50BZ35J / 55BZ30J / 55BZ30J1 / 65BZ30J / FW-75BZ30J 32BZ30J / 43BZ30J / 43BZ35J / 50BZ30J

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

,FW-43BZ30J,FW-43BZ35J,FW-50BZ30J,FW-50BZ35J

https://compliance.sony.eu

IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS,

: אַרְהָּו, ME

Diagram illustrating four different mechanical or structural states with checkmark and prohibition symbols, likely for safety or repair instructions.

בְרָהוּעַל הִיֹת

2.

2.

4.

1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.

1. Pro コウロ

9.

10.

1. RS-232C

2. IP

13.

13.

14.

15.

16.
