USER MANUAL BELT BLF55 ELICA

EN Instruction on mounting and use

chiamare l'assistenza tecnica.13

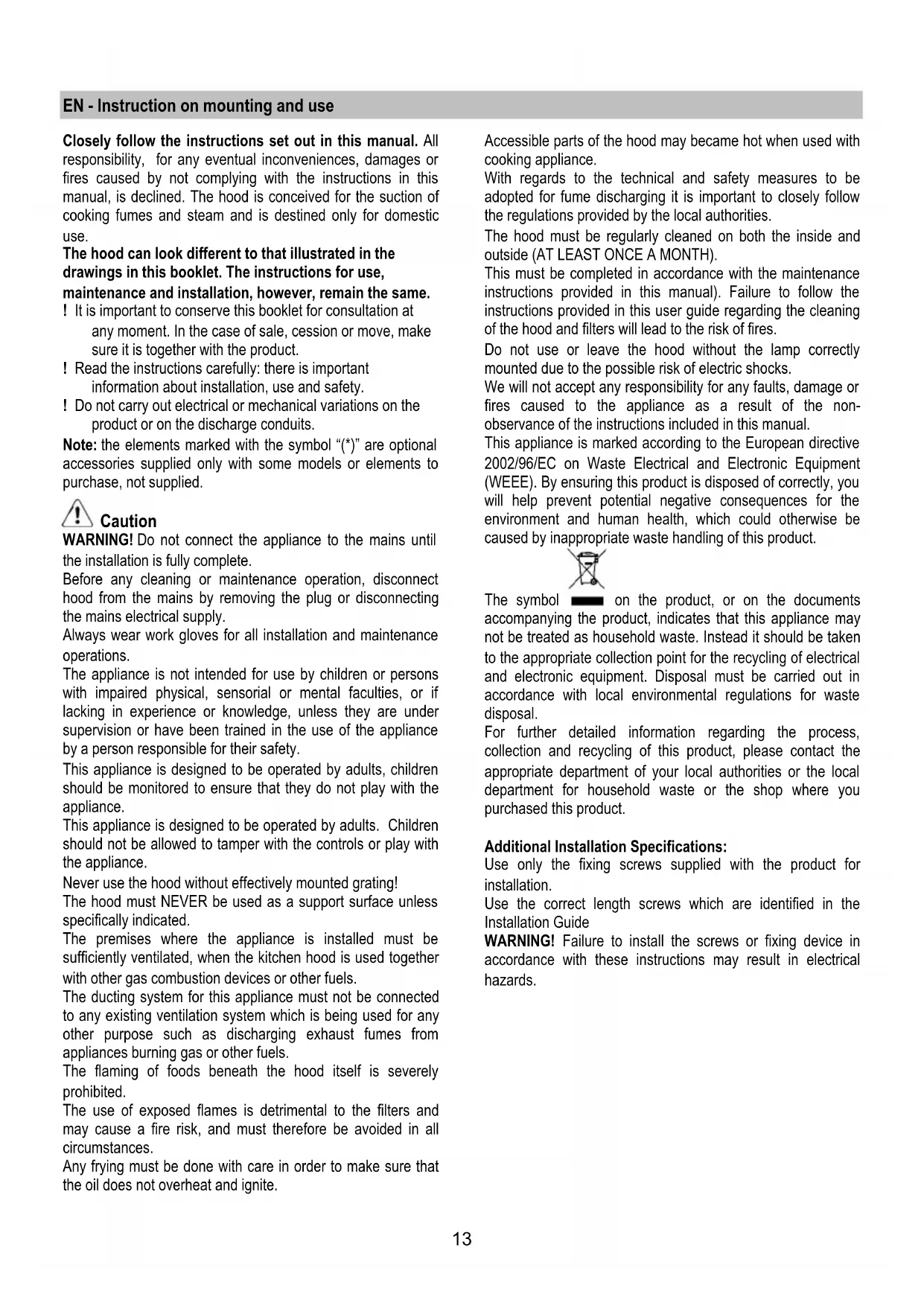

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined. The hood is conceived for the suction of

cooking fumes and steam and is destined only for domestic

The hood can look different to that illustrated in the

drawings in this booklet. The instructions for use,

maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at

any moment. In the case of sale, cession or move, make

sure it is together with the product.

! Read the instructions carefully: there is important

information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the

product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect

hood from the mains by removing the plug or disconnecting

the mains electrical supply.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or knowledge, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

This appliance is designed to be operated by adults, children

should be monitored to ensure that they do not play with the

This appliance is designed to be operated by adults. Children

should not be allowed to tamper with the controls or play with

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises where the appliance is installed must be

sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected

to any existing ventilation system which is being used for any

other purpose such as discharging exhaust fumes from

appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and ignite.

Accessible parts of the hood may became hot when used with

With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance

instructions provided in this manual). Failure to follow the

instructions provided in this user guide regarding the cleaning

of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or

fires caused to the appliance as a result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For further detailed information regarding the process,

collection and recycling of this product, please contact the

appropriate department of your local authorities or the local

department for household waste or the shop where you

purchased this product.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for

Use the correct length screws which are identified in the

WARNING! Failure to install the screws or fixing device in

accordance with these instructions may result in electrical

The hood is conceived for the suction of cooking fumes and

steam and is destined only for domestic use.

The hood is designed to be used either for exhausting or filter

In this case the fumes are conveyed outside of the building by

means of a special pipe connected with the connection ring

located on top of the hood.

Attention! The exhausting pipe is not supplied and must be

Diameter of the exhausting pipe must be equal to that of the

In the horizontal runs the exhausting pipe must be slightly

slanted (about 10°) and directed upwards to vent the air easily

from the room to the outside.

Attention! If the hood is supplied with active charcoal filter,

then it must be removed.

Connect the hood and discharge holes on the walls with a

diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller

dimensions will cause a diminution of the suction performance

and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensible length.

! Use a duct with as few elbows as possible (maximum

! Avoid drastic changes in the duct cross-section.

! Use a duct as smooth as possible inside.

! The duct must be made of certified material.

One active charcoal filter is needed for this and can be

obtained from your usual retailer.

The filter removes the grease and smells from the extracted

air before sending it back into the room through the upper

The minimum distance between the supporting surface for the

cooking equipment on the hob and the lowest part of the

range hood must be not less than 45cm from electric cookers

and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area, after

installation. If it not fitted with a plug (direct mains connection)

or if the plug is not located in an accessible area, after

installation, apply a double pole switch in accordance with

standards which assures the complete disconnection of the

mains under conditions relating to over-current category III, in

accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable

is damaged, request a new one from Technical Service.

Before beginning installation:

• Check that the product purchased is of a suitable size for

the chosen installation area.

• Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only

if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with

screws (*), guarantees (*), etc.), eventually removing

them and keeping them.

• If possible, disconnect and move freestanding or slide-in

range from cabinet opening to provide easier access to

rear wall/ceiling. Otherwise put a thick, protective

covering over countertop, cooktop or range to protect

from damage and debris. Select a flat surface for

assembling the unit. Cover that surface with a protective

covering and place all canopy hood parts and hardware

• In addition check whether near the installation area of the

hood (in the area accessible also with the hood mounted)

an electric socket is available and it is possible to

connect a fumes discharge device to the outside (only

• Carry out all the masonry work necessary (e.g.

installation of an electric socket and/or a hole for the

passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.15

In the case of the presence of panels and/or walls and/or

lateral wall units check that there is sufficient space to install

the hood and that access to the command panel is easy.

Only for some models

An aesthetic flue can be purchased as an optional accessory.

Check with the authorized dealer whether the model in your

possession envisages this possibility.

We advise installing the hood after having purchased the flue

to check with certainty the most suitable installation.

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

T1. Lights ON/OFF T2. Speed decrease

Press "T2" button to decrease the speed from 4

Press "T2" button during operation at speed 1, the hood

Press T3 button and the hood sets from OFF to speed 1.

Press the button (hood ON) to increase the speed of the

motor from 1 to 4 (intensive).

The respective LED goes on for each speed.

Intensive speed LED 4 (flashing)

The intensive speed is timed. Standard timing is 5’, at the

end of which the hood sets to speed 2.

To deactivate the function before time is up press T2

button, the hood sets to speed 3.

Speed timing is activated by pressing T4 button, when

timing is up the hood switches off.

Timing is divided as follows:

Speed 1 - 20 minutes (LED 1 flashing)

Speed 4 - 5 minutes (LED 4 flashing)

During timed operation press T2 button and the hood quits the

timed mode and decreases the speed.

Press T3 button and the hood quits the timed mode and

increases the speed.

Press T4 button and the hood quits the timed mode

maintaining the set speed.

Grease filter signal

After 40 hours of operation LED 1 flashes.

When such signal appears the grease filter installed needs to

To reset the signal, keep T4 button pressed for 5”.

The hood gives out a "BEEP" and LED 1 stops flashing.

Charcoal filter signal

After 160 hours of operation LED 2 flashes.

When such signal appears the charcoal filter installed must be

To reset the signal, keep T4 button pressed for 5”.

The hood gives out a "BEEP" and LED 2 stops flashing.

In case of contemporaneous signalling of both filters, LEDs 1

and 2 flash alternatively.

To reset, carry out the procedure described above for 2 times.

The first time it resets the charcoal filter signal, the second

time it resets the grease filter signal.

The charcoal filter signal is not active in the standard mode.

In case the hood is used in filter version it is necessary to

enable the charcoal filter signal.

Activating charcoal filter signal:

Set the hood to OFF and press T4 button for 5”.

Once the button has been pressed, the LEDs related to the

filter signals currently active light up.

The hood gives out a "BEEP" and LED 2 flashes for 2".

LEDs 1 and 2 remain on for about 2" before the hood goes

Deactivating charcoal filter signal:

Set the hood to OFF and press T4 button for 5”.

Once the button has been pressed, the LEDs related to the

filter signals currently active light up.

The hood gives out a "BEEP" and LED 2 switches off.

LED 1 remain on for about 2" before the hood goes back to

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.16

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

Maintenance of the panel

- Release the panel, pressing the bottom part of the two fixing

rails (INTERNAL SIDE);

- Slide the panel upwards (for a distance of approximately

- Pull the panel towards yourself

the panel should be cleaned with the same frequency as the

fat filters, using a cloth soaked in neutral liquid detergents.

Avoid the use of products containing abrasives. DO NOT USE ALCOHOL!

Proceed in the reverse direction for dismantling.

Attention! Always check that the panel is fixed in its place

Traps cooking grease particles.

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

The saturation of the charcoal filter occurs after more or less

prolonged use, depending on the type of cooking and the

regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least

every four mounths (or when the filter saturation indication

system – if envisaged on the model in possession – indicates

this necessity).The charcoal filter may NOT be washed or

Circular carbon filter

Apply one on each side as cover to both the shield grids of the

motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

1. Using a flat head screwdriver or equivalent tool, carefully

pry loose the light cover.

2. Remove the damaged light and replace with a new 12

Volt, 20 Watt (Maximum) halogen light made for a G-4

base SUITABLE FOR USE IN OPEN LUMINAIRES.

Follow package directions and do not touch new light

3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

and Electronic Equipment, WEEE).

Electrical and Electronic Equipment (WEEE)

2002/96/EC, Waste Electrical and Electronic Equipment

Signal for skittent kullfilter

festesporene (INNERSIDEN);

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE).

2002/96/EC, Waste Electrical and Electronic Equipment

- Waste Electricаl and Electronic Equipment (WEEE).

Electrical And Electronic Equipment (WEEE). Pārliecinoties,

2002/96/EC, Waste Electrical and Electronic Equipment

2002/96/ES, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment

ﺔﻔّﺜﻜﻣ ﺔﻋﺮﺳ led 4) عﺎﻌﺷﻻﺎﺑ(

ﺔﻋﺮﺳ2 – 15 ﺔﻘﻴﻗد )led 2ّﻊ ﺸ ﻣ (

Electrical and Electronic Equipment (WEEE). ﻟﺎﺑوّآ ﺄ ﺘ ﺪ ﻦﻣ
