USER MANUAL UP INOXA50 ELICA

EN Instruction on mounting and use

chiamare l'assistenza tecnica.10

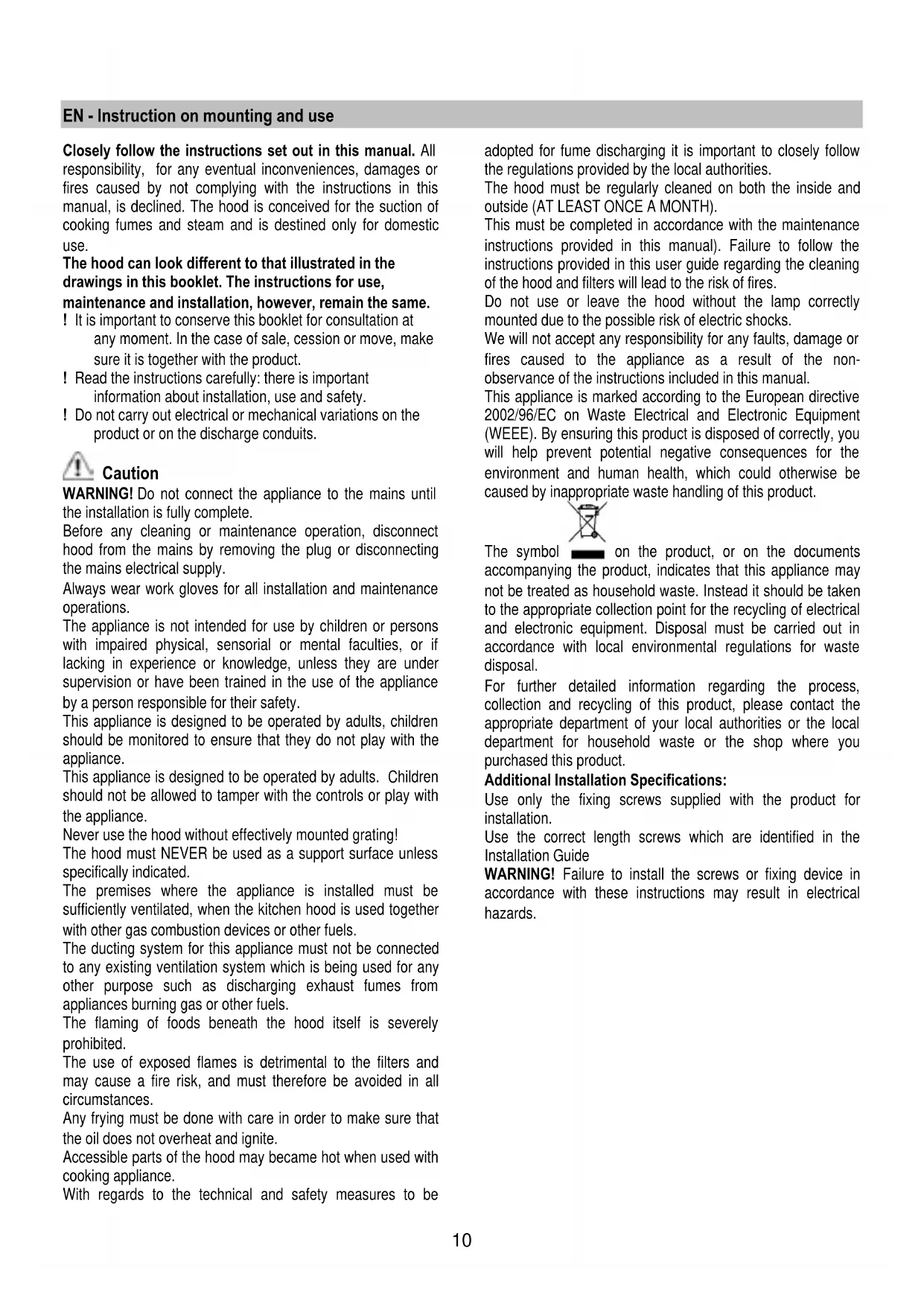

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined. The hood is conceived for the suction of

cooking fumes and steam and is destined only for domestic

The hood can look different to that illustrated in the

drawings in this booklet. The instructions for use,

maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at

any moment. In the case of sale, cession or move, make

sure it is together with the product.

! Read the instructions carefully: there is important

information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the

product or on the discharge conduits.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect

hood from the mains by removing the plug or disconnecting

the mains electrical supply.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or knowledge, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

This appliance is designed to be operated by adults, children

should be monitored to ensure that they do not play with the

This appliance is designed to be operated by adults. Children

should not be allowed to tamper with the controls or play with

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises where the appliance is installed must be

sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected

to any existing ventilation system which is being used for any

other purpose such as discharging exhaust fumes from

appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and ignite.

Accessible parts of the hood may became hot when used with

With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance

instructions provided in this manual). Failure to follow the

instructions provided in this user guide regarding the cleaning

of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or

fires caused to the appliance as a result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For further detailed information regarding the process,

collection and recycling of this product, please contact the

appropriate department of your local authorities or the local

department for household waste or the shop where you

purchased this product.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for

Use the correct length screws which are identified in the

WARNING! Failure to install the screws or fixing device in

accordance with these instructions may result in electrical

The hood is designed to be used either for exhausting or filter

The vapours are evacuated outside through an exhaust duct

fixed to the connection flange of the suction unit (remote

One active charcoal filter is needed for this and can be

obtained from your usual retailer.

The filter removes the grease and smells from the extracted

air before sending it back into the room through the upper

Two persons are needed for the installation of this

The product is not equipped with the duction motor,

therefore it must be coupled to a suction unit (remote

motor) of the same manufacturer.

To install the product is necessary to make a countertop

minimum depth of at least 220 mm up to a maximum of 400

mm.For greater depths it is necessary to ask the special KIT

with mounting brackets for ceiling depth from 400mm to

You can choose the side of the hood from which to run off the

sucked air; there are air outlets of rectangular shape on three

After choosing the best location, set up the channel, the

supply provided includes an air outlet flange of rectangular

shape 230x80mm to be installed on the chosen outlet. Leave

closed the air exhaust holes are not used. There is also a

fitting included, that allows the use of tubes with a diameter

equal to 150 mm (see fig. 1), if you plan to create a circular air

Locate on the ceiling a solid reference from the exact center of

installation of the hood (see Fig. 2), and then trace the

references for the drilling to be carried out in accordance with

the dimensions shown in Fig. 2.

Perform the holes into the ceiling using a suitable solid twist

drill of 8mm and insert the anchors supplied; it is enough to

perform the external punctures indicated in Figure 2, the

internal ones should be done after you install the hood.

Adjust the excursion of the fixing brackets according to the

depth of the niche; min. 220mm, max. 400mm as, shown in

Fig. 3. Tighten strongly the fastening screws of the brackets

immediately after you placed them into position.

Place the hood in the required position and secure it with the

screws provided; see fig.4.

Perform the holes into the ceiling in correspondence of the

central holes of the brackets and fix definitively the product by

applying the remaining screws.

Make the electrical connection (see fig. 5) and connect the air

discharge pipe following the instructions given in the related

section DUCTING SYSTEMS.

In case of installation of UP OPTIONAL MODULE LIGHT

connect the cable of the satellite hoods to the connectors

Install the plasterboard sheet making sure that it fits perfectly

to the metal edge of the hood as shown in figure 6.

The drilling to be done in plasterboard sheet has the size of

502 mm X 502 mm with R71 on the corners; use the drilling

To attach the plasterboard to the hood, use the screws

provided in the locations indicated in Fig. 7; see the supplied

Install the supplied screws 3.5x22. We recommend at least 12

screws to obtain a good fixation.

In case the hood is provided with an internal panel be covered

in plasterboard, wood or other material, make a sheet of the

following dimensions: 448mm X 448mm with R49 on the

corners; see drilling template supplied.

Install the sheet to the panel (fig. 8), using the screws

provided in the case of plasterboard or using the appropriate

adhesive for the type of material to be secured.

Caution: Do not use screws longer than the panel

thickness, maximum 3.5x22.

The opening of the panel can be done by pulling on the side

opposite the hinges, in correspondence of the LED that

indicates the speed of the suction motor (fig. 9). Accompany

the panel with your hands during the opening.

Following the panel opening, you can access the grease filter

and after its removal, acting on the appropriate handle, you

can reach the seat of the charcoal filter (fig. 10).

To close the panel, simply bring it in horizontal position until it

the automatic closing coupling occurs.12

It is possible to install an "UP" extractor hood with one or two additional optional modules in a single suction system, thus to connect

it to a single remote suction motor inside or outside the house.

A suction system, consisting of several elements, is operated by a single remote control as only a hood (UP) has all the electronic

components needed for the operation, while the remaining UP OPTIONAL MODULE are dependent to the main UP hood.

The connections between the main hood (UP) and the remaining UP OPTIONAL MODULE must be made in the following ways:13

Electrical connection

The hood must be connected to the mains supply by qualified

and trained technicians.

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area, after

installation. If it not fitted with a plug (direct mains connection)

or if the plug is not located in an accessible area, after

installation, apply a double pole switch in accordance with

standards which assures the complete disconnection of the

mains under conditions relating to over-current category III, in

accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by

the authorised service assistance centre or similar qualified

Before starting to mount the appliance, make sure that no

component is damaged, otherwise contact the dealer and stop

mounting. In addition, read all the instructions below carefully.

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

For the correct use please carefully read the intructions below.

Use of the remote control

the remote control can control all the functions of the hood:

Selection of the suction speeds (powers)

Control of the light

Key without functions

Reset and configuration of the filter saturation signal

Selection of the suction speeds (powers):

Press key "◄" or "►" until the following symbol is displayed

on the remote control: ”

Press key “+” or “-” or "■" respectively to increase or reduce or

switch off the suction speed (power).

The set suction speed is indicated by the LED in the suction

perimeter channel (Fig.9).

To each color generated by the LED, it corresponds a specific

speed, as shown below:

First speed WHITE Second speed BLUE Third speed DARK BLUE Fourth speed RED Light control:

Press key "◄" or "►" until the remote control displays the

The central light can be switched on and off in two ways:

1. Press key “+” or “-” respectively to switch on (ON) or off

(OFF) the central light.

2. Press key "■" to change the light state from off (OFF) to

on (ON) or viceversa.

Reset and configuration of the filter saturation signal

Switch on the hood at any speed (see paragraph above

“Selection of the suction speeds (powers)”)

Press key "◄" or "►" until the remote control displays the

Press keys “+” and “-“ contemporaneously for more than 3

seconds, all the suction speed LEDs (powers) stop flashing,

showing that the reset of the signal has been carried out.

Maintenance of the remote control

Cleaning the remote control:

Clean the remote control with a damp cloth and a neutral

solution of detergent without abrasive substances.

Changing the battery:

• Open the battery casing using a small screwdriver with a

• Change the finished battery with a new one of 12 V type

In inserting the new battery respect the polarity indicated

on the battery casing!

• Close the battery casing up again.

Disposal of the batteries

Ultimate disposal of the batteries should be handled according

to all national laws and regulations. Do not place used

batteries in your regular waste. Ultimate disposal of the

batteries must be done safely. Contact your local waste

management officials for other information regarding the

environmentally sound collection, recycling, and disposal of

The hood does not work

• There is no current blackout

• A speed has been effectively selected.

• The red reset button located above the filters inside the

The hood has low efficiency

• The motor speed selected is sufficient for the quantity of

• The kitchen is aired enough to allow an air intake and the

charcoal filter is not worn out (filter version hood).

• The air outlet pipe is not clogged.14

Warning! Before any cleaning or maintenance operation,

disconnect the hood from the mains by removing the plug

or disconnecting the main switch of the house, or by

pressing the red button inside the hood, above the grease

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

The panel replacement is done by first opening it as indicated

in chapter opening panel; in the case of the LIGHT panel, you

must disconnect the power from the mains and unplug the

power cord of the lamps by acting on the electrical connector

located right above the panel.

Remove the two locknuts securing the panel (see fig. 12) and

slide the panel to the right to remove it from its seat.

To place the panel back into position, follow the above

described procedure in reverse order.

Traps cooking grease particles.

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

The grease filters installation and removal is done by opening

the panel as described in section "Panel Opening."

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less

prolonged use, depending on the type of cooking and the

regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least

The charcoal filter may NOT be washed or regenerated.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

To replace the damaged fluorescent lamps you must unplug

the product from the mains, then open the panel by following

the instructions in the chapter "PANEL OPENING".

Remove the six perimeter screws of the panel and open it as

shown in figure 11; proceed in replacing the fluorescent lamp

using a lamp with the same characteristics.

Put back into position the panel and the screws you previously

For the replacement of the fluorescent lamps feeder, act in the

same way as described above, since the feeder is positioned

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

substances abrasives

and Electronic Equipment, WEEE).

Electrical and Electronic Equipment (WEEE)

2002/96/EC, Waste Electrical and Electronic Equipment

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE).

2002/96/EC, Waste Electrical and Electronic Equipment

- Waste Electricаl and Electronic Equipment (WEEE).

Electrical And Electronic Equipment (WEEE). Pārliecinoties,

2002/96/EC, Waste Electrical and Electronic Equipment

2002/96/ES, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment

Electrical and Electronic Equipment (WEEE). ﻟﺎﺑوّآ ﺄ ﺘ ﺪ ﻦﻣ
