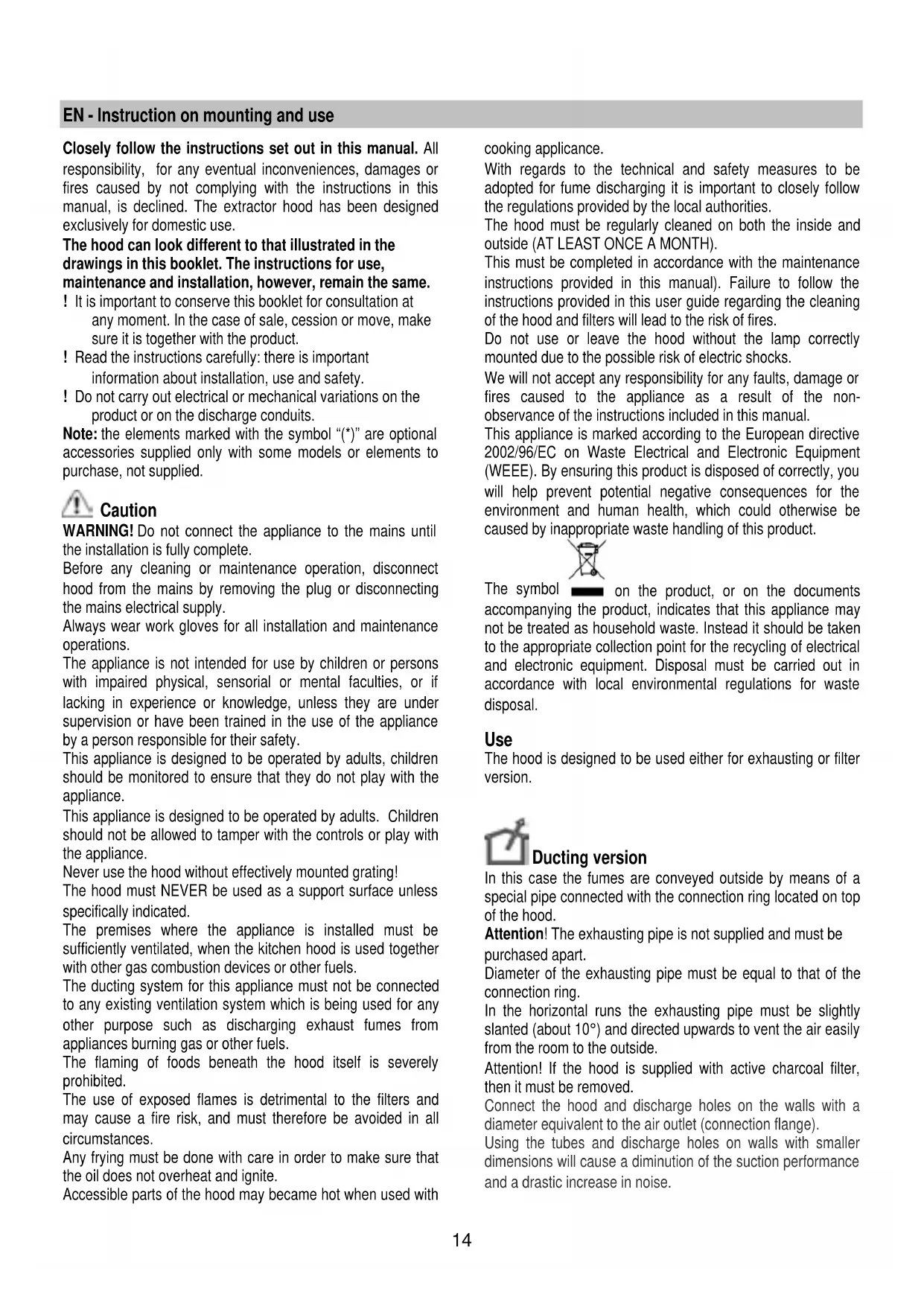

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined. The extractor hood has been designed

exclusively for domestic use.

The hood can look different to that illustrated in the

drawings in this booklet. The instructions for use,

maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at

any moment. In the case of sale, cession or move, make

sure it is together with the product.

! Read the instructions carefully: there is important

information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the

product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect

hood from the mains by removing the plug or disconnecting

the mains electrical supply.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or knowledge, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

This appliance is designed to be operated by adults, children

should be monitored to ensure that they do not play with the

This appliance is designed to be operated by adults. Children

should not be allowed to tamper with the controls or play with

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises where the appliance is installed must be

sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected

to any existing ventilation system which is being used for any

other purpose such as discharging exhaust fumes from

appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and ignite.

Accessible parts of the hood may became hot when used with

With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance

instructions provided in this manual). Failure to follow the

instructions provided in this user guide regarding the cleaning

of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or

fires caused to the appliance as a result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

The hood is designed to be used either for exhausting or filter

In this case the fumes are conveyed outside by means of a

special pipe connected with the connection ring located on top

Attention! The exhausting pipe is not supplied and must be

Diameter of the exhausting pipe must be equal to that of the

In the horizontal runs the exhausting pipe must be slightly

slanted (about 10°) and directed upwards to vent the air easily

from the room to the outside.

Attention! If the hood is supplied with active charcoal filter,

then it must be removed.

Connect the hood and discharge holes on the walls with a

diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller

dimensions will cause a diminution of the suction performance

and a drastic increase in noise.15

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensible length.

! Use a duct with as few elbows as possible (maximum

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

One active charcoal filter is needed for this and can be

obtained from your usual retailer.

The filter removes the grease and smells from the extracted

air before sending it back into the room through the upper

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

The connecting instructions are supplied with the peripheral

The minimum distance between the supporting surface for the

cooking equipment on the hob and the lowest part of the

range hood must be not less than 30cm from electric cookers

and 35cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area, after

installation. If it not fitted with a plug (direct mains connection)

or if the plug is not located in an accessible area, after

installation, apply a double pole switch in accordance with

standards which assures the complete disconnection of the

mains under conditions relating to over-current category III, in

accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

In the case of the presence of panels and/or walls and/or

lateral wall units check that there is sufficient space to install

the hood and that access to the command panel is easy.

Only for some models

An aesthetic flue can be purchased as an optional accessory.

Check with the authorized dealer whether the model in your

possession envisages this possibility.

We advise installing the hood after having purchased the flue

to check with certainty the most suitable installation.

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

T1. Hood OFF Press the button and the hood passes from operation, in any

suction mode, to OFF.

This mode is not associated with any specific type of cooking.

Press the button to activate the hood in silent mode.

Press button T1 or T2 and the hood passes to OFF.

This mode is not associated with any specific type of cooking.

Press the button in the case of particularly intense fumes.

Press button T1 or T3 and the hood passes to OFF.

T4. Lighting ON/OFF Press the button to turn the lights on or off.

The lighting turns on gradually without intermediate level

Press the button cyclically to activate the different suction

Each mode is associated with different types of food cooking.

This is to obtain optimum suction according to the different

A signalling LED corresponds to each suction mode.

• “Slow cooking” mode LED L1 on

Press the button when cooking vegetables in a pan,

when heating food or drinks (milk, coffee, tea).

• “Boiling” mode LED L2 on

Press the button when cooking sauces, broth, boiled

vegetables and soups, or when boiling food (e.g. pasta).

• “Grilling” mode LED L3 on

Press the button when cooking food on grill or griddle.

• “Frying” mode LED L4 on

Press the button when frying food (e.g. meat, potatoes,

To quit the selected suction mode press the following buttons:

Button T1 hood in OFF Button T2 activation of “Silent” mode

Button T3 activation of “Boost” mode

In case of motor fault (stall, overheating, etc.) all the functions

of the motor will be blocked (except for lighting) buttons T2,

T3, T5 and LEDs L1, L2, L3, L4 will flash.

Once the alarm has gone off, the hood goes back to OFF.

Press button T1 and the hood passes to OFF.

If the fault persists, the hood remains in the alarm state and all

the functions are blocked. Contact the technical service.

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

The steam screen must always be left closed and opened only

for maintenance (e.g. cleaning or changing filters).

Traps cooking grease particles.

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

Open the steam screen.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months

using hot water and a suitable detergent, or in a dishwasher at

65°C (if the dishwasher is used, select the full cycle function

and leave dishes out).

Eliminate excess water without damaging the filter, then put it

in the oven for 10 minutes at 100° C to dry completely.

Replace the mattress every 3 years and when the cloth is

Open the steam screen and remove the grease filter.

Install the carbon filter on the back of the grease filter and

Attention! The rods are included in the carbon filter

packing and not on the hood.

• To dismantle the filter act in the reverse manner.

The hood is equipped with a lighting system based on LED

The LEDs guarantee an optimum lighting, a duration up to 10

times as long as the traditional lamps and allow to save 90%

For replacement, contact the technical service.17

2002/96/EC, Waste Electrical and Electronic Equipment

- Waste Electricаl and Electronic Equipment (WEEE).

2002/96/ES, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment

and Electronic Equipment, WEEE).

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE).
