USER MANUAL Rotak 32 LI HP BOSCH

OBJ_DOKU-28503-004.fm Page 1 Tuesday, April 16, 2013 11:33 AM2 |

OBJ_BUCH-1584-004.book Page 3 Tuesday, April 16, 2013 11:34 AM4 | Deutsch

OBJ_BUCH-1584-004.book Page 4 Tuesday, April 16, 2013 11:34 AMDeutsch | 5

OBJ_BUCH-1584-004.book Page 5 Tuesday, April 16, 2013 11:34 AM6 | Deutsch

Technische Unterlagen (2006/42/EG, 2000/14/EG) bei:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 6 Tuesday, April 16, 2013 11:34 AMDeutsch | 7

OBJ_BUCH-1584-004.book Page 7 Tuesday, April 16, 2013 11:34 AM8 | Deutsch

OBJ_BUCH-1584-004.book Page 8 Tuesday, April 16, 2013 11:34 AMDeutsch | 9

OBJ_BUCH-1584-004.book Page 9 Tuesday, April 16, 2013 11:34 AM10 | Deutsch

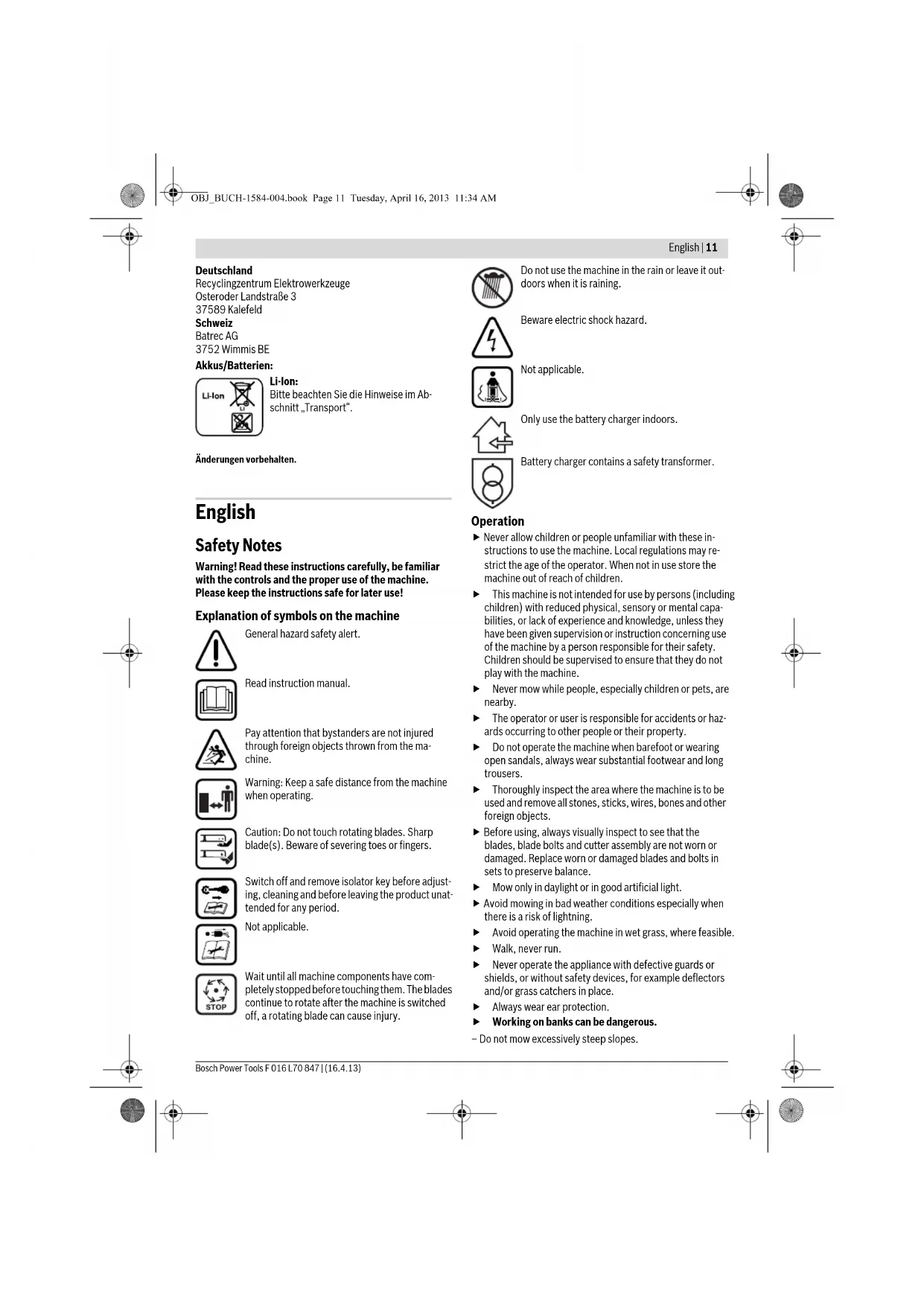

Warning! Read these instructions carefully, be familiar

with the controls and the proper use of the machine.

Please keep the instructions safe for later use!

Explanation of symbols on the machine

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured

through foreign objects thrown from the ma-

Warning: Keep a safe distance from the machine

Caution: Do not touch rotating blades. Sharp

blade(s). Beware of severing toes or fingers.

Switch off and remove isolator key before adjust-

ing, cleaning and before leaving the product unat-

tended for any period.

Wait until all machine components have com-

pletely stopped before touching them. The blades

continue to rotate after the machine is switched

off, a rotating blade can cause injury.

Do not use the machine in the rain or leave it out-

doors when it is raining.

Beware electric shock hazard.

Only use the battery charger indoors.

Battery charger contains a safety transformer.

 Never allow children or people unfamiliar with these in-

structions to use the machine. Local regulations may re-

strict the age of the operator. When not in use store the

machine out of reach of children.

 This machine is not intended for use by persons (including

children) with reduced physical, sensory or mental capa-

bilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use

of the machine by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the machine.

 Never mow while people, especially children or pets, are

 The operator or user is responsible for accidents or haz-

ards occurring to other people or their property.

 Do not operate the machine when barefoot or wearing

open sandals, always wear substantial footwear and long

 Thoroughly inspect the area where the machine is to be

used and remove all stones, sticks, wires, bones and other

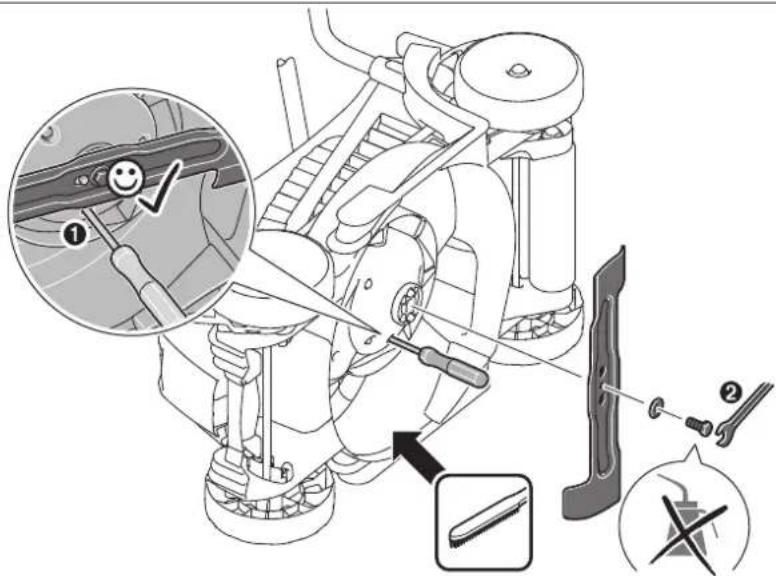

 Before using, always visually inspect to see that the

blades, blade bolts and cutter assembly are not worn or

damaged. Replace worn or damaged blades and bolts in

sets to preserve balance.

 Mow only in daylight or in good artificial light.

 Avoid mowing in bad weather conditions especially when

there is a risk of lightning.

 Avoid operating the machine in wet grass, where feasible.

 Never operate the appliance with defective guards or

shields, or without safety devices, for example deflectors

and/or grass catchers in place.

 Always wear ear protection.

 Working on banks can be dangerous.

– Do not mow excessively steep slopes.

OBJ_BUCH-1584-004.book Page 11 Tuesday, April 16, 2013 11:34 AM12 | English

F 016 L70 847 | (16.4.13) Bosch Power Tools

– Always be sure of your footing on slopes or wet grass.

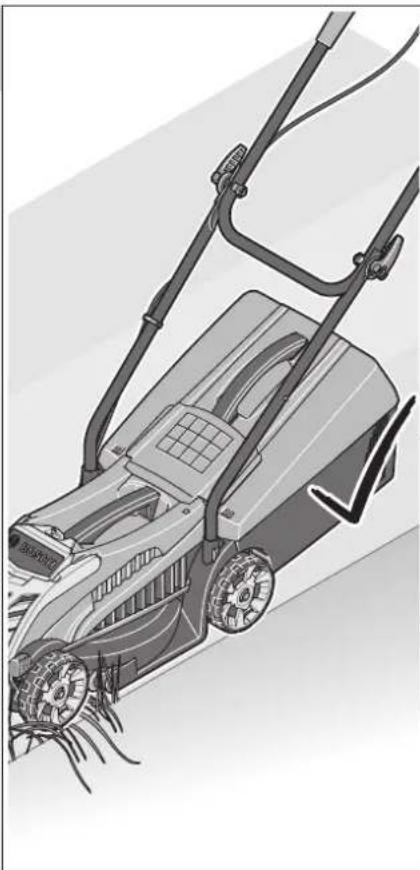

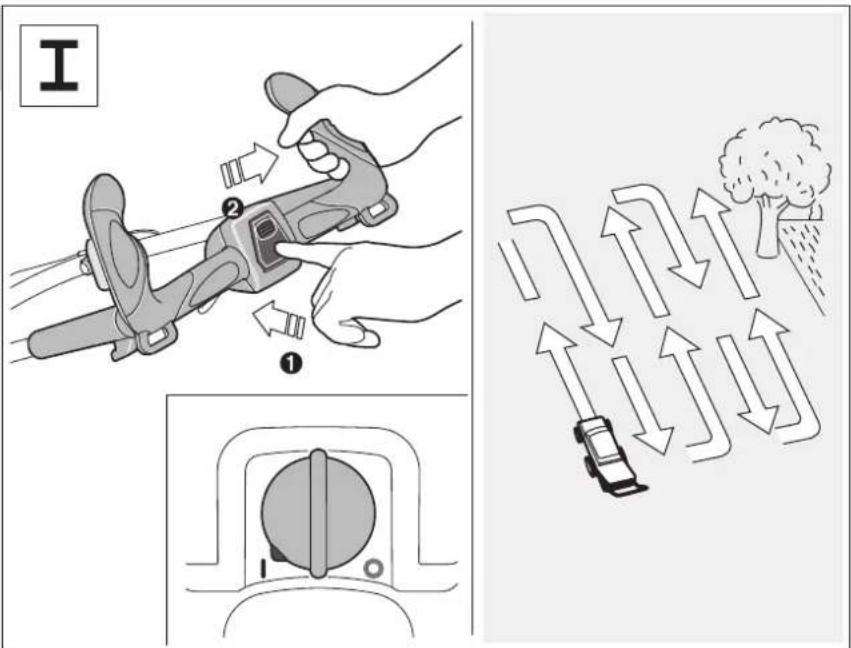

– Mow across the face of slopes – never up and down.

– Exercise extreme caution when changing direction on

 Use extreme caution when stepping back or pulling the ma-

 Never mow by pulling the mower towards you.

 Stop the blades if the machine has to be tilted for transpor-

tation when crossing surfaces other than grass and when

transporting the machine to and from the area to be

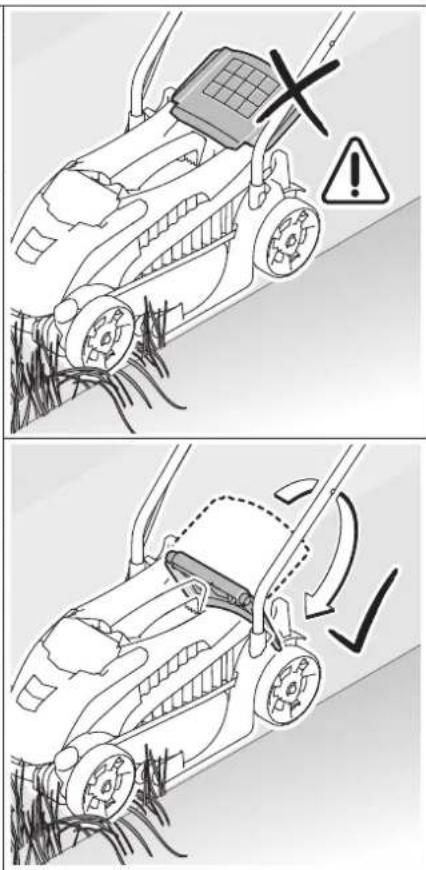

 Do not tilt the machine when starting or switching on the

motor, except if the machine has to be tilted for starting in

long grass. In this case, do not tilt it more than absolutely

necessary and tilt only the part which is away from the op-

erator. Always ensure that both hands are in the operating

position before returning the machine to the ground.

 Switch on the motor according to the instructions with feet

well away from rotating parts.

 Do not put hands or feet near or under rotating parts.

 Always stand clear of the discharge zone when operating

 Never pick up or carry the machine while the motor is run-

 Do not modify this product. Unauthorized modifications

may impair the safety of your product and may result in in-

creased noise and vibration.

 Regularly inspect the supply cable and any extension ca-

bles. Do not connect damaged cables to the supply or

touch a damaged cable before it is disconnected from the

supply. A damaged cable can lead to contact with live

parts. Beware electric shock hazard.

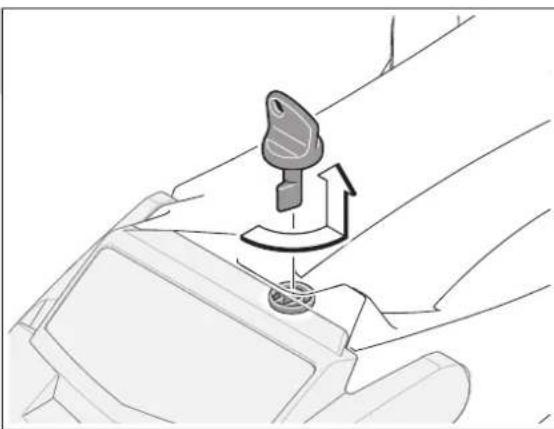

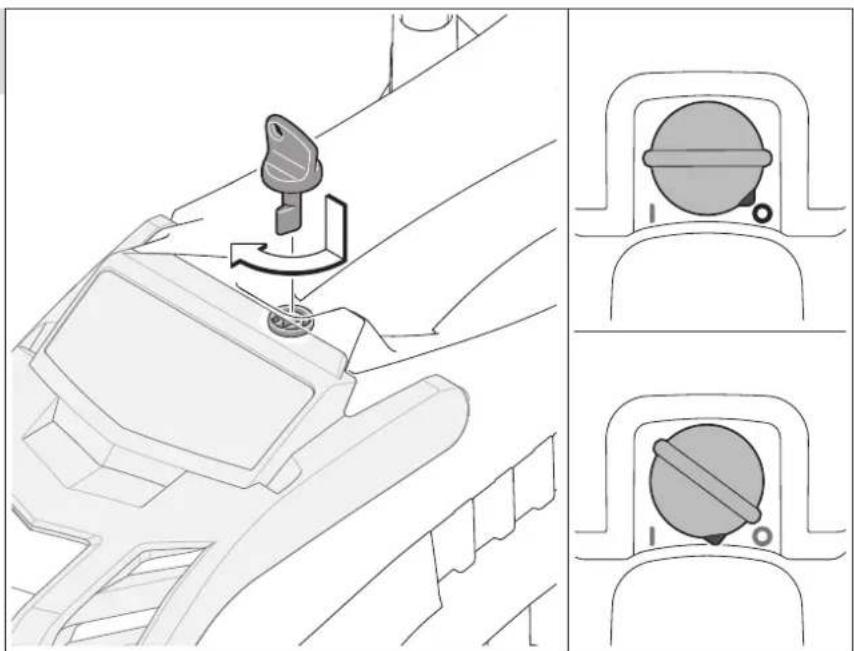

Remove the isolator key:

– whenever you leave the machine,

– before clearing a blockage,

– before checking, cleaning or working on the machine,

– after striking a foreign object. Inspect the machine for

damage and make repairs as necessary,

– if the machine starts to vibrate abnormally (check immedi-

 Always wear gardening gloves when handling or work-

ing near the sharp blades.

 Keep all nuts, bolts and screws tight to be sure that the ma-

chine is in safe working condition.

 Check the grass catcher frequently for wear or deteriora-

 Examine the machine and replace worn or damaged parts

 Ensure replacement cutting means of the right type are

 Ensure replacement parts fitted are Bosch approved.

Recommendations for Optimal Handling of the

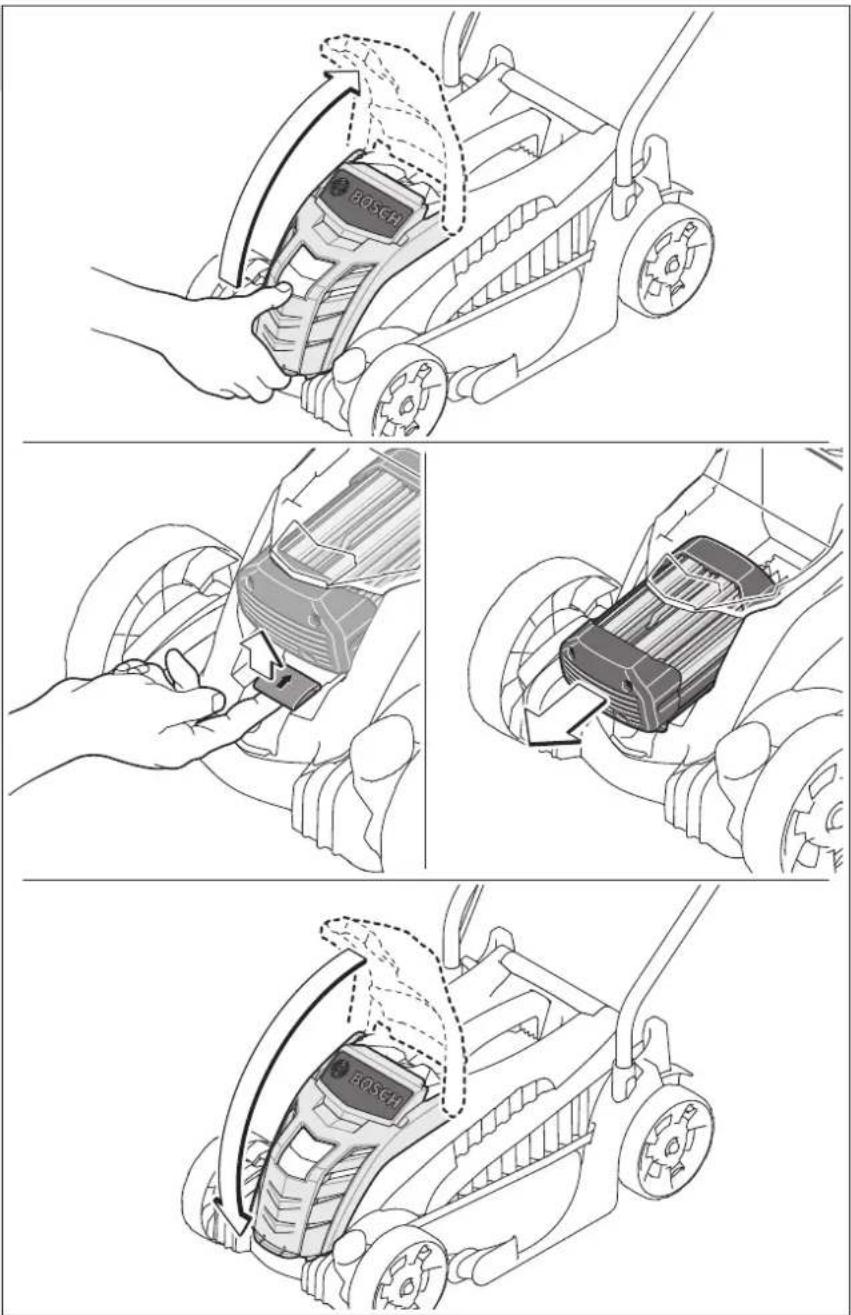

 Ensure the switch is in the off position before inserting

battery pack. Inserting the battery pack into machines

that have the switch on invites accidents.

 Keep the battery charger away from rain or moisture.

Penetration of water in the battery charger increases the

risk of an electric shock.

 Recharge only with the charger specified by the manu-

facturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another bat-

 Do not charge other batteries. The battery charger is

suitable only for charging Bosch lithium ion batteries with-

in the listed voltage range. Otherwise there is danger of fire

 Keep the battery charger clean. Contamination can lead

to danger of an electric shock.

 Before each use, check the battery charger, cable and

plug. If damage is detected, do not use the battery

charger. Never open the battery charger yourself.

Have repairs performed only by a qualified technician

and only using original spare parts. Damaged battery

chargers, cables and plugs increase the risk of an electric

 Do not operate the battery charger on easily inflamma-

ble surfaces (e. g., paper, textiles, etc.) or surround-

ings. The heating of the battery charger during the charg-

ing process can pose a fire hazard.

 Use only Bosch battery packs intended specifically for

the machine. Use of any other battery packs may create a

risk of injury and fire.

 When battery pack is not in use, keep it away from oth-

er metal objects like paper clips, coins, keys, nails,

screws, or other small metal objects that can make a

connection from one terminal to another. Shorting the

battery terminals together may cause burns or a fire.

 Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, addition-

ally seek medical help. Liquid ejected from the battery

may cause irritations or burns.

 Do not open the battery. Danger of short-circuiting.

 Protect the battery against heat, e. g., against continu-

ous intense sunlight, fire, water, and moisture. Danger

 Do not short-circuit the battery. There is danger of explo-

 In case of damage and improper use of the battery, va-

pours may be emitted. Ventilate the area and seek

medical help in case of complaints. The vapours can irri-

tate the respiratory system.

 Protect the battery against moisture and water.

 Store the battery only within a temperature range between

0 °C and 50 °C. As an example, do not leave the battery in

OBJ_BUCH-1584-004.book Page 12 Tuesday, April 16, 2013 11:34 AMEnglish | 13

Bosch Power Tools F 016 L70 847 | (16.4.13)

 Occasionally clean the venting slots of the battery using a

soft, clean and dry brush.

The following symbols are important for reading and under-

standing the operating instructions. Please take note of the

symbols and their meaning. The correct interpretation of the

symbols will help you to use the garden product in a better

The garden product is intended for domestic lawn mowing.

Accessories/Spare Parts

Weight according to EPTA-Procedure 01/2003

see type plate on the garden product

Charging period (battery discharged)**

Number of battery cells

Allowable charging temperature range

Weight according to EPTA-Procedure 01/2003

**with AL 3620 CV Professional charger

Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

OBJ_BUCH-1584-004.book Page 13 Tuesday, April 16, 2013 11:34 AM14 | English

F 016 L70 847 | (16.4.13) Bosch Power Tools

Noise/Vibration Information

Measured sound values determined according to

2000/14/EC (1.60 m height, 1 m distance away).

Typically the A-weighted noise levels of the product are:

Sound pressure level 74 dB(A); sound power level 86 dB(A).

Uncertainty K =0.42 dB.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical data” is in conformity with the fol-

lowing standards or standardization documents: EN 60335

according to the provisions of the directives 2011/65/EU,

2004/108/EC, 2006/42/EC, 2000/14/EC.

2000/14/EC: Guaranteed sound power level 87 dB(A). Con-

formity assessment procedure according to Annex VI.

Equipment category: 32

SRL, Sudbury, England, Nr. 1088

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

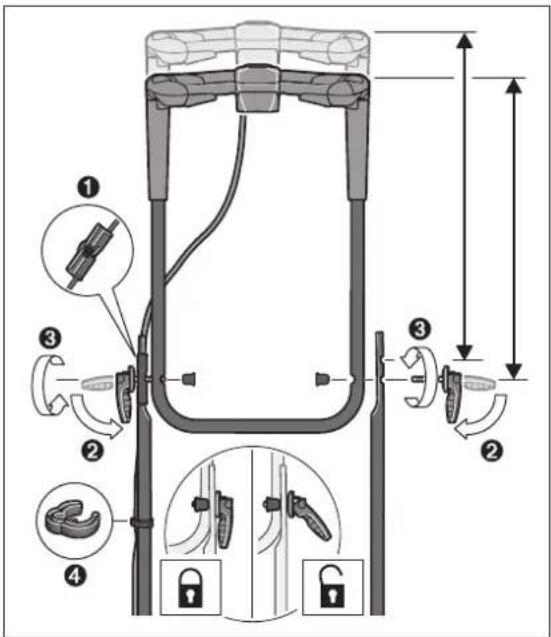

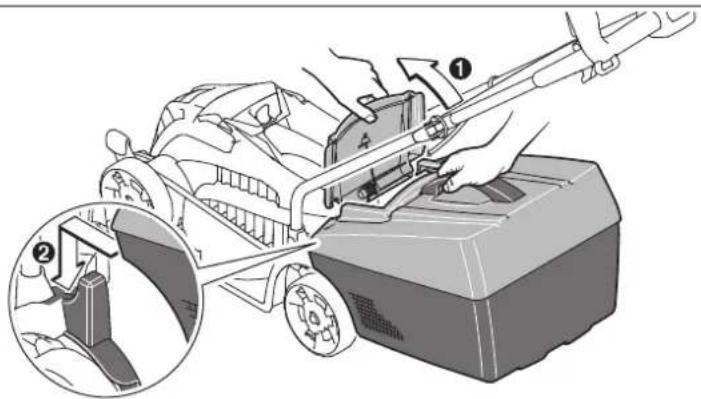

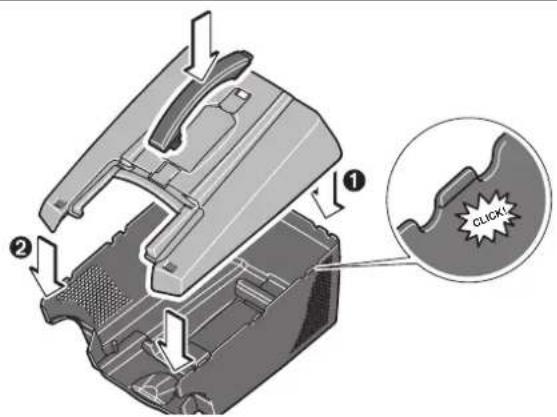

Mounting and Operation

 Warning! Switch off, remove the isolator key and the

battery before adjusting, cleaning or if cable is cut,

damaged or entangled.

 The blades continue to rotate for a few seconds after

the machine is switched off.

 Caution – do not touch the rotating blade.

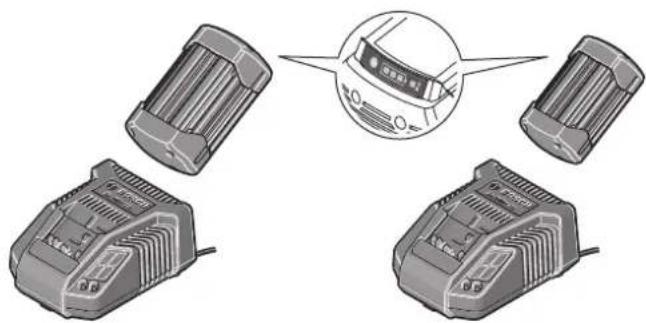

 Do not use other battery chargers. The supplied battery

charger is designed for the Lithium-Ion battery in your gar-

 Observe the mains voltage! The voltage of the power

supply must correspond with the data given on the name-

plate of the battery charger. Battery chargers marked with

230 V can also be operated with 220 V.

The battery is equipped with temperature monitoring that al-

lows charging only in the temperature range between 0 °C

and 45 °C. In this manner, a high battery service life is

Note: The battery is supplied partially charged. To ensure full

capacity of the battery, completely charge the battery in the

battery charger before using your power tool for the first time.

AL 3640 CV Professional

Article number EU UK AU

Allowable charging temperature range

Weight according to EPTA-Procedure 01/2003

/II /II Cordless Lawnmower Rotak 32 LI Rotak 32 LI High Power

**with AL 3620 CV Professional charger

Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Dr. Egbert Schneider

Senior Vice President

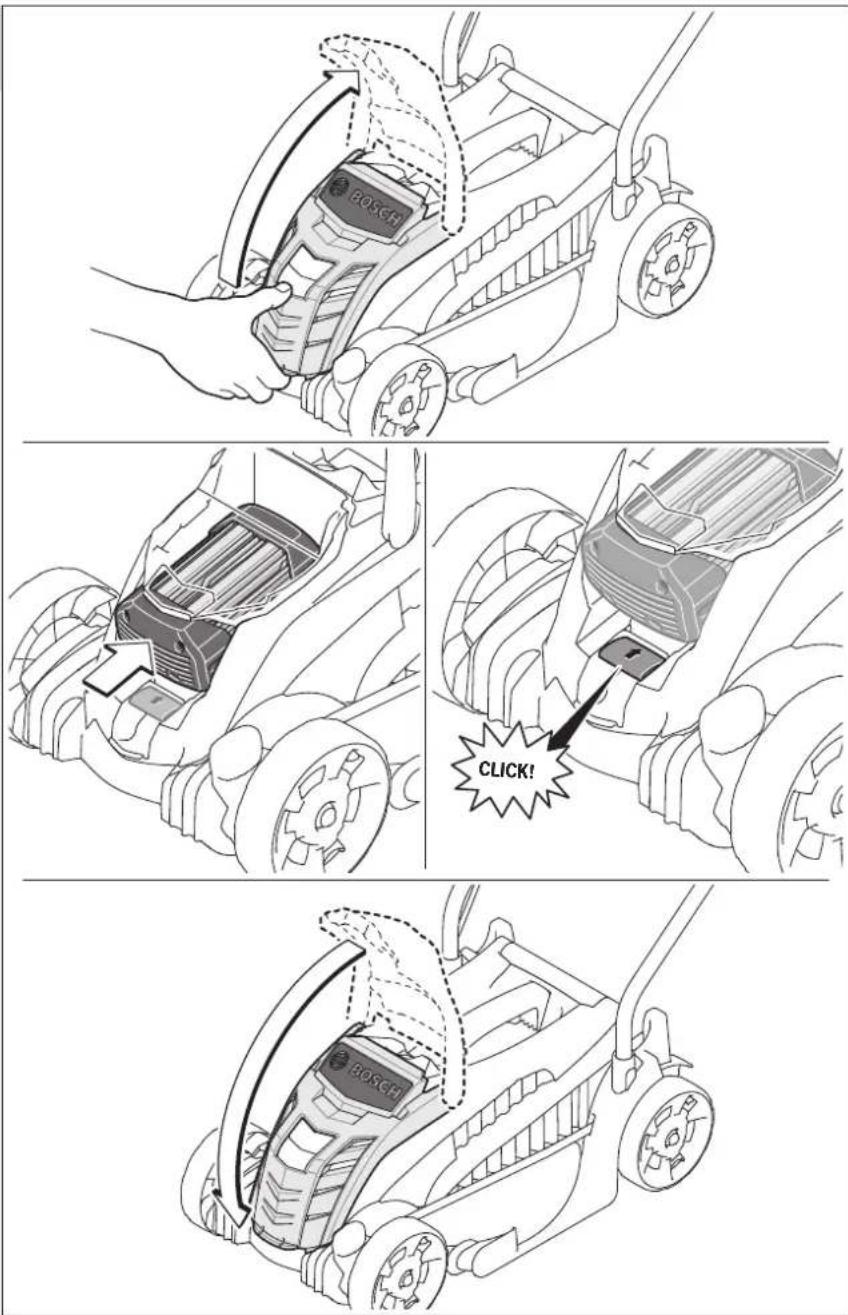

Inserting the Battery 6

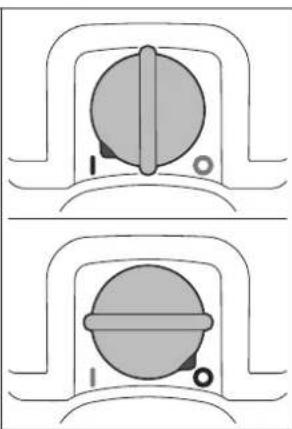

Insert Isolator Key and fit in the Storage

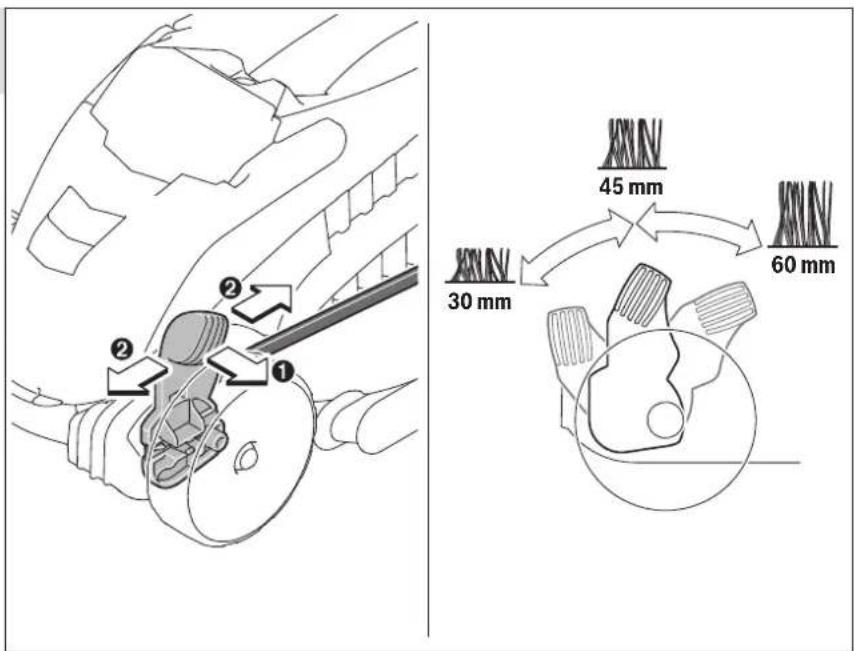

Adjusting the Cutting Height 8

Removing the Battery 12

Blade Maintenance 13

Selecting Accessories 14

OBJ_BUCH-1584-004.book Page 14 Tuesday, April 16, 2013 11:34 AMEnglish | 15

Bosch Power Tools F 016 L70 847 | (16.4.13)

The lithium ion battery can be charged at any time without re-

ducing its service life. Interrupting the charging procedure

does not damage the battery.

The “Electronic Cell Protection (ECP)” protects the lithium ion

battery against deep discharging. When the battery is run

down or discharged, the garden product is shut off by means

of a protective circuit: The blade no longer moves.

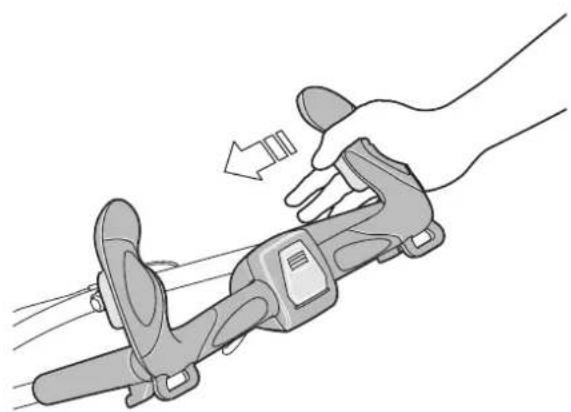

Do not continue to press the On/Off

switch after the garden product has

been automatically switched off. The battery can be dam-

The charging procedure starts as soon as the mains plug of

the battery charger is plugged into the socket outlet and the

battery is inserted into the charging compartment .

Due to the intelligent charging method, the charging condi-

tion of the battery is automatically detected and the battery is

charged with the optimum charging current, depending on

battery temperature and voltage.

This gives longer life to the battery and always leaves it fully

charged when kept in the charger for storage.

Rapid-charging Procedure

The rapid-charging procedure is indicated by flashing of the

green charge control LED.

Indication element of the battery: During the charging proce-

dure, the three green LEDs light up one after the other and

briefly go out. The battery is fully charged when the three

green LEDs light up continuously. The three LEDs go out again

approx. 5 minutes after the battery has been fully charged.

Note: The rapid-charging procedure is only possible when the

battery temperature is within the allowable charging temper-

ature range, see section “Technical Data”.

Continuous lighting of the green charge control LED sig-

nals that the battery is fully charged.

Additionally, a signal tone sounds for approx. 2 seconds,

which acoustically indicates that the battery is fully charged.

Afterwards, the battery can be removed for immediate use.

With no battery inserted, continuous lighting of the green

charge control LED indicates that the mains plug is plugged

into the socket and that the battery charger is ready for oper-

Battery Temperature below 0 °C or above 45 °C Continuous lighting of the red LED indicates that the bat-

tery temperature is not within the rapid-charging temperature

range of 0 °C –45 °C. As soon as the allowable temperature

range is reached, the battery charger automatically switches

When the battery is not within the allowable temperature

range, the red battery LED lights up when inserting the bat-

tery into the battery charger.

No charging procedure possible

If a different malfunction of the charging procedure is pre-

sent, this will be indicated through flashing of the red charge

The charging procedure cannot be started and the battery

cannot be charged (see section “Troubleshooting”).

With continuous or several repetitive charging cycles without

interruption, the charger can warm up. This is not meaningful

and does not indicate a technical defect of the battery charg-

A significantly reduced working period after charging indi-

cates that the battery is used and must be replaced.

Observe the notes for disposal.

Battery Cooling (Active Air Cooling)

The fan control integrated in the battery charger controls the

temperature of the inserted battery. When the battery tem-

perature is above 30 °C, a fan cools down the battery to the

optimal charging temperature. The switched-on fan produces

The battery temperature is within the optimal charging tem-

perature range when the fan is not running. Another reason

AL 3640 CV Professional

OBJ_BUCH-1584-004.book Page 15 Tuesday, April 16, 2013 11:34 AM16 | English

F 016 L70 847 | (16.4.13) Bosch Power Tools

for a non working fan might be that it is defective. In this case,

the charging time of the battery might be extended.

Battery Charge-control Indication

The battery is equipped with a charge-control indicator

which indicates its charge condition. The charge-control indi-

cator consists of 3 green LEDs.

Press the button to actuate the charge-control indicator . Af-

ter approx. 5 seconds, the charge-control indicator goes out

The charge condition can also be checked when the battery is

When no LED lights up after actuating the button , the battery

is defective and must be replaced.

For safety reasons, the charge condition of the battery can

only be checked when the garden product is at a standstill.

During the charging procedure, the three green LEDs light up

one after the other and briefly go out. The battery is fully

charged when the three green LEDs light up continuously. The

three LEDs go out again approx. 5 minutes after the battery

has been fully charged.

Temperature Control Indicator

The red LED signals that the battery or the electronics of the

garden product (with battery inserted) are not within the op-

timum temperature range. When this occurs the garden prod-

uct will not operate or not at full capacity.

Temperature Control of the Battery

The red LED flashes when pushing button or pressing the

On/Off switch (when the battery is inserted): The battery is

not wihin the temperature range for operation of –10 °C to

The battery switches off at a temperature above 70 °C until

the optimum temperature range is reached again.

Temperature Control of the Garden Product Elec-

The red LED lights up continuously when pressing the

On/Off switch: The temperature of the garden product elec-

tronics is below 5 °C or above 75 °C.

At a temperature above 90 °C, the electronics of the garden

product switch off until the temperature is within the allowa-

ble temperature range again.

Area of Cut (Battery Duration)

The area of cut (battery duration) depends on lawn condi-

tions, grass density, mositure content, grass length and

Switching the machine on and off frequently during cutting

will also reduce the area of cut (battery duration).

To improve the area of cut (battery duration) it is recommend-

ed to cut more frequently, raise the cutting height and walk at

The example below shows impact of conditions against run

time, for one battery.

To increase the run time an additional battery or higher capac-

ity battery (Ah) can be purchased from an authorised custom-

er service agent for Bosch garden products.

LED Indicators Battery Capacity

Continuous lighting of 3 green LEDs ≥ 2/3

Continuous lighting of 2 green LEDs ≥ 1/3

Continuous lighting of 1 green LED ≤ 1/3

Flashing of 1 green LED Reserve

Very light, dry grass Light, dry grass

Area of cut (Rotak 32 LI)

Area of cut (Rotak 32 LI High Power)

OBJ_BUCH-1584-004.book Page 16 Tuesday, April 16, 2013 11:34 AMEnglish | 17

Machine fails to oper-

Possible clogging Remove the isolator key:

Check underneath the garden product and clear

out as necessary (always wear gardening gloves)

Battery not fully charged Battery Charging

Battery not inserted (properly) Inserting the battery

Grass too long Increase height of cut and tilt garden product to re-

Motor protector has activated Allow motor to cool and increase height of cut

Battery too hot/cold Allow to cool/warm

Isolator key not inserted correctly/fully Fit correctly

There is a short delay in the motor starting after en-

gaging the On/Off switch

Hold On/Off switch for 1 – 3 s to start motor

Motor starts and stops

Battery not fully charged Battery Charging

Isolator key not inserted correctly/fully Fit correctly

Battery not inserted (properly) Inserting the battery

Battery too hot/cold Allow to cool/warm

Increase height of cut

Internal wiring of garden product damaged Contact Service Agent

Motor protector has activated Allow motor to cool and increase height of cut

Garden product leaves

Height of cut too low Increase height of cut

Cutting blade blunt Replace the blade

Possible clogging Check underneath the garden product and clear

out as necessary (always wear gardening gloves)

Blade fitted upside down Refit blade correctly

Area of cut (battery

Height of cut too low Increase height of cut and walk slower

Grass too high Increase height of cut and walk slower

Grass wet or damp Wait until grass is dry and walk slower

Grass is dense Increase height of cut, walk slower and cut more

An additional battery can be purchased from an au-

thorised customer service agent for Bosch garden

Cutting blade obstructed Switch off garden product

Clear obstruction (always wear gardening gloves)

Blade nut/bolt loose Tighten blade nut/bolt

No charging procedure

Battery contacts contaminated Clean the battery contacts (e.g. by inserting and

removing the battery several times) or replace the

The battery is defective, due to a disconnection in

the battery (individual cells)

OBJ_BUCH-1584-004.book Page 17 Tuesday, April 16, 2013 11:34 AM18 | English

F 016 L70 847 | (16.4.13) Bosch Power Tools

Maintenance and Service

 Warning! Switch off, remove the isolator key, battery

and grassbox before adjusting or cleaning.

 Always wear gardening gloves when handling or work-

ing near the sharp blades.

Use the following procedures to enable optimum usage of the

– Protect the battery against moisture and water.

– Store the battery only within a temperature range between

0 °C and 50 °C. As an example, do not leave the battery in

– Do not leave the battery in the product in direct sunlight.

– The ideal storage condition for the battery is 5 °C.

– Occasionally clean the venting slots of the battery using a

soft, clean and dry brush.

A significantly reduced working period after charging indi-

cates that the battery is used and must be replaced.

After-sales Service and Application Service

www.bosch-garden.com

In all correspondence and spare parts orders, please always

include the 10-digit article number given on the type plate of

Robert Bosch Ltd. (B.S.C.)

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: (011) 6519600

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

The contained lithium ion batteries are subject to the Danger-

ous Goods Legislation requirements. The user can transport

the batteries by road without further requirements.

When being transported by third parties (e. g.: air transport or

forwarding agency), special requirements on packaging and

LEDs and respectively,

do not light up after in-

serting the mains plug

Mains plug of battery charger not plugged in (prop-

Insert mains plug (fully) into the socket outlet

Socket outlet, mains cable or battery charger de-

Check the mains voltage and if necessary, have the

battery charger checked by an authorized custom-

er service station for Bosch power tools

Problem Possible Cause Corrective Action

OBJ_BUCH-1584-004.book Page 18 Tuesday, April 16, 2013 11:34 AMFrançais | 19 Bosch Power Tools F 016 L70 847 | (16.4.13) labelling must be observed. For preparation of the item being

shipped, consulting an expert for hazardous material is re-

Dispatch batteries only when the housing is undamaged.

Tape or mask off open contacts and pack up the battery in

such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regula-

Do not dispose of garden products, battery chargers and bat-

teries/rechargeable batteries into household waste!

Only for EC countries:

According to the European law 2012/19/EU,

electrical and electronic equipments that are no

longer usable, and according to the European

law 2006/66/EC, defective or used battery

packs/batteries, must be collected separately

and disposed of in an environmentally correct

Batteries no longer suitable for use can be directly returned

Robert Bosch Ltd. (B.S.C.)

Battery packs/batteries:

Please observe the instructions in section

“Transport”. Subject to change without notice. Français

Avertissements de sécurité

OBJ_BUCH-1584-004.book Page 19 Tuesday, April 16, 2013 11:34 AM20 | Français

OBJ_BUCH-1584-004.book Page 20 Tuesday, April 16, 2013 11:34 AMFrançais | 21

OBJ_BUCH-1584-004.book Page 21 Tuesday, April 16, 2013 11:34 AM22 | Français

OBJ_DOKU-30021-004.fm Page 22 Tuesday, April 16, 2013 12:11 PMFrançais | 23

Bosch Power Tools F 016 L70 847 | (16.4.13)

Dossier technique (2006/42/CE, 2000/14/CE) auprès de :

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_DOKU-30021-004.fm Page 23 Tuesday, April 16, 2013 12:11 PM24 | Français

OBJ_BUCH-1584-004.book Page 24 Tuesday, April 16, 2013 11:34 AMFrançais | 25

OBJ_DOKU-30021-004.fm Page 25 Tuesday, April 16, 2013 12:37 PM26 | Français

OBJ_BUCH-1584-004.book Page 27 Tuesday, April 16, 2013 11:34 AM28 | Español

OBJ_BUCH-1584-004.book Page 28 Tuesday, April 16, 2013 11:34 AMEspañol | 29

OBJ_BUCH-1584-004.book Page 29 Tuesday, April 16, 2013 11:34 AM30 | Español

OBJ_BUCH-1584-004.book Page 30 Tuesday, April 16, 2013 11:34 AMEspañol | 31

Expediente técnico (2006/42/CE, 2000/14/CE) en:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 31 Tuesday, April 16, 2013 11:34 AM32 | Español

OBJ_BUCH-1584-004.book Page 32 Tuesday, April 16, 2013 11:34 AMEspañol | 33

OBJ_BUCH-1584-004.book Page 33 Tuesday, April 16, 2013 11:34 AM34 | Español

OBJ_BUCH-1584-004.book Page 34 Tuesday, April 16, 2013 11:34 AMEspañol | 35

OBJ_BUCH-1584-004.book Page 35 Tuesday, April 16, 2013 11:34 AM36 | Português F 016 L70 847 | (16.4.13) Bosch Power Tools Chile

OBJ_BUCH-1584-004.book Page 36 Tuesday, April 16, 2013 11:34 AMPortuguês | 37

OBJ_BUCH-1584-004.book Page 37 Tuesday, April 16, 2013 11:34 AM38 | Português

OBJ_BUCH-1584-004.book Page 38 Tuesday, April 16, 2013 11:34 AMPortuguês | 39

OBJ_BUCH-1584-004.book Page 39 Tuesday, April 16, 2013 11:34 AM40 | Português

F 016 L70 847 | (16.4.13) Bosch Power Tools

Processo técnico (2006/42/CE, 2000/14/CE) em:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 40 Tuesday, April 16, 2013 11:34 AMPortuguês | 41

OBJ_BUCH-1584-004.book Page 41 Tuesday, April 16, 2013 11:34 AM42 | Português

OBJ_BUCH-1584-004.book Page 42 Tuesday, April 16, 2013 11:34 AMPortuguês | 43

Conforme as Directivas Europeias

OBJ_BUCH-1584-004.book Page 44 Tuesday, April 16, 2013 11:34 AMItaliano | 45

OBJ_BUCH-1584-004.book Page 45 Tuesday, April 16, 2013 11:34 AM46 | Italiano

OBJ_BUCH-1584-004.book Page 46 Tuesday, April 16, 2013 11:34 AMItaliano | 47

OBJ_BUCH-1584-004.book Page 47 Tuesday, April 16, 2013 11:34 AM48 | Italiano

Fascicolo tecnico (2006/42/CE, 2000/14/CE) presso:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 48 Tuesday, April 16, 2013 11:34 AMItaliano | 49

OBJ_BUCH-1584-004.book Page 49 Tuesday, April 16, 2013 11:34 AM50 | Italiano

(Active Air Cooling)

OBJ_BUCH-1584-004.book Page 50 Tuesday, April 16, 2013 11:34 AMItaliano | 51

OBJ_BUCH-1584-004.book Page 51 Tuesday, April 16, 2013 11:34 AM52 | Italiano

OBJ_BUCH-1584-004.book Page 54 Tuesday, April 16, 2013 11:34 AMNederlands | 55

OBJ_BUCH-1584-004.book Page 56 Tuesday, April 16, 2013 11:34 AMNederlands | 57

Bosch Power Tools F 016 L70 847 | (16.4.13)

Technisch dossier (2006/42/EG, 2000/14/EG) bij:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 58 Tuesday, April 16, 2013 11:34 AMNederlands | 59

OBJ_BUCH-1584-004.book Page 61 Tuesday, April 16, 2013 11:34 AM62 | Dansk

OBJ_BUCH-1584-004.book Page 62 Tuesday, April 16, 2013 11:34 AMDansk | 63

OBJ_BUCH-1584-004.book Page 63 Tuesday, April 16, 2013 11:34 AM64 | Dansk

2004/108/EF, 2006/42/EF, 2000/14/EF.

Teknisk dossier (2006/42/EF, 2000/14/EF) ved:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 65 Tuesday, April 16, 2013 11:34 AM66 | Dansk

OBJ_BUCH-1584-004.book Page 66 Tuesday, April 16, 2013 11:34 AMDansk | 67

Bosch Service Center

OBJ_BUCH-1584-004.book Page 68 Tuesday, April 16, 2013 11:34 AMSvenska | 69

OBJ_BUCH-1584-004.book Page 69 Tuesday, April 16, 2013 11:34 AM70 | Svenska

OBJ_BUCH-1584-004.book Page 70 Tuesday, April 16, 2013 11:34 AMSvenska | 71

OBJ_BUCH-1584-004.book Page 71 Tuesday, April 16, 2013 11:34 AM72 | Svenska

Teknisk tillverkningsdokumentation (2006/42/EG,

2000/14/EG) fås från:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 72 Tuesday, April 16, 2013 11:34 AMSvenska | 73

OBJ_BUCH-1584-004.book Page 73 Tuesday, April 16, 2013 11:34 AM74 | Svenska

OBJ_BUCH-1584-004.book Page 74 Tuesday, April 16, 2013 11:34 AMSvenska | 75

Bosch Service Center

OBJ_BUCH-1584-004.book Page 76 Tuesday, April 16, 2013 11:34 AMNorsk | 77

OBJ_BUCH-1584-004.book Page 77 Tuesday, April 16, 2013 11:34 AM78 | Norsk

OBJ_BUCH-1584-004.book Page 78 Tuesday, April 16, 2013 11:34 AMNorsk | 79

Tekniske data (2006/42/EF, 2000/14/EF) hos:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 79 Tuesday, April 16, 2013 11:34 AM80 | Norsk

OBJ_BUCH-1584-004.book Page 80 Tuesday, April 16, 2013 11:34 AMNorsk | 81

OBJ_BUCH-1584-004.book Page 81 Tuesday, April 16, 2013 11:34 AM82 | Norsk

OBJ_BUCH-1584-004.book Page 83 Tuesday, April 16, 2013 11:34 AM84 | Suomi

OBJ_BUCH-1584-004.book Page 84 Tuesday, April 16, 2013 11:34 AMSuomi | 85

OBJ_BUCH-1584-004.book Page 85 Tuesday, April 16, 2013 11:34 AM86 | Suomi

OBJ_BUCH-1584-004.book Page 86 Tuesday, April 16, 2013 11:34 AMSuomi | 87

Bosch Power Tools F 016 L70 847 | (16.4.13)

Tekninen tiedosto (2006/42/EY, 2000/14/EY):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 87 Tuesday, April 16, 2013 11:34 AM88 | Suomi

OBJ_BUCH-1584-004.book Page 88 Tuesday, April 16, 2013 11:34 AMSuomi | 89

OBJ_BUCH-1584-004.book Page 89 Tuesday, April 16, 2013 11:34 AM90 | Suomi

OBJ_BUCH-1584-004.book Page 91 Tuesday, April 16, 2013 11:34 AM92 | Eλληνικά

OBJ_BUCH-1584-004.book Page 92 Tuesday, April 16, 2013 11:34 AMEλληνικά | 93

OBJ_BUCH-1584-004.book Page 93 Tuesday, April 16, 2013 11:34 AM94 | Eλληνικά

2006/42/EK, 2000/14/EK.

Τεχνικός φάκελος (2006/42/EΚ, 2000/14/EK) από:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 94 Tuesday, April 16, 2013 11:34 AMEλληνικά | 95

OBJ_BUCH-1584-004.book Page 95 Tuesday, April 16, 2013 11:34 AM96 | Eλληνικά

OBJ_BUCH-1584-004.book Page 96 Tuesday, April 16, 2013 11:34 AMEλληνικά | 97

OBJ_BUCH-1584-004.book Page 97 Tuesday, April 16, 2013 11:34 AM98 | Eλληνικά

OBJ_BUCH-1584-004.book Page 99 Tuesday, April 16, 2013 11:34 AM100 | Türkçe

OBJ_BUCH-1584-004.book Page 100 Tuesday, April 16, 2013 11:34 AMTürkçe | 101

OBJ_BUCH-1584-004.book Page 101 Tuesday, April 16, 2013 11:34 AM102 | Türkçe

OBJ_BUCH-1584-004.book Page 102 Tuesday, April 16, 2013 11:34 AMTürkçe | 103

Teknik belgelerin bulunduğu merkez (2006/42/AT,

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 103 Tuesday, April 16, 2013 11:34 AM104 | Türkçe

OBJ_BUCH-1584-004.book Page 104 Tuesday, April 16, 2013 11:34 AMTürkçe | 105

OBJ_BUCH-1584-004.book Page 105 Tuesday, April 16, 2013 11:34 AM106 | Türkçe

OBJ_BUCH-1584-004.book Page 107 Tuesday, April 16, 2013 11:34 AM108 | Polski

OBJ_BUCH-1584-004.book Page 108 Tuesday, April 16, 2013 11:34 AMPolski | 109

OBJ_BUCH-1584-004.book Page 109 Tuesday, April 16, 2013 11:34 AM110 | Polski

OBJ_BUCH-1584-004.book Page 110 Tuesday, April 16, 2013 11:34 AMPolski | 111

Dokumentacja techniczna (2006/42/WE, 2000/14/WE):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 111 Tuesday, April 16, 2013 11:34 AM112 | Polski

OBJ_BUCH-1584-004.book Page 112 Tuesday, April 16, 2013 11:34 AMPolski | 113

OBJ_BUCH-1584-004.book Page 113 Tuesday, April 16, 2013 11:34 AM114 | Polski

OBJ_BUCH-1584-004.book Page 114 Tuesday, April 16, 2013 11:34 AMPolski | 115

Robert Bosch Sp. z o.o.

OBJ_BUCH-1584-004.book Page 116 Tuesday, April 16, 2013 11:34 AMČesky | 117

OBJ_BUCH-1584-004.book Page 117 Tuesday, April 16, 2013 11:34 AM118 | Česky

OBJ_BUCH-1584-004.book Page 118 Tuesday, April 16, 2013 11:34 AMČesky | 119

2004/108/ES, 2006/42/ES, 2000/14/ES.

Technická dokumentace (2006/42/ES, 2000/14/ES) u:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 120 Tuesday, April 16, 2013 11:34 AMČesky | 121

OBJ_BUCH-1584-004.book Page 121 Tuesday, April 16, 2013 11:34 AM122 | Česky

OBJ_BUCH-1584-004.book Page 124 Tuesday, April 16, 2013 11:34 AMSlovensky | 125

OBJ_BUCH-1584-004.book Page 125 Tuesday, April 16, 2013 11:34 AM126 | Slovensky

OBJ_BUCH-1584-004.book Page 126 Tuesday, April 16, 2013 11:34 AMSlovensky | 127

2004/108/ES, 2006/42/ES, 2000/14/ES.

2000/14/ES) sa nachádza u:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 127 Tuesday, April 16, 2013 11:34 AM128 | Slovensky

OBJ_BUCH-1584-004.book Page 128 Tuesday, April 16, 2013 11:34 AMSlovensky | 129

OBJ_BUCH-1584-004.book Page 129 Tuesday, April 16, 2013 11:34 AM130 | Slovensky

OBJ_BUCH-1584-004.book Page 130 Tuesday, April 16, 2013 11:34 AMSlovensky | 131

OBJ_BUCH-1584-004.book Page 132 Tuesday, April 16, 2013 11:34 AMMagyar | 133

OBJ_BUCH-1584-004.book Page 133 Tuesday, April 16, 2013 11:34 AM134 | Magyar

OBJ_BUCH-1584-004.book Page 134 Tuesday, April 16, 2013 11:34 AMMagyar | 135

következő helyen található:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 135 Tuesday, April 16, 2013 11:34 AM136 | Magyar

OBJ_BUCH-1584-004.book Page 136 Tuesday, April 16, 2013 11:34 AMMagyar | 137

OBJ_BUCH-1584-004.book Page 137 Tuesday, April 16, 2013 11:34 AM138 | Magyar

OBJ_BUCH-1584-004.book Page 138 Tuesday, April 16, 2013 11:34 AMMagyar | 139

No. C-DE.ME77.B.01005

OBJ_BUCH-1584-004.book Page 140 Tuesday, April 16, 2013 11:34 AMРусский | 141

OBJ_BUCH-1584-004.book Page 141 Tuesday, April 16, 2013 11:34 AM142 | Русский

OBJ_BUCH-1584-004.book Page 142 Tuesday, April 16, 2013 11:34 AMРусский | 143

OBJ_BUCH-1584-004.book Page 143 Tuesday, April 16, 2013 11:34 AM144 | Русский

Техническая документация (2006/42/EС, 2000/14/EC):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 144 Tuesday, April 16, 2013 11:34 AMРусский | 145

OBJ_BUCH-1584-004.book Page 145 Tuesday, April 16, 2013 11:34 AM146 | Русский

OBJ_BUCH-1584-004.book Page 146 Tuesday, April 16, 2013 11:34 AMРусский | 147

OBJ_BUCH-1584-004.book Page 147 Tuesday, April 16, 2013 11:34 AM148 | Русский

2004/108/ЄС, 2006/42/ЄС, 2000/14/ЄС.

Технічна документація (2006/42/ЄС, 2000/14/ЄC):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 158 Tuesday, April 16, 2013 11:34 AMRomână | 159

OBJ_BUCH-1584-004.book Page 159 Tuesday, April 16, 2013 11:34 AM160 | Română

OBJ_BUCH-1584-004.book Page 160 Tuesday, April 16, 2013 11:34 AMRomână | 161

OBJ_BUCH-1584-004.book Page 161 Tuesday, April 16, 2013 11:34 AM162 | Română

Documentaţie tehnică (2006/42/CE, 2000/14/CE) la:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 162 Tuesday, April 16, 2013 11:34 AMRomână | 163

OBJ_BUCH-1584-004.book Page 163 Tuesday, April 16, 2013 11:34 AM164 | Română

OBJ_BUCH-1584-004.book Page 164 Tuesday, April 16, 2013 11:34 AMRomână | 165

Conform Directivei Europene 2012/19/UE,

echipamentele electrice şi electronice uzate şi,

conform Directivei Europene 2006/66/CE,

OBJ_BUCH-1584-004.book Page 167 Tuesday, April 16, 2013 11:34 AM168 | Български

OBJ_BUCH-1584-004.book Page 168 Tuesday, April 16, 2013 11:34 AMБългарски | 169

OBJ_BUCH-1584-004.book Page 169 Tuesday, April 16, 2013 11:34 AM170 | Български

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 170 Tuesday, April 16, 2013 11:34 AMБългарски | 171

OBJ_BUCH-1584-004.book Page 171 Tuesday, April 16, 2013 11:34 AM172 | Български

OBJ_BUCH-1584-004.book Page 172 Tuesday, April 16, 2013 11:34 AMБългарски | 173

OBJ_BUCH-1584-004.book Page 173 Tuesday, April 16, 2013 11:34 AM174 | Български

OBJ_BUCH-1584-004.book Page 174 Tuesday, April 16, 2013 11:34 AMБългарски | 175

OBJ_BUCH-1584-004.book Page 176 Tuesday, April 16, 2013 11:34 AMSrpski | 177

OBJ_BUCH-1584-004.book Page 177 Tuesday, April 16, 2013 11:34 AM178 | Srpski

OBJ_BUCH-1584-004.book Page 178 Tuesday, April 16, 2013 11:34 AMSrpski | 179

OBJ_BUCH-1584-004.book Page 179 Tuesday, April 16, 2013 11:34 AM180 | Srpski

F 016 L70 847 | (16.4.13) Bosch Power Tools

Tehnička dokumentacija (2006/42/EG, 2000/14/EG) kod:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 180 Tuesday, April 16, 2013 11:34 AMSrpski | 181

OBJ_BUCH-1584-004.book Page 181 Tuesday, April 16, 2013 11:34 AM182 | Srpski

OBJ_BUCH-1584-004.book Page 182 Tuesday, April 16, 2013 11:34 AMSrpski | 183

OBJ_BUCH-1584-004.book Page 184 Tuesday, April 16, 2013 11:34 AMSlovensko | 185

OBJ_BUCH-1584-004.book Page 185 Tuesday, April 16, 2013 11:34 AM186 | Slovensko

OBJ_BUCH-1584-004.book Page 186 Tuesday, April 16, 2013 11:34 AMSlovensko | 187

2006/42/ES, 2000/14/ES.

Tehnična dokumentacija (2006/42/ES, 2000/14/ES) pri:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 187 Tuesday, April 16, 2013 11:34 AM188 | Slovensko

OBJ_BUCH-1584-004.book Page 188 Tuesday, April 16, 2013 11:34 AMSlovensko | 189

OBJ_BUCH-1584-004.book Page 189 Tuesday, April 16, 2013 11:34 AM190 | Slovensko

OBJ_BUCH-1584-004.book Page 190 Tuesday, April 16, 2013 11:34 AMSlovensko | 191

OBJ_BUCH-1584-004.book Page 192 Tuesday, April 16, 2013 11:34 AMHrvatski | 193

OBJ_BUCH-1584-004.book Page 193 Tuesday, April 16, 2013 11:34 AM194 | Hrvatski

OBJ_BUCH-1584-004.book Page 194 Tuesday, April 16, 2013 11:34 AMHrvatski | 195

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 195 Tuesday, April 16, 2013 11:34 AM196 | Hrvatski

OBJ_BUCH-1584-004.book Page 196 Tuesday, April 16, 2013 11:34 AMHrvatski | 197

OBJ_BUCH-1584-004.book Page 197 Tuesday, April 16, 2013 11:34 AM198 | Hrvatski

OBJ_BUCH-1584-004.book Page 200 Tuesday, April 16, 2013 11:34 AMEesti | 201

OBJ_BUCH-1584-004.book Page 201 Tuesday, April 16, 2013 11:34 AM202 | Eesti

OBJ_BUCH-1584-004.book Page 202 Tuesday, April 16, 2013 11:34 AMEesti | 203

Tehniline toimik (2006/42/EÜ, 2000/14/EÜ) saadaval:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 203 Tuesday, April 16, 2013 11:34 AM204 | Eesti

OBJ_BUCH-1584-004.book Page 204 Tuesday, April 16, 2013 11:34 AMEesti | 205

Tehniskā lieta (2006/42/EK, 2000/14/EK) no:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 213 Tuesday, April 16, 2013 11:34 AM214 | Latviešu

OBJ_BUCH-1584-004.book Page 216 Tuesday, April 16, 2013 11:34 AMLietuviškai | 217

OBJ_BUCH-1584-004.book Page 217 Tuesday, April 16, 2013 11:34 AM218 | Lietuviškai

Techninė byla (2006/42/EB, 2000/14/EB) laikoma:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Robert Bosch GmbH, Power Tools Division

Senior Vice President

OBJ_BUCH-1584-004.book Page 219 Tuesday, April 16, 2013 11:34 AM220 | Lietuviškai

OBJ_BUCH-1584-004.book Page 221 Tuesday, April 16, 2013 11:34 AM222 | Lietuviškai

OBJ_BUCH-1584-004.book Page 223 Tuesday, April 16, 2013 11:34 AM224 | Lietuviškai

:(2000/14/EG2006/42/EG)

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Head of Product Certification

Dr. Egbert Schneider

Senior Vice President



Stowmarket, Suffolk IP14 1EY, England

Head of Product Certification

Dr. Egbert Schneider

Senior Vice President

OBJ_BUCH-1584-004.book Page 242 Tuesday, April 16, 2013 11:34 AM| 243

OBJ_BUCH-1584-004.book Page 244 Tuesday, April 16, 2013 11:34 AM| 245

OBJ_BUCH-1584-004.book Page 246 Tuesday, April 16, 2013 11:34 AM| 247

OBJ_BUCH-1584-004.book Page 248 Tuesday, April 16, 2013 11:34 AM
