USER MANUAL GSR 12 V-35 FC BOSCH

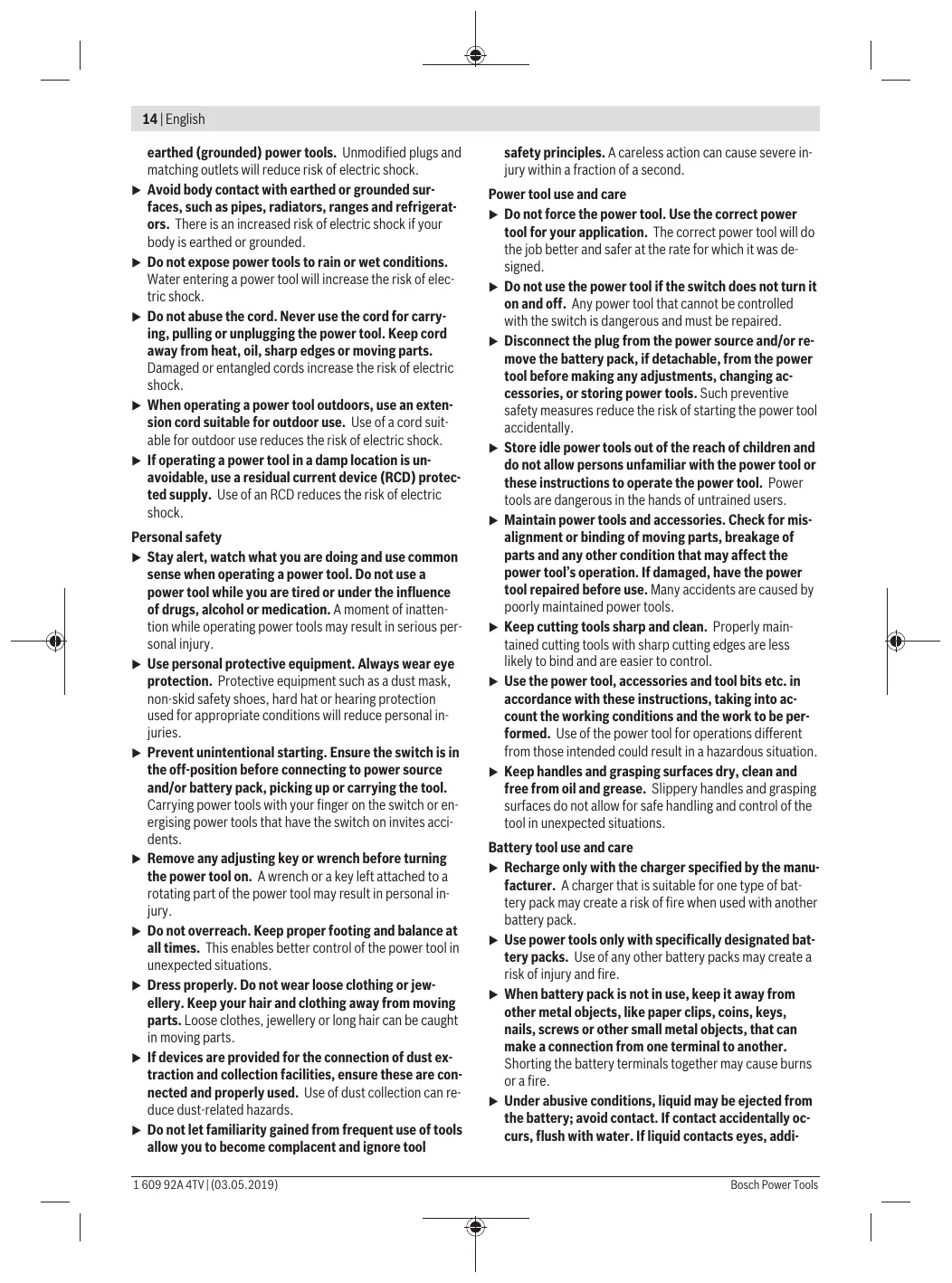

14] English earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. > Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- rs. There is an increased risk of electric shock i your body is earthed or grounded. > Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. > Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. > When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock > Ioperating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety > Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten tion while operating power tools may result in serious per- sonal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in juries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci dents. Remove any adjusting key or wrench before turning the power tool on. Awrench or a key leftattached to à rotating part of the power tool may result in personal in- jury. Do not overreach. Keep proper footing and balance at alltimes. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewr- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. Do notlet familiarity gained from frequent use of tools allow you to become complacent and ignore tool

safety principles. À careless action can cause severe in- jury within a fraction of a second. Power tool use and care > Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. Do not use the power tool ifthe switch does notturn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power too! accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the pourer tool for operations different from those intended could result in a hazardous situation Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care > Recharge only with the charger specified by the manu- facturer. À charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, Keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns orafire. Under abusive conditions, liquid may be ejected from the battery avoid contact. If contact accidentally oc- curs, flush with water. liquid contacts eyes, addi-

tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ofinjury. Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offre.

Service > Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. > Never service damaged battery packs. Service of bat tery packs should only be performed by the manufacturer or authorized service providers. Safety information for screwdrivers Safety instructions for all operations > Holdthe power tool by insulated gripping surfaces, when performing an operation where the cutting ac- cessory or fasteners may contact hidden wiring. Cut ting accessory contacting a"live' wire may make exposed metal parts ofthe power tool live" and could give the op: erator an electric shock. Safety instructions when using long drill bits > Never operate at higher speed than the maximum speed rating of the dril bit. At higher speeds, the bit is likely to bendif allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. > Always start driling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ingthe workpiece, resulting in personal injury. > Appiy pressure only in direct line with the bit and do not apply excessive pressure.Bits can bend causing breakage or loss of control, resulting in personal injury. Additional safety information > Secure the workpiece. À workpiece clamped with clamping devices or in a vice is held more secure than by hand. > Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. > Switch the power tool off immediately if the api tion tool becomes blocked. Be prepared for high torque reactions which cause kickback. The applica- tion tool becomes blocked when it becomes jammed in the workpiece or vien the power tool becomes over- loaded English|15 > Use suitable detectors to determine ifthere are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex plosion. Breaking water pipes causes property damage. > Holdthe power tool securely. When tightening and loosening screws be prepared for temporarly high torque reactions. > In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. > Do not open the battery. There is a risk of short-circuit- ing. > The battery can be damaged by pointed objects such as naïls or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. > Only use the battery with products from the manufac- turer, This is the only way in which you can protect the battery against dangerous overload Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture, There is a risk of explosion and short-circuiting. Product Description and Specifications Read allthe safety and general instructions. Failure to observe the safety and general in structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The power tool is intended for driving and loosening screws and for drilling in wood, metal and plastic. The power tool can be used with an angle adapter (GFA 12- W, off-set angle adapter (GFA 12-E), bit holder adapter (GFA 12-X) or drill chuck adapter (GFA 12-B). Product features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Tool holder (2) Torque presettingring (3) Gear selector (4) | Battery release button (2x) (5) Battery (6) Rotational direction switch (7) Onpoff switch Bosch Power Tools 1609 92A 47] (03.05.2019)

16 English (8) _ Battery charge indicator (15) Hand (insulated gripping surface) (2) Workight (16) Universal bit holder (10) Bitholder adapter GFA 12-X° (17) Belt clip” (11) Drill chuck adapter GFA 12-B (18) Bit holder‘ (12) Off-set angle adapter GFA 12-E * (19) Colour clip”? (13) Angle adapter GFA 12-W A) Accessories shown or described are not included with the product as standard. You can find the complete selection of (14) Locking ring accessories in our accessories range. Technical data Cordless GSR12V-35FC GFA12X GFA1: Article number 3 601 JH3 0. E = = E Rated voltage v= 12 = = = - No-load speed” — Firstgear min 0-460 - - - - — Second gear min 0-1750 : : - - Max. torque, soft Nm 20 - - - - screwdriving applica tion according to ISO

Max. torque, hard Nm 35 - - - - screwdriving applica tion according to IS0 5393" Max. drilling diameter (frst/second gear) = Wood mm 32 - - - - — Steel mm 10 - - : - Screw diameter max. mm 8 = = = = Tool holder 6.35 (4) 6.35 (4") 0.8-10 6.35 (4°) 6.35 (4°) Weight according to kg O77-10 01 02 03 03 EPTA-Procedure 01:2014 Permitted ambient temperature — during charging E 0to+35 = = = = — during operation”) ‘© -20to+50 - - - - and during storage Recommended batter GBA 12... - = = - ies Recommended char: GAL 12... - - - - gers GAX 18. A) Depends on battery in use B). Limited performance at temperatures <0°C Noise/vibration information Typically, the A-weighted sound pressure level of the power Noise emission values determined according to tool is 74 dB(A). Uncertainty K = 3 dB. The noise level when EN62841.2.4 EN 62841.2.2 working can exceed the volume stated. Wear hearing pro- u J tection GSR12V-35FC GFA12-X GFA12-B GFA12- Vibration total values a, (triax vector sum) and uncertainty K determined according to EN 62841-2-1, EN 62841: Driling in metal: GFA 12- 1609 92h 47V](03.05.2019) Bosch Power Tools

English] 17 GSR12V-35FC GFA12-X GFA12B GFA12E GFA12 a, m/s - - 35 - - k m/s? - = 15 = = Screwdriving: a m/s <25 <25 = <25 <25 k m/s 15 15 = 15 15 The vibration level and noise emission value given in these instructions have been measured in accordance with à standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- entthe main applications of the power tool. However, ifthe power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Fitting > Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Removing the battery (see figure A) > Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducingits service life. nterrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge bythe "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of à protective circuit: The application tool no longer rotates. > Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. To remove the battery (5), press both release buttons (4) and pullthe battery dounwards out of the power tool. Da not use force to do this. Follow the instructions on correct disposal. Changing the tool Inserting the application tool (see figure B) Insert the application tool all the way into the mounting (1) Fitting the adapter (see figure C) Remove the application tool. Insert the adapter into the mounting (1). Turn the locking ring (14) until it audibly engages. Inserting the application tool into the adapter GFA 12-E, GFA 12-X (see figure D) Insert the application tool all the way into the mounting (1) The application tool is held in the mounting by means of à magnet. GFA 12-8 (see figure E) Open the drill chuck adapter (11) by turning in direction of rotation @ until the application tool can be inserted. Insert the application tool. Firmly tighten the sleeve of the dll chuck adapter (11) by turning it by hand in direction of rotation @. This will auto- matically lockthe dril chuck. Turning the adapter (see figure F) Pull the locked adapter approx. 5 mm away from the povier tool. Turn the adapter to the required position and then let it

Removing the adapter (see figure G) Remove the application tool. Unlock the adapter in the Œ° direction and pull off the mounting (1). Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carci nogenic, especially in connection with wood-treatment ad- ditives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. — Provide for good ventilation of the working place. Bosch Power Tools 1609 92A 47] (03.05.2019)

18] English —_Itis recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the ma- terials to be worked. > Avoid dust accumulation at the workplace. Dust can easily gnite. Operation Start-up Inserting the battery Note: The use of batteries unsuitable for your power tool can lead to malfunctions or damage to the power tool. Set the rotational direction switch (6) to the middle position to avoid unintentionally switchingt on. Insert the charged battery (5) into the handle until you feel it engage and it is flush with the handle. Setting the rotational direction (see figure H) The rotational direction switch (6) is used to change the ro- tational direction of the power tool. However, this is not pos sible while the on/off switch (7) is being pressed. Right rotation: To dll and to drive in screws, press the ro tational direction switch (6) through to the left stop. Left Rotation: To loosen and unscrew screws and nuts, press the rotational direction switch (6) through to the right stop. Preselecting the Torque The torque presetting ring (2) can be used to preselect the required torque in 20 stages. When the correct setting is used, the application tool il be stopped when the screw is driven flush into the material or once the set torque has been reached. In position «xuthe overload clutch is deactivated, e.g. for drilling. When unscrewing screws, you can select a higher setting or setthe tool to the axxsymbol. Mechanical gear selection > Only operate the gear selector (3) when the power tool is not in use. You can preselect two speed ranges with the gear selector Gear l: Low speed range: for screwdriving or working with a large driling diameter. Gearll: High speed range: for working with a small driling diameter. Suitching on/off To startthe power tool, press and hold the on/off switch The lamp lights up when the on/off switch (7) is lightly or fully pressed for a few seconds, meaning that the work area isilluminated in poor lighting conditions. To switch off the power tool, release the on/off switch (7) Adjusting the Speed You can adjust the speed ofthe power tool when is on by pressing in the on/off switch (7) to varying extents. Alight pressure on the on/off switch (7) results in a low rota- tional speed. ncreased pressure on the switch causes an in- crease in speed. Fully automatic spindle lock (Auto-Lock) The dril spindle, and therefore the too holder, are locked when the on/off switch (7) is not pressed. This allows screws to be driven in even when the battery is discharged and enables the power tool to be used as à screwdriver. Battery charge-control indicator When the on/off switch (7) is pressed in halfway or com- pletely, the battery charge-control indicator (8) indicates the charge condition of the battery for several seconds. The indicator consists of three green LEDS. The three LEDS of the battery charge-control indicator (8) and the lamp flash urgentiy when the temperature of the bat: teryfalls or rises outside the operating temperature range of -20 to +50 °C. LED Capacity Continuous light 3 x green 276% Continuous light 2 x green 51-75% Continuous light 1 x green 26-50 % Slowiy flashing light 1 x green 25% Temperature-dependent overload protection In normal conditions of use, the power tool cannot be over- loaded. Ithere is an extreme overload, the povier tool switches off until the optimal operating temperature range is reached again. This status is indicated by the three battery charge indicator (8) LEDS flashing in a chase sequence. The LEDS turn off if the power tool has reached the optimum operating temper- ature again. Practical advice > Only apply the power tool to the screw when the tool is switched off. Rotating application tools can slip off. After working at a low speed for an extended period, you should operate the power tool at the maximum speed for ap- proximately three minutes without load to cool it down. When drilinginto metal, only use sharpened HSS drills (HSS = high-speed steel) which are in perfect condition. The Bosch accessory range guarantees appropriate quality. Before screwing larger, longer screws into hard materials, it is advisable to pre-dril'a pilot hole with the core diameter of the thread to approx. 2/3 of the screw length Belt clip (see figure 1) You can use the belt clip (7) to hang the power tool on à belt, for example. You then have both hands free and the power tool is always within easy reach. 1609 92h 47V](03.05.2019) Bosch Power Tools

Bit holder (see figure J) You can place screwdriver bits in the magnetic bit holder (18) for storage. Colour clip (see figure K) The colour clip (19) can only be used the belt clip (17) or bit holder (18) are not fitted Maintenance and servicing Maintenance and Cleaning > Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk ofinjury from unintentionall pressing the on/off switch. > To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean. After-Sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessor- ies. Inall correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate ofthe product. Great Britain Robert Bosch Ltd. (B.S.C.) P.0. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Atwww.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: English] 19 Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand Phone: (0800) 543353 Fax: (0800) 428570 Outside AU and NZ: Phone: +61 3 95415555 www.bosch-pt.com.au www. bosch-pt.co.nz Republic of South Africa Customer service Hotline: (011) 6519600 Gauteng - BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel: (011) 4939375 Fax: (011) 4930126 E-Mail: bsctools@icon.co.za KZN - BSC Service Centre Unit, Aimar Centre 143 Crompton Street Pinetoun Tel: (031) 7012120 Fax: (031) 7012446 E-Mail: bsc.dur@za.bosch.com Western Cape - BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel: (021) 5512577 Fax: (021) 5513223 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel: (011) 6519600 Fax: (011) 6519880 E-Mail rbsa-hg.pts@za.bosch.com Transport The contained lithium-ion batteries are subject to the Dan- gerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further re- Strictions. When shipping by third parties (e.8.: by air transport or for- warding agency), special requirements on packaging and la belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. osal The machine, rechargeable batteries, ac- cessories and packaging should be sorted for environmental-friendly recycling. Bosch Power Tools 1609 92A 47] (03.05.2019)

Licenses Copyright © 2009 - 2013 ARM LIMITED Alrights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: — Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. —_ Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. —_ Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE 1S PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER: RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2015, Infineon Technologies AG Alrights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: — Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. —_ Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. —_ Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE 1S PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER: RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Bosch Power Tools 1609 92A 410] (03.05.2019)
