USER MANUAL PSR 18 BOSCH

1 609 929 M89 | (5.11.07)

Dr. Eckerhard Strötgen

Head of Product Certification

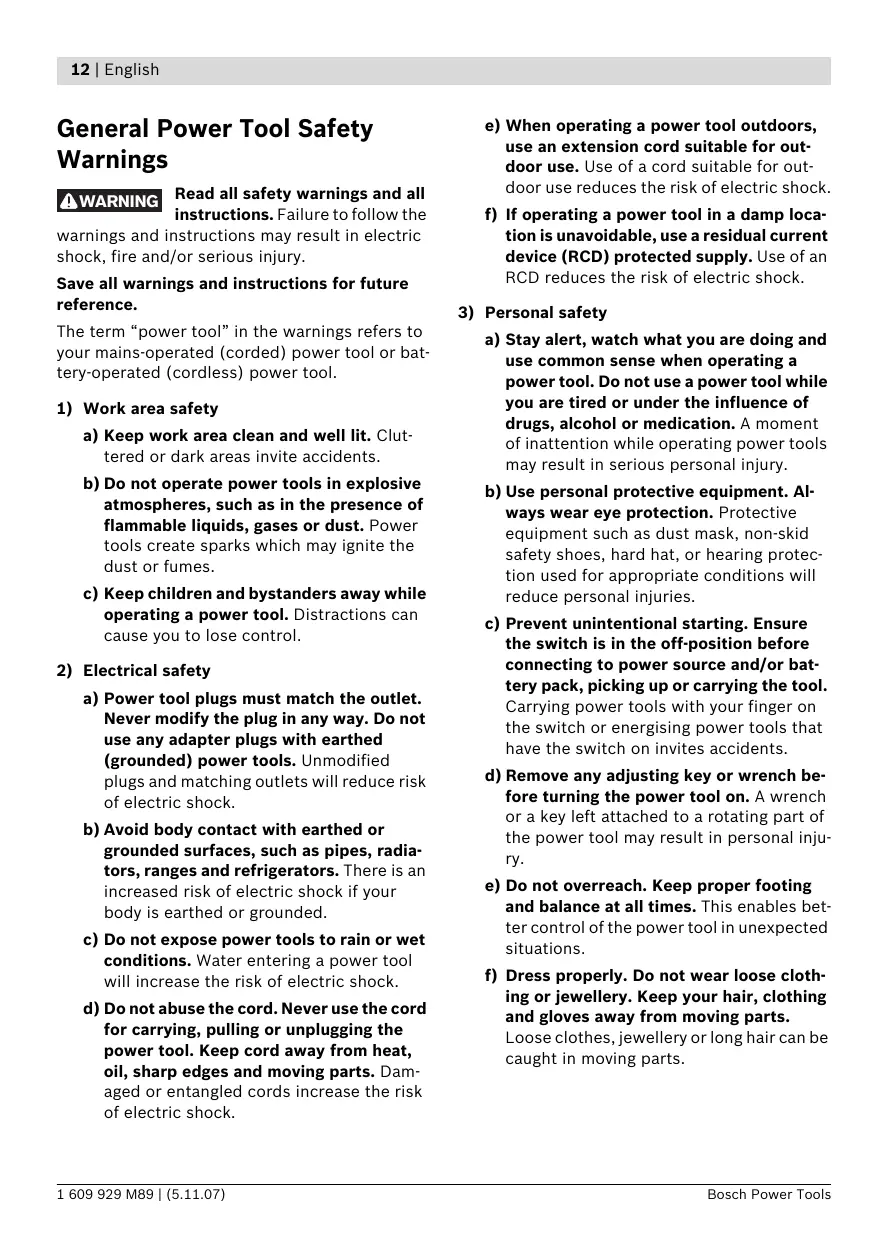

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

1 609 929 M89 | (5.11.07)

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an

RCD reduces the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

English | 13 g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings f Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock. f Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: — the power tool is subject to overload or — it becomes wedged in the workpiece. 1 609 929 M89 | (5.11.07)

14 | English f Hold power tool by the insulated gripping surfaces, when performing an operation where the cutting tool may run into hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator. f Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws. f Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. f Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode. f Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

The numbering of the product features refers to the illustration of the machine on the graphics page. 1 Keyless chuck 2 Front sleeve 3 Rear sleeve 4 Torque preselection ring 5 Indicator for right rotation 6 Indicator for left rotation 7 Soft grip 8 Screwdriver bit* 9 Battery unlocking button 10 Battery 11 “Power Light” 12 Rotational direction switch 13 On/Off switch

f Avoid unintentional switching on. Ensure the

On/Off switch is in the off position before inserting battery pack. Carrying the power tool with your finger on the On/Off switch or inserting the battery pack into power tools that have the switch on invites accidents.

*The accessories illustrated or described are not included as standard delivery.

f Do not open the battery. Danger of shortcircuiting.

Measured values determined according to

Protect the battery against heat, e. g., also against continuous sun irradiation and fire. There is danger of explosion.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic.

1 609 929 M89 | (5.11.07)

14 Universal bit holder*

Noise/Vibration Information

Typically the A-weighted sound pressure level of the product is 75 dB(A). Uncertainty K=3 dB.

The noise level when working can exceed 80 dB(A). Wear hearing protection! Vibration total values (triax vector sum) determined according to EN 60745: Drilling into metal: Vibration emission value ah <2.5 m/s2, Uncertainty K=1.5 m/s2, Screwdriving: Vibration emission value ah <2.5 m/s2, Uncertainty K=1.5 m/s2. The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times

when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Cordless Screwdriver

Max. torque for hard/soft screwdriving application according to ISO 5393

Rated voltage No-load speed

Weight according to EPTA-Procedure

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on). Technical file at: Robert Bosch GmbH, PT/ESC, D-70745 Leinfelden-Echterdingen Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen

Head of Product Certification

Battery Charging A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles. To remove the battery 10 press the unlocking buttons 9 and pull out the battery downwards. Do not exert any force. The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0 °C and 45 °C. A long battery service life is achieved in this manner. A significantly reduced working period after charging indicates that the battery is used and must be replaced. Observe the notes for disposal.

1 609 929 M89 | (5.11.07)

Changing the Tool (see figure A) f Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Hold the rear sleeve 3 of the keyless chuck 1 tight and turn the front sleeve 2 in rotation direction n, until the tool can be inserted. Insert the tool. Hold the rear sleeve 3 of the keyless chuck 1 tight and firmly tighten the front sleeve 2 by hand in rotation direction o, until the locking action (click) is heard. The drill chuck is locked automatically. The locking is released again to remove the tool when the front sleeve 2 is turned in the opposite direction.

Starting Operation Inserting the Battery f Use only original Bosch O-pack batteries with the voltage given on the type plate of your machine. The use of other batteries can lead to injuries and danger of fire. Set the rotational direction switch 12 to the centre position in order to avoid unintentional starting. Insert the charged battery 10 into the handle so that it can be felt to engage and faces flush against the handle. Reversing the Rotational Direction (see figure B)

Replacing the Drill Chuck

The rotational direction switch 12 is used to reverse the rotational direction of the machine.

However, this is not possible with the On/Off switch 13 actuated.

For machines without spindle lock, the drill chuck must be replaced through an authorized after-sales service agent for Bosch power tools.

Right Rotation: For drilling and driving in screws, push the rotational direction switch 12 left to the stop.

The drill chuck must be tightened with a tightening torque of approx. 30–35 Nm.

The indicator for right rotation 5 lights up when the On/Off switch 13 is actuated.

Dust/Chip Extraction f Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – Use dust extraction whenever possible. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator.

Left Rotation: For loosening or unscrewing screws, push the rotational direction switch 12 right to the stop.

The indicator for left rotation 6 lights up when the On/Off switch 13 is actuated. Setting the Torque The required torque can be preselected in 10 steps with the torque preselection ring 4. With the correct setting, the insert tool is stopped as soon as the screw is screwed flush into the material or when the set torque is reached. Select a higher setting when driving out screws, or set to the symbol “Drilling”. Drilling The safety clutch is deactivated in the “Drilling” position.

Observe the relevant regulations in your country for the materials to be worked.

1 609 929 M89 | (5.11.07)

Switching On and Off

To start the machine, press the On/Off switch 13 and keep it depressed.

After longer periods of working at low speed, allow the machine to cool down by running it for approx. 3 minutes at maximum speed with no load.

The power light 11 lights up when the On/Off switch 13 is halfway or fully depressed, and enables illumination of the screwing location in unfavourable light conditions.

To switch off the machine, release the On/Off switch 13. Adjusting the Speed The speed of the switched on power tool can be variably adjusted, depending on how far the On/Off switch 13 is pressed.

For drilling in metal, use only perfectly sharpened HSS drill bits (HSS=high-speed steel). The appropriate quality is guaranteed by the Bosch accessories program.

Before screwing larger, longer screws into hard materials, it is advisable to predrill a pilot hole with the core diameter of the thread to approx. 2 /3 of the screw length.

Light pressure on the On/Off switch 13 results in a low rotational speed. Further pressure on the switch results in an increase in speed.

Maintenance and Service

Maintenance and Cleaning

When the On/Off switch 13 is released, the chuck brakes to a stop, thus preventing the runon of the tool.

f Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

When driving in screws, wait until the screw is screwed in flush with the material and then release the On/Off switch 13. By doing so, the head of the screw does not penetrate into the material.

Working Advice f Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.

Dr. Eckerhard Strötgen

Head of Product Certification

1 609 929 M89 | (5.11.07)

Dr. Egbert Schneider

Senior Vice President Engineering

Dr. Eckerhard Strötgen

Head of Product Certification

1 609 929 M89 | (5.11.07)

2 607 335 526 2 607 335 542 2 607 335 262 12 V (NiMH) 2 607 335 684
