Product Type	Cordless File
Brand	RYOBI
Model	R18PF
Rated Voltage	18 V (Direct Current)
Battery Type	Lithium-ion (sold separately)
Variable Speed	Yes, with speed control
Intended Use	Dry sanding of metal, wood, plastic, and similar materials
Abrasive Belts Included	Grits 60, 80, 120
Locking System	Lock button to prevent accidental starts
Weight	Approx. 1.5 kg
Operating Temperature	0 °C to 40 °C
Storage Temperature (tool)	0 °C to 40 °C
Storage Temperature (battery)	0 °C to 20 °C
Warranty	24 months (extension possible upon registration)
Maintenance	Clean with a dry cloth; do not use solvents
Repairability	Original parts; repair by an approved RYOBI service center
Included Accessories	3 abrasive belts, user manual
Environmental Protection	Recycle tool, accessories, and packaging separately
Standards Complied	CE, RoHS, EN 62841
Professional Use	No, private use only

Frequently Asked Questions - R18PF RYOBI

How do I change the abrasive belt?

Actuate the sanding belt release lever to loosen the belt. Remove the old belt, place the new one centering it well on the rollers, then release the lever. Use the adjustment knob to tension the belt if necessary.

Can I use this file for wet sanding?

No, the product is designed exclusively for dry sanding. Never use it with water.

Which battery is compatible with the R18PF model?

The file works with RYOBI 18 V (ONE+) series lithium-ion batteries. The battery is not included with the tool.

How do I adjust the sanding speed?

Use the speed control wheel on the handle. Turn it to increase or decrease speed depending on the material being sanded.

What materials can I sand with this tool?

The product is designed for sanding metal, wood, plastic, and similar materials. Always work in a well-ventilated area and wear a dust mask.

How do I clean and maintain the file?

Always disconnect the battery before cleaning. Wipe the tool with a clean, dry cloth. Do not use solvents as they can damage plastic parts.

Where can I purchase spare parts or accessories?

Use only original RYOBI parts and accessories. Visit the RYOBI website or contact an approved service center to order them.

What is the warranty period?

The warranty is 24 months from the date of purchase for private use. Online registration within 30 days may extend the warranty. Keep the proof of purchase.

Can I use the file continuously for long periods?

It is recommended to take regular breaks. Prolonged use can increase risks related to vibrations. Wear hearing protection and follow safety instructions.

What should I do if the tool does not start?

Check that the battery is inserted and charged. Ensure the lock button is disengaged. If the problem persists, contact an approved RYOBI service center. Do not attempt to repair it yourself.

USER MANUAL R18PF RYOBI

Translation of the original instructions

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	It est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produkte die Anweisungen in dieser Anleitunglesen.
jAtencion!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utiliser este producto
Attenzione!	E' importante leggere le istruzioniicontinue nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sulso stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atença!	É fundamental que leia as instruções requisite manual antes da montagem, manutençao e operação do aparelho.
OBS!	Det er vigtigt, at man léser instrukserne i dette brugsanvising, inden man smler, vedligeholder og betjener produktet.
Observera!	Det ar viktigt att du láser instructuronna i manualen före montering, användning och underhàll av Produkten.
Huomio!	On tärkeää,etty luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huohtoa ja käytöä.
Advarsell!	Det er viktigt at du leser instruksjönene i dette manualen før sammensetting, vedlikehold og bruk av Produktet
BHMAMNIE!	Heobxodimo proountaţb INCTPCKUIM B DaHOM ryKOBODCTBE nepead cboPKO, obcnykBaHEMи ekcnpluaTauuem ŠTOGO nIeDLIN.
Uwaga!	Koniecznie naležy przechytač instructkcje zawarte w tym podrczniku przed montažem, obsluga oraz konserwacja produktu.
Duležité upozorněni!	Neinstalujte, neprováðejte ïdržbu ani nepoužívejte tento výrobek dřive, než si prečtete pokyny uvedené v toto námody.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata elätt elolvassa a kězikönyvben talalható utasításokat.
Atentjie!	Este esential sā cititi instructiunile din acest manual inainte de asamblare, efctuarea intretinerii sì operarea produsului.
Uzmanibu!	Ir svarigi izlasit šis rokasgrāmatas instrukcjias pirms uzstādīsanas, apkopes un preces darbināsanas.
Demesio!	Priš surenkant, prižūrint ir naudojant gaminj, butina perskaityi šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da stePRIJE sklapanja, odžavanja i rada s ovm proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdřevanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je droležité, aby ste si pred montažou, udžrbou a obsluhou produktu prečitali pokyny v toto námode.
Baxho!	Изклочтелно вадное заючтete INCTPCKUIMВ HACSTOTo pБКОВODCTBO, pried da priemHNETe KBM crNo6BaBane, PodpBXKAил равotса с prodykTa.
BaxnIBo!	Дуже вадново, zuobи пючтали INCTPCKUIIВ zuobу керіВицтBIпегд SCКаданнам, obSCnyroВУВANHЯm Ta ekcnplyaTauuè zuiMiAsHIn.
Dikkat!	Ürünün montajini, bakimini yapmadan ve ürünü calistirmadan once bu kilavuzda yer alan talimatlari okumaniz onemildir.
Прозх!	Eivai proLáошмavTiKóvo àdiαβασετε TIC obnyiεSTo TApov évχερiodio TPriv συναρμολογησε, συντηρησεTe n λειθουργησεTe to ПрòiÖV.

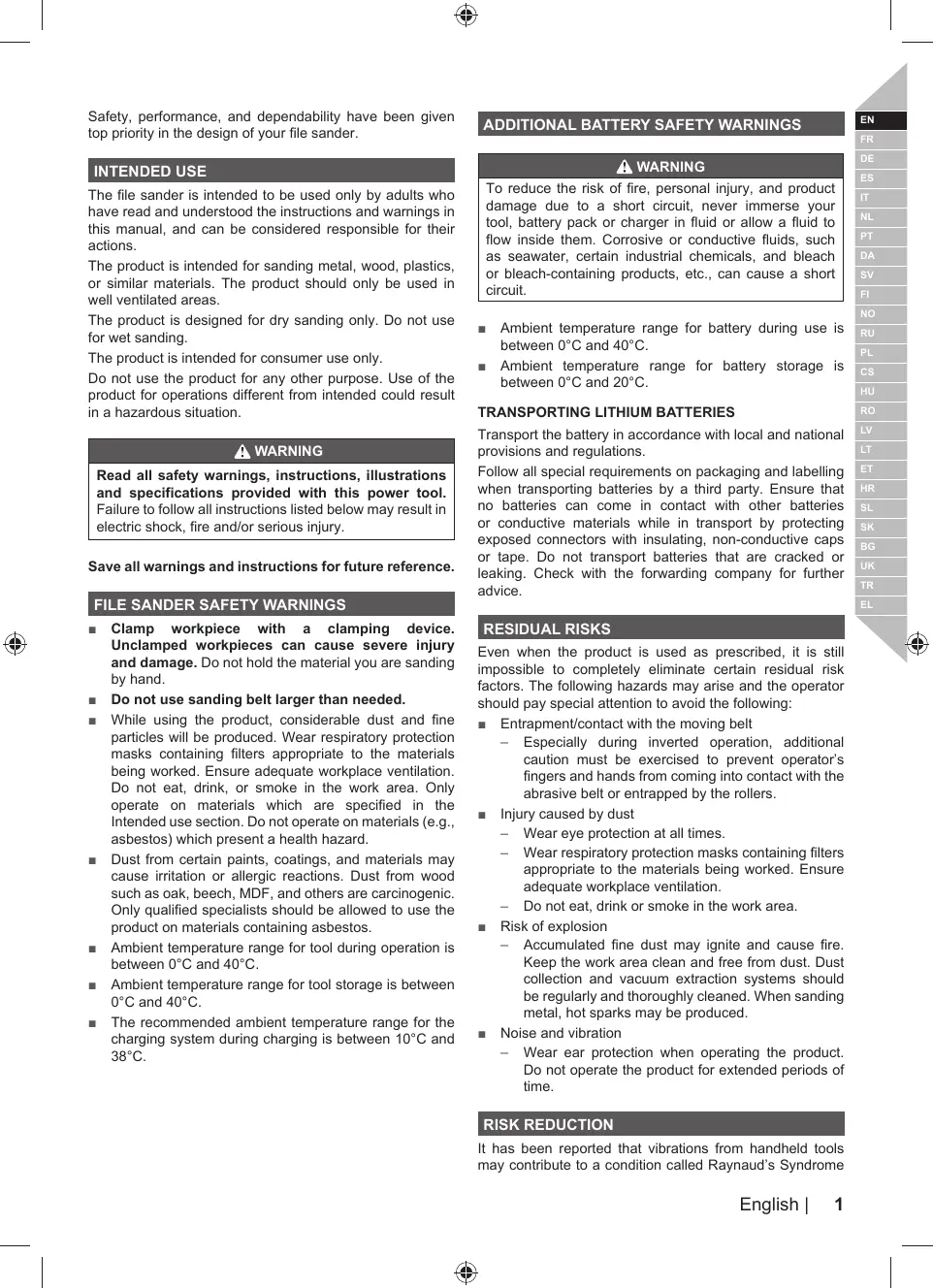

Safety, performance, and dependability have been given top priority in the design of your file sander.

INTENDED USE

The file sander is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

The product is intended for sanding metal, wood, plastics, or similar materials. The product should only be used in well ventilated areas.

The product is designed for dry sanding only. Do not use for wet sanding.

The product is intended for consumer use only.

Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

FILE SANDER SAFETY WARNINGS

• Clamp the workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage. Do not hold the material you are sanding by hand.
• Do not use a sanding belt larger than needed. While using the product, considerable dust and fine particles will be produced. Wear respiratory protection masks containing filters appropriate to the materials being worked. Ensure adequate workplace ventilation. Do not eat, drink, or smoke in the work area. Only operate on materials which are specified in the Intended Use section. Do not operate on materials (e.g., asbestos) which present a health hazard.
• Dust from certain paints, coatings, and materials may cause irritation or allergic reactions. Dust from wood such as oak, beech, MDF, and others is carcinogenic. Only qualified specialists should be allowed to use the product on materials containing asbestos. The ambient temperature range for the tool during operation is between 0°C and 40°C.
• The ambient temperature range for tool storage is between 0°C and 40°C. The recommended ambient temperature range for the charging system during charging is between 10°C and 38°C.

ADDITIONAL BATTERY SAFETY WARNINGS

A WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

• The ambient temperature range for the battery during use is between 0°C and 40°C.
• The ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

Entrapment/contact with the moving belt

• Especially during inverted operation, additional caution must be exercised to prevent operator's fingers and hands from coming into contact with the abrasive belt or being entrapped by the rollers.

Injury caused by dust

• Wear eye protection at all times.
• Wear respiratory protection masks containing filters appropriate to the materials being worked. Ensure adequate workplace ventilation.
• Do not eat, drink or smoke in the work area.

Risk of explosion

Accumulated fine dust may ignite and cause fire. Keep the work area clean and free from dust. Dust collection and vacuum extraction systems should be regularly and thoroughly cleaned. When sanding metal, hot sparks may be produced.

Noise and vibration - Wear ear protection when operating the product. Do not operate the product for extended periods of time.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome

in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. After each period of operation, exercise to increase blood circulation. Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

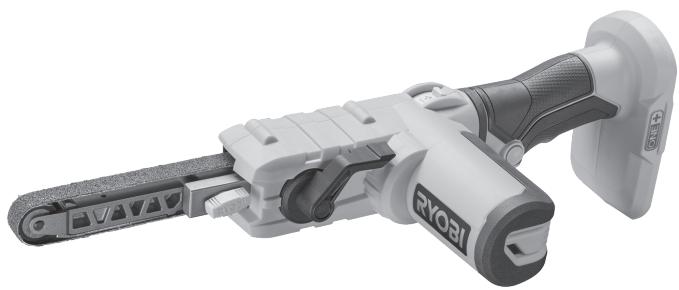

KNOW YOUR PRODUCT

See page 81.

1. Sanding belt adjustment knob
2. Sanding belt release lever
3. Speed control
4. Handle, insulated gripping surface
5. Lock on button
6. Trigger
7. Battery port
8. Sanding belt (60 grit)
9. Sanding belt (80 grit)
10. Sanding belt (120 grit)

MAINTENANCE

WARNING

The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.

WARNING

When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.

• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

WARNING

For greater safety and reliability, all repairs should be performed by an authorised service centre.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmentally-friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert

No-load speed

min-1

Revolutions or reciprocations per minute

V

Volts

Direct current

CE

CE conformity

EAC

EurAsian Conformity Mark

Please read the instructions carefully before starting the machine.

Ukrainian mark of conformity

001

Waste electrical products should not

be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Note

Parts or accessories sold separately

Speed, minimum

Speed, maximum

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

RISK REDUCTION

GET TO KNOW YOUR PRODUCT

See page 81.

SYMBOLS APPLIED ON THE PRODUCT

Safety alert

No-load speed

min-1

GET FAMILIAR WITH YOUR PRODUCT

See page 81.

SYMBOLS ON THE PRODUCT

Safety warning

No-load speed

min-1

SAFETY WARNINGS FOR THE FILE SANDER

SYMBOLS ON THE PRODUCT

Safety warning

No-load speed

min-1

Number of revolutions or movements per minute

V

Volt

Direct current

CE conformity

SYMBOLS ON THE PRODUCT

Safety warning

No-load speed

min-1

SYMBOLS ON THE PRODUCT

Safety warning

No-load speed

min-1

Number of revolutions or movements per minute

V

Volt

Direct current

CE

CE declaration of conformity

EAC

Eurasian Conformity mark

To prevent injury or damage resulting from short circuits, do not immerse the instrument, spare batteries, or charging device in liquid, and do not allow liquids to enter the device or batteries. Corrosive or conductive liquids, such as saltwater, certain chemicals, bleaching agents, or their products, may cause short circuits.

The ambient temperature for battery operation should be in the range of 0°C to 40°C. The ambient temperature for battery storage should be in the range of 0°C to 20°C.

TRANSPORTATION OF LITHIUM BATTERIES

Transport the battery pack in accordance with local and national regulations and provisions.

CE COMPLIANCE

Eurasian Conformity mark

Certificate of Conformity

No. TC RU C-DE.PC52.B.01347

Compliance 29.07.2023

Body for certification of products

Society with

limited liability "Repair Center"

assessment of compliance>>.

123060, Moscow, Marshal

Rybalko Street, building 2, building 9, premises

638

Before using the device, carefully read this manual.

001

Mark of conformity

The used electrical product must be disposed of together with household waste.

Recycle if special technical

equipment is available. For recycling questions, consult

By the executive authority

Retail trade enterprises.

Designation in the manual

Note

Parts and accessories purchased separately

Speed, minimum

Speed, maximum

The following signal words and meanings

Intended to explain the level of risk

associated with this product.

DANGER

Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING

This symbol indicates a dangerous situation which, if not avoided, may result in injury or moderate injury.

ATTENTION

(Without the safety alert symbol) Indicates a situation that may result in damage to property.

Transportation:

Categorically do not allow any mechanical impact on the packaging during transportation.

During unloading/loading, the use of any type of equipment operating on the principle of gripping the packaging is not allowed.

Storage:

Must be stored in a dry place.

Must be stored away from sources of elevated temperatures and exposure to sunlight.

During storage, avoid sharp temperature changes.

Storage without packaging is not allowed.

Service life of the product:

The service life of the product is 5 years.

It is not recommended to operate after 5 years of storage from the date of manufacture without prior inspection.

The date of manufacture (or date) is stamped on the surface of the product body.

Excess:

W17 Y2015, year Y2015 - year of manufacture

W17 - year of manufacture

The place of manufacture can be determined according to the table below, using the example of 2015.

Attention! The number of weeks in a month varies by year.

Do not use for any other purpose. Use of electric tools for operations different from those intended by the manufacturer may create a risk of injury.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this electric tool. Failure to follow the instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

SAFETY WARNINGS FOR DRILLS AND SCREWDRIVERS

Clamp the workpiece with a clamping device. Unclamped workpieces can cause serious injury. Do not hold the material you are working on with your hands. Do not use excessive force. When using the tool, dust and dust particles are created. Wear protective masks suitable for the materials you are working on. Ensure adequate ventilation of the work area. Do not eat, drink or smoke in the work area. Work only on materials that are listed in the section "Intended Use". Do not work on materials (e.g. asbestos) that pose a health risk. Dust from certain paints, coatings and materials can cause allergic reactions or respiratory diseases. Dust from wood, e.g. oak, beech, MDF and others, is carcinogenic. Only qualified specialists may

be allowed to use the tool with asbestos-containing materials.

The ambient temperature range during operation of the tool is between 0°C and 40°C. The ambient temperature range for storage of the tool is between 0°C and 40°C. The recommended ambient temperature range for charging with the charging system is between 10°C and 38°C

ADDITIONAL SAFETY WARNINGS FOR BATTERIES

WARNING

The device is intended for use in dry rooms. Do not expose the device, the battery pack, or the charger to rain or moisture. Do not use the device in damp or wet conditions. Do not touch the device, the battery pack, or the charger with wet hands. Do not store the device or battery pack in damp or wet places. Do not use the device near water, such as bathtubs, sinks, or swimming pools. Do not use the device outdoors in rain or snow. Do not use the device in areas where flammable liquids or gases are present. Do not use the device in explosive atmospheres.

The ambient temperature range for battery operation is between 0°C and 40°C. The ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTATION OF LITHIUM BATTERIES

Transport batteries in accordance with local and national regulations.

Follow all special packaging and labeling requirements when transporting batteries via third parties. Ensure that batteries do not come into contact with conductive materials during transport. Protect open connectors with insulating tape or caps. Do not transport damaged or leaking batteries. Consult the shipping company for further advice.

RESIDUAL RISKS

Even when the product is used as intended, it is impossible to completely eliminate all risk factors. The following hazards may arise, and the operator should pay special attention to avoid them:

Contact with the rotating blade - especially when working in the normal position, extra care must be taken to prevent contact between the operator's hands and the blade. Always use the protective guard and safety devices. Additionally, injuries from dust and debris can be prevented by wearing appropriate personal protective equipment, such as safety goggles and dust masks.

Materials you work on. Ensure adequate ventilation at the workplace.

Do not eat, drink, or smoke in the work area.

Explosion hazard - Accumulated dust can ignite and cause fire. Keep the work area clean and free of dust. The dust collection system must be regularly and carefully emptied. When working on metal, sparks may be produced. Wear appropriate eye protection when working with the product. Do not work with the product for extended periods of time.

RISK REDUCTION

It is known that vibrations from power tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness, or blanching of the fingers, usually triggered by exposure to cold. It is believed that hereditary factors, exposure to cold, diet, smoking, and work habits contribute to the development of these symptoms. There are measures that can be taken by the operator to reduce the effects of vibrations:

Cold and damp conditions can cause discomfort. When working with the instrument, wear gloves to protect your hands and fingers from the cold. Before starting work, the main factor for developing Raynaud's Syndrome is the cold environment. Do exercises to activate blood circulation after each work break. Regularly inspect the tool. Limit the duration of vibrations per day.

If you notice any of the symptoms of this condition, immediately stop using the instrument and consult a doctor.

RECOMMENDATIONS

Prolonged use of the instrument may lead to gradual damage. When using the instrument for prolonged periods, take regular breaks.

IDENTIFYING THE PRODUCT

See page 81.

1. Belt adjustment knob
2. Belt release lever
3. Speed control
4. Handle, insulated gripping surface
5. Lock-on button
6. Trigger
7. Battery slot
8. Grinding belt (grit 60)
9. III. JINΦOBbU HaJIeHTa (3bPHnCTOCT80) 10. Линфовьна Лента (Зрнист 120)

IOPDPTbJXKA

A PEPENPEXEHNHE

IpoodykTbHT He Tp86Ba HNKORA da ce BKNIOUcbva B 3axpaHbaHe, KORATO CRN06BaTe Yactn, npabNTe NaCTPOKII, NOHCTBaTe, INBbPbWBeTne NODpBxKaHa IIKOrato He ro n3NOJ3BaTe. N3KIOUbaHeTo Ha npOdykTA O 3axpaHbaHeTo Ue IpeoTbPaTn cnyaHOn CTaprAbe, KOeTO 6n MORNo da npuHnH cepno3HN HapaHBAHIA.

A PEPENPPEXDEHNE

PnO 6cnyBaHe N3No3BaTe cMo OpuHnHaJIHn pe3epBnH qactn, akcecoapn CpeCTBa 3a npKpEnBaHe Ha npOn3BODntela. N3No3BaHeTo Ha dpyrN cactn MoKe Da Bn NoCTaBn B OnaCHOCT Nn da noBpeDn npOdykTa.

1368BaTe 3n0n3BaHeTo Ha pa3TbOpntEn npn noocCTBaHeTo Ha nlaCTMacOBte Yactn. NobeueTo nPaCTMaCn Ca YbCTBnTEHNn KbM pa3nHn HBDObe pa3TbOPntEn mOKe da Ce nobpeaT npn n0n3BaHeTo Ha TakBa. 3n0n3BaTe MeKn KpN 3a OTcpanBaHe Ha 3aMbpcraBaHn, Bflnepoed npax n dp.

A PEPENPPEKDEHNE

B HnKaKbB CnyaH He No3BoJBaIe PnaCTMacOBtteactn Da BnIaT B KONTAK CbC cnpaHn TeUHOCTN,HeΦTeHn PnoDyKTn, PnoHKnBaun Macna n T.H. XmHKaJIte MOrat Da NobpejT, OTCNa6T nnYHnIOxJat PnaCTMaCaTa, KoETO MoKe da Dobede docepNo3h Nn3Hueckn HapaHbaHn.

A PTEДУПЕХДECHNE

3a no-rojma 6e0nacnoct n Hadeekndoc BCNUK peMOHTN Tp6Ba Da ce N3BbPWBat OT OToPi3npaH cepBn3.

ONA3BAHE HA OKOJIHATA CPEDA

Peuzklnipane Ha cypOBHN, BmecTo 3a o6e3Bpejxdane KaTo OTnadbK. MaunHata, OONbJHnITEHNITE npncnO6cNeHH n ONAOKBNT Tp6Ba Da 6bDat NpONoKeHH Na NDxOJa7 ppepabOTka 3a ONoNtBOpBaHa He CbDpbXaUHTe Ce B T8X BTOpuHn CypOBHN.

CIMBOJN HA IPOJYKTA

n₀

min⁻¹

V

C E

EAC

001

Maximum speed

The safety instructions and technical specifications explain the dangers associated with the use of this product:

DANGER

Indicates an imminent dangerous situation which, if not avoided, will lead to serious injury or death.

WARNING

Indicates a potentially dangerous situation which, if not avoided, could lead to serious injury or death.

CAUTION

Indicates a potentially dangerous situation which, if not avoided, may lead to minor or moderate injury.

The design of the belt sander machine ensured safety, efficiency, and reliability.

INTENDED USE

The belt sander is intended for use only by persons who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

The device is intended for sanding metal, wood, plastic, or similar materials. The product must only be used in well-ventilated rooms.

The product is intended only for dry sanding. Do not use the product for wet sanding.

The device is intended for household use only.

Do not use the device for purposes other than those intended. Using the power tool for operations different from those intended could result in a hazardous situation.

SAFETY WARNINGS

Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

Save all warnings and instructions for future reference.

SAFETY WARNINGS FOR BELT SANDER

Secure the workpiece with a clamping device. Unsecured workpieces can cause serious injury and damage. Do not hold the material you are sanding with your hands. Do not use the sanding belt beyond its intended length. Using the wrong belt can cause injury or damage to small parts. Wear a respirator mask with filters appropriate for the materials being worked on. Ensure adequate ventilation at the workplace. Do not eat, drink, or smoke in the work area. Work only with materials specified in the "Intended Use" section. Do not work with materials (such as lead or asbestos) that pose a health hazard. Some paints, coatings, and other materials can cause irritation or allergic reactions. Wood dust, MDF, and other materials are carcinogenic. Materials containing asbestos must be handled or disposed of only by qualified professionals. The ambient temperature range for the device during use is 0°C to 40°C.

The ambient temperature range for the device during storage is 0°C to 40°C. The recommended ambient temperature range for the charging system during charging is 10°C to 38°C.

SAFETY INSTRUCTIONS FOR OPERATING THE BATTERY

SAFETY WARNINGS

As a result of a short circuit, damage to the product, or damage to the battery, do not immerse the instrument, battery, or charger in liquid and do not allow liquid to enter the device or batteries. Corrosive or conductive liquids, such as salt water, certain chemicals, bleach, or products containing them, can cause a short circuit.

Operating temperature range for the charger during use: 0°C to 40°C. Storage temperature range for the battery: 0°C to 20°C.

TRANSPORTATION OF LITHIUM BATTERIES

Transport the batteries in accordance with local and national regulations.

Follow all special instructions for packaging and labeling when transporting batteries, as required by the carrier. Ensure that batteries do not come into contact with other batteries or conductive materials during transport. Protect exposed connectors with insulating caps or tape. Do not transport batteries that have been damaged or have leaked. Consult the manufacturer for further guidance.

RESIDUAL RISKS

Even when the product is used as intended, it is impossible to completely eliminate all residual risks. The following hazards may arise, and the operator must pay special attention to avoid them:

Contact with moving parts

Especially during maintenance, it is necessary to maintain such a distance that contact between the operator's fingers and hands and moving parts or sharp edges is avoided.

Injuries caused by falls.

• Wear eye protection at all times. Wear respiratory protective masks with appropriate filters for the materials being processed. Ensure adequate ventilation at the workplace. Do not eat, drink, or smoke in the work area.

Explosion risk - Accumulated dust can ignite and

cause damage. Keep the work area clean and free of dust. The dust collection system and the vacuum system must be checked regularly and thoroughly. When machining metal, chips and shavings can be produced.

Use hearing protection during operation. Do not use the product for extended periods of time.

RISK REDUCTION

Warnings: The power tool must be used in accordance with the instructions. The tool may include a hook, a hanging loop, a finger guard, a right or left hand use. Risk factors such as vibration, work, diet, smoking, and work practice can increase the level of these symptoms. This measure can be taken by the operator, or the impact can be changed:

Keep the tool in the shade in cold weather. When operating the device, wear gloves to keep your hands warm. It is known that cold weather is the main factor that contributes to the occurrence of the syndrome. After each period of work, perform exercises to improve blood circulation. Take breaks during work. Limit the number of hours of work per day.

If you experience any of the symptoms of this condition, immediately stop using the tool and consult a doctor with these symptoms.

WARNING

Prolonged use of the tool may cause or worsen injuries. When using the tool for a long period, take regular breaks.

KNOW YOUR PRODUCT

See Fig. 81.

1. Adjustment knob for sanding belt
2. Belt tracking adjustment knob
3. Speed control
4. Handle, auxiliary surface for holding 5. Locking with button
5. Button
6. Dust bag
7. Sanding belt (60 grit)
8. Sanding belt (80 grit)
9. WindyBaBbHa cTpiUka (120 3epHnCtictb)

OECNYTOBYBAHH

PONEPEDEXEHH

The product must not be used for purposes other than those described in the operating instructions, adjustment, maintenance, or when the product is not in use. Disconnection from the mains is only possible by unplugging the device, which can cause serious injury.

A PONEPEIXEHH

For maintenance, use only original spare parts and accessories from the manufacturer. Use of any other parts may create a hazard or damage the product.

Do not use cleaning agents for plastic parts. The plastic surface is sensitive to various cleaning agents and may be damaged by their use. Use only a dry cloth for cleaning the housing.

A PONEPEJXEHH

Never allow children, pets, or products to come into contact with plastic parts. They may be damaged or cause injury.

A PONEPEDXEHH

For safety and reliability, all repair work must be carried out by an authorized service center.

ENVIRONMENTAL PROTECTION

Dispose of the product properly at the end of its life. Machines, equipment, and packaging must be sorted for recycling.

SYMBOLS ON THE PRODUCT

Safety warning

min-1

Cover or reverse movement of the moving parts

V

Volts

Direct current

001

Frequency

CE marking

Please carefully read the instructions before starting the product.

Ukrainian mark of conformity

Do not dispose of electrical products with household waste. Please recycle where facilities exist.

Contact your local authority or retailer for recycling advice.

SYMBOLS IN THIS INSTRUCTION MANUAL

Frame

The declared vibration emission value and the declared noise emission value are given in accordance with the standard test method and may be used to compare one tool with another.

The declared vibration emission value and the declared noise emission value may also be used in a preliminary assessment of exposure.

The declared vibration emission value and the declared noise emission value represent the main applications of the tool.

However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission and noise emission may differ. This may significantly increase the exposure level over the total working period.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

CAUTION

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

CAUTION

(Without safety alert symbol) Indicates a situation that may result in property damage.

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

FR AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:
4. any damage to the product that is the result of improper or lack of maintenance any product that has been altered or modified
5. any product where original identification (trade mark, serial number) markings have been defaced, altered or removed; any damage caused by non-observation of the instruction manual; any product not displaying the CE approval mark on the rating plate; any product that has been attempted to be repaired by a non-authorized warranty service centre or without prior authorization by Techtronic Industries
6. any product connected to improper power supply (amps, voltage, frequency)
7. any damage caused by external influences (water, chemical, physical, shocks) or foreign substances; normal wear and tear; spare parts; inappropriate use, overloading of the tool
8. use of non-approved accessories or parts. Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc. Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.
9. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
10. A repair or replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries, delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
11. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

AUTHORIZED SERVICE CENTRE

To find an authorized service centre near you, visit http://uk.ryobitools.eu/ header/service-and-support/service-agents

RYOBI WARRANTY APPLICATION CONDITIONS

Declaration of Conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

File sander

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

is in conformity with the following European Directives and harmonised standards: 2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

RoHS documentation is compiled according to EN 50581:2012

Todd Chipner

Sr. Director, Regulatory & Safety

Winnenden, Dec. 18, 2018

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Declaration of Conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Authorized to prepare the technical file

Alexander Krug, Executive Administrator

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

(PT) DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the products

Sander

Brand: RYOBI

Model Number: R18PF

Serial Number Range: 46292201000001 - 46292201999999

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DA DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the product

Wire brush

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001-46292201999999

is in compliance with the following EU directives and harmonized standards 2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SV DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

FI COMPLIANCE WITH REGULATIONS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Declaration of Conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Hereby we declare that the product

Angle grinder

Brand: RYOBI

Model number: R18PF

Serial number series: 46292201000001 - 46292201999999

Winnenden, Dec. 18, 2018

Authorized to compile the technical file:

Alexander Kruq, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare under our sole responsibility that the product

Machine

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

conforms to the relevant EU directives and harmonized standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

RoHS documentation conforms to standard EN 50581:2012

CE

Todd Chipner

Director, Engineering, Safety and Standards

Winnenden, Dec. 18, 2018

Person responsible for the preparation of technical documentation:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PL DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

C

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CS DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the products

Belt sander

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

that this product is in compliance with European and harmonized standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014.

RoHS documentation compiled according to EN 50581:2012

Todd Chipner

Senior Director, Standards and Safety

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C

HU DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C

RO DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Authorized to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the product

Belt sander

Model number: R18PF

Brand: RYOBI

Serial number range: 46292201000001 - 46292201999999

Winnenden, Dec. 18, 2018

Authorized to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Authorized to compile the technical file

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

AND DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare that this product

Manufacturer

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Authorized to compile the technical file:

Alexander Krug, Director of Management

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EU DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare that the product

Pole sander

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

Winnenden, Dec. 18, 2018

Authorized person to compile the technical documentation:

Alexander Krug, Executive Director

Techronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SK DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Alexander Krug, General Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

BG DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Angle grinder

Angle grinder

Brand: RYOBI

Homepage: R18PF

Operating Instructions

46292201000001-46292201999999

Products manufactured in accordance with the following EU Directives and harmonized standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

The RoHS documentation is compiled in accordance with EN 50581:2012.

Todd Chipner

Winnenden, Dec. 18, 2018

Authorized for the compilation of technical documentation

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

UK Declaration of Conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the product

Cordless impact drill

Brand: RYOBI

Model number: R18PF

Serial number range: 46292201000001 - 46292201999999

is in conformity with the following European Directives and harmonized standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

The RoHS documentation has been compiled in accordance with EN 50581:2012

Todd Chipner

Technical Director, Regulatory and Safety

Winnenden, Dec. 18, 2018

Authorization to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

TR Declaration of Conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 18, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C∈

EL Anlwn Ooumopfwoans

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the product

Angle grinder

Brand: RYOBI

Model number: R18PF

It is in accordance with the following European Directives and harmonized standards: 2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-4:2014

The RoHS documents are compiled in accordance with EN 50581:2012

Todd Chipner

Managing Director, Quality & Safety

Winnenden, Dec. 18, 2018

Authorized to compile the technical file:

Alexander Krug, Deputy Managing Director

Tronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trademark of Ryobi Limited, and is used under license. FR RYOBI est une marque déposée de Ryobi Limited, et est utilisée sous license. DE RYOBI ist ein Markenzeichen von Ryobi Limited und wird in Lizenz verwendet. ES RYOBI es una marca registrada de Ryobi Limited, y se utiliza bajo licencia. IT L'utilizzo del marchio registrato RYOBI è legato alla licenza concessa da Ryobi Limited. NL RYOBI is een handelsmerk van Ryobi Limited en wordt onder licentie gebruikt. PT RYOBI é uma marca comercial de Ryobi Limited, e é realizada sob licença. DA RYOBI er et varemærke tilhørende Ryobi Limited og bruges under licens. SV RYOBI är en del av varumärke Ryobi Limited och dess användning är licensierad. FI RYOBI on Ryobi Limitedin omistama tavaramerkki, ja sitä käytetään lisenssin puitteissa. NO RYOBI er et varemerke for Ryobi Limited, og brukes under lisens. RU RYOBI является товарным знаком компании Ryobi Limited, используемым по лицензии. PL RYOBI to znak towarowy firmy Ryobi Limited i jest używany zgodnie z udzieloną licencją. CS RYOBI je ochranná známka společnosti Ryobi Limited a její používání podléhá licenci. HU A RYOBI a Ryobi Limited védjegye, használata licenc keretében történik. RO RYOBI este o marcă comercială a firmei Ryobi Limited și este utilizată sub licență. LV RYOBI ir Ryobi Limited preču zīme un tiek izmantota saskaņā ar licenci. LT "RYOBI" yra "Ryobi Limited" prekės ženklas, naudojamas pagal licenciją. ET RYOBI on ettevõtte Ryobi Limited kaubamärk, mida kasutatakse litsentsi alusel. HR RYOBI je znak tvrtke Ryobi Limited i koristi se po licenci. SL RYOBI je blagovna znamka družbe Ryobi Limited in se uporablja na podlagi dovoljenja. SK RYOBI je ochranná známka spoločnosti Ryobi Limited a používa sa na základe licencie. BG RYOBI е търговска марка на Ryobi Limited и се използва по лиценз. UK RYOBI є товарним знаком Ryobi Limited, і використовується за ліцензією. TR RYOBI, Ryobi Limited şirketine ait olup, lisans altında kullanılan bir ticari markadır. EL Το RYOBI αποτελεί εμπορικό σήμα της Ryobi Limited και χρησιμοποιείται κατόπιν αδείας.

RYOBI

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany
