USER MANUAL R18ST50-0 RYOBI

It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.

Safety, performance, and dependabilty have been given top priority in the design of your stapler.

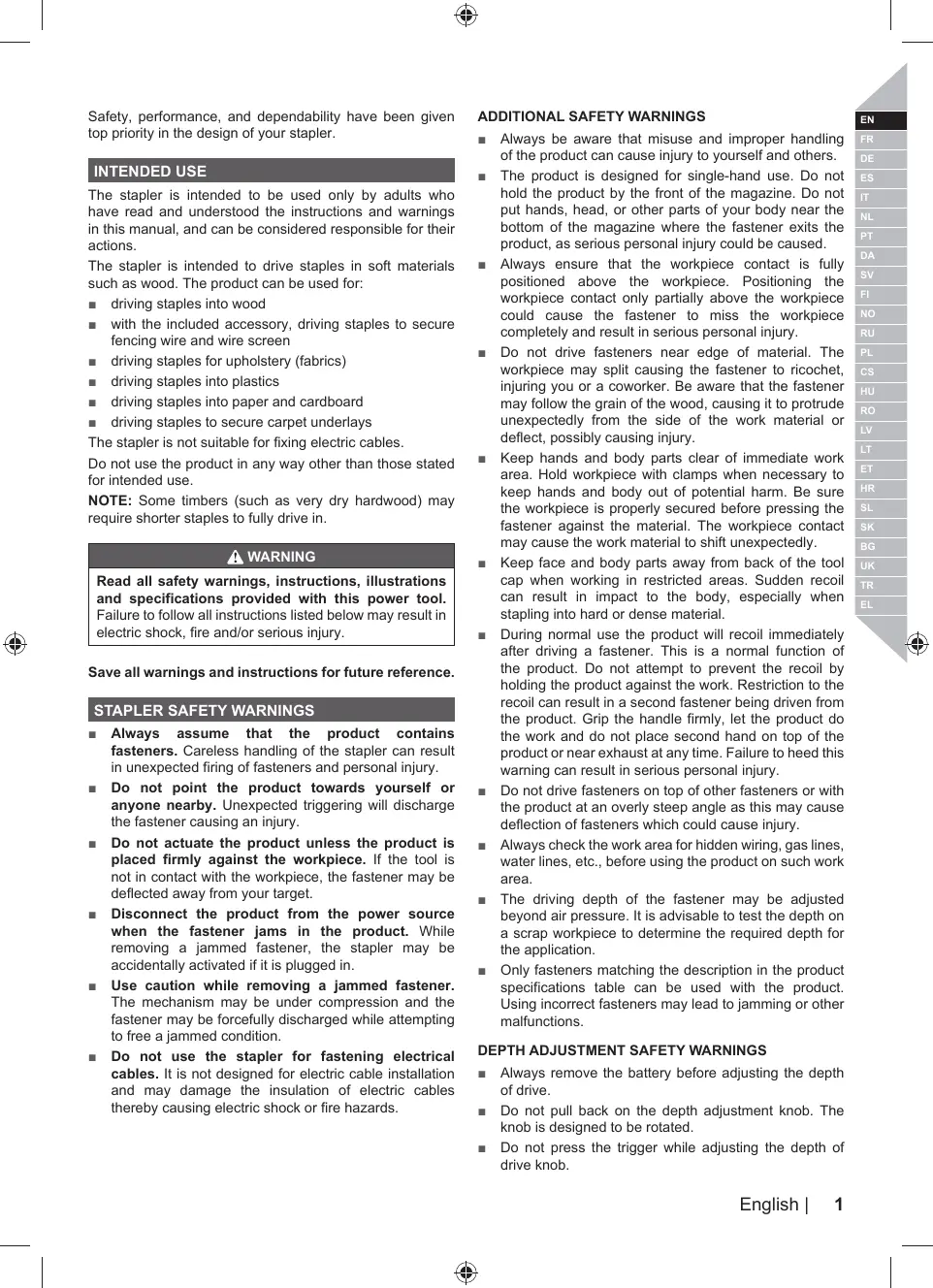

INTENDED USE The stapler is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

The stapler is intended to drive staples in soft materials such as wood. The product can be used for: = driving staples into wood

= with the included accessory, driving staples to secure fencing wire and wire screen

driving staples for upholstery (fabrics)

driving staples into plastics.

driving staples into paper and cardboard

driving staples to secure carpet underlays

The stapler is not suitable for fixing electric cables.

Do not use the product in any way other than those stated for intended use.

NOTE: Some timbers (such as very dry hardwood) may require shorter staples to fully drive in.

À WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

STAPLER SAFETY WARNINGS

= Always assume that the product contains fasteners. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.

= Do not point the product towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.

= Do not actuate the product unless the product is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

= Disconnect the product from the power source when the fastener jams in the product. While removing a jammed fastener, the stapler may be accidentally activated if it is plugged in.

= Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.

= Do not use the stapler for fastening electrical cables. IL is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

ADDITIONAL SAFETY WARNINGS Always be aware that misuse and improper handling of the product can cause injury to yourself and others. The product is designed for single-hand use. Do not hold the product by the front of the magazine. Do not put hands, head, or other parts of your body near the bottom of the magazine where the fastener exits the product, as serious personal injury could be caused Always ensure that the workpiece contact is fully positioned above the workpiece. Positioning the workpiece contact only partially above the workpiece could cause the fastener to miss the workpiece completely and result in serious personal injury.

Do not drive fasteners near edge of material. The workpiece may split causing the fastener lo ricochet, injuring you or a coworker. Be aware that the fastener may follow the grain of the wood, causing it to protrude unexpectedly from the side of the work material or deflect, possibly causing injury.

Keep hands and body parts clear of immediate work area. Hold workpiece with clamps when necessary to keep hands and body out of potential harm. Be sure the workpiece is properly secured before pressing the fastener against the material. The workpiece contact may cause the work material to shift unexpectedly. Keep face and body parts away from back of the tool cap when working in restricted areas. Sudden recoil can result in impact to the body, especially when Stapling into hard or dense material.

During normal use the product will recoil immediately after driving a fastener. This is a normal function of the product. Do not attempt to prevent the recoil by holding the product against the work. Restriction to the recoil can result in a second fastener being driven from the product. Grip the handle firmly, let the product do the work and do not place second hand on top of the product or near exhaust at any time. Failure to heed this Warning can result in serious personal injury.

Do not drive fasteners on top of other fasteners or with the product at an overly steep angle as this may cause deflection of fasteners which could cause injury. Always check the work area for hidden wiring, gas lines, water lines, etc., before using the product on such work area.

The driving depth of the fastener may be adjusted beyond air pressure. It is advisable to test the depth on a Scrap workpiece lo determine the required depth for the application

Only fasteners matching the description in the product specifications table can be used with the product. Using incorrect fasteners may lead to jamming or other malfunctions.

DEPTH ADJUSTMENT SAFETY WARNINGS Always remove the battery before adjusting the depth of drive

Do not pull back on the depth adjustment knob. The knob is designed to be rotated

Do not press the trigger while adjusting the depth of drive knob.

= Do not point the product towards yourself or anyone nearby when adjusting the depth of drive.

ADDITIONAL BATTERY SAFETY WARNINGS

À WARNING To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow à fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

TRANSPORTING LITHIUM BATTERIES Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following: = Damage to hearing Note: Always wear effective hearing protection and limit exposure to noise. = _Injury to the eyes caused by incorrectly driven fasteners or fying dust and debris. Note: Always wear suitable eye protection. = _Injury caused by vibration Note: Hold the product by designated handles and limit exposure to vibration. See Risk Reduction: = Lacerations caused by contact with sharp points. Note: Take extra care when handling or loading fasteners. = The product is heavy. Note: The product is heavy. Beware of muscle strain when _ operating the product for extended periods, especially if using overhead.

RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

= _ Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. ILis reported that cold weather is a major factor contributing to Raynaud's Syndrome.

= After each period of operation, exercise lo increase blood circulation

= Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition,

immediately discontinue use and see your doctor about

À WARNING Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

KNOW YOUR PRODUCT See page 83. 1. Activation foot

2. Wire and screen accessory 3. Drive force indicator

Switch trigger Handle, insulated gripping surface Belt clip

À WARNING The product should never be connected to a power supply when you are assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product will prevent accidental starting that could cause serious injury.

= When servicing, use only original manufacturers replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.

= Do not at any time let brake fluids, gasoline, petroleum- based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

= Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.

= For greater safety and reliabiliy, all repairs should be performed by an authorised service centre.

LUBRICATION All of the bearings in the product are lubricated with a sufficient amount of high grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required.

Do not use lubricants on staplers, magazine or driving mechanism. Keep clean

ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing. Y of as waste. The machine, accessories and

packaging should be sorted for environment = friendly recycling

SYMBOLS ON THE PRODUCT Safety alert

v Volts Direct current

EurAsian Conformity Mark

Please read the instructions carefully before starting the machine.

Ukrainian mark of conformity

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

The following signal words and meanings are intended tof

explain the levels of risk associated with this product

À DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

À\ WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

À CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION

{Without Safety Alert Symbol) Indicates a situation that may result in property damage.
