USER MANUAL P317 RYOBI

Line drawing of a handheld electronic device with front panel and internal components (no text or symbols)

EN MEXICO:

WARNING: To reduce the

risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

TABLE DES MATIÈRES

***************************

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
■ Use this product only with batteries and chargers listed in tool/appliance/battery pack/charger correlation supplement 987000-432.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
■ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
■ Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry, or long hair can be drawn into air vents.
■ Do not use on a ladder or unstable support. Stable footing on a solid surface enables better control of the power tool in unexpected situations.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

GENERAL POWER TOOL SAFETY WARNINGS

■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265° F may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

STAPLER SAFETY WARNINGS

■ Always assume that the tool contains fasteners. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.
■ Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.
- Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with-the workpiece, the fastener may be deflected away from your target.
■ Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the stapler may be accidentally activated if it is plugged in.

■ Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
■ Do not use this stapler for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.
- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

STAPLER SAFETY WARNINGS

• Know your power tool. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this power tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
  ■ Always wear eye protection with side shields marked to comply with ANSI Z87.1 when assembling parts, operating the tool, or performing maintenance. Following this rule will reduce the risk of serious personal injury.
  ■ Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
  ■ Protect your hearing. Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury.
  ■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

• Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.

• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
  ■ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.

• Do not charge battery tool in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50°F or more than 100°F. Do not store outside or in vehicles.
  ■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
  ■ Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
		Safety Alert Indicates	a potential personal injury hazard.
		Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
		Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
		Keep Hands Away Keep hands and body away from the discharge area of the tool.
		Wet Conditions Alert	Do not expose to rain or use in damp locations.
		Recycle Symbol	This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
---		Direct Current Type of a characteristic of current
n_0		No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute

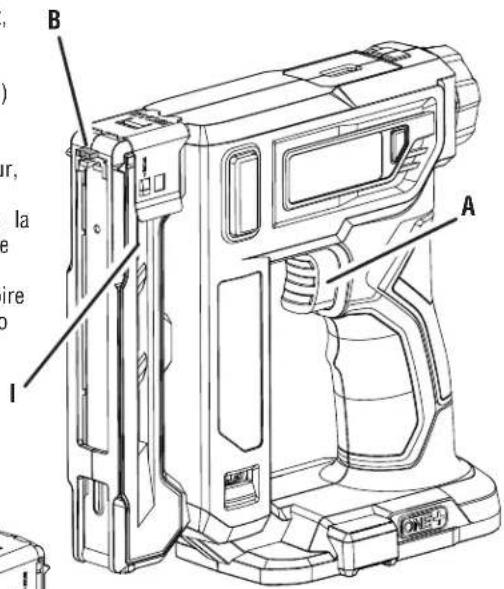

FEATURES

PRODUCT SPECIFICATIONS

Magazine Capacity....85

Staple length 1/4 in - 9/16 in.

Staple crown size....3/8 in.

ASSEMBLY

WARNING:

Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

OPERATION

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the purposes listed below:

■ Driving staples into wood
■ Using the included accessory, driving staples to secure fencing wire and wire screen

WARNING:

Do not use this tool for fastening electrical cables or wire. It is not designed for electrical cable installation and may damage the insulation of electric cables, causing electric shock or a fire hazard.

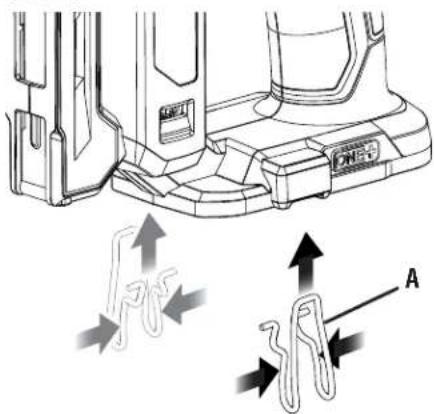

INSTALLING/REMOVING BELT CLIP

See Figure 1, page 9.

The belt clip may be installed on either side of the housing.

■ Remove the battery pack.
■ Squeeze the prongs together as shown.
- Insert the prongs into the belt clip slot on either side of the tool.
■ When the belt clip is fully inserted into the slot, release the prongs.
■ To remove, squeeze the prongs together and pull the belt clip out of the slot on the side of the tool.

INSTALLING/REMOVING BATTERY PACK

See Figure 2, page 9.

■ Insert the battery pack into the product as shown.
■ Make sure the latches on each side of the battery pack snap into place and the battery pack is secured in the product before beginning operation.
■ Depress the latches to remove the battery pack.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

WARNING:

Battery tools are always in operating condition. Lock the switch when not in use or carrying at your side, when installing or removing the battery pack, and when installing or removing bits.

LOADING STAPLES

See Figure 3, page 9.

■ Remove the battery pack.
■ Hold the tool upside down. Squeeze the magazine latch and slide the magazine open.
■ Insert the staples into the channel with the crown side down and the legs facing upward.
■ To close the magazine, push it into the tool until it clicks.
■ An indicator window on the side of the tool lets the operator know when the tool is running low on staples.

OPERATION

SETTING THE DRIVE FORCE

See Figures 4 - 5, pages 9 - 10.

The depth adjustment knob increases or decreases the force with which a staple is driven into the workpiece.

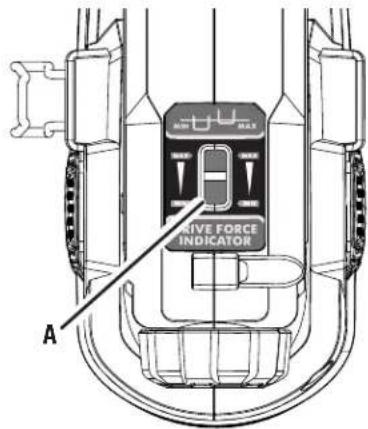

The drive force indicator, located on top of the tool, will show the depth at which the staple will enter the workpiece. Harder materials will require greater drive force.

■ Remove the battery pack.
■ Rotate the depth adjustment knob clockwise to increase the drive force.
■ To test for desired depth, use a scrap piece of the same material you will be using for your project.

WARNING:

Always keep your fingers away from the discharge area of the tool when driving a staple and when using the accessory to install screen or wire. Failure to keep fingers out of the way can result in serious personal injury.

DRIVING A STAPLE

See Figure 6, page 10.

• Hold the handle firmly with the nose of the tool flat against the workpiece at a 90° angle.
  ■ Press the activation foot of the stapler down against the workpiece. The activation foot must be depressed before pulling the switch trigger.
  ■ The tool will drive another staple each time the trigger is depressed as long as the activation foot is depressed.

WIRE AND SCREEN ACCESSORY

See Figures 7 - 8, page 10.

The wire and screen accessory included with the stapler is useful for attaching screen or wire to a wood frame or workpiece. One accessory edge is used for fencing wire, while the other edge is for attaching screen.

Drive a test staple in a scrap piece of the same material you will be using for your project to test for desired drive force.

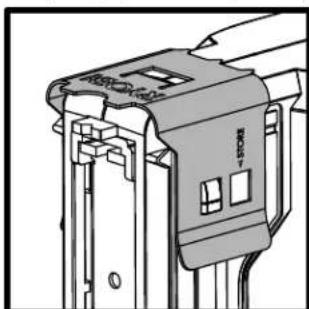

When not in use, the accessory may be stored on the tool in the "STORE" position.

To install the accessory:

■ Remove the battery pack.
■ Select the desired application.
■ Turn the selected edge toward the nose of the tool.
■ Slide the accessory over the nose of the tool until it fits into place over the tab on each side of the tool.

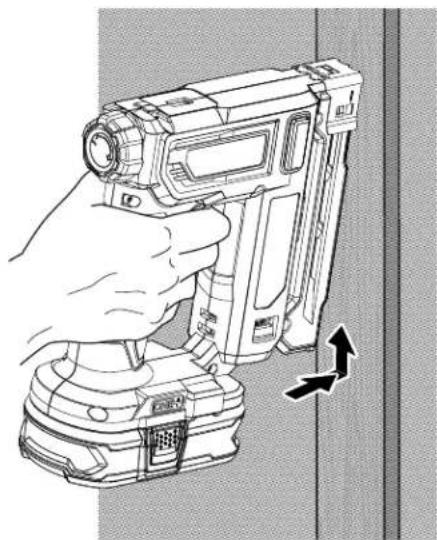

INSTALLING SCREEN

See Figure 9, page 10.

■ Install the accessory with the screen application edge facing out.
- Keeping your fingers away from the discharge area of the tool, hold the screen in place on the surface of the workpiece.
■ Press the activation foot of the stapler against the workpiece, using a slight upward motion.
■ Pull the switch trigger to drive a staple.

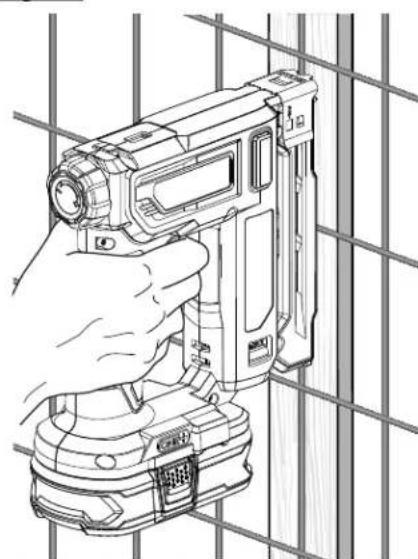

INSTALLING WIRE FENCING

See Figure 10, page 10.

■ Install the accessory with the wire application edge facing out.
- Keeping your fingers away from the discharge area of the tool, hold the wire fencing in place on the surface of the workpiece.
■ Press the activation foot of the stapler against the workpiece, making sure the wire is centered in the notch of the accessory.
■ Pull the switch trigger to drive a staple.

REMOVING A JAMMED STAPLE

If there is a jammed staple in the tool, you must remove it before further use. Attempting to drive a staple while the tool is jammed could damage the mechanism.

■ Remove the battery pack.
■ Hold the tool upside down. Squeeze the magazine latch and slide the magazine open.
■ Remove unused staples.
■ Remove the jammed staple with needle-nose pliers.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other part could create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and can be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

NOTE: ILLUSTRATIONS START ON PAGE 9 AFTER FRENCH AND SPANISH LANGUAGE SECTIONS.

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRALES RELATIVES AUX OUTILS ÉLECTRIQUES

AVERTISSEMENT

ENLÈVEMENT D'UNE AGRAFE COINCÉE

Technical diagram of a handheld device with labeled parts (C, E, F, G) and a logo at the base.

D H RYOBI

Technical diagram of a device with labeled parts A and B, showing internal components and assembly lines.

Fig. 1

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Mechanical assembly diagram showing a rotating component with labeled section A (no text or symbols present)

A - Depth adjustment knob (bouton d'ajustement de la profondeur, perilla de ajuste de profundidad)

Fig. 5

A RIVE FORCE INDICATOR

Technical line drawing of a printer or scanner with a labeled component 'A' (no text or symbols beyond label)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

B - Screen application (application de moustiquaire, aplicación de pantalla)

阻抗阀 螺母子

A - Wire application (application de grillage, aplicación de alambre)

Line drawing of a hand using a handheld device to adjust or install a component, with an arrow indicating rotation (no text or symbols present)

Fig. 10

Line drawing of a hand operating a handheld device against a grid background (no text or symbols)

NOTES/NOTAS

RYOBI™

18 VOLT 3/8 in. COMPRESSION DRIVE CROWN STAPLER

18 V DE 9,53 mm (3/8 po) AGRAFEUSE POUR AGRAFES À COURONNE À FIXATION PAR COMPRESSION

To request service, purchase replacement parts, locate an Authorized Service Center or obtain Customer or Technical Support: Visit www.ryobitools.com or call 1-800-525-2579

If any parts or accessories are damaged or missing, do not return this product to the store. Call 1-800-525-2579 for immediate service.

Please obtain your model and serial number from the product data plate. This product is covered under a 3-year limited Warranty. Proof of purchase is required.

MODEL NUMBER* ____ SERIAL NUMBER ____

*Model number on product may have additional letters at the end. These letters designate manufacturing information and should be provided when calling for service.

RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
