Product Type	Cordless Stapler
Brand	RYOBI
Model	One+ R18S18G
Power Supply	18V lithium-ion battery (compatible with One+ range)
Magazine Capacity	100 staples
Staple Type	18-gauge staples, width 5/16\" to 1/2\"
Staple Length	6 to 35 mm
Drive Depth	Tool-less adjustment
Trigger Mode	Sequential or contact
Operating Speed	Up to 30 staples per minute
Weight	1.2 kg (without battery)
Dimensions (L x W x H)	200 x 50 x 200 mm
Safety	Safety lock, safety trigger
Maintenance	Clean regularly, lubricate with pneumatic oil
Warranty	3 years
Spare Parts	Available through RYOBI authorized service
Recommended Use	Stapling fabrics, insulation, decoration, upholstery

Frequently Asked Questions - One+ R18S18G RYOBI

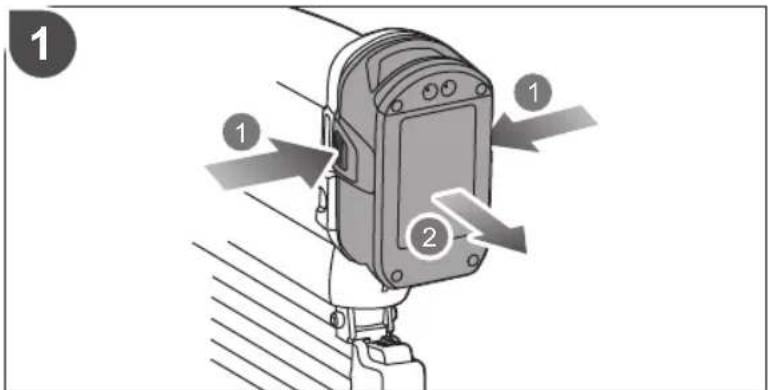

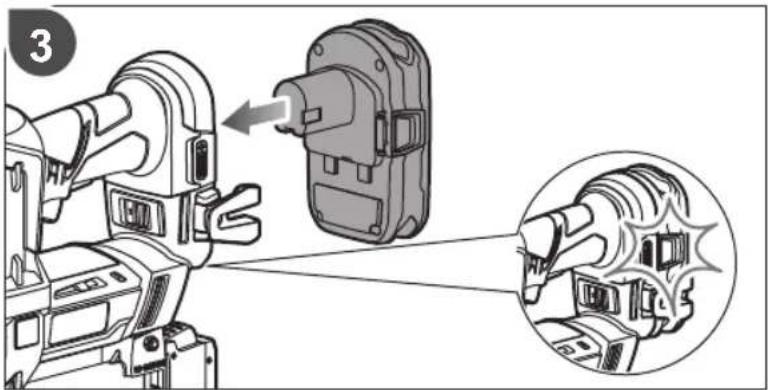

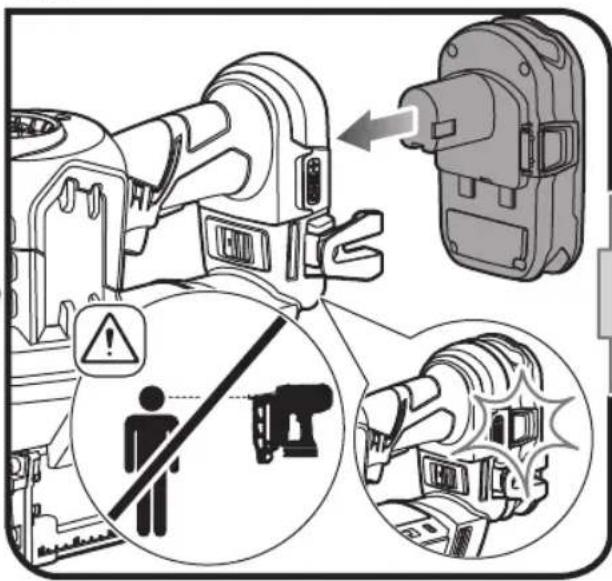

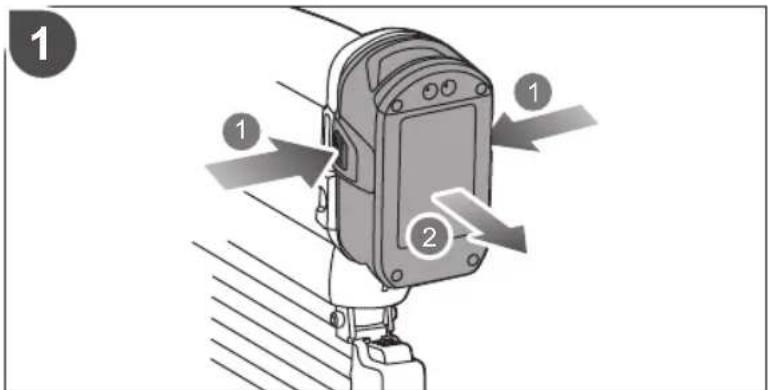

How to charge the battery of the RYOBI One+ R18S18G stapler?

Use a compatible RYOBI One+ charger. Insert the battery into the charger until it clicks. The red light indicates charging, green indicates full. Do not leave the battery charging for more than 24 hours.

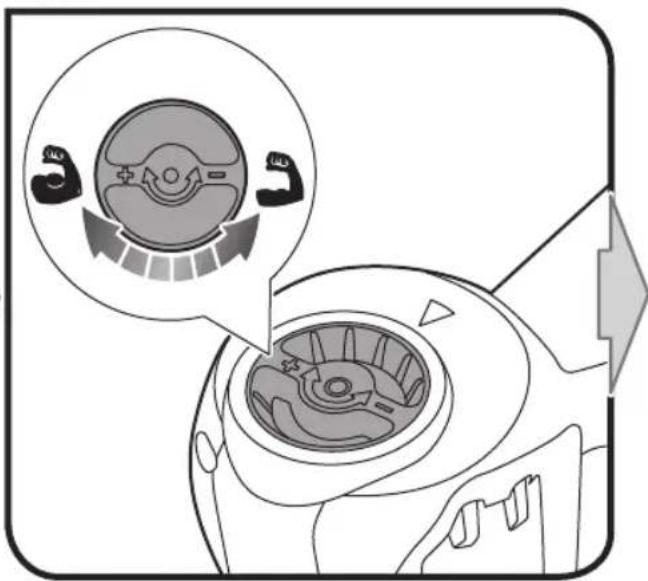

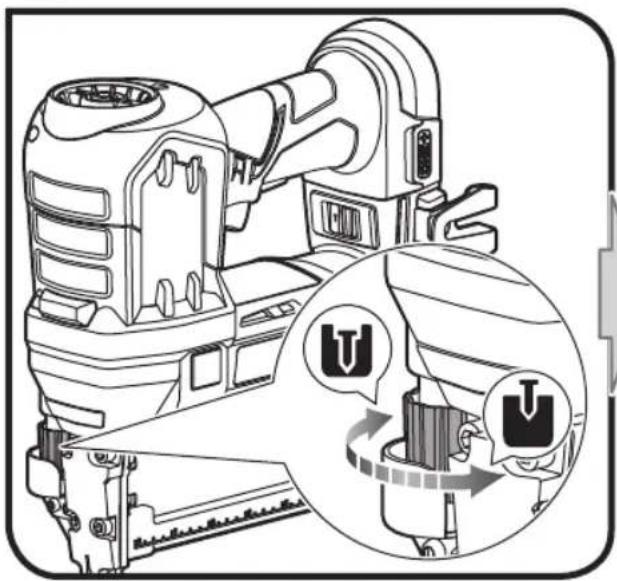

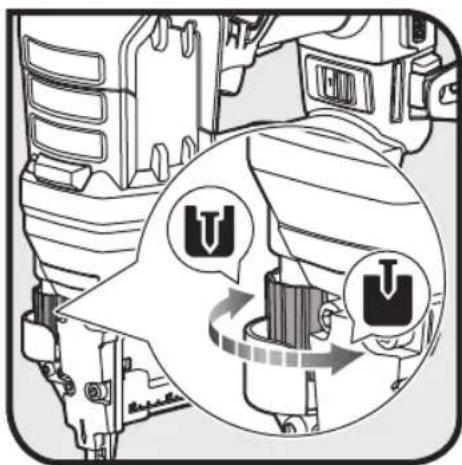

How to adjust the drive depth on the R18S18G stapler?

The depth is adjusted tool-lessly by turning the adjustment wheel located at the front of the stapler. Turn clockwise to drive deeper, counterclockwise for shallower. Test on a scrap piece of material.

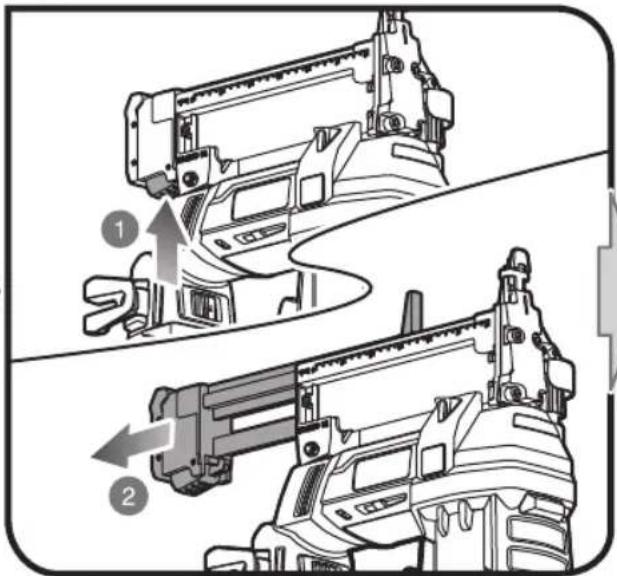

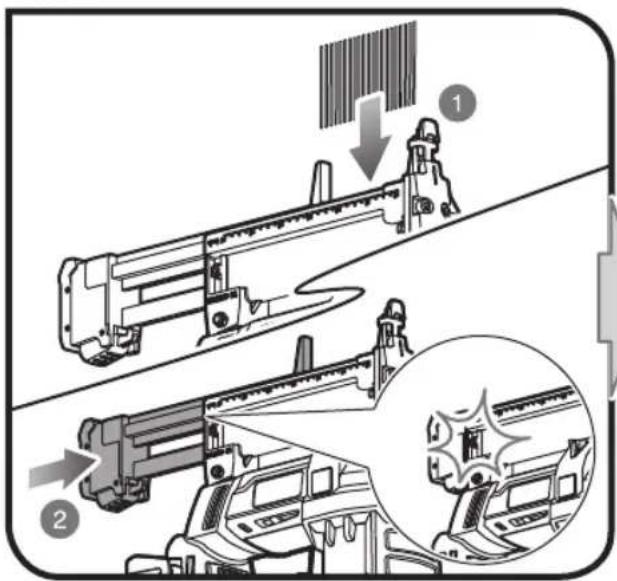

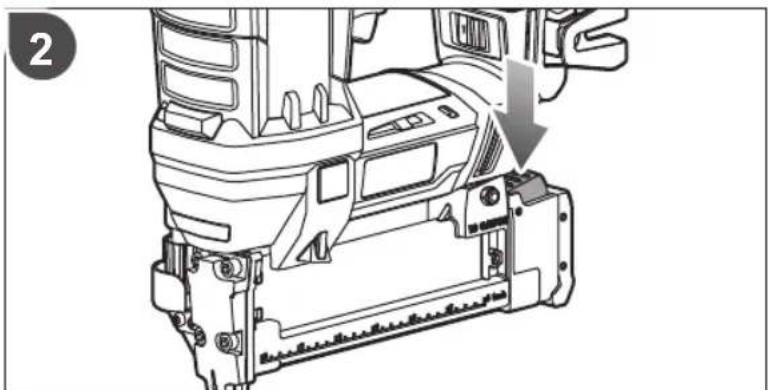

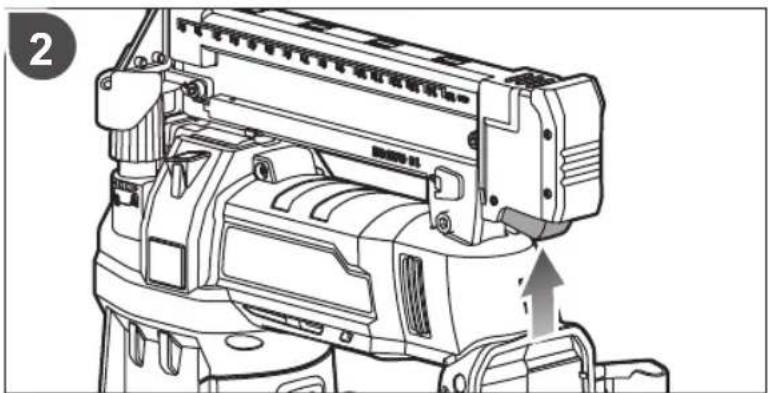

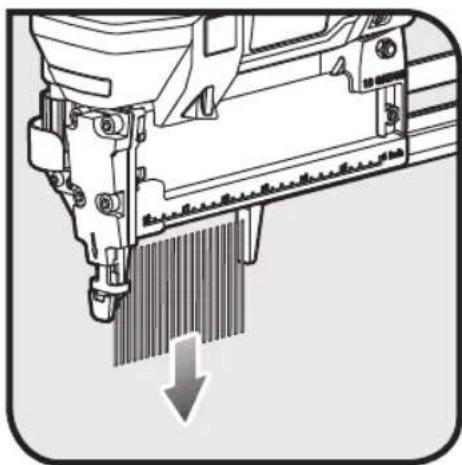

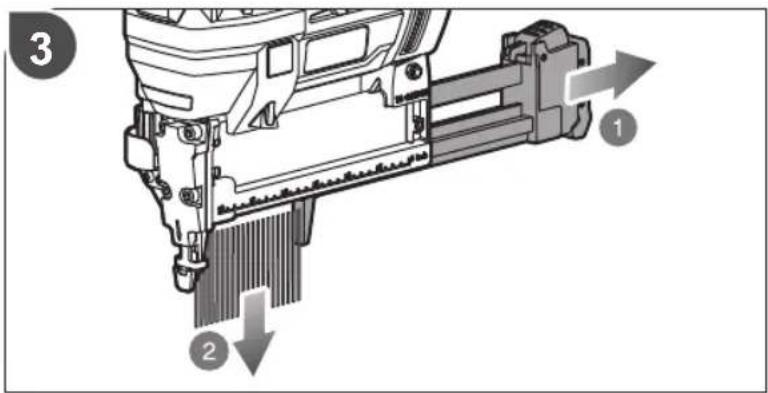

How to load staples into the magazine?

Push the magazine lock forward to open it. Insert a strip of staples into the slot, points down. Close the magazine until it clicks. Make sure the staples are aligned properly.

What to do if the stapler doesn't work?

Check that the battery is charged and properly inserted. Make sure the magazine is fully closed and there are staples. Check that the safety lock is disengaged. If the problem persists, contact RYOBI after-sales service.

How to clean the RYOBI One+ R18S18G stapler?

Disconnect the battery. Clean the exterior with a damp cloth (no solvents). Blow compressed air into the magazine and mechanism to remove dust. Lightly lubricate moving parts with pneumatic oil.

What type of staples to use with the R18S18G model?

Use 18-gauge (18G) staples with a width of 5/16 to 1/2 inch and a length of 6 to 35 mm. Staples must be in glued or welded strips. Do not use damaged staples.

Is the R18S18G stapler compatible with RYOBI One+ batteries?

Yes, it is compatible with all batteries in the RYOBI One+ 18V range, including older and newer models. Ensure the battery is fully inserted and locked.

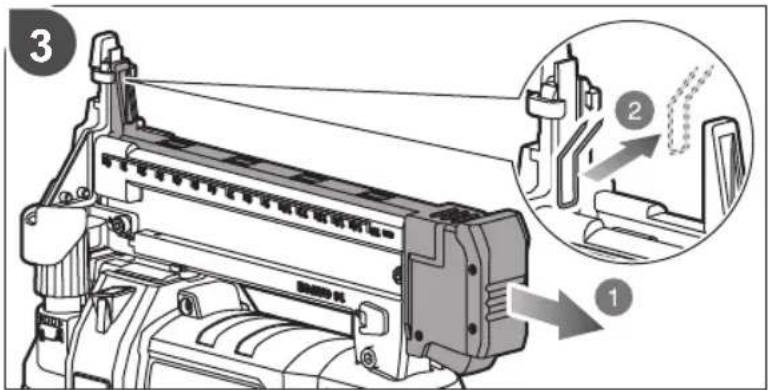

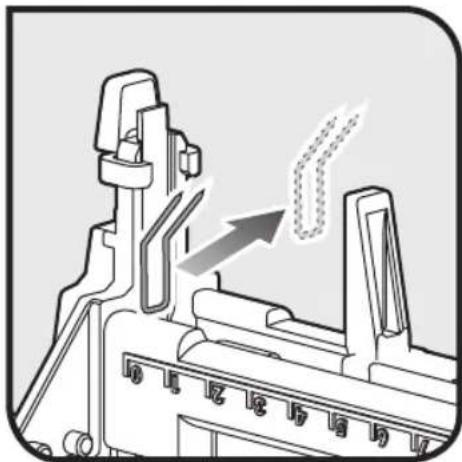

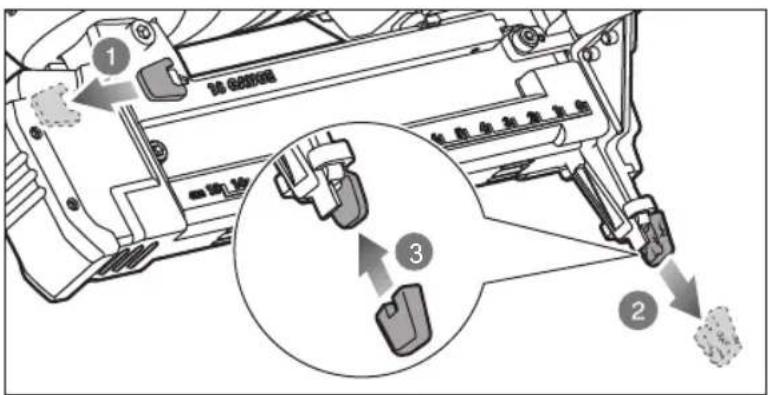

How to clear a jammed staple in the stapler?

Remove the battery. Open the magazine. Use a thin screwdriver or pliers to gently remove the stuck staple. Check that there is no debris in the mechanism before closing.

Does the RYOBI One+ R18S18G stapler have a warranty?

Yes, RYOBI offers a 3-year warranty from the date of purchase. Keep your receipt. The warranty covers manufacturing defects but not normal wear or damage due to misuse.

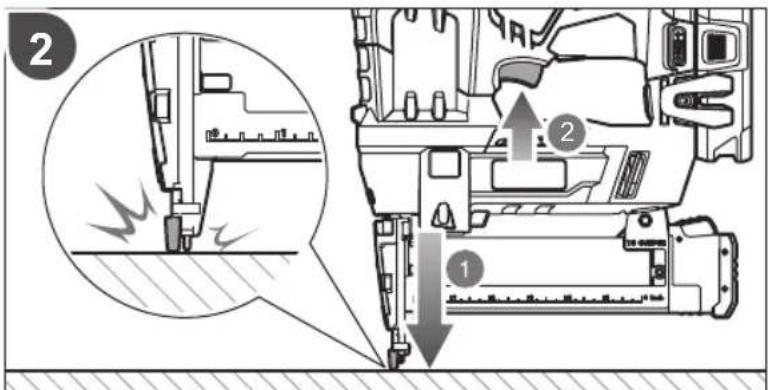

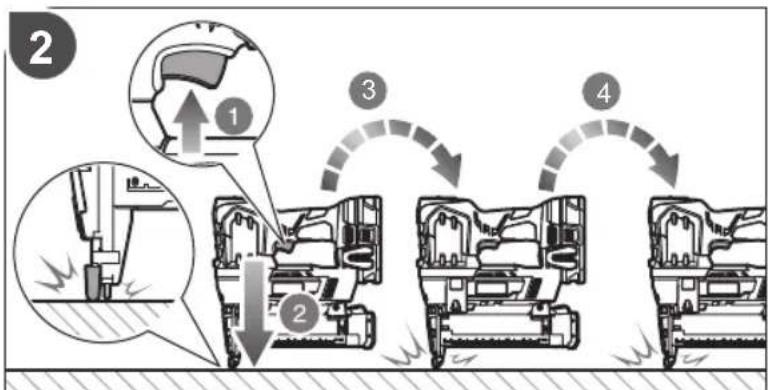

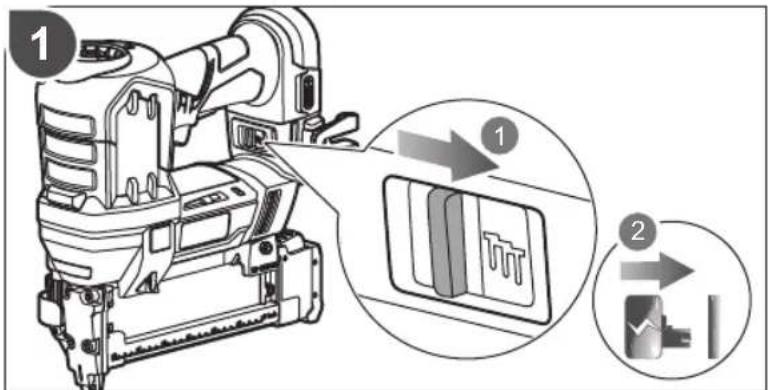

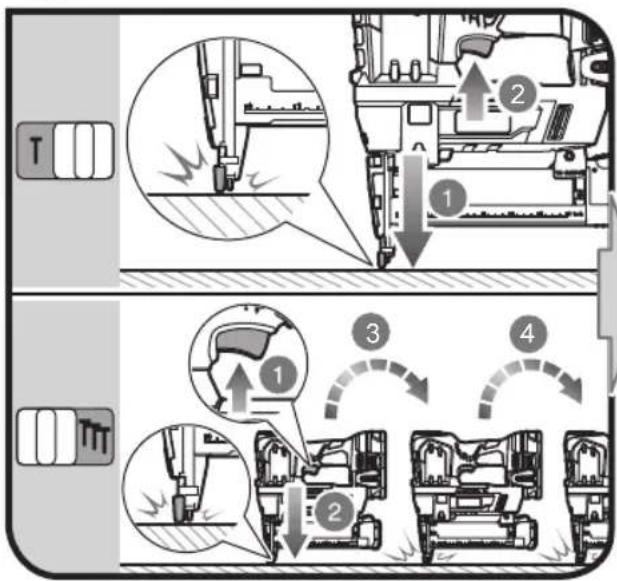

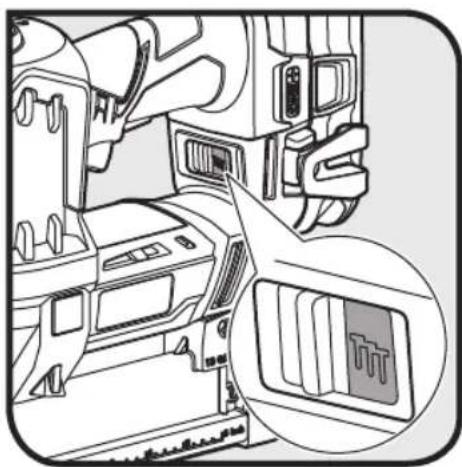

How to use the stapler in sequential or contact mode?

The stapler has a mode selector. In sequential mode, press the nose then the trigger for each staple. In contact mode, hold the trigger down and press the nose to fire. See the manual for details.

USER MANUAL One+ R18S18G RYOBI

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarse!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą konserwacją produktu.
Düležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepouživejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kezikó található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea între operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbinašanas.
Démesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Dikkat!	Ürünün montajini, bakımını yapmadan ve ürünü_classtirmadan önce bu kılavuzda yer alan okumaniz önemlidir.
Проσοχή!	Είναι πολύ σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradenė | Подлежи на технически модификации | Є об'єктом для технічних змін | Teknik değişiklik hakki saklıdır | Упó тнүv επιφύλαξη τεχνικών тротопоιήσεων

Safety, performance, and dependability have been given top priority in the design of your stapler.

INTENDED USE

The stapler is intended to drive staples in soft materials such as wood. It can be used in the following:

■ Finish and trim (interior and exterior)

■ Door and window casing
■ Door jambs
Baseboard
■ Crown molding
Cabinetry
■ Cap and shoe molding
■ Molding
■ Wooden staircases
■ Door and window trim
Chair rail
- Brick mold
■ Hardwood flooring
Paneling
Furniture

The stapler is not suitable for fixing electric cables.

Do not use the product in any way other than those stated for intended use.

NOTE: Some timbers (such as very dry hardwood) may require shorter staples to fully drive in.

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

STAPLER SAFETY WARNINGS

■ Always assume that the tool contains fasteners. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.
- Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.
- Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

■ Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the stapler may be accidentally activated if it is plugged in.
■ Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
- Do not use this stapler for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

ADDITIONAL SAFETY WARNINGS

■ Always be aware that misuse and improper handling of the product can cause injury to yourself and others.
■ The product is designed for single-hand use. Do not hold the product by the front of the magazine. Do not put hands, head, or other parts of your body near the bottom of the magazine where the fastener exits the product, as serious personal injury could be caused.
■ Always ensure that the workpiece contact is fully positioned above the workpiece. Positioning the workpiece contact only partially above the workpiece could cause the fastener to miss the workpiece completely and result in serious personal injury.
- Do not drive fasteners near edge of material. The workpiece may split causing the fastener to ricochet, injuring you or a coworker. Be aware that the fastener may follow the grain of the wood, causing it to protrude unexpectedly from the side of the work material or deflect, possibly causing injury.
- Keep hands and body parts clear of immediate work area. Hold workpiece with clamps when necessary to keep hands and body out of potential harm. Be sure the workpiece is properly secured before pressing the fastener against the material. The workpiece contact may cause the work material to shift unexpectedly.
- Keep face and body parts away from back of the tool cap when working in restricted areas. Sudden recoil can result in impact to the body, especially when stapling into hard or dense material.
During normal use the product will recoil immediately after driving a fastener. This is a normal function of the product. Do not attempt to prevent the recoil by holding the product against the work. Restriction to the recoil can result in a second fastener being driven from the product. Grip the handle firmly, let the product do the work and do not place second hand on top of the product or near exhaust at any time. Failure to heed this warning can result in serious personal injury.
- Do not drive fasteners on top of other fasteners or with the product at an overly steep angle as this may cause deflection of fasteners which could cause injury.

■ Always check the work area for hidden wiring, gas lines, water lines, etc., before using the product on such work area.
■ After using the product in the contact actuation mode, switch it back to the full sequential mode.
- The driving depth of the fastener may be adjusted beyond air pressure. It is advisable to test the depth on a scrap workpiece to determine the required depth for the application.
- Only fasteners matching the description in the product specifications table can be used with the product. Using incorrect fasteners may lead to jamming or other malfunctions.

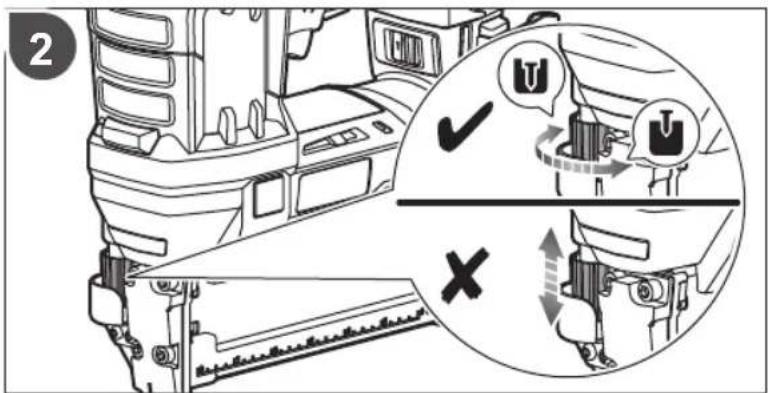

DEPTH ADJUSTMENT SAFETY WARNINGS

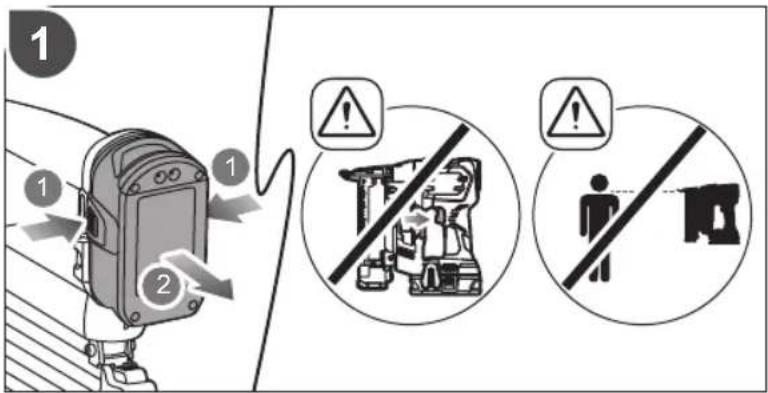

■ Always remove the battery before adjusting the depth of drive wheel.
■ Do not pull back on the adjustment wheel. The wheel is designed to be rotated.
■ Do not press the trigger while adjusting the depth of drive wheel.

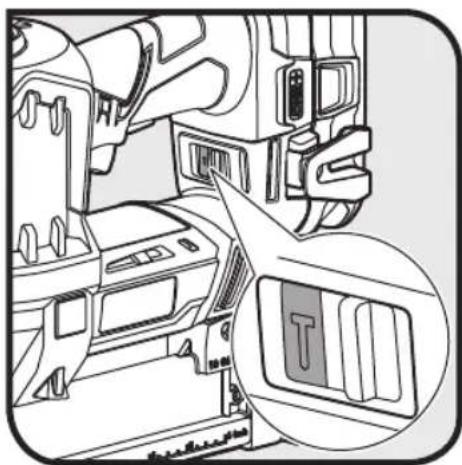

■ Always select full sequential firing mode before adjusting the depth of drive.
■ Do not point the product towards yourself or anyone nearby when adjusting the depth of drive.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid flow inside them. Corrosive or conductive fl as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING

The product should never be connected to a power supply when you are assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product will prevent accidental starting that could cause serious injury.

■ When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
- Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
- Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic.
■ Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.
■ For greater safety and reliability, all repairs should be performed by an authorised service centre.

LUBRICATION

All of the bearings in the product are lubricated with a sufficient amount of high grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required.

Do not use lubricants on staplers, magazine or driving to mechanism. Keep clean. uids, such

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling.

SYMBOLS

Safety alert

CE conformity

EurAsian Conformity Mark

English

Ukrainian mark of conformity

Please read the instructions carefully before starting the machine.

Depth adjustment

Full sequential actuation

Contact actuation

Ga Fastener gauge

Diameter

Fastener width

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SYMBOLS IN THIS MANUAL

Note

Warning

Tip

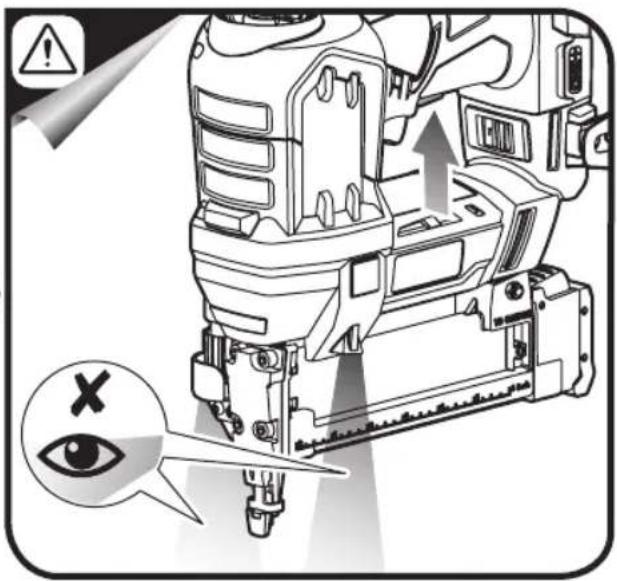

LED light

Deep penetration

Shallow penetration

Connect battery

Torque, maximum

Torque, minimum

Conseil

Éclairage à LED

Consejo

Luz LED

Punta

Luce al LED

VEILIGHEIDSWAARSCHUWINGEN NIETJESMACHINE

VEILIGHEIDSWAARSCHUWINGEN DIEPTE-AFSTELLING

Tip

LED-lamp

Diepe penetratie

Ponta

Led

Penetração profunda

SYMBOL I DENNE MANUALLEN

Nb

Advarsel

Tips

LED-lys

Dyp inntrengning

Grunn inntrengning

Koble til batteri

Maks dreiemoment

No TC RU C-DE.AE11.B.04249

Uwaga

Ostrzeżenie

Wskazówka

Dioda LED

Głęboka penetracja

Płytka penetracja

Hegy

LED lámpa

Mély behatolás

Sekély behatolás

DODATNA VARNOSTNA OPOZORILA

2

5

6

3

4

7

English Français Deutsch Español Italiano Nederlands Português
Product specifications	Caractéristiques de l'appareil	Produkt-Spezifikationen	Especificaciones del producto	Specifiche prodotto	Productspecificaies	Especificações do produto
18V Stapler	Agrafeuse 18V	18V Tacker	Grapadora 18V	Graffatrice da 18V	18V nietjesmachine	Agrafador 18V
Model	Numéro de modèle	Modell	Marca	Marca	Merk	Marca
Voltage	Tension	Spannung	Tensión	Voltaggio	Spanning	Vollagem
Magazine capacity (number of staples)	Capacité du magasin (nombre d'agrafes)	Magazininhalt (Anzahl der Klammern)	Capacidad del cargador (número de grapas)	Capacità caricatore (numero di graffette)	Magazinecapaciteit (aantal nietjes)	Capacidade do carregador (número de grampos)
Fastener type: Narrow crown staple	Type d'agrafes : Agrafes à couronne étroite	Klammertyp: Schmalrückenklammern	Tipo de grapas: grapas de corona estrecha	Tipo di graffetta: Graffetta stretta a corona stretta	Verbindertype: smalle kroonniejtes	Tipo de agrafo: grampo coroa estreita
Staple size (length)	Taille d'agrafe (longueur)	Klammergröße (Länge)	Tamaño de la grapa (longitud)	Dimensioni graffetta (lunghezza)	Nietjesafmetingen (lengte)	Tamanho do agrafo (comprimento)
Staple width	Largeur d'agrafe	Klammerbreite	Anchura de la grampa	Ampiezza graffetta	Nietjesbreedte	Largura do agrafo
Weight - excluding battery pack	Poids - sauf pack batterie	Gewicht - ohne Akkupack	Peso - Excluyendo conjunto de batería	Peso - Senza gruppo batteria	Gewicht - exclusief accupack	Peso - excluindo conjunto de bateria
Weight - according to EPTA Procedure 01/2003	Poids - Selon la procédure EPTA 01/2003	Gewicht - Gemäß EPTA-Verfahren 01/2003	Peso - Según el procedimiento EPTA 01/2003	Peso - Secondo quanto indicato dalla EPTA-Procedura 01/2003	Gewicht - Overeenkomstig de EPTA-procedure 01/2003	Peso - De acordo com o Procedimento EPTA 01/2003
Measured sound values determined according to EN 60745:	Valeurs du son mesuré déterminées selon EN 60745:	Gemäß EN 60745: gemessene Schallwerte	Valores medidos del sonido en función de la norma EN 60745:	Valori del suono misurati determinati secondo lo standard EN 60745:	Gemeten geluidswaarden bepaald in overeenstemming met EN 60745:	Valores medidos do som em função da norma EN 60745:
A-weighted sound pressure level	Niveau de pression sonore pondéré-A	A-bewerteter Schalldruckpegel	Nivel de presión acústica ponderada en A	Livello di pressione sonora pesato A	A-gewogen geluidsdrukniveau	Nivel de pressão sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
A-weighted sound power level	Niveau de puissance sonore pondéré-A	A-bewerteter Schallleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Wear ear protectors.	Portez une protection acoustique.	Tragen Sie Gehörschutz.	Utilice protección auditiva!	Indossare protezioni acustiche adeguate.	Draagoorbeschermers.	Sempre use a protecção dos ouvidos.
The vibration total values (triaxial vector sum) determined according to EN 60745:	La valeur totale des vibrations (somme vectorielle triaxiale) déterminée selon EN60745:	Die Vibrationsgesamtwerte (dreiaxiale Vektorsumme) ermittelt nach EN60745:	Los valores de vibración total (suma vectorial triaxial), determinado según la norma EN60745:	I valori totali delle vibrazioni (somma vettore triassiale) sono misurati conformemente alla norma EN60745:	De totale trillingswaarden (triaxiale vectorsom) vastgesteld in overeenstemming met EN60745:	Os valores totais de vibração (Soma vectorial triaxial) foram determinados de acordo com a norma EN 60745:
Vibration emission value	Valeur d'émission de vibrations	Vibrationsemissionswert	Valor de emisión de vibraciones	Valore delle emissioni vibrazioni	Trillingsemissiewaarde	Valor de emissão de vibrações
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Dansk Svenska Suomi Norsk Pycckii Polski
Produktspecifikationer	Produktspecifikationer	Tuotteen teknisettiedot	Produktspesifikasjoner	Xaрактеристикиизделия	Parametry techniczne
18V klammepistol	18 V klammerpistol	18 V niloja	18V stiftepistol	Степлер 18 B	Zszywacz 18 V
Brand	Modellnummer	Mallinumero	Merke	Марка	Numer modelu	R18S18G
Spænding	Spänning	Jännite	Spenning	Напряжение	Napięcie	18 V ---
Magasinkapacitet (antalklammer)	Magasinets kapacitet(antal klamrar)	Kapasiteetti (niittienmäärä)	Magasinkapasitet (antallstifter)	Вместимость магазина(количество скоб)	Pojemność magazynku(liczba zszywek)	105
Klammetype: Smalleklammer	Klammertyp: Lilenklammer	Kiinniketyppi:Kapeakärkinen niitti	Festetype: Stift medsmal krone	Тип скоб: узкая скоба	Tym mocowania:Wąskie zszywki
Klammestørrelse(længde)	Klammerstorlek(längd)	Niitin koko (pituus)	Stiftstørrelse (lengde)	Размер скоб(длина)	Rozmiar zszywki	10 - 38 mm(3/8" - 11⁄2")
Klammebredde	Klammerbredd	Niitin leveys	Stiftbredde	Ширина скоб	Szerokość zszywki	5,5 - 6,1 mm(1/5" - 1/4")
Vægt - Batteri medfølgerikke	Vikt - Batteri medföljer ej	Paino - ilman akkua	Vekt - uten batteripakke	Вес - безаккумуляторнойбатареи	Waga - bezakumulatora	2,42 kg
Vægt - I henholdtil EPTA-procedure01/2003	Vikt - Enligt EPTA01/2003	Paino - EPTA-menetelmän 01/2003mukaan	Vekt - I henhold til EPTA-prosedyre 01/2003	Вес - Соответствуеттребованиям EPTA-Procedure 01/2003	Waga - Zgodnie zprocedurą EPTA01/2003	2.85 kg(1.3Ah)-3.62 kg(9.0Ah)
Mälte lydværdierbestemt iht. EN 60745:	Uppmätta ljudvårdenenligt EN 60745:	Mitatut arvotmäärletty EN 60745:standardin mukaan:	Mälte lydverdier bestemtiht. EN 60745:	Измеренные значенияпараметров звукаопределены всоответствии с EN60745:	Zmierzone wartościakustyczne zgodnie znormą EN 60745:
A-vægtet lydtryksniveau	A-vågd ljudtrycksnivå	A-painotettuäänenpainetaso	A-vektet lydtrykknivå	УровеньА-взвешенногозвукового давления	A-ważony poziomciśnienia hałasu	L P = 84.5 dB(A)
Usikkerhed K	Osäkerhet K	Epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	3 dB(A)
A-vægtet lydeffektniveau	A-vågd ljudeffektsnivå	A-painotettuäänenteho	A-vektet lydeffektnivå	Уровень А-взвешеннойзвуковой мощности	A-ważony poziom mocyakustycznej	L W = 95.5 dB(A)
Usikkerhed K	Osäkerhet K	epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	3 dB(A)
Bær høreværn. Bär hörselskydd. Käytä korvasuojia.		Bruk hørselsvern.		Используйтенаушники!	Stosować środkiochrony słuchu!
Totale vibrationsværdier(triaksial vektorsum)afgøres ifølge EN60745:	Det totalavibrationsvärdet(triaxial vektorsumma)är framtagel enligtEN60745:	Tärinän kokonaisarvot(kolmiakselinenvektorisumma)määritettynästandardin EN60745mukaisesti:	De totalevibrasjonsverdiene(treakset vektorsum)er fastsatt i henhold tilEN60745:	суммарное значениевибрации (суммавекторов по тремкоординатнымсяям) определенов соответствии сосстандартом EN60745:	Wartości sumarycznedrąń (suma wektoratrójosiowego) określonezgodnie z normąEN60745:
Vibrationsemissionsværdi	Vibrationsvärde	Tärinäarvo	Verdier forvibrasjonsutslipp	Значение вибрации	Poziom drgań	q r = 2,0 m/s 2
Usikkerhed K	Osäkerhet K	epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	1,5 m/s 2
Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék műszaki adatai	Specificațiile produsului	Produkta specifikácijas	Gaminio techninės savybės	Toote tehnilised andmed	Specifikacije proizvoda
18 V sponkovačka	18V Tűzőgép	Capsator la 18V	18 V skavotājs	18 V vielasiūlė	Klambripūstol 18 V	Pneumatski čekić za spajalice od 18 V
Značka	Márka	Număr serie	Modela numurs	Prekės ženklas	Mark	Marka
Elektrické napěti	Feszültség	Tensiune	Spriegums	Itampa	Pinge	Napon
Kapacita zásobníku (počet sponek)	Tár kapacitása (tűzőkapcsok száma)	Capacitate magazie (număr de capse)	Aptveres ietilpība (skavu skaits)	Dėtuvės talpa (kabių skaičius)	Magasini mahtuvus (klambrite arv)	Kapacitet magazina (broj spajalica)
Typ spojovacilho materiálu: Úzká spona	Kötõelern típusa: Keskeny tűzőkapocs	Tip de închidere: capse înguste	Stiprinājuma veids: Šaura izmēra skava	Segtuko tipas: siaura viršutinė kabė	Kinniti tūüp: kitsas klamber	Vrsta pričvršćivanja: obična spajalica
Rozměry spony (délka)	Tűzőkapocs mérete (hossz)	Dimensiune capsā (lungime)	Skavas izmērs (garums)	Kabės dydis (ilgis)	Klambri mõõt (pikkus)	Veličina spajalice (duljina)
Šifka spony	Tűzőkapocs szélessége	Látime capsá	Skavas platums	Kabės plotis	Klambri laius	Širina spajalice
Hmotnost - bez baterie	Tömeg - akkumulátor nélkül	Greutate - exclusiv acumulatorul	Svars - izņemot akumulatora iepakojumu	Svoris - nejskaitant baterijos paketo	Mass - välja arvatud akupakett	Težina - baterija nije uključena
Hmotnost - Dle protokolu EPTA 01/2003	Tömeg - A 01/2003 EPTA-eljárás szerint	Greutate - În conformitate cu Procedura EPTA din 01/2003	Svars - Saskaņa ar EPTA procedūru 01/2003	Svoris - Pagal Europose elektrinių įrankių asociacijos (EPTA) nustatytą tvarką 01/2003	Mass - Vastavalt EPTA- protseduurile 01/2003	Težina - Prema EPTA- postupku 01/2003
Naměřené hodnoty hluku zjištěné dle EN 60745:	A hang értékek meghatározása az EN 60745: szerint történt:	Valori de sunet măsurate determinate în conformitate cu EN 60745:	Izměrītās skaņas vērtības ir noteiktas saskaņa ar EN 60745:	Išmatuotos garso vertės nustatytos pagal EN 60745:	Mõõteväärtused on kindlaks määratud vastavall standardile EN 60745:	Mjerena vrijednost zvuka određena je prema EN 60745:
Hladina akustického tlaku vážená funkci A Nejistota K	A-súlyozott hangnyomásszint Bizonytalanság K	Nivel de presiune acusticā ponderatā A Incertitudine K	A-līmeņa skaņas spiediena līmenis klūdas vērtība K	A svertinis garso slėgio lygis Nepastovumas K	A-kaalutud helirōhu tase mõõtemäāramatus K	Ponderirana razina tlaka zvuka neodređenost K
Hladina akustického výkonu vážená funkci A Nejistota K	A-súlyozott hangteljesítményszint Bizonytalanság K	Nivel de putere acusticā ponderatā A Incertitudine K	A-līmeņa skaņas jaudas līmenis klūdas vērtība K	A svertinis garso galios lygis Nepastovumas K	A-kaalutud helivõimsuse tase mõõtemäāramatus K	Ponderirana razina zvučne snage neodređenost K
Použivejte chránice sluchu.	Viseljen hallásvédöt.	Purtați aparatoare de urechi.	Lietojet dzirdes aizsargus.	Naudokite ausų apsaugos priemones.	Kasutage kuulmiskaitsevahendeid.	Nosite štitnike za uši.
Celkové hodnoty vibraci (Trojosý vektorový součet) určené v souladu s EN60745:	Vibració teljes értékei (háromtengelyů vektorösszeg), az EN 60745 szerint meghatározva:	Valorile totale ale vibrațiilor (sumā vector triaxialā) au fost determinate conform EN60745:	Vibrāciju kopējās vērtības (triaksiālā vektoru summa) tiek noteiktas atbilstoši EN60745:	Bendros vibracijos vertės (ttriašio vektoriaus suma) nustatomos pagal EN60745:	Vibratsiooni koguväärtused (kolme suuna vektorsumma) on vastavalt standardile EN 60745 määratud järgmiselt:	Ponderirana energetska vrijednost Ukupne vrijednosti vibracija (troosovinski vektorski zbroj) određuju se u skladu s EN60745:
Úroveň emisi vibraci	Vibració-kibocsátás értéke	Valoarea emisiilor de vibrații	Vibrāciju emisijas vērtība	Vibracijos emisijos vertė	Vibratsiooniemissiooni väärtus	Vrijednost emisija vibracije
Nejistota K	Bizonytalanság K	Incertitudine K	klūdas vērtība K	Nepastovumas K	mõõtemäāramatus K	neodređenost K

(EN) TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Work-contacting element does not depress fully - product does not operate.	Staples are low.Work-contacting element is jammed.	Replenish staples.Remove the battery and clear the debris.
Product operates properly, but fasteners are not driven fully.	Air pressure is too low.Depth of drive is not deep enough.Staple is too long for wood hardness.	Increase the air pressure.Adjust the depth of drive.Use staple of the length that is appropriate for the wood.
Product operates properly, but fasteners are driven too deep.	Air pressure is too high.Depth of drive is too deep.	Decrease the air pressure.Adjust the depth of drive.
Product jams frequently. Staples are incorrect.	Staples are damaged.Magazine is loose.Magazine is dirty.	Verify that the size of staples is correct.Replace the staples.Tighten the screws.Clean the magazine.
Product stops and LED work lights flash rapidly.	Battery is low or has no charge.Product is hot.	Recharge the battery.Allow tool to cool.
Product has charged battery and LED work lights flash slowly or LED work lights do not turn off after approximately ten seconds of non-use.	Product has malfunctioned. Take product to the nearest authorised repair centre.

(FR) GUIDE DE DÉPANNAGE

(IT) RISOLUZIONE DEI PROBLEMI

(PL) ROZWIĄZYWANIE PROBLEMÓW

(LV) PROBLÉMU NOVĚRŠANA

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, frequency)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc.
- Components (parts and accessories) subject to natural tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://en.ryobitools.eu/ header/service-and-support/service-agents

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

18V Stapler

Brand: RYOBI

Model number: R18S18G

Serial number range: 47529701000001 - 47529701999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 60745-1:2009+A11:2010.

EN 60745-2-16:2010

RoHS documentation is compiled according to EN IEC 63000:2018

Todd Chipner

Sr. Director, CPT Quality and Asia Regulatory & Safety

Winnenden, Mar. 15, 2020

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

OVERENSSTEMMELSESERKLAERING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

18V klammepistol

Brand: RYOBI

Modelnummer: R18S18G

Serienummeromráde: 47529701000001 - 47529701999999

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Alexander Krug, Director general

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATITIKTIES PAREIŠKIMAS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ET VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Klambripüstol 18 V

Mark: RYOBI

Mudeli number: R18S18G

Seerianumbri vahemik: 47529701000001 - 47529701999999

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SK PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HR IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RoHS documentation is compiled according to EN IEC 63000:2018

CE

Todd Chipner

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SL IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 15, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

HR RYOBI je žig tvrtke Ryobi Limited i koristi se po licenci.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

© 2015-20 Techtronic Cordless GP.

RYOBI®

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

961153274-01
