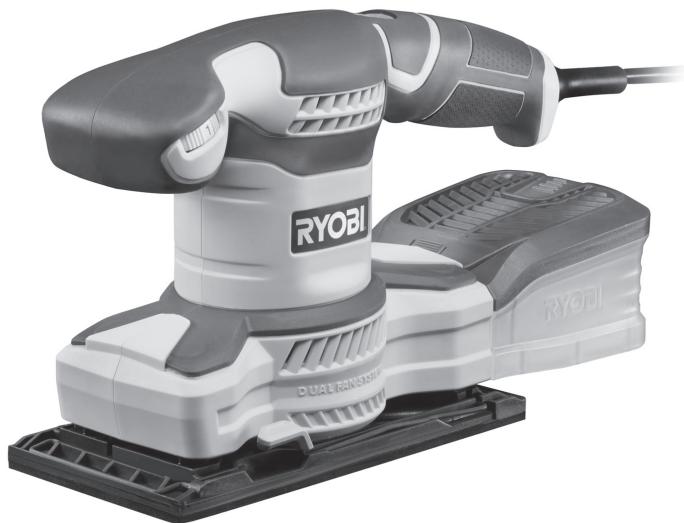

USER MANUAL RSS280 RYOBI

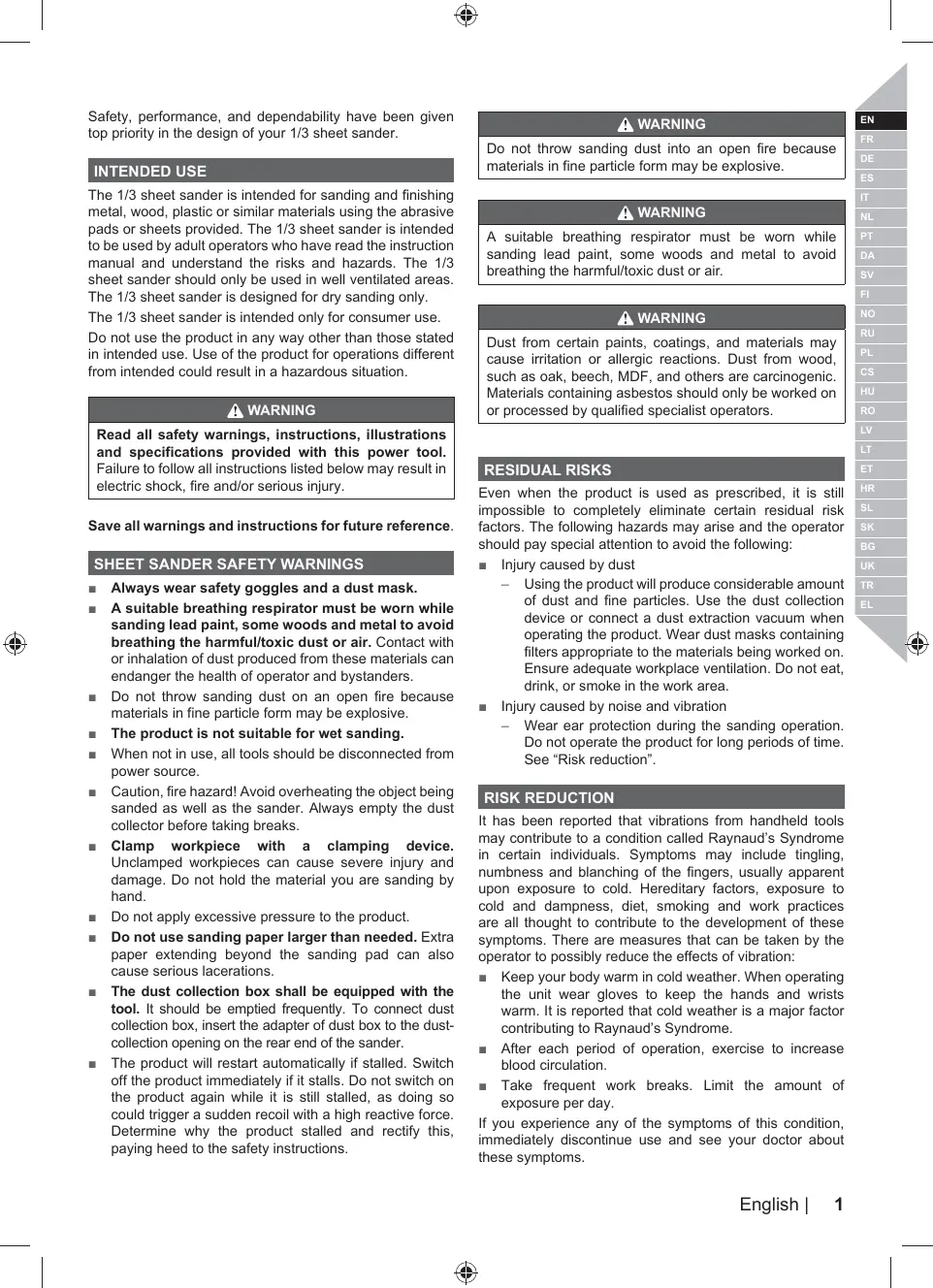

Safety, performance, and dependability have been given top priority in the design of your 1/3 sheet sander. INTENDED USE The 1/3 sheet sander is intended for sanding and finishing metal, wood, plastic or similar materials using the abrasive pads or sheets provided. The 1/3 sheet sander is intended to be used by adult operators who have read the instruction manual and understand the risks and hazards. The 1/3 sheet sander should only be used in well ventilated areas. The 1/3 sheet sander is designed for dry sanding only. The 1/3 sheet sander is intended only for consumer use. Do not use the product in any way other than those stated in intended use. Use of the product for operations different from intended could result in a hazardous situation. À WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SHEET SANDER SAFETY WARNINGS

= Always wear safety goggles and a dust mask. A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid breathing the harmful/toxic dust or air. Contact with or inhalation of dust produced from these materials can endanger the health of operator and bystanders. Do not throw sanding dust on an open fire because materials in fine particle form may be explosive. The product is not suitable for wet sanding. When not in use, all tools should be disconnected from power source. Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust collector before taking breaks. Clamp workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage. Do not hold the material you are sanding by hand Do not apply excessive pressure to the product. Do not use sanding paper larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. The dust collection box shall be equipped with the tool. It should be emptied frequent}y. To connect dust collection box, insert the adapter of dust box to the dust- collection opening on the rear end of the sander. The product will restart automatically if stalled. Switch off the product immediately if it stalls. Do not switch on the product again while it is stil stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the product stalled and rectfy this, paying heed to the safety instructions. À WARNING Do not throw sanding dust into an open fire because materials in fine particle form may be explosive. À WARNING À suitable breathing respirator must be wom while sanding lead paint, some woods and metal to avoid breathing the harmful/oxic dust or air. À WARNING Dust from certain paints, coatings, and materials may cause irritation or allergic reactions. Dust from wood, such as oak, beech, MDF, and others are carcinogenic. Materials containing asbestos should only be worked on or processed by qualified specialist operators. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following: = _ injury caused by dust Using the product will produce considerable amount of dust and fine particles. Use the dust collection device or connect a dust extraction vacuum when operating the product. Wear dust masks containing fiers appropriate to the materials being worked on. Ensure adequate workplace ventilation. Do not eat, drink, or smoke in the work area. Injury caused by noise and vibration Wear ear protection during the sanding operation. Do not operate the product for long periods of time. See “Risk reduction”. RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. After each period of operation, exercise lo increase blood circulation: Take frequent work breaks. Limit the amount of exposure per day, If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. English| 1

À WARNING Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

Dust collection box Handle, insulated gripping surface Adhesive sandpaper Non-adhesive sandpaper SANDPAPER SELECTION Selecting the correct size, grit and type of sand paper is an extremely important step in achieving a high quality sanded finish. Aluminum oxide, silicon carbide, and other synthetic abrasives are best for power sanding. Natural abrasives, such as flint and garnet are too soft for economical use in power sanding. In general, coarse grit will remove the most material and finer grit will produce the best finish in all sanding operations. The condition of the surface to be sanded will determine which grit will do the job. If the surface is rough, Start with a coarse grit and sand until the surface is uniform. Medium grit may then be used to remove scratches left by the coarser grit and finer grit used for finishing of the surface. Always continue sanding with each grit until surface is uniform. À WARNING Do not use sander without sandpaper: doing so will damage the cushion. Sheet/pad recommended use 80-grit sanding sheet Coarse sanding 120-grit sanding sheet Light sanding 150-grit sanding sheet MAINTENANCE Light sanding À WARNING The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury. = When servicing, use only identical RYOBI replacement parts. Use of any other parts may create a hazard or cause product damage. 2 |English = Avoïd using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. = Do not at any time let brake fluids, gasoline, petroleum- based products, penetrating oils, etc., come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic. = Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. = lfthe power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center lo avoid risk. Contact authorized service center. = For greater safety and reliability, all repairs should be performed by an Authorised RYOBI Service Centre. À WARNING Electrical tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. We do not recommend using the product for extended work on these types of materials. À WARNING Do not use compressed air to blow dust from the product. This practice is dangerous and can cause dirt and gr to be blasted into someone's eyes, causing injury. LUBRICATION Al of the bearings in the product are lubricated with a sufficient amount of high grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required.

CLEANING THE SANDING SHEETS

The sanding sheets that come with the product are made to be re-used. Therefore, it is important that they be cleaned periodically to remove sanding residue and foreign material that can accumulate over time. To clean sanding sheets, rub the sheets with a hard rubber block. You can also use the clean rubber sole of a shoe. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment friendly recycling.

V Vois Hz Hertz Allemating Current W. Wats ne No-load speed Revolutions or reciprocations per minute Orbital Diameter CE Conformity EurAsian Conformity Mark. Ukrainian mark of conformity Class Il tool, double insulation Wear ear protection Wear eye protection Please read the instructions carefully before Starting the machine. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your mms Local Authority or retailer for recycling advice: SYMBOLS

MANI Connect to the power supply. Disconnect from the power supply. Parts or accessories sold separately Lock Unlock Note

) Without force à With force The following signal words and meanings are intended to explain the levels of risk associated with this product: À DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. À\ WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. À CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION {Without Safety Alert Symbol) Indicates a situation that may result in property damage: English | 3

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT

SYMBOLE AUF DEM PRODUKT

SYMBOLER PA PRODUKTET

SYMBOLER PA PRODUKTEN

SYMBOLER PA PRODUKTET

“HOM, AORATKOB SMALLEHHR HE NOTPIGHO

ŒRD non varraury aepLicaon coupons In addition to any stalutory rights resulting from the purchase, tis product Is covered by a warranty as Stated below.

1. The warranty period is 24 months for consumers and commences on the

date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product Is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use, This warranty apples oniy on new produets.

2. There is a possiilty to exlend for a part of ie range of power tools

{ACIDG) the warranty period over he period described above using the registration on the wwwryobitools eu website. The eligibilty of products for extended warrant is cleary displayed in stores and or on packaging and Îs contained within the product documentation. The end user is required Lo register his/her newy-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in bisher country of residence I Isted on the online registration form where this option is valid. Furermore, end users must give tneir consent 10 {he storage of heir personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation recelpl, which is sent out by e-mal, and the ongnal invoice Showing the date of purchase wil serve as proof f ne extended warranty.

3. The warranty covers al defects of the product during the warranty period

due to fauls in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations incuding but not limited to incidental or consequential damages. The warranty s not valid he product has been misused, used contrary to 1he instruction manual, or has been incorrecty connected to à pouer supply. This warranty does not apply to: — any damage to the product that is the result of impraper ar lack of maintenance —_ any product hat has beën altered or modified any produet were original identfication (trade mark, serial number) markings have been defaced, alered or remo —_ any damage caused by non-abservance of the instruction manual = any product not displaying 1ne CE approval mark on ne rating plate — any product that has been aïtempted to be repalred by 2 non- authorsed warranty service centre or without prior authorisation by TTechtranic Industries à rduet come Lo mproper poner sup [amps, volage frequency) — any damage caused by extemal imluences (water, chemical, physical, shocks) ar foreign substances —_ nomal wear and tear spare parts — inappropriate use, overloading of the too! use of nomapproved accessories or parts — Power tool accessories provided with the toal or purchased Separate, including but not limited to screw driver bts, dr bis, abrasive discs, sand paper and blades, lateral guide, etc. Components (parts and accessories) subject to natural wear and tar, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS dl bit attachment or reception, power cord, auxliary handle, transport carry case, sanding plale, dust bag, dust exhaust tube, fall washers, Impact urench pins & springs, ec.

4. Forsenicing, ne produet must be sent or presented lo a RYOBI authorised

service staion listed fo each country in the folowing list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, tne product should be safely packed without any dangerous contents such as perol, marked with sender s address and accompanied by a short descrplon of ne fau.

5. A repair / replacement under this warranty is free of charge. does not

consitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage wil have to be paid by ine sender. Your Stalutory rights anising from the purchase of ne product remain unalfected

6. This warranty is valid in the European Community, Switzerland, Iceland,

Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorsed RYOBI dealer to determine if another warranty applis.
