Brand	AEG
Model	DBE5670M / DBE5670R
Product type	Range hood
Control type	Touch (touch center of symbol for 1 second)
Lighting	Integrated LED, replacement by technician
Number of speeds	4 speeds (1st, 2nd, 3rd, temporary maximum 8 min)
Timer	Yes, automatic shut-off after 5 minutes
Grease filter	Dishwasher safe (short cycle, low temperature)
Charcoal filter	Replacement recommended every 4 to 6 months (not washable)
Cleaning notification	Yes: after 40h (grease filter) and 160h (charcoal filter)
Surface cleaning	Soft cloth, warm water and mild detergent, avoid abrasives
Recommended speed	Y1 (low) for simmering, Y2 for normal cooking, Y3 for high boiling, Y4 for very high humidity
Operation after cooking	Let it run for about 15 minutes
Safety	Refer to installation manual for safety instructions
Spare parts available	Grease filters, charcoal filters, LED bulb
Reparability	Replacement of LED bulb by an authorized technician
Environmental protection	Recycle according to local regulations, do not dispose with household waste
Warranty	Not specified in the manual
Installation	See separate installation instructions
Country of origin	Not specified

Frequently Asked Questions - DBE5670M - DBE5670R AEG

How to use the hood DBE5670M / DBE5670R?

To turn on the hood, touch the power symbol for at least 1 second. You can then select the desired speed (1, 2, 3 or maximum speed). The lighting activates independently with the dedicated symbol. It is recommended to let the hood run for 15 minutes after cooking.

How to clean the grease filters of the hood?

The grease filters should be cleaned monthly. To remove them, press the lever of the fixing clamp under the hood, tilt the filter downwards and pull. Wash them by hand with a sponge and non-abrasive detergent, or in the dishwasher on a short cycle at low temperature. Replace them by following the reverse steps.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced every 4 to 6 months, or more often with intensive use. A flashing signal (after 160 hours of use) reminds you to change it. To replace, first remove the grease filter, then press the tab on the charcoal filter to unclip it.

What does the indicator light on the hood mean?

Symbol ① lights up steady for 30 seconds after 40 hours of use: this means the grease filter needs cleaning. If it flashes after 160 hours, the grease filter needs cleaning and the charcoal filter needs replacement. To reset the signal, press symbol ① for 3 seconds.

How to adjust the hood speed?

The hood has 4 speeds: 1st, 2nd, 3rd and maximum speed. To switch to a speed, press the corresponding symbol. The maximum speed activates for 8 minutes, then the hood returns to the previous setting.

How does the hood timer work?

The timer allows the hood to turn off automatically after 5 minutes. It activates by pressing the timer symbol when the hood is running. The symbol flashes, then the hood stops after 5 minutes. To deactivate, press again.

Can I replace the bulb myself?

No, the bulb is an integrated LED and can only be replaced by an authorized technician. In case of malfunction, contact customer service.

Where to find the serial number of my hood?

The serial number (PNC) and model are on the rating plate of the appliance. You will need it to contact customer service.

How to contact AEG customer service?

You can visit the website www.aeg.com/support for advice, brochures or to find a repairer. To register your product, go to www.registeraeg.com. To buy accessories or spare parts, visit www.aeg.com/shop.

What cleaning products to use?

Use a soft cloth, warm water and mild detergent. Avoid abrasive detergents and brushes. For grease filters, washing in the dishwasher on a short cycle at low temperature is possible.

USER MANUAL DBE5670M - DBE5670R AEG

Please read the original spare parts.

When contacting our service department, you should have the following information at hand: model, PNC, serial number.

The information can be found on the rating plate.

Warning/Caution - Safety information

① General information

Environmental information

Reservation of the right to change.

1. SAFETY INFORMATION FOR INSTALLATION

WARNING!

See the separate brochure

Instructions for

Installation for

Standard

Safety and installation.

Attention

Read the safety instructions

Before using

The device must be grounded.

2. DESCRIPTION OF THE DEVICE

2.1 Before first use

3. DAILY USE

3.1 Using the absorber

Check the recommended speed according to the table.

3.3 Activating the maximum motor speed

When you press button 4, the maximum motor speed is activated for 8 minutes. After this period, the device returns

to the previous speed settings.

When the function is activated, the suction power increases and does not cause any action.

3.4 Filter indicator

The filter indicator reminds you to clean the filter when it is active, as well as to clean the filter for oil.

After 160 hours of use, the symbol ② will light up for 30 seconds. The filter for the hood must be cleaned. After 160 hours of use, the symbol ② will light up for 30 seconds. The filter for the hood must be cleaned or replaced.

Refer to the instructions for cleaning the hood filter in the chapter "Cleaning and Maintenance".

Refer to the instructions for cleaning or replacing the filter with active carbon in the chapter "Cleaning and Maintenance".

To switch off the appliance, press and hold for 3 seconds.

4. CLEANING AND MAINTENANCE

4.1 Notes on cleaning

4.4 Replacing the lamp

This appliance is equipped with a lamp and a separate control box (locking the light mechanism). These parts can only be replaced by a technician. In case of malfunction, see "Service" in the chapter "Safety Instructions".

5. ENVIRONMENTAL PROTECTION

Recycle materials with the symbol . Dispose of packaging in the appropriate recycling containers. Help protect the environment and public health, as well as recycle waste from

electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the appliance to your local collection point or contact your municipal services.

CONTENTS

1. SAFETY INFORMATION AND INSTALLATION 7
2. APPLIANCE DESCRIPTION 8
3. DAILY USE 8
4. CONTENTS AND MAINTENANCE 9
5. ENVIRONMENTAL PROTECTION NOTES 11

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution - Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate

Installation Instructions

booklet for Safety

Information and Installation.

Read carefully the Safety

chapters before any use or maintenance of the

appliance.

2. PRODUCT DESCRIPTION

2.1 Control panel overview

	Function	Description
1	Lamp	Turns the lights on and off.
2	First speed / Off	The motor switches to first speed level. Second press turns off the appliance.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.
5	Maximum speed	The motor switches to maximum speed level.
6	Timer	Turns off the appliance after 5 minutes.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

y01	While heating up food, cooking with covered pots.
y2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
y3	While boiling and frying big quantities of food without a lid, cooking on multi-ple cooking zones or burners.
y4	While boiling and frying big quantities of food without a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control panel is a sensor field. To operate the hood, touch the symbol exactly in the middle for at least 1 second.

To operate the hood:

1. Turn on the appliance by pressing the symbol.

You can now activate the functions. 2. To activate the function, touch the symbol.

The hood's light works independently of other hood functions. To illuminate the cooking surface, touch

To turn off the appliance, press the symbol again.

3.2 Timer

This function allows you to turn off the appliance after 5 minutes of operation. The function can be used only if the appliance is operating.

1. Touch the symbol. The timer starts to flash.
2. After 5 minutes, the appliance turns off.

To turn off the function, touch again.

3.3 Activating Maximum Motor Speed

When you touch ₄ , the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on ₄ does not have any effects.

3.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter.

After 40 hours of usage, the symbol ⑦ turns on for 30 seconds. The grease filter must be cleaned. After 160 hours of usage, the symbol ⑦ flashes for 30 seconds. The grease filter must be cleaned and charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function, touch for 3 seconds.

4. CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents	Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle.

The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.
2. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

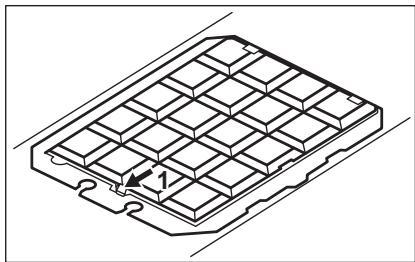

4.3 Replacing the charcoal filter

WARNING!

The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.
2. Press the tab (1) and slightly tilt the front of the filter.

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any

malfunction refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

1. ENVIRONMENTAL ASPECTS 36

4.3 Replacing the filter

WARNING!

The filter is not washable!

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y01	Prilikom zagrijavanja hrane, kuhanja sPokrivenim posudama.
Y2	Prilikom kuhanja sPokrivenim posudama na više zona kuhanja ili plamenika, lagano pržanje.
Y3	Prilikom ključanja i prženja velikih količina hrane bezPoklopca, kuhanja na više zona kuhanja ili plamenika.
Y4	Prilikom ključanja i prženja velikih količine hrane bezPoklopca, visoka VLCz-nost.

It is recommended to leave the hood running for about 15 minutes after cooking.

The control panel is a sensor field. To operate the hood, touch the symbol exactly in the center for at least 1 second.

To operate the hood:

2. SAFETY INSTRUCTIONS

2.1 Safety instructions for operation

1. Type of device. Press and hold the button for 5 seconds.
2. After 5 minutes, the device turns off.

To disable the function, press 5 times.

3.3 Adding the highest temperature to the function

When the device is turned on, the highest temperature is set to 8 minutes. After this time, the device switches to the set parameters.

When the function is added,

The device will automatically turn off after 3 minutes.

3.4 Water level notification

The water level sensor signals the need to add water or drain water, and the need to drain water is indicated.

After 40 seconds, the device turns off and the water level is checked. Water must be drained. After 160 seconds, the device turns off and the water level is checked. Water must be drained or added.

See the "Water level indicator and drainage" section, "Water drainage" paragraph.

Kytim MeH Ta3anay TaaybHa KaMip Cy3rici Ta3anay Hemece KEmip Cy3rici aybICTbipy TypaBkapaHbI3.

4. KYTY MEHEH TA3AJAY

4.1 Ta3aIay TypalbI eckepTneIep

4.2 Ma'c cy3ricin Ta3aJay

CzyrilepDi opHaTy yuH Kapama-Kapcbi KaTapbIHda KbICbIUtap MeH KaDaybltap naJaIaNbIJFaH.

Cy3riHra3anay yuih:

1. Aya tapTkblk KypaIbIH actbHdafbI cy3ri nahenihderi 6ekity KbickblbIHbIH yCTaFbIbIH 6acblb3 (1).

1. Cy3rHih andbihfj kafbIH TeMeH Kapai a3dan eHKeiTiH3 (2), cOaH KeiH TapTbIHbI3.

BapnbC cy3rinep yuiH anFaWbI eki Kaamdbi KaTanaHbI3.

1. Cy3rinepdi Kemipriu emec kYfbl 3aTarpdbi KOJdaHbIN XeKEMEHemece bIDBC kYfblMaunHaTa3aJnAb3.

i bIbIc KjYbIi MaunHana TEmeH TemnepaTpyaHbI XHe KbICKa ZIKnDi OPhaTy KepeK. Mai cy3riciH TYci e3repyi MymKiH,6yJ KyPbIJFbIHbIH XyMbIC icTeyIHe acep etneNdi. 4. Cy3rhi KaT aOpHbHa KOO yWih anFaWKbI eKi KaDAMDbI KepicIHwe opbHdaHbI3.

KaKet 6oNca, 6apIbIK cy3riep yuIH Kaamdapdbi KaTanaHbI3.

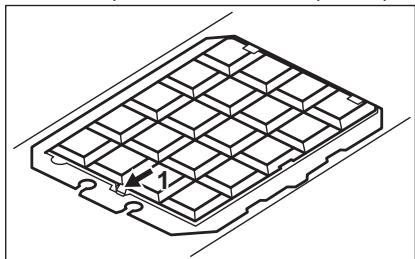

4.3 Kemip cy3ricih aybictbipy

ECKEPTY!

Kemip cy3ricin kyyf a6oJmaIbI!

Cy3rhi aybictbyyih:

1. Man cy3rinepiH KypblfblanH WbIfapbl anblHbI3.

OcbI tapaydaIbI «MaI cy3rinepiH Ta3aIay» 6eImiH kappaHbI3.

1. ictiKwehi6acbin(1),cy3riHH aJIbIHfblXaFBH a3dan eHKeTti3.

1. KaHa cy3rHi opHAty yuH ocbl Kaamdapbl KepiCInHe opbHdaHbI3. Ke3-KeIreH xaFdaJaCy3rIePdi KEm DeReHne TepT aHcBbH aybCTbpy KepeK.

4.4 Wamdbaybictbipy

Byn KpybIYfbi KJUd WambImeH KHe 6eJeK icke Kocy KypaIbEmn (KJUd dpaIbepi) KaDbIKtanFaH. Byn 6eIweKtePdi TexNk KaHa aybcTbipa anabl. AkaynbIK opbIH anFaH KaFdaJa "Kayinc3dk Hcckaynapbl" TapaybHdaBl "KbI3met Kepcety" 6enimin KapaHbI3.

5. KOPSHAFAH OPTAFA KATbICTbl JAFDAJJIAP

BenlrcanbHfamatepnaIapblKaetaeHdeydeH eTki3yre TaCbpbIbI3.OpaMaTePnAnIapblKaetaeHdeydeH eTKi3y ywIn Tnicti KOHTeHepIepre caIbIbI3. 3JekTpNIk XHe 3JIeKTPoHnKAblIK KpyblfblnapblH KaIbIFbIH KaTa eHdeydeH eTKi3y apKbIbI, KopshaFahOpTaFA JHe aDAMbIH DeHCaylbIFbHa 3NbIH

KeTiptinKaFaDnIapfKaonBepMeyre e3 yneciH3di KocbIbI3.Benri CAbIHFaH KypblIbIaPdbI TyPMbICTbIK KaIbIKTapMeH 6ipre TactaMaHbI3. ΘHiMiJxpepriniKTI kaTa eHdey opTaIbIFbHa eTKi3iH3 Hemece xpepriniKTi MekeMere xa6apnaCbIbI3.

TURINYS

1. SAUGOS INFORMACIJA IR [RENGIMAS. 71
2. GAMINIO APRAŠYMAS 72
3. KASDIENIS NAUDOJIMAS 72
4. VALYMAS IR PrieziURA 73 5.APLINKOS APSAUGA. 75

FOR BEST RESULTS

3. DAILY USE

3.1 Using the aspirator

Check the recommended speed according to the table shown below.

Y01	Kora ja 3arpebaTe xpaHaTa, rotBeHe co nokPneHn caDobN.
Y2	Kora rotBnTe co nokPneHn teHcEpNbHa iIi Ha nobEke pIHrIi iIi plAmEHnzi, HeJxHO npKeHe.
Y3	Kora bApTe i npKtTe norOleMa KOJIuChHa Na XpHa 6e3 KaIaK, rotBeHe Ha nobEke pIHrIi iIi plAmEHnzi.
Y4	Kora bApTe i npKtTe roIeMn KOJIuChHa XpHa 6e3 KaIaK, roIeMa BnaJxHoCT.

We recommend leaving the aspirator to run for about 15 minutes after use.

The control panel has a sensor field. To operate the aspirator, press the symbol briefly in the middle for 1 second.

To operate the aspirator:

1. Turn on the device by pressing the symbol. Now you can turn on the functions.
2. To turn on the function, press the symbol.

The light on the aspirator works independently of the other functions of the aspirator. To illuminate the surface for cooking, press

To turn off the device, press the symbol again.

3.2 Timer

This function allows you to turn off the device after 5 minutes of operation. The function can only be used if the device is operating.

1. Press the symbol ⑤ The timer is set. 2. After 5 minutes, the device turns off. To turn off the function, press the symbol again.

3.3 Activating the maximum motor speed.

When the motor is switched on, it operates at maximum speed for a period of 8 minutes. After

that period, the appliance returns to its previous speed setting.

When the function is activated, the additional air intake has no effect.

3.4 CLEANING THE FILTER

The filter alarm reminds you to clean the grease filter and to replace or clean the charcoal filter.

• After 104 hours of use, the symbol flashes for 30 seconds. The grease filter must be cleaned.
• After 160 hours of use, the symbol flashes for 30 seconds. The grease filter must be cleaned, and the charcoal filter must be replaced or cleaned.

See the section on cleaning the grease filter in the chapter on care and cleaning.

See the section on cleaning or replacing the charcoal filter in the chapter on care and cleaning.

To reset the function, press the button for 3 seconds.

4. MAINTENANCE

4.1 Cleaning the hood

Средства 3a чисhevе	He корисてе abразимви дeteprereHTи чETКи. Површина на нечека тусгете ja со меса крпа натоpeна со тонпа ВODА и средства 3a чисhevе.
	Протveьeto,hekон делови od anapatot може за ce загpeат. 3a за нзбеге поава на дамки, anapatot мора за ce олади и scуши со чиста крпа или xartne高中生 крпи.
	Чис-teг ri дамкITE co блар detepreHT.

The control panel is a sensor field. To operate the hood, touch the symbol exactly in the middle for at least 1 second.

With wet hands, avoid

technical safety.

2. DESCRIPTION OF THE DEVICE

2.1 General description of the control panel

3.1 Using the drawer

Recommended speed values are given in the table below.

USER MAINTENANCE AND SERVICE

Keep the original spare parts.

When contacting the service center, have the following information ready: Model, serial number, service number.

The product is manufactured in accordance with technical specifications.

Warnings/Notes - safety information, instructions and information about the environment

Right to change reserved.

1. SAFETY INFORMATION FOR INSTALLATION

WARNING!

Read the manual

Repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

www.aeg.com/support

www.registeraeg.com

www.aeg.com/shop
