USER MANUAL ALYSIA I-SIZE CHICCO

• It is recommended that the backrest should be used in its most reclined position for children from birth to 6 months of age. • Only the CHICCO KIROS I-SIZE CLIPON car seat and/or the CHICCO LIGHT NAP CLIP-ON ALYSIA carry cot with the compatible fitting device can be attached to the CHICCO ALYSIA stroller. • WARNING: Do not add another mattress on top of the mattress supplied or recommended by the manufacturer. • The parking device shall be engaged when placing and removing the children. • Always apply the brakes when the stroller is stationary. • Never leave the stroller on a sloped surface, with a child on board, even with the brakes are on. • Do not overload the storage basket. Maximum weight 3 kg. • Any weight attached to the handles and/or backrest and/or on the sides of the stroller may compromise the stability of the stroller. • Do not carry more than one child at a time. • Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor. • Do not use this product if any part is broken, torn or missing. • For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

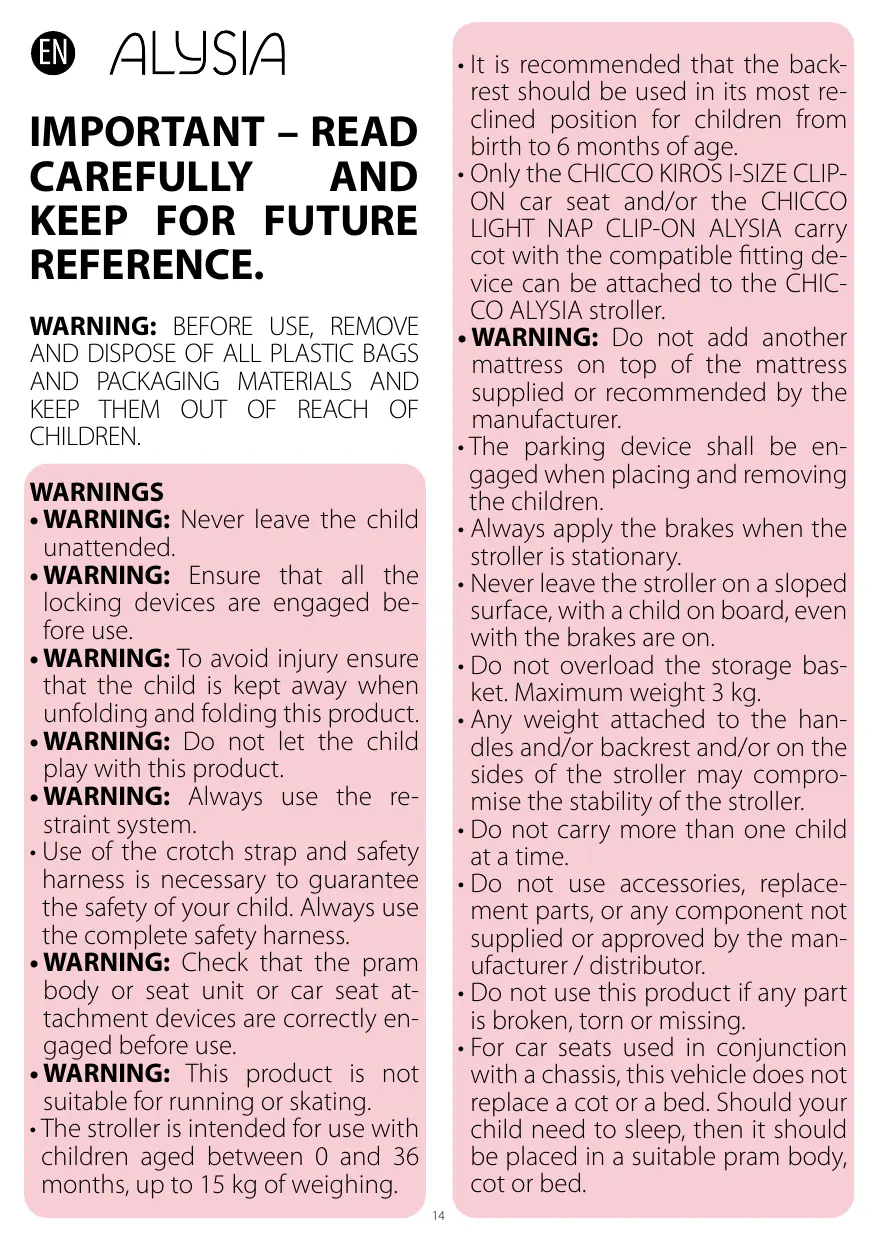

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN. WARNINGS • WARNING: Never leave the child unattended. • WARNING: Ensure that all the locking devices are engaged before use. • WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product. • WARNING: Do not let the child play with this product. • WARNING: Always use the restraint system. • Use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the complete safety harness. • WARNING: Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. • WARNING: This product is not suitable for running or skating. • The stroller is intended for use with children aged between 0 and 36 months, up to 15 kg of weighing. 14

• WARNING:: The carry cot restraint system must be used only when transporting your child in the car.

• WARNING: The carry cot restraint system must be removed or hidden when the product is used outside the car.

• Before assembly, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.

• During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child. • Make sure that the person using the stroller knows how to operate it in the safest way. • This product must only be used by an adult. • The product must only be assembled by an adult. • To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects. • Never use the stroller on staircases or escalators: you could suddenly lose control of it. • Always pay attention when going up and down steps or pavements. • If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade. • Prevent the stroller from coming into contact with salt water. It may cause rusting. • Do not use the stroller on the beach. • When not in use, the stroller should be kept out of reach of children. • WARNING: never use the hand grip to lift the stroller with the child inside.

TIPS FOR CLEANING AND MAINTENANCE This product requires periodical maintenance. Cleaning and maintenance operations must be performed exclusively by an adult.

CLEANING The lining can be removed (please refer to the section "Fitting/ removing the seat lining"). Please refer to the care labels for instructions on how to clean the fabric parts. The washing symbols and relative meanings are indicated below: Hand wash Do not bleach Do not tumble dry Do not iron Do not dry clean Routinely wipe clean plastic parts with a soft damp cloth. Never use solvents or abrasive detergents. To prevent the formation of rust, always dry metal parts if they have come into contact with water. MAINTENANCE Regularly check the condition of the wheels and clean off all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure that all plastic parts are clean of dust, dirt and sand. Keep the stroller in a dry place. If necessary, lubricate the moving parts with dry silicone lubricant.

LIST OF COMPONENTS Check that none of the components of this model are missing before assembling the product. If any part is missing, contact

Chicco Customer Service. No tools are needed to assemble this product. The following pieces are needed for product assembly: • Frame • Seat • Legrest tube • Seat lining • Backrest reducer cushion • Seat cushion • Canopy • Bumper bar • Comfort kit (shoulder and crotch straps) • Storage basket • Bag • Leg cover • Rain cover • 2 Rear wheels • 2 front wheels Important Note: the pictures and instructions contained in this

booklet refer to a specific version of the stroller. Some of the components and functions described here may vary depending on the model purchased.

12. Insert the shoulder pads on the straps and insert the buckle in the padded crotch strap (Fig. 12-12A).

STROLLER SAFETY HARNESS 13. The stroller comes with a five-point safety harness which consists in two shoulder straps, a waist strap and a crotch strap with a buckle. WARNING: when using with children aged 0 to 6 months, you may have to shorten the length of the straps to adjust them to your baby; in this case, use the shoulder straps, passing them first through the two horizontal adjustment holes and then pass the waist strap through the two vertical adjustment holes (Fig. 13-13A) in the same way. WARNING: the use is the same both in winter configuration (with reducer cushion) and in the summer version (without reducer cushion). 14. Make sure the shoulder straps are at a suitable height for your child. if they are not, adjust their height and repeat the same operation for the waist strap as well (fig. 14). 15. Fasten the straps by passing the waist clip (A) through the buckle on the shoulder strap (B), and secure in the crotch strap buckle (C) (Fig. 15). To release the waist strap, remove the prongs from the buckle by pressing on the ends. WARNING: To ensure the safety of your child, you must use the crotch strap, waist belt and safety harness at the same time. WARNING: After removal of the safety harness (e.g. for washing), ensure that the harness is reassembled correctly using the anchorage points. The harness must be re adjusted.

ASSEMBLING THE STROLLER

1. Press button A and then press button B (Fig 1); at the same time extend the structure until you hear the locking click (fig. 1A-1B). 2. Insert the front wheel in the dedicated hole until you hear the locking click (fig. 2). Repeat the same operation for the second front wheel. 3. To assemble the rear wheels insert the wheel pin in the rear leg tube (fig. 3). Repeat the same operation for the other wheel. To remove the front and rear wheels press the release mechanisms in figures 3A-3B. WARNING: Before using the stroller, make sure that the wheels are firmly attached to the structure by pulling gently outwards. WARNING: When opening the stroller, ensure that your child and any other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child. CARRY-ALL BASKET 4. To attach the basket to the stroller, wrap and close the velcro on the front tube (Fig. 4) then wrap the fabric straps in the appropriate spaces on the front legs and fasten them with the buttons (Fig. 4A-4B). To fasten the rear section, wrap and close the velcro in the slot located on the rear tube of the stroller (Fig. 4C). FITTING/REMOVING THE SEAT LINING The lining must be fitted with the seat disengaged from the stroller. 5. Before you start fitting the lining, insert the legrest tube into its fabric slot (Fig. 5). 6. Place the fabric on the seat frame and, on the back, close the horizontal zipper wrapping the tube (Fig. 6-6A). Before closing the zip on the rear tube, make sure that the waist strap is always inserted into the two vertical fabric slots and runs through the two side slots (Fig. 6B). Then pass the crotch strap through the slot (Fig. 6C). WARNING: Pull the crotch strap upwards to make sure it is properly secured. 7. Cover the backrest by wrapping it with the fabric and closing the zipper on the back (Fig. 7). 8. Attach the seat fabric to the frame with the two respective buttons positioned on the sides (Fig. 8). 9. Insert the legrest tube in the dedicated slots until they click into place (Fig. 9). 10. Place the cushion on the seat by passing the crotch strap through the slot (Fig. 10) and fastening it to the fabric underneath with the two buttons (Fig. 10A). The seat could already be used in this configuration; however, there is also a reducer cushion for the backrest. 11. To fit the reducer cushion, pass the belts through the upper slots (Fig. 11) and the waist belt through the side slots (Fig. 11A); fasten the rear part with the snap buttons (Fig. 11B). To remove the lining, follow the same steps in the reverse order. WARNING: After removal of the safety harness (e.g. for washing), ensure that the harness is reassembled correctly using the anchorage points. The harness must be re adjusted. To ensure that the harness is adjusted correctly, fitting your child and securely closed, pull firmly on the end of the harness (on the underside of the seat). COMFORT KIT The Comfort Kit comprises 2 shoulder straps and crotch strap.

16. The seat features a bumper bar. To attach the bar, insert it in the slots near the joint (Fig. 16) and check that the bar is firmly in place by pulling it towards you. To pull out the bumper bar, press the two buttons at the extremities (Fig. 16A) and pull it out. You can release one side of the bumper bar to easily seat your child. The bumper bar can be used both forward facing and parent facing. WARNING: Always fasten your child with the safety harnesses. The BUMPER bar IS NOT a device for containing your child. WARNING: Never use the bumper bar to lift the stroller up with your child sitting in it. FITTING THE SEAT ON THE STROLLER 17. To attach the stroller seat, insert it in the relevant metal fasteners until you hear the click which confirms that it has been fastened (Fig. 17). To make it easier to attach the seat to the stroller there are guide slots showing you the correct alignment of the seat with the metal fasteners (fig. 17A). The seat can be attached both forward facing (fig. 17B) and parent facing (fig. 17C). WARNING: Before using, make sure that the seat is properly locked on by pulling it upwards. WARNING: If it is not properly fastened, remove it using the release buttons and repeat the step. Otherwise contact the Chicco customer service. 18. To release the seat, use the buttons on the joints of the seat. Press the small button A and, at the same time, push down the central button B (Fig. 18-18A); once this step is done, lift the seat for complete release (Fig. 18B). WARNING: The child must never be sitting in the seat when fastening/unfastening it.

ADJUSTING THE BACKREST

19. Press the button on the back of the stroller backrest to recline it to the desired position (Fig. 19). Release the button and the backrest will click into the closest lock position.

WARNING: The child’s weight can make these operations more difficult.

can pass the upper part of the leg cover under the bumper bar and fasten it in the highest position by inserting the buttons in the slots at the sides of the hood (fig. 25A).

HOW TO ADJUST THE LEGREST

20. The legrest has two positions. To adjust it, use the buttons on the sides of the legrest (Fig. 20).

26. It is possible to attach the bag to the stroller handle using the two buttons on the shoulder strap (Fig. 26). WARNING: do not overload. The bag must not weight more than 2 kg.

21. The stroller is equipped with a sun canopy and windshield that can be adjusted to various positions. The seat features two pins positioned on the sides of the backrest tube to which the canopy can be attached. Insert the fastening clips on the tube matching the pin with the hole (Fig. 2121A). Complete fitting the canopy to the seat by hooking the 2 snap buttons on the back of the backrest (Fig. 21B). To open and close the canopy, use the front arch (Fig. 21C). To make sure your child is even more protected, the surface of the hood can be increased by opening the zip between the flaps (Fig. 21D-21E). To remove the canopy, simply unhook it from the pins of the backrest tube and remove the buttons. Clean the fabric parts using a wet terry towel and neutral soap. WARNING: The canopy must be fixed to both sides of the stroller. Ensure that the canopy is correctly fastened.

27. The stroller is equipped with a rain cover. Attach the rain cover to the hood by fastening the buttons in the holes on the hood and complete by fastening the buttons on the straps by the wheels (fig. 27). After use, if wet, let the rain cover dry off before folding and storing it. The rain cover can be used both forward facing and parent facing. WARNING: The rain cover cannot be used on the stroller without hood, as it may cause suffocation. When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with the child inside, as the temperature will rise considerably. USING THE CAR SEAT AND CARRY COT This stroller can only be fitted with the KIROS I-SIZE CLIP-ON car seat and/or the CHICCO LIGHT NAP CLIP-ON ALYSIA carry cot, which use the same fastening system. To fasten and release the carry cot, read the related instructions. WARNING: Before using the stroller with the carry cot or child car seat, always make sure that the fastening system is properly locked by pulling it up. WARNING: The carry cot may only be attached to the chassis in the parent-facing position.

22. The parking brake acts on both stroller's rear wheels at the same time. To activate the brake press down on the lever (Fig. 22). WARNING: Always apply the brakes whenever the stroller is stopped. Never leave the stroller on a sloped surface, with a child inside, even with the parking brakes engaged. WARNING: After operating the brake lever, ensure that the brakes are correctly engaged in both of the rear wheel units. SWIVEL WHEELS 23. The stroller has front swivel/fixed wheels. It is recommended to use the wheels in the fixed mode on particularly changeable surfaces. The use of the wheels in the swivel mode is recommended in order to increase the control of the stroller on a normal road surface. To use the front wheels in swivel mode, push down on the lever located in front of the wheels (Fig. 23). To lock it, push upwards returning the lever to its original position (Fig. 23 A).

USING THE STROLLER WITH CHILD CAR SEAT The Kiros i-Size car seat, , which is equipped with the Clip-On fitting device, can be fitted on the Alysia stroller.

Before fastening the stroller seat, remove the stroller seat. 28. Hold the seat by the handle in a vertical position and fasten it to the frame, positioning the side slots on the metal fasteners (Fig. 28), paying particular attention to ensure that it engages on both sides. You will hear a CLICK when it is fastened correctly. WARNING: The child car seat may only be attached to the chassis in the parent-facing position. WARNING: Before use, make sure that all the child car seat fastening devices are correctly engaged. If it is not properly fastened, remove it using the release buttons and repeat the step. If you are unable to successfully lock the component contact Chicco customer service. 29. To release the child car seat from the stroller, pull the rear release handle first (Fig. 29) and then use the carry handle to lift the child car seat (Fig. 29A). WARNING: The child car seat can be fastened and unfastened with the baby inside even if these procedures could be more difficult due to the weight of the baby. Be very careful when performing the steps described.

FOLDING THE STROLLER WARNING: When opening the stroller, ensure that your child and any other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child. The stroller can be closed either forward or parent facing. The instructions are the same for both positions.

WARNING: You must remove all contents from the basket before closing the stroller, and remove the bag if it is attached to the handle. 24. Lower the backrest by pressing the button on the back of the canopy (Fig. 24). Operate the locking mechanism by pressing button A and button B at the same time (Fig. 24A), pull the locking handle (Fig. 24B) upwards – the stroller will begin to fold on itself – until you hear the locking click (Fig. 24C). The stroller can also be closed without the seat so it takes up less room. LEG COVER 25. The leg cover can be used in two different ways: it can be placed over the bumper bar and fastened within the slots (fig. 25) or, for the increased protection of your child, you

WARRANTY The product is guaranteed against any conformity defect in normal conditions of use as stated in the instructions.

Therefore, the warranty does not apply in the case of damage caused by improper use, wear or accidental events. For the duration of warranty on conformity defects, please refer to the specific provisions of national laws applicable in the country of purchase, where provided. 17
