USER MANUAL TOPCLEAN HOR Ulsonix

Hinweis

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Folding hand push floor scrubber
Model	TOPCLEAN HOR
Battery type	12 V / 32 Ah
Rated power [W]	720
Clean water tank capacity [l]	7
Dirty water tank capacity [l]	12.8
Squeegee width [mm]	350
Brush speed [rpm]	200
IP class	IP20
Dimensions (LxWxH)	70 x 40 x 103
Weight [kg]	62

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! A general warning sign that describes a given situation.Wear ear protection. Exposure to noise may cause hearing loss.
	Wear protective goggles.
	Wear a dusk mask (protecting the respiratory tract).
	Wear protective gloves.
	Wear protective footwear.
	Wear a protective suit.
	CAUTION! Risk of electric shock!
	CAUTION! Spinning elements!
	For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Folding hand push floor scrubber

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) Take special care that the power cords are not caught by the rotating components of the device.

h) Do not place any objects on the battery!
i) When connecting the battery, pay attention to the polarity of the connecting cables.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
h) Use the unit in a well-ventilated area.
i) Check the condition of the safety stickers regularly. Replace them if they are illegible.
j) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
k) Keep packaging components and small installation parts out of the reach of children.
I) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during the operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols. The use of appropriate, approved personal protective equipment reduces the risk of injury.
f) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
g) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
h) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
i) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the product

a) Do not use the device if the control switches do not function properly. Devices that cannot be controlled by switches are unsafe, cannot work, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
i) Avoid situations in which the device stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.
j) Do not touch any moving parts or accessories unless the device is unplugged.
k) Do not leave the device switched on unattended.
I) Clean the device regularly to prevent permanent dirt build-up.
m) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
n) Keep the unit away from sources of fire and heat.
o) Before any work with the device, check the correctness of installation.
p) The cleaned surface should be free from hazardous elements. Always ensure that there are no metal objects or other materials in the work area that, if thrown back by the rotating elements, could cause property damage or injury.
q) It is prohibited to clean surfaces soiled with toxic, corrosive, explosive, etc. substances.
r) Do not use the device on uneven or sloping surfaces!
s) When using the device, move slowly and steadily. It is not allowed to run with the device.
t) The detergents used with the device should have a neutral pH.
u) If, when using the device, the water contains a large amount of cleaning foam, pour an anti-foaming agent into the tank! Otherwise, the foam may damage the engine of the device!
v) Do not sit on the device.
w) Pay special attention to obstacles lying on the ground or protruding from vertical surfaces. Avoid collisions, hitting, or tearing off objects from surrounding surfaces.
x) Using water or detergent will wet the surface, in these areas, operators or others can easily slip, and warning signs should be posted during operation.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed for wet cleaning of concrete, epoxy, tiled floors, etc.

The user is responsible for any damage resulting from misuse.

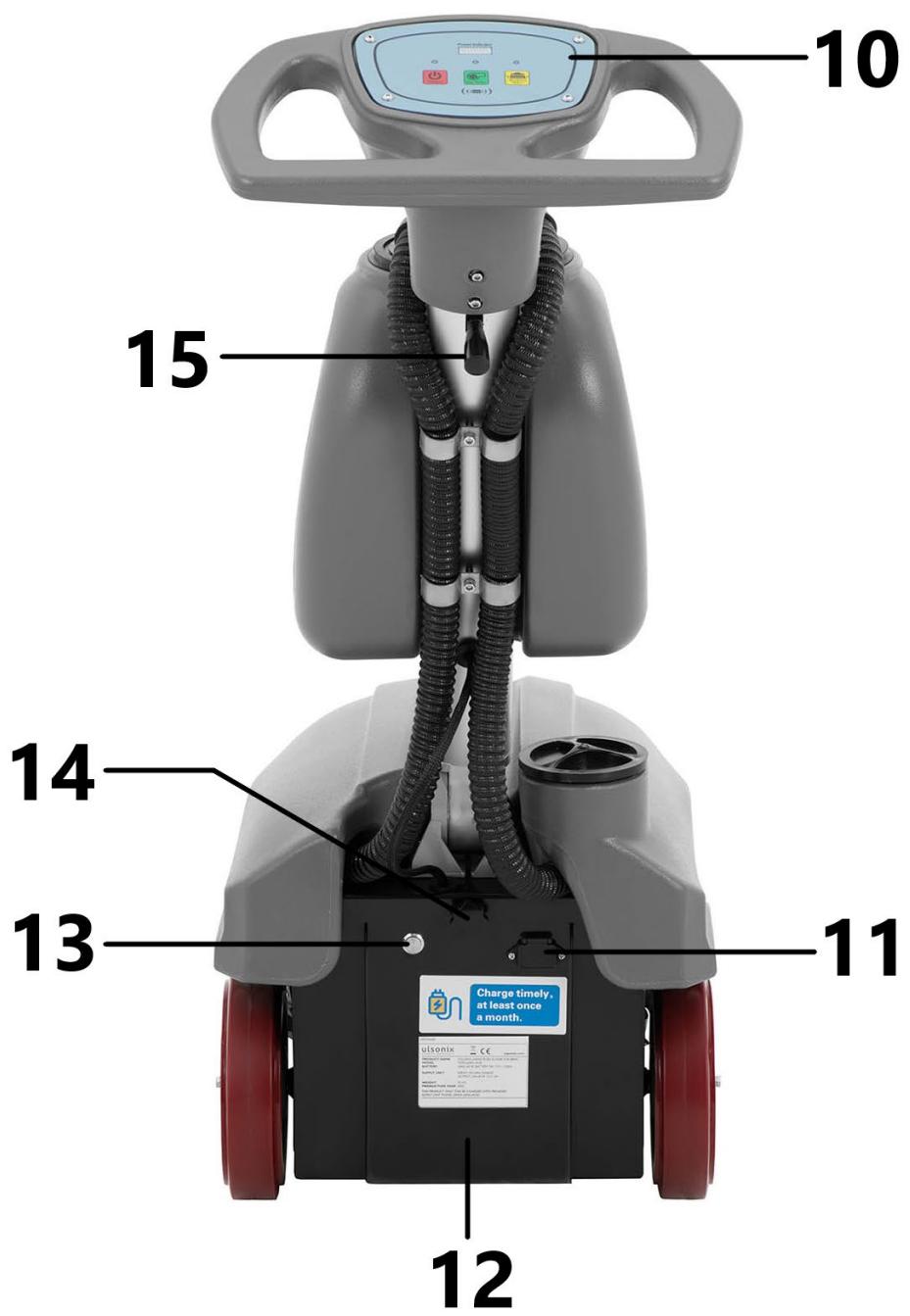

3.1. Product overview

1 - Control handle
2 - Dirty water tank cover
3 - Dirty water tank
4 - Adjustable arm of the control handle
5 - Clean water tank
6 - Water flow control valve
7 - Brush
8 - Doormat
9 - Clean water inlet
10 - Control panel
11 - Power cord socket
12 - Battery compartment cover
13 - Main power button
14 - Clamping knob for the battery compartment cover
15 - Locking lever for adjusting the control handle arm

Control panel

A - Power button
B - Security card reading zone
C - Suction switch
D - Brush engine switch
E - Battery level indicator

3.2. Installation of the unit

1) Carefully open the packaging. Remove the machine from its packaging and check that all parts have been delivered.
2) Slide the locking lever on the back of the control handle arm and pull the control handle to adjust the tilt angle of the handle arm.

3) Install the dirty water tank on the arm of the control handle.
4) Connect the pipes hooked to the control arm to the connectors on the cover of the dirty water tank.
5) Make sure the brush is properly installed.

Brush replacement:

Caution:

• Before installing/removing the brush, turn off the machine and make sure that the brush drive has stopped rotating.
• Do not use any control button when someone is touching the brush. Possible injury.

a) Turn the control handle upright and lay the machine down on the floor. Then align the brush with the three-blade plate and turn the brush counterclockwise. The assembly is complete.
b) If it is necessary to replace the brush, hold the brush and turn it clockwise to remove the brush.

3.3. Preparation for operation

Do not operate the machine under unfavorable conditions, such as an acidic/alkaline environment, or an operating temperature lower than -10°C or above +35°C .

Preparation before starting the machine

Pour water into the cleaning solution tank

• Open the clean water tank lid, then pour water or diluted neutral detergent into it.
  • The water temperature must not exceed 50° C.

Note

• To avoid shortening the service life of the machine, detergents added to the solution tank should be low-foaming and low-volatile neutral detergents with a pH of 5-9.
• If detergents are used, a skimmer should be added to the dirty water tank to prevent dirt foam from entering the engine and damaging it. The manufacturer is not responsible for damage to the suction motor caused by the lack of an anti-foaming agent.

Charging the battery

• Charge the battery before the first use and before and after a prolonged period of non-use.
• It is recommended to charge the battery twice a month.
• Charge the battery with the power adapter included with the device.
• Do not cover the power supply while charging (the power supply may get hot).

Directions for use

• If there is debris or a large amount of sand on the surface to be cleaned, remove it before cleaning with this device.
• This equipment is designed for cleaning smooth and hard substrates. If there are cracks or other large gaps in the floor, it may not be possible for the device to absorb water.
• Secure the equipment from unauthorized use.
• This equipment is powered by batteries. Battery acid can burn your skin and eyes. When inspecting the battery, operators should wear protective clothing and goggles to prevent accidents.
• It is strictly forbidden to place any metal objects on the battery to avoid damage to the battery.
• Operators should wear safety shoes when handling this equipment.
• Do not put your hands or feet into the rotating brush.

3.4. Working with the device

1) Remove larger dirt and dust from surfaces to be cleaned. Before starting work, make sure there is no soil, stones, pieces of paper, or other debris on the surface to be cleaned, this will improve work efficiency.
2) Press the power button on the back of the machine on the battery housing.
3) Apply the access card to the control panel. The machine will start up.
4) Check the battery power level indicator, if the power is insufficient, charge the battery.
5) Start the water absorption engine.
6) If needed, using the valve lever just above the brush guard, adjust the flow of clean water/detergent according to how dirty the floor is (see figure below).

7) Start the brush engine.
8) Begin cleaning the floor.

Note : The position of the wiper affects the water absorption effect. For proper operation, it is necessary that the wiper is in even contact with the ground. The windshield wiper wears out during use, resulting in the need to periodically adjust the position of the wiper.

Note: There may be deep grooves or cracks on the ground that will affect the machine's water intake efficiency.

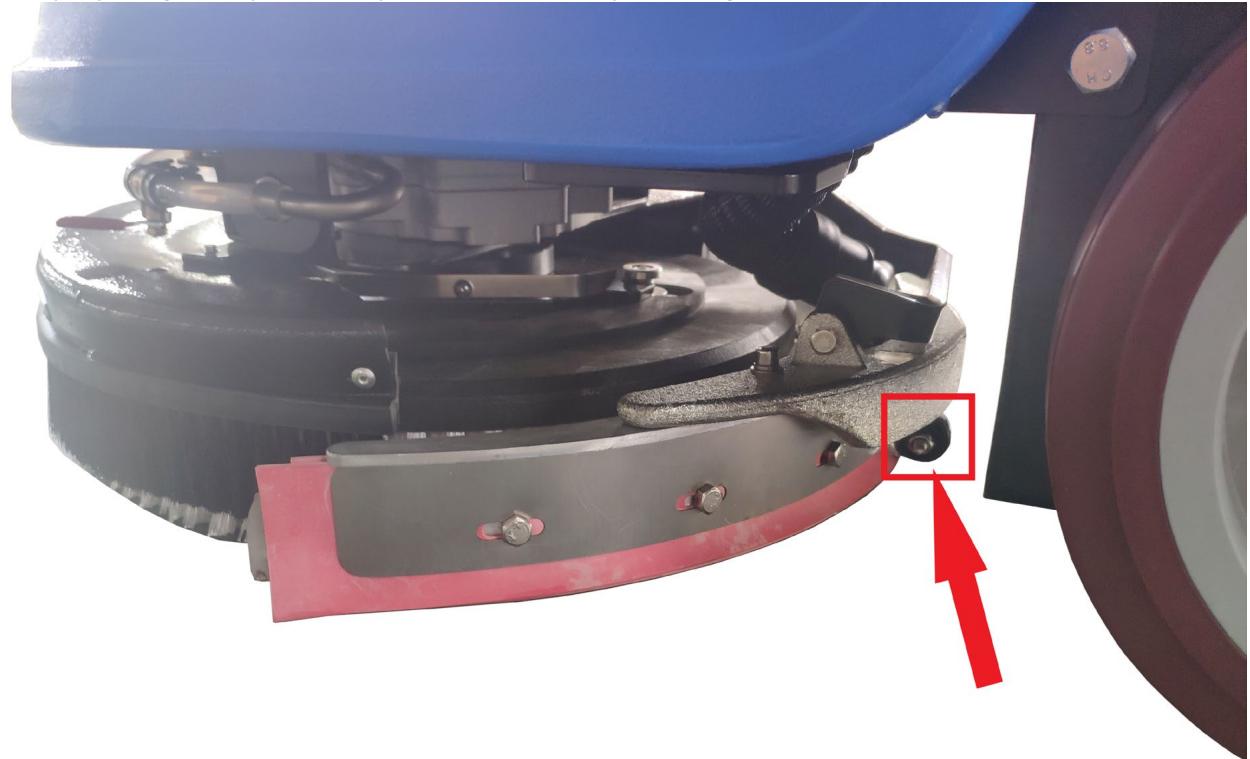

Wiper adjustment

1) Make sure that the device is turned off
2) Pull off the clean water tank.
3) To level the wiper, find and turn the screw marked in the figure below.

4) To adjust the angle of the wiper, find and turn the screw marked in the figure below.

Wiper maintenance:

The wiper blade is subject to wear due to rubbing against the floor. When the water absorption efficiency drops significantly, the following checks should be carried out.

1) Whether there are foreign bodies on the wiper.
2) Whether there are any contaminants on the suction connection.
3) By adjusting the wiper wheel, you can lower the wiper (see figure below).

4) Check the wear of the wiper edge. If the wear is significant, the wiper can be mounted in reverse so that now it is the opposite edge that is used.

Activities after working with the device

1) Wipe the outside of the device with a dry and damp cloth.
2) Empty and rinse the dirty water tank.
3) Park the device in a flat, dry place, protected from the elements and direct sunlight.
4) Before long-term storage, completely dry the device and cover it with a material that will protect the device from dust. It is recommended to charge the battery regularly.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use. Wait until the rotating parts stop.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) After each cleaning, all parts should be thoroughly dried before the device is reused.
d) Store the unit in a dry and cool place protected from moisture and direct sunlight.
e) Do not spray the unit with a stream of water or immerse it in water.
f) Clean the ventilation openings with a brush and compressed air.
g) Perform regular inspections of the unit checking technical fitness and any damages.
h) Use a soft cloth for cleaning.

Instructions for the safe disposal of batteries.

A rechargeable battery is installed in the devices.

Disassemble the used batteries from the device in the same way as you assemble them.

Return the batteries to a unit responsible for their disposal.

Disposal of used units.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

UWAGA! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

Uwaga

Poznámka

Údržba stěračů:

Remarque

Nota

Nota

Megjegyzés:

Bemærk

Huomautus

Pyyhkijän huolto:

1 - Bedieningshendel
2 - Deksel vuilwatertank
3 - Vuilwatertank
4 - Verstelbare arm van de bedieningshendel
5 - Schoonwatertank
6 - Waterstroomregelklep

7 - Borstel

8 - Deurmat

Opmerking

1 - Kontrollhåndtak
2 - Deksel til skittenvannstank
3 - Skittenvannstank
4 - Justerbar arm på kontrollhåndtaket
5 - Rengjøringsvannstank
6 - Vannstrømskontrollventil
7 - Børste
8 - Dørmatte
9 - Rentvannsinntak
10 - Styrepanel
11 - Strømledningsuttak
12 - Batteriromdeksel
13 - Hovedstrømknapp
14 - Klemmeknapp for batteriromdekselet
15 - Låsehendel for justering av kontrollhåndtaksarmen

Styrepanel

Merk

Anmärkning

7) Starta borstmotorn.
8) Börja rengöra golvet.

Nota

7) Ligue o motor da escova.

8) Comece a limpar o piso.

7) Ligue o motor da escova. 8) Comece a limpar o piso.

1 - Ovládacia rukovät'
2 - Kryt nádrže na špinavú vodu
3 - Nádrž na špinavú vodu
4 - Nastavitelné rameno ovládacej rukoväte
5 - Nádrž na čistú vodu
6 - Regulačný ventil prietoku vody
7 - Kefa
8 - Rohožka
9 - Prívod čistej vody

10 - Ovládací panel

Poznámka

Údržba stieračov:

Забележка

Σημείωμα

1 - Upravljačka ručka
2 - Poklopac spremnika za prljavu vodu
3 - Spremnik za prljavu vodu
4 - Podesivi krak upravljačke ručke
5 - Spremnik za čistu vodu
6 - Regulacijski ventil protoka vode
7 - Četka
8 - Otirač
9 - Dovod čiste vode
10 - Upravljačka ploča
11 - Utičnica za kabel napajanja
12 - Poklopac odjeljka za baterije
13 - Glavni gumb za napajanje
14 - Stezni gumb za poklopac odjeljka za baterije
15 - Poluga za zaključavanje za podešavanje kraka upravljačke ručke

Upravljačka ploča

A - Gumb za napajanje
B - Zona očitavanja sigurnosne kartice
C - Prekidač usisavanja
D - Prekidač motora četke
E - Pokazatelj razine baterije

3.2. Ugradnja uređaja

Bilješka

• Kako biste izbjegli skraćivanje vijeka trajanja stroja, deterdženti koji se dodaju u spremnik za otopinu trebaju biti neutralni deterdženti s niskim pjenjenjem i niskom isparljivošću s pH vrijednošću od 5-9.
• Ako se koriste deterdženti, u spremnik prljave vode treba dodati skimer kako bi se spriječilo ulazak pjene od prljavštine u motor i njegovo oštećenje. Proizvođač ne odgovara za oštećenja usisnog motora uzrokovana nedostatkom sredstva protiv pjenjenja.

Punjenje baterije

7) Pokrenite motor četke.
8) Započnite čišćenje poda.

Održavanje brisača:

Pastaba

Valytuvo priežiūra:

Nota

Opomba

7) Zaženite motor krtače.
8) Začnite čistiti tla.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
