SC 1402 - Steam cleaner KARCHER - Free user manual and instructions

Product type	Steam cleaner
Brand	Kärcher
Model	SC 1402
Supply voltage	220-240 V ~ 50 Hz
Heating power	1800 W
Max. service pressure	3.5 bar
Heating time per liter of water	7 min
Max. steam output	82 g/min
Water tank capacity	0.95 L
Boiler capacity	2.0 L
Weight (without accessories)	6.5 kg
Dimensions (W x D x H)	340 x 420 x 315 mm
Included accessories	Steam gun, pencil jet nozzle, extension, round brush, power brush, manual nozzle with sponge cover, window nozzle, 2 extension tubes, floor nozzle with cloth, descaling key
Main functions	Steam cleaning, steam output adjustment, child safety, control lights
Safety	Manostat, boiler thermostat, safety thermostat, safety cap (valve at 5.7 bar)
Maintenance	Descaling recommended according to water hardness; use of distilled water recommended
Warranty	According to country conditions, contact the dealer

Frequently Asked Questions - SC 1402 KARCHER

How to fill the water tank?

Remove the tank by the handle, fill it with tap water up to the MAX mark, then replace it by pushing down. You can also fill directly via the filling funnel (A9). Never use detergents or condensation water from a dryer.

How to start the appliance?

Plug in the mains plug, turn on the switch (A3). The green (B2) and orange (B3) lights illuminate. Wait about 8 minutes until the orange light goes out. Disable the child safety by pushing the lock (C3) forward, then press the steam trigger (C4).

What to do if steam does not come out?

Check the water tank: if empty, fill it. If the red light (B1) flashes, it indicates a lack of water in the boiler. Fill the tank, then turn the appliance off and on again. Also make sure the child safety is not activated (push the lock forward).

How to descale the boiler?

Unplug the appliance and let it cool down. Remove the tank and accessories. Unscrew the boiler cap (A7) with the descaling key. Use Kärcher descaling sticks according to the dosage. Fill the boiler with solution, let it act for 8 hours, then empty and rinse 2 to 3 times with cold water before screwing the cap back on.

Can I use detergents?

No, never add detergents, solvents or acids. Use only tap water or distilled water (which prevents scaling). Chemicals may damage the appliance.

How to clean windows?

Use the window nozzle (F1). Spray at about 20 cm distance. Lock the trigger with the lock (C3) in the rear position, then run the rubber lip from top to bottom. Before first use, degrease the surface with the manual nozzle and a sponge cover.

How to use the iron?

Plug the iron's steam connector into the appliance's socket. Set the thermostat (K4) to the hatched area. Wait until the light (K2) goes out. Press the switch (K3) to release steam. For vertical ironing, hold the iron vertically. Preferably use a steam-permeable ironing board.

What to do if the red light illuminates?

The red light (B1) indicates a lack of water in the boiler. Fill the water tank; the pump will automatically fill the boiler. If the light stays on, turn the appliance off and on again after filling the tank.

How to store the appliance?

Turn off the appliance and unplug it. Remove the steam connector, empty the tank. Let the brushes cool down before storing to avoid deformation. Place the accessories on their holders. Never store the appliance horizontally.

What accessories are available?

Optional accessories include: iron, wallpaper stripper, turbo steam brush, textile care nozzle, round brush kit (with or without brass bristles), sponge cloths, terry cloth covers, Bio-Entkalker descaling agent. The order numbers are listed in the manual.

USER MANUAL SC 1402 KARCHER

register and win! www.kaercher.com

KÄRCHER®

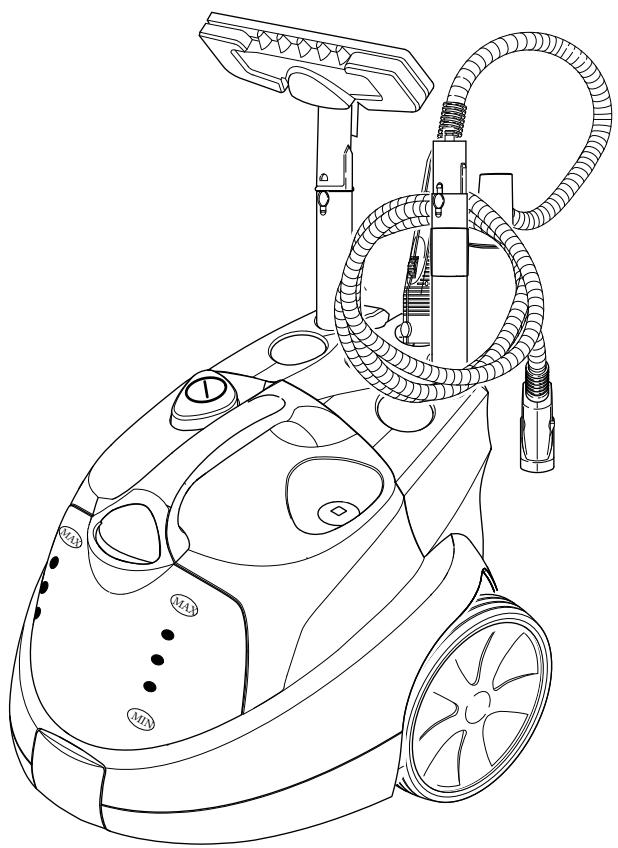

SC 1402

Line drawing of a vacuum cleaner with attached hoses and control panel (no text or symbols)

Deutsch 5

English 17

Français 29

Italiano 41

Nederlands 53

Español 65

Português 77

Dansk 89

Norsk 101

Svenska 113

Suomi 125

Ελληνικά 137

Türkçe 149

Русский 161

Magyar 173

Čeština 185

Slovenščina 197

Polski 209

Românește 221

Slovenčina 233

Hrvatski 245

Srpski 257

Български 269

Українська 281

DE Kurzanleitung

EN Quick reference

Line drawing of a hairdryer with a cable inserted, showing the head and connector (no text or symbols)

3

4

5 8 min I

Line drawing of a handheld electric shaver with a pointed tip and arrow indicating direction (no text or symbols)

A3 B1 B2 B3 A2 A1 C1 C5 C2 C4 C3 C6 C7 G1 F1 E1 D1 G2 H1 G3 E2 D2 D3 D4 H2 H3

K1*

K3 K2 K4 K5

K3 K4 K2 K5

Diagram showing mechanical assembly with labeled parts and directional arrows indicating process flow

Abb. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Abb. 3

Zubehör abstellen

Technical line drawing of a mechanical device with a tool inserted, showing no text or symbols

Abb. 4

Betrieb

Zubehör montieren

Line drawing of a cable connector with a valve inserted, showing no text or symbols

Abb. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Abb. 6

'clic' 'clic'

Abb. 7

Line drawing of a car dashboard and steering wheel (no text or symbols)

Abb. 12

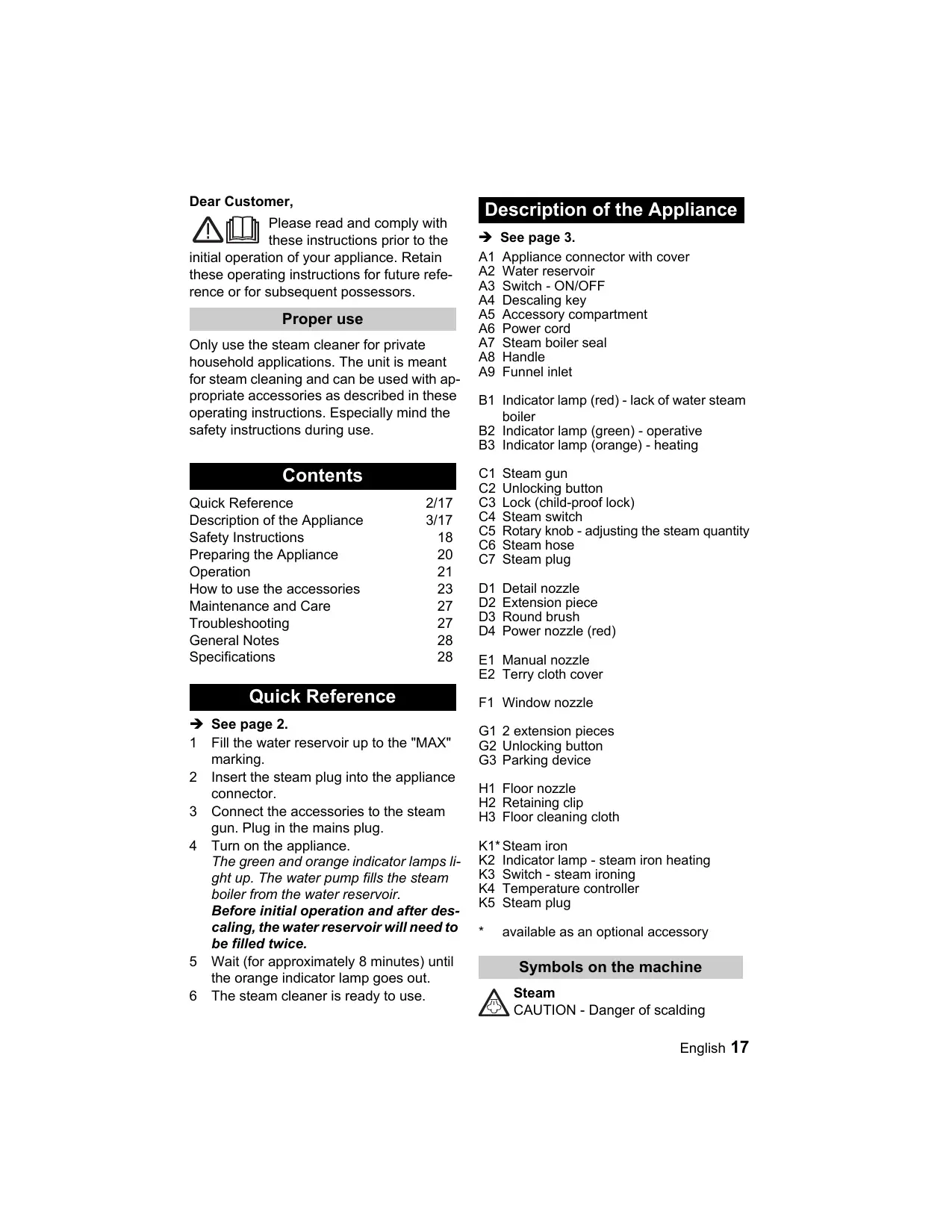

⚠️ WARNING

Please read and comply with these instructions prior to the

initial operation of your appliance. Retain these operating instructions for future reference or for subsequent possessors.

Proper use

Only use the steam cleaner for private household applications. The unit is meant for steam cleaning and can be used with appropriate accessories as described in these operating instructions. Especially mind the safety instructions during use.

Contents

Quick Reference	2/17
Description of the Appliance	3/17
Safety Instructions	18
Preparing the Appliance	20
Operation	21
How to use the accessories	23
Maintenance and Care	27
Troubleshooting	27
General Notes	28
Specifications	28

Quick Reference

→ See page 2.

1 Fill the water reservoir up to the "MAX" marking.
2 Insert the steam plug into the appliance connector.

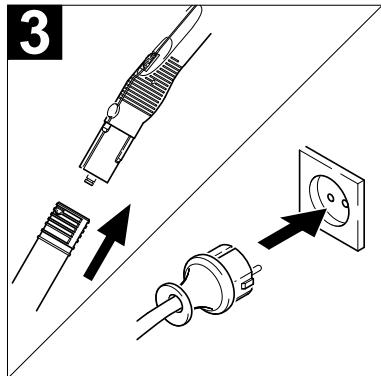

3 Connect the accessories to the steam gun. Plug in the mains plug.

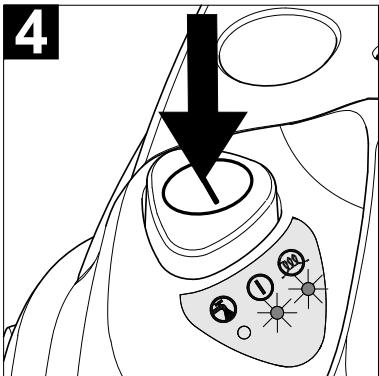

4 Turn on the appliance. The green and orange indicator lamps light up. The water pump fills the steam boiler from the water reservoir.
Before initial operation and after des- caling, the water reservoir will need to be filled twice.

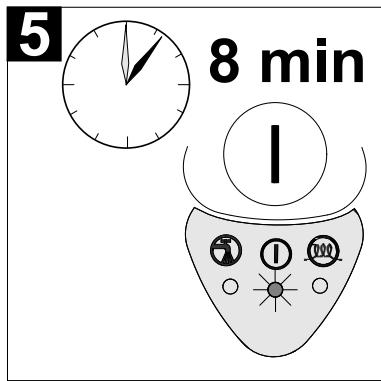

5 Wait (for approximately 8 minutes) until the orange indicator lamp goes out.

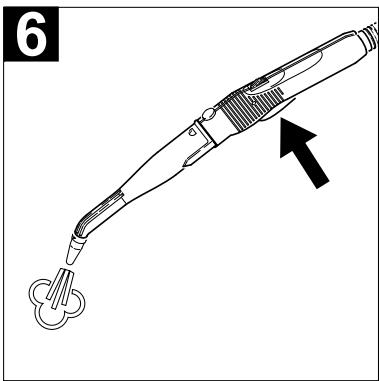

6 The steam cleaner is ready to use.

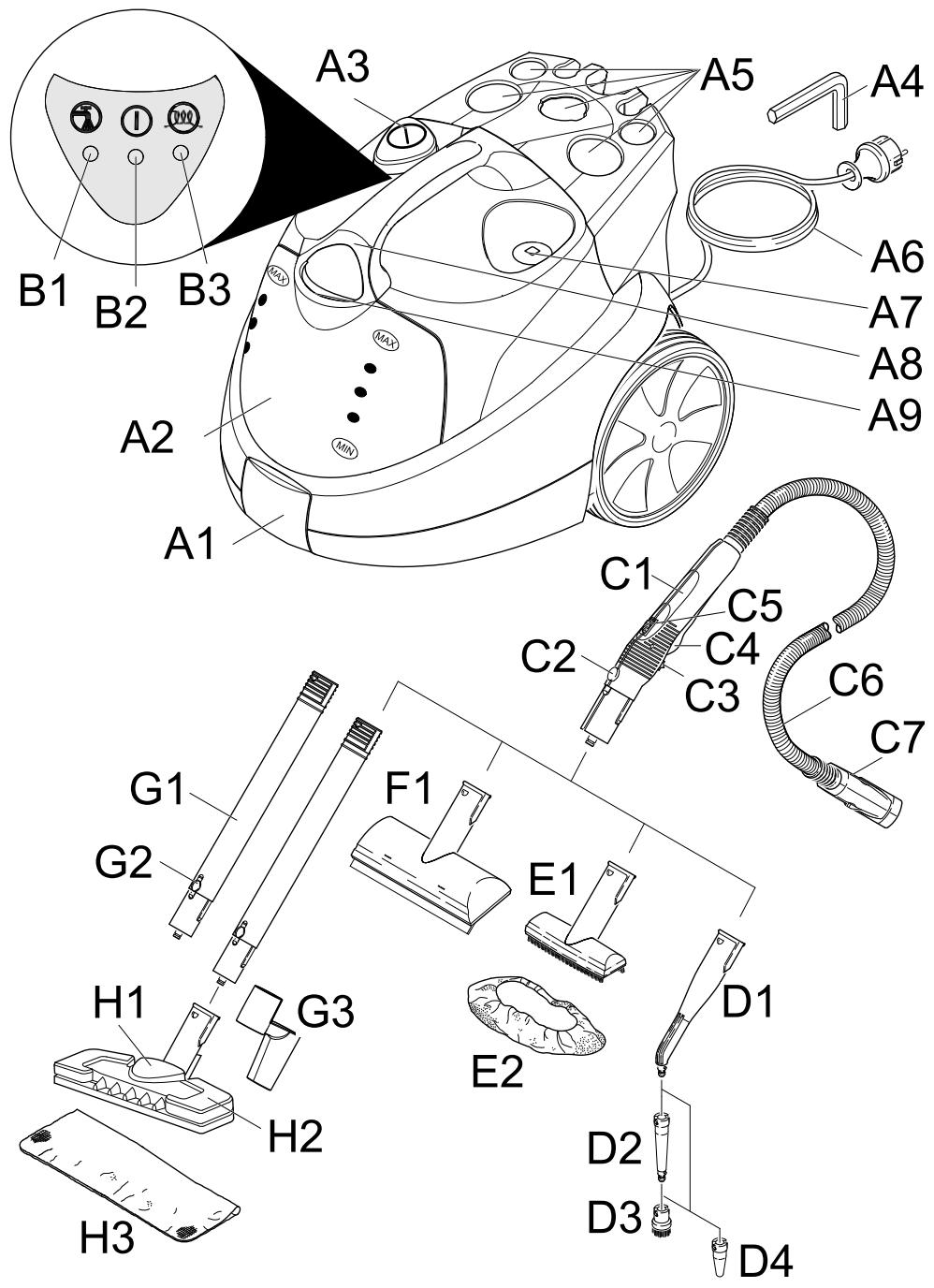

Description of the Appliance

→ See page 3.

A1 Appliance connector with cover
A2 Water reservoir
A3 Switch - ON/OFF
A4 Descaling key
A5 Accessory compartment
A6 Power cord
A7 Steam boiler seal
A8 Handle
A9 Funnel inlet

B1 Indicator lamp (red) - lack of water steam boiler
B2 Indicator lamp (green) - operative
B3 Indicator lamp (orange) - heating

C1 Steam gun
C2 Unlocking button
C3 Lock (child-proof lock)
C4 Steam switch
C5 Rotary knob - adjusting the steam quantity
C6 Steam hose
C7 Steam plug

D1 Detail nozzle
D2 Extension piece
D3 Round brush
D4 Power nozzle (red)

E1 Manual nozzle
E2 Terry cloth cover

F1 Window nozzle

G1 2 extension pieces
G2 Unlocking button
G3 Parking device

H1 Floor nozzle
H2 Retaining clip
H3 Floor cleaning cloth

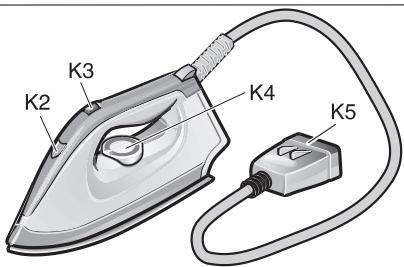

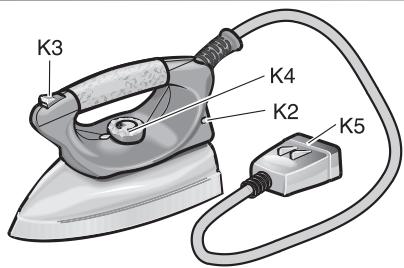

K1* Steam iron
K2 Indicator lamp - steam iron heating
K3 Switch - steam ironing
K4 Temperature controller
K5 Steam plug

* available as an optional accessory

Symbols on the machine

Safety Instructions

Warnings and notes that are attached on the appliance provide important notes for safe operation.

Apart from the notes contained herein the general safety provisions and rules for the prevention of accidents of the legislator must be observed.

Electrical connection

■ Only connect the appliance to properly earthed sockets.
■ The voltage indicated on the type plate must correspond to the voltage of the socket.
In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter. If you are not sure, please contact an electrician.

■ Never touch the mains plug and the socket with wet hands.

■ Make sure that the power cord or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cord from heat, oil, and sharp edges.

■ Only use a splashproof extension cable with a minimum section of 3x1 mm ^4 .

■ The connection between power cord and extension cable must not lie in water.

■ Never use a damaged power cord or extension cable! If the power cord is damaged it must be replaced with a special power cord available from the manufacturer or his customer service.

If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.

Application

- Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the po-

wer cord, the steam boiler seal, and the steam hose.

■ The steam hose must not be damaged (risk of scalds). A damaged steam hose must be replaced immediately. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).

■ Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.

It is not allowed to use the appliance in hazardous locations. If the appliance is used in hazardous areas the corresponding safety provisions must be observed.

■ The appliance must be used on a flat surface.

■ The steam switch must not be locked during the operation.

■ Never touch the steam jet with your hands and never direct the steam jet to persons or animals (risk of scalds).

■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).

■ The operator must use the appliance properly. He must consider the local conditions and must pay attention to third parties, in particular children, when working with the appliance.

This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.

■ Never leave the appliance unattended as long as it is in operation.

⚠️ Steam cleaning electric household appliances

If you use the appliance to clean electric household appliances (e.g. electric kitchen ranges) these appliances must be off circuit (switch off the fuse). Before you use the appliances again make sure they have dried completely. Please observe the notes of the appliance manufacturers!

■ Do not use the steamer on electrical appliances such as lamps, hair driers, electric heaters, as the steam may cause an electrical defect.

⚠ Maintenance

■ Turn off the appliance and remove the mains plug prior to any care and maintenance works.
■ The steam boiler seal may only be opened to descale the appliance.
■ Never open the steam boiler seal if the appliance is hot or turned on.
■ Repair works may only be performed by the authorized customer service.

⚠ Storage

■ Caution: Never operate or store the appliance in a horizontal position!
■ Protect the unit from rain. Do not store outside.

Safety elements

This steam cleaner is equipped with several safety devices that provide an all-round protection of the appliance. The most important safety devices are described in the following.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 3.5 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If there is no water in the boiler the temperature in the boiler rises. The boiler thermostat turns off the heating. The heating is prevented from being turned on again until the boiler has been filled.

Safety thermostat

If the boiler thermostat fails and the appliance overheats, then the safety thermostat turns off the appliance.

Please contact your local Kärcher customer service to arrange for the reset of the safety thermostat.

Steam boiler seal

The steam boiler seal acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises above 5.7 bar, the steam boiler seal opens, and steam is emitted through the lock to the outside.

Please contact your local Kärcher customer service before you put the appliance into operation again.

Preparing the Appliance

Unpacking the Appliance

When you unpack the system, check that everything is complete (see page 3). If there are any missing parts or you detect any transport damage when unpacking, please inform your dealer immediately.

	The packaging materials are recyclable. Please do not throw packaging in the domestic waste but pass it on for recycling.
	Old units contain valuable recyclable materials. Batteries, oil and similar substances may not be released into the environment. Therefore please dispose of old units through suitable collection systems.

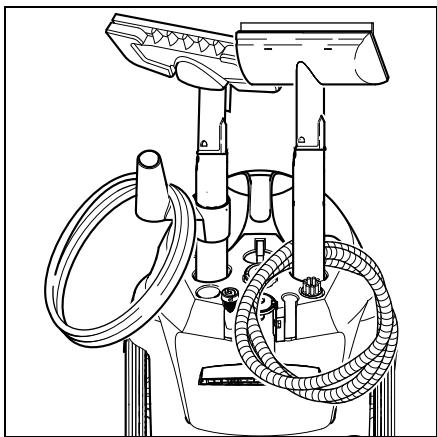

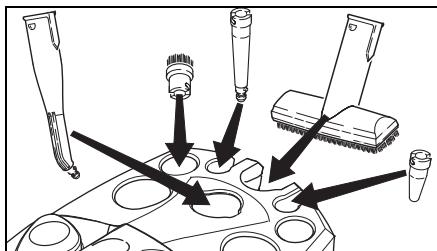

Storing the Accessories

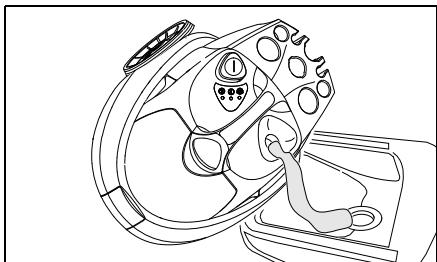

→ Place the manual nozzle (E1) into the appropriate accessory compartment (see Fig. 1).

Note: The detail nozzle (D1), the extension piece (D2), the round brush (D3), and the power nozzle (D4) are already stored.

Diagram showing mechanical assembly steps with labeled components and directional arrows indicating process flow

Figure 1

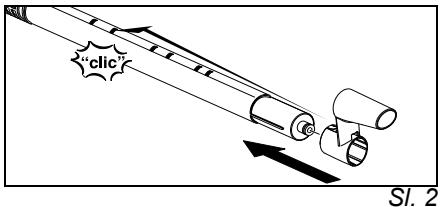

→ Hold the unlocking button down, and push the parking device (G3) on an extension tube (G1) until it locks into place in the second aperture. The parking device must lock into place when you release the unlocking button (see Fig. 2).

"clic"

Figure 2

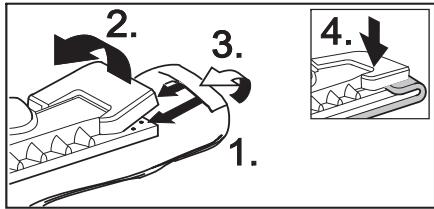

→ Put the floor nozzle (H1) on the extension piece with the parking device.
→ Insert the window nozzle (F1) on the second extension piece.

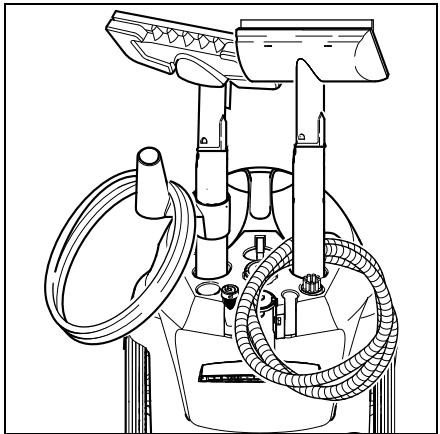

→ Put the extension pieces into the large accessory compartments (see Fig. 3).

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Figure 3

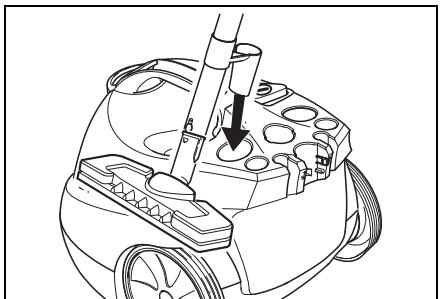

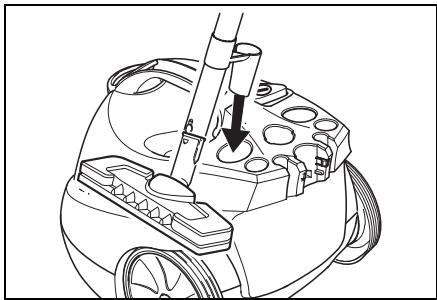

Putting Down the Accessories

If you interrupt your work for a short period of time, the extension tube with the floor nozzle can be put into the parking position (see Figure 4).

Technical line drawing of a mechanical device with a tool inserted, showing no text or symbols

Figure 4

Operation

Attaching the Accessories

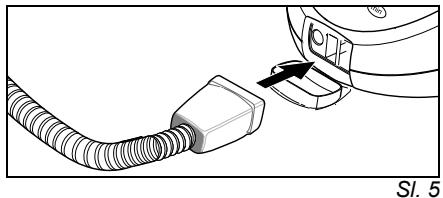

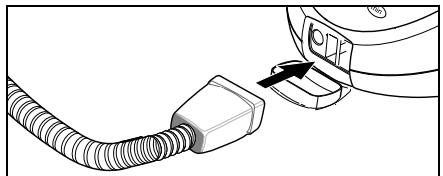

→ Tightly insert the steam plug (C7) into the appliance connector (A1). The locks of the steam plug must lock into the cover of the appliance connector (see Figure 5).

Line drawing of a cable connector with a plug inserted, showing no text or symbols

Figure 5

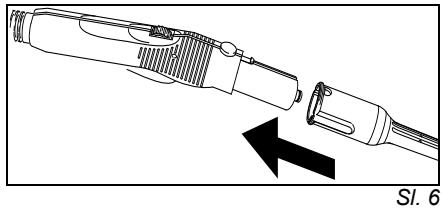

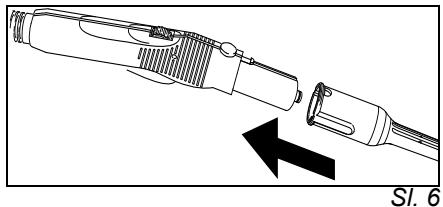

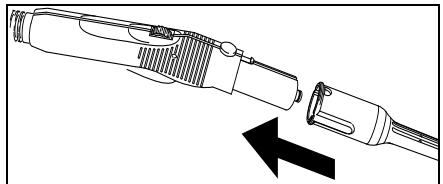

→ Connect the required accessories (D1, E1, F1) with the steam gun (C1). Insert the open end of the accessory on the steam gun (C1) and push onto the steam gun until the unlocking button (C2) of the steam gun locks into place (see Fig. 6).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Figure 6

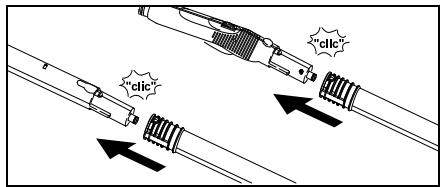

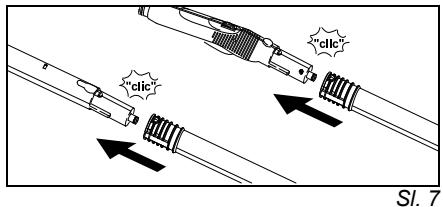

→ Use the extension pieces (G1) if necessary. To do so, connect one or both extension pieces to the steam gun (C1) (see Fig. 7). Insert the required accessories (D1, E1, F1, H1) on the free end of the extension piece.

"clic" "clic"

Figure 7

→ The detail nozzle (D1) may also be used with the extension piece (D2), the round brush (D3), or the power nozzle (D4) (see Fig. 8). To do so, put the two grooves of the attachments on the locks of the detail nozzle and turn clockwise until the stop.

Figure 8

Removing the Accessories

⚠️ DANGER

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalds!

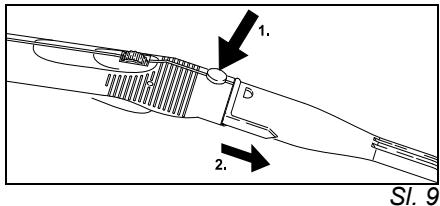

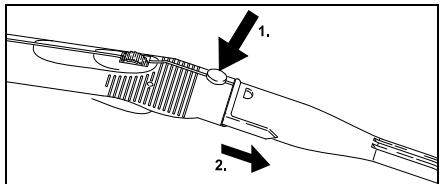

→ To detach the accessory parts, press the unlocking button (C2 or G2), and pull the items apart (see Figure 9).

1. 2.

Figure 9

→ To detach an attachment from the detail nozzle, turn the attachment counterclockwise and pull the parts apart.

Filling the Water Reservoir

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Note: If you always use usual commercial distilled water it is not necessary to descale the boiler.

CAUTION

Do not use condensation water from the drier! Do not fill in detergents or other additions!

A) Remove the water reservoir

→ Pull out the water reservoir using the handle (A8).
→ Fill the water reservoir up to the "MAX" marking.
→ Insert the water reservoir and press downwards.

B) Directly on the appliance

→ Pour water from a container into the funnel inlet (A9). Fill up to the "MAX" marking.

Turning on the Appliance

Note: Before initial operation and after descaling the steam boiler must be filled with water. To this purpose, the water reservoir will need to be filled twice.

→ Insert the mains plug into a socket.
→ Press the switch (A3) to turn on the appliance. The green (B2) and orange (B3) indicator lamps will light up.

Note: If there is no or not enough water in the boiler, the pump starts and supplies water from the reservoir into the boiler. The filling process may take several minutes.

→ The orange indicator lamp (B3) goes out after approximately 8 minutes. The appliance is ready for use.

→ Push the lock (C3) of the steam switch forward.

Note: If you push the lock (C3) backwards, the steam switch (C4) cannot be activated (child-proof lock).

→ Activate the steam switch (C4).

→ Always direct the steam gun (C1) at a separate piece of cloth until the steam is emitted evenly.

Note: The heater of the steam cleaner is turned on in regular intervals during the operation of the appliance in order to maintain the pressure in the boiler at a constant level. When the heater is turned on, the orange indicator lamp (B3) lights up.

Adjusting the Steam Quantity

The steam quantity is adjusted using the rotary knob (C5) on the steam gun (C1).

→ If you turn the rotary knob forward: a higher steam quantity is emitted,
→ If you turn the rotary knob backward: a lower steam quantity is emitted.

Refilling Water

The water reservoir may be refilled at any time.

Note: If there is not enough water in the steam boiler the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the pump is not able to fill the steam boiler and the steam tapping is blocked. Indicator lamp (B1) - low-water blinks.

→ Fill the water reservoir.
Note: The pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is released immediately, and the red indicator lamp goes out.

Turning Off the Appliance

→ Press the switch (A3) to turn off the appliance.
→ Disconnect the mains plug from the socket.
→ Press the cover of the appliance connector (A1) to the bottom and disconnect the steam plug (C7) from the appliance connector.
→ Empty the residual water from the water reservoir.

Storing the Appliance

→ See page 20, "Storing the Accessories".
→ Always make sure that the brushes are cold before storing them to avoid a deformation of the bristles.

How to Use the Accessories

Important Application Instructions

Cleaning of Textiles

Before you use the steam cleaner for the cleaning of textiles, you should always test the resistance of the fabrics against steam by means of cleaning a hidden spot. Apply steam to the hidden spot, and then let it dry. Check whether the colour and shape of the area have changed.

Cleaning of Coated or Lacquered Surfaces

⚠ WARNING

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on wooden or parquetry floors that have not been sealed.

Be careful when you clean kitchen and living room furniture, doors, parquetry, lacquered or plastic-coated surfaces! Upon a longer influence of steam, wax, furniture polish, plastic coatings, or paint may come off, or stains may occur. Therefore, you should only clean such surfaces using a piece of cloth to which steam has been applied or very briefly using a double layer of cloth on the nozzle.

Cleaning of Glass

⚠ WARNING

Never direct the steam jet directly at the sealed parts of the window around the window frame to prevent damages of the sealing. In case of low outside temperatures, especially in the winter, warm up the window pane. Apply a small quantity of steam to the entire glass surface. Thus, you compensate temperature differences and avoid stresses in the glass surface. This is of importance because glass surfaces that are heated unevenly may crack.

Steam gun (C1)

You can use the steam gun without any additional accessories.

Application:

• elimination of odours and creases from garments: Apply steam to the hanging garment from a distance of 10–20cm.
• removing dust from plants: Respect a distance of 20-40 cm.
• dusting with a damp cloth: Apply a small amount of steam to a cloth, and then use this cloth to wipe over the furniture.

Detail nozzle (D1)

The closer you hold the nozzle to the dirty spot, the higher the cleaning effect as temperature and pressure of the steam reach their maximum values immediately when they are emitted from the nozzle.

Application:

• fittings, drains
• wash-basins, toilets
• blinds, radiators
• Removing stains: Moisten stubborn lime-scale with vinegar, and allow to react for approximately 5 minutes.

Extension piece (D2)

The extension piece is attached to the detail nozzle.

Application:

– inaccessible gaps, joints, etc.

Round brush (D3)

Note: The round brush is not suited for the cleaning of delicate surfaces.

The round brush is attached directly or using the extension piece (D2) on the detail nozzle.

Application:

– locations that are difficult to access, such as corners and joints
- fittings, drains

Power nozzle (D4)

The power nozzle is attached directly or using the extension piece (D2) on the detail nozzle. The power nozzle increases the emission speed of the steam.

Application:

– removal of especially stubborn dirt
– cleaning out corners, joints, etc.

Manual nozzle (E1)

Pull the terry cloth cover (E2) over the manual nozzle.

Application:

– small, washable surfaces, such as kitchen surfaces made of plastic, tiled walls
- windows, mirrors
- furniture fabrics
– vehicle interior, windscreens
- bath-tubs

Window nozzle (F1)

Application:

• windows
• mirrors
• glass surfaces on shower cubicles
• other glass surfaces

→ Apply steam to the glass surface from a distance of approximately 20 cm until the surface is moistened evenly. Then push the lock (C3) to the rear to prevent an undesired actuation of the steam switch (C4). Wipe the glass surface in straight lines from the top to the bottom using the rubber lip of the window nozzle. Wipe the rubber lip and the bottom edge of the window dry after each strip.

→ Before cleaning with the window nozzle, dissolve fat residue using the manual nozzle (E1) and a terry cloth cover (E2).

Floor nozzle (H1)

Application:

• all washable wall and floor coverings, e.g.: stone floors, tiles, and PVC floors.
  → Attach the floor cloth to the floor nozzle.
  1 Fold the floor cloth the long way and place the floor nozzle on top of it.
  2 Open holding clamps.
  3 Place the cloth ends into the openings.
  4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

1. 2. 3. 4.

Figure 10

→ To remove the cloth, press the retaining clips (H2), and pull out the cloth.
→ Turn and exchange the floorcloth in regular intervals. Thus, you improve the ability to pick up dirt.
→ Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.
→ If there are residues of detergents or floor cleaning products (e.g. wax, liquid polish) on the surface to be cleaned, streaks may form during the cleaning. These streaks normally disappear after a repeated use of the steam cleaner.

Steam iron (K1) (optional)

Special accessory, see page 26 for the order number.

→ Firmly insert the steam plug (K5) into the appliance connector (A1). The locks of the steam plug must lock into the cover of the appliance connector.

Steam ironing

We recommend the use of the Kärcher ironing table with active steam extraction. This

ironing table has been especially designed to match your new unit. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.

→ All fabrics can be steam ironed. Adjust the temperature regulator (K4) of the steam iron within the notched range ( ·s /MAX). Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications. For this, you can use our anti-stick sole plate (see optional accessories overview).
→ Once the indicator light on the steam iron (K2) has gone out, the steam iron is ready for use. The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.
→ Press the switch (K3) on the iron. Steam flows out on the sole plate.
- Press the switch to the front: A steam burst is emitted while the switch is being pressed.
- Press the switch to the back: The switch locks and steam is continuously emitted. To release, press the switch to the front.
→ Direct the first burst of steam at a separate piece of cloth until the steam is emitted evenly.
→ You can hold the iron in an upright position to apply steam to curtains, dresses, etc.

Dry ironing

→ Adjust the temperature of the iron according to the garment you want to iron.

• Man-made fiber
  • Wool
  ... Linen

Wallpaper remover (optional)

Special accessory, see page 26 for the order number.

You can use the wallpaper remover with the steam cleaner to remove paper wallpapers.

→ Place the entire surface of the wallpaper remover along the edge of a strip of wallpaper. Switch on the steam supply (C4) and allow the steam to act on the wallpaper until it is completely soaked (approximately 10 seconds).
→ Move the wallpaper remover to the next piece of wallpaper you want to remove. Hold the steam switch (C4) pressed while you move the tool. Lift the soaked piece of wallpaper using a flat trowel, and pull it off the wall. Move the wallpaper remover from strip to strip, and pull the wallpaper off in strips.
→ In case of woodchip wallpaper that has been painted several times, the steam may not be able to soak the wallpaper. Thus, we recommend to prepare the wallpaper using a spiked roller before steam is applied.

Steam turbo-brush (optional)

Special accessory, see page 26 for the order number.

The steam turbo-brush is rotated by the emitted steam and is ideally suited for the easy cleaning of extreme dirt at places in the kitchen and the bathroom that are difficult to access.

Application:

– cleaning of corners, joints
– areas that are difficult to access

Textile cleaning nozzle (optional)

Special accessory, see page 26 for the order number.

Application:

To freshen hanging textiles, such as jackets or curtains, by means of two functions:

• Defleecing garment using the thread lifter.
• Vaporizing and dewrinkling of textiles (also eliminates odours).

If you activate the steam switch, steam is emitted. Direct the first burst of steam at a separate piece of cloth until the steam is emitted evenly.

Special Accessories Overview

Steam iron with special steel sole

(order no. 2.884-503)

Anti-stick sole plate

(order no. 2.860-132)

Professional steam iron with aluminium

sole (order no. 2.884-504)

Anti-stick sole plate

(order no. 2.860-131)

Ironing table with active steam extraction

(order no. 6.906-002)

For excellent ironing results with a substantial saving of time (only for 230 V)

Wallpaper remover

(order no. 2.863-062)

Round brush kit

(order no. 2.863-058)

- 4 round brushes for the detail nozzle.

Round brush kit with brass bristles

(order no. 2.863-061)

- 3 round brushes for the detail nozzle (for particularly stubborn dirt)

Terry cloths (order no. 6.369-481)

- 5 floorcloths

Terry covers (order no. 6.370-990)

- 5 covers

Terry cloth kit (order no. 6.960-019)

- 2 floorcloths, 3 covers

Microfibre cloth kit (order no. 6.905-921) - 1 floorcloth, 1 cover with extremely high absorbency and ability to pick up dirt

Bio-descalar RM 511 (order no. 6.290-239)

3 x 100 g powder for the cleaning of the boiler.

Round brush with scraper

(order no. 2.863-140)

Rubber lip for window nozzle

(order no. 6.273-140)

Textile cleaning nozzle

(order no. 4.130-390)

Steam turbo-brush

(order no. 2.863-159)

Maintenance and Care

⚠️ DANGER

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Descaling the Steam Boiler

As limescale builds up on the boiler walls, we recommend to descale the boiler in the following intervals (RF=reservoir fillings):

Degree of hardness		mmol/l	RF
I	soft	0-1.3	100
II	medium	1.3-2.5	90
III	hard	2.5-3.8	75
IV	very hard	>3.8	50

Note: If you always use usual commercial distilled water it is not necessary to descale the boiler.

→ Disconnect the steam cleaner from the electrical network.
→ Remove the water reservoir.
→ Remove the accessories from the accessory compartments.

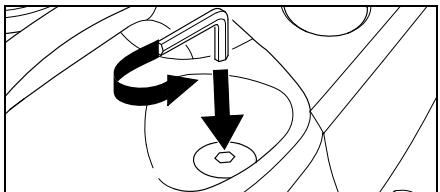

→ Open the steam boiler seal (A7) using the descaling key (A4).

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Figure 11

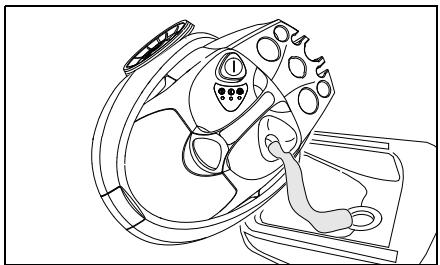

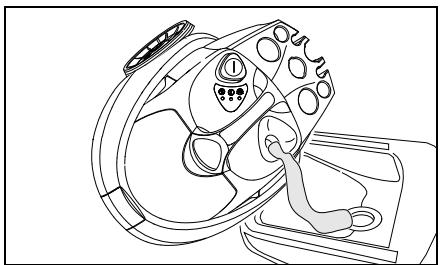

→ Completely empty the steam boiler.

Technical line drawing of a car dashboard and steering wheel (no text or symbols)

Figure 12

WARNING

Only use products approved by Kärcher to exclude any damages of the appliance.

→ User the KÄRCHER decalcifier sticks (order no. 6.295-206) for decalcifying the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces.

→ Pour the descaling solution into the boiler and allow it to react for approximately 8 hours.

⚠ WARNING

Do not screw the steam boiler seal (A7) on the appliance during the descaling. Do not use the steam cleaner as long as there is descaling agent in the boiler.

→ Empty the descaling solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residue of the descaler.
→ Close the steam boiler seal (A7) using the descaling key (A4).
→ After the refilling with fresh water (see page 21, "Filling the Water Reservoir") the steam cleaner is ready for use again.

Care of the Accessories

Allow the accessory parts to dry completely before storing them.

→ Do not place the floor nozzle (H1), the manual nozzle (E1), and the round brush (D3) onto the bristles during the cooling and drying process to avoid a deformation of the bristles.

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

→ You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ C. Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

⚠️ Risk of electric shock!

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified.

→ Descale the steam boiler.

No steam

Red low-water indicator lamp blinks

No water in the water reservoir.

→ Fill the water reservoir.

Red low-water indicator lamp lights up No water in the steam boiler. Overheating protection of the pump was triggered.

→ Turn off the appliance.
→ Fill the water reservoir.
→ Turn on the appliance.

Steam switch cannot be pressed anymore

Steam switch is secure with the lock / child-proof lock (C3).

→ Push the lock (C3) of the steam switch forward.

General Notes

Warranty

The warranty terms published by our competent sales company are applicable in each country. We will remedy possible failures of the appliance free of charge within the warranty period if these failures are attributed to a material or manufacturing error. In case of warranty please contact your dealer or the next authorized customer service and submit the accessories and the proof of purchase. No liability will be accepted if the appliance is incorrectly operated or if the instructions for use are not complied with.

Accessories and Spare Parts

Only use accessories and spare parts which have been approved by the manufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be operated safely and trouble-free.

Please see the last page for an illustration of the appliance with the order numbers of the individual components.

Specifications

Electrical connection

Voltage	220-240 V
Kind of current	1~50 Hz
Voltage in the handle	5 V
Performance data
Heating output	1800 W
max. operating pressure	3.5 bar
adm. pressure	5.7 bar
Heating time per litre of water	7 min
Max. steam quantity	82 g/min
Dimensions
Water reservoir capacity	0.95 l
Boiler capacity	2.0 l
Weight without accessories	6.5 kg
Width	340 mm
Length	420 mm
Height	315 mm

Cher client,

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Fig. 1

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Fig. 3

Line drawing of a mechanical device with a tool inserted, showing a downward arrow pointing to a component (no text or symbols present)

Fig. 4

Fonctionnement

Line drawing of a cable connector with a mechanical component inserted (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

"clic" "clic"

Fig. 7

Abstract diagram with curved lines and arrows, no readable text or symbols

Fig. 11

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 12

⚠ AVERTISSEMENT

Diagram showing mechanical assembly steps with labeled components and directional arrows indicating process flow

Fig. 1

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Fig. 3

Technical line drawing of a mechanical device with a tool and circular components (no text or symbols)

Fig. 4

Uso

Line drawing of a medical device with a coiled tube and connector (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

Diagram of a connector with multiple cable connectors and a separate connector (no text or labels)

Fig. 8

Diagram showing a mechanical or fluid system with curved arrows indicating rotational flow, no text or symbols present.

Fig. 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 12

ATTENZIONE

Diagram showing mechanical assembly steps with labeled components and directional arrows indicating process flow

Afb. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Afb. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols)

Afb. 4

Gebruik

Accessoires monteren

Line drawing of a cable connector with a mechanical component inserted (no text or symbols)

Afb. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Afb. 6

"clic" "clic"

Afb. 7

Diagram of a handheld connector with three cylindrical pins and three external connectors (no text or symbols)

Afb. 8

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Afb. 11

Technical line drawing of a mechanical device with no visible text or symbols

Afb. 12

⚠ WAARSCHUWING

Geen water in watertank.

→ Watertank vullen.

Rode controlelampje - watertekort - knippert.

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or process flow.

Fig. 1

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Fig. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Fig. 4

Funcionamiento

Line drawing of a cable connector with a mechanical component inserted (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

Diagram of a handheld connector with three cylindrical connectors and one terminal connector (no text or symbols)

Fig. 8

Cepillo circular (D3)

Diagram showing a mechanical or architectural component with curved arrows indicating rotation or movement (no text or symbols)

Fig. 11

Line drawing of a car interior showing steering wheel, dashboard, and gear (no text or symbols)

Fig. 12

ADVERTENCIA

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or process flow.

Fig. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Fig. 3

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow indicating a process (no text or symbols present)

Fig. 4

Serviço

Line drawing of a cable connector with an arrow pointing to a component (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

clic' clic'

Fig. 7

Diagram of a connector with multiple connectors and a dashed connection line (no text or symbols)

Fig. 8

Diagram showing a mechanical or architectural component with curved arrows indicating motion or force direction (no text or symbols)

Fig. 11

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 12

⚠ ADVERTÊNCIA

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Fig. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Fig. 3

Sluk for tilbehør

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Fig. 4

Drift

Illustration of a hairdryer plug connecting a cable to a device (no text or symbols visible)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

Diagram showing a mechanical or electrical component with directional arrows and a hexagonal base, labeled Fig. 11 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

ADVARSEL

Diagram showing mechanical assembly with labeled components and directional arrows indicating process flow

Fig. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Fig. 3

Oppbevare tilbehør

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Fig. 4

Drift

Montere tilbehør

→ Stikk damppluggen (C7) inn i apparat-kontakten (A1). Sperreanordningene på damppluggen må gå i inngrep i dekselet til apparatkontakten (se fig. 5).

Line drawing of a cable connector with an arrow pointing to a component (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

→ Benytt forlengerrøret (G1) etter behov. Ett eller begge forlengerrørene monteres på damppistolen (C1) (se fig. 7). Skyv det nødvendige tilbehøret (D1, E1, F1, H1) inn på den ledige enden på forlengerrøret.

"clic" "clic"

Fig. 7

Fig. 11

→ Tøm absolutt alt vann ut av dampkjelen.

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 12

ADVARSEL

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Bild 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Bild 3

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Bild 4

Drift

Diagram of a hairdryer with attached cable and connector, labeled 'Bild 5' (no text or symbols on diagram itself)

Technical line drawing of a connector with an arrow indicating assembly or insertion (no text or symbols present)

Bild 11

Technical line drawing of a mechanical device with no visible text or symbols

Bild 12

⚠ WARNING

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Kuva 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Kuva 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols)

Kuva 4

Käyttö

Varusteiden asennus

Diagram of a connector with a cable and plug, labeled 'Kuva 5' (no text or symbols on the diagram itself)

Diagram showing a mechanical or electrical component with curved arrows indicating rotation and direction (no text or symbols)

Kuva 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Kuva 12

⚠️ VAROITUS

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Eik.1

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Eik. 3

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow indicating motion (no text or symbols)

Eik. 4

Λειτουργία

Diagram of a hairdryer with a coiled cable and connector, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Eik. 12

⚠️ ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Diagram showing mechanical components with arrows indicating assembly or alignment, including fasteners and a base component.

Şekil 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Şekil 3

Aksesuarı kaldırmak

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow (no text or symbols)

Şekil 4

Çalıştırma

Line drawing of a cable connector with a plug inserted, showing no text or symbols

Şekil 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Şekil 6

Diagram of a handheld device with three connectors and two external connectors (no text or symbols)

Şekil 8

Aksesuarı ayırmak

TEHLIKE

(Sipariş No. 2.884-503)

Yapışmaz ütü tabanı

(Sipariş no. 2.860-132)

Diagram showing a mechanical or architectural component with curved arrows indicating rotation or movement (no text or symbols)

Şekil 11

Line drawing of a mechanical device with no visible text or symbols

Şekil 12

⚠ UYARI

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Puc. 1

Technical line drawing of a mechanical device with gears and a handle (no text or symbols)

Puc. 3

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow (no text or symbols)

Puc. 4

Diagram of a cable connector with a valve and connector, labeled Puc. 5 (no text or symbols on the diagram itself)

Technical line drawing of a connector with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with rotational arrows and a circular base, no text or symbols present

Puc. 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Puc. 12

⚠️ ВНИМАНИЕ

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

1. ábra

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

1. ábra

Tartozékok lerakása

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

1. ábra

Üzemeltetés

Line drawing of a medical device with a coiled tube and connector (no text or symbols)

1. ábra

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. ábra

"clic" "clic"

1. ábra

Diagram of a handheld connector with multiple ports and wiring (no text or symbols)

1. ábra

Diagram showing a mechanical or electrical component with curved arrows indicating rotation and direction (no text or symbols)

1. ábra

Line drawing of a car dashboard and steering wheel (no text or symbols)

1. ábra

FIGYELEM!

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Obr. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Obr. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Obr. 4

Provoz

Diagram of a cable connector with a labeled component, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

"clic" Obr. 7

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Obr. 11

Line drawing of a mechanical device with no visible text or symbols

Obr. 12

POZOR

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Sl. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Sl. 3

Odlaganje pribora

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Sl. 4

Obratovanje

Montiranje pribora

→ Parni vtič (C7) čvrsto vtaknite v vtičnico na napravi (A1). Pri tem oba nastavka parnega vtiča morata zaskočiti za pokrov vtičnice na napravi (poglejte sl. 5).

Diagram of a medical device with a coiled tube and connector, showing a black arrow pointing to a component (no text or symbols present)

→ Potreben pribor (D1, E1, F1) povežite s parno pištolo (C1). V ta namen odprti konec pribora nataknite na parno pištolo (C1) in ga na parno pištolo potiskajte toliko daleč dokler se tipka za deblokado (C2) parne pištole ne zaskoči (poglejte sl. 6).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

→ Po potrebi uporabite podaljševalni cevi (G1). V ta namen eno oz. obe podaljševalni cevi (G1) primontirajte na parno pištolo (C1) (poglejte sl. 7). Potreben pribor (D1, E1, F1, H1) potisnite na prosti konec podaljševalne cevi.

"clic" "clic" Sl. 7

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Sl. 11

→ Vodo popolnoma izpraznite iz parnega kotla.

Technical line drawing of a mechanical device with no visible text or symbols

Sl. 12

OPOZORILO

K4 regulator temperature

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Rys. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Rys. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Rys. 4

Praca urządzenia

Montaż wyposażenia

Line drawing of a cable connector with a plug inserted, showing no text or symbols

Rys. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Rys. 6

"clic" "clic"

Rys. 7

Diagram of a handheld device with three connectors and two external connectors (no text or symbols)

Rys. 8

Diagram showing a mechanical or electrical component with curved arrows indicating rotation and direction (no text or symbols)

Rys. 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Rys. 12

⚠ OSTRZEŻENIE

Mult stimate client,

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Fig. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Fig. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Fig. 4

Functionarea

Montarea accesoriiilor

Line drawing of a medical device with a coiled tube and connector (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 6

"clic" "clic"

Fig. 7

Diagram of a connector with three cylindrical pins and two separate connectors, showing wiring connections (no text or labels)

Fig. 8

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Fig. 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Fig. 12

⚠ AVERTIZARE

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Obr. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Obr. 3

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow indicating motion (no text or symbols)

Obr. 4

Prevádzka

Line drawing of a medical device with a coiled tube and connector (no text or symbols)

Obr. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Obr. 6

"clic" "clic"

Obr. 7

Diagram showing a mechanical or architectural component with curved arrows indicating rotation or movement (no text or symbols)

Obr. 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Obr. 12

⚠️ VAROVANIE

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Sl. 1

→ Parkirnu kuku (G3) s pritisnutom tipkom za deblokadu potisnite do druge mrežice odozgo na produžnu cijev (G1). Parkirna se kuka mora zabraviti prilikom puštanja tipke za deblokadu (pogledajte sl. 2).

clic Sl. 2

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Sl. 3

Odlaganje pribora

Pri kraćim prekidima rada produžnu cijev sa sapnicom za pranje poda možete postaviti u položaj za parkiranje (pogledajte sl. 4).

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Sl. 4

Rad

Montaža pribora

→ Parni utikač (C7) čvrsto utaknite u utičnicu na stroju (A1). Pritom obje blokade parnog utikača moraju zaskočiti za poklopac utičnice na aparatu (vidi sl. 5).

Diagram of a cable connector with a valve and a label 'SI. 5' (no text or symbols on the diagram itself)

→ Potreban pribor (D1, E1, F1) spojite s parnim pištoljem (C1). U tu svrhu otvoreni kraj pribora nataknite na parni pištolj (C1) i potiskujte ga na njega toliko dok se tipka za deblokadu (C2) parnog pištolja ne zabravi (pogledajte sl. 6).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

→ Prema potrebi upotrijebite produžne cijevi (G1). U tu svrhu jednu odn. obje produžne cijevi montirajte na parni pištolj (C1) (pogledajte sl.7). Potreban pribor (D1, E1, F1, H1) potisnte na slobodan kraj produžne cijevi.

"clic" "clic" Sl. 7

→ Sapnica točkastog mlaza (D1) se može upotrebljavati i s produžetkom (D2), okruglom četkom (D3) ili sapnicom velike snage (D4) (pogledajte sl. 8). U tu svrhu oba otvora na nastavku nataknite na blokade sapnice točkastog mlaza i do

Sapnica velike snage (D4)

Sapnica velike snage se na sapnicu s točkastim raspršivanjem montira direktno ili s produžetkom (D2). Sapnica velike snage povećava izlaznu brzinu pare.

Primjena:

– čišćenje posebno tvrdokorne prljavštine
– ispuhivanje uglova, fuga, itd.

Ručna sapnica (E1)

Preko ručne sapnice povucite presvlaku od frotira (E2).

Primjena:

• male perive površine, na pr. kuhinjske površine od plastike, opločeni zidovi
  – prozori, ogledala
• tkanine za namještaj
  – unutrašnjost vozila, vjetrobranska stakla
• kada

Sapnica za pranje prozora (F1)

Primjena:

• prozori
• ogledala
• staklene površine na kabinama za tuširanje
  – druge staklene površine

Diagram showing a mechanical or architectural component with curved arrows indicating rotation or movement (no text or symbols)

Sl. 11

→ Vodu u potpunosti ispraznite iz parnog kotla.

Line drawing of a mechanical device with no visible text or symbols

Sl. 12

⚠ UPOZORENJE

Diagram showing mechanical assembly steps with labeled components and directional arrows indicating process flow

Sl. 1

→ Parikrnu kuku (G3) sa pritisnutom tipkom za deblokadu potisnite do druge mrežice odozgo na produžnu cev (G1). Parkirna se kuka nakon puštanja tipke za deblokadu mora zabraviti (pogledajte sl. 2).

clic Sl. 2

→ Sapnicu za pranje poda (H1) natakntie na produžnu cev sa parkirnom kukom.
→ Sapnicu za pranje prozora (F1) nataknite na drugu produžnu cev.
→ Produžne cevi utaknite u veliki držač pribora (pogledajte sl. 3).

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Sl. 3

Odlaganje pribora

Kod kratkih prekida u radu produžna cev sa montiranom sapnicom za pranje poda se može postaviti u položaj za parkiranje (pogledajte sl. 4).

Line drawing of a mechanical device with a tool inserted, showing internal components and a downward arrow indicating motion (no text or symbols)

Sl. 4

Rad

Montaža pribora

Diagram of a cable connector with a valve and a label 'SI. 5' (no text or symbols on the diagram itself)

→ Potreban pribor (D1, E1, F1) spojite sa parnim pištoljem (C1). U tu svrhu otvoreni kraj pribora nataknite na parni pištolj (C1) i potisnite na parni pištolj toliko da se tipka za deblokadu (C2) parnog pištolja zabravi (pogledajte sl. 6).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

→ Prema potrebi upotrebite produžne cevi (G1). U tu svrhu jednu odn. obe produžne cevi montirajte na parni pištolj (C1) (pogledajte sl. 7). Potreban pribor (D1, E1, F1, H1) potisnite na slobodan kraj produžne cevi.

"clic" "clic" Sl. 7

→ Sapnica tačkastog mlaza (D1) se može upotrebljavati i sa produžetkom (D2), okruglom četkom (D3) ili sapnicom velike snage (D4) (pogledajte sl. 8). U tu svrhu oba udubljenja nastavka nataknite na blokade sapnice tačkastog mlaza i

okrenite ih do kraja u smeru kazaljki na satu.

SI. 8

Odvajanje pribora

⚠ OPASNOST

Kod odvajanja delova pribora moze da kaplje vruća voda! Delove pribora ne razdvajajte dok izlazi para – opasnost od oparina!

→ Za odvajanje delova pribora pritisnite tipku za deblokadu (C2 odn. G2) i razvucite delove (pogledajte sl. 9).

1. 2. SI. 9

→ Za odvajanje nastavka od sapnice tačkastog mlaza nastavak okrenite u suprotnom smeru okretanja kazaljki na satu i razvucite delove.

Punjenje rezervoara za vodu

Sapnica velike snage (D4)

Sapnica velike snage se direktno ili sa produžetkom (D2) montira na sapnicu tačkastog mlaza. Sapnica velike snage povećava izlaznu brzinu pare.

Primena:

– čišćenje posebno tvrdokorne prljavštine
– izduvavanje ćoškova, fuga itd.

Ručna sapnica (E1)

Preko ručne sapnice prevucite presvlaku od frotira (E2).

Primena:

• male perive plohe, na pr. kuhinjske plohe od plastike, opločeni zidovi
  – prozori, ogledala
• tkanine za nameštaj
  – unutrašnjost motornih vozila, vetrobranska stakla
• kade

Sapnica za pranje prozora (F1)

Primena:

• prozori
• ogledala
  – staklene površine na kabinama za tuširanje
  – druge staklene površine
  → Staklenu površinu ravnomerno naparite sa odstojanja od ca. 20 cm Nakon toga blokadu (C3) potisnite natrag kako biste sprečili neželjeno aktivisanje parnog prekidača (C4). Gumenim nastavkom sapnice za pranje prozora prevucite staklenu površinu u trakama odozgo nadole Krpom obrišite gumeni nastavak i svaku traku na donjem rubu prozora.
  → Pre prvog čišćenja sa sapnicom za pranje prozora provedite osnovno odmašćivanje sa ručnom sapnicom (E1) i presvlakom od frotira (E2).

Line drawing of a car dashboard and steering wheel (no text or symbols)

Sl. 12

⚠ UPOZORENJE

Kako biste isključili oštećenja uređaja, upotrebljavajte isključivo proizvode koje je dozvolio Kerher.

→ Po potrebi koristite KÄRCHER-ove šta piće za uklanjanje kamenca (kataloški br. 6.295-206). Za pripremanje rastvora sredstva za uklanjanje kamenca pridrža vajte se instrukcija za doziranje navede nih na pakovanju.

⚠️ Pažnja

Diagram showing mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Φυε. 1

Technical line drawing of a mechanical device with gears and a handle (no text or symbols)

Φιε. 3

Line drawing of a robotic vacuum cleaner with a tool inserted, showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Φυε. 4

Експлоатация

Diagram of a cable connector with a valve and connector, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

"clc" φυε. 7

Diagram showing a mechanical or architectural component with curved arrows indicating rotation or movement (no text or symbols)

Фиг. 11

Line drawing of a car dashboard and steering wheel (no text or symbols)

Φυε. 12

⚠ ПРЕДУПРЕЖДЕНИЕ

Diagram showing mechanical assembly steps with labeled components and directional arrows indicating process flow

Мал. 1

Technical line drawing of a mechanical device with hoses and a central hub (no text or symbols)

Мал. 3

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Мал. 4

Експлуатація

Line drawing of a cable connector with a plug inserted, no text or symbols present

Мал. 5

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Мал. 6

"clic" "clic"

Мал. 7

Diagram of a handheld connector with multiple ports and wiring (no text or labels)

Мал. 8

Diagram showing a mechanical or electrical component with curved arrows indicating motion, no text or symbols present.

Мал. 11

Technical line drawing of a mechanical device with no visible text or symbols

Мал. 12

⚠ ПОПЕРЕДЖЕННЯ

6975 Creditview Road Unit #2

Mississauga, Ontario L5N 8E9

1-800-465-4980

CH

Kärcher AG

Industriestraße 16

8108 Dällikon

0844 850 863

CZ

Kärcher spol s r.o.

Modletice č.p. 141

251 01 Ríčany u Prahy

0323 606 014

D

Kärcher Cleaning Systems A.E.

31-33, Nikitara str. &

Konstantinoupoleos str.

13671 Acharnes

210 - 2316 153

H

Kärcher Hungária Kft

Tormásrét ut 2.

2051 Biatorbágy

[phone]

HK

Kärcher Limited

Unit 10, 17/F.

APEC Plaza

49 Hoi Yuen Road

Kwun Tong, Kowloon

[phone]

|

Kärcher S.p.A.

Via A. Vespucci 19

21013 Gallarate (VA)

848 - 99 88 77

IRL

Karcher Limited

12 Willow Business Park

Nangor Road

Clondalkin Dublin 12

(01) 409 77 77

KOR

Karcher Co. Ltd. (South Korea)

Youngjae B/D, 50-1, 51-1

Sansoo-dong, Mapo-ku

Seoul 121-060

032-465-8000

MAL

Karcher Cleaning Systems Sdn. Bhd.

No. 8, Jalan Serindit 2

Bandar Puchong Jaya

47100 Puchong, Selangor

[phone]

MEX

Karcher México, SA de CV

Av. Gustavo Baz No. 29-C

Col. Naucalpan Centro

East Tamaki, Auckland

[phone]

P

Neoparts Com. e Ind. Automóvel, Lda.

Part B, Building 30,

No. 390 Ai Du Road

Shanghai Waigaoquiao 200131

[phone]

RO

Karcher Romania s.r.l.

Sos. Odaii Nr. 439

013606 Bucureşti

0372 709 001

RUS

000 «Керхер»

109147, Москва

5 Toh Guan Road East

01-00 Freight Links

Express Distripark

Singapore 608831

6897-1811

SK

Kärcher Slovakia, s.r.o.

Beniakova 2

94901 Nitra

037 6555 798

TR

Kärcher Servis Ticaret A.S.

9 Eylül Mahallesi

307 Sokak No. 6

Gaziemir / Izmir

[phone]

TWN

Karcher Limited

5F/6. No.7

Wu-Chuan 1st Rd

Wu-Ku Industrial Zone

Taipei County

[phone]

UA

Kärcher Ukraine

Kilzeva doroga, 9

03191, Kyiv

(044) 594 75 75

UAE

Karcher FZE

Jebel Ali Free Zone

RA 8, XB 1, Jebel Ali, Dubai

[phone]

USA

Alfred Karcher, Inc

2170 Satellite Blvd

Suite 350

Duluth, GA 30097

678-935-4545; 877-527-2437

ZA

Kärcher (Pty.) Limited

144 Kuschke Street

Meadowdale

Edenvale 1614

[phone]

KARCHER®

www.kaercher.com
