Product type	Steam cleaner
Brand	Kärcher
Model	SC 2.600 C
Dimensions (L x W x H)	38 x 24 x 28 cm
Weight	3.2 kg
Power supply	220-240 V, 50/60 Hz
Power consumption	1500 W
Tank capacity	1 L
Maximum steam pressure	3.2 bar
Heating time	Approximately 6 minutes
Steam flow rate	Up to 80 g/min
Main functions	High-pressure steam cleaning, disinfection, degreasing
Included accessories	Floor nozzle, window nozzle, round brush, demineralizing filter
Tank material	Stainless steel
Safety	Child lock, automatic shut-off in case of overheating, safety pressure
Maintenance and cleaning	Regular descaling recommended with Kärcher descaling agent
Spare parts available	Yes, via Kärcher after-sales service
Repairability	Repairability index 7.3/10
General information	Suitable for hard floors, windows, joints, household appliances

Frequently Asked Questions - SC 2.600 C KARCHER

Can I use tap water in the Kärcher SC 2.600 C?

Yes, but it is recommended to use a 1:1 mixture of tap water and demineralized water to reduce limescale. Using only tap water may lead to more frequent descaling.

How do I descale my Kärcher SC 2.600 C steam cleaner?

Use the special Kärcher descaling agent. Fill the tank according to the instructions, turn on the device and let it sit for 30 minutes. Then rinse thoroughly with clear water. Repeat if necessary.

The indicator light is flashing, what should I do?

A flashing indicator light usually indicates that the tank is empty or that pressure has not been reached. Check the water level and wait for the device to heat up (about 6 minutes). If the problem persists, consult the manual.

Can I clean windows with the SC 2.600 C?

Yes, use the window nozzle provided with the device. Steam the window, then wipe with a squeegee for a streak-free result.

The steam cleaner emits steam intermittently, is this normal?

Yes, this is normal. Steam is produced in cycles when pressure reaches the maximum threshold. If the flow is too low, check the water level and descale if necessary.

What is the lifespan of the tank?

The stainless steel tank is designed to last. With regular maintenance (descaling), it can function for several years. Seals may need replacement after heavy use.

How do I use the round brush accessory?

Attach the round brush to the lance. Use it to clean soiled surfaces like cooktops, joints, or sinks. Apply steam in circular motions.

Can I clean laminate floors with steam?

Not recommended, as steam can damage the joints. Use only on hard, waterproof floors like tile, linoleum, or PVC.

Can the child lock be activated?

Yes, the device has a child lock on the trigger. Consult the manual on how to activate it: usually by turning a small latch.

Where can I find spare parts for the SC 2.600 C?

Spare parts are available from authorized Kärcher retailers or on the official website. Use the model reference to identify compatible parts.

USER MANUAL SC 2.600 C KARCHER

Register and win! www.karcher.com

Deutsch 5

English 15

Français 25

Italiano 36

Nederlands 46

Español 56

Português 66

Dansk 76

Norsk 85

Svenska 94

Suomi 103

Ελληνικά 112

Türkçe 122

Русский 132

Magyar 143

Čeština 153

Slovenščina 163

Polski 173

Românește 183

Hrvatski 193

Srpski 202

Slovenčina 212

Български 222

Eesti 232

Latviešu 241

Lietuviškai 251

Українська 260

العربية 282

DE Kurzanleitung	SV Snabbguide	RO Instructiuni pe scurt
EN Quick reference	FI Pikaohje	SK Krátky návod
FR Instructions abrégées	EL Σύντομες οδηγίε	HR Krakte upute
IT In sintesi	TR Kısa Kullanım Talimati	SR Kratko uputstvo
NL Korte handleiding	RU Краткое руководство	BG Кратко упътване
ES Descripción breve	HU Rövid bevezetés	ET Lühijuhend
PT Instruções resumidas	CS Stručný návod	LV Îsa lietošanas instrukcija
DA Kort brugsanvisning	SL Kratko navodilo	LT Trumpa instrukcija
NO Kortveiledning	PL Skrócona instrukcja obsługi	UK Стислий посібник

Inhalt

Description of the Appliance EN 7

Quick Reference EN 8

Operation EN 8

How to Use the Accessories EN 10

Maintenance and care EN 12

Troubleshooting EN 13

Technical specifications EN 13

Special accessories EN 14

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

Use the steam cleaner only for private households.

The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Symbols in the operating instructions

⚠️Danger

Immediate danger that can cause severe injury or even death.

⚠ Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

Steam

CAUTION - Danger of scalding

CAUTION – Please read the operating instructions!

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

(See address on the reverse)

Safety instructions

⚠️Danger

■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
■ Never use the appliance in pools containing water.
■ The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
- Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
■ Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
■ Never touch the mains plug and the socket with wet hands.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
■ The maintenance lock must not be opened during operation.

⚠ Warning

■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
■ Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm² .
■ The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
■ The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
■ Never leave the appliance unattended when it is in operation.
■ Be very careful while cleaning tiled walls with sockets.

Caution

■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
■ The appliance must not be carried during cleaning.

■ The appliance must provide of a stable ground.
■ Use and store the unit only in accordance with the specifications in the description and/or figure.
■ The steam switch must not be locked during the operation.
■ Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If, in case of a malfunction, there is no water in the boiler, the temperature in the boiler rises. The boiler thermostat turns off the heating. Once the boiler is filled, normal operation can continue.

Safety thermostat

The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Maintenance lock

The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.

Please contact your local KÄRCHER customer service before you put the appliance into operation again.

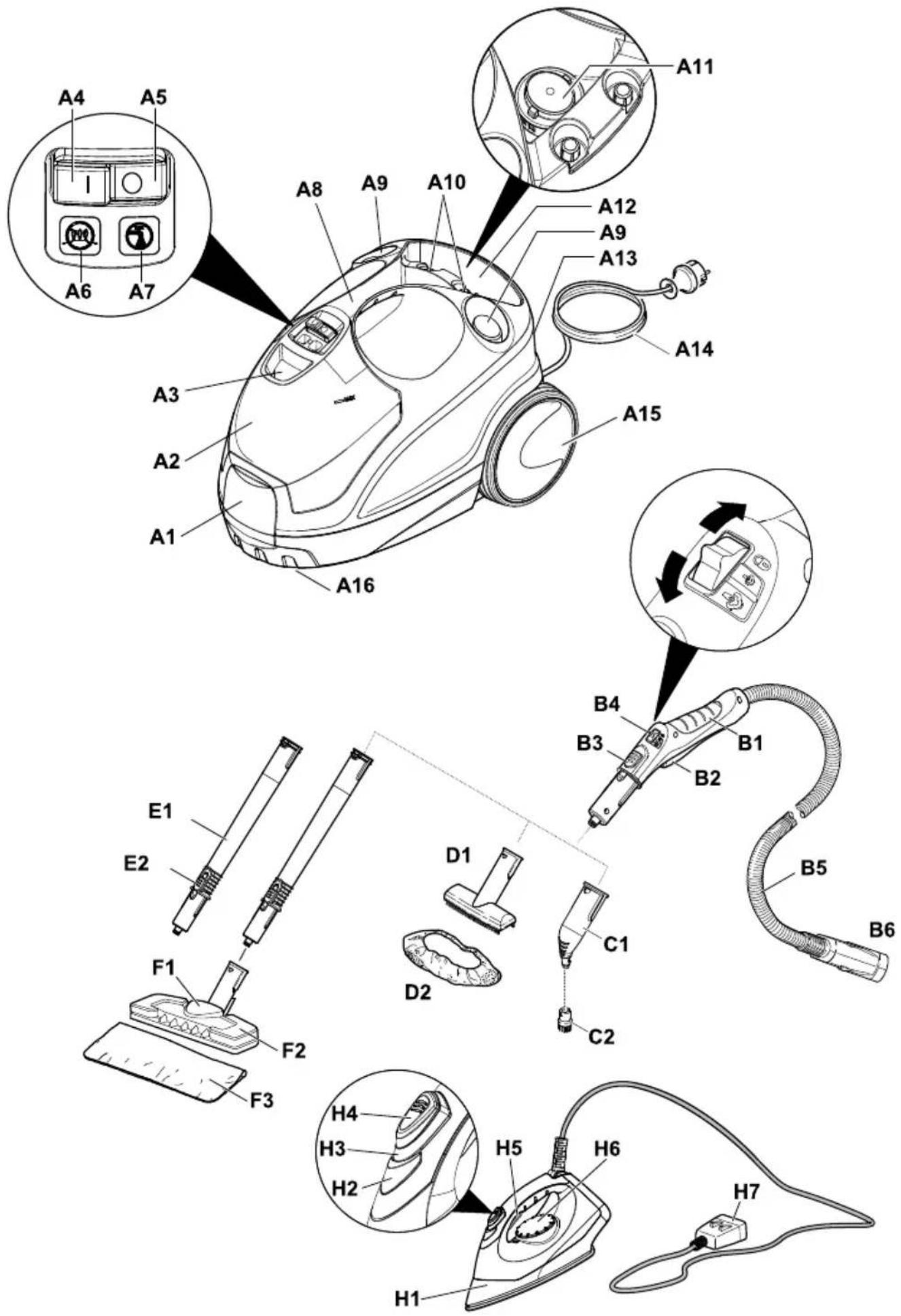

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

→ Illustrations on fold-out page 4!

A1 Appliance connector with cover
A2 Water reservoir
A3 Fill the water reservoir
A4 Switch - ON
A5 Switch - OFF
A6 Indicator lamp - heating (GREEN)
A7 Indicator lamp "water shortage" (RED)
A8 Carrying handle
A9 Holder for accessories
A10 Holder for accessories
A11 Maintenance lock
A12 Storage for mains connection cable
A13 Storage holder for floor nozzle
A14 Mains cable with mains plug
A15 Running wheels (2 ea.)
A16 Steering roller
B1 Steam gun
B2 Steam lever
B3 Unlocking button
B4 Selector switch for the steam volume (with child protection)
B5 Steam hose
B6 Steam plug
C1 Detail nozzle
C2 Round brush
D1 Hand nozzle
D2 Terry cloth cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Terry floor cloth
H1 Steam pressure iron
H2 Indicator lamp - heater (ORANGE)
H3 Lower steam button
H4 Steam lock
H5 Upper steam button
H6 Temperature controller
H7 Steam plug

Option

Quick Reference

→ Illustrations on Page 2

1 Fill the water reservoir up to the "MAX" marking.

2 Insert the steam plug into the appliance connector.

3 Plug in the main plug. Turn on the appliance.

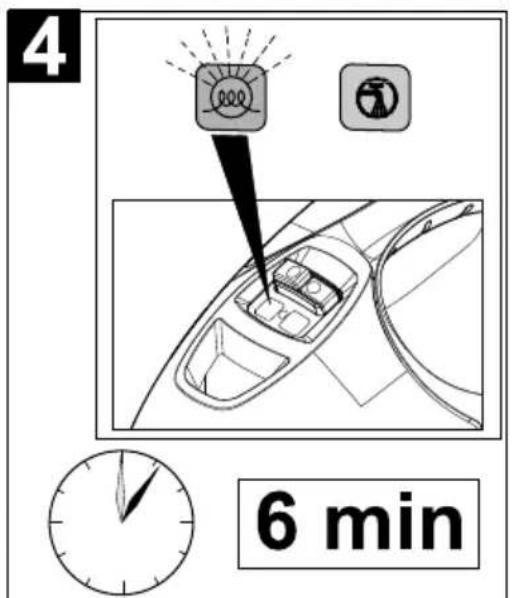

4 Indicator lamp "heating on" is blinking (green)

Wait until the indicator lamp (heater) lights up permanently.

5 Connect the accessories to the steam gun.

The steam cleaner is ready to use.

Operation

→ Illustrations on fold-out page 3!

Attaching the Accessories

→ Open the cover of the appliance socket.

→ Tightly insert the steam plug into the appliance connector. The plug must click into place audibly.

To disconnect: Press the cover of the appliance connector down and disconnect the steam plug from the appliance connector.

→ IllustrationA B-

Connect the required accessories (see Chapter "How to use the accessories") to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the un-locking button of the steam gun locks into place.

→ IllustrationC

Use the extension tubes if necessary. To do so, connect one or both extension tubes to the steam gun. Insert the required accessories on the free end of the extension tube.

Removing the Accessories ⚠️Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

→ Move the selector switch for the steam volume back (steam lever locked).

→ IllustrationD

To detach the accessory parts, press the unlocking button and pull the items apart.

Filling the Water Reservoir

The water reservoir may be refilled at any time.

Caution

Do not use condensation water from the drier!

Do not fill with detergent or other additives (for example fragrances)!

Do not use pure distilled water! Max. 50% distilled water and 50% tap water.

Do not use collected rain water!

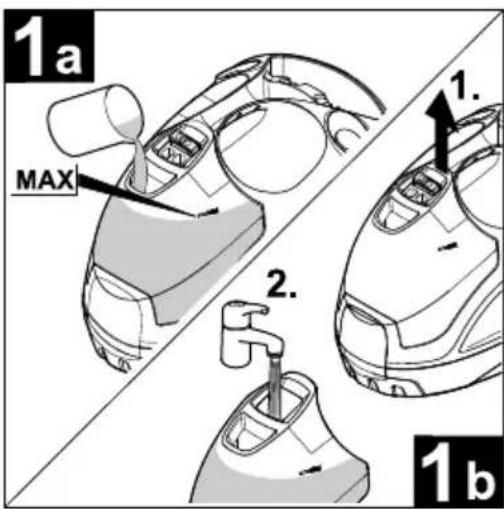

→ Illustration1

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Take off water reservoir

→ Pull the water reservoir straight up.

→ Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.

→ Insert the water reservoir and press downwards until it arrests.

Directly on the appliance

→ Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

Turning on the Appliance

→ Place the unit securely on a firm surface.
→ Insert the mains plug into a socket.
→ Press the ON switch to turn on the appliance.

Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.

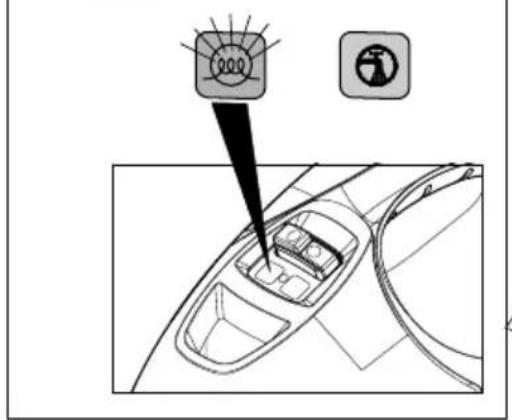

→ Wait until the indicator lamp (heater) lights up permanently.

The steam cleaner is ready to use.

Note: The appliance briefly closes the valve every 60 seconds. This will prevent the valve from sticking. There will be a slight audible click. The steam delivery is not impaired by this.

Refilling Water

In case of water shortage, the indicator lamp "water shortage" glows red in the water reservoir and a signal can be heard.

Note: Every time there is not enough water in the steam boiler, the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the water pump is not able to fill the steam boiler and the steam tapping is blocked.

→ Fill the water reservoir up to the "MAX" marking.

Note: The water pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is released immediately, and the red indicator lamp goes out.

Adjusting the Steam Quantity

Use the selector switch for the steam volume to regulate the discharged steam. The selector switch has three positions:

Maximum steam volume

Reduced steam volume

No steam - child protection

Note: In this lever position, the steam lever cannot be used.

→ Set selector switch to the required steam volume.

→ While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.

Turning Off the Appliance

→ Press the OFF switch to turn off the appliance.

→ Disconnect the mains plug from the socket.

→ Press the cover of the appliance connector to the bottom and disconnect the steam plug from the appliance connector.

→ Empty the residual water from the water reservoir.

Storing the Appliance

Illustration F G

→ Insert the round brush into a small holder for accessories.

→ Insert the manual nozzle and detail nozzle onto each extension pipe.

→ Put the extension pipes into the large accessory compartments.

→ Hook the floor nozzle into the parking position.

→ Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.

→ Stow away the mains cable in the accessory holder for the mains cable.

How to Use the Accessories

Important application instructions

Cleaning floor surfaces

It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/loose particles prior to the wet cleaning.

Refreshing textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Then clean the window surface with the hand nozzle and attachment. Use a squee-gee to remove the water or wipe the surfaces dry.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

- to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20 cm .

– to remove dust from plants. Here, keep a distance of 20-40 cm.

– for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

→ IllustrationB

Attach the round brush to the detail nozzle.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls and mirrors.

Floor nozzle

Suited for all washable walls and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

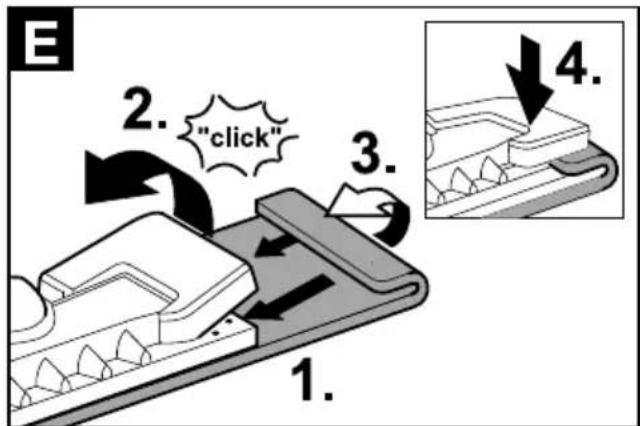

→ IllustrationE

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

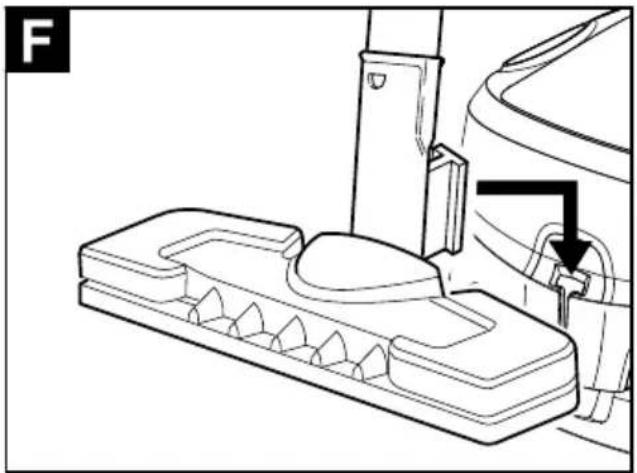

Parking the floor nozzle

→ IllustrationF

During work breaks, hook the floor nozzle into the parking holder.

Steam iron

⚠️Danger

■ The steam pressure iron must not be used if it has been dropped, shows visible signs of damage or if it leaks.
The steam pressure iron is hot and so is the steam jet! Point out to other people the possible risk of being scalded or burnt. Never direct the steam jet at people or animals (risk of scalding). Do not touch any electrical leads or combustible objects with the hot steam pressure iron.

⚠ Warning

■ The steam pressure iron and its connecting cable must be kept out of reach of children under the age of 8 during the heating and cooling down periods.
■ The steam pressure iron must be used and placed on a stabile surface.

Note: We recommend using the Kärcher ironing table with active steam extraction (2.884-933.0). This ironing table has been designed to match your new steam cleaner. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.

→ Tightly insert the steam plug of the iron into the appliance connector. The plug must click into place audibly.
→ Make sure that there is fresh tap water in the boiler of the steam cleaner.

→ Start-up the steam cleaner according to the description.
→ Wait until the steam cleaner is ready to use

Steam ironing

All fabrics can be steam ironed. Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications.

Note: For these sensitive textiles, we recommend using the KÄRCHER non-stick ironing sole BE 6006 (Ordner no. 2.860-142.0).

→ Adjust the temperature control of the steam iron within the notched range ( .../MAX ).
→ As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.

Note: The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.

→ Use the top or bottom steam switch.

• Steaming at intervals: Press the steam switch. Steam will be emitted while the switch is pressed.
• Continuous steaming: Pull the latch for the steam switch toward the rear until it locks in. Steam will escape continuously. To unlock, push the lock forward.
  → Direct the first burst of steam at the star of the ironing process or after ironing breaks at a separate piece of cloth until the steam is emitted evenly.
  → You can hold the iron in an upright position to apply steam to curtains, dresses, etc.

Dry ironing

Note: Even if you iron without steam, there must be water in the boiler.

→ Adjust the temperature of the iron according to the garment you want to iron.

• Synthetics

•• Wool, silk

••• Cotton, linen

Note: Please observe the ironing and washing instructions in your garment.

→ As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.

Maintenance and care

⚠️Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the steam boiler

Rinse the steam cleaner boiler at the latest after 10 boiler fillings.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

Illustration H

→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.
→ Completely empty the steam boiler to remove existing water (see fig. 1)

Descaling the Steam Boiler

As limes cale builds up on the boiler walls, we recommend to de scale the boiler in the following intervals (RF = reservoir fillings):

Degree of hard-ness		° dH mmol/l RF
I	soft	0-7	0-1,3 100
II	medium	7-14	1,3-2,5 90
III	hard	14-21	2,5-3,8 75
IV	very hard	>21	>3,8 50

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

Illustration H

→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Completely empty the steam boiler to remove existing water (see fig. 1)

⚠ Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.

→ User the KÄRCHER decalcifier sticks (order no. 6.295-☐☐) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces.

→ Pour the descaling solution into the boiler and allow it to react for approximately 8 hours.

⚠ Warning

Do not screw the maintenance lock onto the appliance during the decalcifying.

Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

→ Completely empty the descaling solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
→ Completely empty the steam boiler to remove existing water (see fig. 1)
→ Allow the storage compartment for the mains cable to dry.
→ Screw the maintenance lock in using the extension pipe.
→ Fill water reservoir (see page 8).
→ The steam cleaner is ready to use.

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

→ You can wash dirty floorcloths and terry cloth covers in the washing machine at 60° C. Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

⚠️Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified

→ Descale the steam boiler.

No steam

Indicator lamp - "water shortage" blinks red and signal sounds

No water in the water reservoir.

→ Fill the water reservoir up to the "MAX" marking.

Indicator lamp "water shortage" glows red

No water in the steam boiler. Overheating protection of the pump was triggered.

→ Turn off the appliance.
→ Fill the water reservoir
→ Turn on the appliance.

Water reservoir has not been inserted properly or is calcified.

→ Remove the water reservoir and rinse it.
→ Insert the water reservoir and press downwards until it arrests.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / child-proof lock.

→ Move the selector switch for the steam volume to the front.

Steam iron "spits out" water!

→ Set the thermostat to level ….
→ Rinse or decalcify the boiler of the steam cleaner.

After breaks during ironing, water drops will come out of the steam pressure iron.

During longer breaks from ironing, the steam in the steam line can condense.

→ Direct the first burst of steam at a separate piece of cloth.

High water output

Steam boiler is decalcified

→ Descale the steam boiler.

Technical specifications

Electrical connection

Voltage 220-240 V

1~50/60 Hz

Protection class IPX4

Protective class I

Performance data

Heating output 1500 W
Heating output steam iron	700 W
Operating pressure max.	0,32 MPa

Heating time 6 Minutes

Steam volume

Continuous steaming 40 g/min

Steam push max. 100 g/min

Filling quantity

Water reservoir 0,8 l

Boiler capacity 0,5 l

Dimensions

Weight (without accessories)

4,1 kg

Length 350 mm

Width 280 mm

Height 270 mm

Subject to technical modifications!

Special accessories

Order number

Microfibre cloth set, bath 2.863-171

2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures

Microfibre cloth set, kitchen 2.863-172

2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces

Microfibre cloth set, soft floor 2.863-173

2 soft floor cloths made of velvet velour

Microfibre cloth set, soft cover2.863-174

2 soft covers made of plush velour

Terry-cloth rags 6.369-357

5 floor cloths made of cotton

Terry-cloth covers 6.370-990

5 covers made of cotton

Round brush kit 2.863-058

4 round brushes for the detail nozzle

Round brush kit with brass 2.863-061

bristles

Removal of especially stubborn dirt ideal for insensitive surfaces.

Round brush with scraper 2.863-140

Round brush with two rows of heat-resistant bristles and a scraper. Not suitable for sensitive surfaces.

Power nozzle and extension 2.884-282

For the cleaning of difficult to access areas (such as corners) with increased cleaning power.

Turbo steam brush 2.863-159

For cleaning tasks where you would usually have to scrub.

Textile care nozzle 4.130-390

For freshening up clothes and textiles.

Wallpaper remover 2.863-062

To remove wallpaper and glue residue.

Decalcifying sticks (9 pieces) 6.295-

Active ironing board AB 1000 2.884-933

For excellent ironing results with substantial time-saving (only for 230 V).

Steam pressure iron 2.863-209

Non-stick ironing sole 2.860-142

Suitable for ironing sensitive materials.

Contenu

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

H3 Schakelaar Stoom (bovenaan)

Geen water in de watertank.

→ Watertank vullen tot marking "MAX".

Controlelampje - te weinig water brandt rood

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Symboler i bruksanvisningen

⚠️Fare

For en umiddelbar truende fare som kan føre til store personskader eller til død.

⚠️Advarsel

H3 Bryter Damp (oppe)

H4 Låsing for bryter Damp

H5 Bryter Damp (nede)

H6 Temperaturregulator

H7 Dampplugg

Kortveiledning

→ Still valgbryteren for dampmengden for over.

Dampstrykejernet "spytter" vann!

www.kaercher.com/REACH

Symboler i bruksanvisningen

⚠️Fara

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Isitici performans Ütü 700 W

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

H6 Regulator temperature

H7 Parni vtič

Kratko navodilo

www.kaercher.com/REACH

Mult stimate client,

www.kaercher.com/REACH

www.kaercher.com/REACH

Simboli u uputama za rad

⚠️ Opasnost

H6 Regulator temperature

H7 Parni utikač

Kratke upute

Poseban pribor SR 14

Opšte napomene

Poštovani kupče,

Pre prve upotrebe Vašeg

www.kaercher.com/REACH

Simboli u uputstvu za rad

⚠️ Opasnost

Ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠ Upozorenje

Ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

Oprez

Ukazuje na eventualno opasnu situaciju koja može dovesti do lakših telesnih povreda ili izazvati materijalnu štetu.

Simboli na aparatu

Para

PAŽNJA - Opasnost od opekotina

PAŽNJA - pročitajte uputstvo za rad!

Obim isporuke

Sadržaj isporuke Vašeg uređaja je prikazan na ambalaži. Pre vađenja uređaja iz ambalaže proverite da li je sadržaj potpun.

Ako pribor nedostaje ili je došlo do oštećenja prilikom transporta, molimo da o tome obavestite svog prodavca.

Rezervni delovi

Upotrebljavajte samo originalne rezervne delove firme KÄRCHER. Pregled rezervnih delova naći ćete na kraju ovog uputstva za rad.

Garancija

U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi.

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Lisavarustuse monteerimine

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Знаки у посібнику

⚠️ Обережно!

http://www.kaercher.com/dealersearch
