USER MANUAL EDITION PRO 2 MOSER

TYPE 4332 BR04

1

A B C D E 0 F G

Black plastic object with a curved top and two small protrusions, labeled 'H' in the corner (no text or symbols on the object itself)

Black plastic container with a curved lid and two small protrusions, no visible text or symbols.

Black plastic hairdryer with multiple outlets and screw holes (no text or symbols visible)

de Betriebsanleitung (Original) – Haartrockner Typ 4332 / BR04 ....5
en Operating manual (translation) – Hairdryer type 4332 / BR04 9
fr Mode d'emploi (traduction) – Sèche-cheveux type 4332 / BR04 ....13
it Istruzioni per l'uso (traduzione) – Asciugacapelli tipo 4332 / BR04 .... 17
es Manual de uso (Traducción) – Secador de pelo modelo 4332 / BR04 ...... 21
pt Manual de instruções (tradução) – Secador de cabelo tipo 4332 / BR04 ...... 25
nl Gebruiksaanwijzing (vertaling) – Haarföhn type 4332 / BR04 .... 29
da Driftsvejledning (oversættelse) – Hårtørrer type 4332 / BR04 33
sv Bruksanvisning (översättning) – Hårtork typ 4332 / BR04 37
no Bruksanvisning (oversettelse) – Hårtørker type 4332 / BR04 41
fi Käyttöohje (käännös) – Hiustenkuivain tyyppi 4332 / BR04 .... 45
tr Kullanım kılavuzu (çeviri) – Saç kurutma makinesi tip 4332 / BR04 ...... 49
pl Instrukcja obsługi (tłumaczenie) – Suszarka do włosów typu 4332 / BR04 ...... 53
cs Návod k použití (překlad) – Vysoušeč vlasů typ 4332 / BR04 .... 57
sk Návod na obsluhu (preklad) – Sušič vlasov typ 4332 / BR04 ...... 61
hr Upute za uporabu (prijevod) – Sušilo za kosu, tip 4332 / BR04 ....65
hu Használati utasítás (fordítás) – 4332 / BR04 típusú hajszárító gép ...... 69
sl Navodila za uporabo (prevod) – Sušilnik za lase tip 4332 / BR04 ....73
ro Manual de utilizare (traducere) – Uscător de păr model 4332 / BR04 ....77
bg Инструкция за експлоатация (превод) – Сешоар тип 4332 / BR04 81
ru Руководство по эксплуатации (перевод) – Фен, тип 4332 / BR04 85
uk Посібник користувача (переклад) – Фен Тип 4332 / BR04 89
et Kasutusjuhend (tölge) – Föön, tüüp 4332 / BR04 93
Iv Matu žāvētāja modela 4332 / BR04 – Lietošanas instrukcija (tulkojums) 97
It Naudojimo instrukcija (vertimas) – Plaukų džiovintuvas 4332 / BR04 .... 101
el Οδηγίες λειτουργίας (Μετάφραση) – Σεσουάρ μαλλιών τύπου 4332 / BR04 ...... 104

Operating manual (translation)

Hairdryer type 4332 / BR04

General safety instructions

Read and observe all safety instructions and store them in a safe place!

Intended use

• Only use the hairdryer to dry and style hair.
• This appliance is designed for commercial use.

User requirements

• Read the operating manual in full and familiarise yourself with it before the first use.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Only for European markets:

This appliance can be used both by children from 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must never be carried out by children, unless they are supervised.

- Keep packaging away from children because it can pose a danger (danger of suffocation!).

- Keep the appliance out of reach of animals and protected against the effects of the weather.

Hazards

Danger! Electric shock due to damage to appliance/ mains cable.

Do not use the appliance if it is not working correctly, if it is damaged or if it has fallen into water. In order to avoid hazards, repairs may only be performed at an authorised service centre or by specialists properly trained in the handling of electrotechnical appliances, and using original spare parts.
▶ Never use the appliance if the mains cable is damaged. In order to avoid hazards, damaged mains cables may only be replaced at an authorised service centre or by specialists properly trained in the handling of electrotechnical appliances, and using original spare parts.

Danger! Electric shock due to penetration of liquid.

Do not use the appliance near bathtubs, showers or other water-filled containers. It should also not be used in areas of high humidity.

If the appliance is being used in a bathroom, disconnect from the mains immediately after use because proximity to water presents a risk, even when the appliance is switched off.
▶ Always position or store electrical equipment where it cannot fall into water (e.g. washbasin).
▶ If you have wet hands, do not use the appliance and never connect it to or disconnect it from the mains.
▶ Never touch electrical equipment that has fallen into water and is connected to the mains, or reach into water to retrieve it. Disconnect from the mains immediately.
▶ Have the appliance inspected at a service centre before using it again.
▶ Only use and store the appliance in dry rooms.
As an additional safety measure, it is recommended that a tested residual current appliance (RCD) with a residual operating current of not more than 30 mA be installed in the circuit. Ask an electrician for advice.

Danger of explosion!

▶ Never use the product in an environment with a high concentration of aerosol (spray) products or in which oxygen is released.

Danger! Flammable!

The appliance must never be sprayed with aerosol (spray) products classified as flammable.

Warning! Burning and fire hazards

▶ Parts of the appliance may become hot during use. This poses a burning hazard!
▶ Always maintain a sufficient distance from any highly flammable items, such as drapes or curtains.
▶ Place the appliance on a solid and heat-resistant surface after use.
▶ Allow the appliance to cool down completely before cleaning or storing it.
▶ Do not leave the appliance unattended either during or after use.

Caution! Injuries due to incorrect handling.

▶ Only operate the appliance with the voltage stated on the nameplate.
▶ Only use accessories recommended by the manufacturer.
▶ Never insert or allow objects to fall into the openings of the appliance.
▶ Do not place any items in or around the air inlet and do not cover it.
When using a diffuser, never set the appliance to a high temperature as this could result in the overheating of the diffuser or appliance.

▶ Do not carry the appliance by the mains cable and, when disconnecting the appliance from the mains, always pull the plug rather than the cable or the appliance.
- Keep the mains cable and appliance away from hot surfaces.
▶ Make sure that the mains cable is not twisted or kinked when stored.

General user information

Information about using the operating manual

Before using the appliance for the first time, you must read and understand the operating manual completely.
▶ Consider the operating manual as part of the product and store it in a safe and accessible place.
This operating manual is also available in PDF format from our service centres. The EC declaration of conformity can also be requested in other official EU languages from our service centres.
▶ Include this operating manual if passing the appliance on to a third party.

Explanation of symbols

The following symbols are used on the appliance:

PROHIBITED

This symbol prohibits the use of the appliance near bathtubs, showers, washbasins and other water-filled containers.

Protection class II symbol.

CE conformity marking.

UKCA conformity marking for the British market.

EAC conformity marking for the Eurasian Economic Union.

WEEE marking prohibiting the disposal of electrical and electronic devices with domestic waste.

The following symbols and signal words are used in this operating manual:

DANGER

Danger of electrical shock which may result in serious physical injury or death.

DANGER

Danger of explosion which may result in serious physical injury or death.

DANGER

Danger due to the use of flammable materials. Danger of fire development which may result in serious physical injury or death.

WARNING

Warning of possible physical injury or a health risk.

CAUTION

Information about danger of material damage.

Note with useful information and tips.

Action to be taken by owner.

1.

2.

3.

Product description

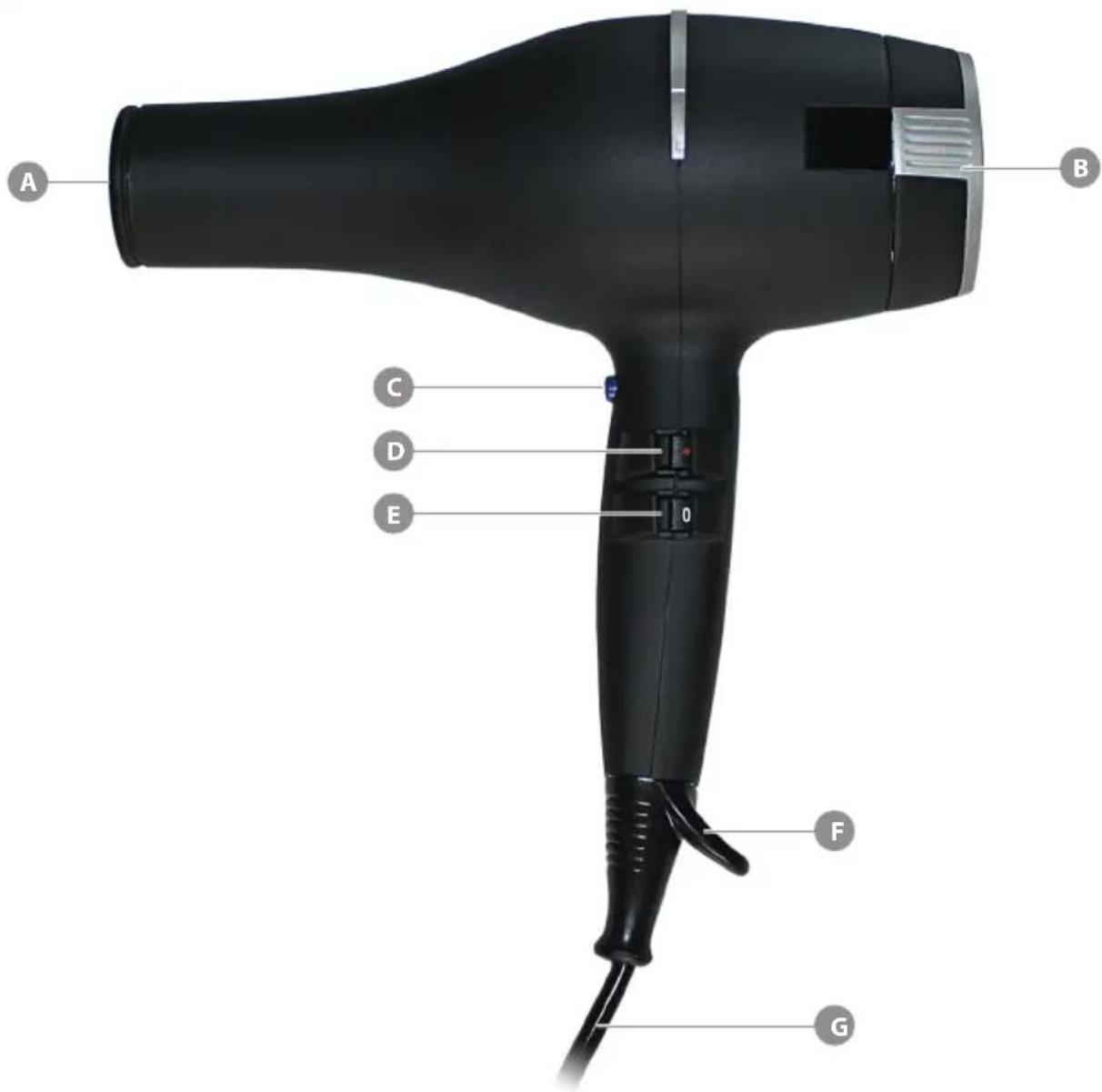

Description of parts (Fig. 1)

A Front grill
B Air inlet aperture with removable cover
C Cold shot button
D Switch for temperature settings
E On/off switch, fan settings
F Hanging loop
G Mains cable
H Narrow click nozzle
I Wide click nozzle

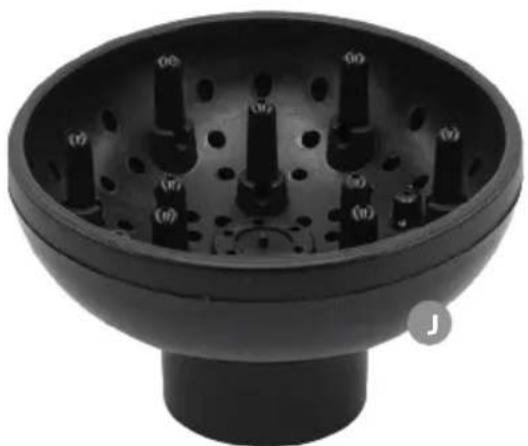

J Styling diffuser (optional accessory)

Technical data

Drive: AC motor

Operating voltage: 220 - 240 VAC / 50/60 Hz

Power consumption: 1650 – 2000 W

Dimensions (L x W x H): 235 x 90 x 245 mm

Weight: approx. 485 g (without mains cable)

Emission sound

pressure level: Fan setting 1

max. 66.3 dB(A) @ 100 cm

Fan setting 2

max. 72.7 dB(A) @ 100 cm

Vibration:

< 2.5 m/s²

Operating conditions

Ambient temperature:

0^ - + 40^

The appliance is safety insulated and radio screened. It meets the requirements of EU Electromagnetic Compatibility Directive 2014/30/EU and Machinery Directive 2006/42/EC.

Operation

Preparation

▶ Check that the contents are complete.
▶ Check all the parts for possible transport damage.

Safety

Caution! Damage due to incorrect power supply.

▶ Only operate the appliance with the voltage stated on the nameplate.

Operation

1. Insert the mains plug into the socket.

The hairdryer has 3 heat settings and 2 fan settings that, thanks to separate switches, enable a total of 6 temperature-fan settings. Occasionally, the cold shot button can be used to fix the hairstyle.

1. Switch on the hairdryer at the on/off switch.
2. Select the desired fan setting.

Fan-setting switch:

▶ Fan setting 1, for a gentle airflow
Fan setting 2, for a strong airflow

1. Select the required temperature setting.

Switch for temperature settings:

• Temperature setting 0, for cold air
▶ Temperature setting 1, for hot air
▶ Temperature setting 2, for hotter air

Cold shot button:

By pressing and holding the cold button, the hairdryer can be switched to cold air for short periods. To return to the set temperature, simply release the cold-shot button.

1. Using the on/off switch, switch off the hairdryer after use.

Operation

Styling with the click nozzle

The click nozzle can be used to direct the airflow onto the styling brush. The click nozzle can simply be turned when styling.

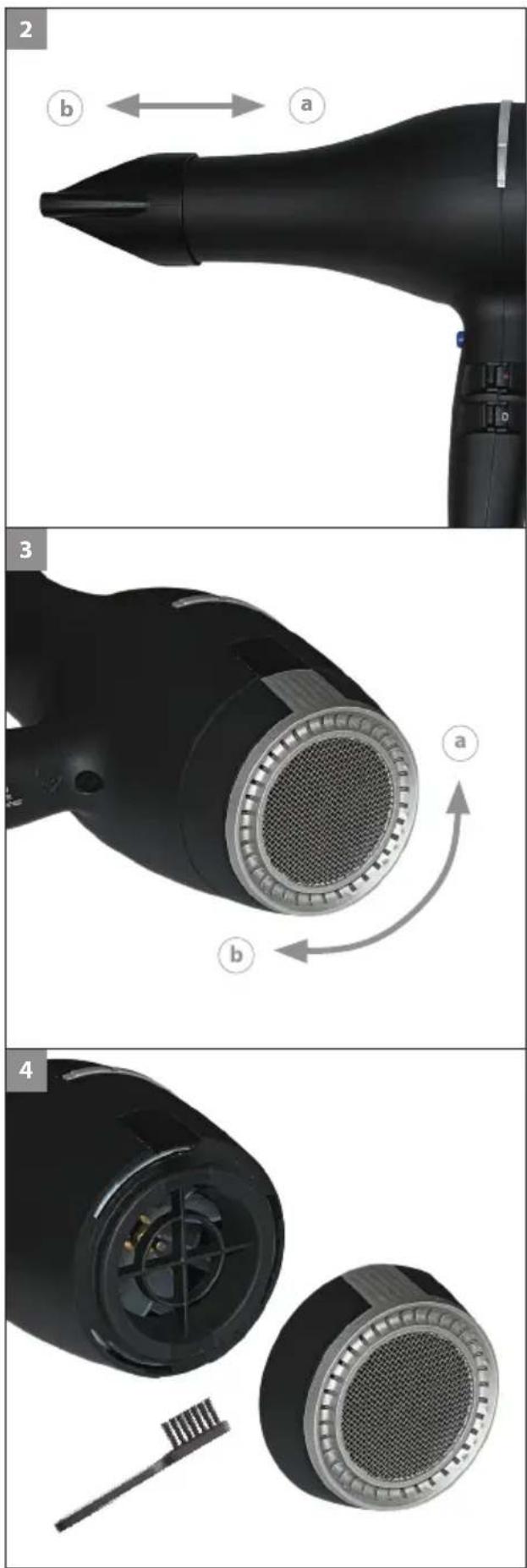

1. Position the click nozzle and press it towards the housing (Fig.2 a).
2. You can remove the click nozzle simply by pulling it off in the direction of the arrow (Fig. 2⑥).

Overheat protection

The hairdryer is fitted with an overheat protection facility. Should the appliance overheat, the heating process is interrupted and only cold air flows out. After the appliance has cooled down, the heating element will switch on again automatically.

Maintenance

Warning! Injuries and material damage due to incorrect handling.

▶ Switch off the hairdryer before cleaning it or performing any maintenance. Disconnect the hairdryer from the power supply.
▶ Allow the hairdryer to cool down completely.

Cleaning and care

Danger! Electric shock due to penetration of liquid.

▶ Never immerse the hairdryer in water!
▶ Do not allow any liquid to get inside the appliance.

Caution! Danger from aggressive chemicals.

Aggressive chemicals could damage the hairdryer and accessories.

▶ Never use solvents or scouring agents.

▶ Only wipe the hairdryer with a soft, slightly damp cloth.
To maintain the performance of your hairdryer, regularly clean the air inlet with a soft dry brush.

Proceed as follows:

1. Twist the cover in an anti-clockwise direction (Fig. 3 ⓐ) and remove.
2. Clean the cover and air inlet with a soft brush (Fig. 4).
3. Replace the cover and twist it in a clockwise direction until it clicks into position (Fig. 3⑥).

Problem elimination

Hairdryer only runs with cold air

Cause: The overheat protection is active.

▶ Allow the hairdryer to cool down.
▶ Clean the air inlet.

Hairdryer is not working

Cause: Defective power supply.

▶ Make sure that contact between the mains and the socket is faultless. Check the mains cable for possible damage.

In the event that this information does not help you resolve your problem, please contact our service centre. Never attempt to repair the appliance yourself!

Disposal

Caution! Environmental damage in the case of incorrect disposal.

▶ Correct disposal will ensure environmental protection and prevent any potentially harmful impacts on people and the environment.

Adhere to the relevant legal requirements when disposing of the appliance.

Information on the disposal of electrical and electronic appliances in the European Union:

Within the European Union, national regulations are specified for the disposal of electrical appliances based on EU Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). In accordance with this, the appliance can no longer be disposed of with the local or domestic waste. The appliance will be accepted free of charge by local collection points or recycling centres. The packaging for this product is made from recyclable materials. Dispose of this in an environmentally friendly manner by recycling it.

C Kold-knap (Cold Shot)

Ambient: 0^ - +40^

2006/42/EC	Machinery Directive including amendments
2014/30/EU	Electromagnetic Compatibility Directive including amendments
2009/125/EC	Ecodesign Directive including amendments
2011/65/EU	RoHS Directive including amendments

EU DECLARATION OF CONFORMITY

We

WAHL GmbH

Villinger Str. 4

D-78112 St. Georgen

Germany

declare under our sole responsibility that the product

Hair dryer Type BR04, 4332

corresponds to the regulations of

2006/42/EC Machinery Directive including amendments

2014/30/EU Electromagnetic Compatibility Directive including amendments

2009/125/EC Ecodesign Directive including amendments

2011/65/EU RoHS Directive including amendments

and corresponds to the national standards transposing the following harmonised standards.

EN 60 335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019

EN 60 335-2-23:2003 + A1:2008 + A11:2010 + A2:2015

EN 55 014-1:2021

EN 55 014-2:2021

EN 61 000-3-2:2019 + A1:2021

EN 61 000-3-3:2013 + A1:2019

EN 62 233:2008 + C1:2008

EN 50 564:2011

The conformity assessment follows Module A.

Year in which CE mark was affixed: 2021

St. Georgen, 2022-05-13

Jörg Burger

(Managing Director)

UE DECLARATION DE CONFORMITE

Nous

WAHL GmbH

Villinger Str. 4

D-78112 St. Georgen

Germany

2006/42/EC	Machinery Directive including amendments
2014/30/EU	Electromagnetic Compatibility Directive including amendments
2009/125/EC	Ecodesign Directive including amendments
2011/65/EU	RoHS Directive including amendments

2006/42/EC Machinery Directive including amendments

2014/30/EU Electromagnetic Compatibility Directive including amendments

2009/125/EC Ecodesign Directive including amendments

2011/65/EU RoHS Directive including amendments
