USER MANUAL GTC-200G MSW

No. 6 No. 11

Montage der Räder

No. 9 No. 10

Montage der Füße

No. 5 No. 7

Montage der Regale

Simple line drawing of a rectangular object with no text, numbers, or symbols

No. 1 No. 12 No. 5 No. 12

Einrichtung

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing the drill bit (no text or symbols present)

Line drawing of a laboratory setup with three compartments and a control panel (no text or symbols)

Simple line drawing of a cabinet with two doors and a horizontal shelf (no text or symbols)

Diagram showing a handheld electric drill with a magnified inset of its internal components (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, storage compartments, and a large cabinet (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Anbringen der Füße

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Einbau der Regale

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Einrichtung

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Diagram showing a handheld tool and its application in a rack cabinet, with an inset close-up of the tool's dial.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Garage Cabinet
Model	MSW-GTC-100L	MSW-GTC-200G
Load capacity - capacity max. [kg]	200
Max. load capacity per shelf [kg]	50
Dimensions [width x depth x height; mm]	1960 x 1900 x 490	470 x 1900 x 2070
Weight [kg]	118.3	129.4

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

Read instructions before use.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Hand crush hazard!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Garage Cabinet

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
e) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
f) Keep packaging elements and small assembly parts in a place not available to children.
g) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
b) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.3. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
c) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
d) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
e) Clean the device regularly to prevent stubborn grime from accumulating.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Do not overload the device.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is designed to store equipment, workshop tools and organise the workplace.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

3.1. Assembling the device

3.1.1. MSW-GTC-100L

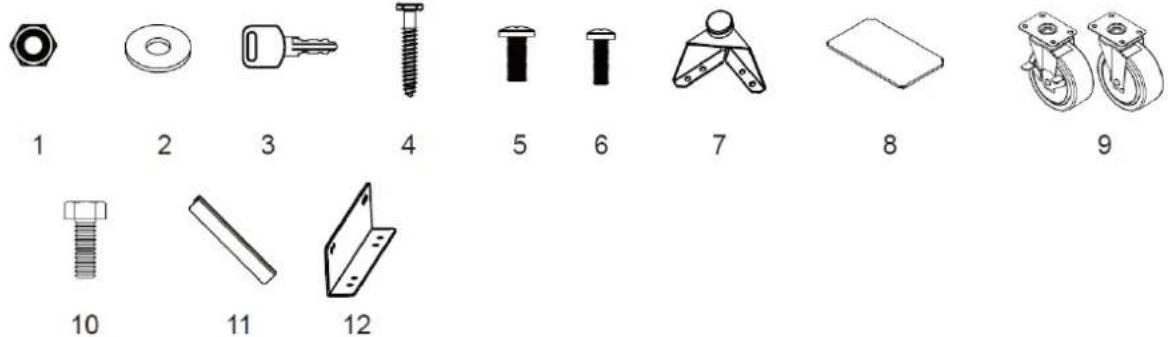

Hardware Included:

No.	DESCRIPTION	WALL CABINET x2	LOCKER x1	1- DRAWER CABINET x1	4- DRAWER R. CABINET x1	PEGBOARD x 6	BRACKET x1
1	M6 Hex Flange Nut	8	4	4	0	0	2
2	Flat Washer	4	4	2	0	4	0
3	Key	0	2	2	2	0	0
4	M5 x 50 Hex Tapping Bolt	4 4 2 0 4 0
5	M6 x 12 Flat-Head Bolt	8 16 20 0 0 4
6	M5 x 12 Flat-Head Bolt (on the door)	2 4 6 8 0 0
7	Adjustable Levelling Feet	0 4 4 0 0 0
8	Shelf	0	3	1	0	0	0
9	Casters	0	0	0	4	0	0
10	M8 x 20 Hex Flange Bolt	0 0 0 16 0 0
11	Handle	1	2	3	4	0	0

1 2 3 4 5 6 7 8 9 10 11 12

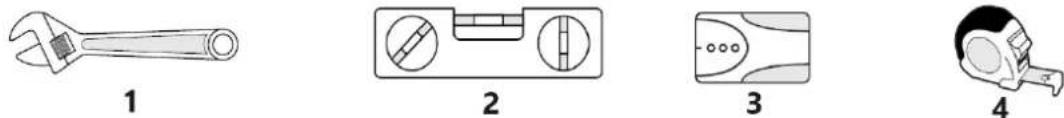

Helpful tools:

Four labeled illustrations of different wrench, tool, and measuring tool components (no text or symbols beyond labels)

5 6 7 8 9

1	Adjustable Wrench	4	Measuring Tape	7	6 mm Phillips Screwdriver
2	Magnetic Leveller	5	Setsquare	8	5 mm Slotted Screwdriver
3	Stud Finder	6	Pencil	9	Cordless Power Drill

Locker x 1
Wall cabinet x 2
Shelf to connect the wall cabinets x 4
1-drawer cabinet x1
4-drawer roller cabinet x1
workbench x1
Pegboard x6

Handles Assembly

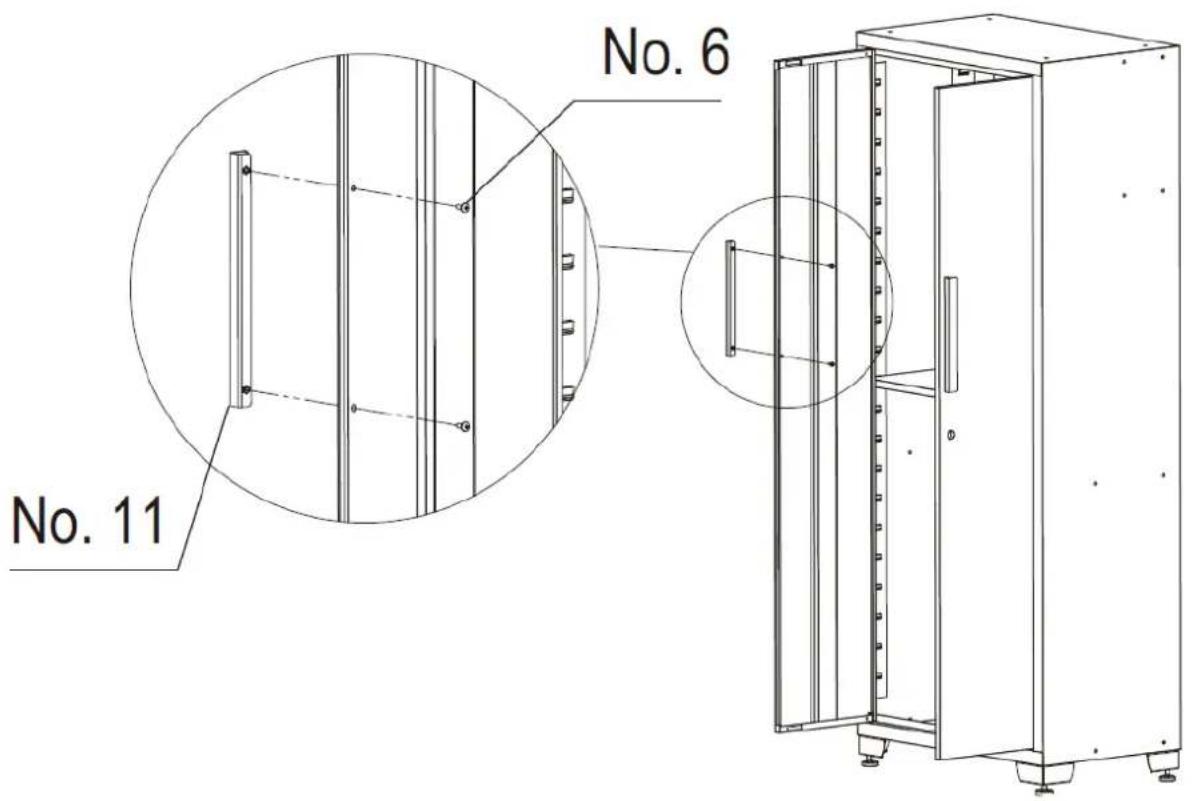

Unscrew the bolts on the front of the drawers or the doors using a Phillips screwdriver to remove the handle on the back of it, then attach the handle to the front of the door or the drawer using two M5x12 flat head bolts. Repeat for all the doors and drawers.

No. 6 No. 11

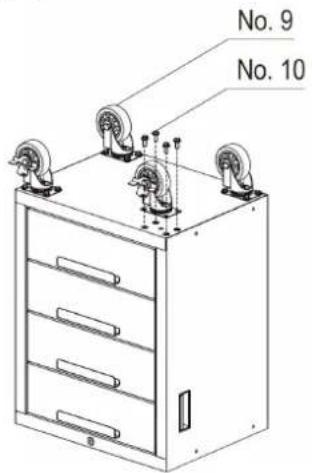

Casters Assembly

1. Securely lock all the drawers of the rolling cabinet.
2. Lay the rolling cabinet upside down. Use the packaging material for protection.
3. Mount the two swivel casters with brake to the front of the rolling cabinet using four M8x20 mm bolts per caster.
4. Mount the two regular casters to the other side of the rolling cabinet using four M8x20 mm bolts per caster.
5. Tighten all bolts with a wrench.
6. Return the rolling cabinet to its upright position.

No. 9 No. 10

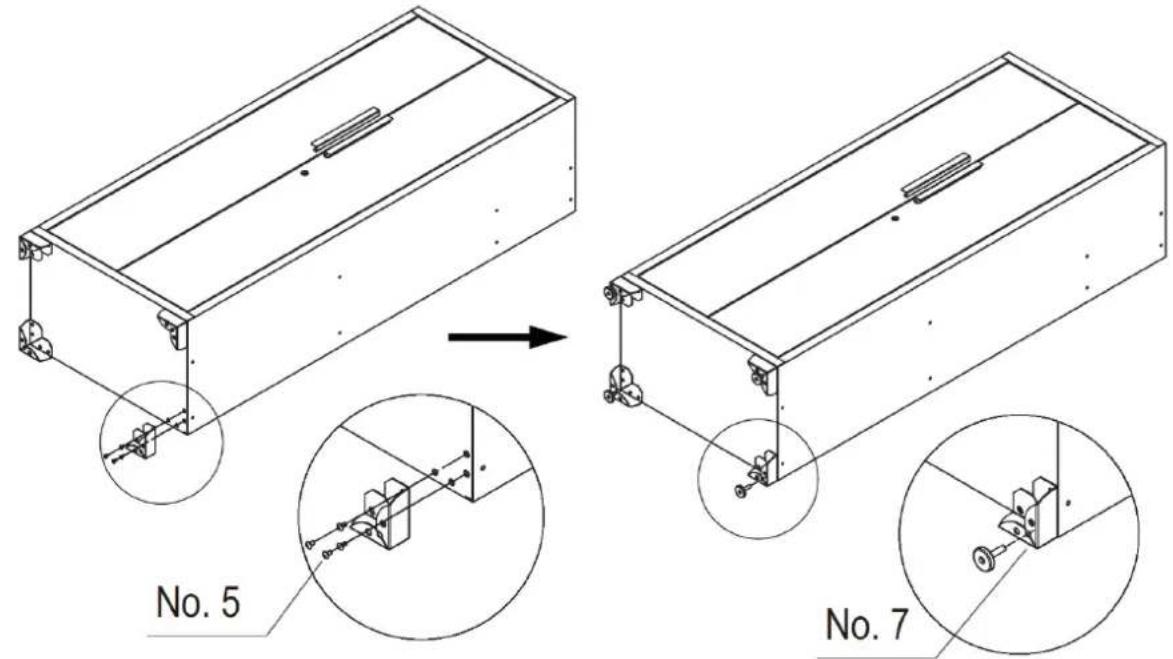

Feet Assembly

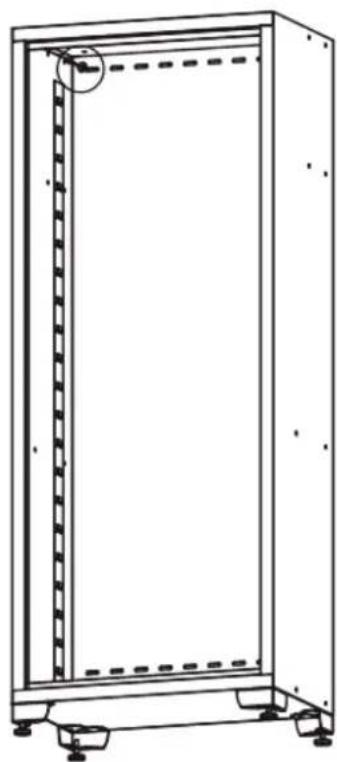

Carefully set the locker on its back, then attach the adjustable levelling feet to the locker using sixteen M6x12 flat-head bolts with a Philips screwdriver.

No. 5 No. 7

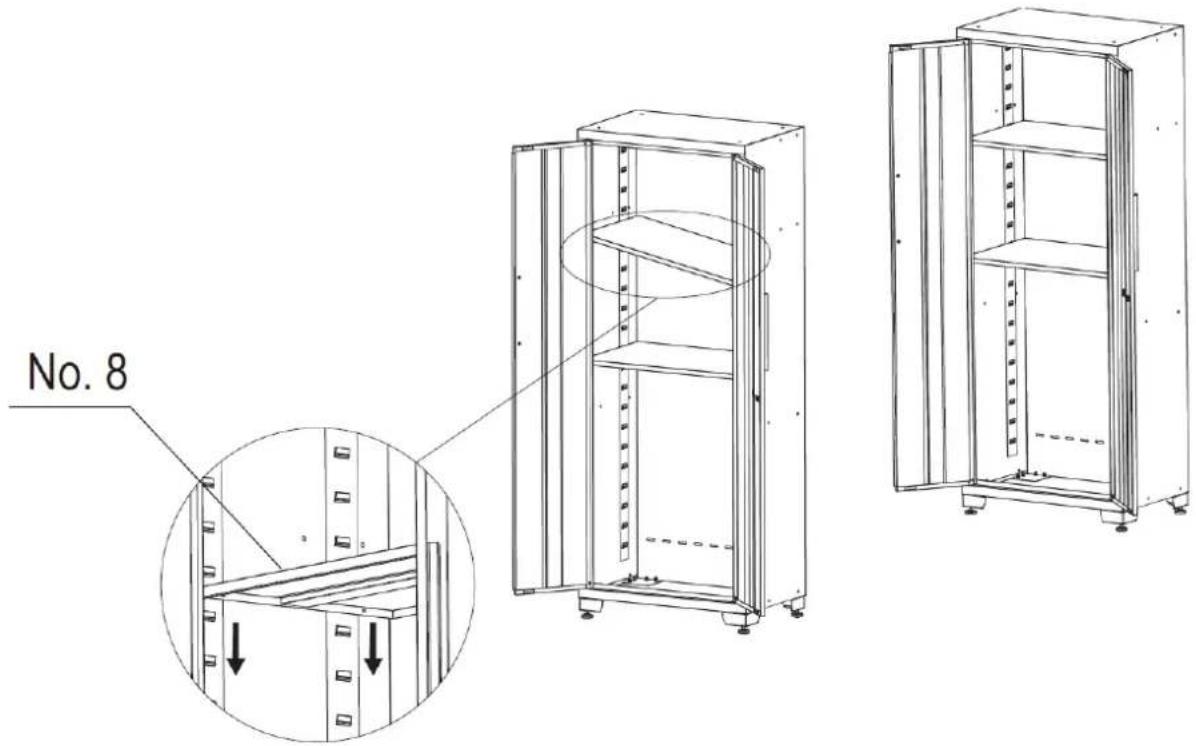

Shelves Assembly

Check the location need, carefully put the shelf into the slot. Please make sure the shelf is stable. NOTE: A centre shelf must be installed level with the lock on the cabinet door for lock to work.

No. 8

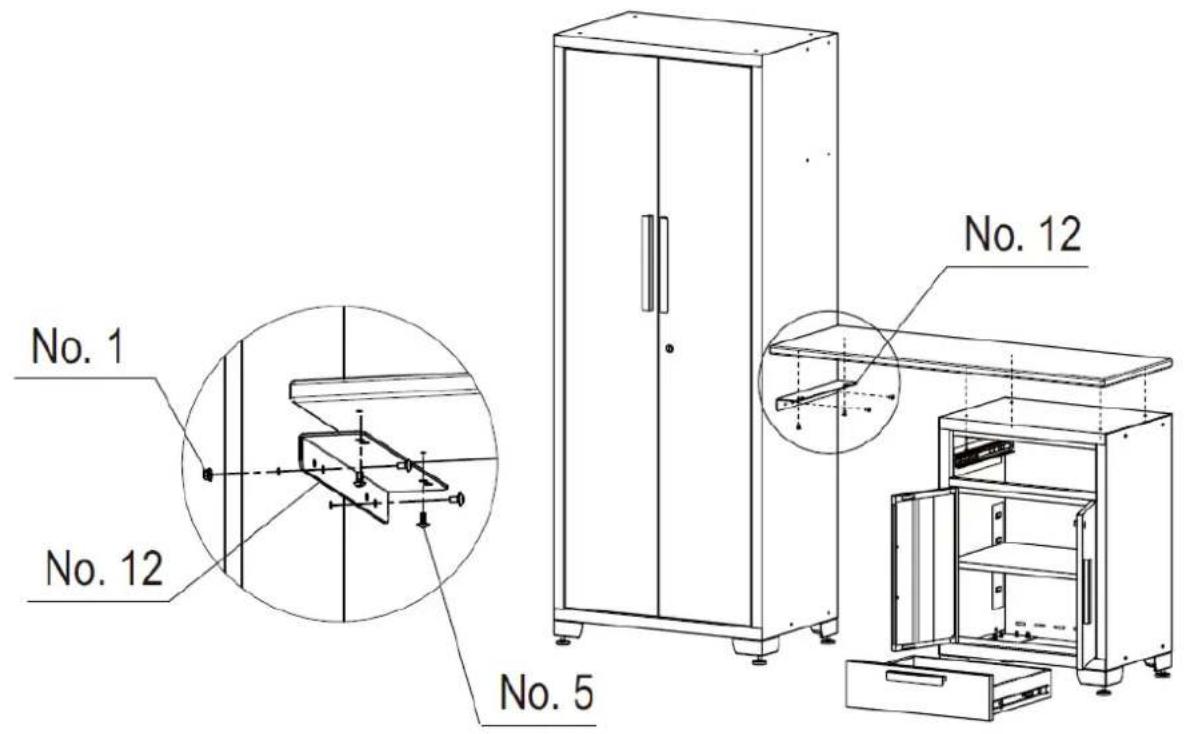

Installing the Worktop

Open the doors or remove the drawers to make sure that you have enough space to install the worktop.

Simple line drawing of a rectangular object with no text, numbers, or symbols

Carefully place the wood worktop on the cabinets and fasten it with screwdriver or cordless power drill and four screws in the parts package of each bottom cabinet. If there is no bottom cabinet on one side, connect the worktop with a bracket to the side of the locker with four screws and two nuts.

No. 1 No. 12 No. 5 No. 12

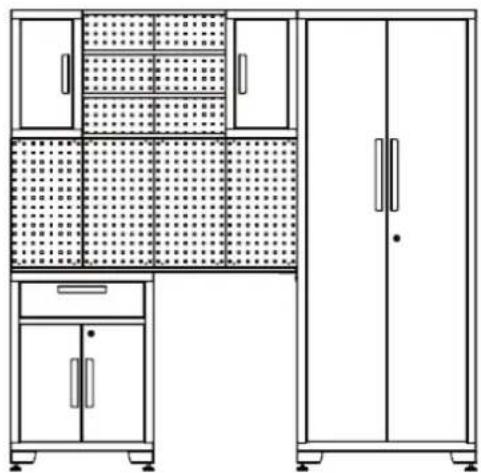

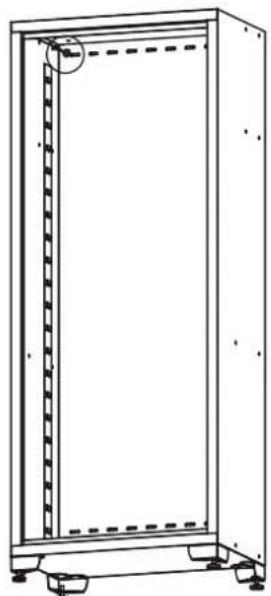

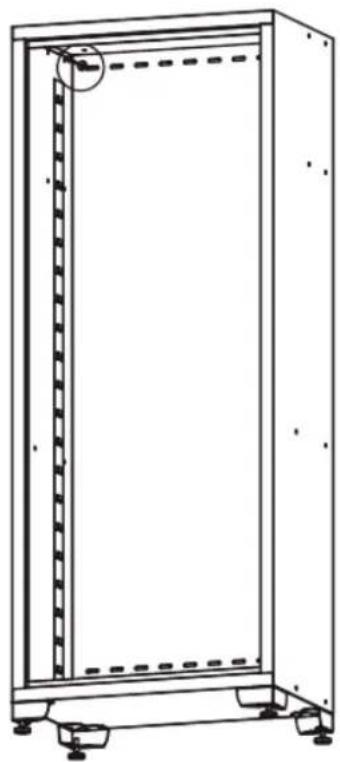

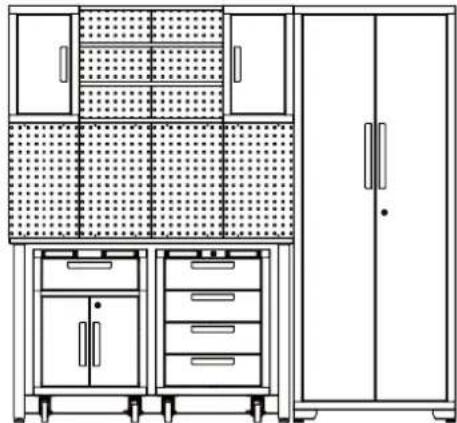

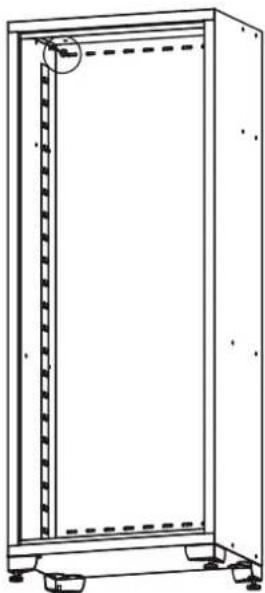

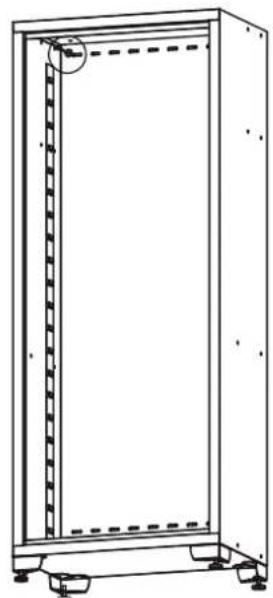

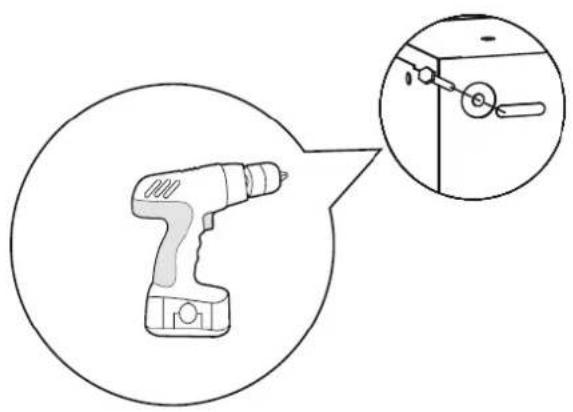

Setup

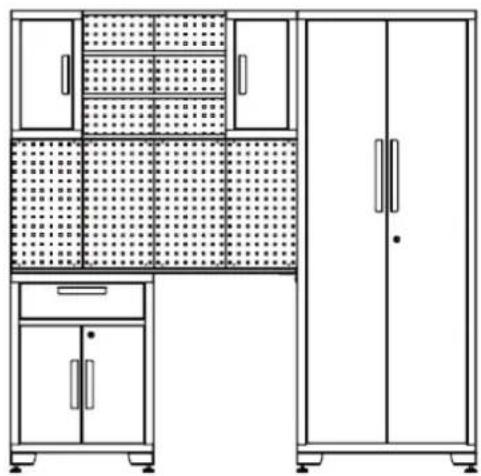

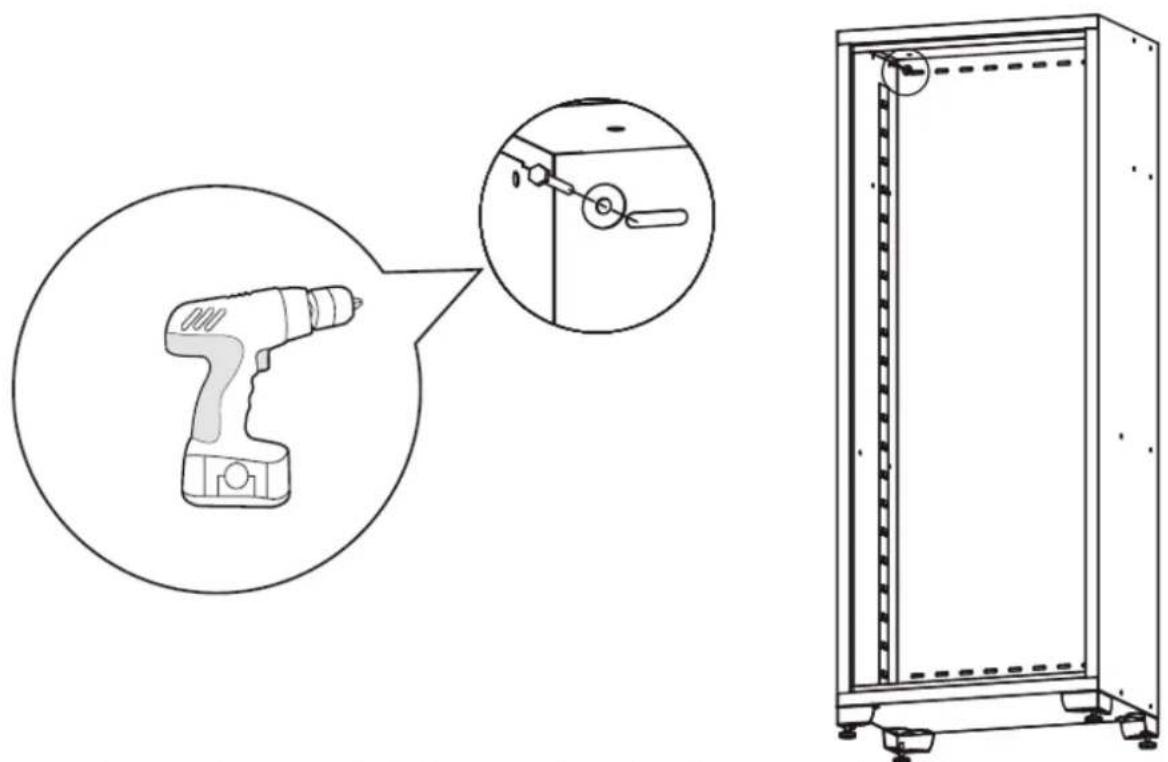

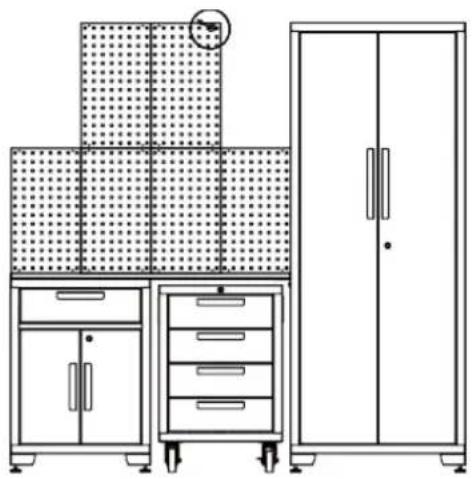

1. Plan the position of the cabinets, position the locker and 1-drawer cabinet.

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

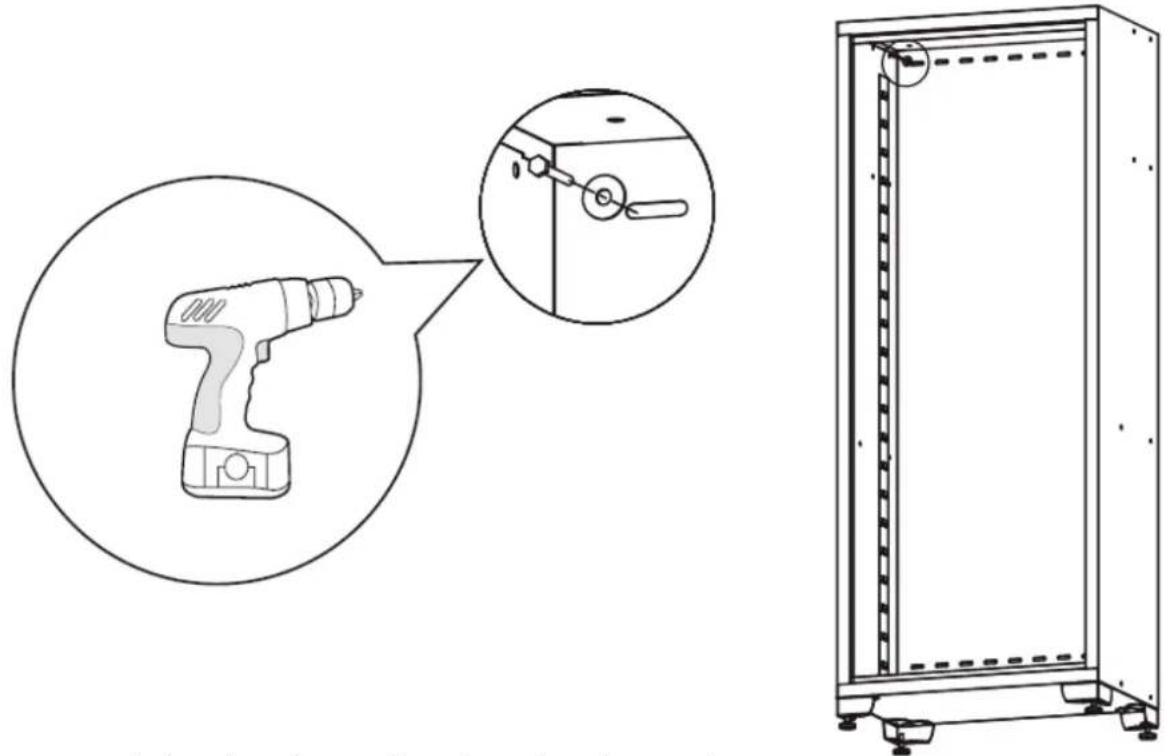

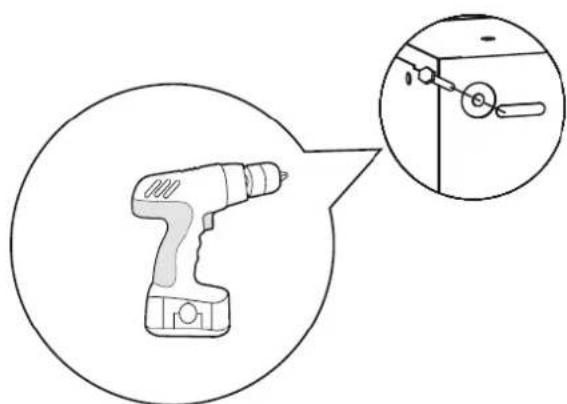

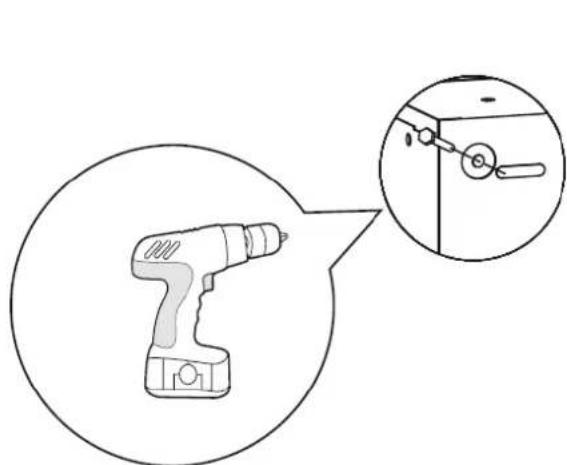

1. Align the pegboard and screw them onto the wall.

Illustration of a handheld electric drill with a magnified inset showing a small tool and grid (no text or symbols)

Line drawing of a laboratory apparatus with three compartments and a central cabinet (no text or symbols)

1. Connect the two wall cabinets with the shelves.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

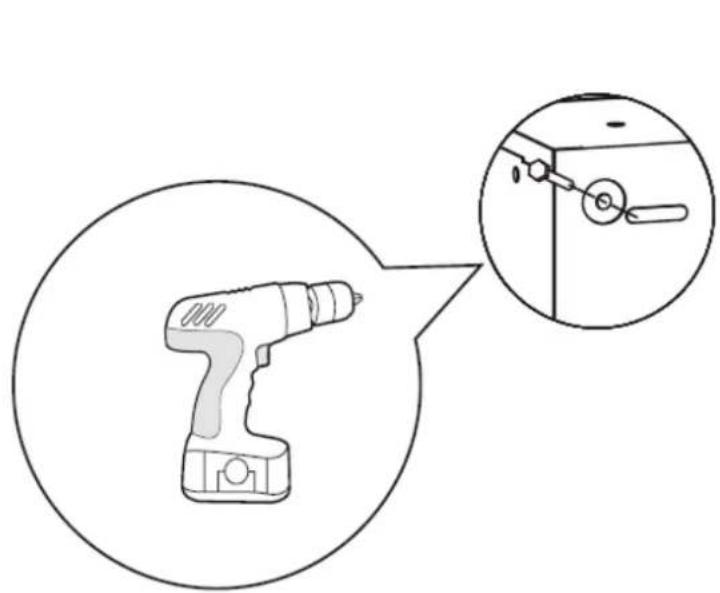

1. Open the door of the wall cabinet, connect the wall cabinet assembly to the wall. Two or more person is recommended for this step.

Illustration of a handheld electric drill with a magnified inset showing a small component (no text or symbols)

Line drawing of a laboratory apparatus with cabinets, storage compartments, and a cabinet (no text or symbols)

1. Roll the tool cabinet under the workbench. Open the door of the locker and securely attach the locker on the wall to prevent it from tipping.

Line drawing of a laboratory or office setup with cabinets, storage compartments, and a large cabinet (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the door handle (no text or symbols)

Technical line drawing of a rectangular enclosure or cabinet frame with mounting feet and a dashed-line panel (no text or symbols)

Fasten all the bolts. The installation of the garage cabinet set is finished.

Drawer Removal

Put the drawer out so that it's almost fully extended. Push up on the black release lever on one side, while pulling down on the black release lever on the other side. While holding the levers in the positions as illustrated below, pull the drawer outward until it is released from the drawer slide.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Push up one side

Technical line drawing of a mechanical assembly with no visible text or symbols

Push down the other side

3.1.2. MSW-GTC-200G

Hardware Included

No.	DESCRIPTION	WALL CABINET x2	LOCKER x1	1- DRAWER R. CABINET x1	4- DRAWER R. CABINET x1	52IN WORKBENCH x1	PEGBOARD x 6
1	M6 Hex Flange Nut	8x2 4 0	0 0 0
2	Flat Washer	4x2	4	0	0	0	4x6
3	Key	0	2	2	2	0	0
4	M5 x 50 Hex Tapping Bolt	4x2 4 0	0 0 4x6
5	M6x 12 Flat-Head Bolt	8x2 20	0 0 0 0
6	M5 x 12 Flat-Head Bolt (on the door)	2x2 4 6	8 0 0
7	Adjustable Levelling Feet	0 4 0	0 0 0
8	Shelf	0	3	1	0	0	0
9	Casters	0	0	4	4	0	0
10	M8 x 20 Hex Flange Bolt	0 0 16	16 0 0
11	Grab Handle	0	0	2	2	0	0
12	M8 x 16 Flat-Head Bolt	0 0 4	4 8 0
13	M8 x 65 Hex Bolt	0	0	0	0	4	0
14	M8 Hex Flange Nut	0 0 0	0 4 0

Helpful Tools

1

2

3

4

5

6

7

8

9

1	Adjustable Wrench	4	Measuring Tape	7	6 mm Phillips Screwdriver
2	Magnetic Leveller	5	Set Square	8	5 mm Slotted Screwdriver
3	Stud Finder	6	Pencil	9	Cordless Power Drill

Locker x 1
Wall cabinet x 2
Shelf to connect the wall cabinets x 4
1-drawer roller cabinet x1
4-drawer roller cabinet x1
workbench x1
Pegboard x6

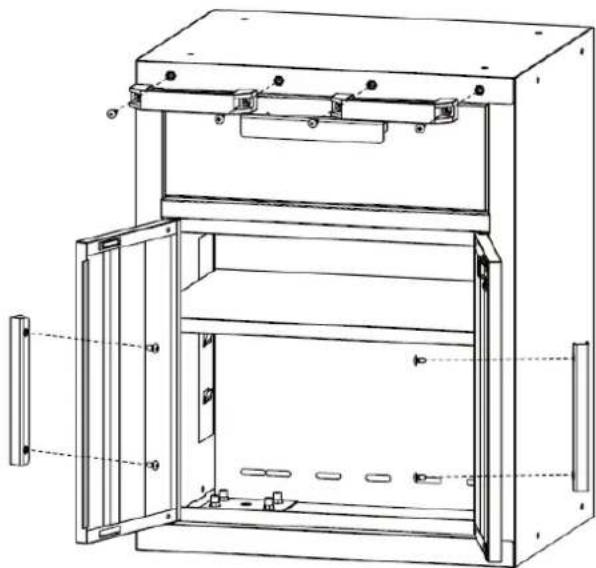

Installing the Handles

Unscrew the bolts on the front of the drawers or the doors using a Phillips screwdriver to remove the handle on the back of it, then attach the handle to the front of the door or the drawer using two M5x12 flat head bolts. Repeat for all the doors and drawers. Attach the grab handle to the cabinet, align the holes and fix with two M8x16 flat head bolts.

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

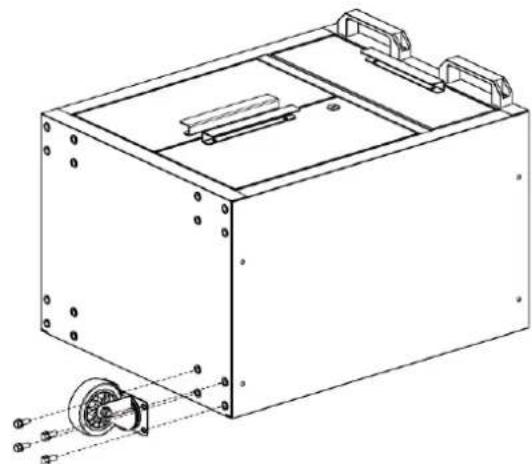

Installing the Casters

Lay the rolling cabinet on soft ground. Use the packaging material for protection. Mount four casters to each cabinet with sixteen M8x20 hex flange bolts. Note: The casters with brakes should be on the front side of the cabinet.

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

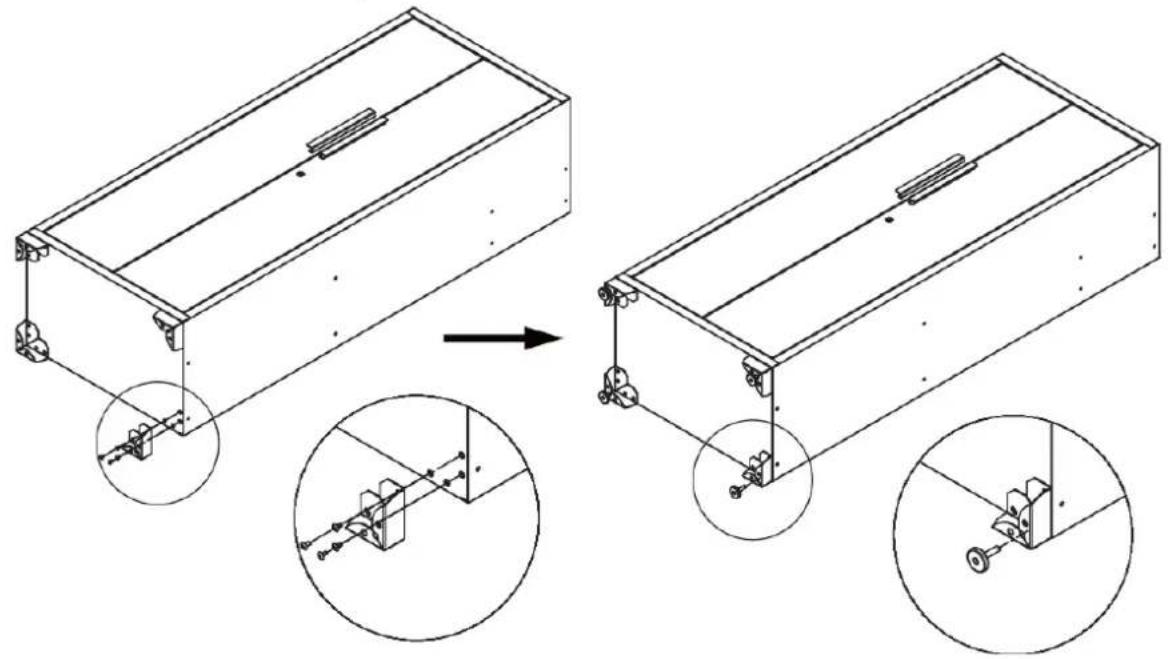

Installing the Feet

Carefully set the locker on its back, then attach the adjustable levelling feet to the locker using sixteen M6x12 flat-head bolts with a Philips screwdriver.

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

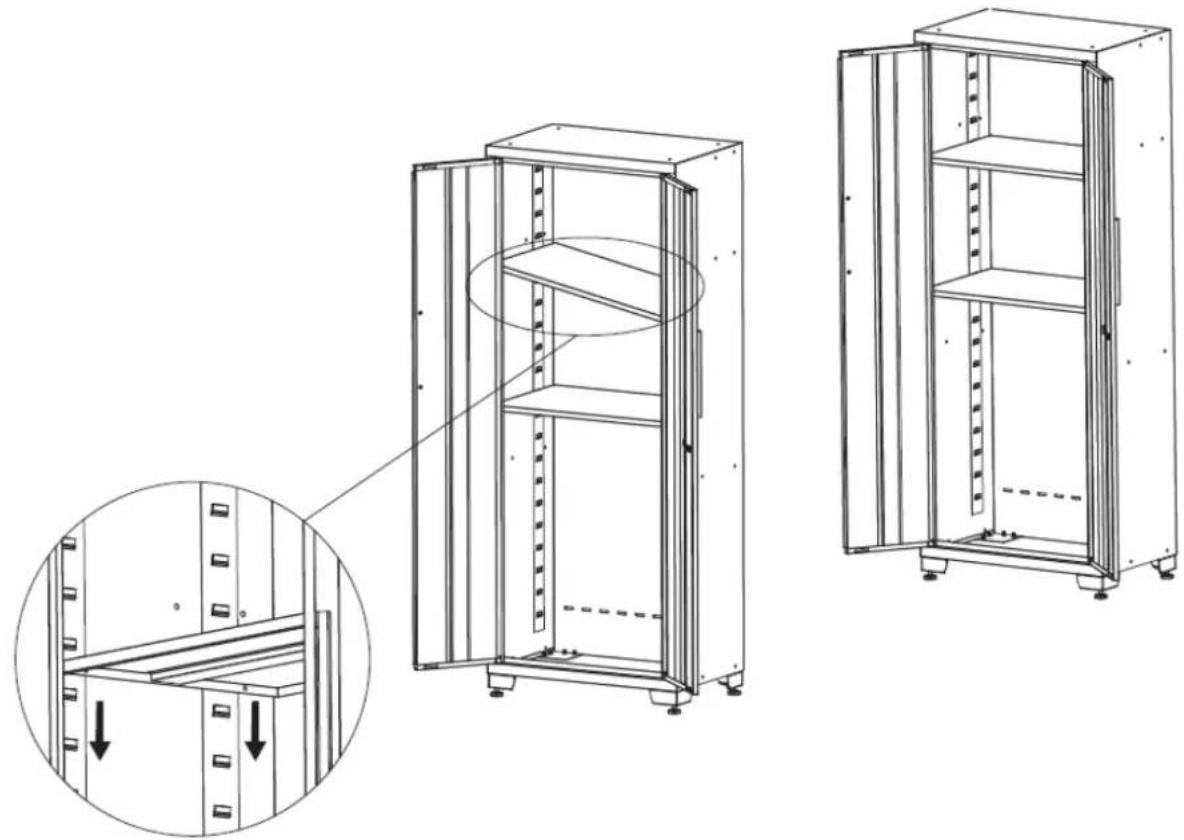

Installing the Shelves

Check the location need, carefully put the shelf into the slot. Please make sure the shelf is stable. NOTE: A centre shelf must be installed level with the lock on the cabinet door for lock to work.

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Installing the Workbench

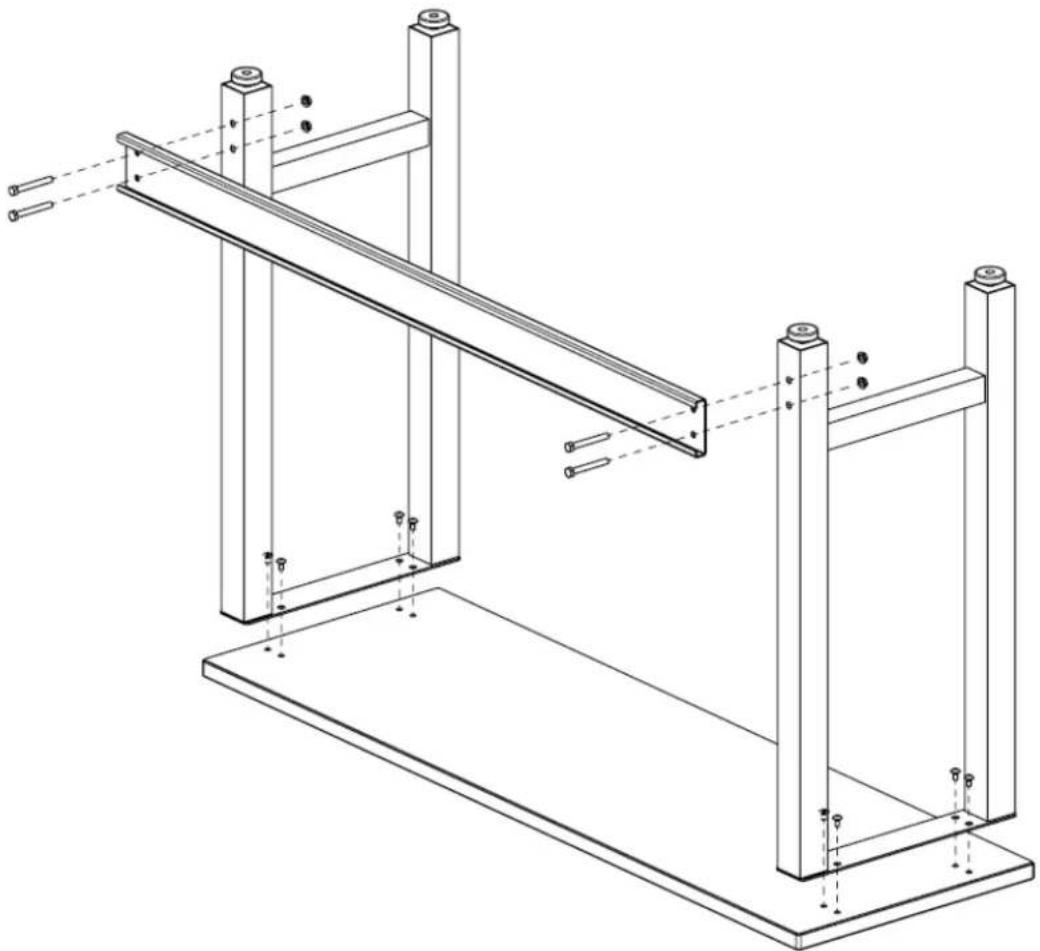

1. Lay down the work top on a soft surface, align the holes on the legs with that on the worktop. Use four M8x16 bolts to connecting them together.

2. Use four M8x65 hex bolts and four M8 nuts to fasten support to the legs.

3. Fasten all the bolts and nuts.

4. Stand up the workbench to finish this step.

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

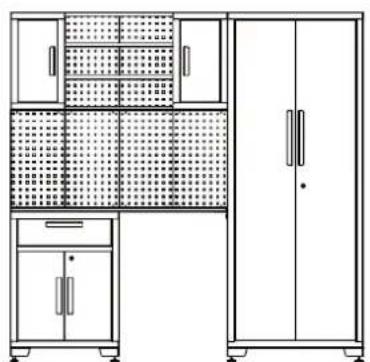

Setup

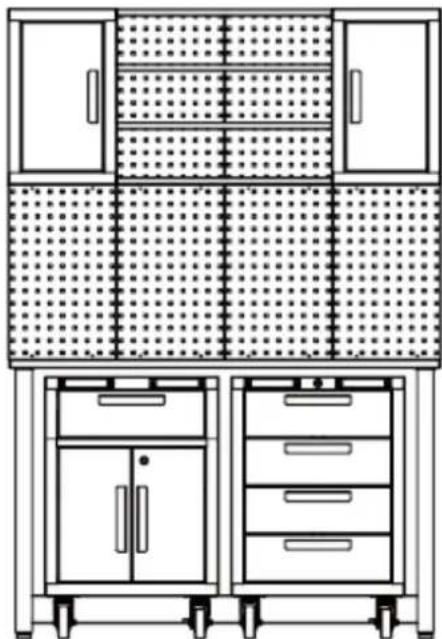

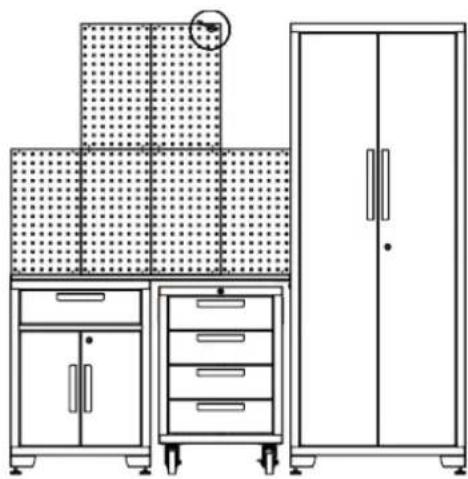

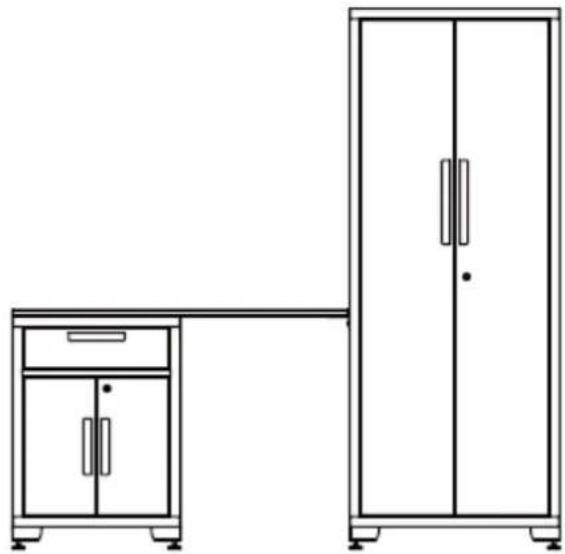

1. Plan the position of the cabinets, position the workbench.

Simple line drawing of a rectangular frame with two legs and a central horizontal bar (no text or symbols)

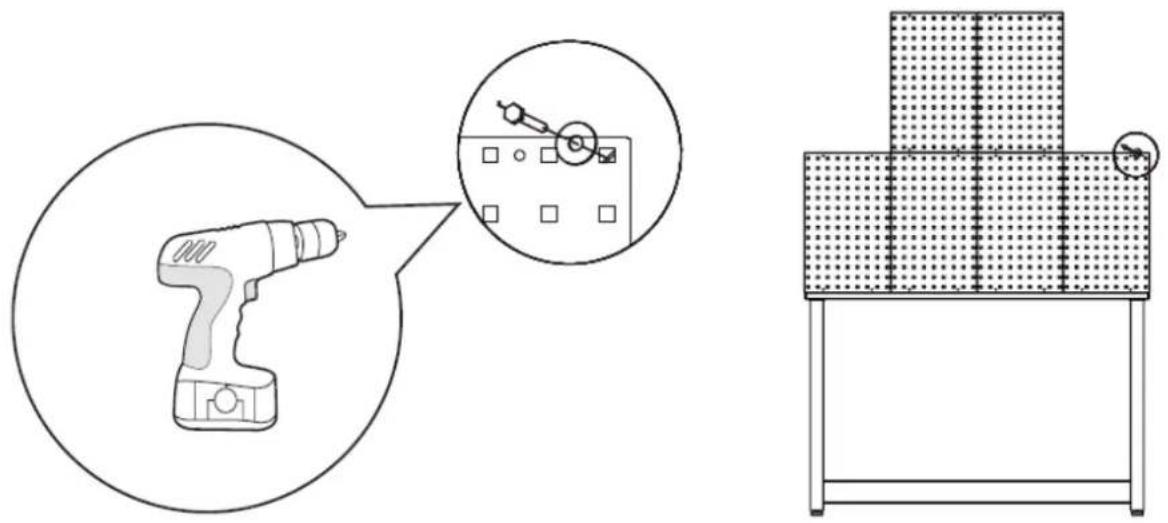

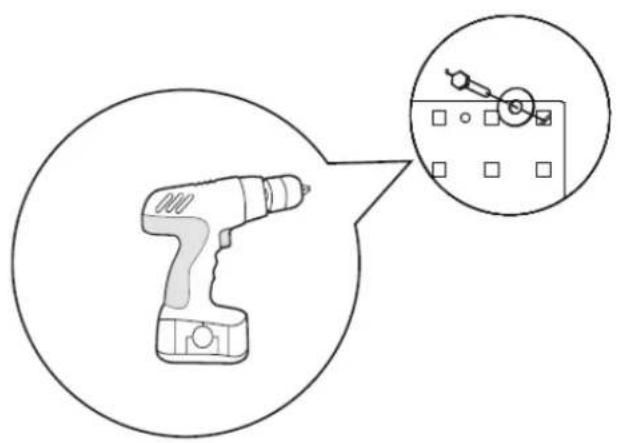

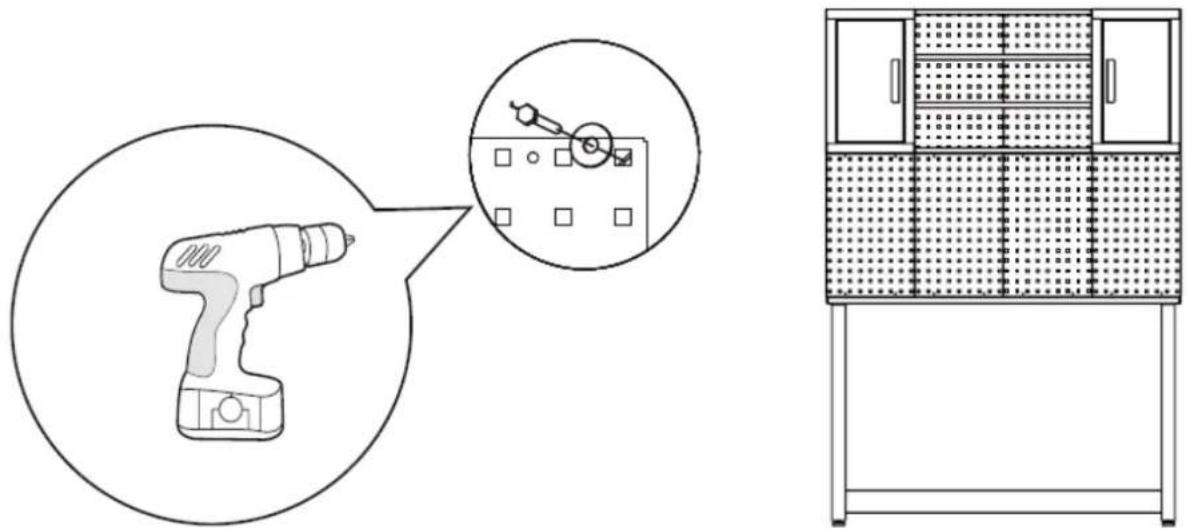

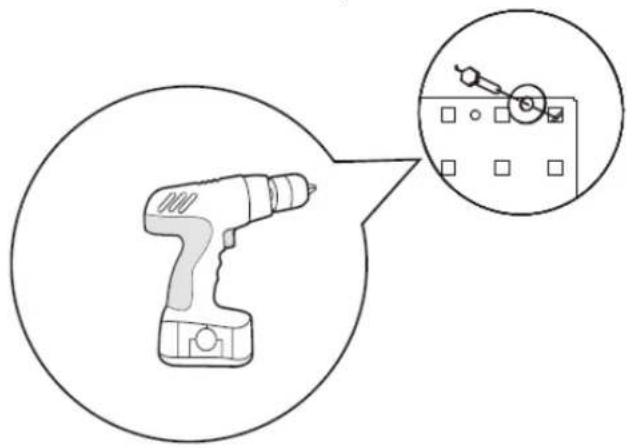

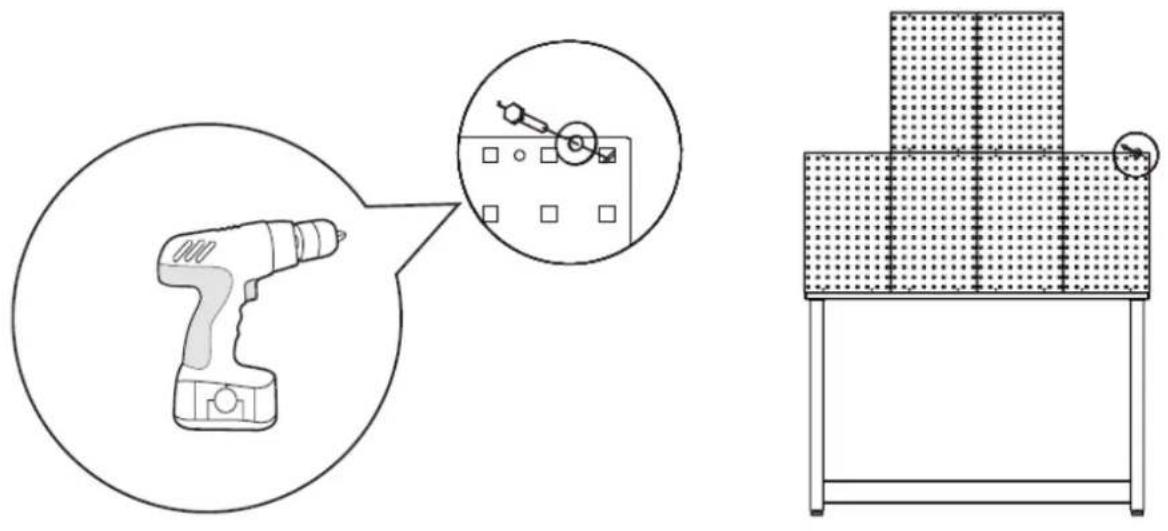

1. Align the pegboard and screw them onto the wall.

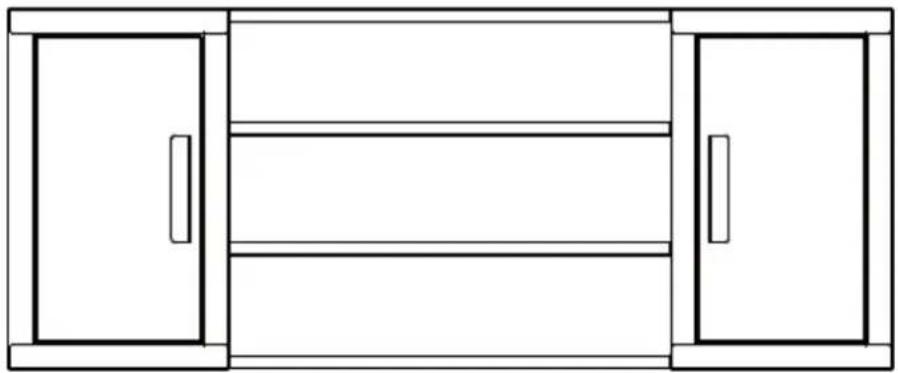

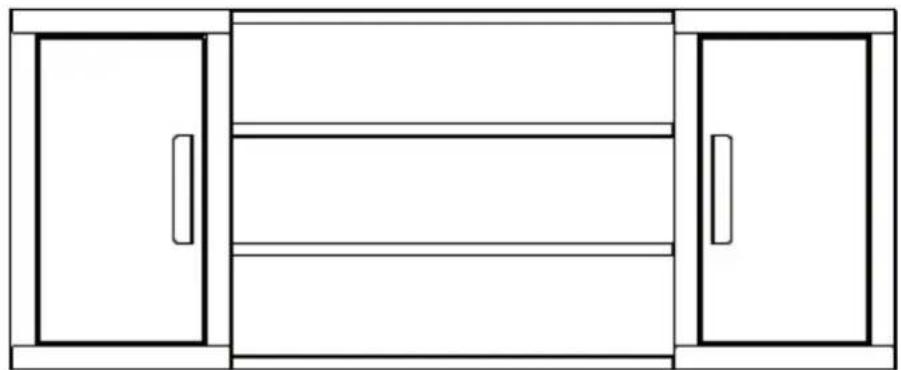

1. Connect the two wall cabinets with the shelves.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

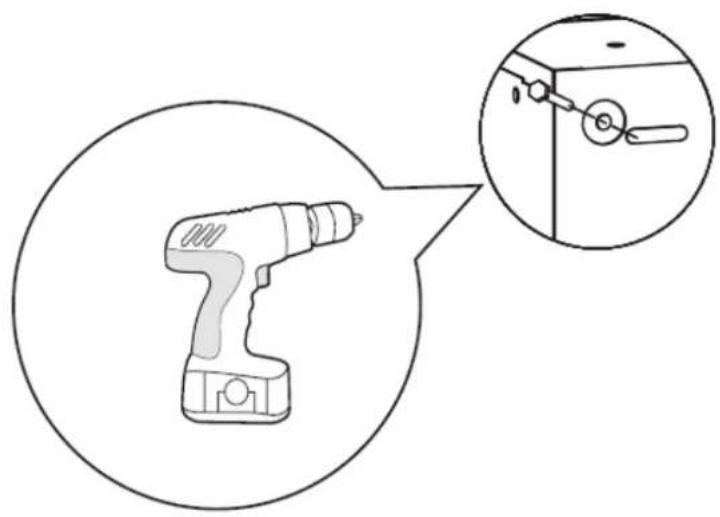

1. Open the door of the wall cabinet, connect the wall cabinet assembly to the wall. Two or more person is recommended for this step.

Line drawing showing a handheld tool and a cabinet with patterned wood, no text or symbols present

1. Roll the tool cabinet under the workbench.

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

1. Lean the cabinet against the table. Open the door of the locker and securely attach the locker on the wall to prevent it from tipping.

Line drawing of a laboratory setup with cabinets, storage compartments, and a cabinet (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Line drawing of a rectangular cabinet or enclosure with dashed lines indicating hidden edges and a circular detail on the front panel (no text or symbols present)

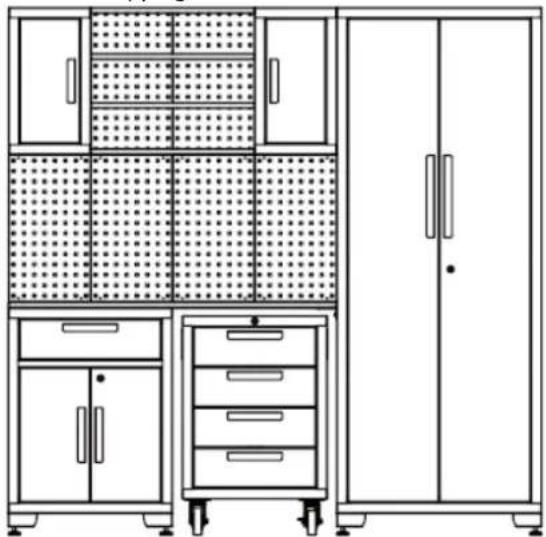

The installation of the garage cabinet set is finished.

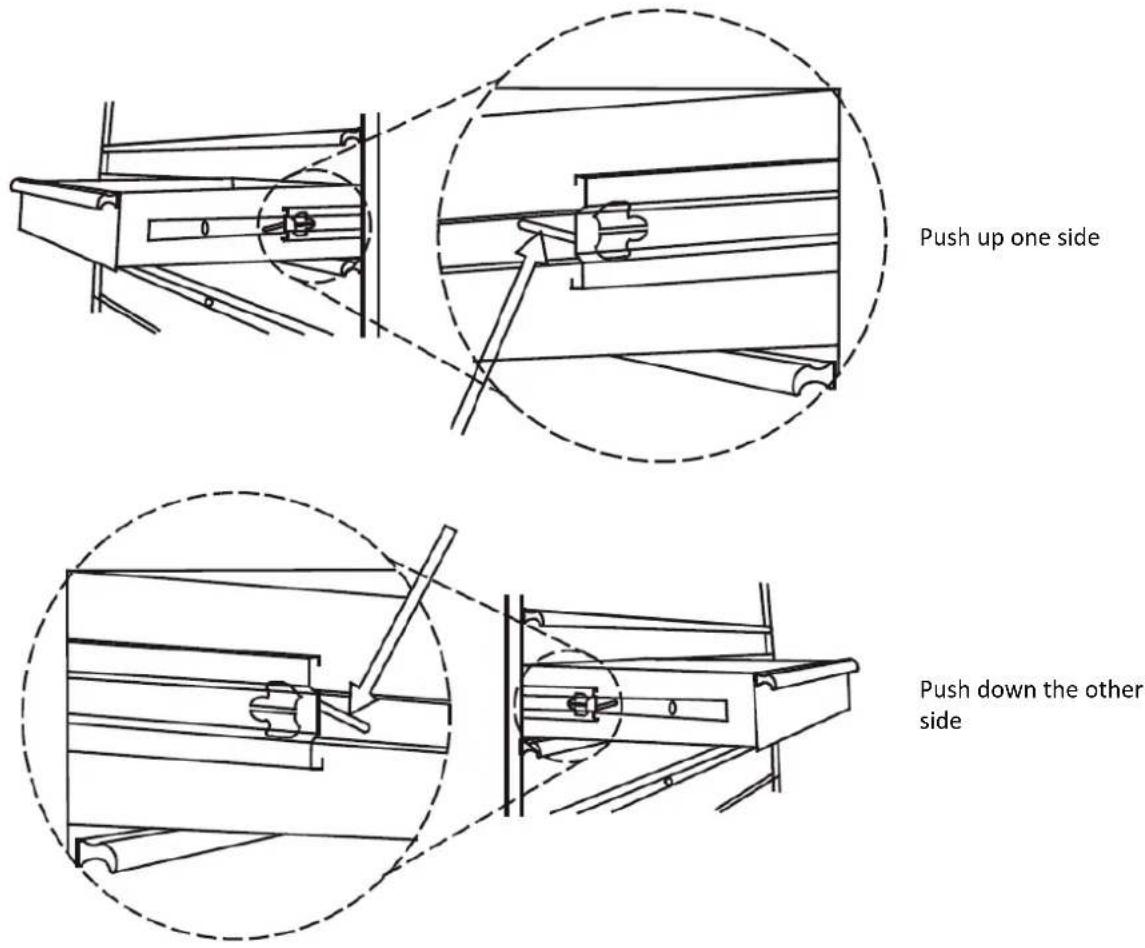

Drawer Removal

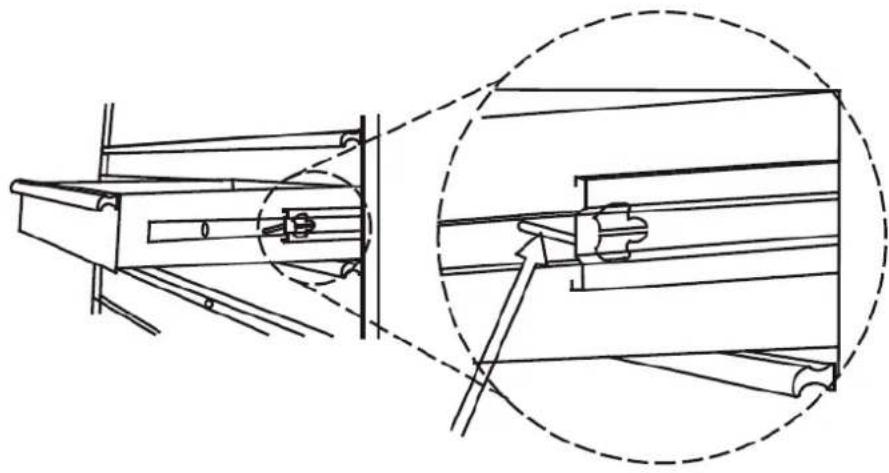

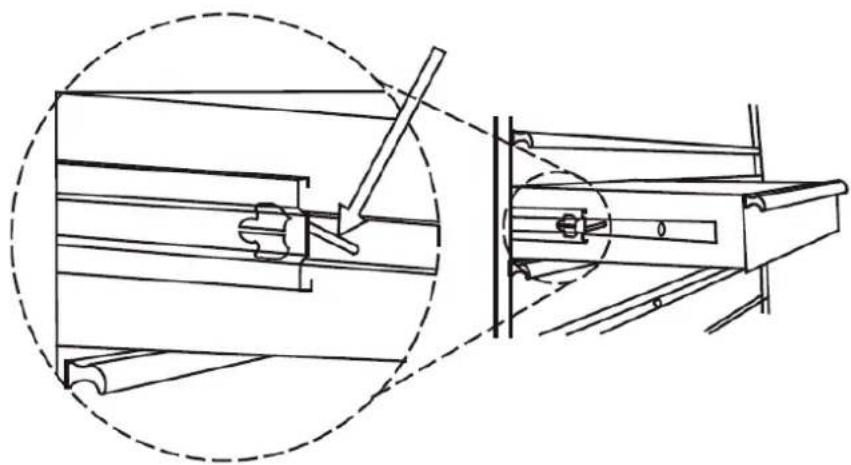

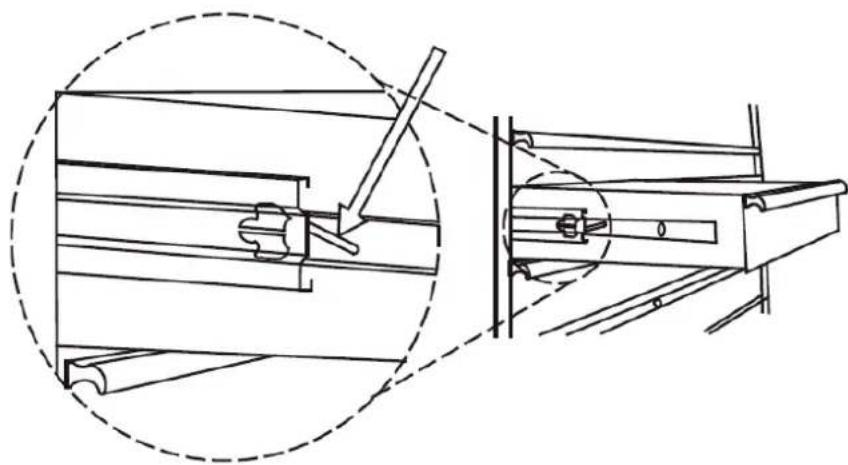

Put the drawer out so that it's almost fully extended. Push up on the black release lever on one side, while pulling down on the black release lever on the other side. While holding the levers in the positions as illustrated below, pull the drawer outward until it is released from the drawer slide.

Push up one side Push down the other side

3.2. Cleaning and maintenance

a) Use only non-corrosive cleaners to clean the surface.
b) After cleaning the device, all parts should be dried completely before using it again.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) The device must be regularly inspected to check its technical efficiency and spot any damage.
f) Use a soft, damp cloth for cleaning.
g) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
h) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
i) Lubricate the slides twice a year with a quality lubricant. This is especially necessary when the temperature drops, which may cause the bearings to be stiff.

No. 6 No. 11

Montaż kółek

No. 9 No. 10

Montaż nóżek

No. 5 No. 7

Montaż półek

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Konfiguracja

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing the drill bit (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet (no text or symbols)

Line drawing of a cabinet with two doors and a front pane (no text or symbols)

Line drawing of a drill bit with a magnified inset showing a tool (no text or symbols)

Line drawing of a multi-level cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a multi-level office or laboratory cabinet with drawers, drawers, and storage compartments (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the internal components (no text or symbols)

Technical line drawing of a rectangular enclosure with mounting feet and a dashed-line interior (no text or symbols)

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Montaż kółek

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Montaż nóżek

Technical line drawing of a mechanical assembly with three views showing progressive assembly from top to side (no text or symbols)

Montaż półek

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and base plate (no text or symbols)

Konfiguracja

Simple line drawing of a rectangular frame with two legs and a central horizontal bar (no text or symbols)

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing showing a handheld tool and a cabinet with patterned wood, no text or symbols present

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a laboratory setup with cabinets, storage compartments, and a cabinet (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Line drawing of a rectangular cabinet or enclosure with dashed lines indicating hidden edges and a circular detail on the front panel (no text or symbols present)

No. 6 No. 11

Montáž koleček

No. 9 No. 10

Sestavení nohou

No. 5 No. 7

Montáž polic

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Založit

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

1. Vyrovnejte pegboard a prišroubujte je na zed'.

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and one door, no text or symbols present

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, storage compartments, and a large cabinet (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Instalace koleček

Technical line drawing of a mechanical enclosure with mounting holes and internal compartments (no text or symbols)

Instalace nohou

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Instalace polic

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Instalace Workbench

Technical line drawing of a mechanical support structure with vertical and horizontal beams (no text or symbols)

Založit

Simple line drawing of a rectangular frame with two legs and a central horizontal bar (no text or symbols)

1. Vyrovnejte pegboard a prišroubujte je na zed.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing of a handheld electric drill and its corresponding electrical cabinet (no text or symbols)

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a laboratory setup with cabinets, storage compartments, and a cabinet (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Line drawing of a rectangular cabinet or enclosure with dashed lines indicating hidden edges and a circular detail on the front panel (no text or symbols present)

No. 6 No. 11

No. 9 No. 10

No. 5 No. 7

Simple line drawing of a rectangular object with no text, numbers, or symbols

No. 1 No. 12 No. 5 No. 12

Installation

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a key inserted into a control panel (no text or symbols present)

Line drawing of a laboratory setup with three compartments and a control panel (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Diagram showing a handheld electric drill with a magnified inset of its internal components (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, storage compartments, and a large cabinet (no text or symbols)

Technical line drawings of a kitchen appliance, including cabinets, drawers, and a hand tool (no text or symbols present)

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Installation

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cabinet with two doors and one door, no text or symbols present

Diagram showing a handheld tool and its application in a control panel, with an inset close-up highlighting the tool's component.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

No. 6 No. 11

No. 9 No. 10

No. 5 No. 7

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Impostare

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-level cabinet or enclosure with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Impostare

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Technical diagram showing a drill tool and a corresponding experimental setup with labeled components.

Line drawing of a cabinet with two doors and one door, no text or symbols present

Diagram showing a drill tool and its inspection of a control panel, alongside a cabinet with patterned wood.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment (no text or symbols)

Technical line drawing of a mechanical assembly with dashed circular annotation (no text or symbols)

No. 6 No. 11

Montaje de ruedas

No. 9 No. 10

Montaje de pies

No. 5 No. 7

Montaje de estantes

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Configuración

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and one door, no text or symbols present

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-level cabinet or enclosure with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Configuración

Simple line drawing of a rectangular frame with four legs and a horizontal base (no text or symbols)

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Diagram showing a handheld tool and its application in a control panel, with an inset close-up highlighting the tool's component.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment (no text or symbols)

Technical line drawing of a mechanical assembly with dashed circular annotation (no text or symbols)

No. 6 No. 11

No. 9 No. 10

No. 5 No. 7

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Beállítás

Line drawing of a simple kitchen appliance setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols present)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, storage compartments, and a large cabinet (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly before and after modification, showing structural changes with magnified insets (no text or symbols)

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Beállítás

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Diagram showing a handheld tool and its application in a control panel, with an inset close-up highlighting the tool's component.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

No. 6 No. 11

Montering af hjul

No. 9 No. 10

Montering af fødder

No. 5 No. 7

Montering af hylder

Simple line drawing of a rectangular object with flat top surface (no text or symbols)

No. 1 No. 12 No. 5 No. 12

Opsætning

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage racks (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the door handle (no text or symbols)

Technical line drawing of a rectangular enclosure with dashed lines indicating internal structure (no text or symbols)

Technical line drawing of a multi-level cabinet or enclosure with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Montering af fødder

Technical line drawing of a mechanical assembly before and after modification, showing structural changes with magnified insets (no text or symbols)

Montering af hylder

Technical line drawing of two server rack cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Opsætning

Simple line drawing of a rectangular frame with two legs and a central horizontal bar (no text or symbols)

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing showing a handheld tool and a cabinet with patterned wood, no text or symbols present

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, storage compartments, and equipment (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Line drawing of a rectangular metal enclosure with dashed windows and mounting feet (no text or symbols)

No. 6 No. 11

Pyörien kokoonpano

No. 9 No. 10

Jalkojen kokoonpano

No. 5 No. 7

Hyllyjen kokoonpano

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Perustaa

Line drawing of a simple kitchen appliance setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool and grid (no text or symbols)

Line drawing of a laboratory apparatus with three compartments and a central cabinet (no text or symbols)

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small component (no text or symbols)

Line drawing of a laboratory apparatus with multiple cabinets and a central cabinet (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the door handle (no text or symbols)

Technical line drawing of a rectangular enclosure with dashed lines indicating internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Pyörien asennus

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Jalkojen asennus

Technical line drawing of a mechanical assembly before and after modification, showing structural changes with magnified insets (no text or symbols)

Hyllyjen asennus

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Työpöydän asennus

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Perustaa

Simple line drawing of a rectangular table or shelf with no text, numbers, or symbols

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing of a handheld electric drill and its corresponding electrical cabinet (no text or symbols)

Line drawing of a cabinet layout with front and side views, no text or symbols present

Line drawing of a cabinet with drawers and storage compartments, no text or symbols present

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Technical line drawing of a rectangular frame with dashed lines indicating hidden edges and a circular detail on the side (no text or symbols)

No. 6 No. 11

Wielen montage

No. 9 No. 10

Voeten montage

No. 5 No. 7

Planken montage

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Opgericht

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a key inserted into a control panel (no text or symbols present)

Line drawing of a laboratory setup with three compartments and a large cabinet (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Diagram showing a handheld electric drill with a magnified inset of its internal components (no text or symbols)

Line drawing of a multi-level kitchen or storage unit cabinet with drawers, doors, and fixtures (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage racks (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the door handle (no text or symbols)

Technical line drawing of a rectangular enclosure with dashed windows and mounting feet (no text or symbols)

Draai alle bouten vast. De installatie van de garagekastenset is voltooid.

Lade verwijderen

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Opgericht

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Technical diagram showing a drill tool and a corresponding experimental setup with labeled components.

Line drawing of a two-door cabinet with double doors and a handle (no text or symbols)

Diagram showing a drill tool and its inspection of a control panel, alongside a cabinet with patterned wood.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Four labeled illustrations of different wrenches and tools (1, 2, 3, 4), no text or symbols present.

5 6 7 8 9

1	Skiftenøkkel	4	Målebånd	7	6 mm stjerneskrutrekker
2	Magnetisk nivellering	5	Kvadrat	8	5 mm sporskrutrekker
3	Stud Finder	6	Blyant	9	Trådløs strømbormaskin

No. 6 No. 11

Montering av hjul

No. 9 No. 10

Føtter montering

No. 5 No. 7

Hyller Montering

Simple line drawing of a rectangular object with flat top surface (no text or symbols)

No. 1 No. 12 No. 5 No. 12

Oppsett

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

1. Rett inn pinnebrettet og skru dem fast på veggen.

Illustration of a handheld electric drill with a magnified inset showing a small tool and grid (no text or symbols)

Line drawing of a laboratory apparatus with three compartments and a central cabinet (no text or symbols)

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small component (no text or symbols)

Line drawing of a laboratory apparatus with multiple cabinets and a central cabinet (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage racks (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Skyv ned den andre siden

3.1.2. MSW-GTC-200G

Maskinvare inkludert

Nr.	BESKRIVELSE	VEGGSKAP x2	SKÅP x1	1-SKUFF R. SKAP x1	4- SKUFFERS R. SKAP x1	52IN ARBEIDSBENK x1	PEGBOARD x 6
1	M6 sekskantflensmutter	8x2 4 0	0 0 0
2	Flat skive	4x2	4	0	0	0	4x6
3	Nøkkel	0	2	2	2	0	0
4	M5 x 50 sekskantborebolt	4x2 4 0	0 0 4x6
5	M6x 12 flathodebolt	8x2	20	0	0	0	0
6	M5 x 12 flathodebolt (på døren)	2x2 4 6	8 0 0
7	Justerbare nivelleringsføtter	0 4 0	0 0 0
8	Hylle	0	3	1	0	0	0
9	Hjul	0	0	4	4	0	0
10	M8 x 20 sekskantflensbolt	0 0 16	16 0 0
11	Grip håndtak	0	0	2	2	0	0
12	M8 x 16 flathodebolt	0 0 4	4 8 0
13	M8 x 65 sekskantbolt	0 0 0	0 4 0
14	M8 sekskantflensmutter	0 0 0	0 4 0

Nyttige verktøy

1

2

3

4

5

6

7

8

9

1	Skiftenøkkel	4	Målebånd	7	6 mm stjerneskrutrekker
2	Magnetisk nivellering	5	Sett Square	8	5 mm sporskrutrekker
3	Stud Finder	6	Blyant	9	Trådløs strømbormaskin

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a mechanical housing with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Montering av hyller

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Oppsett

Simple line drawing of a rectangular frame with two legs and a central horizontal bar (no text or symbols)

1. Rett inn pinnebrettet og skru dem fast på veggen.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing showing a handheld tool and a cabinet with patterned wood, no text or symbols present

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, drawers, and storage units (no text or symbols)

Diagram of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Technical line drawing of a rectangular frame with dashed internal lines and mounting feet (no text or symbols)

No. 6 No. 11

Hjul montering

No. 9 No. 10

Fötter Montering

No. 5 No. 7

Montering av hyllor

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Uppstart

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and one door, no text or symbols present

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal structure of a server rack unit, with Chinese annotations.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Tryck upp ena sidan

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Technical line drawing of a mechanical housing with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Technical line drawing of two server cabinets with internal shelves and mounting feet, showing structural details (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Uppstart

Simple line drawing of a rectangular table or shelf with no text, numbers, or symbols

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Line drawing of a handheld electric drill and its corresponding electrical cabinet (no text or symbols)

Line drawing of a cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a laboratory or office setup with cabinets, drawers, and storage units (no text or symbols)

Line drawing of a handheld electric drill with an inset close-up showing the handle (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure frame with dashed lines indicating hidden edges and mounting feet (no text or symbols)

No. 6 No. 11

Montagem de rodízios

No. 9 No. 10

Montagem de pés

No. 5 No. 7

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Configurar

Line drawing of a simple kitchen appliance setup with a cabinet and two doors (no text or symbols)

1. Alinhe o pegboard e parafuse-os na parede.

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and one door, no text or symbols present

Line drawing of a handheld electric drill with an inset showing a close-up of the drill (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, cabinets, and storage compartments (no text or symbols)

Technical diagram showing a drill tool and its close-up of the internal panel, with Chinese annotations.

Technical line drawing of a mechanical assembly with two views (dashed and solid) showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with dashed circular annotation (no text or symbols)

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Instalando os rodízios

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Instalando os pés

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Instalando as prateleiras

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly with vertical supports and mounting feet (no text or symbols)

Configurar

Simple line drawing of a rectangular frame with no text, numbers, or symbols

1. Alinhe o pegboard e parafuse-os na parede.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Diagram showing a handheld tool and its application in a control panel, with an inset close-up highlighting the tool's component.

Line drawing of a cabinet with front and side views, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

No. 6 No. 11

Montáž koliesok

No. 9 No. 10

Montáž nôh

No. 5 No. 7

Montáž regálov

Simple line drawing of a rectangular object with no text or symbols

No. 1 No. 12 No. 5 No. 12

Nastavit

1. Naplánujte si polohu skriniek, umiestnite skrinku a 1-zásuvkovú skrinku.

Line drawing of a simple office furniture setup with a cabinet and two doors (no text or symbols)

Illustration of a handheld electric drill with a magnified inset showing a small tool (no text or symbols present)

Line drawing of a laboratory apparatus with bed, rack, and cabinet components (no text or symbols)

Line drawing of a cabinet with two doors and a shelf (no text or symbols)

Line drawing of a handheld electric drill bit with an inset showing a close-up of its screen (no text or symbols)

Line drawing of a multi-level office or storage unit cabinet with drawers, doors, and storage compartments (no text or symbols)

Technical line drawings of a laboratory apparatus with labeled components and an inset image of a handheld tool (no text or symbols present)

Technical line drawing of a multi-level industrial cabinet with open doors and internal compartments (no text or symbols)

Inštalácia koliesok

Technical line drawing of a mechanical enclosure with mounting holes and internal components (no text or symbols)

Inštalácia nožičiek

Technical line drawing of a mechanical assembly with three views showing progressive assembly (no text or symbols)

Inštalácia políc

Technical line drawing of two server rack cabinets with internal shelving and mounting hardware (no text or symbols)

Technical line drawing of a mechanical frame assembly with mounting feet and structural supports (no text or symbols)

Nastavit

Simple line drawing of a rectangular frame with four legs and a horizontal base (no text or symbols)

Technical diagram showing a drill tool and a corresponding experimental setup with labeled components.

Line drawing of a two-decker cabinet with doors and drawers (no text or symbols)

Diagram showing a handheld tool and its application in a control panel, with an inset close-up highlighting the tool's component.

Line drawing of a cabinet with front and side views, no text or symbols present

1. Oprite skrinku o stôl. Otvorte dvierka skrinky a bezpečne pripevnite skrinku na stenu, aby ste zabránili jej prevráteniu.

Technical line drawing of a mechanical assembly with no visible text or symbols

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
