USER MANUAL FBFP XS A52 FRANKE

Technical line drawing of a rectangular electronic device with a circular top component and mounting holes (no text or symbols)

FBFP A52

FBFP A70

FBFP A86

EN User manual
DE Benutzerhandbuch
FR Manuel d'utilisation
NL Gebruikershandleiding
U.Manuale d'uso
ES Manual de uso
PT Manual de utilização
Εγχειρίδιο χρήσης
PA Brugsvejledning
NO Brukerhandbok
SV Bruksanvisning
H.Kayttoopas
UK.Посібник користувача
LT. Naudojimo vadovas
LV Lietosanas rokasgrāmata

ET Kasutuşjuhend
CS.Návod k použití
PL Instrukcja obsługi
Sl Prirocnik za upořabo
Упутство за употребу
HU Hasznalati utasitas
HR Priručnik,za upotrebu
RQ Manual de utilizare
КУ Руководство по эксплуатации
IR Kullanim kilavuzu
AR للهيلتحّم

EN 3
DE 10
FR 17
NL 24
IT 31
ES 38
PT 45
EL 52
DA 60
NO 67
SV 74
FI 81
UK 88
LT 95
LV 102
ET 109
CS 116
PL 123
SL 131
SR 138
HU 145
HR 152
RO 159
RU 166
TR 174
AR 181

CONTENTS

SAEETY INFORMATION ....3

USE 5

CLEANING AND MAINTENANCE 5

CONTROLS 6

FRANKE@HOME APP 9

REMOTECONTROL 9

LIGHTING 9

SAFETY INFORMATION

- For your own safety and correct operation of the appliance, please read this manual carefully before installation and use. Always keep these instructions together with the appliance even if it is sold or transferred to third parties. Users must fully know the operation and safety features of the appliance.

- The electrical connections have to be done by specialized technician.

- The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

- Check that the mains power supply corresponds to the one indicated on the rating plate on the product.

- WARNING: Before installing the appliance, remove the protective films (if present).

- Do not touch the appliance if your hands or body are wet.

- Ensure that the device is not exposed to atmospheric agents (rain, sun).

- Keep the packaging away from children and animals.

- Do not use adapters, multiple sockets or extension cables to connect the device.

• Do not stand on the appliance, as this _may damage it.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not intended for use by persons (including children) with reduced physical, Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Connect the plug to a socket complying with current regulation, located in an accessible place.

EN

• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified _persons in order to avoid a hazard,
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Do not flambé (Fire hazard).

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Use only screws and small parts in _support of the appliance.
• Ensure that the device is installed in a way that allows to disconnect it from the power supply, with a contact opening distance (3mm) that ensures complete disconnection in category III overvoltage conditions.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

CAUTION: the appliance and its accessible parts may become hot during the use with cooking appliances.

• The minimum safety distance between the cooker top and the lowest part of the range hood is 650 mm (some models may be installed at lower height; please check the paragraph relating to working dimensions and installation).

- If the instructions for installation for the gas hop specify a greater distance, this has to be taken into account.

- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to. closely follow the regulations provided by the local authorities,
• There shall be adequate ventilation of the room when this appliance is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room), in order to prevent the backflow of exhaust gas.
• Clean the appliance and the filters and replace them after the specified time period (Fire hazard). See paragraph Cleaning and Maintenance...
• Regulations concerning the discharge of air have to be fulfilled.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• When the cooking appliance and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 par), to prevent fumes being sucked back into the room by the cooking appliance.
• Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.
  • The symbol on the product or on its packaging indicates that the product

must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed information on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

Declaration of Conformity

The manufacturer declares that this appliance with radio functionality complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following link by searching for the product code:

https://www.franke.com/,

This code can be found on the label located inside the product.

USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.

CLEANING AND MAINTENANCE

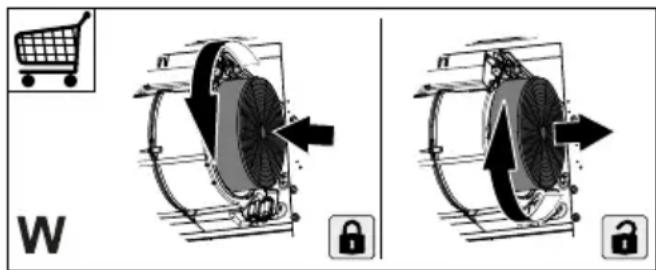

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

W N N

Frequency bands Maximum transmitted power 2.4 GHz 100 mW max.

PSTI Statement of Compliance

The manufacturer declares that this product is compliant with the applicable security requirements in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 ("Security Requirements"). The Statement of Compliance (SOC) can be found at the following link:

https://catalog.franke.com/franke/psti/builtin/

QR code image containing encoded data, no visible human-readable text

• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-frivers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

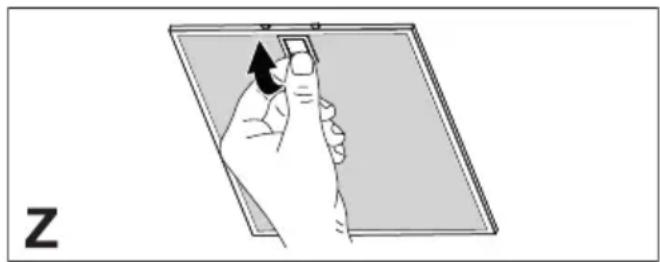

- The grease, filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external, and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

CONTROLS

	(80YC)	(W6DY)	(845K)	(DCH8)	(3KBT)	(KBD7)
Key Key press Function LED
L	Short	The lights alternate between high intensity, medium intensity (if present), off.
		If there is an induction cooktop coupled with the hood and the hood is off, as soon as the induction cooktop is turned on, the hood lights automatically turn on at the maximum intensity.				-
	Long press with lights on	It is possible to change the intensity of the light cyclically. Using long separate presses it is possible to vary the tone of the light between 'warm' and 'cold'.				Flashing
	Long press with all loads off (motor and lights)	K-Link couplingBefore starting the procedure follow the specific instructions of the manuals of the devices to be coupled.For the remote control, see "connected mode".Starts the pairing procedure between the hood and compatible K-Link devices (induction cooktop or remote control). Up to 3 induction cooktops can be paired and only one remote control. See the manual of the devices for details of the operations that need to be performed on these.The coupling procedure takes 2 minutes. If no devices are recognised within this time check that you have previously activated the procedure for the devices to be coupled. The maximum number of linkable devices may have been reached.				LEDs T1 and T2 flashing: coupling in progress.Upon successful completion of the procedure LEDs T1 and T2 will light up for 2 seconds.
T1	Short Turns the motor on/off at the first speed. Fixed
	Long press with light on	Activates/Deactivates the Activated Carbon Filters alarm.				All LEDs flash twice: alarm activated.All LEDs lit for 1 second: alarm deactivated.
	Long press with all loads off (motor and lights)	K-Link uncouplingStarts the procedure for the cancellation of all compatible K-Link devices previously coupled with the K-Link coupling function.				Upon successful completion of the procedure LEDs T1 and T2 flash 5 times.

T2	Short Turns the motor on/off at the second speed. Fixed
	Long press with light on	24h FunctionActivates/Deactivates the motor in the 24h Air Exchange mode, a speed that allows suction of 10 minutes every hour, for a 24-hour cycle.Cannot be activated if the Intensive or Delay modes are active.	Flashing
	Long press with all loads off (motor and lights)	Wi-Fi connectionActivates/Deactivates the Wi-Fi Connection function.Note: the Wi-Fi function is automatically activated when the user requests the Wi-Fi configuration procedure.	LED S1 Flashing: connection to domestic network in progress.LED S1 Fixed: Wi-Fi connection activated.
T3	Short Turns the motor on at the third speed. Fixed
	Long press with light or motor on	Turns the motor on at the Intensive speed.This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode.	Flashing
	Long press with all loads off (motor and lights)	The Filter saturation alarm is reset.	All LEDs flash 3 times.
		Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.	LEDs T2 and T3 lit with the hood off.
		Signals the Activated Charcoal Odour Filter saturation alarm. The alarm is activated after 200 hours of effective hood operation.	LEDs T2 and T3 flashing with the hood off.
T4	Short	AUTO ModeActivates/Deactivates the Automatic operating mode.AUTO mode is deactivated whenever any other keys arepressed.AUTO mode is activated when the key is pressed or the Coupled Induction Cooktop is turned on. The hood speed is automatically set using the highest power level present on the hob. When the induction cooktop is turned off the last activated speed is held for 5 seconds, then speed 1 for 15 minutes. Once the 15 minutes have passed the motor turns off. The light status does not change.	Fixed on: AUTO mode activated.Off: AUTO mode temporarily deactivated.
	Long press with light on and motor off	Induction/Gas Cooktop SelectionSelect the type of cooktop in use, either Induction or Gas.The Induction Cooktop is set by default.	1 Flash: confirms the Induction Cooktop selection.2 Flashes: confirms the Gas Cooktop selection.
	Long with motor on	Delay FunctionActivates/Deactivates the Delay function (automatic shutdown of the Motor and of the lighting delayed by 30").Cannot be activated with Intensive or 24h function.	Flashing
	Long press with all loads off (motor and lights)	Wi-Fi configurationActivates/Deactivates the Wi-Fi set-up procedure.Before starting the procedure, use the Franke@Home App to register with the Franke IoT system. Then follow the instructions to add a new device and register the domestic router.If the procedure is not successfully completed within a few minutes, deactivate it by long pressing the key again, then make another attempt. The hood will nonetheless abandon the procedure if it is not successfully completed within 15 minutes.	LEDs T3 and T4 flashing: configuration procedure in progress.Upon successful completion of the procedure LEDs T3 and T4 will light up for 2 seconds.

Recommended device coupling sequence:

1 - K-Link Mode (See "connected mode" of remote control manual)

2 - K-Link Coupling (See hood manual)

3 - Remote Control-Hood Coupling (See remote control manual)

4 - K-Link Coupling (See hood manual)

5 - Cooktop-Hood Coupling (See induction cooktop manual)

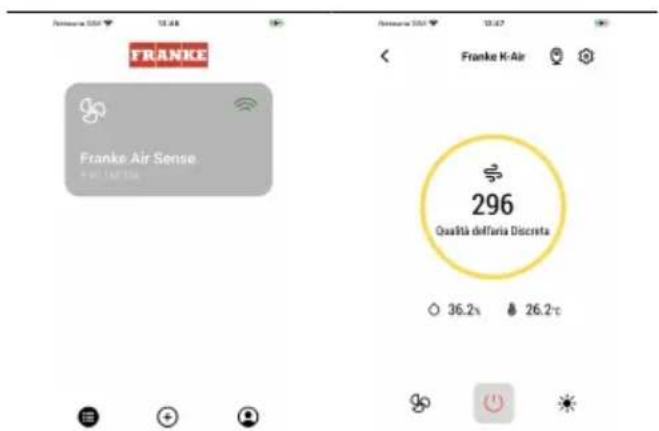

FRANKE@HOME APP

The Franke@Home App is available for iOS and Android smartphones and allows remote access to all hood functions.

FRANKE Franke Air Sense 296 QuaRà dell'aria Discreta 36.2s 26.2°C

Icon Function

Home page

Add new device

REMOTE CONTROL

• This appliance may be controlled using a remote control.
• WARNING: before proceeding, activate K-Link Mode on the remote control (see the device manual for further details).

LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").

User profile management

Connected to the Wi-Fi Franke network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

ATTENTION: some functions can only be activated via the remote control (refer to the device manual for further details).

INHALT

W Eut filter filter filter (O) Lock Lock

Illustration of a hand holding a tablet with an arrow pointing to the screen (no text or symbols present)

Z

Technical diagram of a mechanical fan assembly with no visible text or symbols

Mechanical diagram showing a cam or bow assembly with directional arrows indicating motion (no text or labels)

Illustration of a hand holding a small object with an arrow pointing upward (no text or symbols)

z COMMANDES

Illustration of a hand holding a tablet with an arrow pointing to the screen (no text or symbols present)

Z

Illustration of a hand holding a tablet device with an arrow indicating the tip (no text or symbols present)

LIMPEZA E MANUTENCAO 47

COMANDOS 48

APP FRANKE@HOME 51

COMANDO 51

ILUMINACAO 51

INFORMAÇÕES DE SEGURANÇA

Illustration of a hand holding a tablet with an arrow indicating left-hand rule (no text or symbols)

COMANDOS

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

W E 40% lift filter on 12.5mm x 10.5mm x 9.5mm x 8.5mm x 7.5mm x 6.5mm x 5.5mm x 4.5mm x 3.5mm x 2.5mm x 1.5mm x 0.5mm x 0.1mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 0.0mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm x 12.5mm X

Illustration of a hand holding a tablet device with an arrow pointing to the screen (no text or symbols present)

Illustration of a hand holding a small object with an arrow pointing upward, against a plain background (no text or symbols)

Z

Illustration of a hand holding a small object with an arrow pointing upward, against a plain background (no text or symbols)

Diagram illustrating fan installation and lock mechanism with shopping cart icon and labeled parts

Illustration of a hand holding a small object over a flat surface, with an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a tablet with a black arrow pointing to the screen (no text or symbols)

W Dialoal filter tool with 70% dials or 0% dials

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow indicating the fold (no text or symbols present)

• Notriet tvaika nosučaju, izmantojot mitru granu un neitralu skidru mazgasanas lidzekli.
• Tvaika nosučeja arejai.un iekšejai tirišanai nelietojet spirta val silikona lidzeklus.
  Ja produkts vai kāda no tā dalām ir jizgatavoti no nerusejosa terauda, izmantojiet ipasus

W Rec of full height for full height

Illustration of a hand holding a tablet device with an arrow indicating the fold (no text or symbols present)

Diagram illustrating a mechanical device with labeled parts and directional arrows, including a shopping cart icon and lock symbols.

Illustration of a hand holding a tablet device with an arrow indicating the fold (no text or symbols present)

W Dust' max' size filter is above a X141'

Illustration of a hand holding a tablet device with an arrow indicating rotation (no text or symbols)

- Napo očistite s pomočio vlažne krpe in nevtralnega.tekocega detergenta. - Pri zunaniem in notranjem ciscenju nape se izogibajte alkoholnim ali silikonskim sredstvom.

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Diagram illustrating a car recycling mechanism with labeled parts and directional arrows, including a shopping cart icon.

- Filtri za mast moraju se cistiti svaka 2 mjeseca rada ili cesce u slucaju vrlo intenzivne uporabe i mogu se prati u perilici posuda (Z).

Proizvođač izjavljuje da je ovaj uređaj s funkciom bezicnog radija u skladu s direktrivom 2014/53/EU Cjeloviti tekst izjave o.sukladnosti EU dostupan je na slijedecoj internetskoj adresi pretrazivanjem prema kodu proizvoda:

https://www.franke.com/

W Filterable drive save a power control box

Illustration of a hand holding a tablet with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow pointing to the screen (no text or symbols)

/https://www.franke.com

Illustration of a hand holding a small object on a flat surface, with an arrow indicating upward motion (no text or symbols)
