Product type	Extractor hood
Brand	Franke
Model	FSTP NG 905
Use	Domestic
Minimum safety distance (cooking surface)	650 mm
Diameter of exhaust duct	Minimum 120 mm
Filtration types	Grease filter (washable) and activated carbon filter (replaceable)
Grease filter cleaning frequency	Every 2 months (more often with heavy use)
Carbon filter replacement frequency	Approximately 4 months (more often with heavy use)
Exterior cleaning	Damp cloth and neutral liquid detergent (avoid alcohol/silicone)
Number of suction speeds	Multiple adjustable speeds
Lighting	Yes, handle-controlled
Lighting replacement	Contact after-sales service
Electrical class	Class I
Power supply	Mains (voltage as per rating plate)
Installation	By a competent technician
Material	Stainless steel (depending on model)
Warranty	See commercial conditions

Frequently Asked Questions - FSTP NG 905 FRANKE

What is the safety distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. If the gas cooking surface specifies a larger distance, follow that.

How to clean the grease filters?

The grease filters must be cleaned every 2 months in the dishwasher or by hand with a neutral detergent.

When to replace the carbon filter?

The activated carbon filter should be replaced after approximately 4 months of operation, or more frequently with heavy use.

Can I use the hood with a gas cooker?

Yes, but make sure the room is properly ventilated and respect the minimum safety distance of 650 mm. Avoid operating the hood with open flames.

How to turn on the lighting?

To turn on the lights, push the handle and release it to bring it out of its seat. To turn off, push it back inward.

What to do if the hood does not work?

First check the power supply and that the plug is connected. If the cord is damaged, have it replaced by an authorized technician.

Can I install the hood myself?

Installation must be carried out by a competent technician respecting electrical and evacuation standards.

How to adjust the suction speed?

Push the handle to extend it, then turn it to select the desired speed.

What cleaning product to use for the exterior?

Use a damp cloth with a neutral liquid detergent. Avoid alcohol-based or silicone products. For stainless steel, follow the satin lines.

Where to find spare parts?

For replacement of filters or lighting, contact Franke after-sales service.

USER MANUAL FSTP NG 905 FRANKE

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a rectangular base (no text or symbols)

IT 3

EN 7

DE 10

FR 14

TR 18

ES 21

PT 25

GR 29

RU 33

NL 37

SI 41

SV 44

PL 47

CZ 51

HR 54

HU 57

SR 61

LT 65

LV 68

ET 71

FI 74

UK 77

RO 81

DA 85

NO 88

BG 91

AR 95

IT

Illustration of a hand holding a smartphone with a finger pointing at it, next to a stylized 'Z' logo (no text or symbols on the device itself)

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

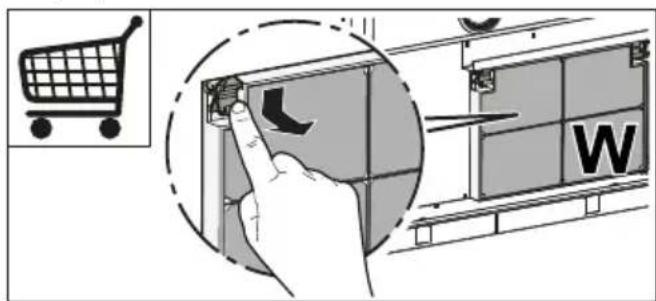

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

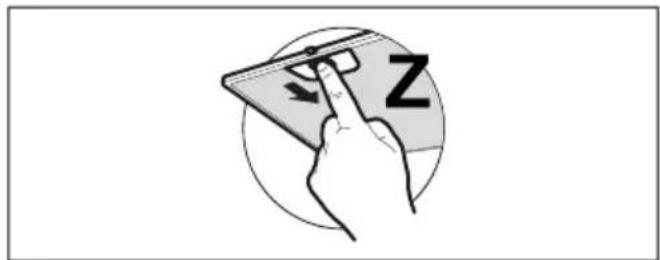

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

- Clean the hood using a damp cloth and a neutral liquid detergent. - For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Light	To turn on the lights, press the hand grip and release it so that it comes out of its housing. To turn off the lights, press the hand grip in again, putting it back in the off position.
Motor speed adjustment	Push the hand grip and release it so that it comes out of its housing, then turn the hand grip to select one of the available suction speeds.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").

DE

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Hand holding a tablet with a finger pointing at it, overlaid with a stylized letter 'Z' (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the letter)

Illustration of a hand interacting with a tablet device, showing a finger and mouse movement (no text or symbols)

Освещение

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the letter)

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Illustration of a hand interacting with a smartphone displaying a Z symbol (no text or symbols present)

Illustration of a hand interacting with a tablet device (no text or symbols visible)

- Filtri za mast moraju se čistiti svaka 2 mjeseca rada ili češće u slučaju vrlo intenzivne uporabe i mogu se prati u perilici posuđa (Z).

Illustration of a hand holding a smartphone with a Z symbol on the screen (no text or symbols present)

- Očistite napu vlažnom krpom i neutralnim tekućim deterdžentom. - Za vanjsko i unutarnje čišćenje nape izbjegavajte alkoholna ili silikonska sredstva.

Illustration of a hand interacting with a smartphone displaying a Z symbol (no text or symbols present)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

Illustration of a hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Illustration of a hand holding a smartphone with a Z symbol on the screen (no text or symbols present)

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, next to a stylized 'Z' logo (no text or symbols on the device itself)

Illustration of a hand interacting with a smartphone displaying a 'Z' symbol (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, next to a circular logo containing the letter 'Z' (no text or symbols on the device itself)

Hand holding a smartphone with a Z symbol on the screen, enclosed in a circular frame (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a 'Z' and arrow icon, enclosed in a circular frame (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the letter)
