Product type	Range hood
Brand	Franke
Model	FPJ 925 V WH/SS
Width	90 cm
Height	65 cm
Depth	50 cm
Weight	15 kg
Supply voltage	220-240 V
Frequency	50 Hz
Motor power	200 W
Lighting power	2 x 3 W LED
Maximum noise level	65 dB(A)
Maximum airflow	600 m³/h
Number of speeds	3
Exhaust mode	Exhaust or recirculation
Grease filter	Washable stainless steel
Charcoal filter	Optional
Control type	Push buttons
Energy class	A+
Maintenance	Regular cleaning of grease filters
Spare parts	Available via Franke after-sales service

Frequently Asked Questions - FPJ 925 V WH/SS FRANKE

How to install the FPJ 925 V WH/SS hood?

Installation must be carried out by a qualified professional. The hood must be securely fixed to the wall at a height of 65 to 75 cm above the cooktop. Follow the mounting diagram provided in the manual.

How to clean the grease filters?

The stainless steel grease filters can be cleaned in the dishwasher or by hand with hot soapy water. Let them dry completely before putting them back. Frequency: every 2 months.

Do I need a charcoal filter for this hood?

A charcoal filter is necessary only if you use the hood in recirculation mode. It is placed behind the grease filters. It must be replaced every 6 months approximately.

What to do if the hood does not turn on?

First check the electrical connection and the circuit breaker. Then inspect the bulb and the fuse. If the problem persists, contact Franke after-sales service.

How to adjust the hood speed?

Use the push buttons on the control panel. There are 3 speeds: low for simmering, medium for normal cooking, high for strong odors.

What is the recommended installation height?

For a 90 cm hood, the minimum height between the cooktop and the hood is 65 cm for electric cooking and 75 cm for gas cooking.

How to replace the LED bulb?

Unplug the hood. Remove the plastic diffuser by unclipping it. Unscrew the LED bulb and replace it with a bulb of the same type (3 W, GU10 base). Reassemble the diffuser.

The hood is noisy, is this normal?

A slight noise is normal, especially at high speed. If the noise becomes abnormal, check that the filters are properly in place and that no object is obstructing the duct. A rattling noise may indicate a loose filter.

Can the hood be used in recirculation mode without a duct?

Yes, it is possible. A recirculation kit containing a charcoal filter must be installed. The filtered air is returned to the room. Ensure the room is well ventilated.

Where to find spare parts for my Franke hood?

Spare parts are available from Franke after-sales service. You can order online from the official website or contact an authorized dealer. Have the model number FPJ 925 V WH/SS ready.

USER MANUAL FPJ 925 V WH/SS FRANKE

IT 3

EN 7

DE 11

FR 15

TR 19

ES 23

PT 27

GR 31

RU 35

NL 39

SI 43

SV 47

PL 51

CZ 55

HR 59

HU 63

SR 67

LT 71

LV 75

ET 79

FI 83

UK 87

RO 91

DA 95

NO 99

BG 102

AR 106

IT

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system according to wiring system regulations.
• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances.

- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to recycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

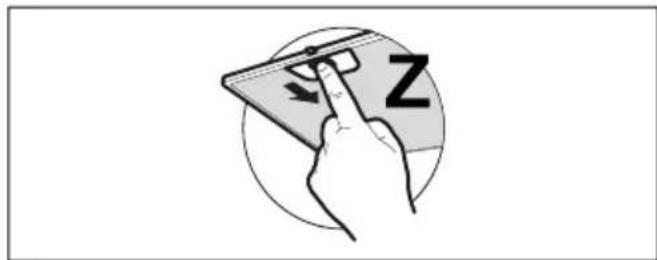

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and neutral liquid detergent. - For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key Functions LED
A	Switches the lighting system on and off to maximum brightness. On/Off.
	By pressing the key for approximately 2 seconds, the Delay function is activated/deactivated (automatic switch-off of the Motor and of the lighting delayed by 5').Press the speed key to disable.	Flashes.
B	Switches the extraction motor on and off to the first speed setting. On/Off.
C	Switches the extraction motor on and off to the second speed setting. On/Off.
D	Switches the extraction motor on to the third speed setting. On/Off.
	- Press and hold the speed setting button 3 for 3 seconds to obtain a high operating speed with a duration of 6 minutes. The LED flashes.- Press and hold the switch for 3 seconds before the end of the 6 minutes to return to speed 3. The LED stays on.- Press briefly before the end of the 6 minutes to switch off the hood.	On/Off.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").
