Technical data

Parameter description Parameter value
Product name Motorcycle lifter
Model	MSW-MH-680
Capacity max loading [kg] 680
Max lift [mm] 380
Min lift [mm] 180
Dimensions [width * length * height; mm] 370*810*870
Weight [kg] 27.5

Description

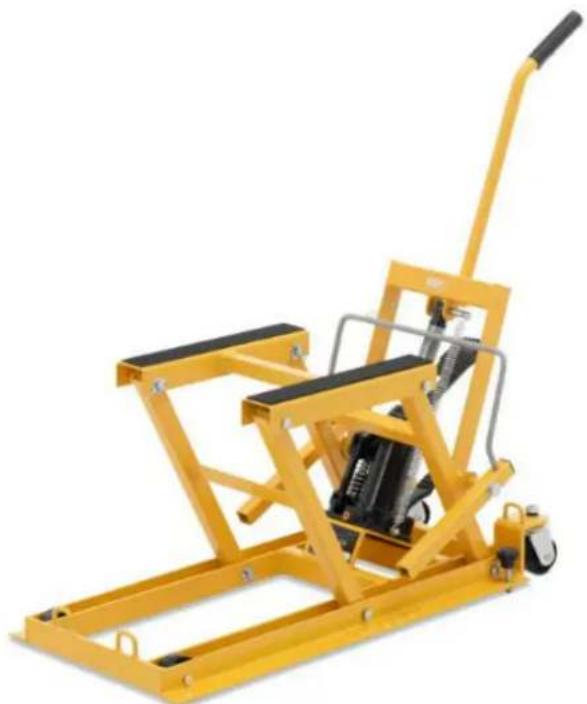

The product is designed for lifting and supporting motorcycles, ATVs, and quads.

The user is liable for any damage resulting from unintended use of the device.

Installation

CAUTION! The machinery must be installed and commissioned by qualified personnel. All relevant

safety regulations must be strictly adhered to! Use the disassemble drawing as your guide to assemble.

1. Attach the bottle Jack to the jack mounting plate.
2. Pump the jack into the proper position and secure the piston with the lifting frame.
3. Attach the safety bar and safety bar handle to the lifting frame.
4. Attach the foot pedal and handle.
5. Tighten all bolts and nuts.

Operation

Preparation

1. Purge air away from the hydraulic system.

Manual operating system: Let the lift in the lowest position, fully press the release foot pedal, then quickly press the lifting foot pedal 10-20 times to eliminate any air in the hydraulic system.

1. Carefully and slowly pinch the oil fill plug to release the trapped air.
2. Position the lift in a suitable area, checking that the surface on which the lift will stand is solid and flat.

To raise the vehicle

1. To avoid item from slipping during the raising operation, ONLY lift on points of the vehicle specified by the vehicle manufacturer in the vehicle's operator's manual.
2. Place the lift under the vehicle so that the Lift Saddle is positioned under the vehicle's lift point.
3. Pump the lifting foot pedal until the lift saddle comes in contact with the vehicle to be lifted, always check to be sure that the saddle and the vehicle are positioned correctly BEFORE raising the jack.
4. Apply tie-down straps (sold separately) BEFORE lifting the motorcycle. Thoroughly tighten the two tiedown straps.
5. Pump lifting foot pedal to raise vehicle until tip of safety bar moves past desired lock position ridge. The tip of the safety bar will sink into position just behind the ridge. Depress the release pedal slightly so that the tip moves snugly against the ridge.
6. Once the vehicle has been raised to the desired working height, then locking safety support.

To lower the vehicle

1. Raise the lift slightly and pull back on the safety bar handle to release the safety bar.
2. Pull the safety bar handle to release the safety lock.
3. Press the release pedal very gently to lower the saddle and vehicle.
4. Remove the tie-down, then vehicle.

ATV

Motorbike

Ride-On Mower

WARNING!

The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.

• DO NOT exceed rated capacity.
• When the lift saddle is at its highest position, DO NOT attempt to pump the lift higher as this can damage the mechanism.
  Use this lift for lifting purposes only. DO NOT use it for any other purpose it is not designed to perform.
• Keep children and unauthorized persons away from the work area.
• Remove all loose-fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain long hair.
• Wear ANSI/CE-approved safety goggles when operating the lift.
• Only use this lift on a surface that is stable, level, dry and not slippery, and capable of sustaining the load. Keep the surface clean, tidy, and free from unrelated materials, and ensure that there is adequate lighting.
  Always centre load on the lift saddle. When the lift saddle has been raised to the working height, ensure the locking bar is engaged to prevent accidental lowering.
  Always keep your hands and feet away from moving parts.
  DO NOT attempt to transport a load on the lift. The lift must only be used in a static position for lifting and lowering loads. Ensure that the load remains stable at all times.
  DO NOT operate the lift when you are tired or under the influence of alcohol, drugs, or any intoxicating medication.
  DO NOT allow untrained persons to operate the lift.
  DO NOT make any modifications to the lift.
  DO NOT expose the lift to rain or any other kind of bad weather.

Cleaning and maintenance

1. Keep the lift clean and wipe off any oil or grease. Lubricate all moving parts.
2. When not in use, the lift must be stored in the lowest position in a dry location to minimize ram and piston corrosion.
3. Before each use check all parts, ensure that all applicable bolts and nuts are firmly tightened. If any part of the lift is damaged or suspect, remove the lift from service and take necessary action to repair it.

4. Periodically check the ram and piston for signs of corrosion. Clean exposed areas with a clean oiled cloth.

5. When lift efficiency drops, purge away air from the hydraulic system.

6. Check the hydraulic oil level. If not adequate, add hydraulic oil as necessary. DO NOT use brake fluid or any other improper fluid.
7. If the lift needs repairing and/or any parts need to be replaced, have it repaired by authorized and trained technicians and only use the replacement parts supplied by the manufacturer.

Troubleshooting

Problem	Possible	cause
Can't lift load	1. Overload 1. Remove partial overload
	2. Release valve not complete closed 2.	Check the release valve
	3. Air in hydraulic system	3. Purge air away, see the “Preparation” section
Can't lift to full height	1. The oil is not enough 1. Add oil
	2. Air in hydraulic system	2. Purge air away, see the “Preparation” section
Oil leaking	1. Seals broken 1. Replace the seal kits
	2. Screw parts loosed 2. Tighten the screw parts

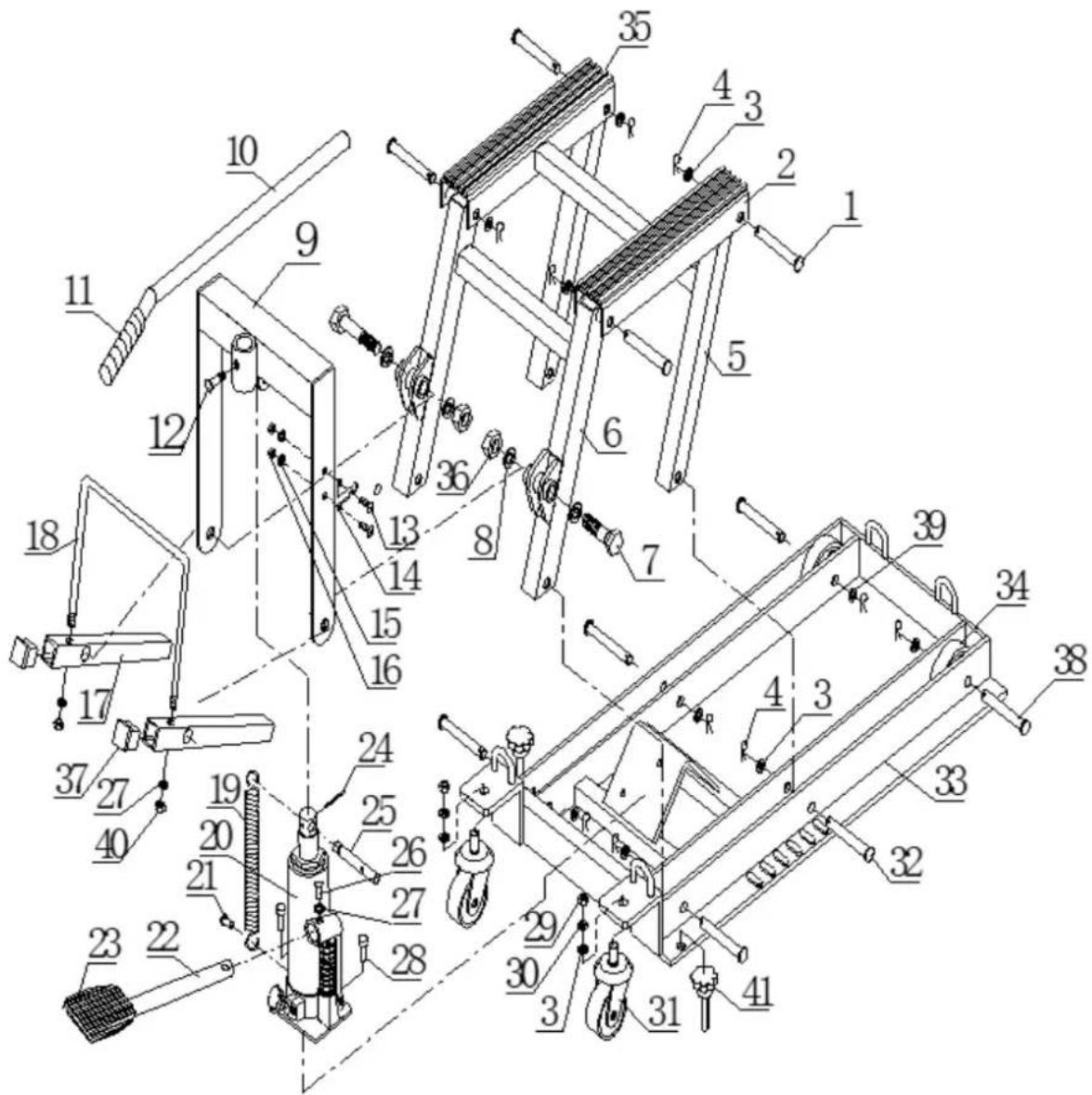

Parts diagram

No .	Description	Quantit y	No .	Description	Quantit y	No .	Description	Quantit y
1	Pin		4	15	Washer	Ø6	2 29	Nut
2	Table		1	16 Lock nut	M6	Spring washer 2012 30	2
3	Washer Ø12		10 Safety 17 support	2 31		2.5' castor		2
4	Pin	10	18	Safety arm	1	32	PinØ12X55	4
5	Front lifting arm	1	19	Spring	1	33	Bottom	1
6	Rear lifting arm	1	20	Safety arm	1	34	2.5' Iron wheel	2
7	Bolt M12X100	2	21	Bolt M6X20	1	35	Rubber plate	2
8	Washerø12	2	22	Lifting pedal	1	36	Lock nut	2
9	Lifting frame	1	23	Rubber sleeve	1	37	Plug	2
10	Handle	1	24	Pin	1	38	Pin φ10x55	2
11	Handle sleeve		1	25	Pin		1 39	Washer ΦM8
12	Bolt M8X35		1	26 Bolt	M8X16		1 40	Nut
13	Bolt M6X12		2	27	Washer Φ8		3 41	Screw
14	Insurance limit wire	1 28	Bolt	M8X16	2
