PLO-720 - Cutting plotter MSW - Free user manual and instructions

Product type	Cutter Plotter
Model	MSW PLO-720
Brand	MSW
Dimensions (L x W x H)	880 x 450 x 1000 mm
Weight	~15.4 kg
Rated voltage	230 V~ / 50 Hz
Rated power	95 W
Rated current	2 A
Protection class	I
Cutting speed	0.8 m/s
Cutting width	630 mm
Feeder width	720 mm
Cutting pressure	20 to 500 g
Max. cutting thickness	≤ 1 mm
Repeatability	0.1 mm
Connection interfaces	USB, COM
Included software	SignMaster CUT
Main functions	Vinyl cutting, test cut, offline mode, speed and pressure adjustment
Maintenance	Blade replacement every 6 months; cleaning of rollers and guide
Safety	Unplug before maintenance; do not touch the cord with wet hands; avoid thunderstorms
Spare parts and repairability	Spare blades, blade holder, pinch rollers, fuse
Supplied accessories	Stand, USB cable, serial cable, blade, software on USB stick

Frequently Asked Questions - PLO-720 MSW

How to install the blade on the MSW PLO-720 cutter plotter?

Unscrew the cap of the blade holder carriage, set the brass ring to the lower position, remove the blade protection cover, insert the blade into the carriage, screw the cap back on. Adjust the blade protrusion to approximately 0.4 mm by turning the cap, then tighten the brass ring against the cap.

How to adjust the cutting depth?

Loosen the blade adjustment nut and turn the pressure rod to expose the desired tip length. The tip should protrude just enough to cut through the material without damaging the backing. Tighten the nut after adjustment.

What is the recommended cutting speed for the MSW PLO-720?

The default speed is 300 mm/s, suitable for most cuts. For small details, reduce the speed; for large shapes, you can increase up to 600 mm/s or more depending on the material.

How to connect the plotter to a computer?

The plotter can be connected via USB or serial port (COM). For USB, install the provided SignMaster software (the driver is included). Connect the USB cable, open the software, go to Properties > Connection, select the model and direct USB port. For serial, connect directly, the default COM port is COM1.

What to do if the paper deviates during cutting?

The deviation may be due to uneven pressure of the pinch rollers. Turn the two yellow brass nuts on each paper press to the same height to balance the pressure.

How to replace a worn blade?

Loosen the carriage locking button, remove the old blade holder. Unscrew the cap of the blade holder, remove the worn blade. Insert a new blade adjusting the protrusion to 0.4 mm. Reassemble everything. Blades should be replaced every 6 months, or more often for thick materials.

The plotter does not connect to the software, what to do?

Check the port settings in the software (baud rate, data bits, etc.). Make sure the correct COM port is selected. For USB, verify that the driver is installed and the cable is properly connected. Avoid USB adapters or extension cables.

Can the plotter be used without a computer?

The plotter can operate in offline mode (pause) to reposition the material and blade, but the cutting itself requires a computer with SignMaster software to send the designs.

How to maintain the cutter plotter?

Regularly clean the feed rollers and guide with a soft cloth. Replace the blade every 6 months. Check the pinch rollers and lubricate the guides if necessary. Before any maintenance, unplug the device.

What materials can be cut with the MSW PLO-720?

The plotter is designed to cut vinyl, flock, glitter, reflective materials and other roll or sheet media, thickness ≤ 1 mm. Adjust pressure and speed according to the material.

USER MANUAL PLO-720 MSW

KLINGENMONTAGE

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a circular vent and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a perforated base and mounting bracket (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a portable electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

TECHNICAL DATA

Parameter description Parameter value
Product name	Cutting plotter
Model	MSW-PLO-375	MSW-PLO-1350	MSW-PLO-720
Rated voltage [V~] / frequency [Hz]	230 / 50
Rated power [W]	90	95	95
Current [A]	2
Protection class	I
Dimensions [width x depth x height; mm]	530 x 235 x 210	1510 x 455 x 1000	880 x 450 x 1000
Weight [kg]	~6.45	~19	~15.4
Cutting speed [m/s]	0.8
Cutting width [mm]	285	1260	630
Feeder width [mm]	375	1350	720
Cutting pressure [g]	20-500
Cutting thickness [mm]	≤1
Repeatability [mm]	0.1
Connection interface	USB, COM

PRECAUTIONS

a) Protective material must be removed before turning on the cutting plotter.
b) Check the label on the back side of the plotter to confirm that the rated voltage required by the plotter matches the voltage of the power base.
c) Firstly make sure that the power switch is off, then plug the power supply into grounded power outlet.
d) Please do not touch the power cord with wet hands to avoid electric shock.
e) Please only use the power cord, data cable provided with this product, or manufacturer-approved replacements.
f) Please do not drop metal objects and liquids into the machine to avoid malfunction.
g) After shutting down, you must wait another 5 seconds to turn on the cutting plotter again, otherwise it will cause damage to the cutting plotter.
h) In thunderstorms, turn the power switch to OFF and unplug the power cord.
i) Please do not privately change the manufacturer's components.
j) Manufacturer reserves the right to change product specifications without prior notice.
k) The manufacturer only bears the legal obligations of the product itself sold to the users, and does not bear other losses caused by the malfunction of the products.
I) Without our company's permit, no part of this manual can be copied or transmitted in any name.
m) Do NOT drag the carriage by hand.
n) If there is an abnormal sound after powering on the machine, please turn off the power immediately and contact the after-sales department for feedback.

PRODUCT DESCRIPTION

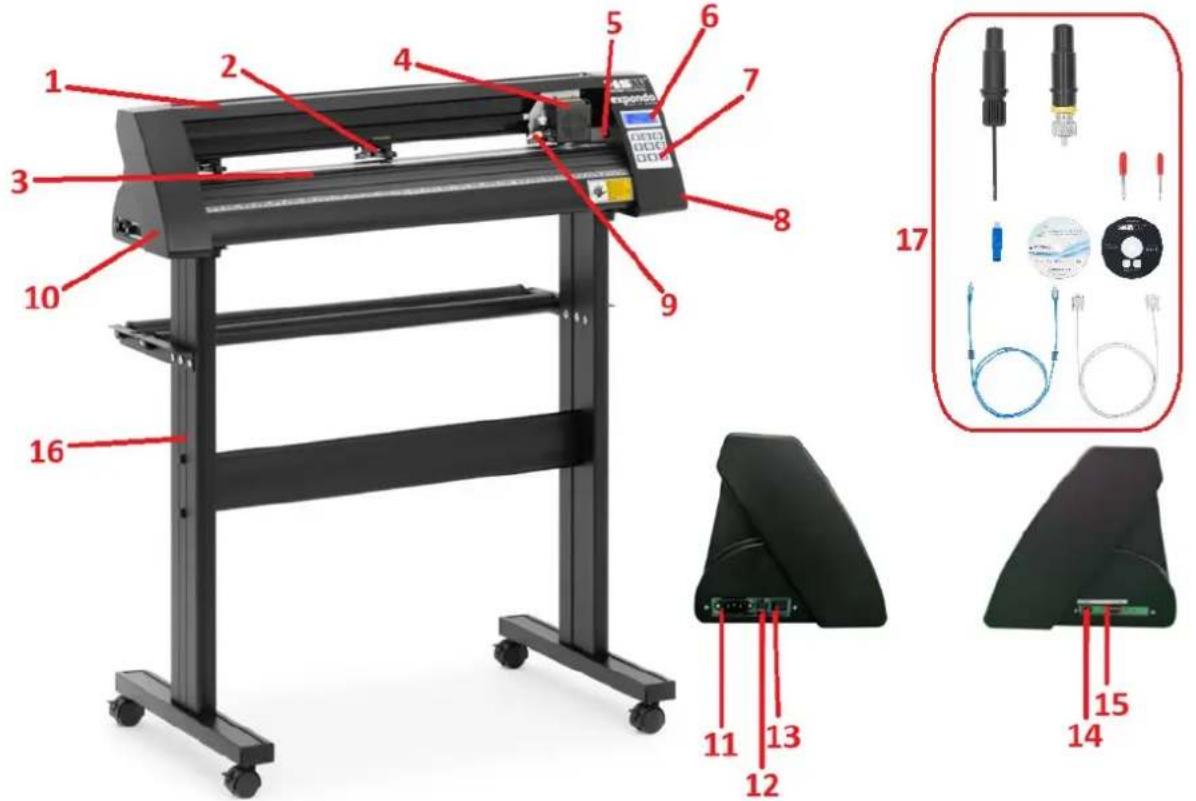

1. Rail guide cover
2. Pinch roller kit
3. Feeding paper roller
4. Carriage
5. Reset switch
6. Display
7. Control panel
8. Right side cover
9. Blade clamp
10. Left side cover
11. Power connection socket
12. Fuse holder
13. Power switch
14. USB port
15. COM port
16. Stand
17. Accessories

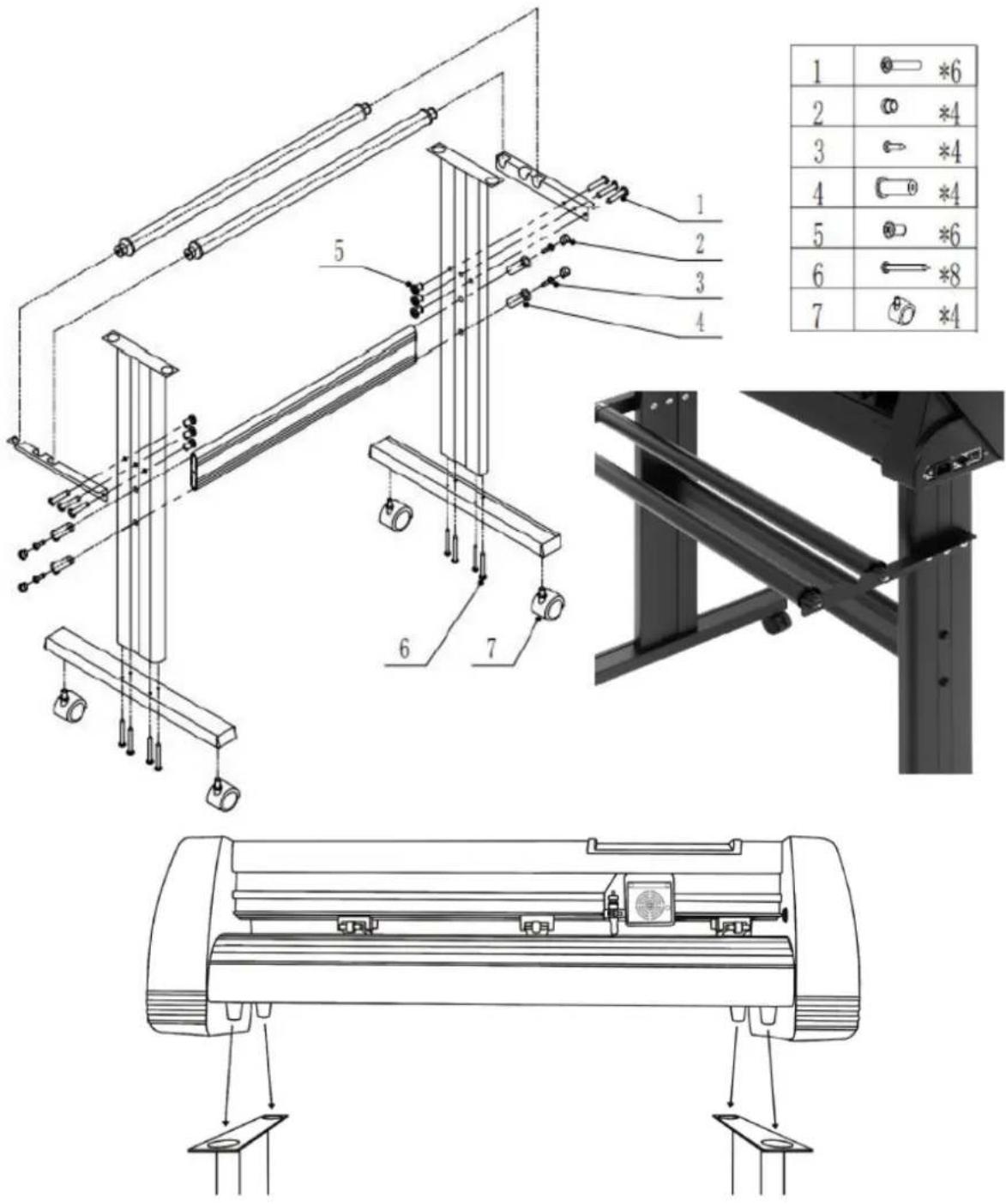

STAND ASSEMBLY

1		*6
2		*4
3		*4
4		*4
5		*6
6		*8
7		*4

BLADE ASSEMBLY

1. Unscrew the cap from the blade carriage.
2. Set the brass ring on blade carriage to the fully down position.
3. Remove the protective cover from a new blade.	[HKX0]
4. Insert the blade into the top of the blade carriage.
5. Screw the cap back onto the blade carriage.
6. Adjust the carriage cap until the blade is protruding approximately 0.4 mm.

1. Adjust the brass ring until it fits snug against the cap. This will help keep the cap in place during operation.

NOTE: Blades should be replaced every 6 months. They might need to be replaced more often if cutting thicker material such as flock, glitter or reflective materials.

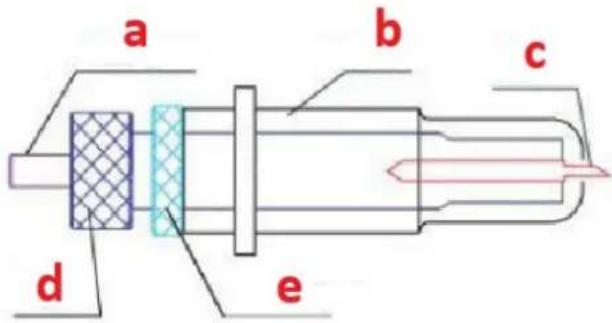

FIXING THE BLADE INTO THE HOLDER

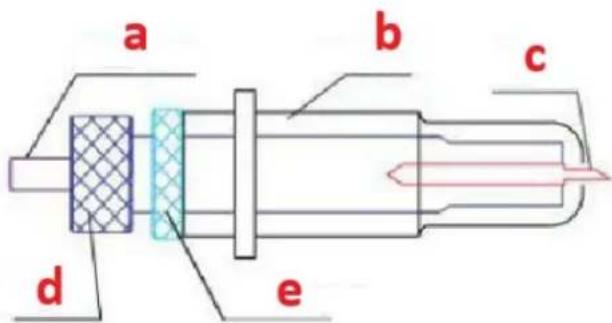

a) Pressing rod
b) Blade cover
c) Blade
d) Shank
e) Blade adjustment nut

1. Loosen the blade adjustment nut and rotate the shank to adjust the length of the exposed blade tip. Determine the tip length according to the thickness of the material:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

A) Material thickness
B) Base thickness
V) Correct cutting depth
X) Left - blade tip too long; Right - blade tip too short

1. Press the pressing rod when you want to change blade. Take out the blade when it is exposed.

2. NOTE: The blade tip is very sharp – do not touch it with the finger due to possible injury and blade blunting risk!

INSTALLING THE BLADE HOLDER IN THE CARRIAGE

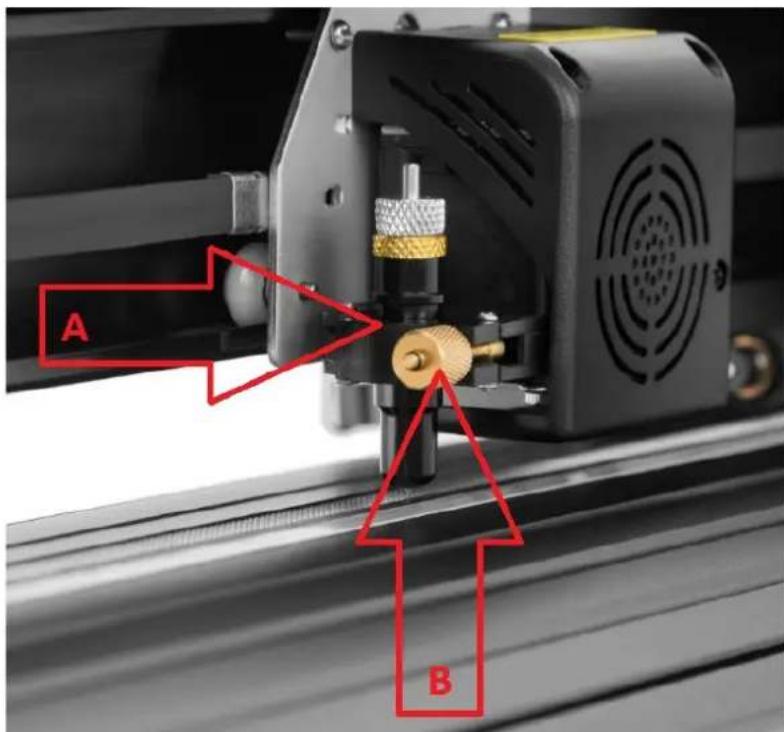

A) Carriage slot (holds the blade assembly in carriage arm)
B) Locking knob (allows access to the blade or pen carriage for accessory replacement)

1. Loosen the locking knob on the carriage arm.

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

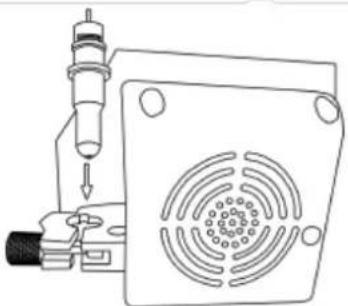

1. Place blade carriage into the carriage arm slot.

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

1. Tighten the locking knob on the carriage arm.

Technical line drawing of a mechanical or electrical component with a square base and circular vented area (no text or symbols)

DISPLAY, CONTROL PANEL AND SETTINGS

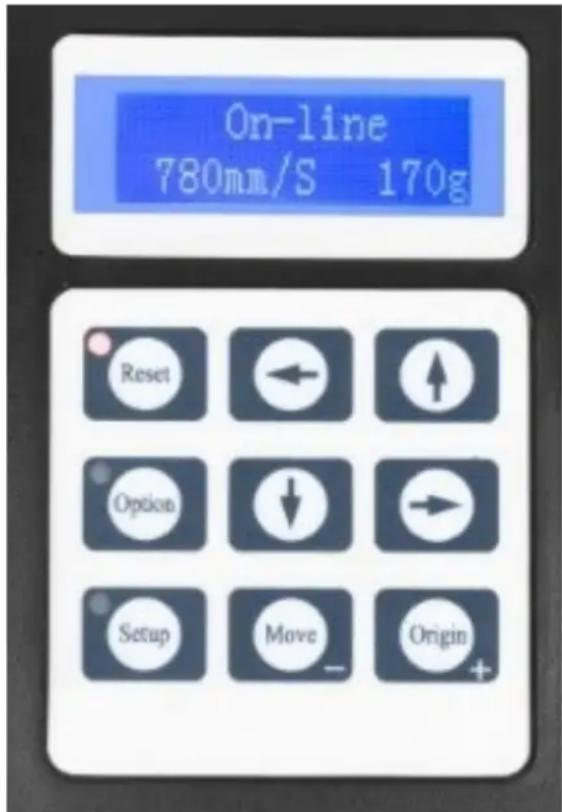

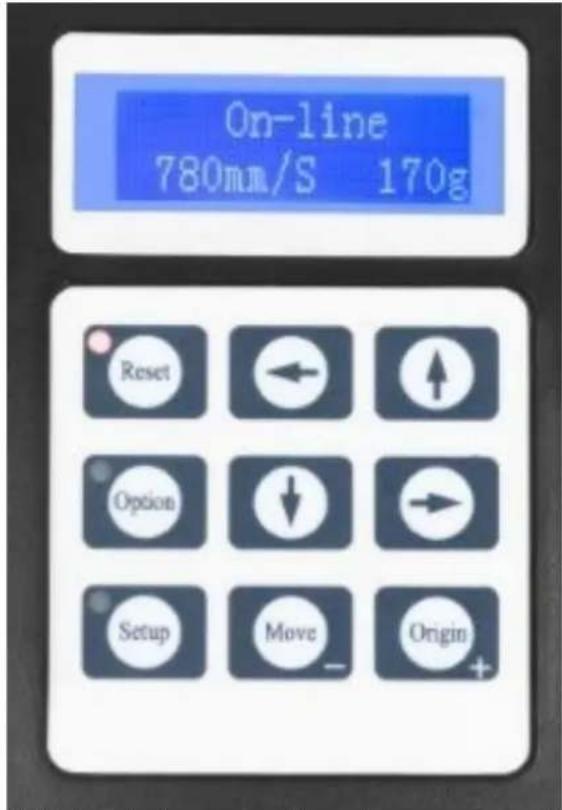

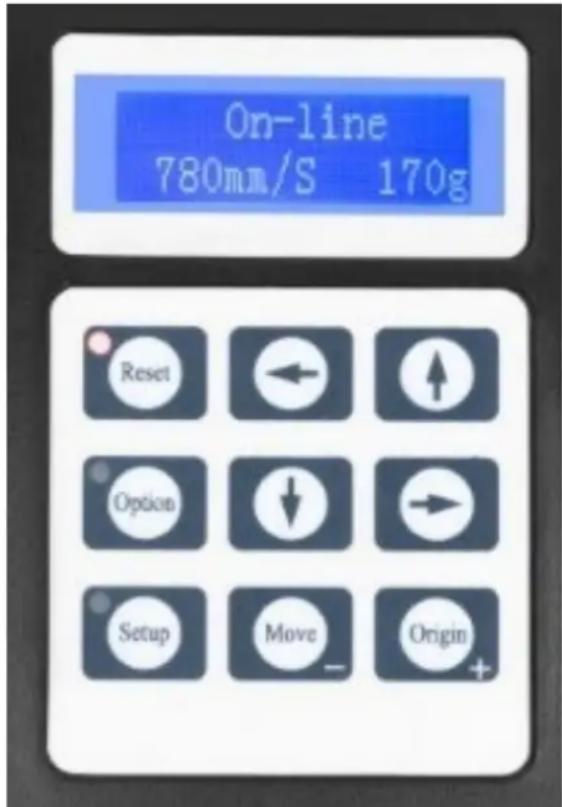

The main screen allows to set the main settings of the cutter like the cutting speed, cutting force and cut a test pattern or check the amount of force that is currently set. Main screen options:

“Reset”	Resets the operation of the machine and set the carriage arm to its right most position.
“Option”	Enter the offline-/pause-mode.
“Setup”	Enter the setup mode.
“Move”	Cuts a small test shape for testing the current force and speed settings. Used to determine the proper cutting speed and force settings needed for different materials without wasting a bigger piece of them.
“Origin”	Used to test z-axis functionality (by dropping the blade down if the carriage is functioning properly) or to set a new origin point when the machine is in offline-mode.
↓/↑	Adjusts the cutting speed. A cutting speed of 300 mm/s is a (reasonable) default speed that can be used for most cuts. When working with smaller and more detailed images, a slower speed may be required. When working with larger and less detailed images, a higher speed can be set for shortening the operation time.
←/→	Adjusts the cutting force. A cutting force of 100g is a good general starting place to work from when trying to determine the force needed for a specific material. All cuttable materials will tear in the amount of force needed so proper testing should always be made to determine the right amount of used force.A proper amount of force is when the blade fully penetrates the material to be cut while not cutting through the backing material.

Offline-mode is used to reposition the cutting material and blade so that a new starting position can be set for the next design. This mode can also be accessed while the machine is in operation and will pause the current cutting process. Although changes can be made to the material and blade positions if offline-/pause-mode is entered during cutting, but making changes to either setting is not normally recommended. Offline mode options:

“Reset”	Resets the operation of the machine and set the carriage arm to its right most position.
“Option”	Ignores any changes that have been made to the material or blade positions and exits offline-/pause-mode, returning the machine to the main screen. Resumes any cutting that was taking place when offline-/pause-mode was entered.
“Setup”	Without function in this mode.
“Move”	Accepts any changes that have been made to the material or blade positions and exits offline-/pause-mode returning the cutter to the main screen. Resumes any cutting that was taking place when offline-/pause-mode was entered from the new blade/material positions.
“Origin”	Accepts any changes that have been made to the material or blade positions and exits offline-/pause mode returning the cutter to the main screen. Resumes any cutting that was taking place when Offline-/pause-mode was entered from the new blade/material positions.
↓/↑	Reposition the material by moving the feed rollers. After movements being made we can confirm the changes by pressing the “Move” or “Origin” buttons or cancel it by pressing the “Option” button.
←/→	Reposition the blade by moving the carriage arm. After movements being made we can confirm the changes by pressing the “Origin” buttons or cancel by pressing the “Option” button.

OPERATION

1. Place the roll on top of the stand rollers. For heat press vinyl, please flip the roll:

Line drawing of a handheld device with a circular button and directional arrows, no text or symbols present.

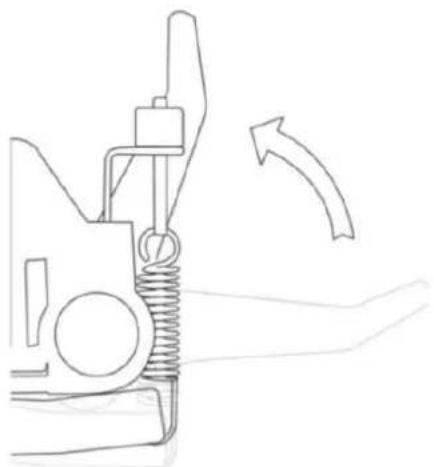

1. Release the pinch rollers release levers:

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

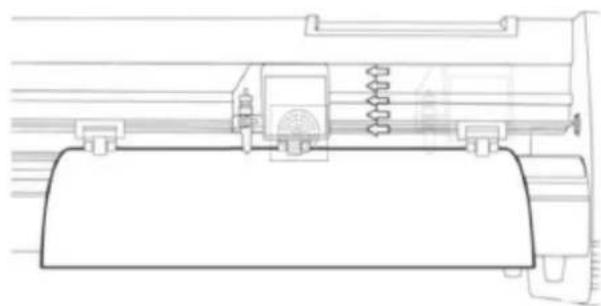

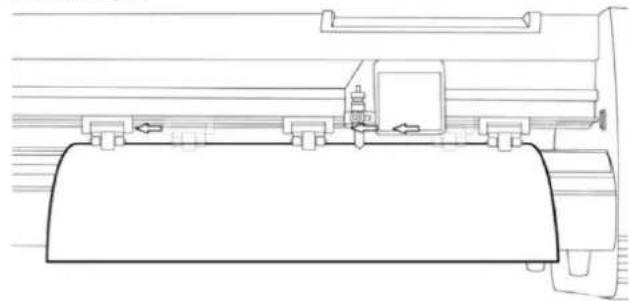

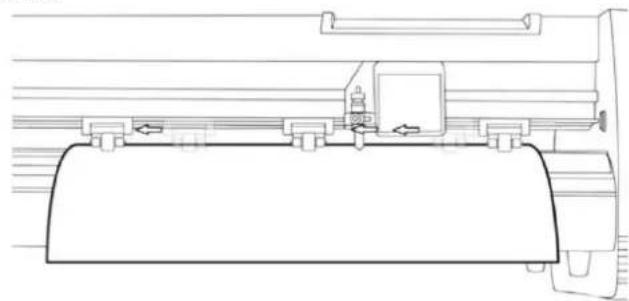

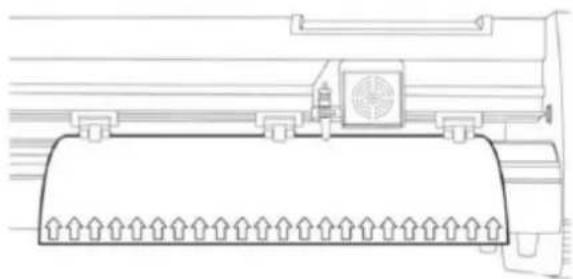

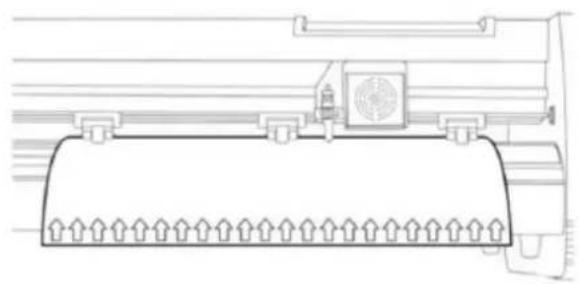

1. Feed the vinyl underneath the pinch rollers (if working from a single sheet instead of a roll, the vinyl can also be feed from the front):

Line drawing of a handheld electric shock absorber with attached circuit board (no text or symbols)

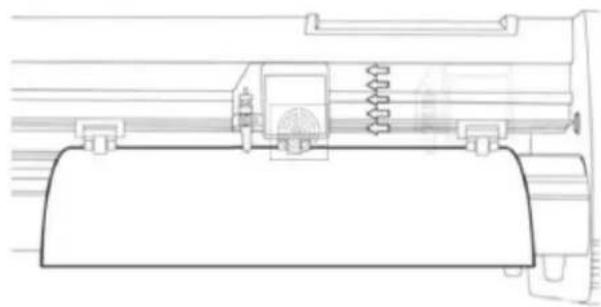

1. Adjust the pinch rollers so there is one roller located on each side of the vinyl (and, on models with 3 or more rollers, one roller near the center). Avoid lowering a pinch roller to the gap between the two feed rollers:

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

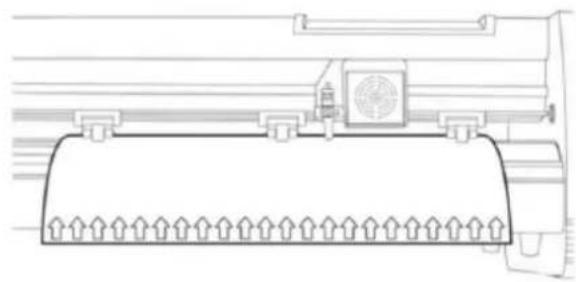

1. Leave a gap of between 1.27 - 3.8 mm (1/2"-1 1/2") from the edge of the roller and the edge of the vinyl on both sides:

1. Engage the pinch rollers by pushing down on the pinch roller release levers.

2. Turn on the machine (if not been turned on yet).

Changing cutting position

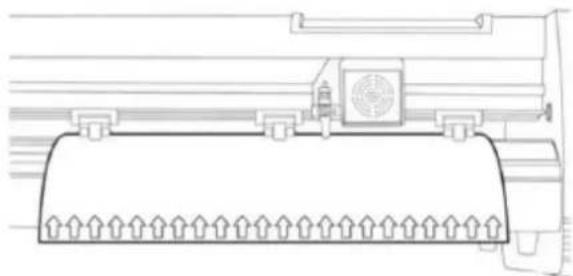

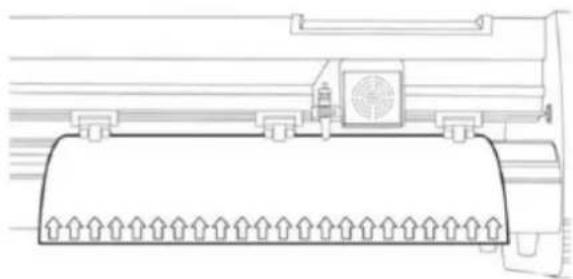

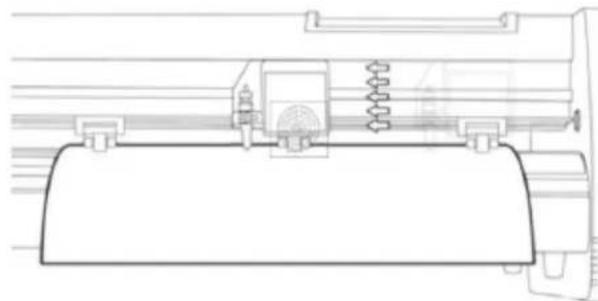

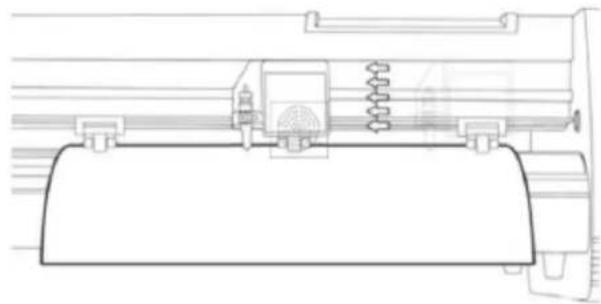

1. Press the "Option" button to enter the offline-mode.

2. Adjust the vinyl to where you want to make your cut to start by using the up and down arrow buttons on the control panel:

Technical line drawing of a mechanical component with no visible text or symbols

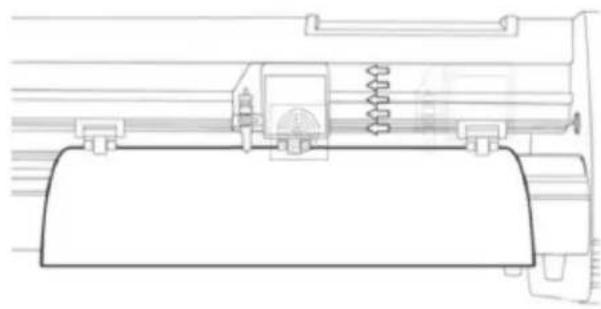

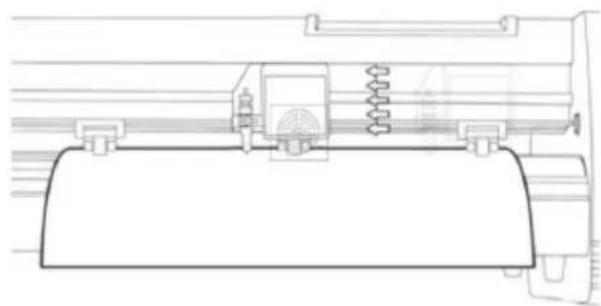

1. Now, adjust the blade to where you want your cut to start by using the left and right arrow buttons:

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

1. Now press the "Origin" button to tell the cutter that this is the location where you would like the cut to begin.

2. NOTE: When choosing a starting location for your design, remember that the process will start in the bottom right area of the design. Leave enough room to the left of and behind the starting location to finish the cut.

If you would like to make other adjustments to the pressure, speed or other settings you can do so now. If you are setting up for your first cut with the machine then the default values should be a good starting point.

If you make any adjustments to your cutter, make sure that you return to the main screen before you attempt to cut.

Software operation

1. Attach the power cord to the cutter and then plug in the unit and turn on the power.

2. If you are using a serial cable to connect the machine to a computer then no further setup is necessary. Simply connect one end of the cable to the machine and the other end to a computer and setup is complete. If you have more than one serial connection on your computer or you are experiencing communication issues between the machine and computer then you may to verify that the correct COM-port is being used in your software setup, but for most users the COM port will be COM1.

3. If using USB cable to connect the machine to a computer than installation software (SignMaster) needed – shown in further steps. The driver is automatically installed during software installation, no need to install the driver separately.

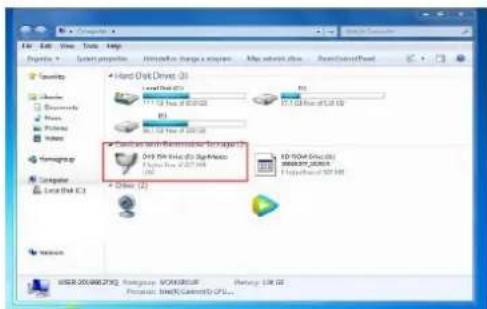

4. Open the software box, take the disk and put it into CD optical drive or alternatively put the USB flash disc with software driver on it.

5. [If the installation hasn't started automatically] Open the computer, double click or right click optical drive to install the software:

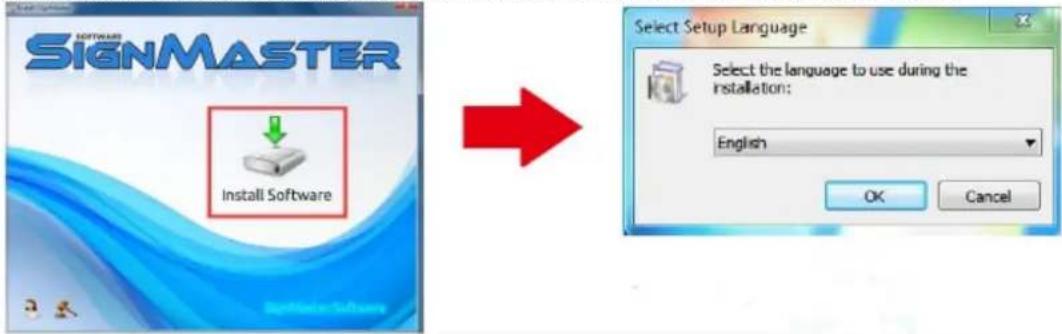

1. Click on the icon in the red box and start installing the software and choose the installation language:

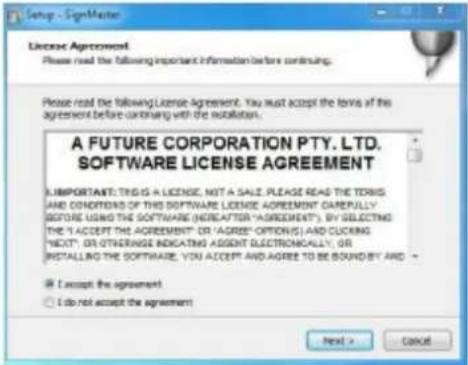

1. Agree the software terms and click next to proceed:

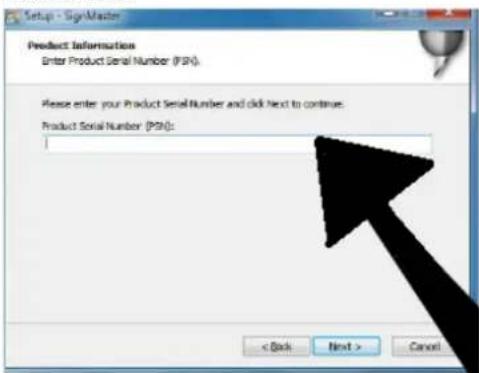

1. Enter the product serial number (PSN) in the window - the PSN-code can be found at left side of opened softwarebox:

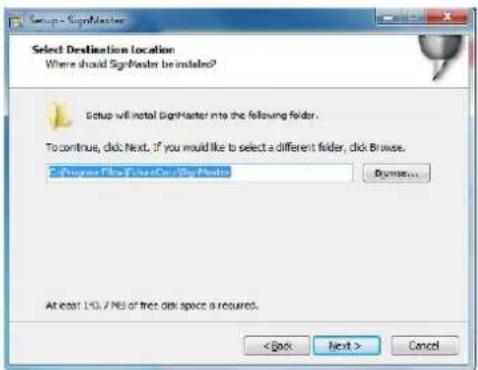

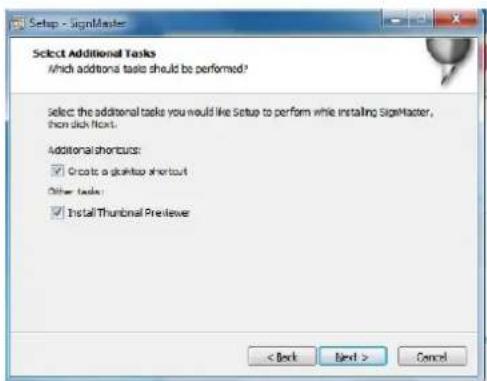

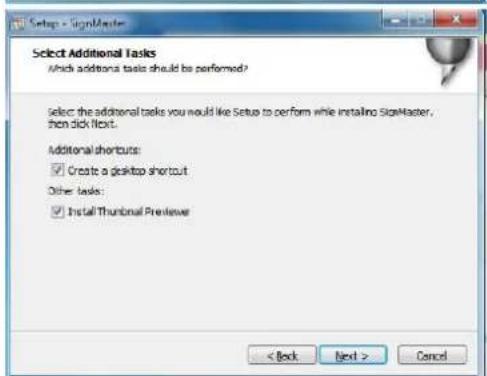

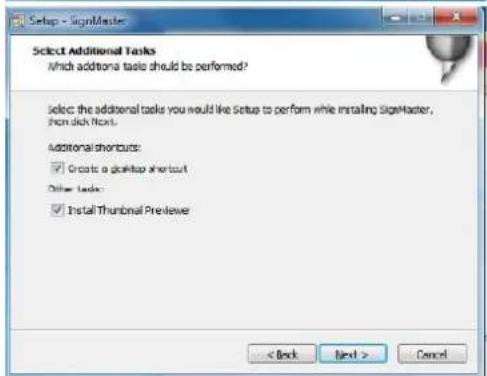

1. Follow the default installation path – choose the installation folder and click next:

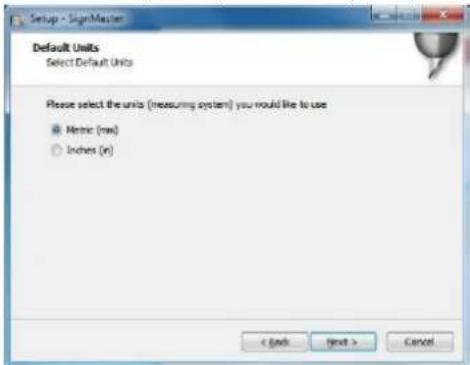

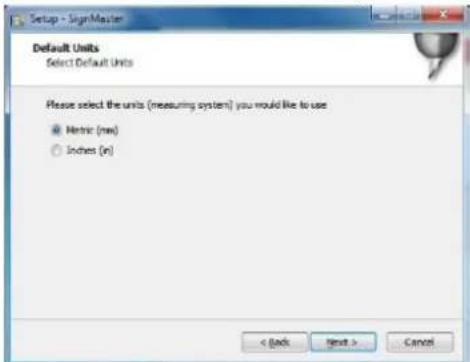

1. Select units system (metric or imperial):

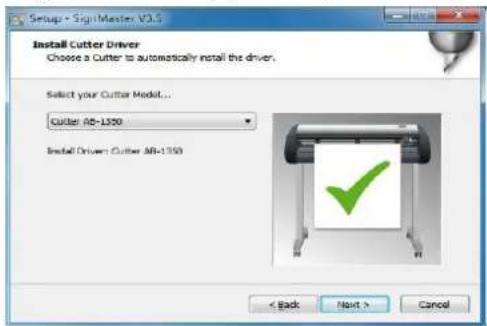

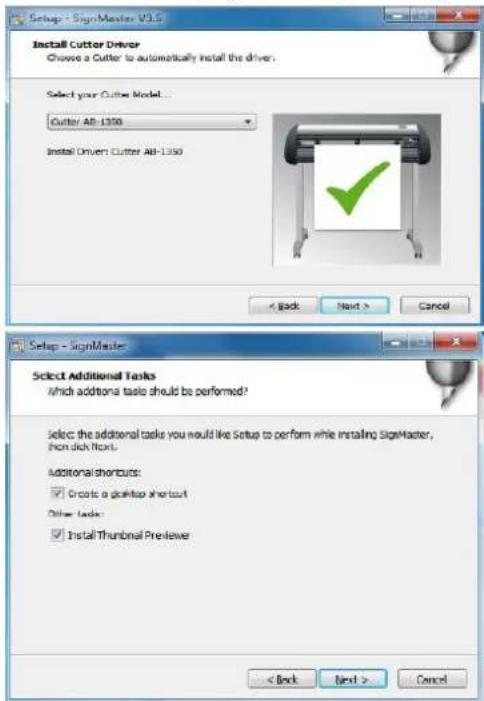

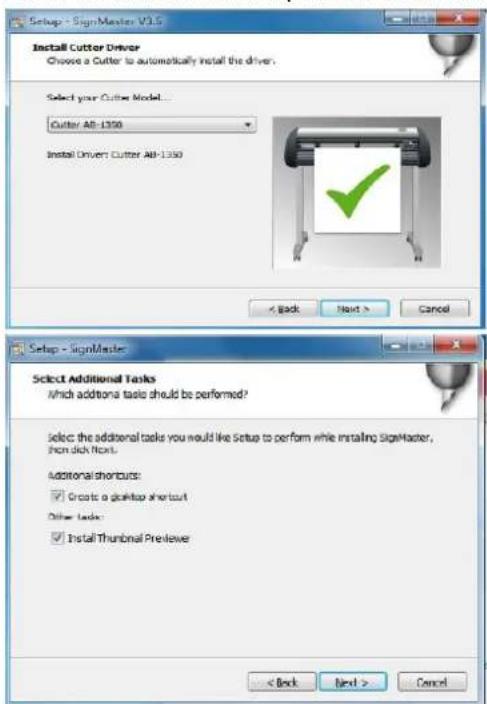

1. Select the machine model (check it on the label on the machine body) and click next:

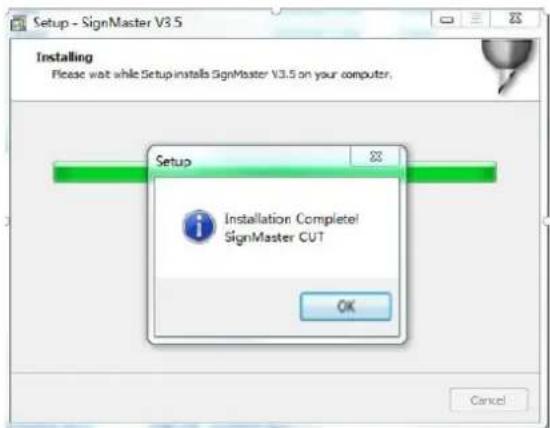

1. The installation is complete if You see this window appears on the screen:

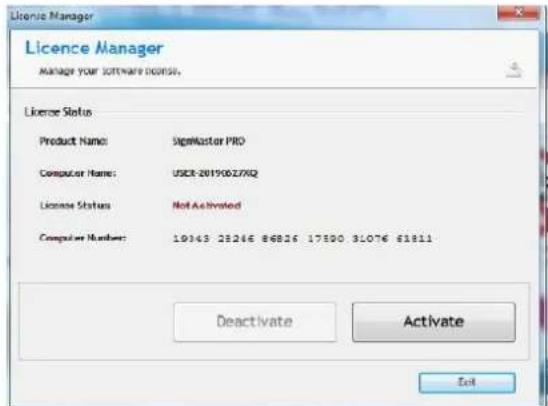

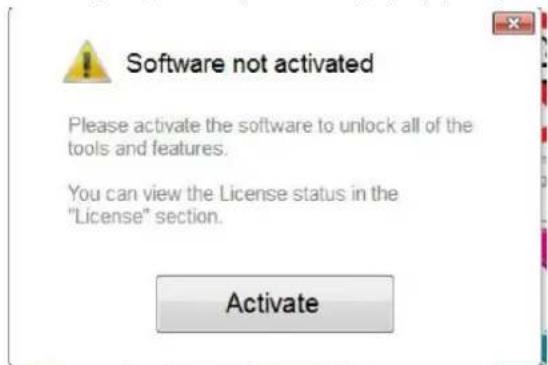

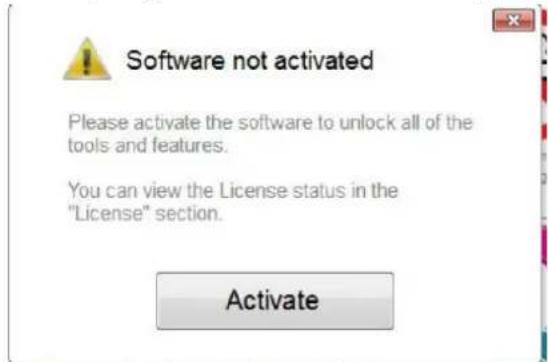

1. When opening the software for the first time, the activation window appears:

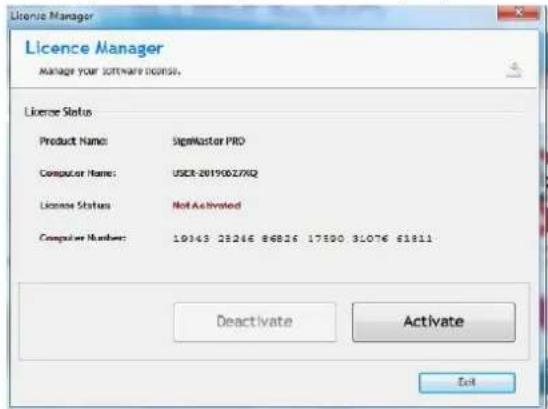

1. Click "Activate" button and enter Your email:

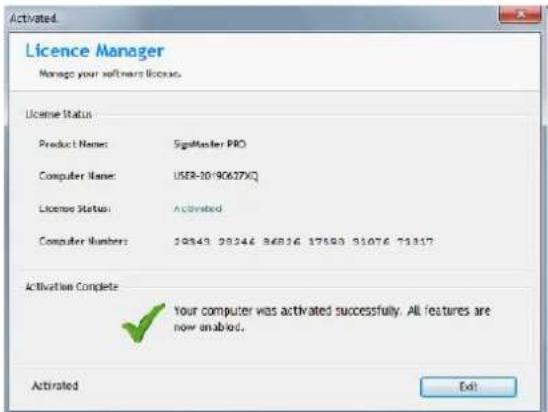

1. After successfully activating the software, click "Exit" on the window:

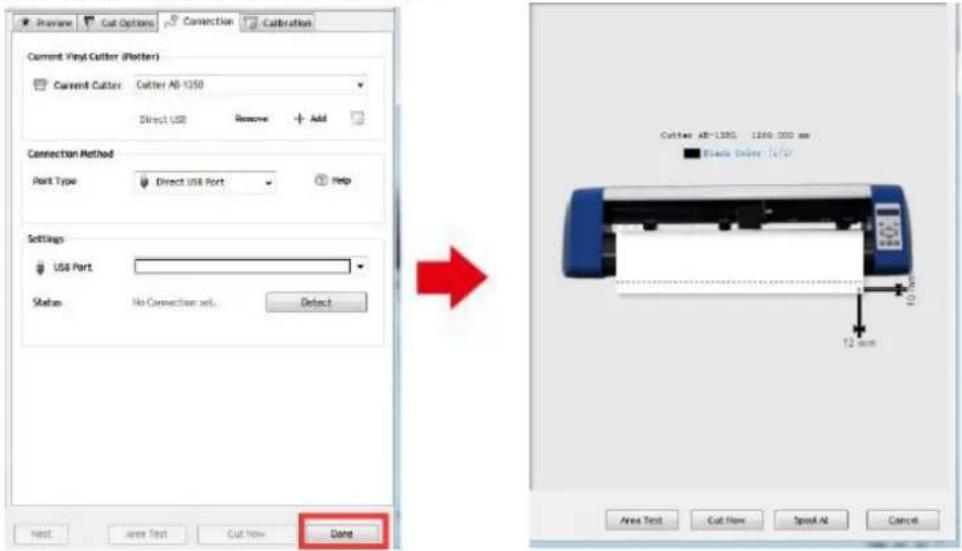

Connectiong the software with the machine

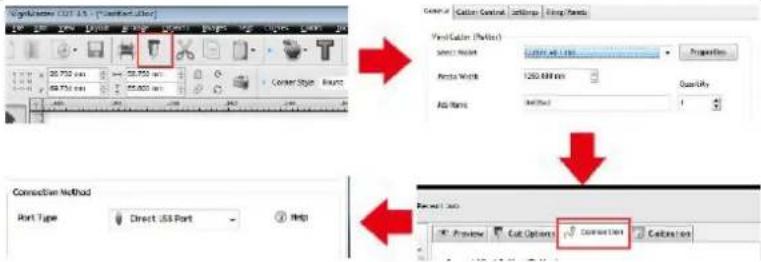

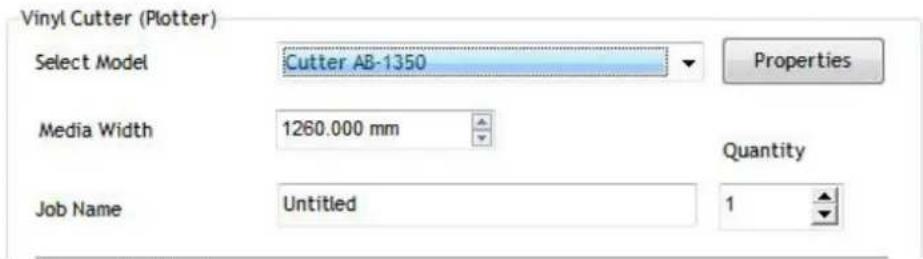

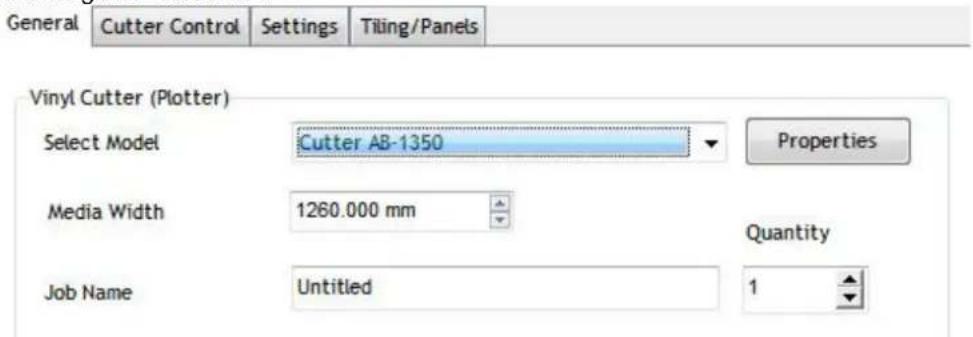

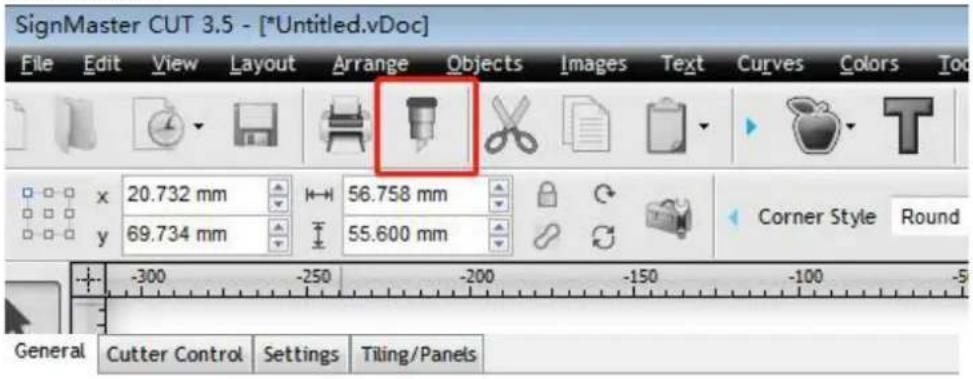

1. Open the software, select the desired content and click sent to the cutting plotter. Click the cutter icon marked below:

1. Click "Properties" button:

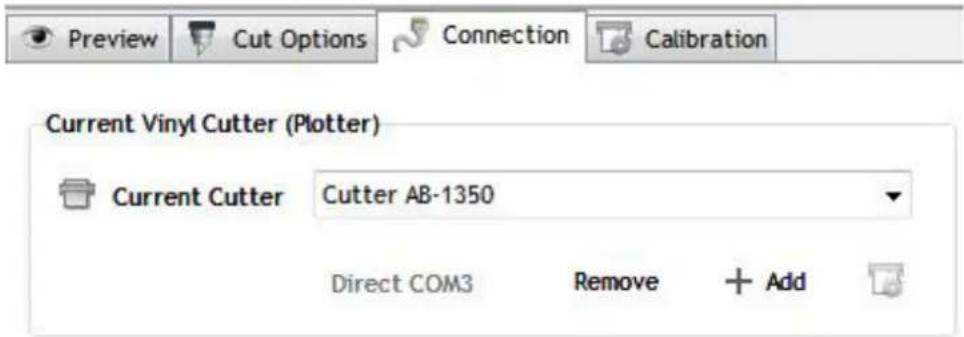

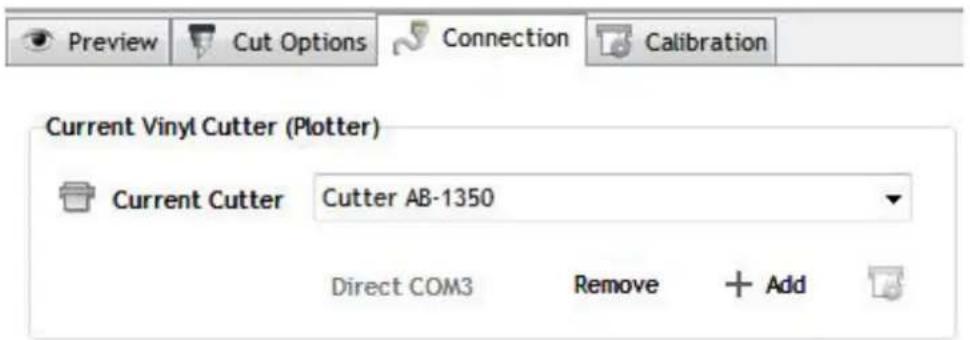

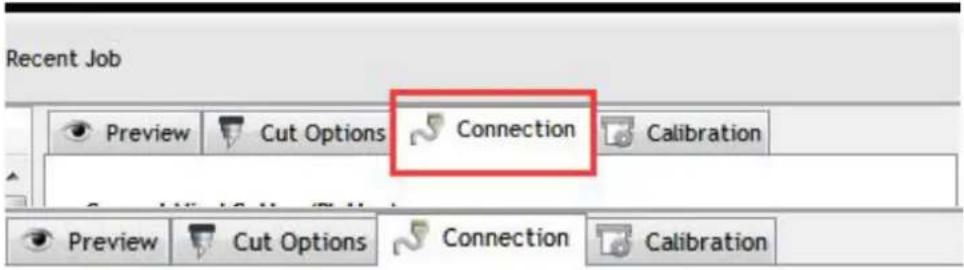

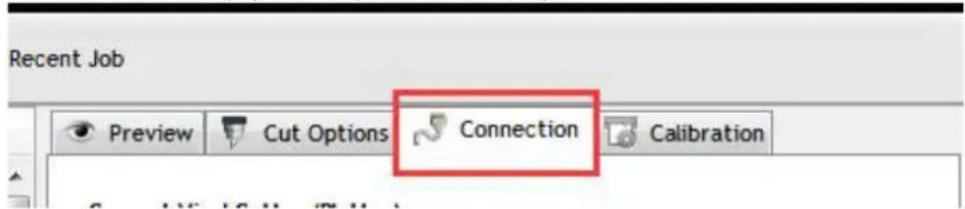

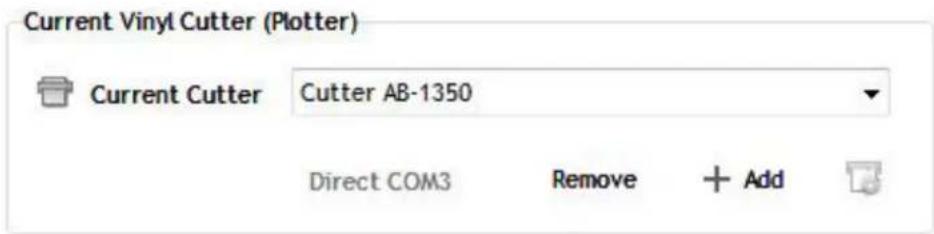

1. Click "Connection" tab and select machine model:

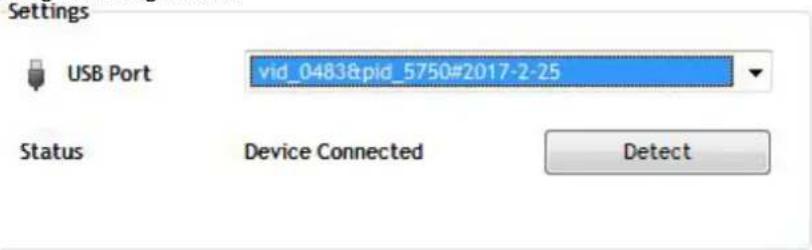

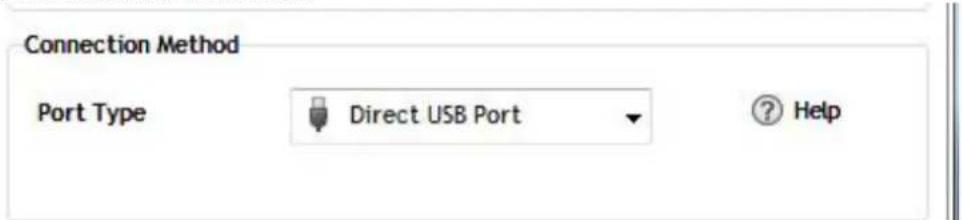

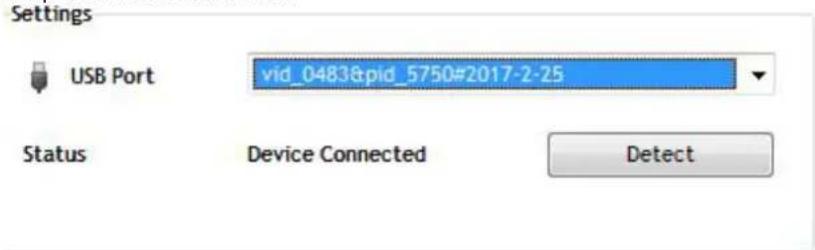

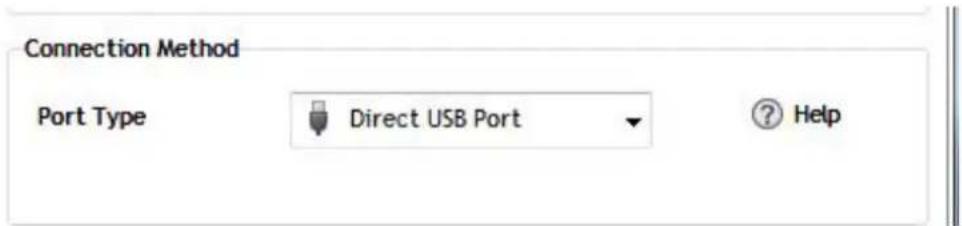

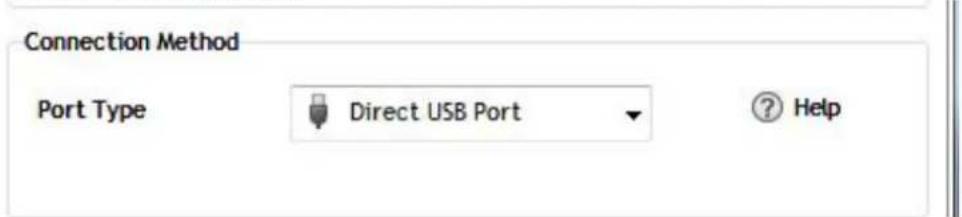

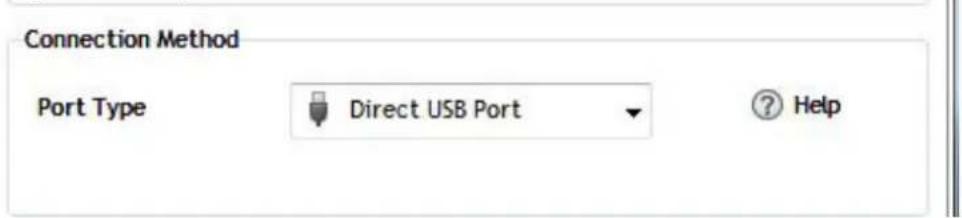

1. Select direct USB port:

1. Drop-down selected driver:

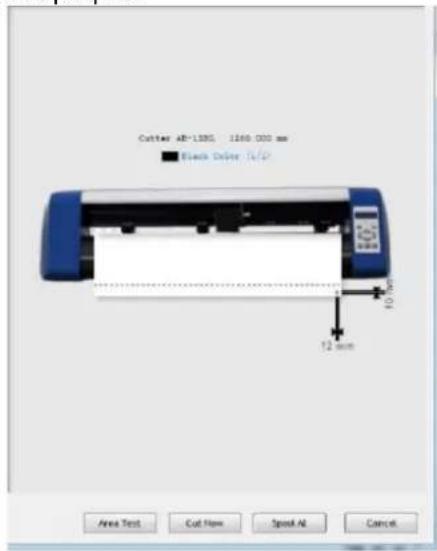

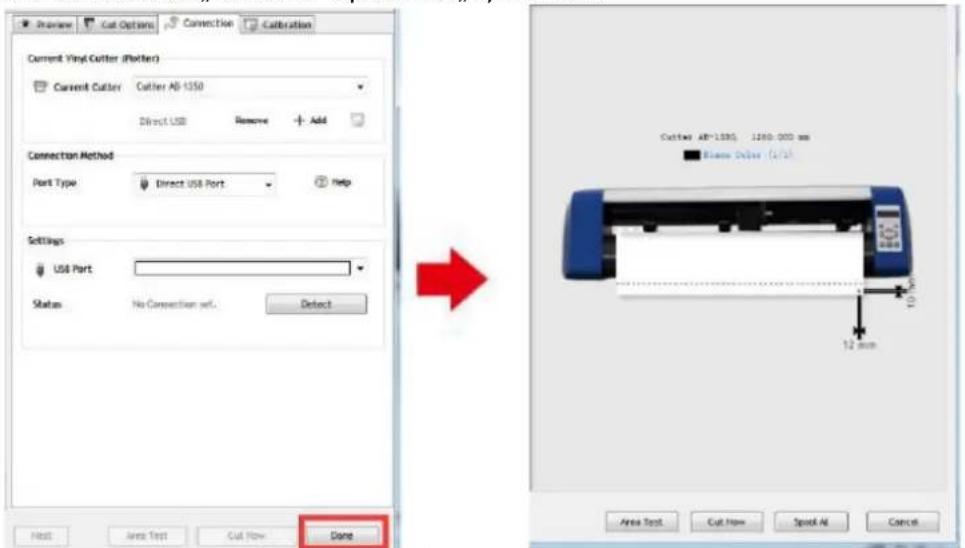

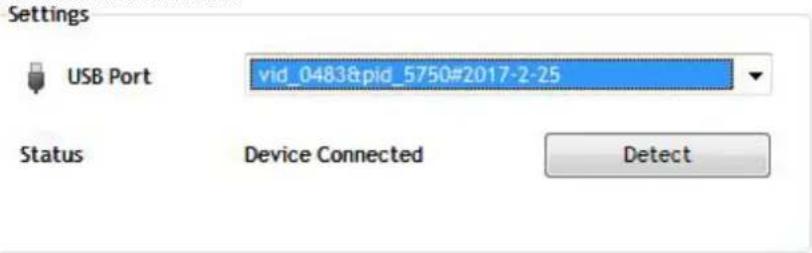

1. Click "Finish: button and then "Cut Now":

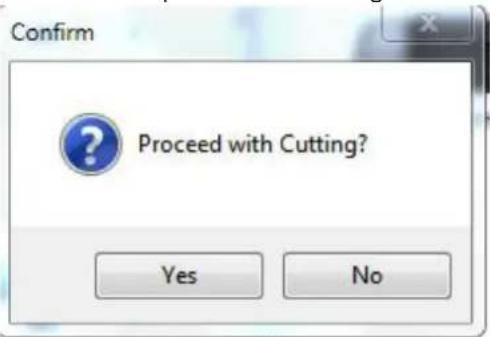

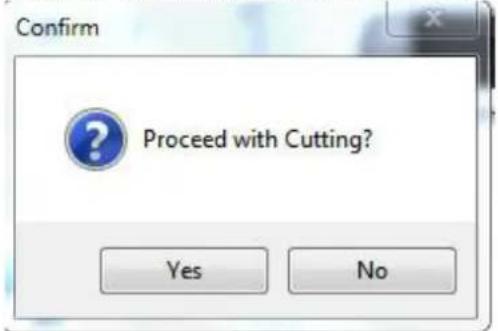

1. Select "Yes" to proceed with cutting:

NOTE: Software installation video manual is also included on the USB flash drive.

TROUBLESHOOTING

Problem	Solution
Machine cannot connect to software.	Software port settings, as shown below:
Paper deviation occurred during cutting	Because the tension of paper press is inconsistent, rotate the two yellow brass nuts on each paper press to the same height, then the pressure is balanced, as shown below:Rotate them to the same height.
The effect of small graphics cutting is not ideal.	When the cutting height is 3-5 mm letters, the software compensation value is set to 0.45 and the speed is adjusted to 400 mm/s. When the cutting height is more than 5 mm letters, the software compensation value is set to 0.3 and the speed is adjusted to 600 mm/s or more:
Often repeated cutting, cutting before automatic paper and other problems.	Cancel the automatic paper feeding function after cutting in the software, as shown below:

The cutting process stops and does not return to the origin.	Do not use any data conversion connector. Data may be lost and the cutting process may stop. Please plug the data line directly into the computer interface.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a square housing and circular vent pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

WYŚWIETLACZ, PANEL STEROWANIA I USTAWIENIA

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Two simple arrow shapes pointing upward and downward (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with three arrows pointing inward (no text or symbols)

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and liquid level (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square housing and circular vented pattern (no text or symbols)

DISPLEJ, OVLÁDACÍ PANEL A NASTAVENÍ

Line drawing of a handheld device with a circular button and directional arrows, no text or symbols present.

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld device with a scroll wheel and indicator lights (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal structure and labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical component with a perforated panel and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and screwdriver (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

AFFICHAGE, PANNEAU DE COMMANDE ET PARAMÈTRES

Line drawing of a handheld device with a circular button and directional arrows, no text or symbols present.

Line drawing of a mechanical clamp or spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a portable electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Two simple arrow symbols: one upward and one downward, both outlined in black (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric diagram with four arrows pointing inward from a central shape (no text or symbols)

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical or electronic component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric diagram with four arrows pointing inward from a central shape (no text or symbols)

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

KIJELZŐ, VEZÉRLÓPANEL ÉS BEÁLLÍTÁSOK

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly or machine component (no text or symbols visible)

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical or electronic component with a central fan-like structure and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and screwdriver (no text or symbols)

Technical line drawing of a mechanical component with a perforated base and mounting bracket (no text or symbols)

DISPLAY, KONTROLPANEL OG INDSTILLINGER

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric diagram with four arrows pointing inward from a central shape (no text or symbols)

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical component with a perforated circular feature and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and screwdriver (no text or symbols)

Technical line drawing of a mechanical component with a perforated base and mounting bracket (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld device with a scroll wheel and indicator lights (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square housing and circular vented pattern (no text or symbols)

WEERGAVE, BEDIENINGSPANEELE EN INSTELLINGEN

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical clamp or spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

1. Selecteer directe USB-poort:

1. Skinneføringsdeksel
2. Klemrullesett
3. Matepapirrulle
4. Vogn
5. Tilbakestill bryteren
6. Utstilling
7. Kontrollpanel
8. Høyre sidedeksel
9. Bladklemme
10. Venstre sidedeksel
11. Strømtilkoplingsuttak
12. Sikringsholder
13. Strømbryter
14. USB-port
15. COM-port
16. Stå
17. Tilbehør

STANDMONTERING

1		*6
2		*4
3		*4
4		*4
5		*6
6		*8
7		*4

KNIVMONTERING

FESTING AV KNIVET I HOLDEREN

a) Pressstang
b) Bladdeksel
c) Blad
d) Shank
e) Bladjusteringsmutter

Cross-sectional diagram of a mechanical component with internal structure and liquid level (no text or symbols)

INSTALLERE KNIVHOLDEREN I BÆRELEN

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical or electrical component with a square base and circular vented pattern (no text or symbols)

DISPLAY, KONTROLLPANEL OG INNSTILLINGER

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

1. La det være mellom 1,27 – 3,8 mm (1/2"-1 1/2") fra kanten av valsen og kanten av vinylen på begge sider:

Two simple arrow symbols: one upward and one downward, both outlined in black outline (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric diagram with four arrows pointing inward from a central rectangle (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

1. Velg maskinmodell (sjekk den på etiketten på maskinhuset) og klikp på Neste:

Koble programvaren til maskinen

1. Velg direkte USB-port:

1. Rullegardin valgt driver:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square housing and circular vented pattern (no text or symbols)

DISPLAY, KONTROLLPANELEN OCH INSTÄLLNINGAR

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with spring and housing (no text or symbols)

1. Klicka på knappen "Egenskaper":

1. Välj direkt USB-port:

1. Rulla ned vald drivrutin:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical or electrical component with a square base and circular vented pattern (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

1. Seleccione o sistema de unidades (métrico ou imperial):

1. Seleccione "Sim" para prosseguir com o corte:


Cross-sectional diagram of a mechanical component with internal structure (no text or labels)

Cross-sectional diagram of a test tube with red liquid and blue liquid, labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

1. Umiestnite vozík čepele do otvoru ramena vozíka.

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

DISPLEJ, OVLÁDACÍ PANEL A NASTAVENIA

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

1. Ponechajte medzeru medzi 1,27 – 3,8 mm (1/2"-1 1/2") od okraja valčeka a okraja vinylu na oboch stranách:

Technical line drawing of a mechanical component with no visible text or symbols

1. Teraz pomocou tlačidiel so šípkou dolava a doprava nastavte čepel na miesto, kde chcete, aby rez začal:

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Vyberte model stroja (skontrolujte ho na štítku na tele stroja) a kliknite na d'alej:

1. Inštalácia je dokončená, ak sa na obrazovke zobrazí toto okno:

1. Kliknite na kartu „Pripojenie“ a vyberte model stroja:

1. Vyberte priamy port USB:

1. Kliknite na tlačidlo „Dokončit:“ a potom na „Vystrihnút“:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a circular vent and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and screwdriver (no text or symbols)

Technical line drawing of a mechanical component with a perforated base and mounting bracket (no text or symbols)

ДИСПЛЕЙ, КОНТРОЛЕН ПАНЕЛ И НАСТРОЙКИ

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

1. Изберете директен USB порт:

Cross-sectional diagram of a mechanical component with internal structure and liquid level (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a circular vent and mounting bracket (no text or symbols)

Line drawing of a handheld device with a circular button and vertical supports (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a handheld electric shaver with a power cord and fan (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Two simple arrow symbols: one upward and one downward, both outlined in black outline (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

1. Poklopac vodilice tračnice
2. Komplet potisnih valjaka
3. Valjak za uvlačenje papira
4. Prijevoz
5. Reset prekidač
6. Prikaz
7. Upravljačka ploča
8. Desni bočni poklopac
9. Stezaljka oštrice
10. Lijevi bočni poklopac
11. Utičnica za napajanje
12. Držač osigurača
13. Prekidač napajanja
14. USB priključak
15. COM priključak
16. stajati
17. Pribor

MONTAŽA STALKA

1		*6
2		*4
3		*4
4		*4
5		*6
6		*8
7		*4

SKLOP OŠTRICE

1. Odvijte poklopac s nosača oštrica.
2. Postavite mjedeni prsten na nosaču oštrice u krajnji donji položaj.
3. Uklonite zaštitni poklopac s nove oštrice.
4. Umetnite oštricu u gornji dio nosača oštrice.
5. Zavrnite poklopac natrag na nosač oštrice.
6. Podesite poklopac nosača dok oštrica ne bude virila približno 0,4 mm.

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

A) Debljina materijala
B) Debljina baze
V) Ispravna dubina rezanja
X) Lijevo – vrh oštrice predug; Desno – vrh oštrice je prekratak

Technical line drawing of a mechanical component with a perforated circular pattern and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with a perforated base and mounting bracket (no text or symbols)

ZASLON, UPRAVLJAČKA PLOČA I POSTAVKE

Glavni zaslon omogućuje postavljanje glavnih postavki rezača kao što su brzina rezanja, sila rezanja i rezanje probnog uzorka ili provjera količine sile koja je trenutno postavljena. Opcije glavnog zaslona:

“Reset”	Ponovno postavite rad stroja i postavite polugu nosača u krajnji desni položaj.
“Option”	Uđite u izvanmrežni/pauzirani način rada.
“Setup”	Uđite u način postavljanja.
“Move”	Reže mali probni oblik za testiranje trenutnih postavki sile i brzine. Koristi se za određivanje pravilne brzine rezanja i postavki sile potrebne za različite materijale bez rasipanja većeg komada istih.
“Origin”	Koristi se za testiranje funkcionalnosti z-osi (spuštanjem oštrice prema dolje ako nosač radi ispravno) ili za postavljanje nove ishodišne točke kada je stroj u izvanmrežnom načinu rada.
↓ / ↑	Podešava brzinu rezanja. Brzina rezanja od 300 mm/s je (razumna) zadana brzina koja se može koristiti za većinu rezova. Kada radite s manjim i detaljnijim slikama, možda će biti potrebna manja brzina. Kod rada s većim i manje detaljnim slikama, može se podesiti veća brzina radi skraćivanja vremena rada.
← / →	Podešava silu rezanja. Sila rezanja od 100 g dobro je opće početno mjesto za rad kada pokušavate odrediti silu potrebnu za određeni materijal. Svi materijali koji se mogu rezati pokidat će se pod silom koja je potrebna, stoga uvijek treba provesti odgovarajuće testiranje kako bi se odredila točna količina korištene sile.Odgovarajuća količina sile je kada oštrica u potpunosti prodre u materijal koji treba rezati, a ne reže kroz materijal podloge.

Line drawing of a handheld device with a circular button and directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or spring assembly with an arrow indicating direction (no text or symbols)

1. Uvucite vinil ispod potisnih valjaka (ako radite s jednim listom umjesto role, vinil se također može uvlačiti s prednje strane):

Line drawing of a handheld device with a circular base and cable, no text or symbols present

1. Podesite potisne valjke tako da se jedan valjak nalazi sa svake strane vinila (i, na modelima s 3 ili više valjaka, jedan valjak blizu sredine). Izbjegavajte spuštanje potisnog valjka do razmaka između dva uvlačna valjka:

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Ostavite razmak između 1,27 – 3,8 mm (1/2"-1 1/2") od ruba valjka i ruba vinila s obje strane:

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Kliknite na ikonu u crvenom okviru i počnite instalirati softver te odaberite jezik instalacije:

1. Unesite serijski broj proizvoda (PSN) u prozor - PSN-kod se nalazi na lijevoj strani otvorene programske kutije:

1. Odaberite sustav jedinica (metrički ili imperijalni):

1. Instalacija je dovršena ako vidite da se na ekranu pojavljuje ovaj prozor:

1. Prilikom prvog otvaranja softvera pojavljuje se prozor za aktivaciju:

1. Kliknite gumb "Aktiviraj" i unesite svoju e-poštu:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Cross-sectional diagram of a test tube with red liquid and blue cap, labeled 'X' (no text or symbols within the diagram itself)

Technical line drawing of a mechanical component with a square base and circular vent-like pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and tool (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

EKRANAS, VALDYMO SKYDELIS IR NUSTATYMAI

Line drawing of a handheld device with a circular button and directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a handheld electronic device with a cylindrical base and cable, no text or symbols present

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square housing and circular vented pattern (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrows (no text or symbols)

Line drawing of a mechanical spring assembly with an arrow indicating rotational motion (no text or symbols)

Line drawing of a handheld electric shaver with a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with four arrows pointing inward, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Selectati portul USB direct:

1. Driverul selectat derulant:

Cross-sectional diagram of a mechanical component with internal structure and labeled X (no text or symbols beyond label)

A) Debelina materiala
B) Osnovna debelina
V) Pravilna globina reza
X) Levo – konica rezila je predolga; Desno – konica rezila je prekratka

1. Pritisnite stiskalno palico, ko želite zamenjati rezilo. Odstranite rezilo, ko je izpostavljeno.

2. OPOMBA: Konica rezila je zelo ostra – ne dotikajte se je s prstom zaradi možnih poškodb in nevarnosti topenja rezila!

NAMESTITEV DRŽALA ZA REZILA V VOZIČEK

A) Reža nosilca (drži sklop rezila v nosilcu)
B) Zaklepni gumb (omogoča dostop do rezila ali nosilca peresa za zamenjavo dodatne opreme)

1. Odvijte zaklepni gumb na nosilni roki.

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

1. Namestite nosilec rezila v režo za roko nosilca.

Technical line drawing of a mechanical device with a perforated panel and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with a square base and circular vented pattern (no text or symbols)

ZASLON, NADZORNA PLOŠČA IN NASTAVITVE

Line drawing of a handheld device with a circular button and directional arrows, no text or symbols present.

Line drawing of a mechanical spring assembly with an arrow indicating direction (no text or symbols)

Line drawing of a portable electronic device with a cylindrical base and cable, no text or symbols present

Technical line drawing of a mechanical assembly or component (no text or symbols visible)

1. Pustite razmik med 1,27 – 3,8 mm (1/2"-1 1/2") od roba valja in roba vinila na obeh straneh:

Technical line drawing of a mechanical component with no visible text or symbols

Abstract geometric shape with arrow-like and square elements (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Izberite model stroja (preverite ga na nalepki na ohišju stroja) in kliknite naprej:

1. Kliknite gumb "Aktiviraj" in vnesite svoj e-poštni naslov:

Povezava programske opreme s strojem

1. Kliknite gumb "Lastnosti":

1. Izberite neposredna vrata USB:

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
