Technical data

Parameter description	Parameter value
Product name	Power Generator
Model	MSW-PG3000 EASY	MSW-PG2200 EASY
Engine type	Gasoline 1-cylinder, 210 cm3 four-stroke, air cooled, OHV type, 8.5: 1 compression, manual starter, Euro 5	Gasoline 1-cylinder, 196 cm3 four-stroke, air cooled, OHV type, 8.5: 1 compression, manual starter, Euro 5
Rated/maximum speed [rpm]	3000 / 3600
Maximum engine power [kW/HP]	5.2/7 at 3600 rpm	3.68/6.5 at 3600 rpm.
Maximum torque [Nm]	14 at 2500 rpm	13 at 2500 rpm.
Supply voltage [V~] / Frequency [Hz]	12V ~ DC / 230V ~ AC / 50 Hz
Rated power [kVA]	3,1	2.2
Rated / maximum power [W]	2800 / 3000 2000 /	2200
DC output	12V / 8.3A
AC output	230V 12.2A	12V 8.3A
Power factor	1,0
Rated output current [A]	26 / 13 / 7	19 / 9,1
Engine oil type	Recommended 10-W30-40 * for 4-stroke engines with cleaning additives*Standard application temperature conditions.In case of very low temperatures below -20°C, SAE 5W30 is recommended.

EN

Spark plug type / electrode gap [mm]	F6RTC (or equivalent) / 0.7-0.8mm
Fuel tank capacity [L]	15
Engine lubrication system volume [L]	0.6
Fuel type	Unleaded fuel min 95 octane (RON)
Application temperature range [°C]	-5 ~ +40
Average fuel consumption [L/h]	2.9 2
Dimensions (Length x Width x Height) [mm]	620 x 570 x 540 820 x 580 x 530
Weight [kg]	45	40
Noise level [dB(A)]	94,8	91,6
Sound power level L_wA [dB (A)]	94,8 91,6
Sound pressure level L_pA [dB (A)]	74,8 71,6
Overcurrent protection	√

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	Wear ear protection. Exposure to noise may cause hearing loss.
	Wear protective gloves.
	CAUTION! Risk of electric shock!
	CAUTION! Warning against loud noise!
	CAUTION! Danger of fire - flammable material!
	Warning against poisoning by toxic substances!
	Caution! Hot surface can cause burns!
	A suffocating atmosphere! Do not use in an unventilated space [anger of exhaust gas poisoning]!
	Do not smoke in the vicinity of the unit. The unit contains flammable substances.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to

Power generator

2.1. Electrical safety

a) Do not touch the device with wet or damp hands.
b) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
c) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
d) Do not allow the machine to get wet. Risk of electric shock!
e) Do not use the generator without grounding it first!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!

f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
h) Use the unit in a well-ventilated area.
i) Dust and debris are generated during the operation of the device, please protect bystanders from their harmful effects.
j) Check the condition of the safety stickers regularly. Replace them if they are illegible.
k) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
I) Keep packaging components and small installation parts out of the reach of children.
m) Keep the device away from children and animals.
n) When using this product together with other devices, also follow the other instructions for use. When starting to operate the unit, gradually increase the air supply to the unit to make sure it is working properly. If you notice that the unit is not working properly, immediately disconnect it from the compressed air supply and contact the manufacturer's service department.

REMEMBER! Keep children and other bystanders safe while operating the equipment.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during the operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols. The use of appropriate, approved personal protective equipment reduces the risk of injury.

f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
g) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
h) The product is not a toy. Children should be watched to ensure that they do not play with the appliance. Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Keep unused products out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
f) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
g) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
h) Avoid situations in which the device stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.
i) Do not move, shift, or rotate the device while in operation.
j) Do not leave the device switched on unattended.
k) Clean the device regularly to prevent permanent dirt build-up. Avoid situations in which the device stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.

I) The provided value of vibration emission is measured according to the standard measurement methods. The value of vibration emission may change if the unit is used under different environmental conditions.

m) Do not obstruct the air inlet or outlet.

n) Do not start up an empty unit.

o) Do not tamper with the device to alter its performance or design.

p) Keep the unit away from sources of fire and heat.

q) Do not overload the device.

r) Do not block the ventilation openings of the unit!

s) Add oil to the proper level before turning on the machine. If the oil level is too low the engine will not start or may shut down.

t) In case of any leakage of oils from the unit, you must report them to the relevant services/authorities or observe the legal requirements in the area where the unit is used.

u) Danger! Health hazard and risk of explosion of the combustion engine.

v) The engine exhausts contain poisonous carbon monoxide. Remaining in an environment containing carbon monoxide can lead to unconsciousness or even death. Do not run the engine in an enclosed area.

w) Keep the engine away from heat, sparks, and flame. Do not smoke near the machine!

x) Gasoline is flammable and explosive. Stop the engine and let it cool down before refueling.

y) Caution! Wrong fuel may cause damage to the engine.

z) CAUTION! Some parts of the device get hot during use! It is forbidden to touch hot components of the system during and after the immediate operation! Risk of burns! The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The machine is used to generate electricity and supply it to other electrical devices.

The user is responsible for any damage resulting from misuse.

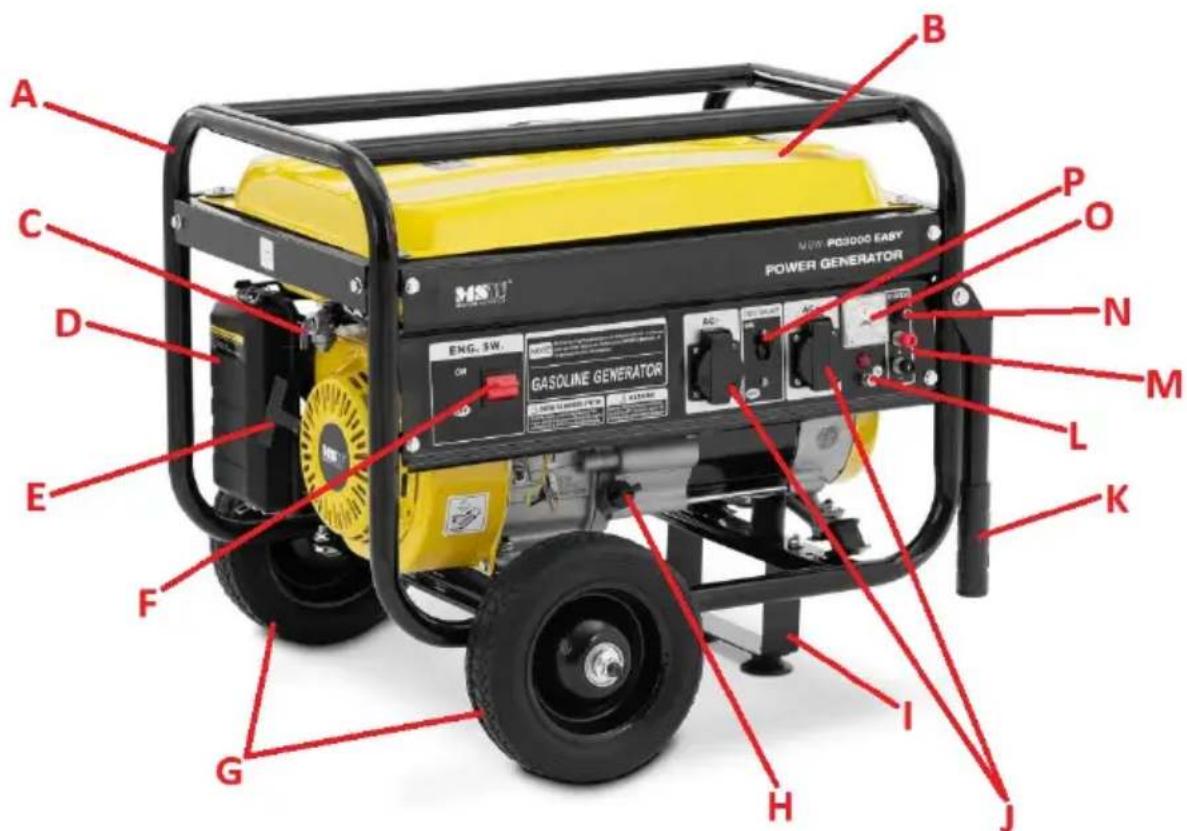

3.1. Product overview

A B C D E F G H I J M N O P Q R S T U V W X Y Z W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W W

Q R S

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TECHNOLOGY

A. Support frame
B. Fuel tank
C. Fuel valve
D. Air filter casing
E. Starter tugger handle
F. Ignition switch
G. Wheels
H. Oil filler plug with dipstick

I. Support
J. AC 230V sockets
K. Foldable transportation handle (x2)
L. Ground connection
M. DC 12V pole outputs
N. DC 12V fuse socket
O. Voltmeter
P. Overcurrent circuit breaker

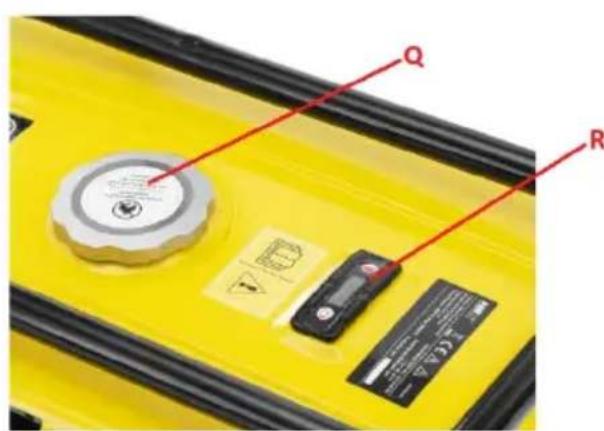

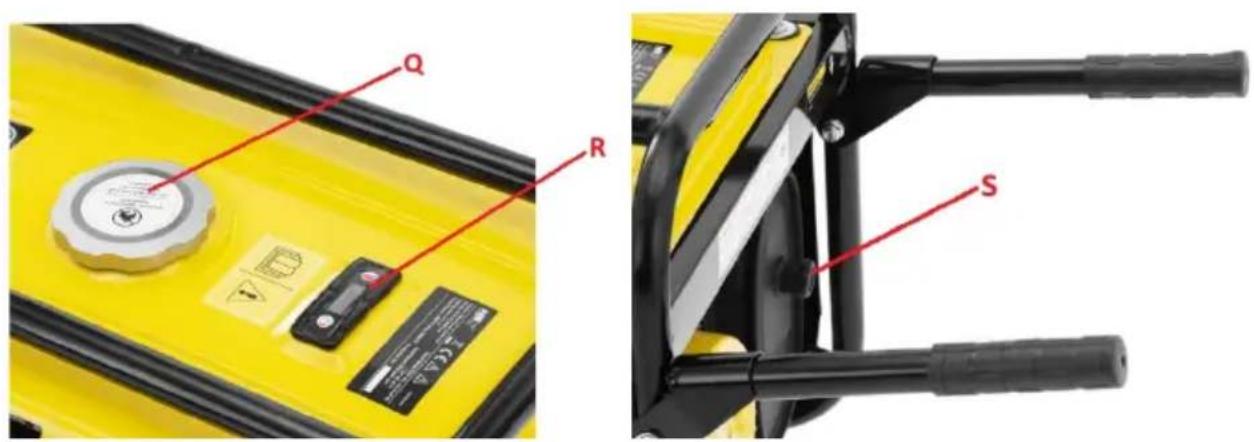

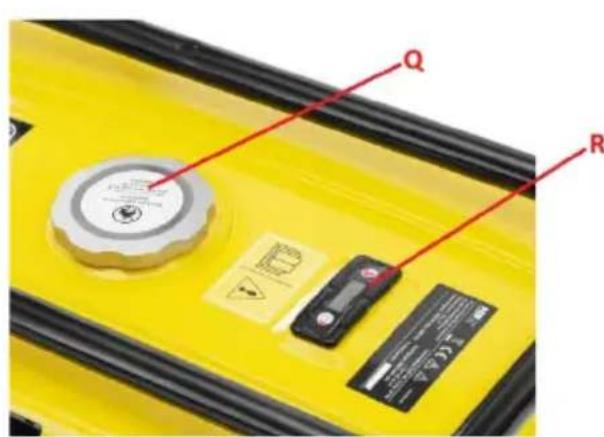

Q. Fuel filler cap with strainer filter (inside)
R. Fuel level indicator
S. Muffler with exhaust pipe

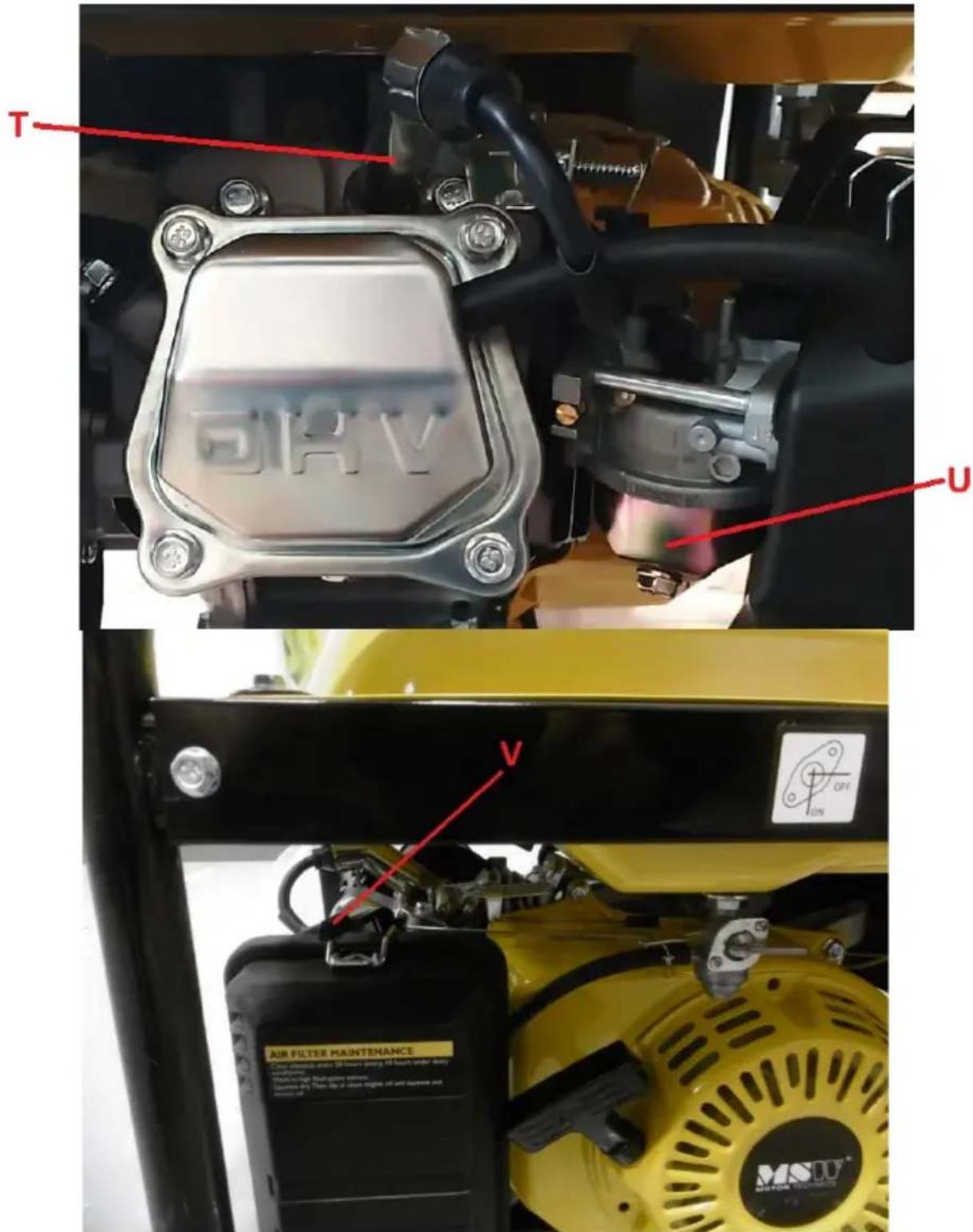

T. Ignition cable pipe
U. Fuel drop tank with drain plug
V. Suction lever

3.2. Preparation for operation

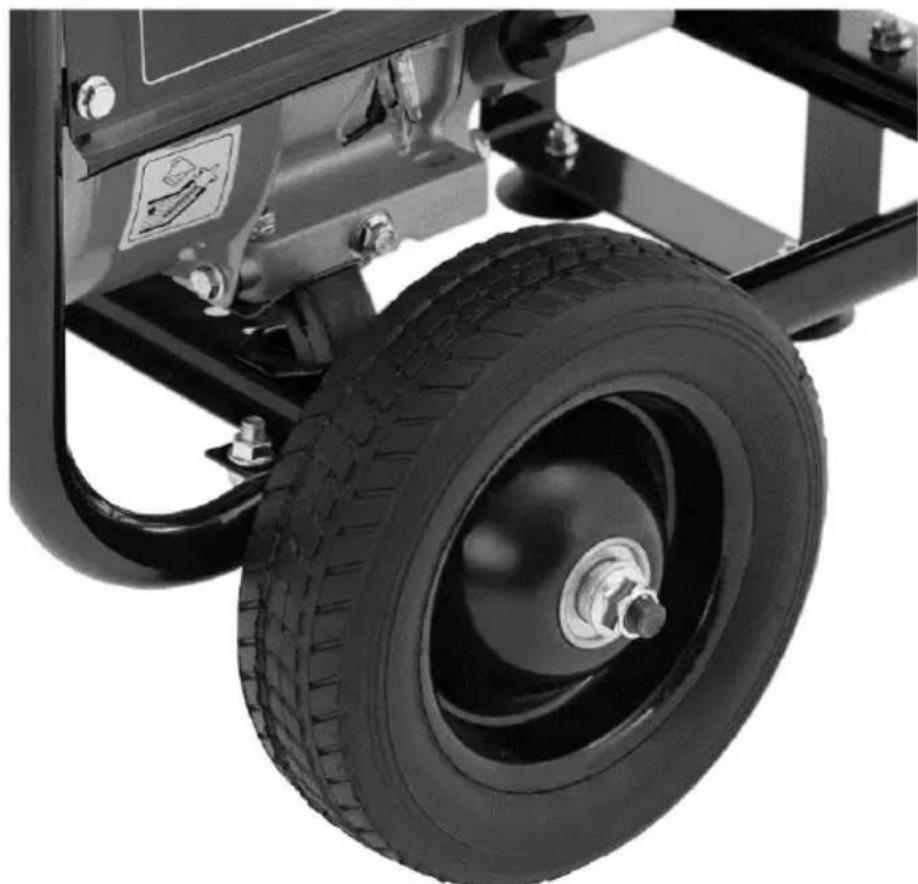

POSITIONING OF THE UNIT

Use the unit in properly ventilated spaces. Do not block the air outlet of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. The work area of the unit should provide immediate access to the ignition switch.

ASSEMBLY OF THE UNIT

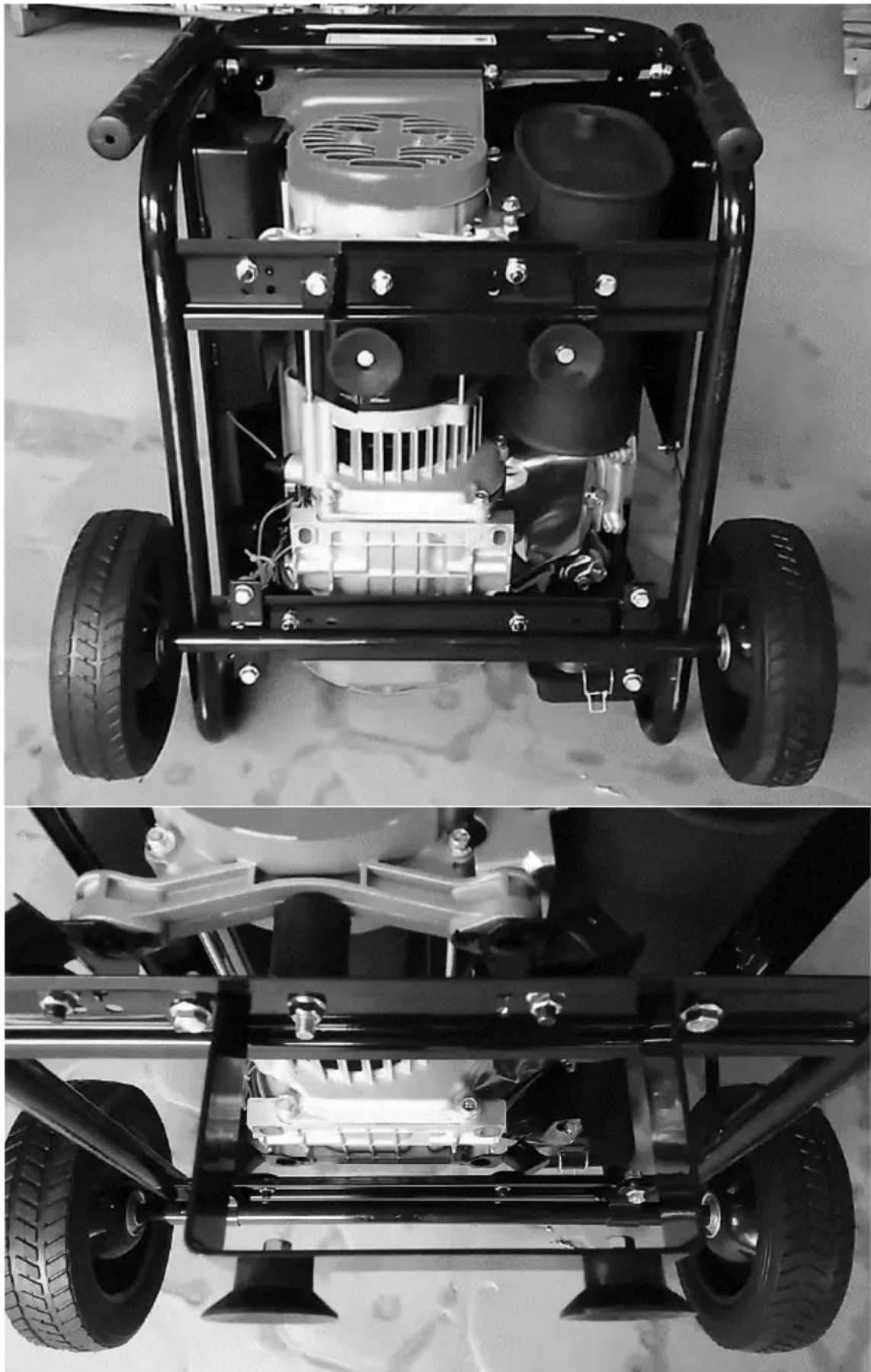

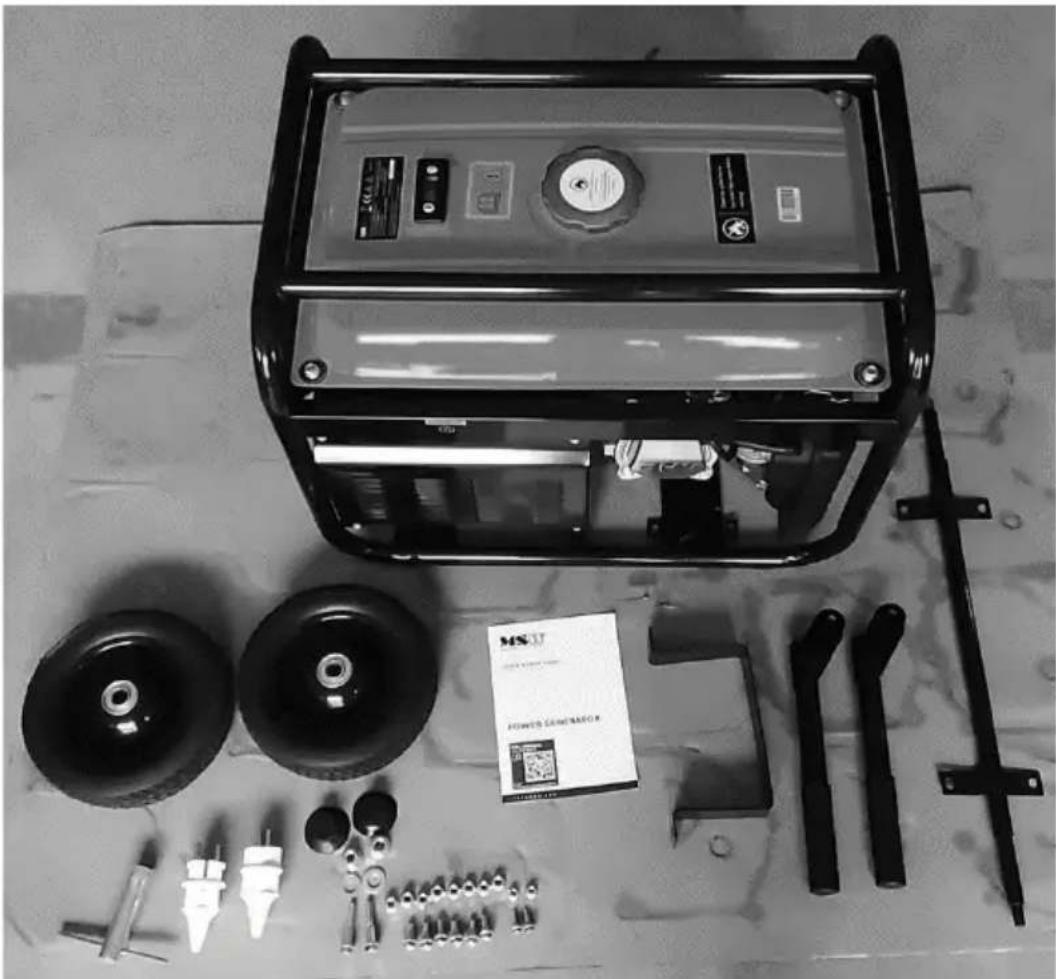

The product is delivered almost ready-made, and only the wheels, support and transportation handles need to be assembled:

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

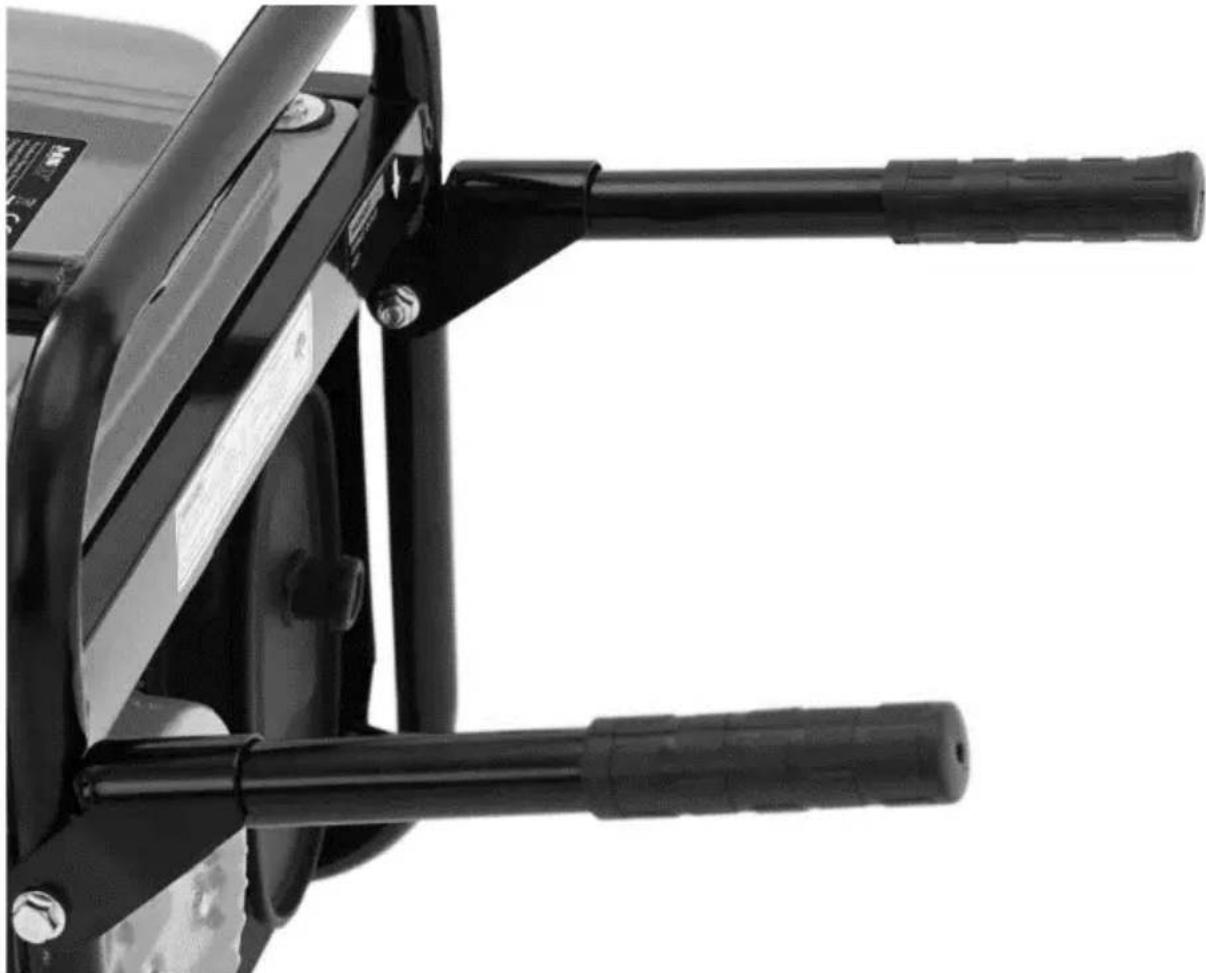

First, attach the folding transportation handles to the frame of the device - screwing them with the supplied nuts and bolts. Tighten the handles firmly enough because they could still be folded when not in use.

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

After securing the transportation brackets, lay the device on its side (the one on the side of the air filter) and from underneath the frame screw the axle together with the wheels and the support with rubber feet. Screw both the axle and the support to the specially designated places on the bottom of the device frame. Then put the wheels on the axle and screw them on, and the rubber feet to the support - as shown in the images below:

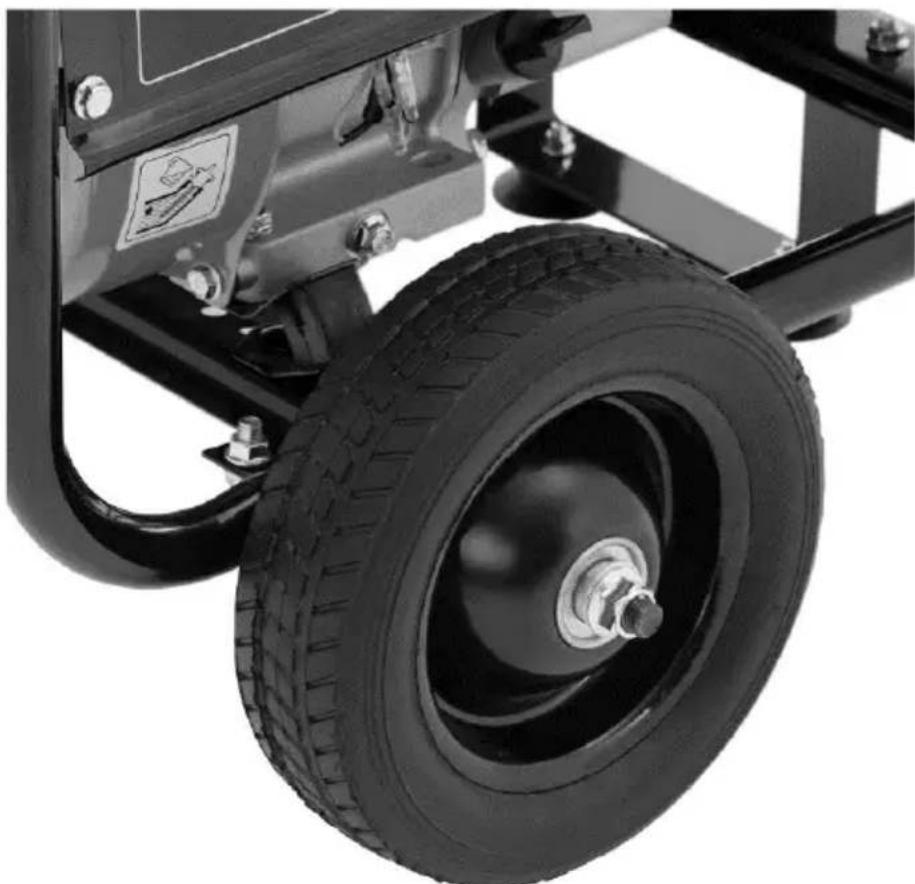

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

3.3. Working with the device

3.3.1 Before starting up for the first time

• Place the motor on a level, solid surface, not tilted more than 20° from the proper vertical.

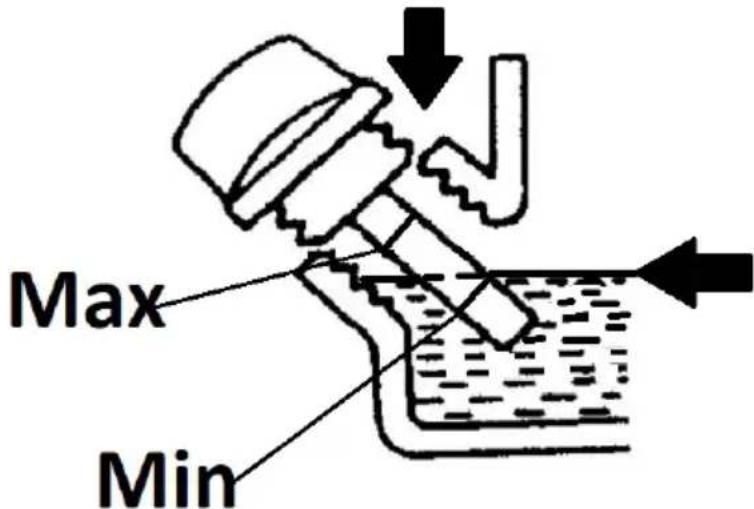

• Fill up with engine oil, as the engine is deprived of it during transport. To do this, unscrew the oil plug and fill up with engine oil through it until the level reaches the correct level on the plug's dipstick (only one plug has a check dipstick) - preferably close to the maximum permissible level. The oil level should be checked by screwing in/inserting the plug with the dry dipstick into the engine and after a few seconds unscrewing it again and checking the oil level on the dipstick.

IMPORTANT: Do not overfill the engine oil - it can damage the engine! If the oil level exceeds the permissible level, suck out the excess oil. Always check the engine oil level with the engine off and cold or cooled.

Max Min

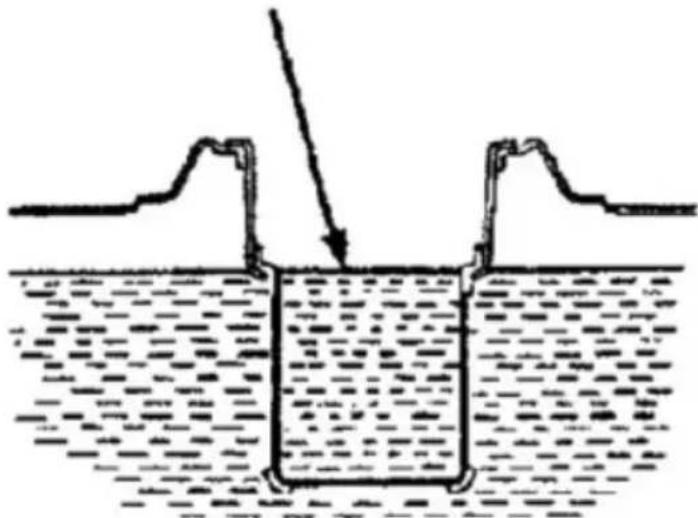

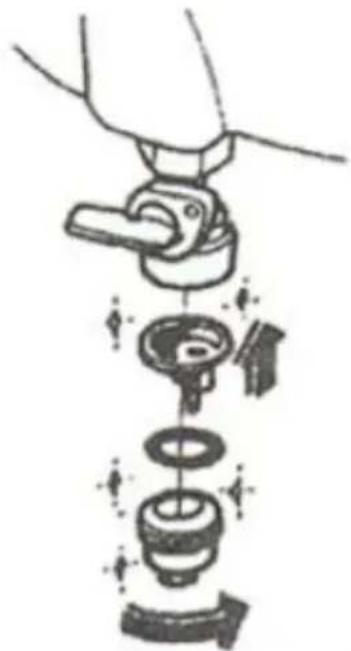

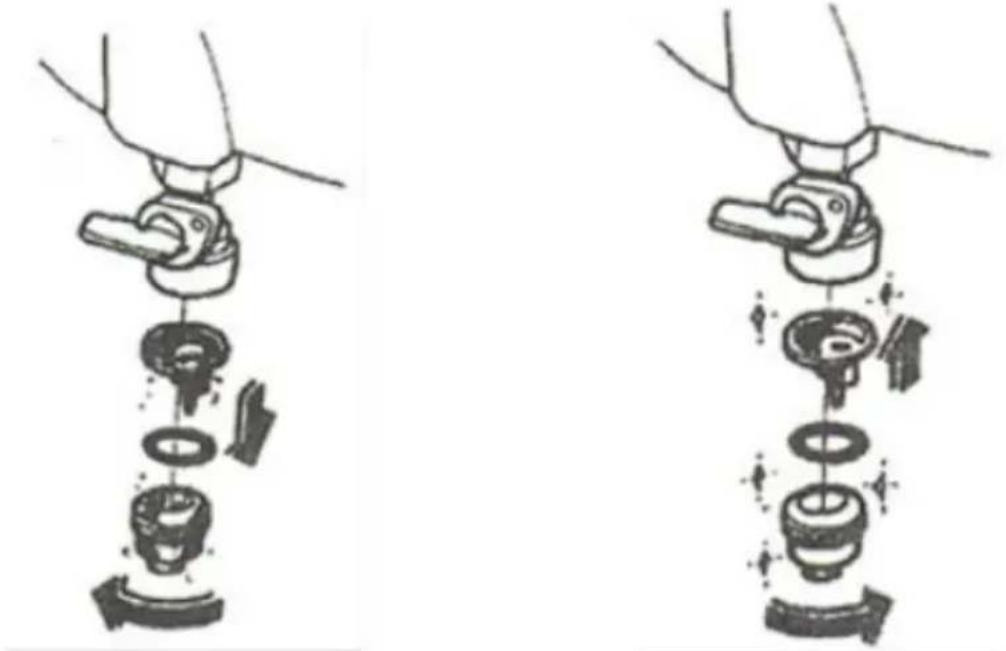

- Pour fuel into the tank - to do this, unscrew the cap of the tank and pour the fuel, being careful not to overflow beyond the maximum level indicator (see the following image) in the strainer filter.

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

• Replace the filler cap by tightening it all the way.
• Connect the generator to ground - screwing the ground wire (not included in the device) to the ground connection in the product, and its other end is driven into the ground.

IMPORTANT: grounding the generator is extremely important, because it protects the operator from the effects of a possible overvoltage, for this reason it should be fixed every time the device is used.

3.3.2 Starting the generator

a) Make sure that no load is connected to the generator. If there is, disconnect it.
b) Set the overcurrent switch on the control panel to the off position - "OFF"
c) Set the fuel valve to the open position, i.e. with the lever in the "ON" position (see the corresponding pictogram on the housing above the lever)

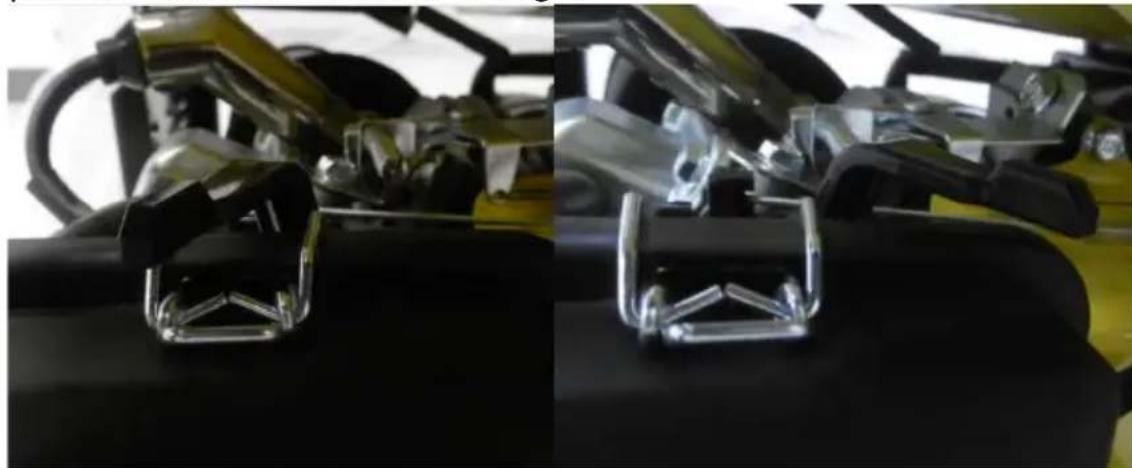

d) Set the suction throttle to the closed position - the lever moved to the left. When starting a warm engine, the intake throttle should be in the open position - the lever moved to the right:

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

e) Set the ignition switch on the control panel to the "ON" position.

f) Grasp the starter jerk handle and slowly pull away from the unit until you feel resistance, then pull with a firm motion, keeping the jerk handle in your hand at all times even as it returns to the starting position. Repeat this motion until the engine starts.

g) Let the running engine work on the suction for about 1-3 minutes to reach operating temperature.

h) After the generator has warmed up, turn off the suction (smoothly move the throttle valve to the open-right position).

i) You can connect 230V AC receivers to the sockets, observing the rule to connect in the order starting from the receiver requiring the highest starting current to the lowest. When powering 12V receivers, connect them to the correct poles before starting the generator, paying attention to the correct polarity.

j) Turn the installation switch to the "ON" position and you can use the connected receivers.

3.3.3 Switching off the generator

a) Turn off all power consumers connected to the device.
b) Turn the installation switch to the "OFF" position.
c) Also turn the ignition switch to the "OFF" position - this will turn off the engine.
d) Close the fuel valve - move its lever to the "OFF" position.

NOTE: in case of emergency shutdown of the generator: set the ignition switch to the "OFF" position - the engine will go out. Then close the fuel valve.

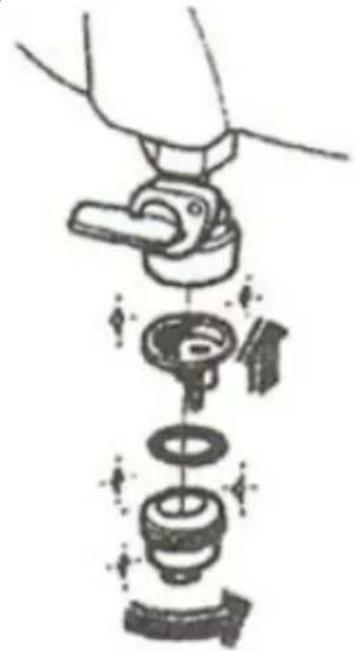

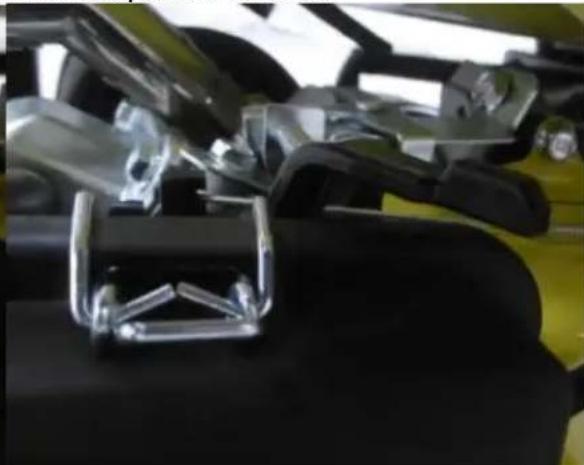

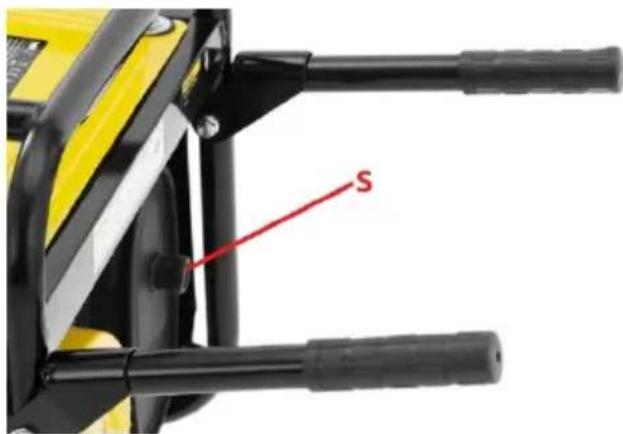

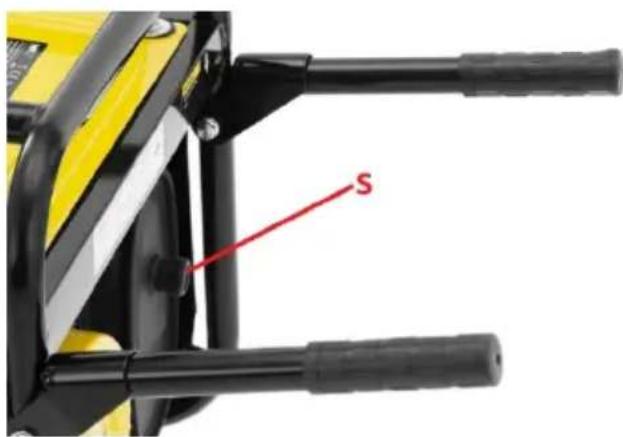

3.3.4 Transport / Storage

If the equipment is not to be used again, cool it down completely before transporting. For transport, it is advisable to empty the fuel tank to prevent any fuel leakage during transport.

If the unit is not used for a period of 1-2 months, empty the fuel from the tank or pour fresh fuel and add stabilizer to it. If the unit is not used for more than a few months, additionally empty the carburetor of fuel (dropping tank) and drain oil from the engine. Do not keep fuel in the tank with stabilizer longer than recommended by the manufacturer of this additive.

3.4. Cleaning and maintenance

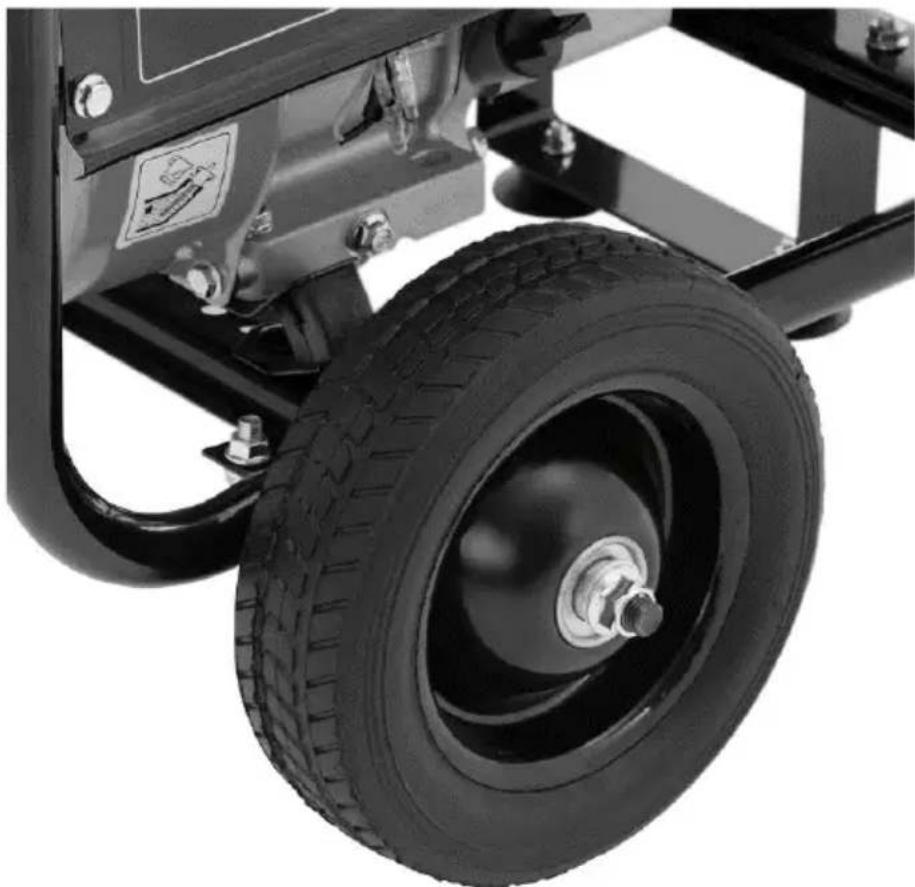

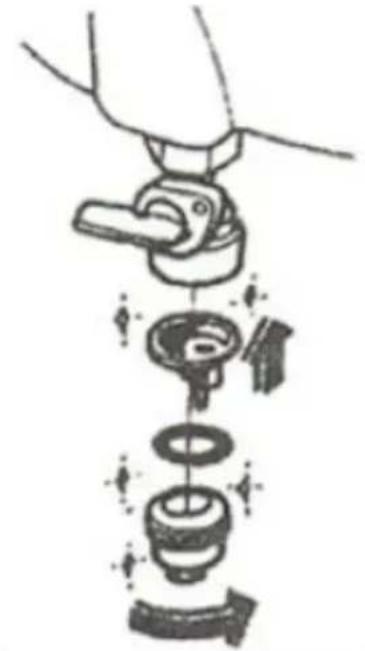

3.4.1 SERVICE INTERVALS TABLE

Action↓		Interval→		Daily	After 1 month or 20 operating hours	Every 3 months or 50 working hours	Every six months or 100 working hours	Every year or after 300 operating hours
Engine oil	Control x
	Replacement x

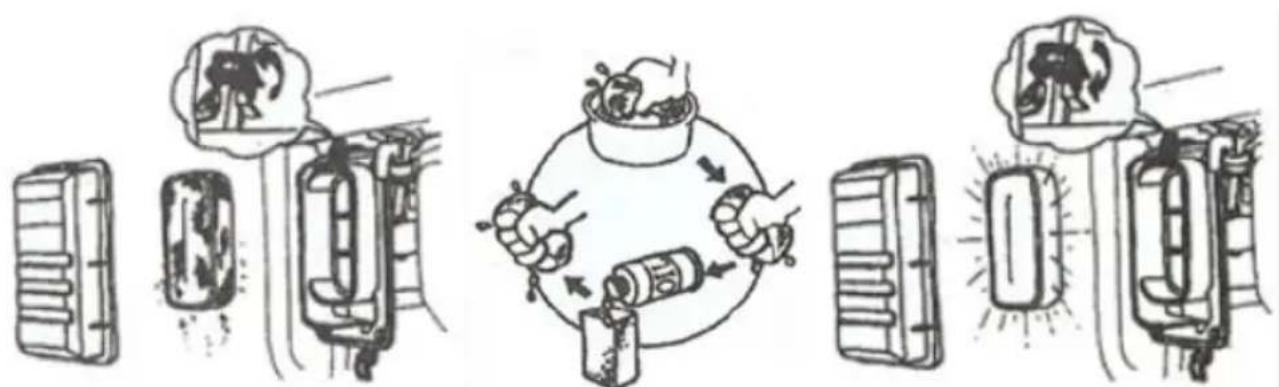

Air filter	Control x x
	Replacement			x
Fuel drop filter		Cleaning		x

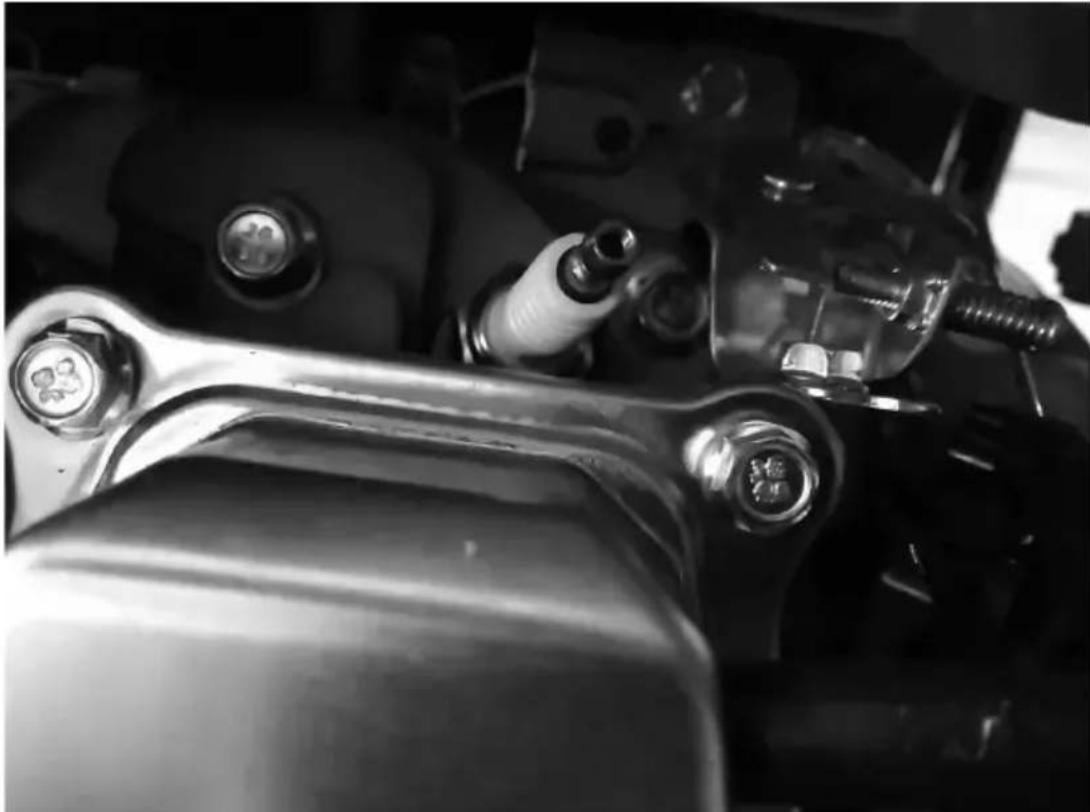

Spark plug		Inspection and cleaning		x
Fuel hoses from the fuel tank		Inspection and cleaning		Every 2 years

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Wait until the rotating parts stop.
c) Use only non-corrosive cleaning agents for cleaning the surfaces.
d) Store the unit in a dry and cool place protected from moisture and direct sunlight.
e) Do not spray the unit with a stream of water or immerse it in water.
f) Make sure that no water enters through the ventilation openings in the casing.

g) Clean the ventilation openings with a brush and compressed air.
h) Perform regular inspections of the unit checking technical fitness and any damages.
i) Use a soft cloth for cleaning.
j) Replace the engine oil regularly with fresh oil.

To change engine oil, it is best done when the oil is warm because it is thinner and flows more easily. First unscrew the oil filler cap and then the drain plug, first putting a container for used oil underneath it. After draining the oil, close the drain plug tightly and wipe dry the area around it from the rest of the used oil. You can refill the engine with fresh oil.

CAUTION: heated oil is hot - risk of burns!

k) Inspect and clean the air filter regularly and replace with a new one if necessary.

Removing the air filter: To access the air filter, undo the clips on the housing cover and remove the filter. Rinse the sponge filter in warm water with detergent or in extraction gasoline. Dry the sponge filter completely before reassembly, then soak it in a little fresh engine oil. Squeeze excess oil out of the filter before installing it in the machine.

IMPORTANT: do not operate unit without the air filter!

Illustration showing four steps of a vehicle collision simulation with labeled components and directional arrows

I) Check the condition of the spark plug regularly - clean it if dirty, and check the electrode gap before reassembly and adjust if necessary.

To access the spark plug, first remove the ignition cable pipe from the spark plug. Then the spark plug can be unscrewed.

IMPORTANT: it is best to remove the spark plug when the engine is cold or at least cooled down.

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

IMPORTANT: A spark plug that has recently been in operation can be hot - risk of burns!

m) Clean the fuel filter regularly

The screen fuel filter is located at the bottom of the fuel valve. To get to it, first turn off the fuel valve on the switched-off device -

set its lever to the "OFF" position. Then unscrew the filter housing

located on the underside of the valve (see the picture below on the left). After unscrewing the housing, remove the filter from it and clean it (for example, rinse it in

extraction gasoline and blow it out under low pressure). Install the filter in the reverse order of removal, but make sure to also attach the sealing ring (see following image on the right).

Black-and-white photo of a power generation device with various tools and components laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms and a handle, no visible text or symbols.

Top-down and side-by-side views of a small wheeled vehicle showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and tire assembly (no visible text or symbols)

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

Close-up of a yellow robotic device with transparent grip and black handle, displayed against a dark background (no visible text or symbols)

Illustration showing four sequential steps of a vehicle collision or explosion process, with arrows indicating movement and components.

Close-up of a car engine component with visible springs and bolts (no text or symbols)

Diagram of a hand holding a mechanical component with internal parts (no text or symbols)

Illustration of a hand holding a mechanical switch with internal components (no text or symbols)

A B C D E F G H I J M N O P MSUT ENGL. SW. GASOLINE GENERATOR POWER GENERATOR

Q R S

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TEURATE V

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

Close-up of a yellow and black automotive component with metallic clamps, shown from two angles (no text or symbols visible)

Illustration showing four steps of a vehicle collision simulation with labeled components and directional arrows

Close-up of a car engine bay with visible springs and bolts (no text or symbols)

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a control knob (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

Close-up of a yellow robotic device with transparent plastic clips, shown from two angles (no text or symbols visible)

3.3.4 Transport / Stockage

Illustration showing four sequential steps of a fire safety drill with labeled components and directional arrows.

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

Two-step diagram showing a hand holding a mechanical component with internal components, no text or symbols present.

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms and a handle, no visible text or symbols.

Close-up of a vehicle's wheel and suspension components, showing tire and frame structure (no text or symbols visible)

Diagram of a submerged object with a downward arrow indicating flow or force, surrounded by water (no text or symbols)

Close-up of a yellow robotic device with transparent plastic clips, mounted on a black surface (no visible text or symbols)

Illustration showing four sequential steps of a vehicle collision or repair process, with arrows indicating movement and components.

Close-up of a mechanical component with bolts and connectors (no visible text or symbols)

Diagram of a hand pouring liquid into a multi-layered mechanical component (no text or symbols)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

Diagram of a submerged object with two peaks and a downward arrow, showing fluid or material flow (no text or symbols)

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

Illustration showing four sequential steps of a vehicle collision or repair process, with arrows indicating movement and components.

Close-up of a mechanical component with bolts and connectors (no visible text or symbols)

Two-step diagram showing a hand holding a mechanical device with internal components, no text or symbols present.

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

Diagram of a submerged object with a downward arrow indicating flow or direction, surrounded by water (no text or symbols)

Close-up of a yellow robotic car with transparent plastic clips and black buttons, no visible text or symbols

Illustration showing four stages of a vehicle collision experiment with labeled components and directional arrows

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

A B C D E F G H I J K L M N O P EN.G. SW. GASOLINE GENERATOR POWER GENERATOR

Q R

Close-up of a yellow and black mechanical device with a red label 'S' pointing to a small component (no readable text or symbols beyond the label)

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TECHNOLOGY

APPARATETS PLACERING

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and suspension components, showing tire and frame structure (no text or symbols visible)

Diagram of a submerged object with two peaks and a downward arrow, showing fluid or material flow (no text or symbols)

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

MW-PG5000 EASY POWER GENERATOR ENG. SW. GASOLINE GENERATOR A B C D E F G H I J N M L K O P

Q R

S

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TEURATE V

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms and a handle, no visible text or symbols.

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and suspension system, showing tire and mounting bracket (no text or symbols visible)

Diagram of a submerged object with two peaks and a downward arrow, showing fluid or material flow (no text or symbols)

Close-up of a yellow robotic car with transparent plastic clips and black buttons, no visible text or symbols

Illustration showing four sequential steps of a device handling or cleaning process, with Chinese text labels.

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms and a handle, no visible text or symbols.

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and suspension components, showing tire and frame structure (no text or symbols visible)

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

Illustration showing four steps of a vehicle collision simulation with labeled components and directional arrows.

Close-up of a car engine component with bolts and wiring (no visible text or symbols)

MSU B A C D E F G H I J N M L K P O ENG. SW. GASOLINE GENERATOR POWER GENERATOR

Q R

Close-up of a yellow and black bicycle handle with a red label pointing to the wheel (no text or symbols on the device itself)

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TECHNOLOGY

A. Støtteramme
B. Bensintank
C. Drivstoffventil
D. Luftfilterhus
E. Starthåndtak
F. Tenningsläsen
G. Hjul
H. Oljepåfyllingsplugg med peilepinne

I. Støtte
J. AC 230V stikkontakter
K. Sammenleggbart transporthåndtak (x2)
L. Jordforbindelse
M. DC 12V polutganger
N. DC 12V sikringsuttak
O. Voltmeter
P. Overstrømsbryter
Q. Drivstoffpåfyllingslokk med silfilter (innvendig)
R. Drivstoffnivåindikator
S. Lyddemper med eksosrør
T. Tennkabelrør
U. Drivstofftank med tappeplugg
V. Sugespak

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms (no visible text or symbols)

Close-up of a vehicle's wheel and suspension components, showing tire and frame structure (no text or symbols visible)

Diagram of a submerged object with a downward arrow indicating flow or direction, surrounded by water (no text or symbols)

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

3.3.4 Transport / Lagring

Illustration showing a mechanical or electrical process with labeled components and directional arrows indicating movement or sequence.

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

Close-up of a yellow and black mechanical device with a red label 'S' pointing to a small component (no readable text or symbols beyond the label)

PLACERING AV APPARATEN

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with two articulated arms and a handle, no visible text or symbols.

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel assembly with visible tire and mounting bracket (no text or symbols)

Diagram of a submerged object with two peaks and a downward arrow, showing fluid or material flow (no text or symbols)

Close-up of a yellow robotic car with metallic clamps and black body, no visible text or symbols

3.3.4 Transport / Lagring

Illustration showing four steps of a vehicle collision experiment with labeled components and directional arrows

Close-up of a mechanical component with bolts and springs (no visible text or symbols)

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and suspension components, showing tire and mounting bracket (no text or symbols visible)

Diagram of a submerged object with a downward arrow indicating flow or force, embedded in a liquid surface (no text or symbols)

Close-up of a metallic mechanical component with reflective surfaces and a black base (no visible text or symbols)

Close-up of a car's front wheel assembly with metallic brackets and black plastic components (no visible text or symbols)

Illustration showing four sequential steps of a vehicle collision or repair process, with arrows indicating movement and components.

Close-up of automotive engine components including bolts and hoses (no visible text or symbols)

Two-step diagram showing a hand holding a mechanical device with internal components, no text or symbols present.

A B C D E F G H I J K L M N O P ENQ. SW GASOLINE GENERATOR POWER GENERATOR 345677

Q R

Close-up of a yellow and black mechanical device with a red label 'S' pointing to a component (no readable text or symbols beyond the label)

T GIV U OFF ON AIR FILTER MAINTENANCE MOTOR TECHNOLOGY

Black-and-white photo of a mechanical device with multiple components and tools laid out on a surface (no visible text or symbols)

Close-up of a black mechanical device with lever arms and a circular head (no visible text or symbols)

Top-down and side-by-side views of a small wheeled vehicle chassis showing internal components and structural details (no text or symbols visible)

Close-up of a vehicle's wheel and suspension system, showing tire and frame components (no text or symbols visible)

Diagram of a submerged object with a downward arrow indicating flow or direction, surrounded by water (no text or symbols)

Close-up of a mechanical clamp device with metallic components, shown from two angles (no text or symbols visible)

Illustration showing a vehicle collision scenario with labeled components and directional arrows indicating movement.

Close-up of a car engine bay with visible springs and bolts (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
