USER MANUAL POWER 2000 MAX MSW
This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.
Technical data
| Parameter description Parameter value | ||
| Product name | Power Station | |
| Model | MSW-POWER 1500 MAX | MSW-POWER 2000 MAX |
| Rated voltage [V~] / frequency [Hz] | 230/50 | |
| Continuous Power [W] | 1500 | 2000 |
| Peak Power [W] | 3000 | 4000 |
| Protection rating IP | IP20 | |
| Mains charging | AC100-240V, 50Hz, 200W | |
| Solar charging | Max 200 W | |
| Dimensions [width x depth x height; mm] | 480 x 190 x 195 | 190 x 590 x 200 |
| Weight [kg] | 20.65 | 25.7 |
1. General description
The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.
DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.
To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.
Legend
The product satisfies the relevant safety standards.
Read instructions before use.
The product must be recycled.
WARNING! or CAUTION! or REMEMBER!
General warning sign.
ATTENTION! Electric shock warning!
PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.
2. Usage safety
ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.
The terms "device" or "product" are used in the warnings and instructions to refer to:
Power Station
2.1. Electrical safety
a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) Do not use in very humid environments.
f) Prevent the device from getting wet. Risk of electric shock!
2.2. Safety in the workplace
a) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
d) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
e) Use the device in a well-ventilated space.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.
h) Keep the device away from children and animals.
i) If this device is used together with another equipment, the remaining instructions for use shall also be followed.
Remember! When using the device, protect children and other bystanders.
2.3. Personal safety
a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
2.4. Safe device use
a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device out of the reach of children.
d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
g) Do not leave this appliance unattended while it is in use.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
j) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
k) Keep the device away from sources of fire and heat.
ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.
3. Use guidelines
This power station consists of a rechargeable lithium battery, inverter circuit and battery management system (BMS). It supports AC & DC input charging via power source, solar panel, and can also discharge via AC & DC to provide convenient, efficient and safe power supply during travel, power failure, etc.
The product is intended for home use only.
The user is liable for any damage resulting from unintended use of the device.
3.1. Device description

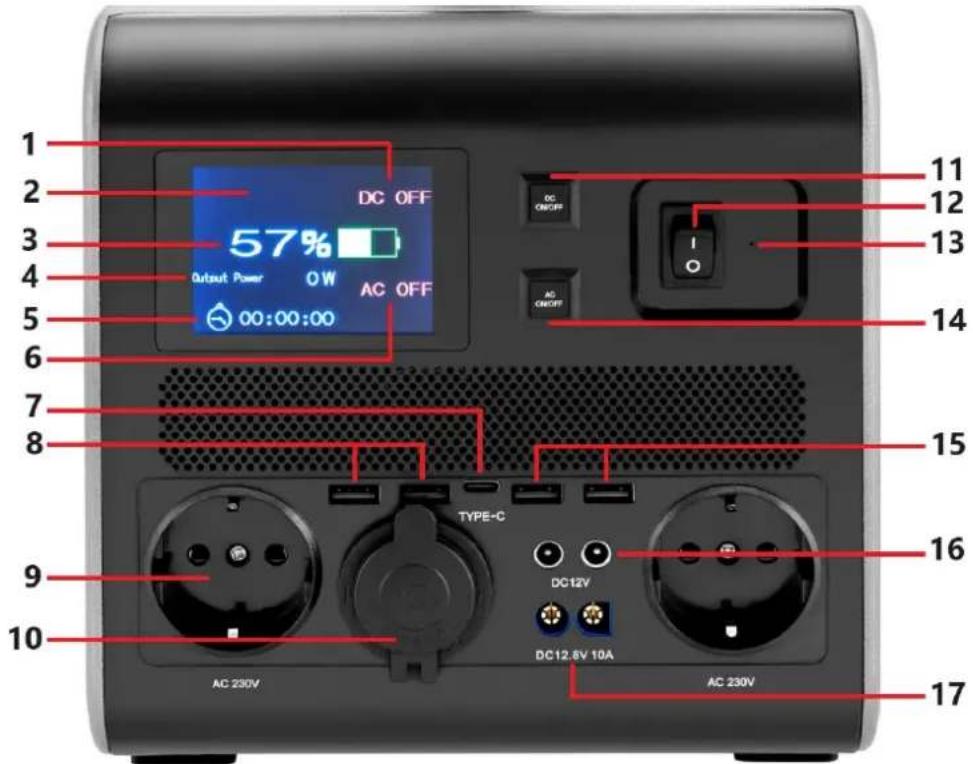

FRONT:


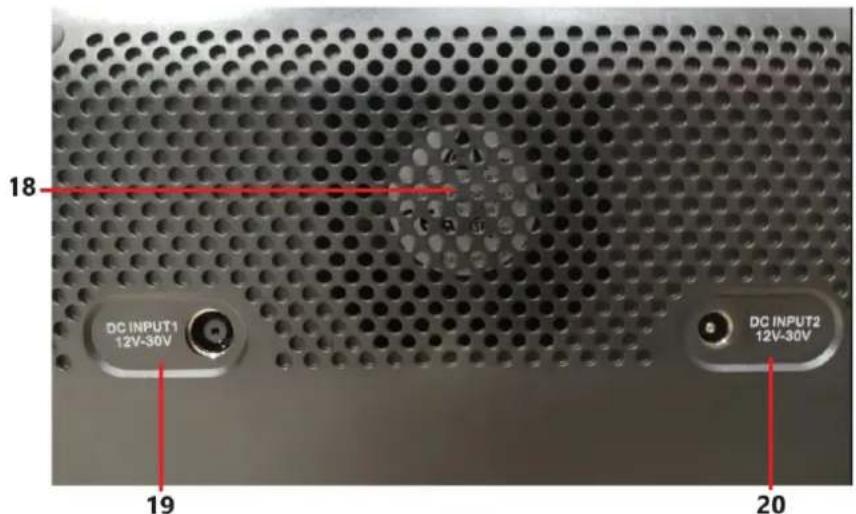

| 2 | AC charging indicator (invisible on the picture) | 11 | DC ON/OFF button |
| 3 | Battery power level indicator | 12 | Power switch |
| 4 | AC output power | 13 | Power ON indicator |
| 5 | Operating time | 14 | AC ON/OFF button |
| 6 | AC ON/OFF status | 15 | USB output ports |
| 7 | USB TYPE-C output port | 16 | DC 12 V output ports |
| 8 | USB output ports | 17 | 12 V EC5 port |
| 9 | AC 230V output ports | 18 | Cooling fan |
| 19 | DC charging 7909 port | 20 | DC charging 5521 port |
3.2. Preparing for use
APPLIANCE LOCATION
The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.
3.3. Device use
1. Use of power stations
a) Press the power switch (12) to switch on the power station and the indicator (13) will start.
b) AC operation mode: Press the AC ON/OFF button (14) to switch the unit on and the display will show AC ON (6).
c) Approximately 3 seconds after AC ON, connect one end of the cable to the AC socket (9) and the other end to electrical appliances.
d) When you have finished using the unit, press the AC ON/OFF button (14) again to turn it off, the display will show AC OFF (6).
e) DC operation mode: press the DC ON/OFF button (11) to turn on the DC mode, the DC ON sign (1) will be displayed.
f) Connect one end of the cable to any DC port such as USB-A (8, 15), USB Type-C (7), circular DC port (16) or cigarette lighter socket (10) and the other end of the cable to a mobile phone, laptop, drone, or other digital electronic equipment.
g) When you have finished using the unit, press the DC ON/OFF button (11) again to switch off the unit, the display will show DC OFF (1).
Turn Off Mains Switch When Not in Use:
- When your device is not in use, it's a good practice to switch off the mains switch. This helps conserve energy and prevents any potential risks associated with leaving the device powered on when not needed.
Switch On AC Output Only for AC Appliances:
- Only switch on the AC output when you need to power AC appliances. This step ensures that the inverter, which converts DC power to AC power, is only active when necessary. Running the inverter continuously can deplete the battery over time.
Inverter and Battery Management:
- The built-in inverter could drain the battery if left running for extended periods. This is common behaviour in devices with built-in inverters. If the inverter is active, it consumes power from the battery. To prevent excessive battery discharge, switch off the inverter when not powering AC appliances.
NOTES:
a) When the power drops below 1%, both AC and DC stop working, turn off the power switch to protect the batteries from damage due to loss of power.
b) When the power is less than or equal to 10%, the battery level symbol turns from green to red.
c) When the power level is less than or equal to 5%, the battery level symbol flashes red.
d) If possible, fully charge the power station before prolonged downtime. (For long-term use, fully charge the station at least once every 6 months).
2. Charging the power station
a) Charging via AC cable (maximum charging power: 200 W)
Plug the charging cable into a wall socket, then plug the other side into the AC input port of the portable power station, you can see the charging status on the LCD display (2).
b) Charging with solar panel (maximum charging power: 200 W). Solar panel is optional.
Place the solar panel in a location where it can receive as much direct sunlight as possible.
The charging status can be checked on the LCD display (3). Charging will end when the battery is fully charged.
NOTES:
- For charging from a wall socket, use only the charger specified by the manufacturer.
- For solar charging, a solar charger with the following specifications is recommended.
- DC output: 12-30 V Over 200 W
- Charging type: MPPT
- Connector: DC male connector
How to use the EC5 port
a) To assist in starting the car (to supply power to the car battery), but ensure that the remaining battery capacity is at least 60% before using this function.
b) Observe the correct polarity of the starter cables.
c) After connecting the starter cables to the battery station, turn on the main power switch and press the DC button, the display will show DC ON, wait about 10 minutes, press the DC button again, the display will show DC OFF, remove the starter terminal, try to turn the ignition key to start the car.
Description of alarm information.
a) Overload
When the output power used is greater than the specified output power that can be used for the model, the message "OVERLOAD" will be displayed in the alarm area. It is necessary to reduce the power of the electronic equipment. If the AC output is off at this time, press the AC ON/OFF button again and restart the unit.
b) High temperature.
When the internal temperature is higher than 35 degrees Celsius or the output power is higher than nominal power, the cooling fan starts to operate. When the internal temperature is higher than 80 degrees Celsius, the temperature alarm sounds. The AC and DC outputs are switched off and the alarm area shows "HI TEMP", which will stop operation immediately. To restart the unit, wait until the temperature drops below 40 degrees Celsius.
3.4. Cleaning and maintenance
a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) Do not allow water to get inside the device through vents in the housing of the device.
f) Clean the vents with a brush and compressed air.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Use a soft cloth for cleaning.
i) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
j) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
k) Before storage, the power station must be charged and recharged to full capacity every 6 months. Otherwise, the battery capacity will not be restored.
CAUTION:
Low temperatures (below zero) can affect the capacity of the power station battery. Never charge the unit in sub-zero conditions as this will damage the lithium-ion battery and its capacity may not be restored.
DISPOSING OF USED DEVICES:
Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.
Contact local authorities for information on your local recycling facility.
