USER MANUAL POWER 700 MSW

Line drawing of a portable electrical outlet connected to a device with control buttons and indicator lights (no text or symbols)

Diagram illustrating solar radiation generation using a solar panel and a portable device, with labeled components.

1 - Sonnenkollektor

Diagram showing a car silhouette transforming into an electronic device with control buttons and indicator lights.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Power Station
Model	MSW-POWER 700
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	200
Capacity [Ah]	20 (25.6V)
Continuous Power [W]	700
Peak Power [W]	1400
Protection rating IP	IP20
Dimensions [width x depth x height; mm]	250 x 160 x 220
Weight [kg]	8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER!

General warning sign.

ATTENTION! Electric shock warning!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Power Station

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) Do not use in very humid environments.
f) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Use the device in a well-ventilated space.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.
j) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device out of the reach of children.
d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
g) Do not leave this appliance unattended while it is in use.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
j) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
k) Keep the device away from sources of fire and heat.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is a mobile energy bank. It is designed to store electrical energy and to supply power to various electrical/electronic devices during, for example, power cuts.

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

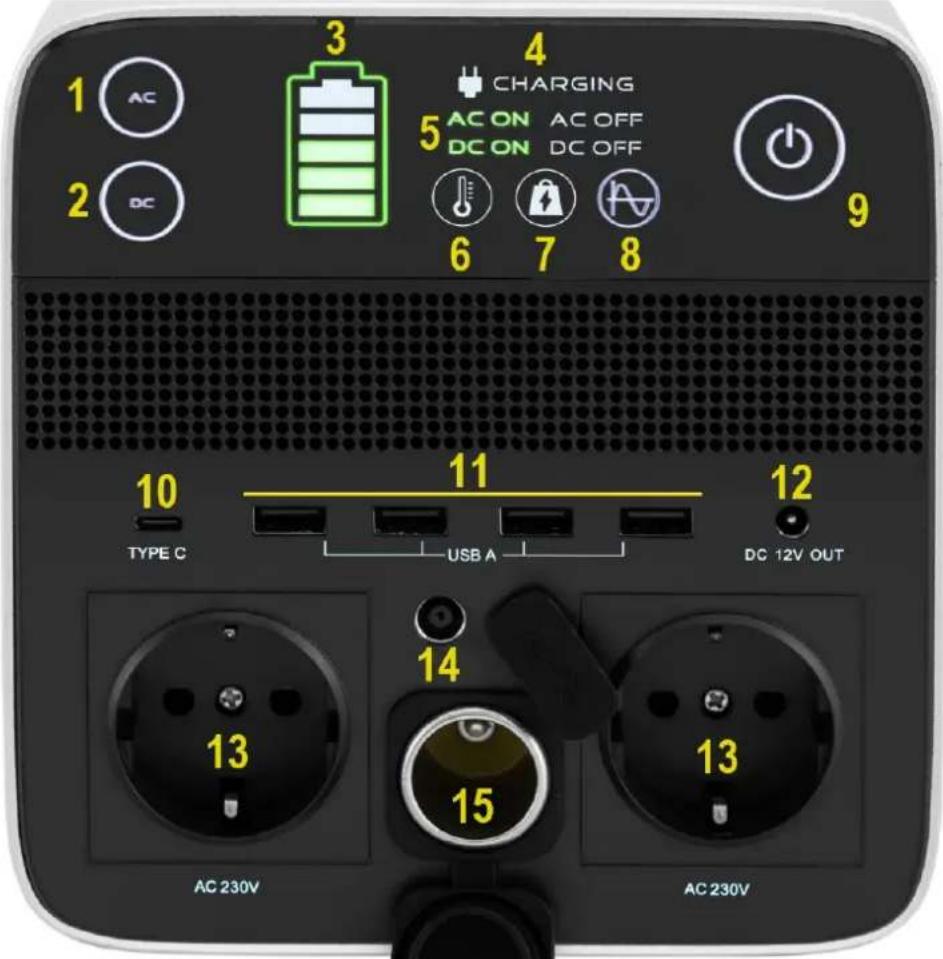

3.1. Device description

1 2 3 4 CHARGING 5 AC ON AC OFF DC ON DC OFF 6 7 8 9 10 TYPE C 11 USB A 12 DC 12V OUT 13 14 15 AC 230V AC 230V

1. AC ON/OFF button: Press the button to turn on/off the AC Output.
2. DC ON/OFF button: Press the button to turn on/off the AC Output.
3. Battery indicator: Indicates the power energy left.
4. Charging indicator: Indicates when the power station is charging.
5. AC/DC ON/OFF status: When the AC is switched on, the "AC ON" indicator will turn green. When AC is switched off, the "AC OFF" indicator will turn red. When switching on the DC power supply, the "DC ON" indicator turns green. When switching off DC, the "DC OFF" indicator turns red.
6. Overheat Warning: If the battery temperature is too high, it turns red and triggers an alarm. The AC/DC power supply will stop working and the cooling fan will start automatically. Power station cannot be switched off. Once the battery has cooled down, operation can be resumed.
7. Overload warning: when the power drawn from the AC outlets constantly exceeds the maximum AC output power, the colour changes to red. The devices must be disconnected.
8. Pure Sine Wave: The outlet power is a pure sine wave.
9. Power switch: Press the button for 1-2 seconds to switch the power station on/off.
10. USB Type C Output: USB Type C enables devices such as tablets, smartphones and many other devices to be charged via a USB Type C port.
11. USB-A Outlets: USB-A enables devices such as tablets, smartphones and many other devices to be charged via a USB-A port.
12. DC 12 V Output Port: Charging / powering of devices requiring 12 V DC power supply.
13. AC 230V Outlets: Charging / powering of devices requiring 230 V AC power supply.
14. Input port 7909: Connect this port to charge the power station with the mains charger.
15. DC 12 V cigarette lighter port: Charging of devices requiring a 12-volt cigarette lighter socket, such as a car refrigerator.

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

How do you know whether electronic devices will work with a power station?

Firstly, determine the amount of energy required by the electronic device. This may need to be investigated yourself, checking the user manual of the electronic device should suffice. Secondly, check the performance of the individual output ports. For example, the AC port of the A700 is monitored by an inverter that allows 700 W of continuous power. This means that if the device draws more than 700 W for an extended period of time, the portable power station will shut down.

NOTE:

1. When the battery voltage drops below 2.5 V, both AC and DC cease to operate, the power station should be switched off to protect the batteries from damage due to loss of power.
2. When the battery charge level is 3% or lower, the battery charge level symbol changes from green to red.
3. If possible, fully charge the power station before prolonged downtime. (For long-term use, fully charge the station at least every 6 months).

3.3.1. How to charge the power station

Plug the charging cable into a wall socket, then plug the other end into the input port 7909 (14) of the portable power station, the charging indicator will turn green (3), (4). Recharge only with the charger specified by the manufacturer.

Simple line drawing of a power outlet connected to an electrical device (no text or symbols)

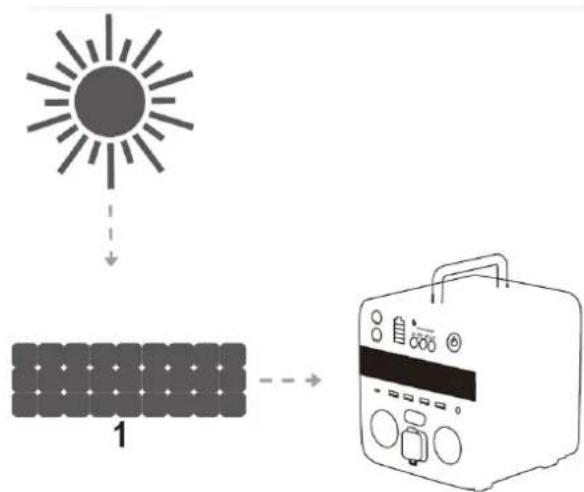

3.3.1.2. Charging with solar panel

Place the solar panel in a location where it will be exposed to direct sunlight. Connect the solar charger using the solar charging cable, then connect the cable with connector 7909 to the input port (14). The charging status (3), (4) can be checked on the LCD display. Charging will end when the battery is full of energy.

Diagram illustrating the concept of solar radiation, showing sunlight entering a solar panel and entering a portable device.

1 – Solar Panel

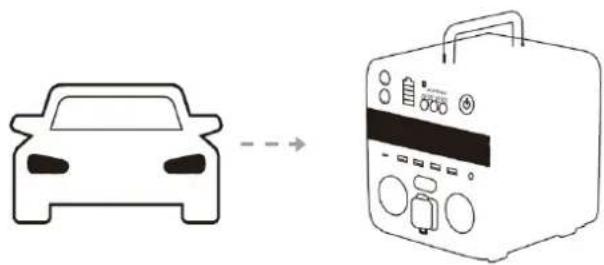

3.3.1.3. Charging by a car

Connect one end of the car charger to the cigarette lighter port, connect the other end to the 7909 input port (14), the charging indicators (3) and (4) will turn green.

Diagram showing a car silhouette transforming into an electronic device with control buttons and indicator lights.

Failure to comply with the following recommendations may damage the battery.

1. Charge the battery before storage and charge it fully at least 6 months. Store the unit in a cool and dry place.
2. If the main power supply shuts down automatically due to lower battery capacity, recharge the battery within 3 months. Otherwise, the battery capacity will not be restored.

Low temperatures (below zero) can affect the capacity of the power station battery. If kept in sub-zero conditions, the battery may be discharged. Never charge the unit in sub-zero conditions as this will damage the battery and its capacity may not be recovered.

3.3.2. Description of alert information

3.3.2.1. Overload

When the output power in use is higher than the specified output power that can be applied to the model, the "OVERLOAD" indicator will light up red. It is necessary to reduce the power of the electrical equipment. If the AC output is turned off during this time, press the AC ON/OFF button again and restart the unit.

3.3.2.2. High temperature

When the internal temperature is higher than 35 degrees Celsius or the output power is higher than 700 W, the cooling fan starts to operate. When the internal temperature is higher than 85 degrees Celsius, the temperature alarm sounds. The AC and DC outputs will be switched off and the "OVERHEAT" indicator will turn red, causing the operation to stop immediately. To restart the unit, wait until the temperature drops below 35 degrees Celsius.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) Do not allow water to get inside the device through vents in the housing of the device.
f) Clean the vents with a brush and compressed air.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Use a soft cloth for cleaning.
i) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
j) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
