USER MANUAL DEH-V2.1 E60 MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical Data

Parameter Description	Parameter Value	Parameter Value	Parameter Value
Product Name	Air dehumidifier	Air dehumidifier	Air dehumidifier
Model	MSW-DEH-V2.1 E60	MSW-DEH-V1 A55	MSW-DEH-V1 C60
Rated Capacity	60L/day (30°C, 80%RH), 36L/day (27°C, 60%RH)	55L/day (30°C, 80%RH), 33L/day (27°C, 60%RH)	60L/day (30°C, 80%RH), 36L/day (27°C, 60%RH)
Power Supply	220-240V~/50Hz	220-240V~/50Hz	220-240V~/50Hz
Rated Input Power	850 W (30°C, 80%RH)	650 W (30°C, 80%RH)	850 W (30°C, 80%RH)
Rated Input Current	3.7 A (30°C, 80%RH)	2.8 A (30°C, 80%RH)	3.7 A (30°C, 80%RH)
Max Rated Input Power	1000 W (38°C, 80%RH)	980 W (38°C, 80%RH)	1000 W (38°C, 80%RH)
Max Rated Input Current	4.5 A (38°C, 80%RH)	4 A (38°C, 80%RH)	4.5 A (38°C, 80%RH)
Sound Pressure Level	≤55dB(A)	≤55dB(A)	≤55dB(A)
Max Refrigerant Charge	R290/260g	R290/240g	R290/260g
Net Weight	30.5 kg	28 kg	29.5 kg
Max Suction /	2.8 MPa/0.8 Mpa	2.8 MPa/0.8 Mpa	2.8 MPa/0.8 Mpa

EN

Parameter Description	Parameter Value	Parameter Value	Parameter Value
Exhaust Side
Working Pressure
Heat Exchanger Max Allowable Pressure	2.8 MPa	2.8 MPa	2.8 MPa

General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(generall warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Fire hazard - flammable materials!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

1. Usage safety

ATTENTION!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Air dehumidifier

1.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Use only grounded power sources.

1.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
e) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
f) In case of fire, use a powder or carbon dioxide (CO 2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.

EN

Remember! When using the device, protect children and other bystanders.

1.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

1.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not cover the ventilation openings!
o) ATTENTION! The appliance in its design contains flammable gases serving for insulation. For this reason, at the end of its service life the appliance should be handed over for disposal by professionals.
p) It is forbidden to place the device near an open flame, electric stoves, coal stoves or other heat sources, as well as near direct sunlight.

EN

q) The device must not be connected to the outlet other than wall-mounted socket, do not use a multiple outlet adapter or multiple sockets.
r) The power cord connected to the appliance must be properly grounded and correspond to the technical details!
s) Do not place heavy objects on the device.
t) Do not damage the refrigerant circuit.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

Description

This product can remove moisture per day from the air.

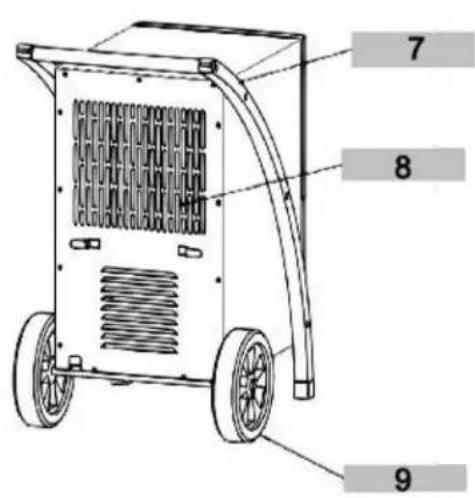

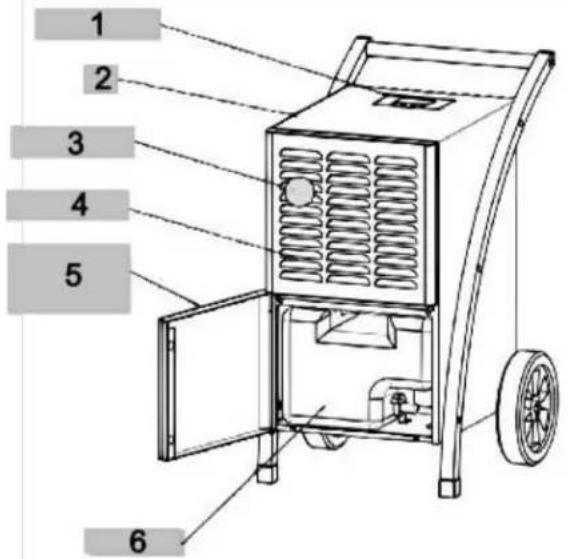

PARTS LIST

Explosive view

Number	Part
1	Display/screen
2	Lid
3	Filter mesh
4	Air inlet
5	Water tank cover plate
6	Water tank
7	Handle
8	Air outlet

EN

Number	Part
9	Wheel

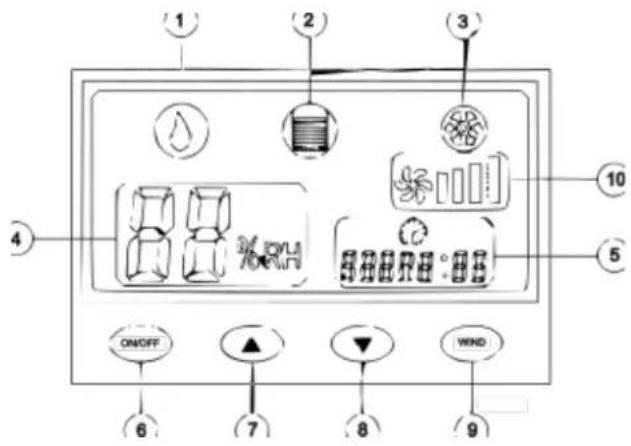

KEYS AND DISPLAY SYMBOLS

Keys and display

Number	function
1	Dehumidification mode
2	Filling level indicator (Water tank)
3	Automatic defrosting indicator
4	Moisture indicator
5	Operating hour counter
6	On/off key
7	Up key
8	Down key
9	Wind key
10	Speed display

Functions of Keys:

1. On/Off Key: Turns the device on and off.
2. Up/down Keys: Set the desired moisture level (30%-80%). Hold the key to adjust quickly.
3. WIND Key: Set the speed for the product.

OPERATINGINSTRUCTIONS

1. Plug in the device. It will emit a signal tone, and the display will show the current environmental moisture level.

EN

1. Set the desired humidity level (30%-80%). The dehumidification mode key will flash during adjustment.
2. After setting the desired level, wait 5 seconds for the value to be saved. The dehumidification mode key will stop flashing, and the product will start working.
3. Ensure the machine is placed on a stable, horizontal surface.
4. The appliance must be installed according to wiring regulations.

AUTOMATIC DEFROSTING FUNCTION

At a low temperature, the device automatically defrosts. The cooling fan will continue to operate while the compressor turns off. The Automatic Defrosting indicator and Wind key will flash.

WATER COLLECTION CONTAINER

If the collection container is full, the Filling Level Indicator will appear, and an acoustic signal will sound for 5 seconds. The device will stop dehumidifying.

PERIOD OF PROCESSING

The operating hour counter displays the number of hours the device has been in use.

IMPORTANT INSTRUCTIONS

• The compressor will start three minutes after turning on the product.
• The ideal operating temperature is between 5^ and 35^ .
• When defrosting, the cooling fan works, but the compressor switches off.
• Clean the filter monthly with warm water.
• Maintain a safe distance between the device and walls for proper air circulation.
• Empty the collection container after each use.
• Unplug the device and store it properly if not in use for extended periods.
• Do not tilt the device more than 45^ during operation or transport.
• If the device is tilted, do not use it for 12 hours.

ERROR MESSAGES

If an error occurs, the display will show the corresponding code.

Error Code	Cause	Solution
E1	Coil Sensor Error	Replace the coil sensor.
E2	Moisture Sensor Error	Replace the moisture sensor.
E3	Temperature Sensor Error	Replace the temperature sensor.
E4	Hot and Cold System Error	Have the system checked by a specialist.
E5	Room Temperature too High	Lower the room temperature, and the product will restart automatically.

TROUBLESHOOTING

Malfunction	Possible Cause	Solution
The product does not work	1. No power	1. Turn on the power.
	2. Main plug not properly plugged	2. Connect the main plug correctly.
	3. Error code E4 displayed	3. Empty the water collection container.
Poor dehumidification	1. Air inlet/outlet covered	1. Uncover the air in/outlet.
Poor performance	1. Doors or windows not closed or low humidity	1. Close all doors and windows.
High noise level	1. Device on uneven ground	1. Place device on even ground.

Instrukcja obstugi

For the disposal of the device please consider and act according to the national and local rules and regulations.
