Product type	Inspection camera
Brand	Laserliner
Model	Ultra Camera
Camera resolution	640 x 480 pixels
Camera head diameter	9 mm
Probe diameter	6 mm
Probe length (Ultra)	10 m
Field of view (FOV)	53°
Depth of field (DOF)	1 to 6 cm
Protection type	IP68 (1.5 m depth, 60 min)
Minimum bending radius of probe	70 mm
Working conditions	0 °C to 45 °C, 20 to 85% RH (non-condensing), max. 4000 m
Storage conditions	-10 °C to 60 °C, max. 80% RH
Dimensions (Ultra)	10000 x 19 x 19 mm
Weight (Ultra)	1100 g
Main functions	Transmits color video images to the LCD screen via the VideoFlex base unit; 4 ultra-bright LEDs integrated
Power supply	Via the VideoFlex base unit
Maintenance and cleaning	Clean with a slightly damp cloth; avoid cleaning agents, abrasives or solvents
Safety	LED group RG0 (harmless to eyes and skin); do not use for medical examinations or near dangerous voltage; avoid contact with chemicals, hot or moving parts
Regulations	Compliant with EU standards (EMC 2014/30/EU); must be disposed of according to WEEE directive

Frequently Asked Questions - Ultra Camera Laserliner

How does the Laserliner Ultra Camera work?

The Ultra Camera is a camera unit designed to be connected to the VideoFlex base unit. It transmits color video images to the LCD screen for inspecting hard-to-reach places (cavities, shafts, masonry, vehicles).

What is the image resolution?

The camera resolution is 640 x 480 pixels.

What is the diameter of the camera head and probe?

The camera head has a diameter of 9 mm and the probe (flexible cable) a diameter of 6 mm.

Is the camera waterproof?

Yes, it has IP68 protection, allowing immersion up to 1.5 m depth for 60 minutes.

Can this camera be used for medical examinations?

No, it is forbidden to use the Flex / XXL / Ultra Camera for medical examinations or on people. The device is designed only for technical inspection.

What is the depth of field?

The depth of field (sharpness zone) is between 1 and 6 cm in front of the camera head. Objects beyond may appear blurry.

How to maintain the camera?

Clean all components with a slightly damp cloth. Do not use cleaning agents, abrasives or solvents. Store the device in a dry, clean place.

What to do if the camera stops working?

If one or more functions stop working or the battery level is low, stop using the device. Consult the manual or contact customer service. Do not modify the construction.

What are the recommended working conditions?

The device can be used between 0 °C and 45 °C with relative humidity of 20 to 85% (non-condensing) and up to 4000 m altitude.

How to dispose of the device at end of life?

According to the European WEEE directive, this product is an electrical device and must be collected and disposed of separately. Do not throw it away with household waste.

USER MANUAL Ultra Camera Laserliner

Coiled black cable with a metallic end cap, no text or symbols visible

Laserliner

Laserliner

!

Diagram of a mechanical component with a highlighted section and a circular detail (no text or symbols)

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

The Flex / XXL / Ultra Camera is a camera unit for connection to the base VideoFlex unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the Flex / XXL / Ultra Camera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The Flex / XXL / Ultra Camera must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

- The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).

- When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

- The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.

Laserliner

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

1 Base unit connection

2 Flexible cable

3 Camera head with 4 high-power LEDs

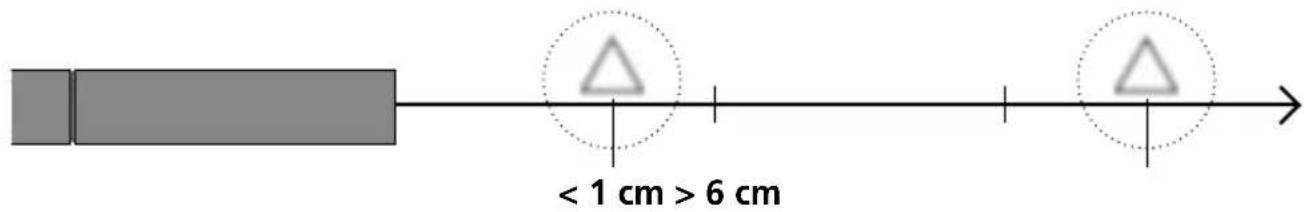

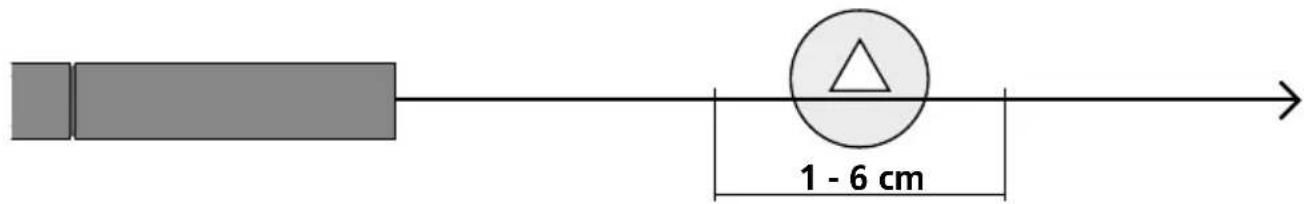

1 Focal depth

The Flex / XXL / Ultra Camera delivers sharp images in a range between 1 and 6 cm from the camera head.

Objects well beyond the focus range may appear blurred.

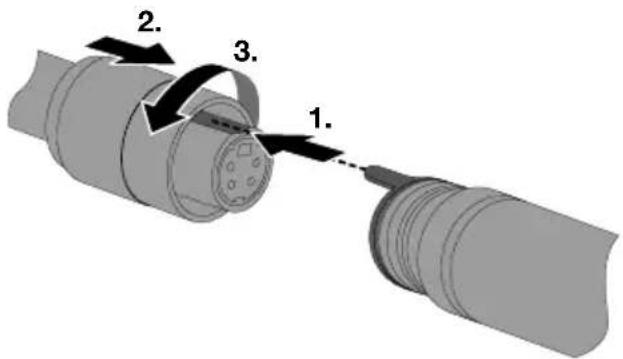

2 Connection for flexible cable

Technical data

Subject to technical alterations. 20W50

Camera resolution 640 x 480 pixels
Camera head ø 9 mm
Protection class IP 68 (immersion depth 1.5 m, 60 min.)
Min. bending radius camera probe 70 mm
Field of view (FOV) 53°
Depth of field (DOF) 1 ... 6 cm
Camera probe diameter 6 mm
Camera probe length Flex 1.5 m
Camera probe length XXL 5 m
Camera probe length Ultra 10 m
Length camera head 50 mm
Operating conditions	0°C ... 45°C, max. humidity 20 ... 85% rH,no condensation, max. working altitude 4000 mabove sea level
Storage conditions -10°C ... 60°C, max. humidity 80% rH
Dimensions (W x H x D) Flex 1500 x 19 x 19 mm
Dimensions (W x H x D) XXL	5000 x 19 x 19 mm
Dimensions (W x H x D) Ultra	10000 x 19 x 19 mm
Weight Flex	165 g
Weight XXL	550 g
Weight Ultra 1100 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AKV

!
